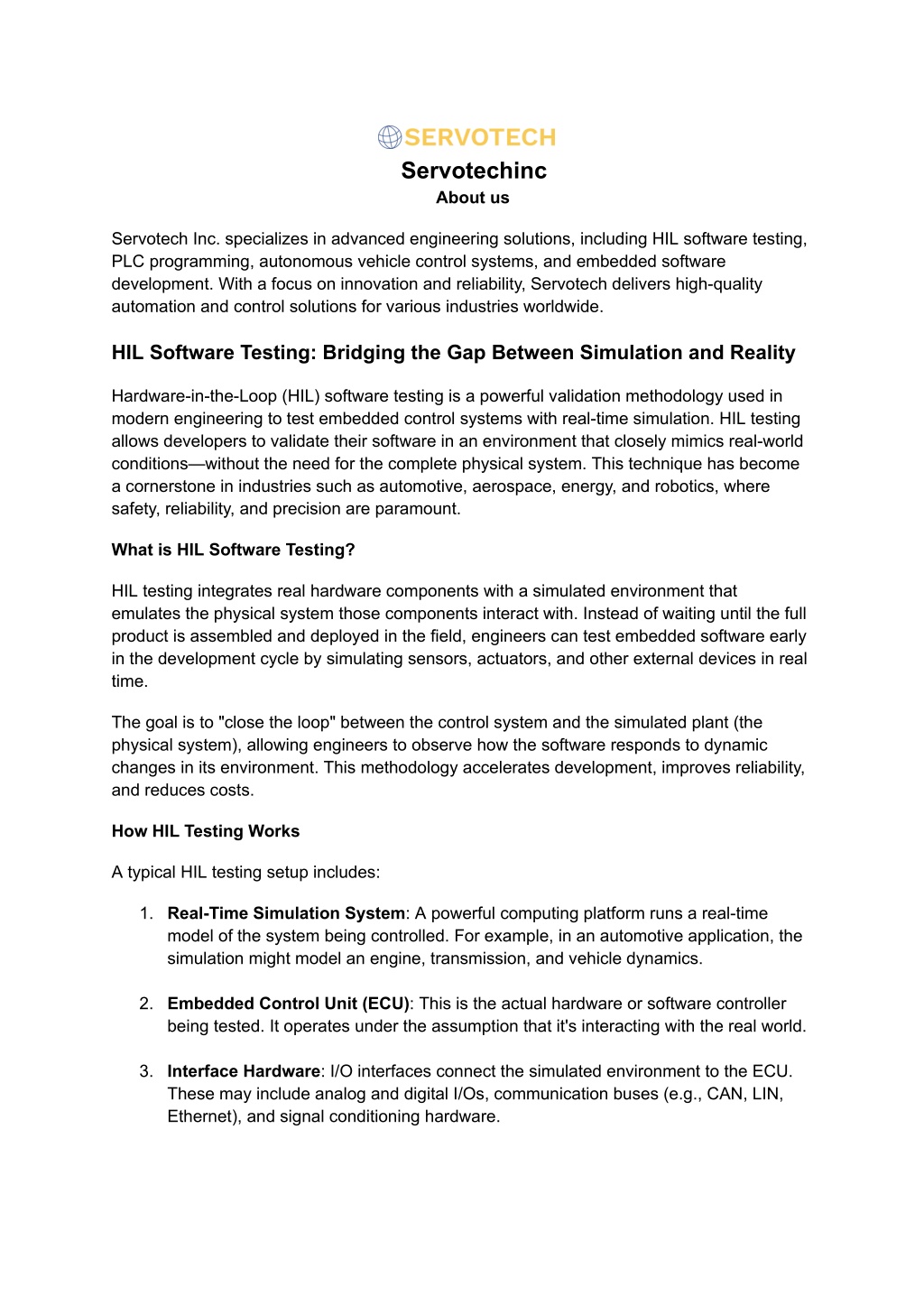

1. Servotechinc About us Servotech Inc. specializes in advanced engineering solutions, including HIL software testing, PLC programming, autonomous vehicle control systems, and embedded software development. With a focus on innovation and reliability, Servotech delivers high-quality automation and control solutions for various industries worldwide. HIL Software Testing: Bridging the Gap Between Simulation and Reality Hardware-in-the-Loop (HIL) software testing is a powerful validation methodology used in modern engineering to test embedded control systems with real-time simulation. HIL testing allows developers to validate their software in an environment that closely mimics real-world conditions—without the need for the complete physical system. This technique has become a cornerstone in industries such as automotive, aerospace, energy, and robotics, where safety, reliability, and precision are paramount. What is HIL Software Testing? HIL testing integrates real hardware components with a simulated environment that emulates the physical system those components interact with. Instead of waiting until the full product is assembled and deployed in the field, engineers can test embedded software early in the development cycle by simulating sensors, actuators, and other external devices in real time. The goal is to "close the loop" between the control system and the simulated plant (the physical system), allowing engineers to observe how the software responds to dynamic changes in its environment. This methodology accelerates development, improves reliability, and reduces costs. How HIL Testing Works A typical HIL testing setup includes: 1. Real-Time Simulation System: A powerful computing platform runs a real-time model of the system being controlled. For example, in an automotive application, the simulation might model an engine, transmission, and vehicle dynamics. 2. Embedded Control Unit (ECU): This is the actual hardware or software controller being tested. It operates under the assumption that it's interacting with the real world. 3. Interface Hardware: I/O interfaces connect the simulated environment to the ECU. These may include analog and digital I/Os, communication buses (e.g., CAN, LIN, Ethernet), and signal conditioning hardware.

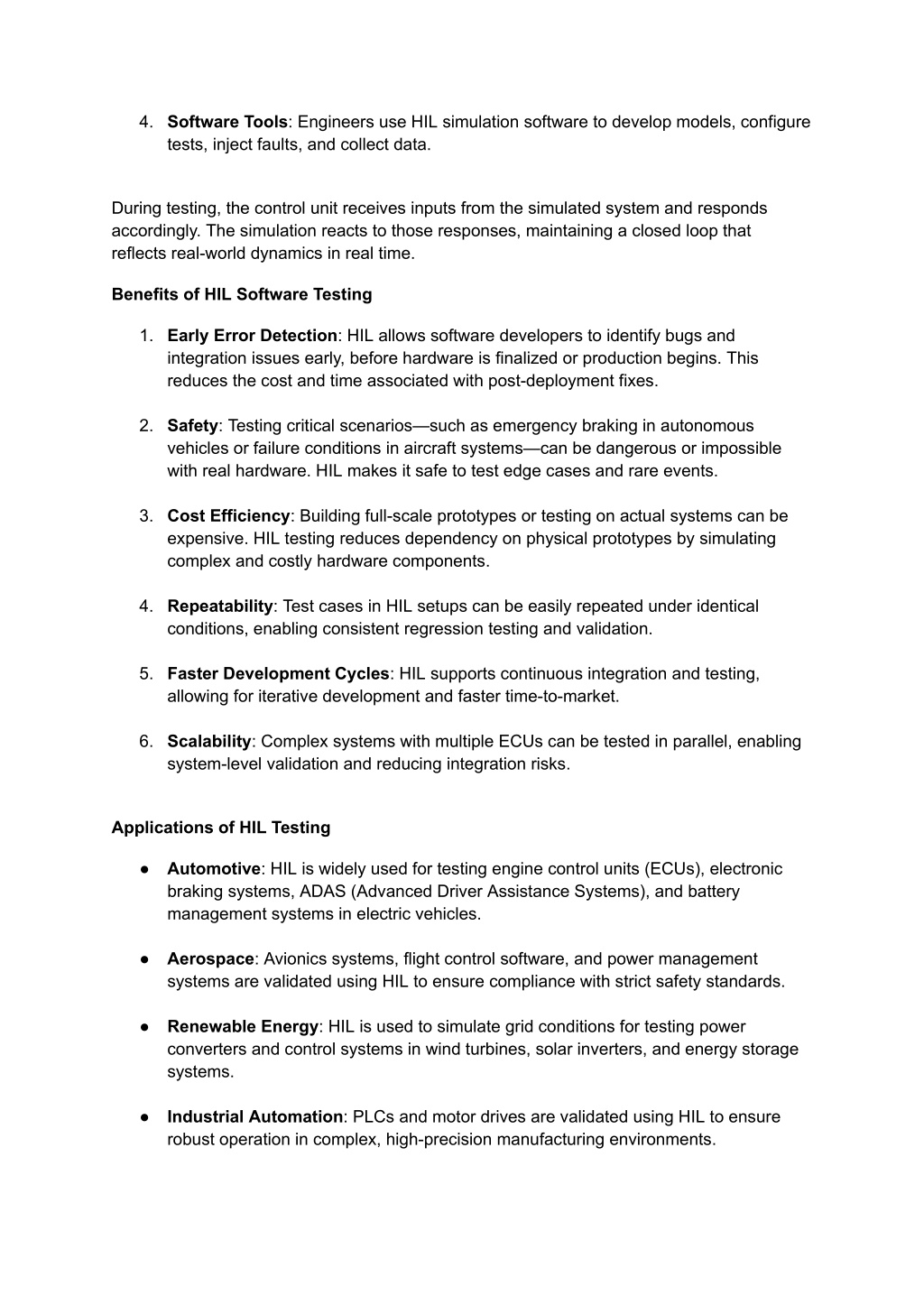

2. 4. Software Tools: Engineers use HIL simulation software to develop models, configure tests, inject faults, and collect data. During testing, the control unit receives inputs from the simulated system and responds accordingly. The simulation reacts to those responses, maintaining a closed loop that reflects real-world dynamics in real time. Benefits of HIL Software Testing 1. Early Error Detection: HIL allows software developers to identify bugs and integration issues early, before hardware is finalized or production begins. This reduces the cost and time associated with post-deployment fixes. 2. Safety: Testing critical scenarios—such as emergency braking in autonomous vehicles or failure conditions in aircraft systems—can be dangerous or impossible with real hardware. HIL makes it safe to test edge cases and rare events. 3. Cost Efficiency: Building full-scale prototypes or testing on actual systems can be expensive. HIL testing reduces dependency on physical prototypes by simulating complex and costly hardware components. 4. Repeatability: Test cases in HIL setups can be easily repeated under identical conditions, enabling consistent regression testing and validation. 5. Faster Development Cycles: HIL supports continuous integration and testing, allowing for iterative development and faster time-to-market. 6. Scalability: Complex systems with multiple ECUs can be tested in parallel, enabling system-level validation and reducing integration risks. Applications of HIL Testing ● Automotive: HIL is widely used for testing engine control units (ECUs), electronic braking systems, ADAS (Advanced Driver Assistance Systems), and battery management systems in electric vehicles. ● Aerospace: Avionics systems, flight control software, and power management systems are validated using HIL to ensure compliance with strict safety standards. ● Renewable Energy: HIL is used to simulate grid conditions for testing power converters and control systems in wind turbines, solar inverters, and energy storage systems. ● Industrial Automation: PLCs and motor drives are validated using HIL to ensure robust operation in complex, high-precision manufacturing environments.

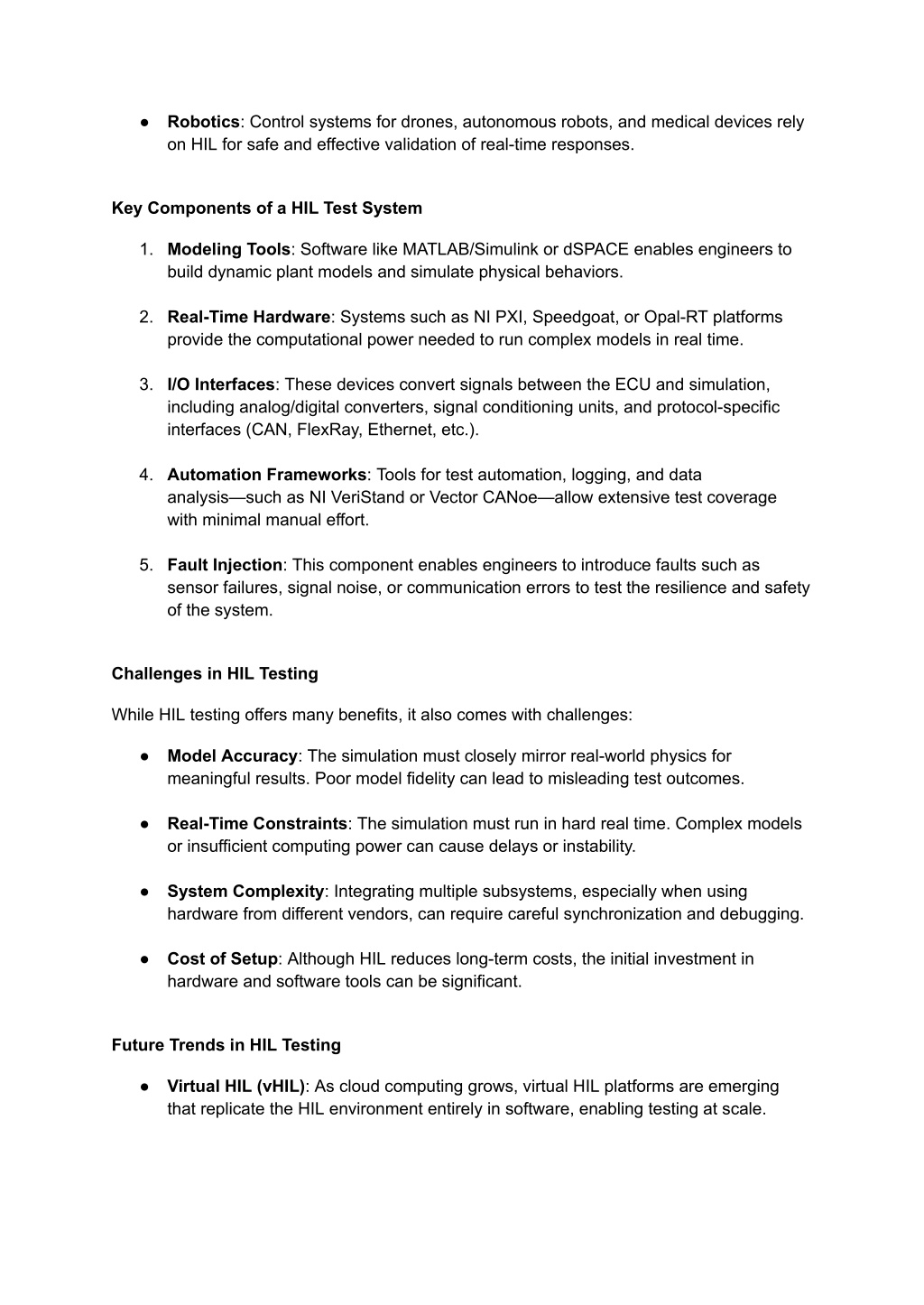

3. ● Robotics: Control systems for drones, autonomous robots, and medical devices rely on HIL for safe and effective validation of real-time responses. Key Components of a HIL Test System 1. Modeling Tools: Software like MATLAB/Simulink or dSPACE enables engineers to build dynamic plant models and simulate physical behaviors. 2. Real-Time Hardware: Systems such as NI PXI, Speedgoat, or Opal-RT platforms provide the computational power needed to run complex models in real time. 3. I/O Interfaces: These devices convert signals between the ECU and simulation, including analog/digital converters, signal conditioning units, and protocol-specific interfaces (CAN, FlexRay, Ethernet, etc.). 4. Automation Frameworks: Tools for test automation, logging, and data analysis—such as NI VeriStand or Vector CANoe—allow extensive test coverage with minimal manual effort. 5. Fault Injection: This component enables engineers to introduce faults such as sensor failures, signal noise, or communication errors to test the resilience and safety of the system. Challenges in HIL Testing While HIL testing offers many benefits, it also comes with challenges: ● Model Accuracy: The simulation must closely mirror real-world physics for meaningful results. Poor model fidelity can lead to misleading test outcomes. ● Real-Time Constraints: The simulation must run in hard real time. Complex models or insufficient computing power can cause delays or instability. ● System Complexity: Integrating multiple subsystems, especially when using hardware from different vendors, can require careful synchronization and debugging. ● Cost of Setup: Although HIL reduces long-term costs, the initial investment in hardware and software tools can be significant. Future Trends in HIL Testing ● Virtual HIL (vHIL): As cloud computing grows, virtual HIL platforms are emerging that replicate the HIL environment entirely in software, enabling testing at scale.

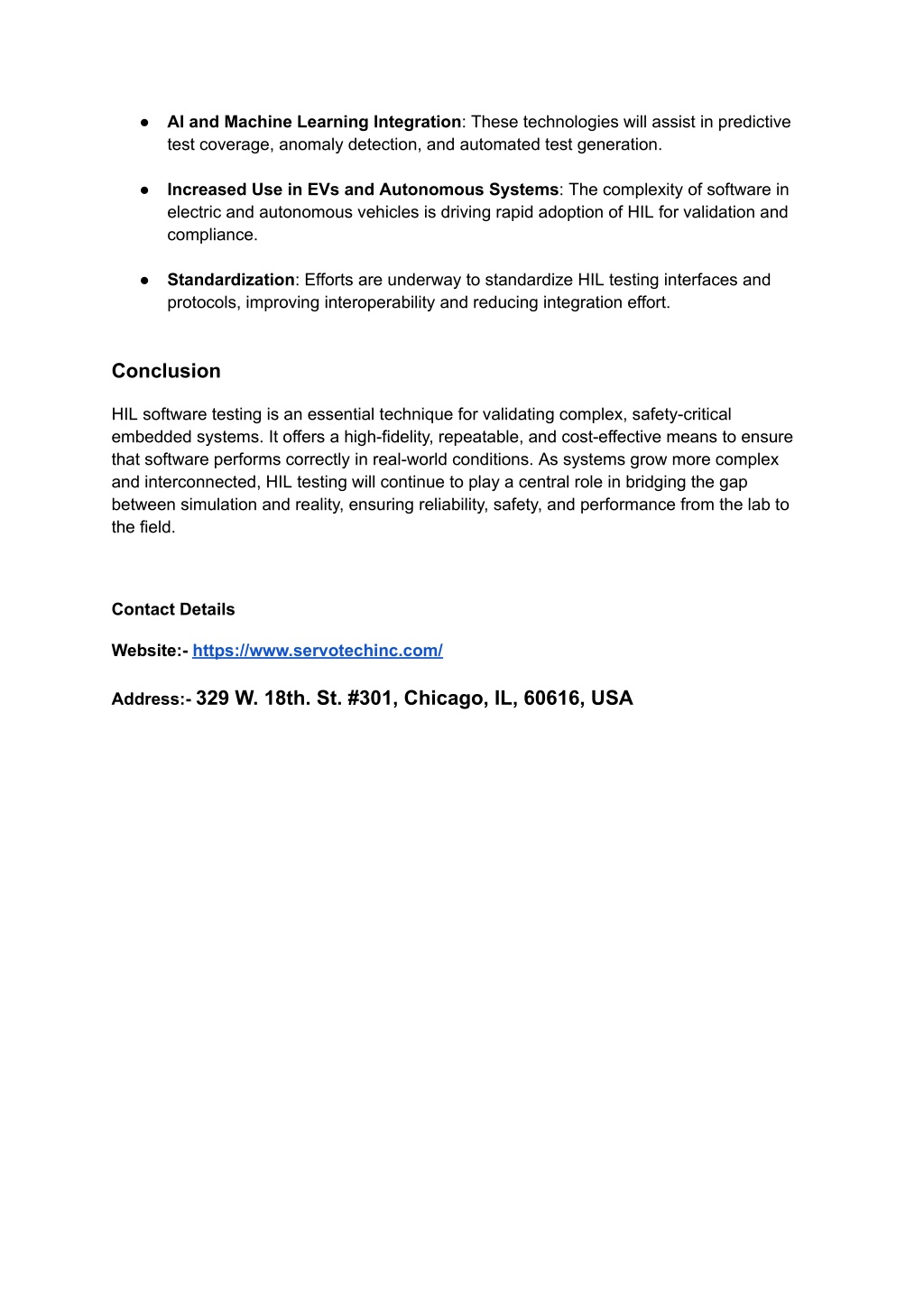

4. ● AI and Machine Learning Integration: These technologies will assist in predictive test coverage, anomaly detection, and automated test generation. ● Increased Use in EVs and Autonomous Systems: The complexity of software in electric and autonomous vehicles is driving rapid adoption of HIL for validation and compliance. ● Standardization: Efforts are underway to standardize HIL testing interfaces and protocols, improving interoperability and reducing integration effort. Conclusion HIL software testing is an essential technique for validating complex, safety-critical embedded systems. It offers a high-fidelity, repeatable, and cost-effective means to ensure that software performs correctly in real-world conditions. As systems grow more complex and interconnected, HIL testing will continue to play a central role in bridging the gap between simulation and reality, ensuring reliability, safety, and performance from the lab to the field. Contact Details Website:- https://www.servotechinc.com/ Address:- 329 W. 18th. St. #301, Chicago, IL, 60616, USA
