Serrax Technologies' Product Catalogue

Serrax Technologies is a well-known manufacturer and supplier of environmental monitoring systems. The company is dedicated to providing high-quality and reliable monitoring solutions to help individuals, businesses, and organizations maintain a healthy and safe environment.<br><br>The company's product line includes a range of environmental monitoring systems, such as air quality monitors, automatic weather stations, sound level meters, and more. Each of these systems is designed to provide accurate and up-to-date information about the surrounding environment, helping users make informed decisions

Serrax
Download Presentation

Serrax Technologies' Product Catalogue

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

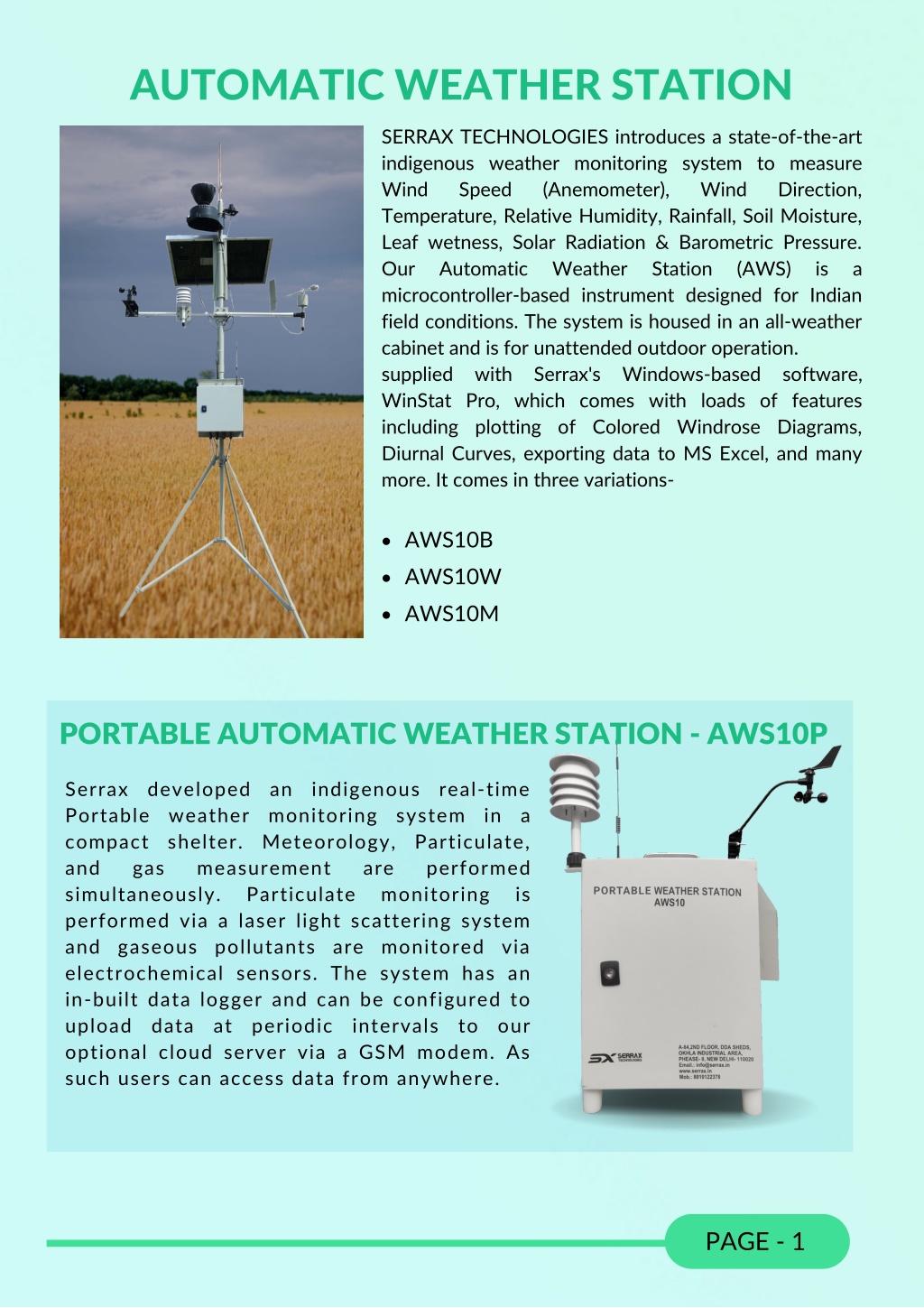

  1. AUTOMATIC WEATHER STATION SERRAX TECHNOLOGIES introduces a state-of-the-art indigenous weather monitoring system to measure Wind Speed (Anemometer), Temperature, Relative Humidity, Rainfall, Soil Moisture, Leaf wetness, Solar Radiation & Barometric Pressure. Our Automatic Weather microcontroller-based instrument designed for Indian field conditions. The system is housed in an all-weather cabinet and is for unattended outdoor operation. supplied with Serrax's Windows-based software, WinStat Pro, which comes with loads of features including plotting of Colored Windrose Diagrams, Diurnal Curves, exporting data to MS Excel, and many more. It comes in three variations- Wind Direction, Station (AWS) is a AWS10B AWS10W AWS10M PORTABLE AUTOMATIC WEATHER STATION - AWS10P Serrax developed an indigenous real-time Portable weather monitoring system in a compact shelter. Meteorology, Particulate, and gas measurement simultaneously. Particulate performed via a laser light scattering system and gaseous pollutants are monitored via electrochemical sensors. The system has an in-built data logger and can be configured to upload data at periodic intervals to our optional cloud server via a GSM modem. As such users can access data from anywhere. are monitoring performed is PAGE - 1

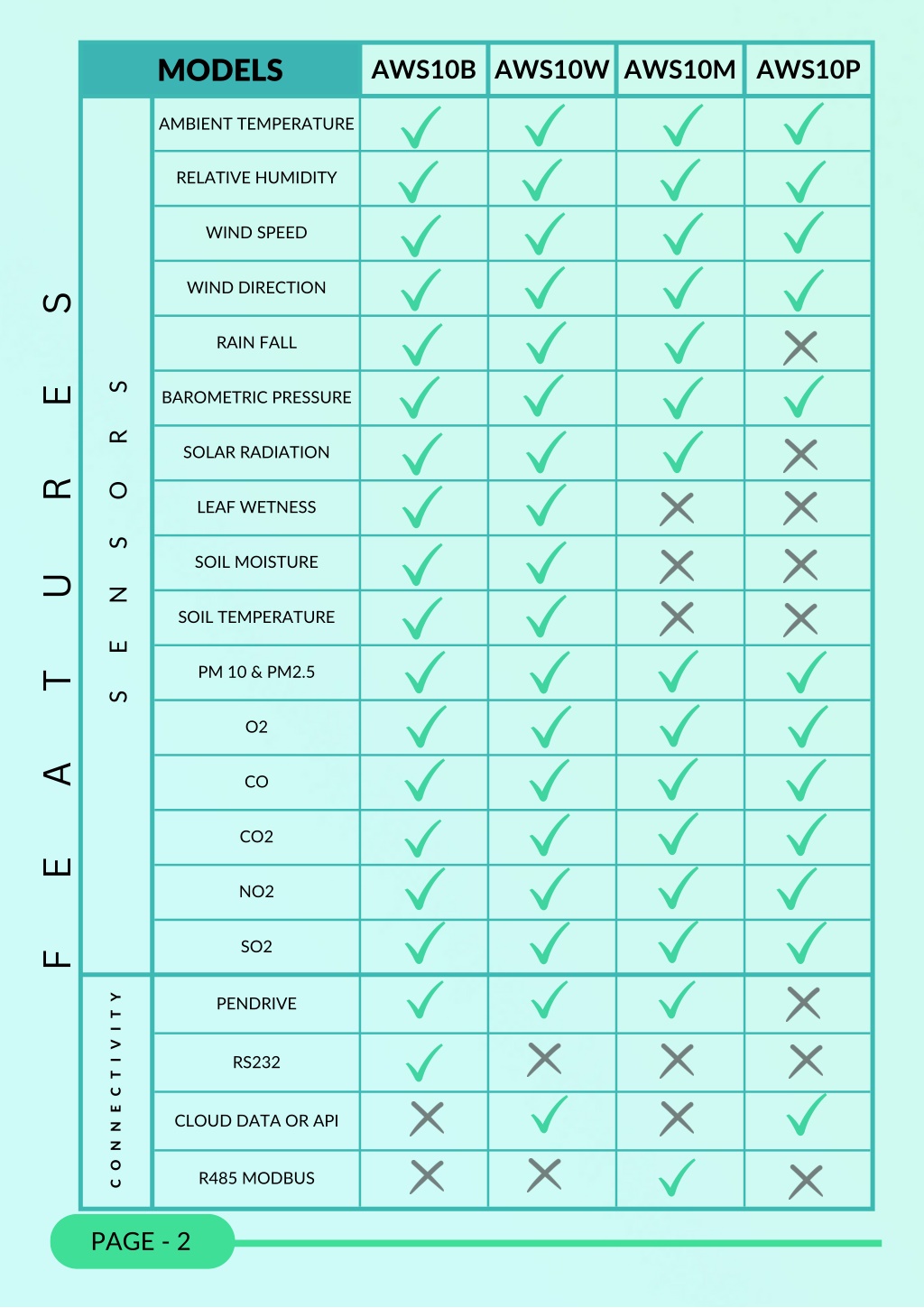

  2. MODELS AWS10B AWS10W AWS10M AWS10P AMBIENT TEMPERATURE RELATIVE HUMIDITY WIND SPEED WIND DIRECTION F E A T U R E S RAIN FALL S E N S O R S BAROMETRIC PRESSURE SOLAR RADIATION LEAF WETNESS SOIL MOISTURE SOIL TEMPERATURE PM 10 & PM2.5 O2 CO CO2 NO2 SO2 C O N N E C T I V I T Y PENDRIVE RS232 CLOUD DATA OR API R485 MODBUS PAGE - 2

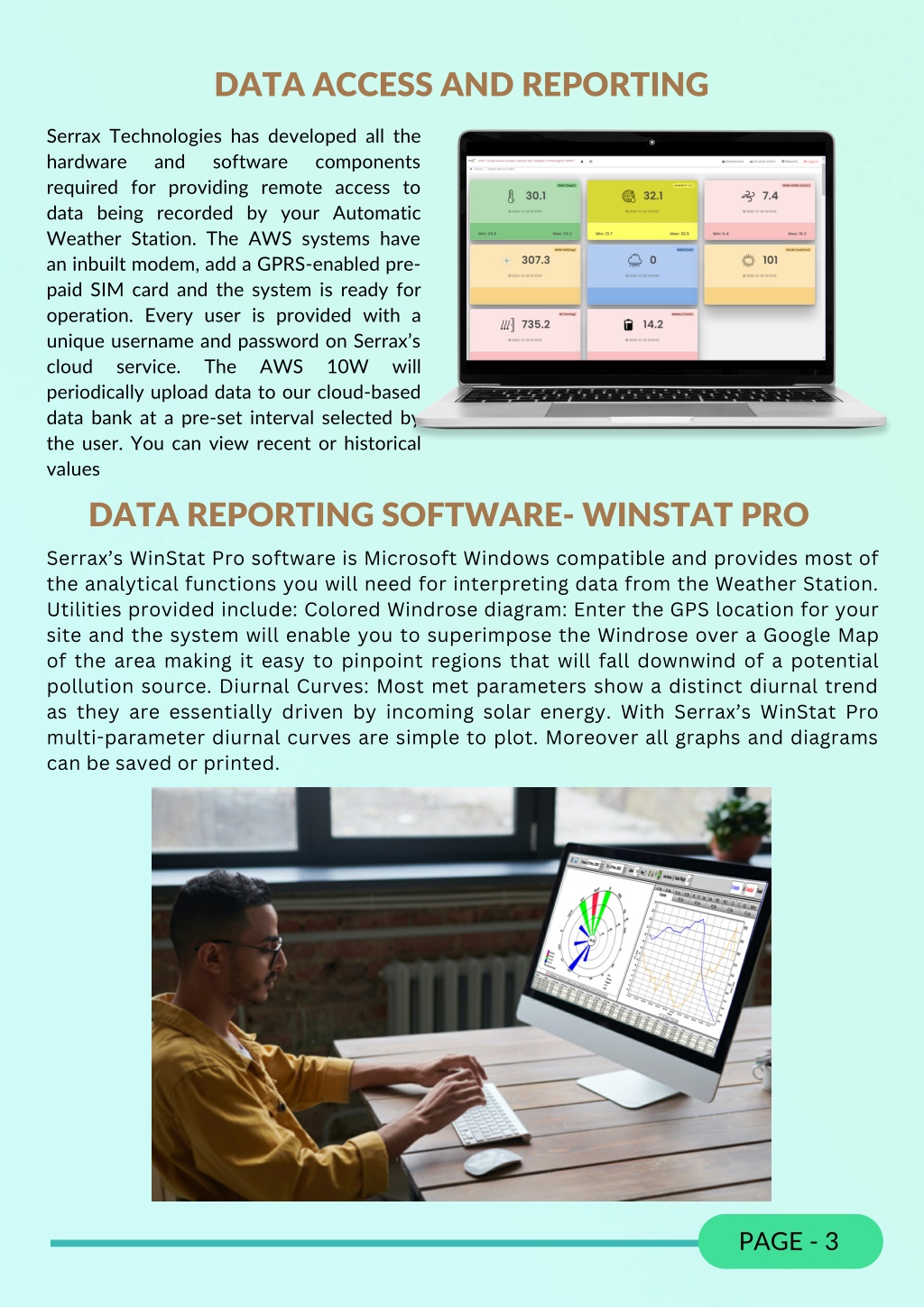

  3. DATA ACCESS AND REPORTING Serrax Technologies has developed all the hardware and software required for providing remote access to data being recorded by your Automatic Weather Station. The AWS systems have an inbuilt modem, add a GPRS-enabled pre- paid SIM card and the system is ready for operation. Every user is provided with a unique username and password on Serrax’s cloud service. The periodically upload data to our cloud-based data bank at a pre-set interval selected by the user. You can view recent or historical values DATA REPORTING SOFTWARE- WINSTAT PRO components AWS 10W will Serrax’s WinStat Pro software is Microsoft Windows compatible and provides most of the analytical functions you will need for interpreting data from the Weather Station. Utilities provided include: Colored Windrose diagram: Enter the GPS location for your site and the system will enable you to superimpose the Windrose over a Google Map of the area making it easy to pinpoint regions that will fall downwind of a potential pollution source. Diurnal Curves: Most met parameters show a distinct diurnal trend as they are essentially driven by incoming solar energy. With Serrax’s WinStat Pro multi-parameter diurnal curves are simple to plot. Moreover all graphs and diagrams can be saved or printed. PAGE - 3

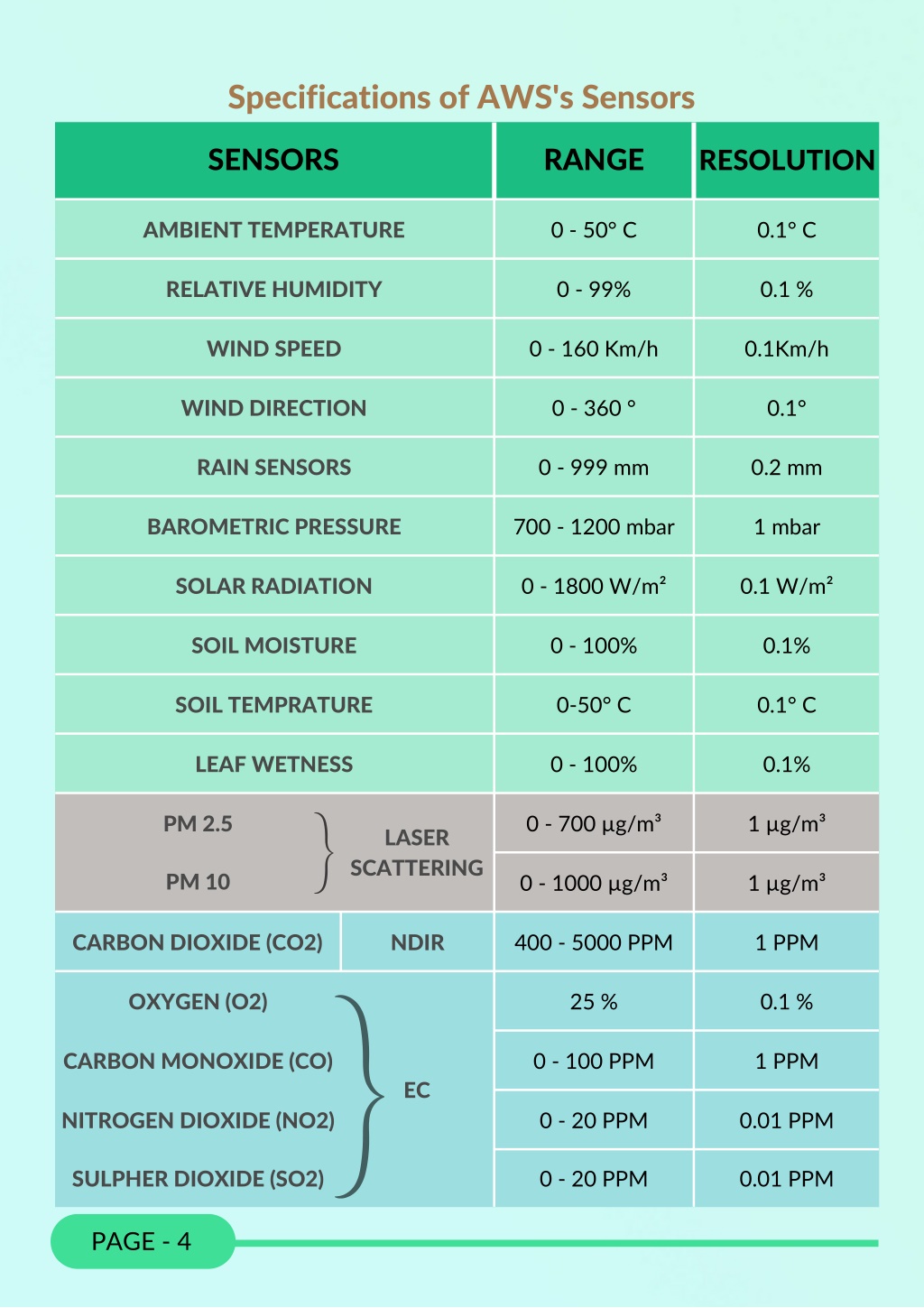

  4. Specifications of AWS's Sensors SENSORS RANGE RESOLUTION AMBIENT TEMPERATURE 0 - 50° C 0.1° C RELATIVE HUMIDITY 0 - 99% 0.1 % WIND SPEED 0 - 160 Km/h 0.1Km/h WIND DIRECTION 0 - 360 ° 0.1° RAIN SENSORS 0 - 999 mm 0.2 mm BAROMETRIC PRESSURE 700 - 1200 mbar 1 mbar SOLAR RADIATION 0 - 1800 W/m² 0.1 W/m² SOIL MOISTURE 0 - 100% 0.1% SOIL TEMPRATURE 0-50° C 0.1° C LEAF WETNESS 0 - 100% 0.1% PM 2.5 0 - 700 µg/m³ 1 µg/m³ LASER SCATTERING PM 10 0 - 1000 µg/m³ 1 µg/m³ CARBON DIOXIDE (CO2) NDIR 400 - 5000 PPM 1 PPM OXYGEN (O2) 25 % 0.1 % CARBON MONOXIDE (CO) 0 - 100 PPM 1 PPM EC NITROGEN DIOXIDE (NO2) 0 - 20 PPM 0.01 PPM SULPHER DIOXIDE (SO2) 0 - 20 PPM 0.01 PPM PAGE - 4

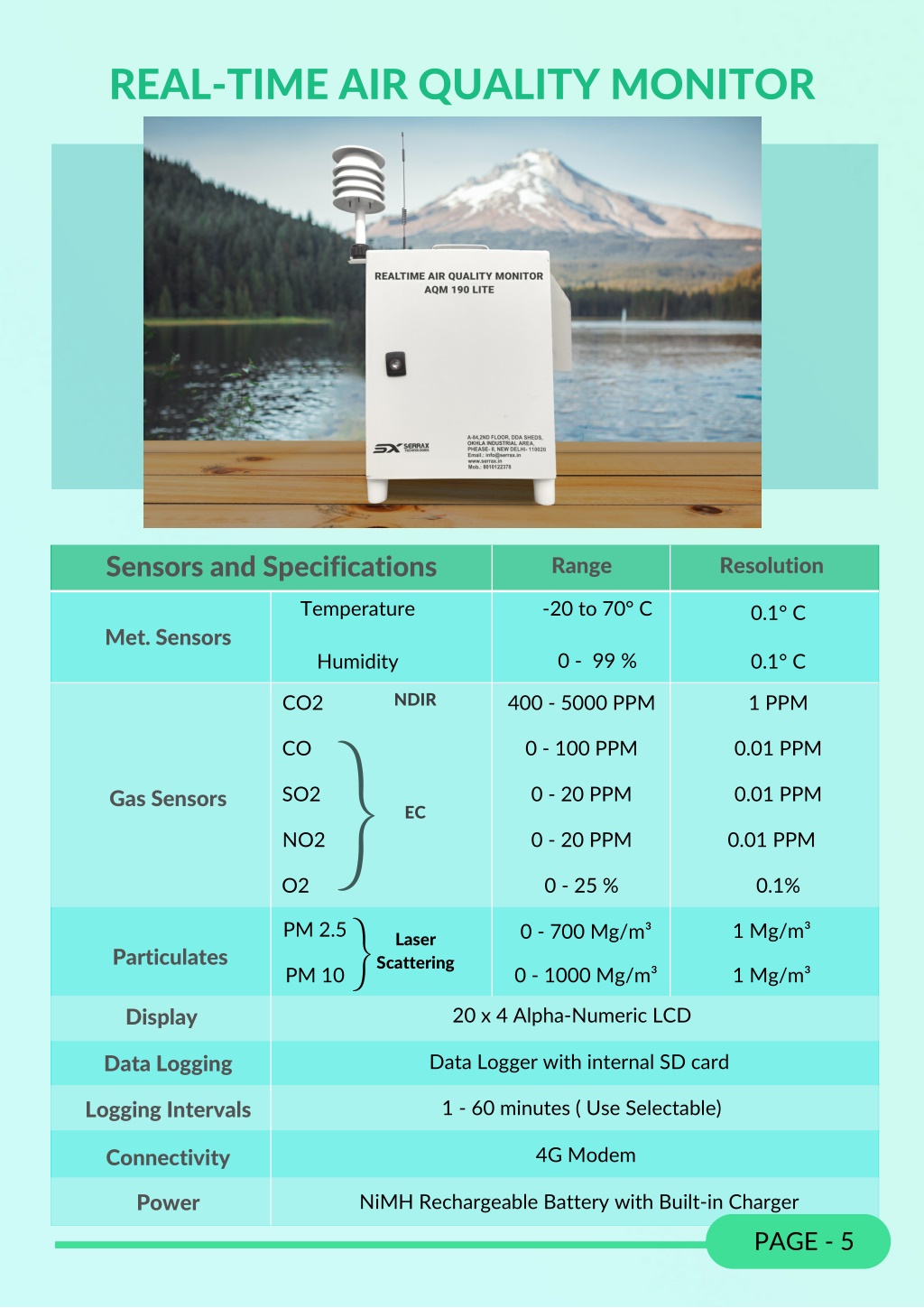

  5. REAL-TIME AIR QUALITY MONITOR Sensors and Specifications Range Resolution Temperature -20 to 70° C 0.1° C Met. Sensors 0 - 99 % Humidity 0.1° C NDIR CO2 400 - 5000 PPM 1 PPM CO 0 - 100 PPM 0.01 PPM SO2 0 - 20 PPM 0.01 PPM Gas Sensors EC NO2 0 - 20 PPM 0.01 PPM O2 0 - 25 % 0.1% PM 2.5 1 Mg/m³ 0 - 700 Mg/m³ Laser Scattering Particulates PM 10 0 - 1000 Mg/m³ 1 Mg/m³ 20 x 4 Alpha-Numeric LCD Display Data Logger with internal SD card Data Logging 1 - 60 minutes ( Use Selectable) Logging Intervals 4G Modem Connectivity Power NiMH Rechargeable Battery with Built-in Charger PAGE - 5

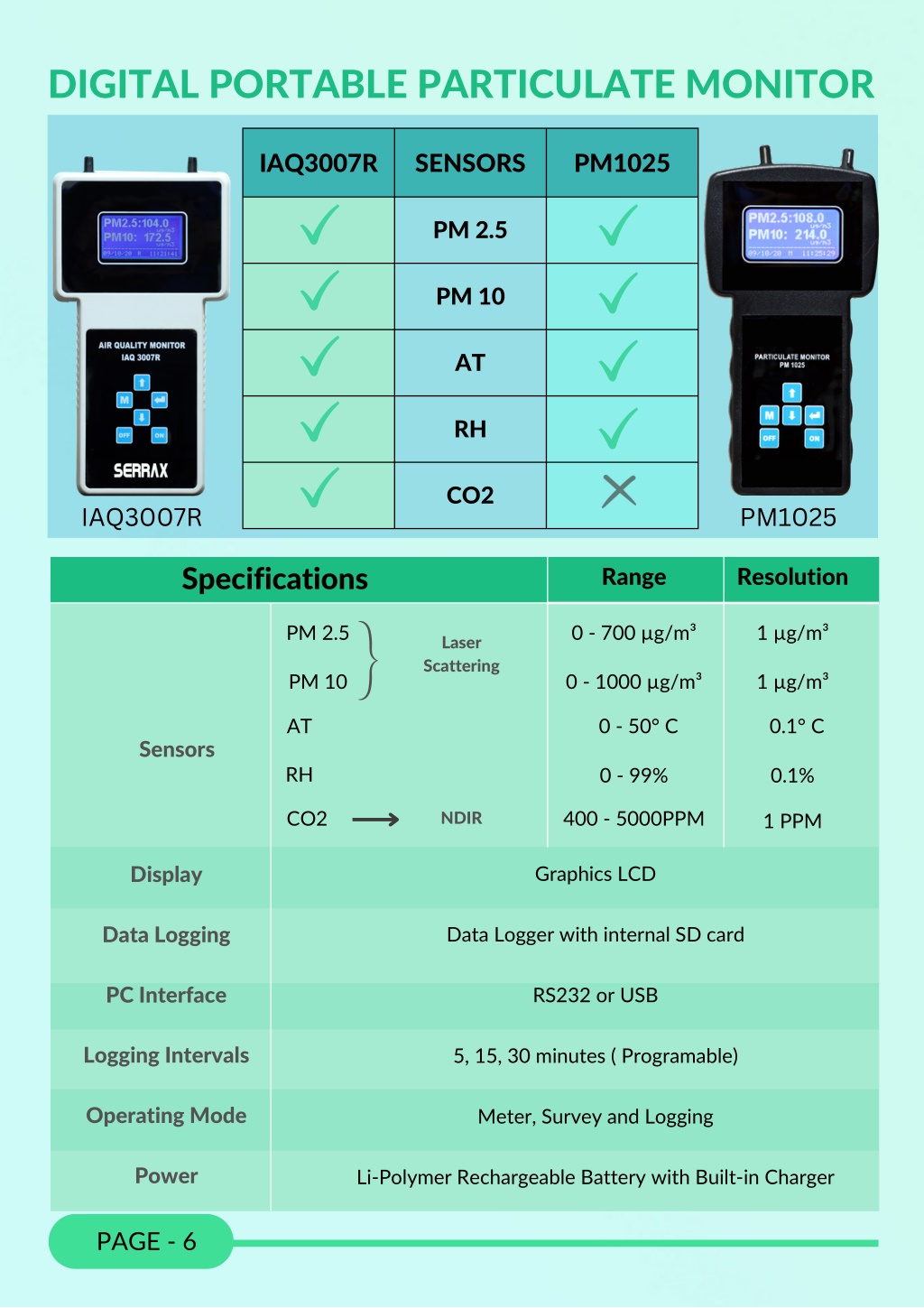

  6. DIGITAL PORTABLE PARTICULATE MONITOR IAQ3007R SENSORS PM1025 PM 2.5 PM 10 AT RH CO2 IAQ3007R PM1025 Specifications Range Resolution PM 2.5 0 - 700 µg/m³ 1 µg/m³ Laser Scattering PM 10 0 - 1000 µg/m³ 1 µg/m³ AT 0 - 50° C 0.1° C Sensors RH 0 - 99% 0.1% CO2 400 - 5000PPM NDIR 1 PPM Display Graphics LCD Data Logging Data Logger with internal SD card PC Interface RS232 or USB Logging Intervals 5, 15, 30 minutes ( Programable) Operating Mode Meter, Survey and Logging Power Li-Polymer Rechargeable Battery with Built-in Charger PAGE - 6

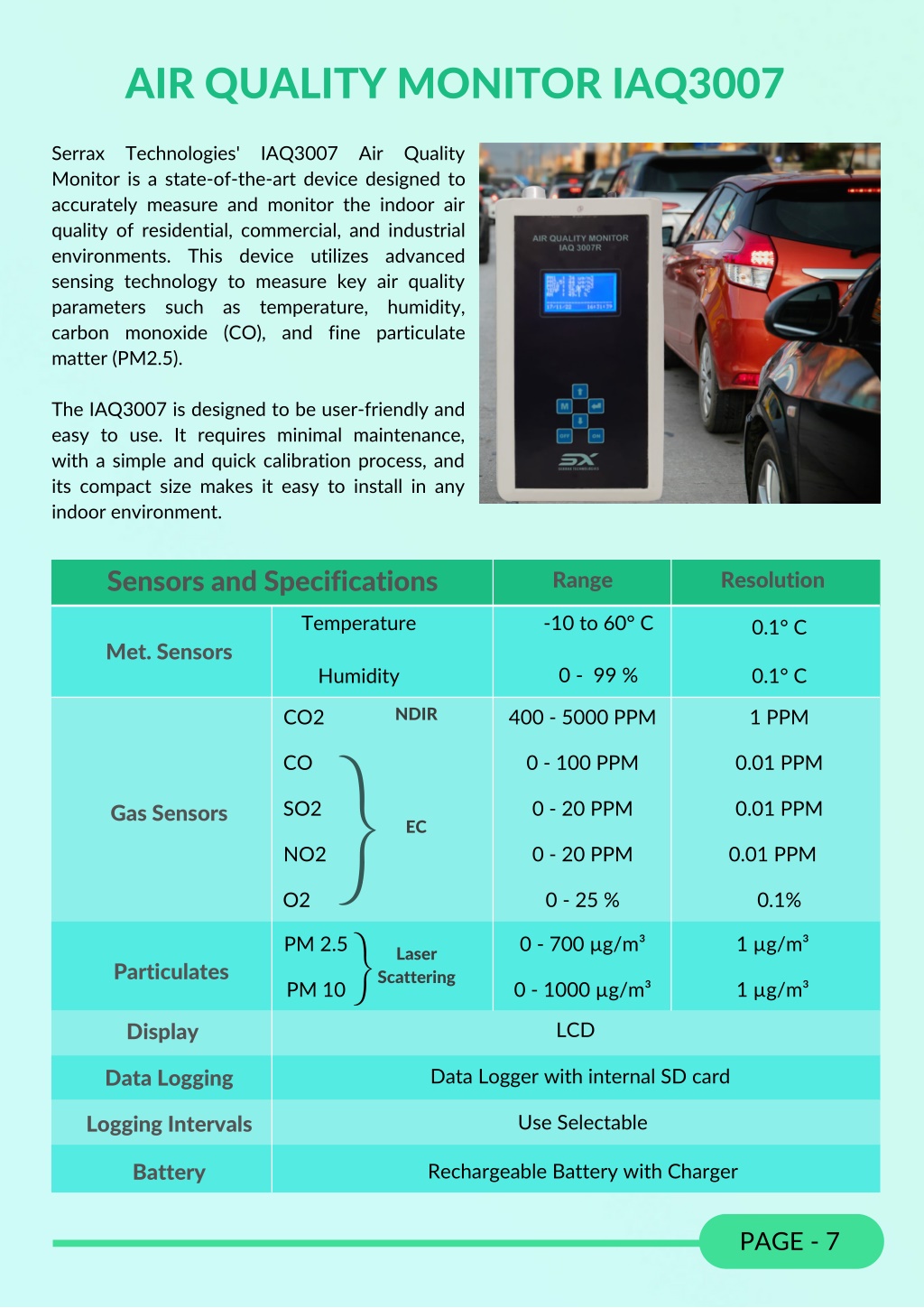

  7. AIR QUALITY MONITOR IAQ3007 Serrax Technologies' IAQ3007 Air Quality Monitor is a state-of-the-art device designed to accurately measure and monitor the indoor air quality of residential, commercial, and industrial environments. This device utilizes advanced sensing technology to measure key air quality parameters such as temperature, humidity, carbon monoxide (CO), and fine particulate matter (PM2.5). The IAQ3007 is designed to be user-friendly and easy to use. It requires minimal maintenance, with a simple and quick calibration process, and its compact size makes it easy to install in any indoor environment. Sensors and Specifications Range Resolution Temperature -10 to 60° C 0.1° C Met. Sensors 0 - 99 % Humidity 0.1° C NDIR CO2 400 - 5000 PPM 1 PPM CO 0 - 100 PPM 0.01 PPM SO2 0 - 20 PPM 0.01 PPM Gas Sensors EC NO2 0 - 20 PPM 0.01 PPM O2 0 - 25 % 0.1% PM 2.5 0 - 700 µg/m³ 1 µg/m³ Laser Scattering Particulates PM 10 0 - 1000 µg/m³ 1 µg/m³ LCD Display Data Logger with internal SD card Data Logging Use Selectable Logging Intervals Battery Rechargeable Battery with Charger PAGE - 7

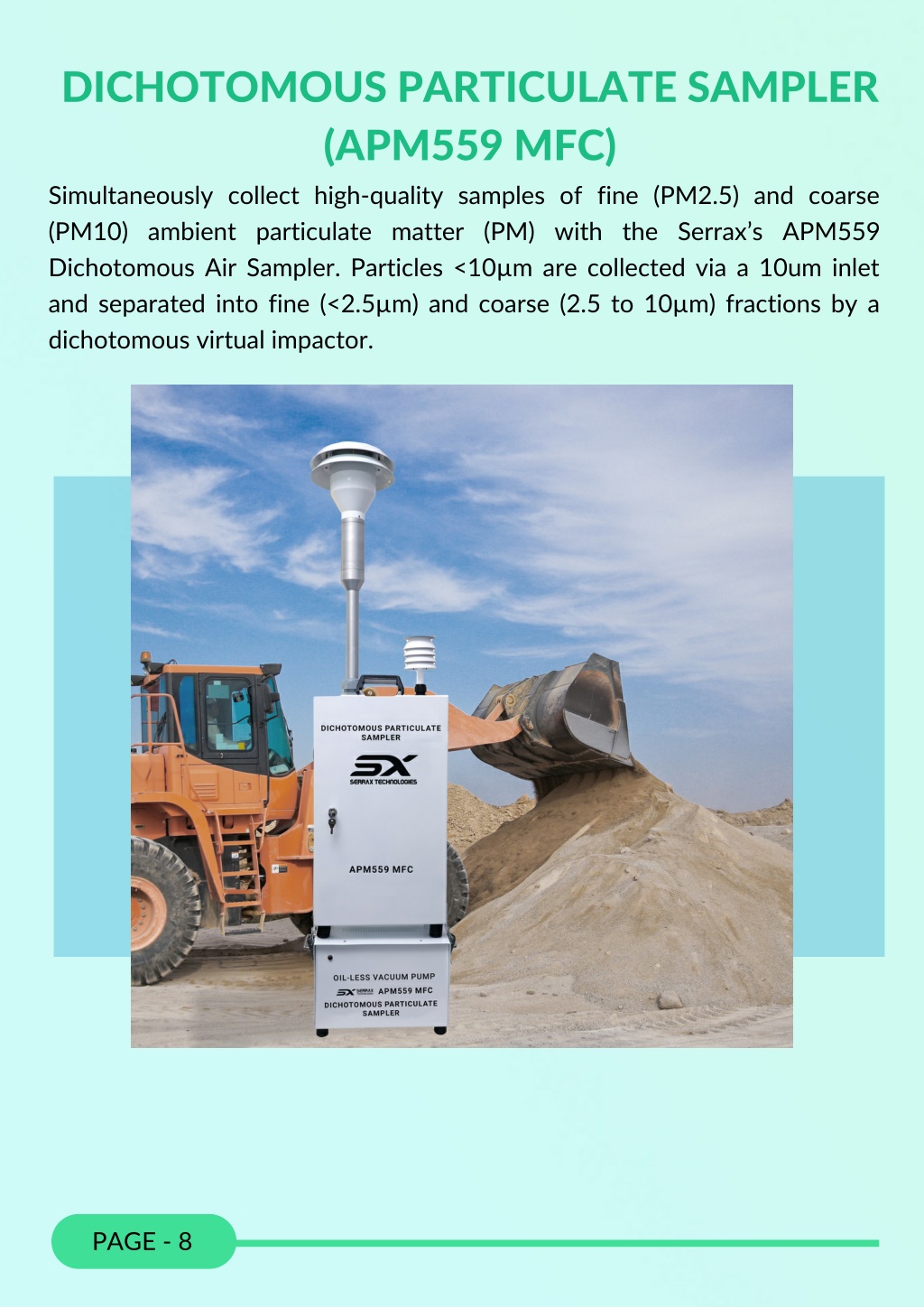

  8. DICHOTOMOUS PARTICULATE SAMPLER (APM559 MFC) (PM10) ambient particulate matter (PM) with the Serrax’s APM559 Dichotomous Air Sampler. Particles <10µm are collected via a 10um inlet and separated into fine (<2.5µm) and coarse (2.5 to 10µm) fractions by a dichotomous virtual impactor. Simultaneously collect high-quality samples of fine (PM2.5) and coarse PAGE - 8

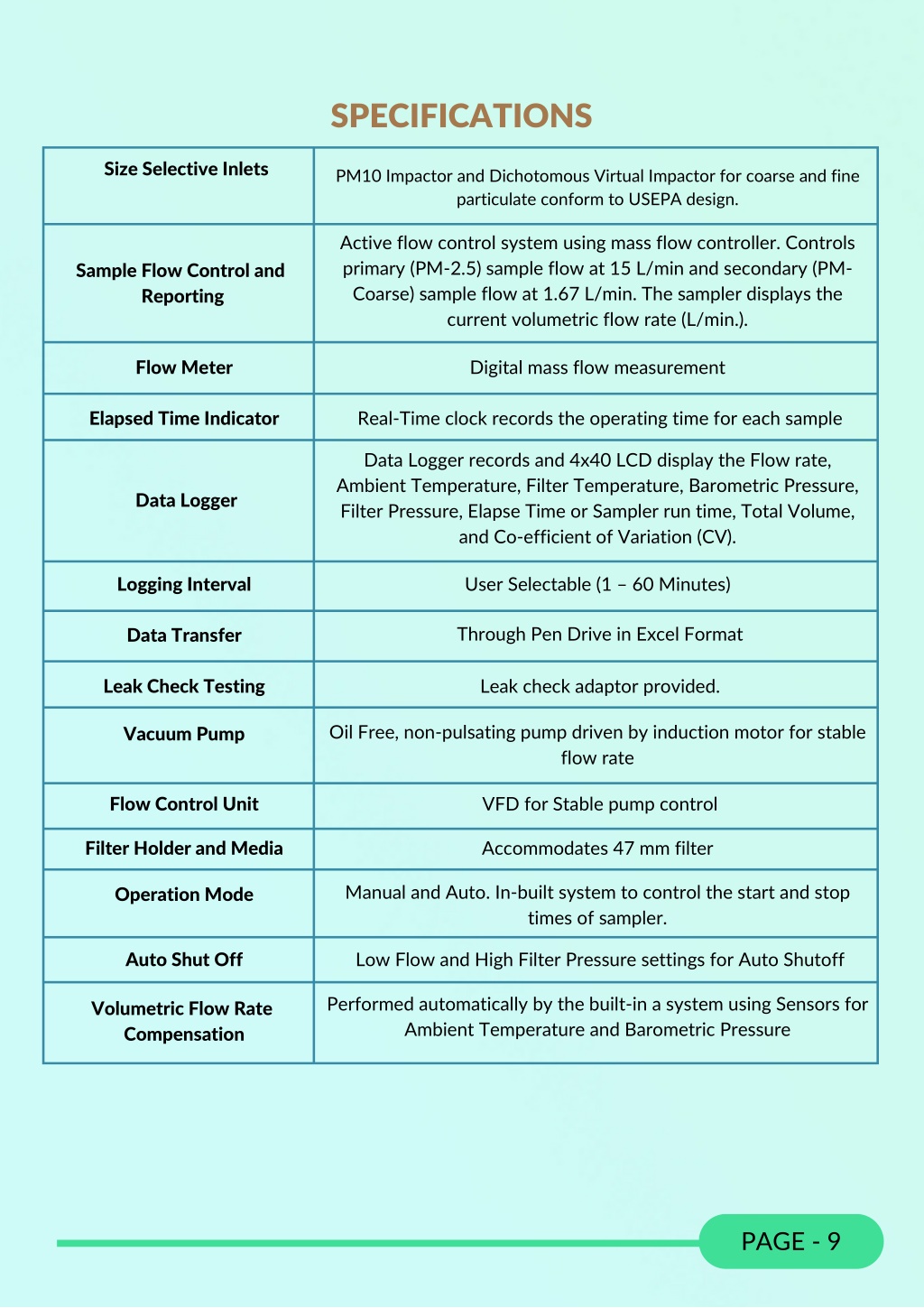

  9. SPECIFICATIONS Size Selective Inlets PM10 Impactor and Dichotomous Virtual Impactor for coarse and fine particulate conform to USEPA design. Active flow control system using mass flow controller. Controls primary (PM-2.5) sample flow at 15 L/min and secondary (PM- Coarse) sample flow at 1.67 L/min. The sampler displays the current volumetric flow rate (L/min.). Sample Flow Control and Reporting Flow Meter Digital mass flow measurement Elapsed Time Indicator Real-Time clock records the operating time for each sample Data Logger records and 4x40 LCD display the Flow rate, Ambient Temperature, Filter Temperature, Barometric Pressure, Filter Pressure, Elapse Time or Sampler run time, Total Volume, and Co-efficient of Variation (CV). Data Logger Logging Interval User Selectable (1 – 60 Minutes) Through Pen Drive in Excel Format Data Transfer Leak Check Testing Leak check adaptor provided. Oil Free, non-pulsating pump driven by induction motor for stable flow rate Vacuum Pump Flow Control Unit VFD for Stable pump control Filter Holder and Media Accommodates 47 mm filter Manual and Auto. In-built system to control the start and stop times of sampler. Operation Mode Auto Shut Off Low Flow and High Filter Pressure settings for Auto Shutoff Performed automatically by the built-in a system using Sensors for Ambient Temperature and Barometric Pressure Volumetric Flow Rate Compensation PAGE - 9

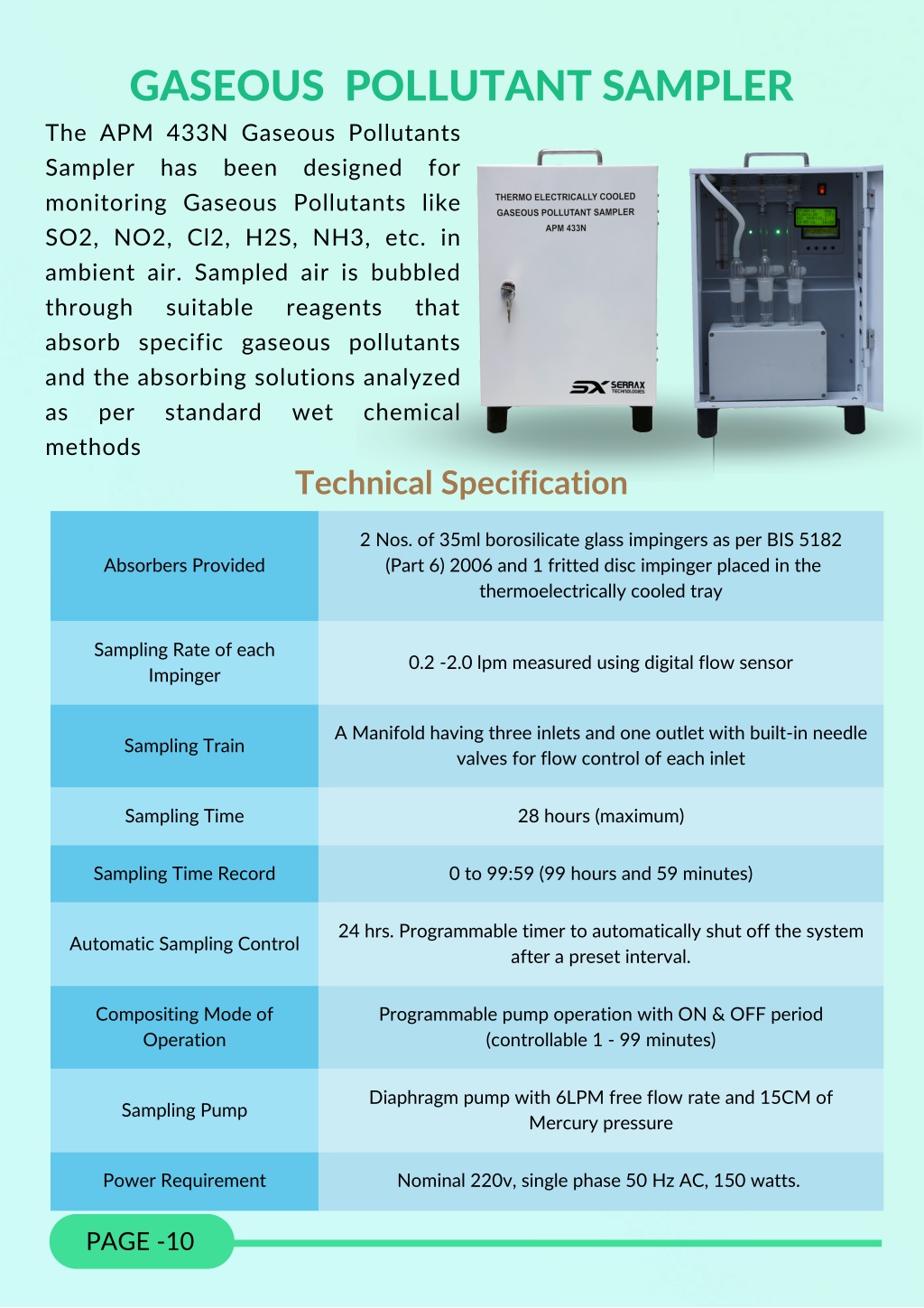

  10. GASEOUS POLLUTANT SAMPLER The APM 433N Gaseous Pollutants Sampler has been designed for monitoring Gaseous Pollutants like SO2, NO2, Cl2, H2S, NH3, etc. in ambient air. Sampled air is bubbled through suitable reagents that absorb specific gaseous pollutants and the absorbing solutions analyzed as per standard wet chemical methods Technical Specification 2 Nos. of 35ml borosilicate glass impingers as per BIS 5182 (Part 6) 2006 and 1 fritted disc impinger placed in the thermoelectrically cooled tray Absorbers Provided Sampling Rate of each Impinger 0.2 -2.0 lpm measured using digital flow sensor A Manifold having three inlets and one outlet with built-in needle valves for flow control of each inlet Sampling Train Sampling Time 28 hours (maximum) Sampling Time Record 0 to 99:59 (99 hours and 59 minutes) 24 hrs. Programmable timer to automatically shut off the system after a preset interval. Automatic Sampling Control Compositing Mode of Operation Programmable pump operation with ON & OFF period (controllable 1 - 99 minutes) Diaphragm pump with 6LPM free flow rate and 15CM of Mercury pressure Sampling Pump Power Requirement Nominal 220v, single phase 50 Hz AC, 150 watts. PAGE -10

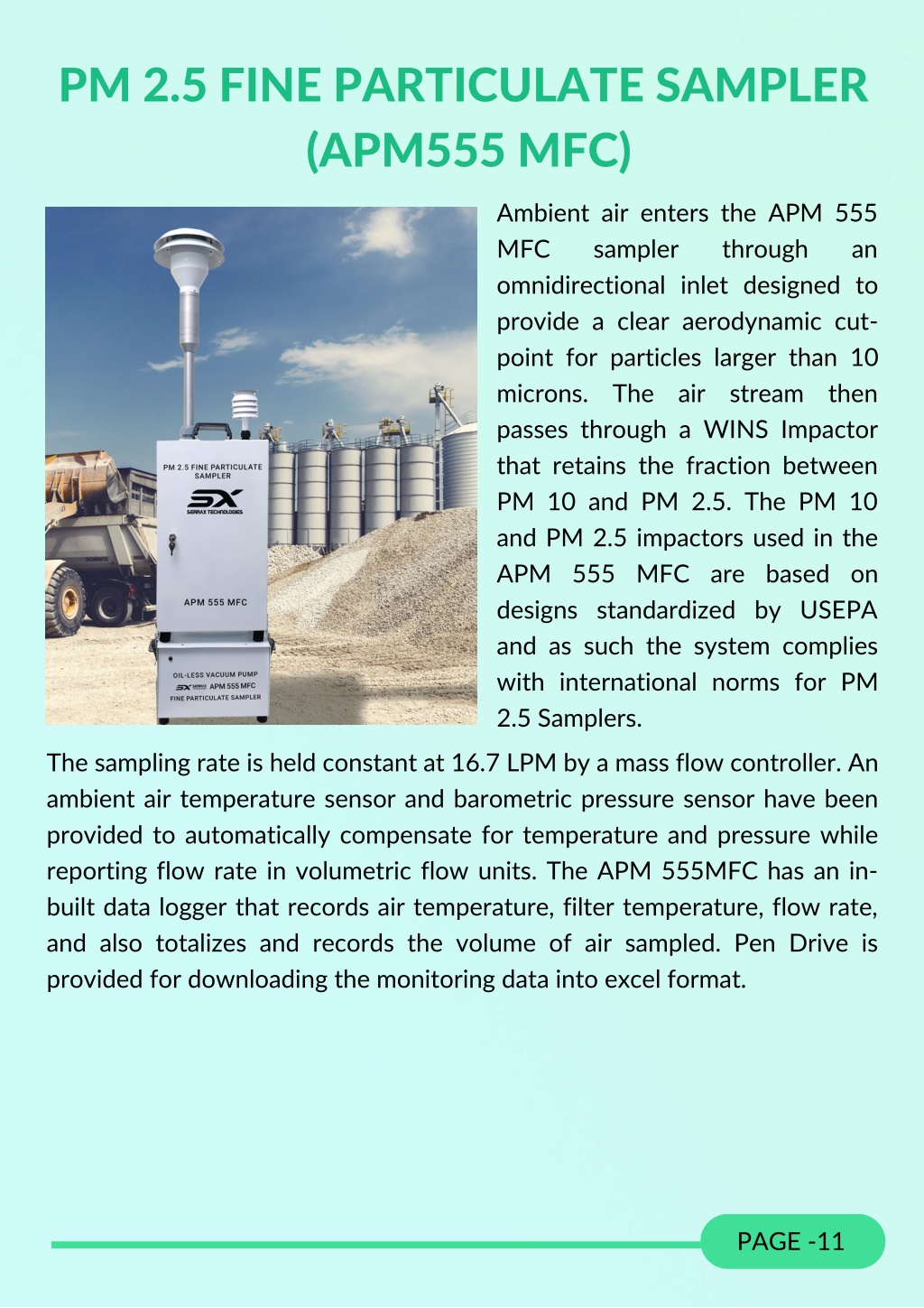

  11. PM 2.5 FINE PARTICULATE SAMPLER (APM555 MFC) Ambient air enters the APM 555 MFC omnidirectional inlet designed to provide a clear aerodynamic cut- point for particles larger than 10 microns. The air stream then passes through a WINS Impactor that retains the fraction between PM 10 and PM 2.5. The PM 10 and PM 2.5 impactors used in the APM 555 MFC are based on designs standardized by USEPA and as such the system complies with international norms for PM 2.5 Samplers. sampler through an The sampling rate is held constant at 16.7 LPM by a mass flow controller. An ambient air temperature sensor and barometric pressure sensor have been provided to automatically compensate for temperature and pressure while reporting flow rate in volumetric flow units. The APM 555MFC has an in- built data logger that records air temperature, filter temperature, flow rate, and also totalizes and records the volume of air sampled. Pen Drive is provided for downloading the monitoring data into excel format. PAGE -11

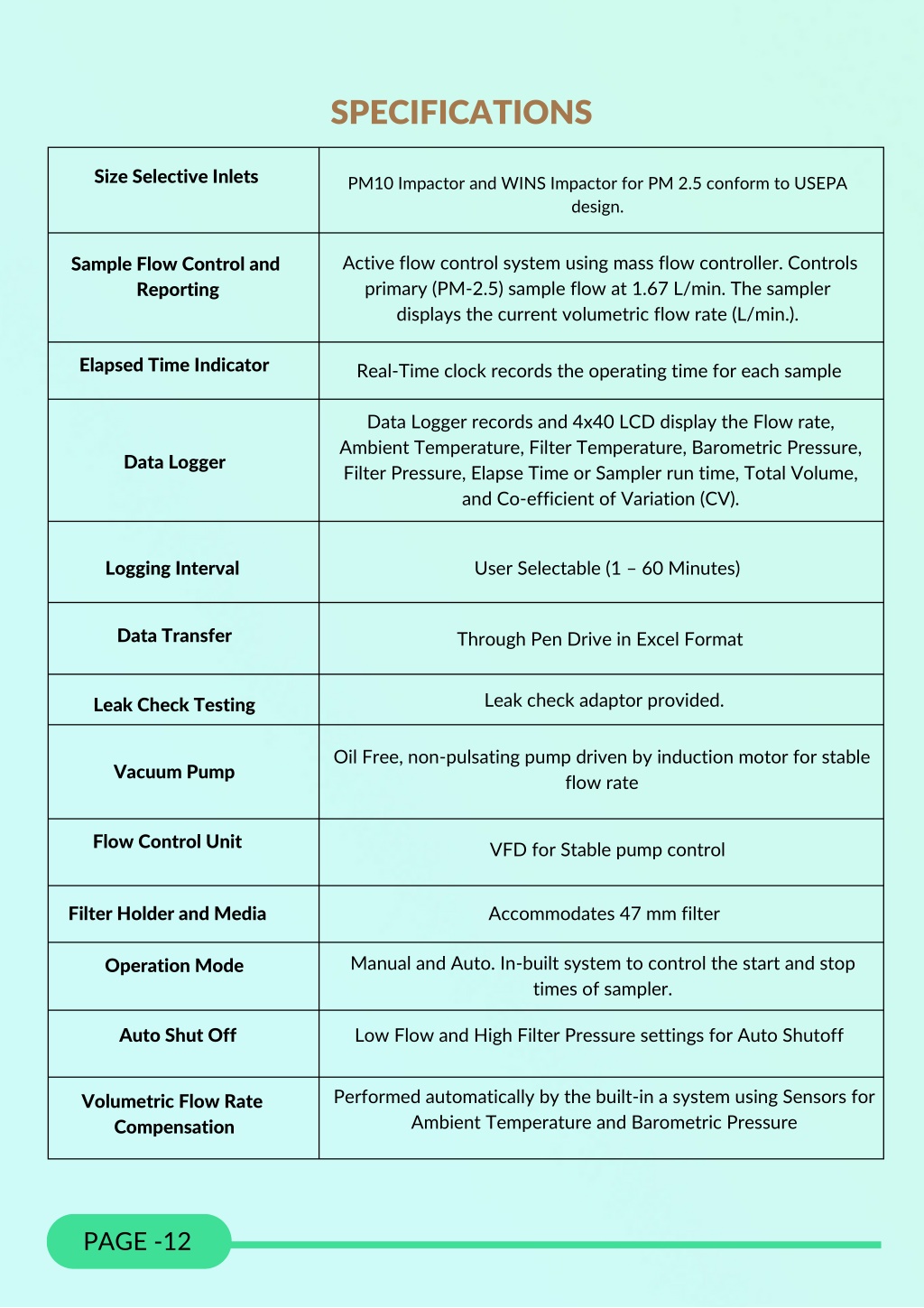

  12. SPECIFICATIONS Size Selective Inlets PM10 Impactor and WINS Impactor for PM 2.5 conform to USEPA design. Active flow control system using mass flow controller. Controls primary (PM-2.5) sample flow at 1.67 L/min. The sampler displays the current volumetric flow rate (L/min.). Sample Flow Control and Reporting Elapsed Time Indicator Real-Time clock records the operating time for each sample Data Logger records and 4x40 LCD display the Flow rate, Ambient Temperature, Filter Temperature, Barometric Pressure, Filter Pressure, Elapse Time or Sampler run time, Total Volume, and Co-efficient of Variation (CV). Data Logger Logging Interval User Selectable (1 – 60 Minutes) Data Transfer Through Pen Drive in Excel Format Leak check adaptor provided. Leak Check Testing Oil Free, non-pulsating pump driven by induction motor for stable flow rate Vacuum Pump Flow Control Unit VFD for Stable pump control Filter Holder and Media Accommodates 47 mm filter Manual and Auto. In-built system to control the start and stop times of sampler. Operation Mode Auto Shut Off Low Flow and High Filter Pressure settings for Auto Shutoff Performed automatically by the built-in a system using Sensors for Ambient Temperature and Barometric Pressure Volumetric Flow Rate Compensation PAGE -12

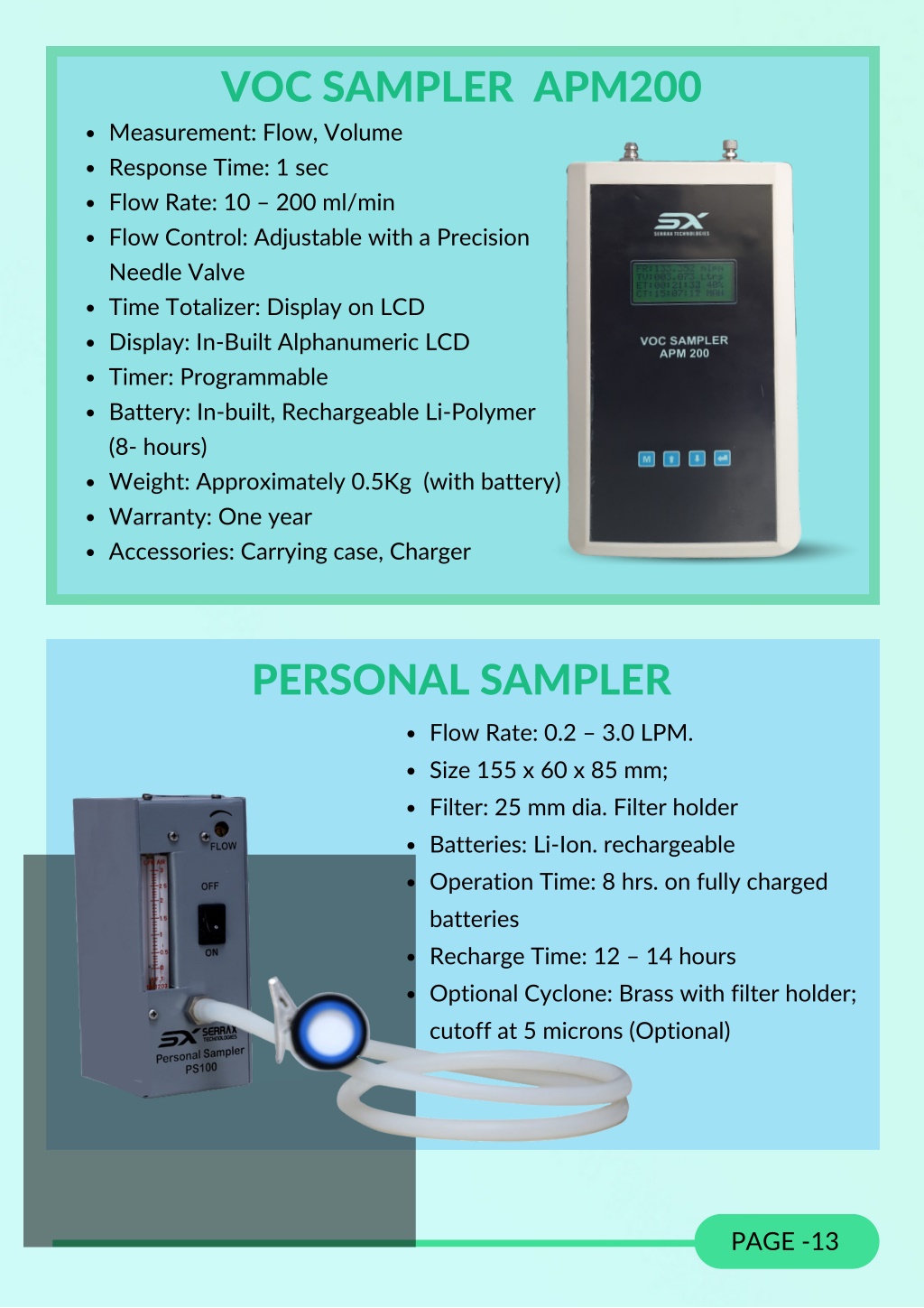

  13. VOC SAMPLER APM200 Measurement: Flow, Volume Response Time: 1 sec Flow Rate: 10 – 200 ml/min Flow Control: Adjustable with a Precision Needle Valve Time Totalizer: Display on LCD Display: In-Built Alphanumeric LCD Timer: Programmable Battery: In-built, Rechargeable Li-Polymer (8- hours) Weight: Approximately 0.5Kg (with battery) Warranty: One year Accessories: Carrying case, Charger PERSONAL SAMPLER Flow Rate: 0.2 – 3.0 LPM. Size 155 x 60 x 85 mm; Filter: 25 mm dia. Filter holder Batteries: Li-Ion. rechargeable Operation Time: 8 hrs. on fully charged batteries Recharge Time: 12 – 14 hours Optional Cyclone: Brass with filter holder; cutoff at 5 microns (Optional) PAGE -13

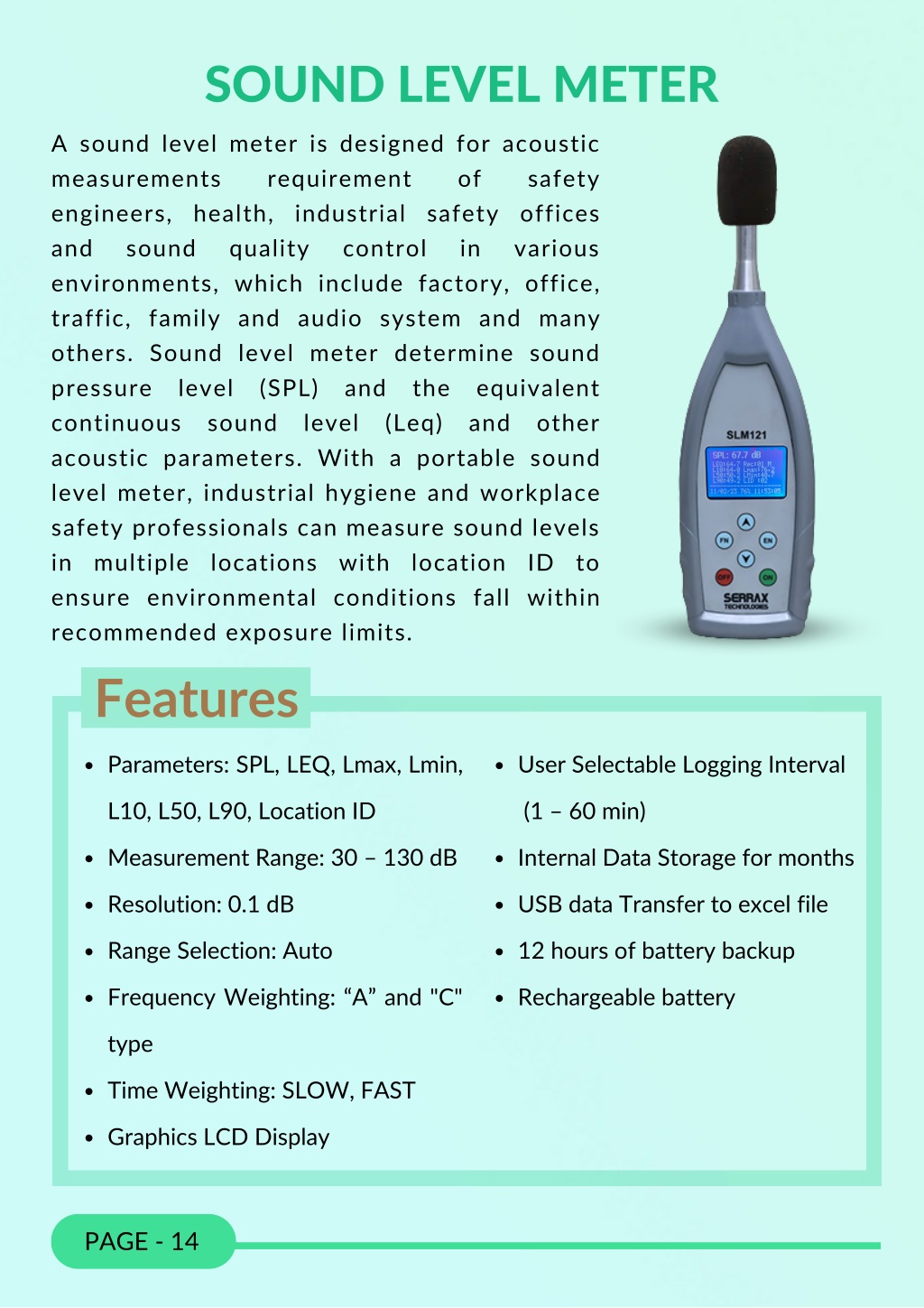

  14. SOUND LEVEL METER A sound level meter is designed for acoustic measurements requirement engineers, health, industrial safety offices and sound quality environments, which include factory, office, traffic, family and audio system and many others. Sound level meter determine sound pressure level (SPL) and the equivalent continuous sound level (Leq) and other acoustic parameters. With a portable sound level meter, industrial hygiene and workplace safety professionals can measure sound levels in multiple locations with location ID to ensure environmental conditions fall within recommended exposure limits. Features of safety control in various Parameters: SPL, LEQ, Lmax, Lmin, User Selectable Logging Interval L10, L50, L90, Location ID (1 – 60 min) Measurement Range: 30 – 130 dB Internal Data Storage for months Resolution: 0.1 dB USB data Transfer to excel file Range Selection: Auto 12 hours of battery backup Frequency Weighting: “A” and "C" Rechargeable battery type Time Weighting: SLOW, FAST Graphics LCD Display PAGE - 14

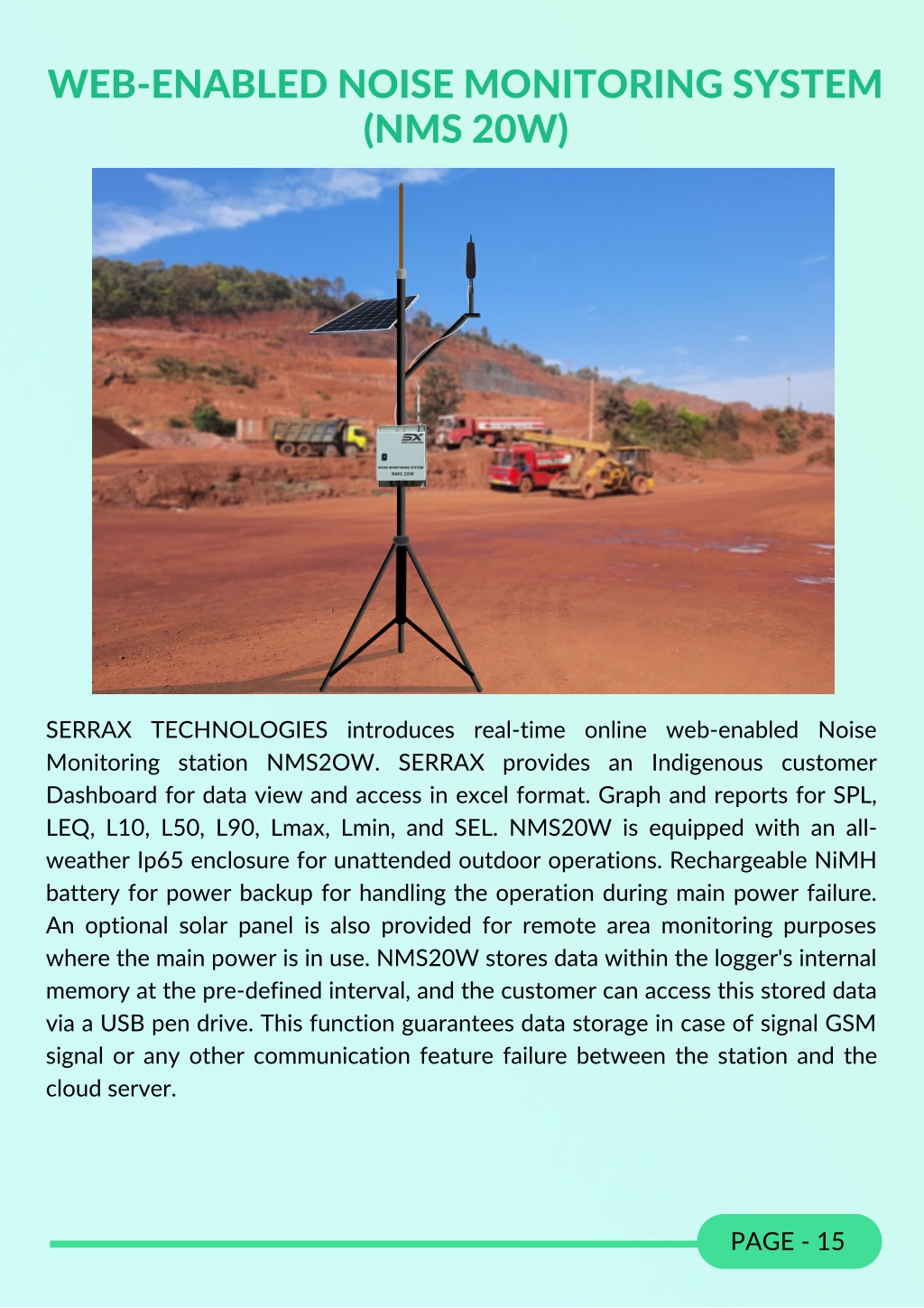

  15. WEB-ENABLED NOISE MONITORING SYSTEM (NMS 20W) SERRAX TECHNOLOGIES introduces real-time online web-enabled Noise Monitoring station NMS2OW. SERRAX provides an Indigenous customer Dashboard for data view and access in excel format. Graph and reports for SPL, LEQ, L10, L50, L90, Lmax, Lmin, and SEL. NMS20W is equipped with an all- weather Ip65 enclosure for unattended outdoor operations. Rechargeable NiMH battery for power backup for handling the operation during main power failure. An optional solar panel is also provided for remote area monitoring purposes where the main power is in use. NMS20W stores data within the logger's internal memory at the pre-defined interval, and the customer can access this stored data via a USB pen drive. This function guarantees data storage in case of signal GSM signal or any other communication feature failure between the station and the cloud server. PAGE - 15

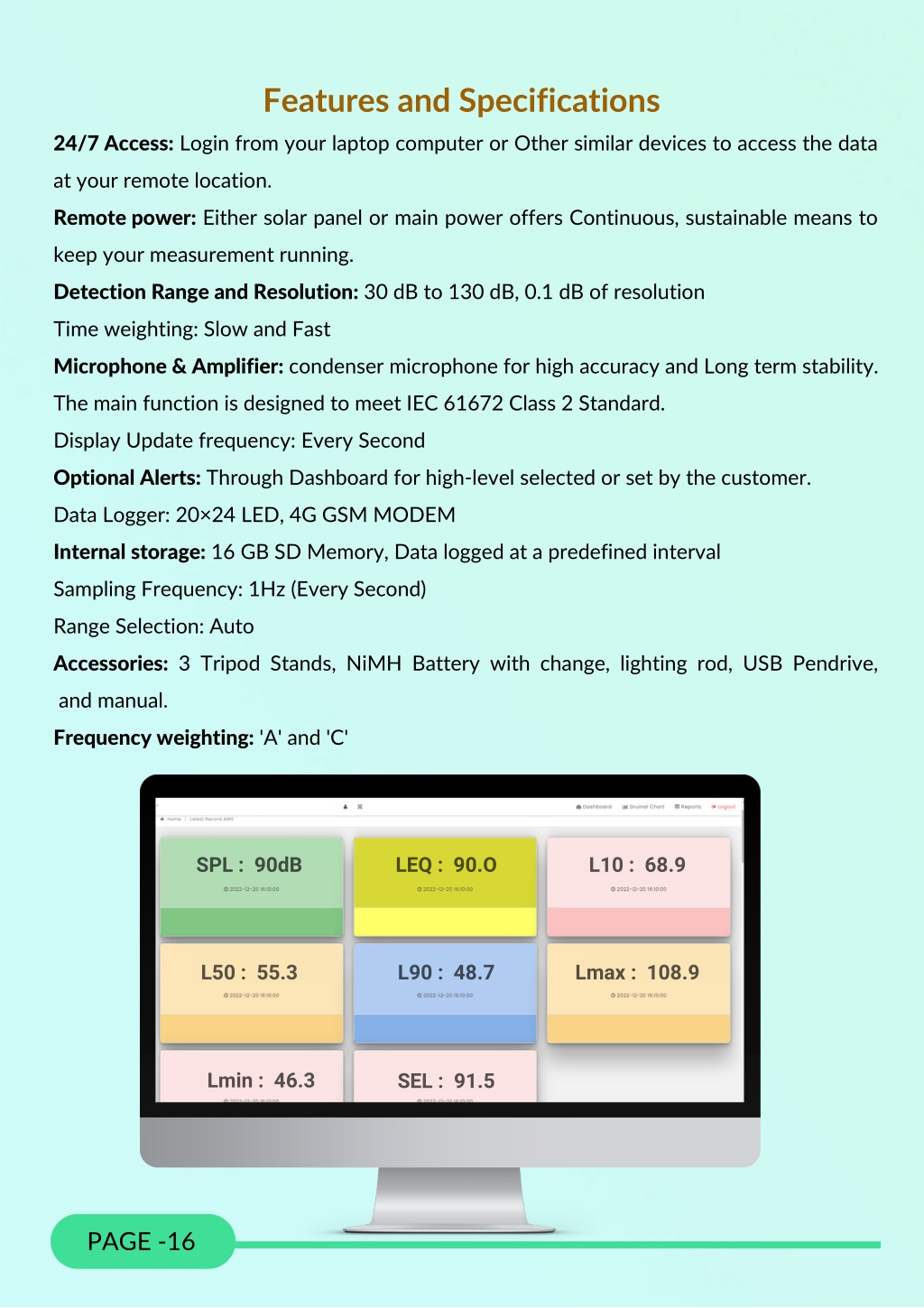

  16. Features and Specifications 24/7 Access: Login from your laptop computer or Other similar devices to access the data at your remote location. Remote power: Either solar panel or main power offers Continuous, sustainable means to keep your measurement running. Detection Range and Resolution: 30 dB to 130 dB, 0.1 dB of resolution Time weighting: Slow and Fast Microphone & Amplifier: condenser microphone for high accuracy and Long term stability. The main function is designed to meet IEC 61672 Class 2 Standard. Display Update frequency: Every Second Optional Alerts: Through Dashboard for high-level selected or set by the customer. Data Logger: 20×24 LED, 4G GSM MODEM Internal storage: 16 GB SD Memory, Data logged at a predefined interval Sampling Frequency: 1Hz (Every Second) Range Selection: Auto Accessories: 3 Tripod Stands, NiMH Battery with change, lighting rod, USB Pendrive, and manual. Frequency weighting: 'A' and 'C' SPL : 90dB LEQ : 90.O L10 : 68.9 L50 : 55.3 L90 : 48.7 Lmax : 108.9 Lmin : 46.3 SEL : 91.5 PAGE -16

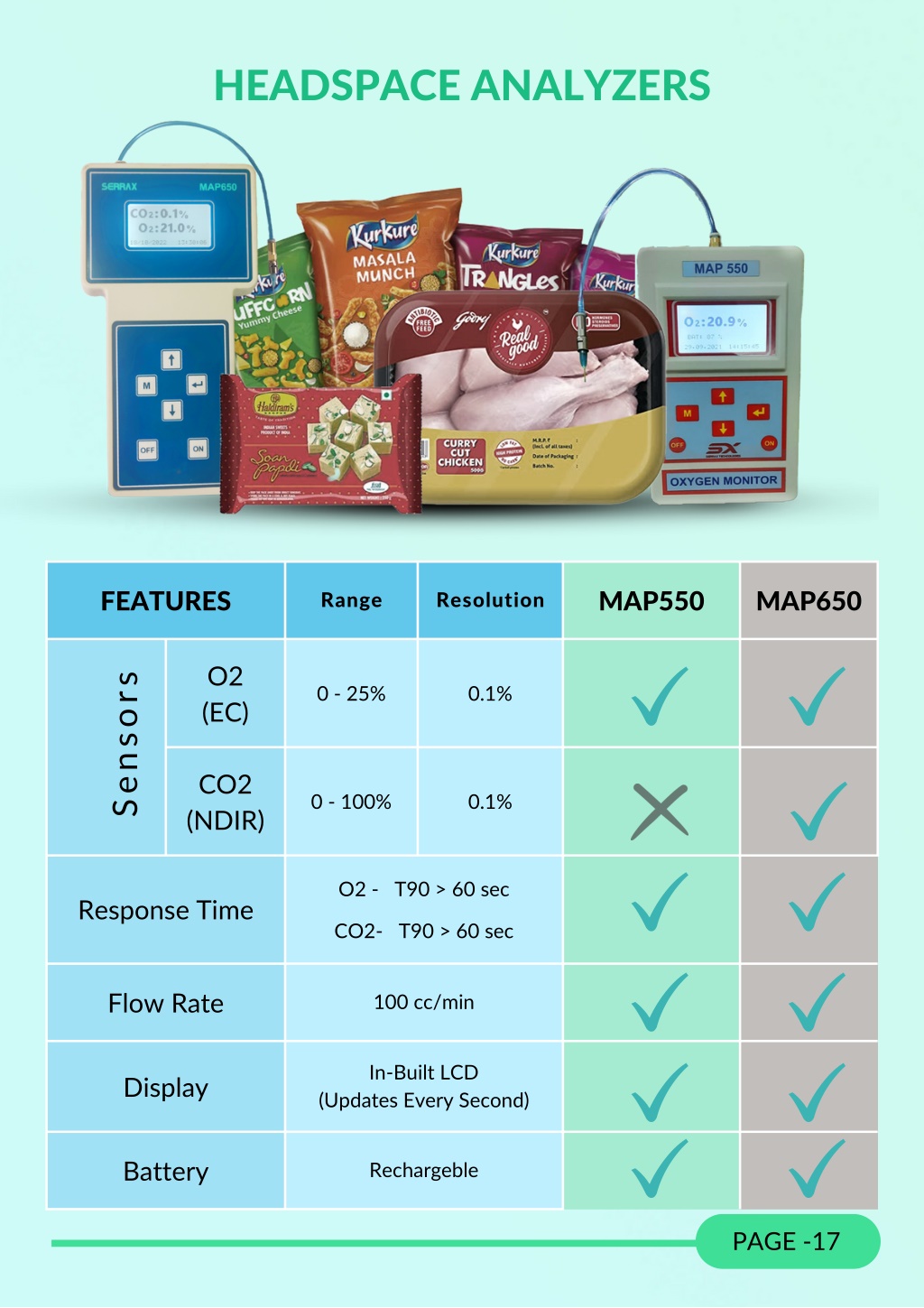

  17. HEADSPACE ANALYZERS FEATURES MAP550 MAP650 Range Resolution O2 (EC) Sensors 0 - 25% 0.1% CO2 (NDIR) 0 - 100% 0.1% O2 - T90 > 60 sec Response Time CO2- T90 > 60 sec Flow Rate 100 cc/min In-Built LCD (Updates Every Second) Display Battery Rechargeble PAGE -17

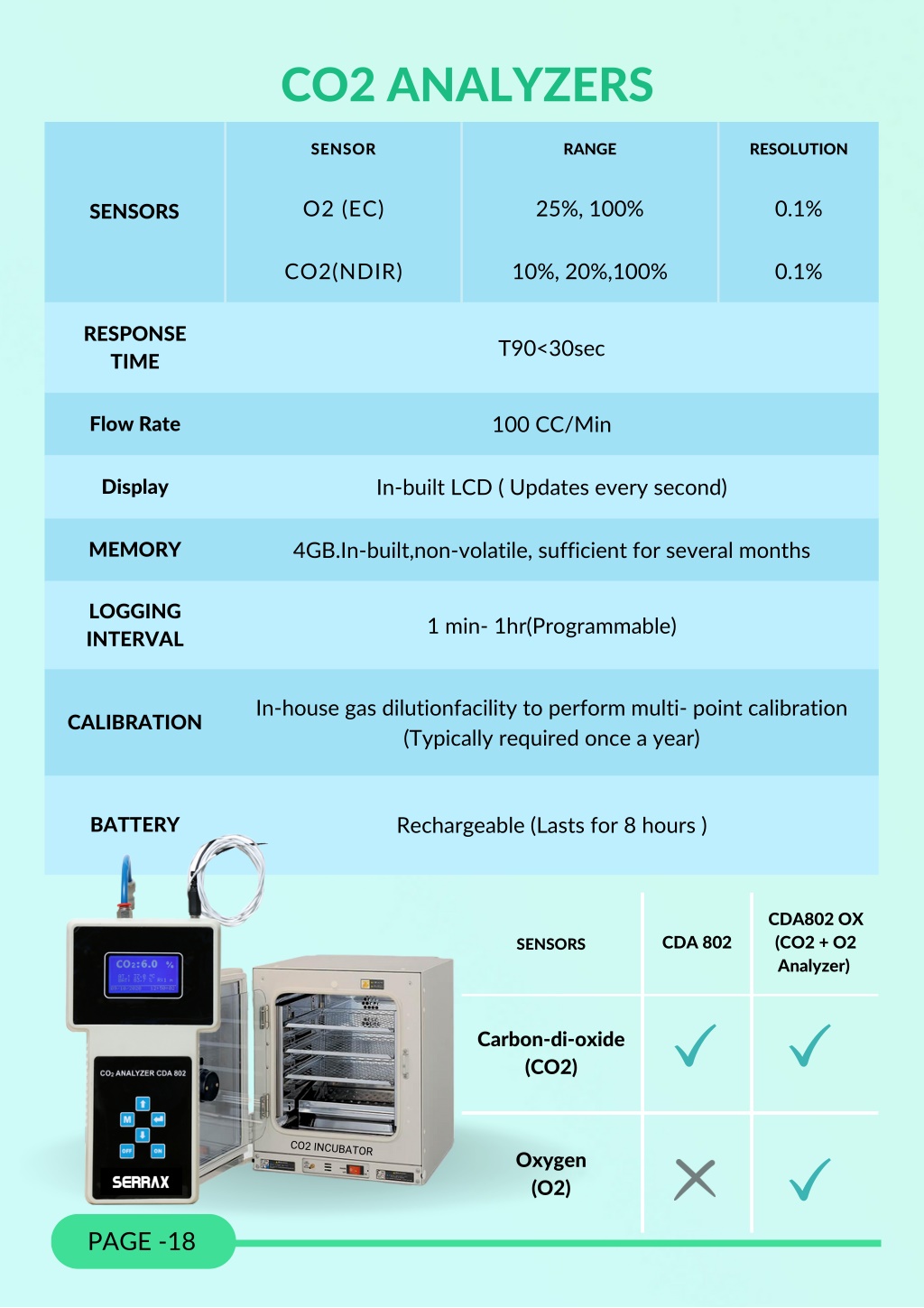

  18. CO2 ANALYZERS SENSOR RANGE RESOLUTION O2 (EC) 25%, 100% 0.1% SENSORS CO2(NDIR) 10%, 20%,100% 0.1% RESPONSE TIME T90<30sec 100 CC/Min Flow Rate In-built LCD ( Updates every second) Display 4GB.In-built,non-volatile, sufficient for several months MEMORY LOGGING INTERVAL 1 min- 1hr(Programmable) In-house gas dilutionfacility to perform multi- point calibration (Typically required once a year) CALIBRATION Rechargeable (Lasts for 8 hours ) BATTERY CDA802 OX (CO2 + O2 Analyzer) CDA 802 SENSORS Carbon-di-oxide (CO2) CO2 INCUBATOR Oxygen (O2) PAGE -18

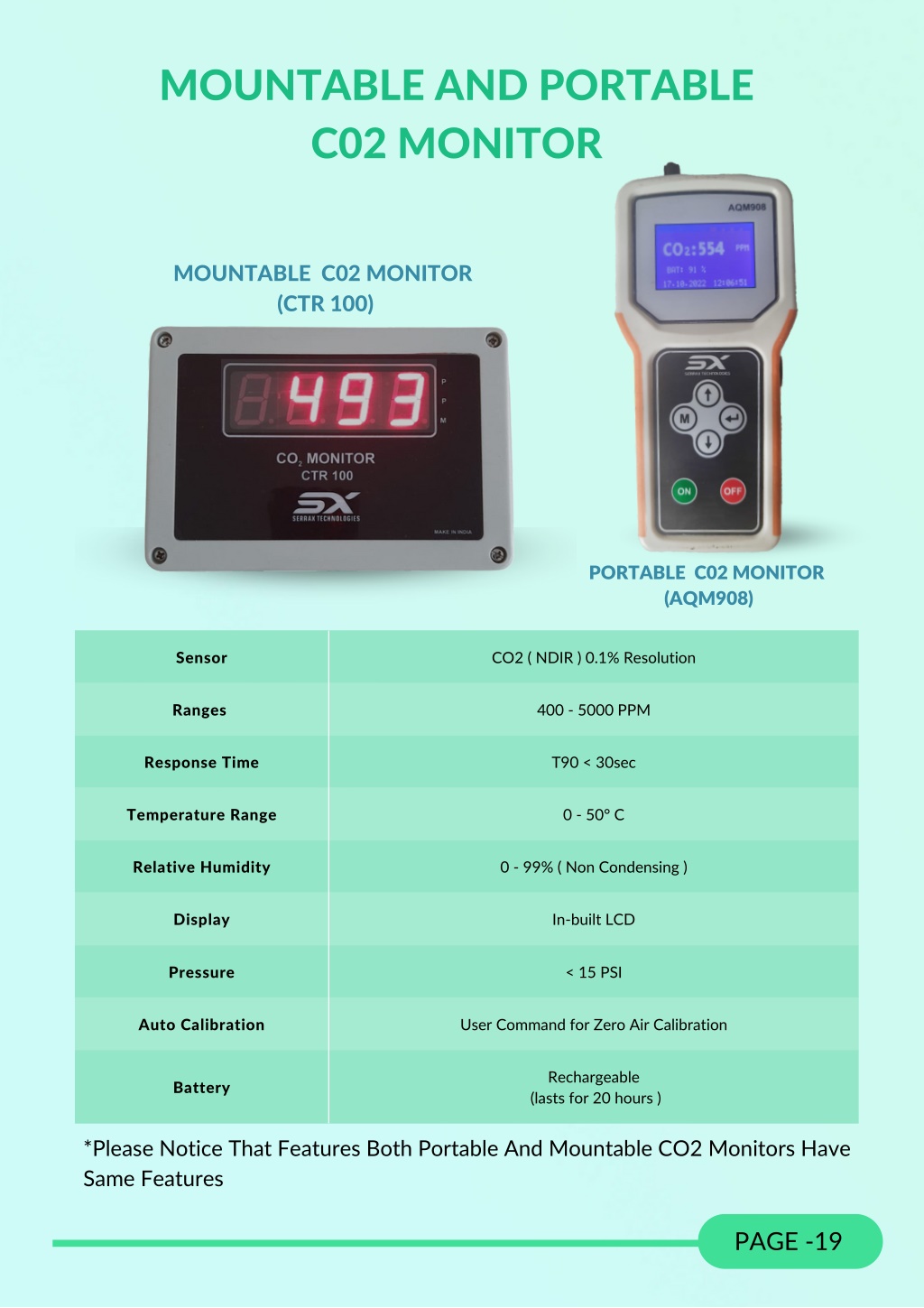

  19. MOUNTABLE AND PORTABLE C02 MONITOR MOUNTABLE C02 MONITOR (CTR 100) PORTABLE C02 MONITOR (AQM908) Sensor CO2 ( NDIR ) 0.1% Resolution Ranges 400 - 5000 PPM Response Time T90 < 30sec Temperature Range 0 - 50° C Relative Humidity 0 - 99% ( Non Condensing ) Display In-built LCD Pressure < 15 PSI Auto Calibration User Command for Zero Air Calibration Rechargeable (lasts for 20 hours ) Battery *Please Notice That Features Both Portable And Mountable CO2 Monitors Have Same Features PAGE -19

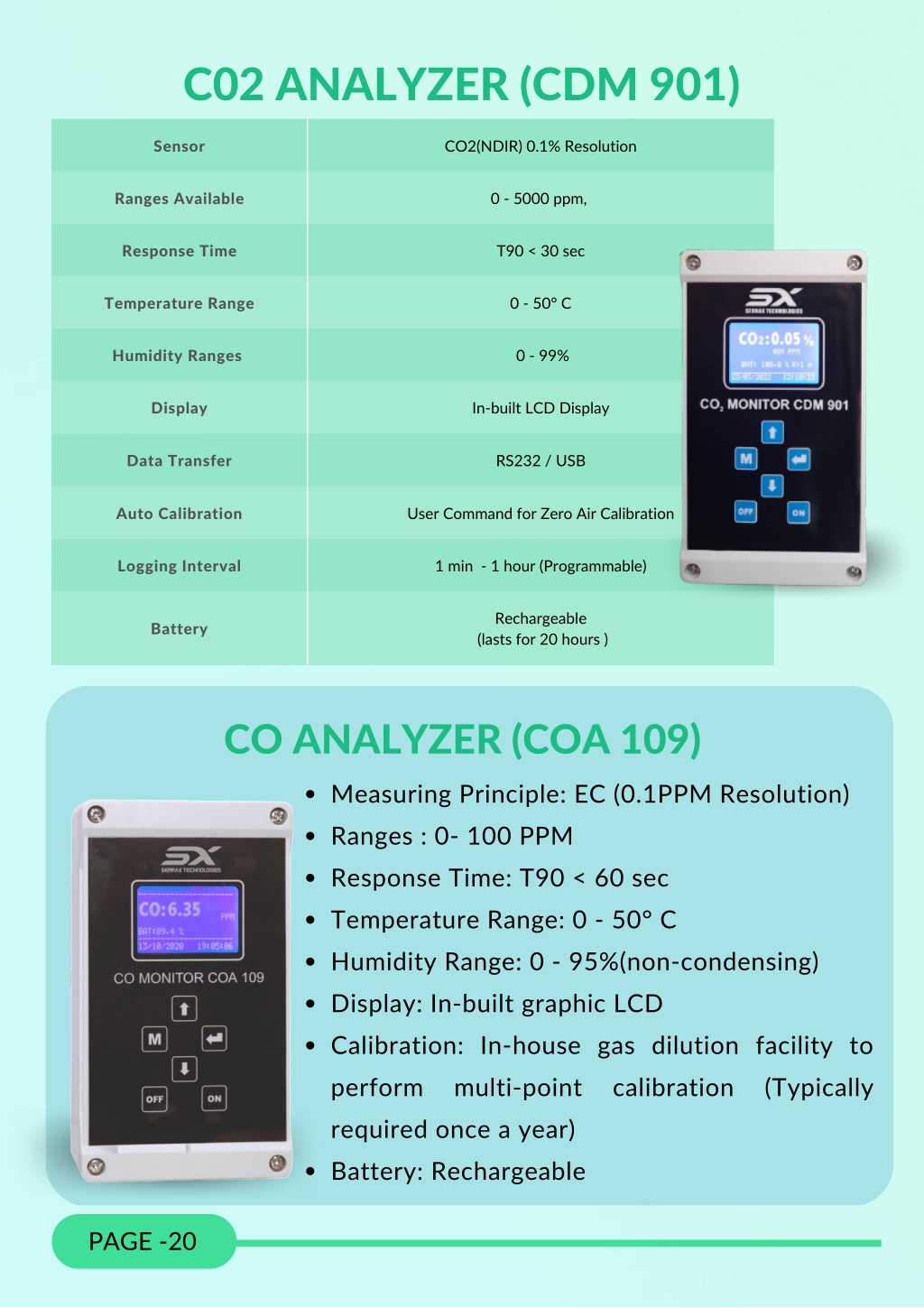

  20. C02 ANALYZER (CDM 901) Sensor CO2(NDIR) 0.1% Resolution Ranges Available 0 - 5000 ppm, Response Time T90 < 30 sec Temperature Range 0 - 50° C Humidity Ranges 0 - 99% Display In-built LCD Display Data Transfer RS232 / USB Auto Calibration User Command for Zero Air Calibration Logging Interval 1 min - 1 hour (Programmable) Rechargeable (lasts for 20 hours ) Battery CO ANALYZER (COA 109) Measuring Principle: EC (0.1PPM Resolution) Ranges : 0- 100 PPM Response Time: T90 < 60 sec Temperature Range: 0 - 50° C Humidity Range: 0 - 95%(non-condensing) Display: In-built graphic LCD Calibration: In-house gas dilution facility to perform multi-point required once a year) Battery: Rechargeable calibration (Typically PAGE -20

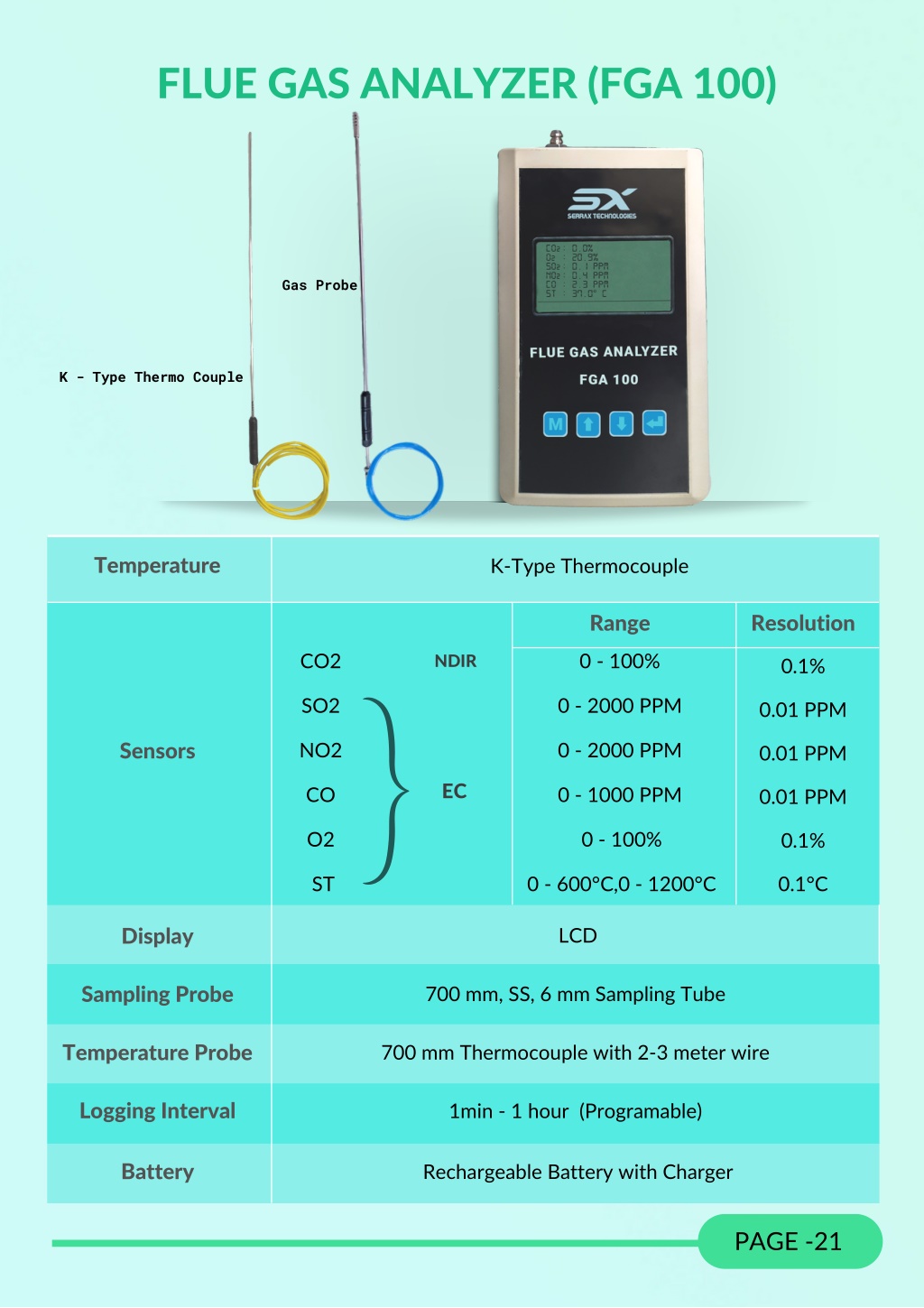

  21. FLUE GAS ANALYZER (FGA 100) Gas Probe K - Type Thermo Couple Temperature K-Type Thermocouple Range Resolution 0 - 100% CO2 NDIR 0.1% 0 - 2000 PPM SO2 0.01 PPM Sensors 0 - 2000 PPM NO2 0.01 PPM EC 0 - 1000 PPM CO 0.01 PPM 0 - 100% O2 0.1% ST 0 - 600°C,0 - 1200°C 0.1°C Display LCD Sampling Probe 700 mm, SS, 6 mm Sampling Tube Temperature Probe 700 mm Thermocouple with 2-3 meter wire Logging Interval 1min - 1 hour (Programable) Battery Rechargeable Battery with Charger PAGE -21

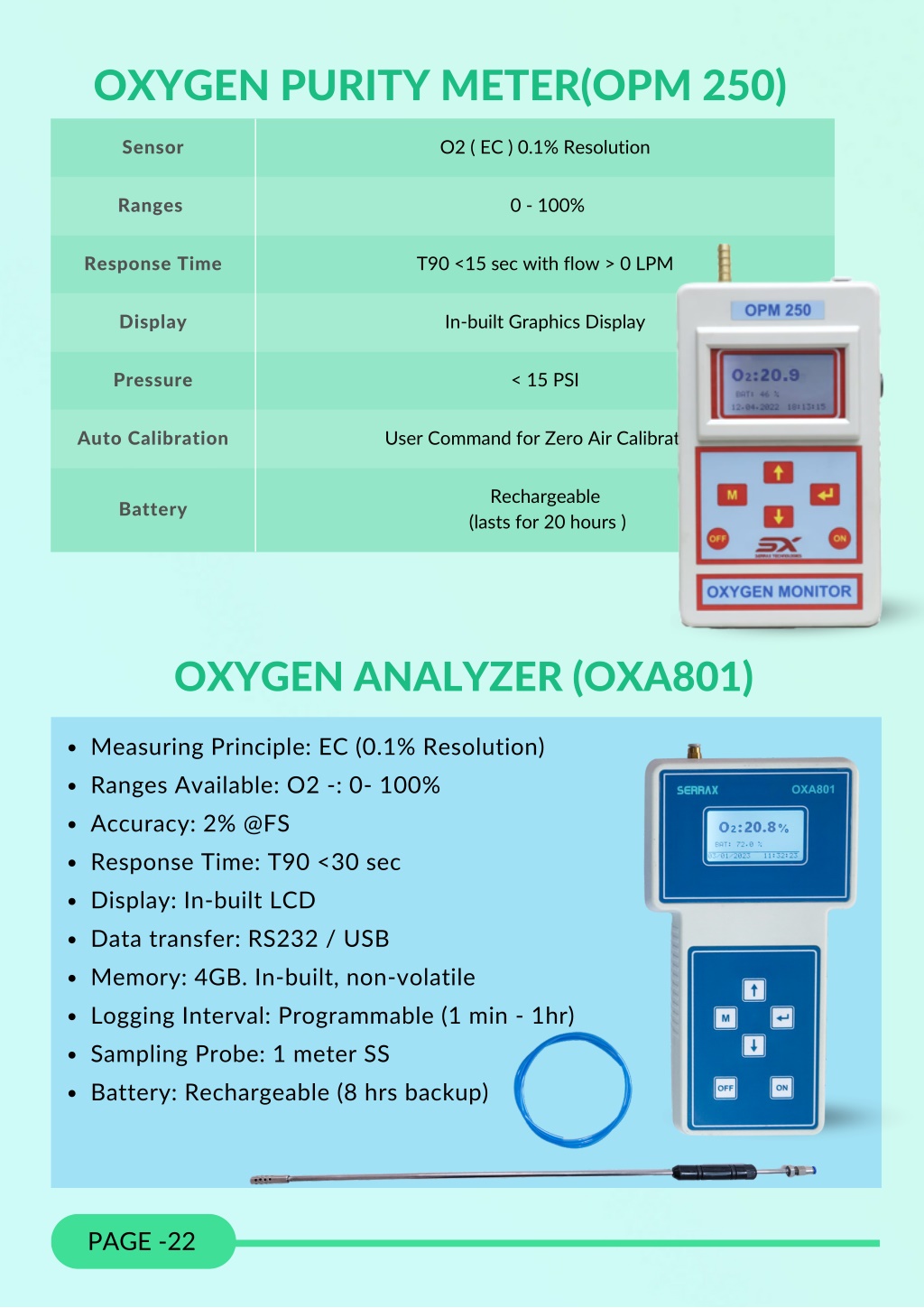

  22. OXYGEN PURITY METER(OPM 250) Sensor O2 ( EC ) 0.1% Resolution Ranges 0 - 100% T90 <15 sec with flow > 0 LPM Response Time In-built Graphics Display Display < 15 PSI Pressure User Command for Zero Air Calibration Auto Calibration Rechargeable (lasts for 20 hours ) Battery OXYGEN ANALYZER (OXA801) Measuring Principle: EC (0.1% Resolution) Ranges Available: O2 -: 0- 100% Accuracy: 2% @FS Response Time: T90 <30 sec Display: In-built LCD Data transfer: RS232 / USB Memory: 4GB. In-built, non-volatile Logging Interval: Programmable (1 min - 1hr) Sampling Probe: 1 meter SS Battery: Rechargeable (8 hrs backup) PAGE -22

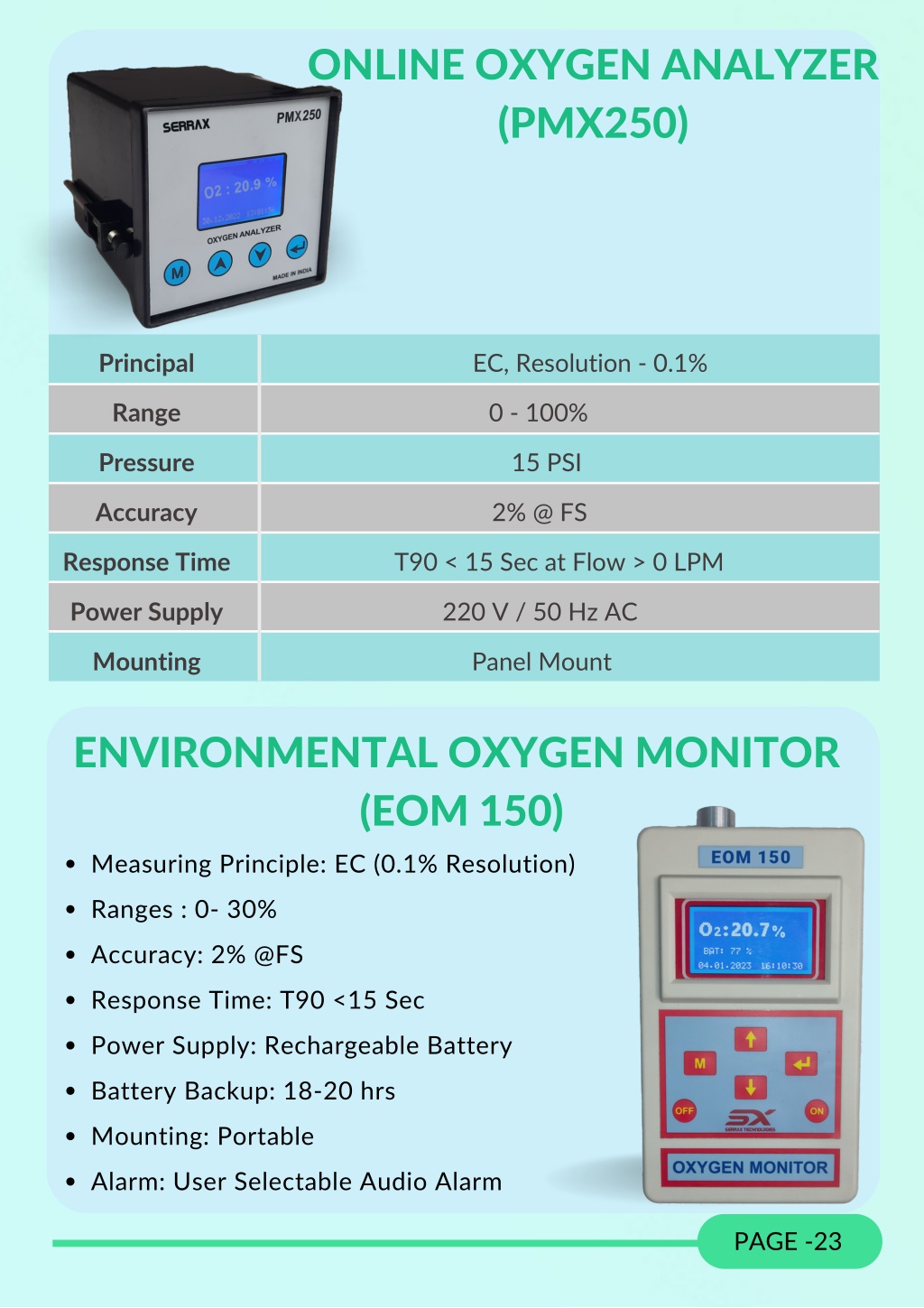

  23. ONLINE OXYGEN ANALYZER (PMX250) Principal EC, Resolution - 0.1% Range 0 - 100% Pressure 15 PSI Accuracy 2% @ FS Response Time T90 < 15 Sec at Flow > 0 LPM Power Supply 220 V / 50 Hz AC Mounting Panel Mount ENVIRONMENTAL OXYGEN MONITOR (EOM 150) Measuring Principle: EC (0.1% Resolution) Ranges : 0- 30% Accuracy: 2% @FS Response Time: T90 <15 Sec Power Supply: Rechargeable Battery Battery Backup: 18-20 hrs Mounting: Portable Alarm: User Selectable Audio Alarm PAGE -23

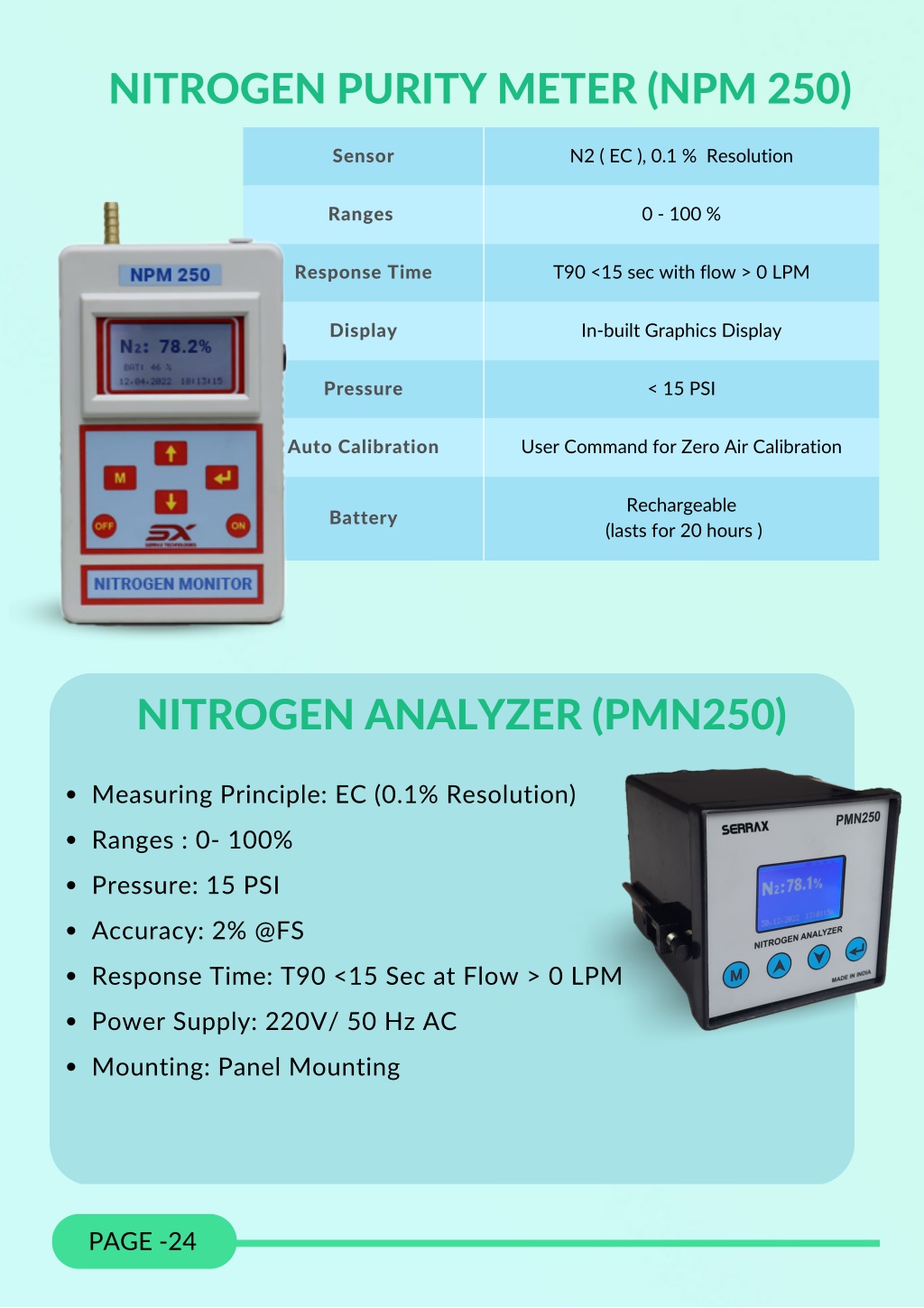

  24. NITROGEN PURITY METER (NPM 250) N2 ( EC ), 0.1 % Resolution Sensor 0 - 100 % Ranges T90 <15 sec with flow > 0 LPM Response Time Display In-built Graphics Display Pressure < 15 PSI User Command for Zero Air Calibration Auto Calibration Rechargeable (lasts for 20 hours ) Battery NITROGEN ANALYZER (PMN250) Measuring Principle: EC (0.1% Resolution) Ranges : 0- 100% Pressure: 15 PSI Accuracy: 2% @FS Response Time: T90 <15 Sec at Flow > 0 LPM Power Supply: 220V/ 50 Hz AC Mounting: Panel Mounting PAGE -24

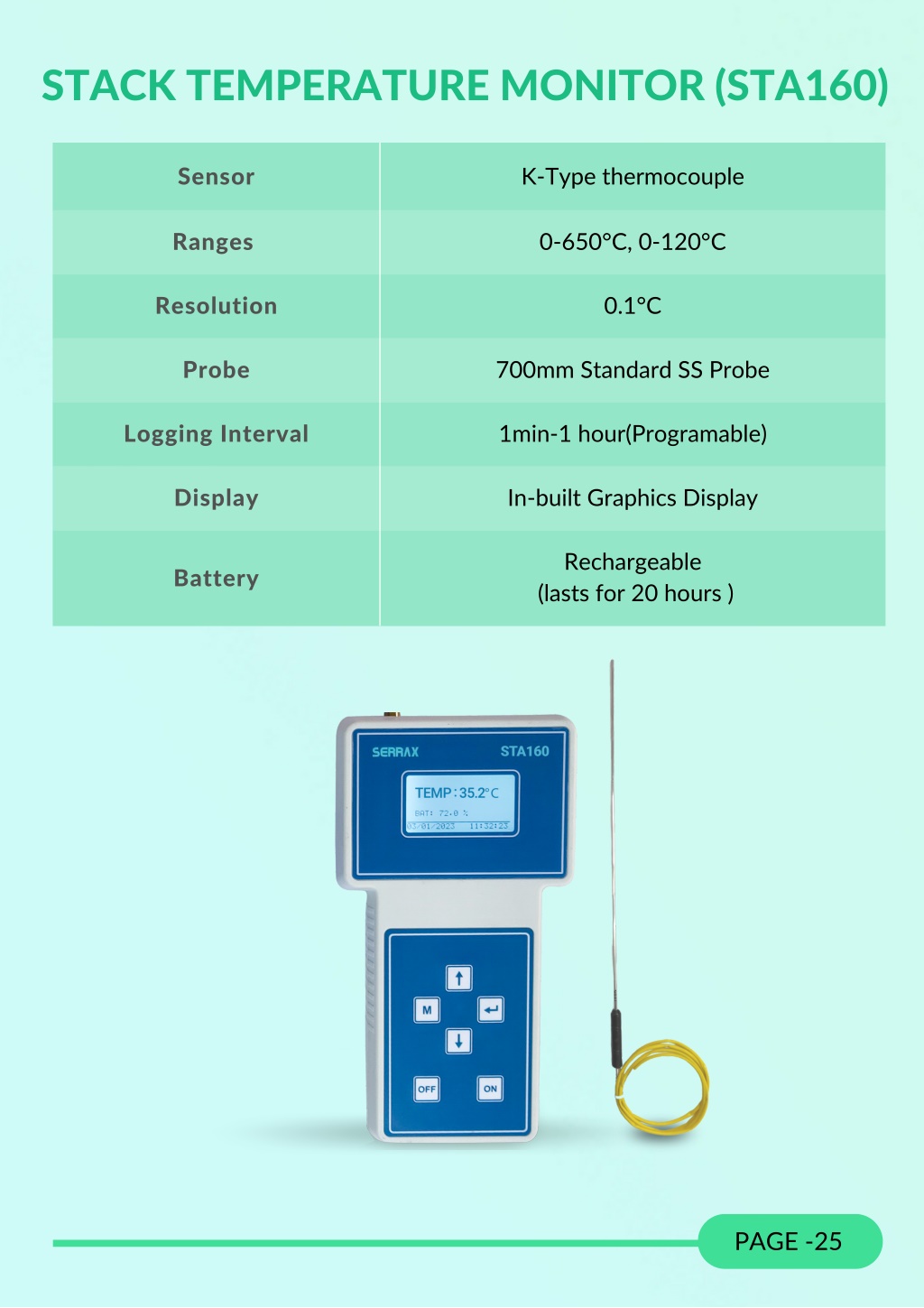

  25. STACK TEMPERATURE MONITOR (STA160) Sensor K-Type thermocouple Ranges 0-650°C, 0-120°C Resolution 0.1°C Probe 700mm Standard SS Probe Logging Interval 1min-1 hour(Programable) Display In-built Graphics Display Rechargeable (lasts for 20 hours ) Battery PAGE -25

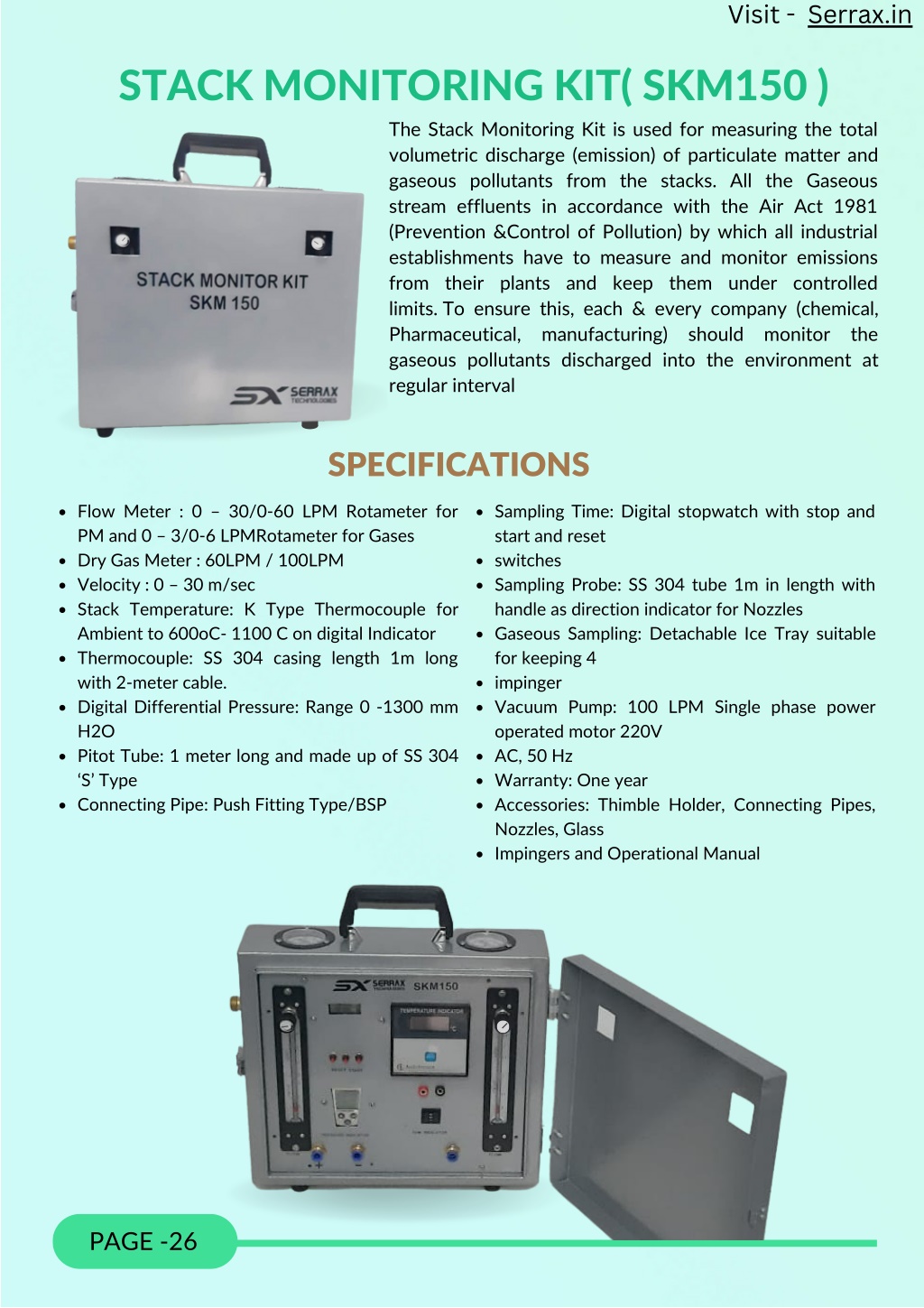

  26. Visit - Serrax.in STACK MONITORING KIT( SKM150 ) The Stack Monitoring Kit is used for measuring the total volumetric discharge (emission) of particulate matter and gaseous pollutants from the stacks. All the Gaseous stream effluents in accordance with the Air Act 1981 (Prevention &Control of Pollution) by which all industrial establishments have to measure and monitor emissions from their plants and keep them under controlled limits. To ensure this, each & every company (chemical, Pharmaceutical, manufacturing) should monitor the gaseous pollutants discharged into the environment at regular interval SPECIFICATIONS Flow Meter : 0 – 30/0-60 LPM Rotameter for PM and 0 – 3/0-6 LPMRotameter for Gases Dry Gas Meter : 60LPM / 100LPM Velocity : 0 – 30 m/sec Stack Temperature: K Type Thermocouple for Ambient to 600oC- 1100 C on digital Indicator Thermocouple: SS 304 casing length 1m long with 2-meter cable. Digital Differential Pressure: Range 0 -1300 mm H2O Pitot Tube: 1 meter long and made up of SS 304 ‘S’ Type Connecting Pipe: Push Fitting Type/BSP Sampling Time: Digital stopwatch with stop and start and reset switches Sampling Probe: SS 304 tube 1m in length with handle as direction indicator for Nozzles Gaseous Sampling: Detachable Ice Tray suitable for keeping 4 impinger Vacuum Pump: 100 LPM Single phase power operated motor 220V AC, 50 Hz Warranty: One year Accessories: Thimble Holder, Connecting Pipes, Nozzles, Glass Impingers and Operational Manual PAGE -26

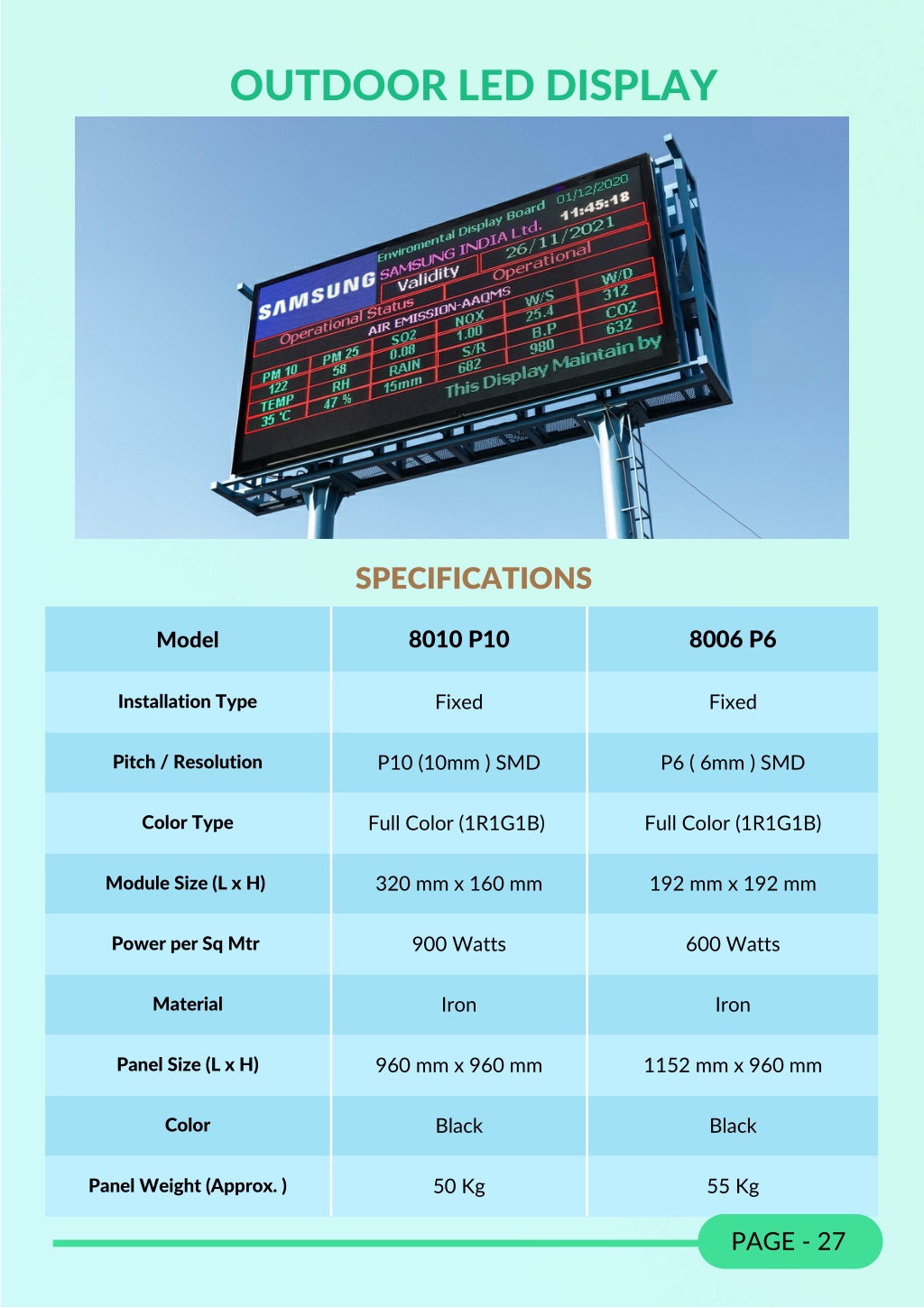

  27. OUTDOOR LED DISPLAY SPECIFICATIONS 8010 P10 8006 P6 Model Fixed Fixed Installation Type P10 (10mm ) SMD P6 ( 6mm ) SMD Pitch / Resolution Full Color (1R1G1B) Full Color (1R1G1B) Color Type 320 mm x 160 mm 192 mm x 192 mm Module Size (L x H) 900 Watts 600 Watts Power per Sq Mtr Iron Iron Material 960 mm x 960 mm 1152 mm x 960 mm Panel Size (L x H) Black Black Color 50 Kg 55 Kg Panel Weight (Approx. ) PAGE - 27

  28. Visit - Serrax.in
