Portable Gas Detector LT-PGD301

Labtro Portable Gas Detector is a four-in-one gas detection alarm that uses diffusion sampling and provides continuous operation for at least 18 hours after a full 4-hour charge. It features sound and vibration alarms, is explosion-proof, and has a special anti-interference PCB design.

Sara235
Download Presentation

Portable Gas Detector LT-PGD301

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

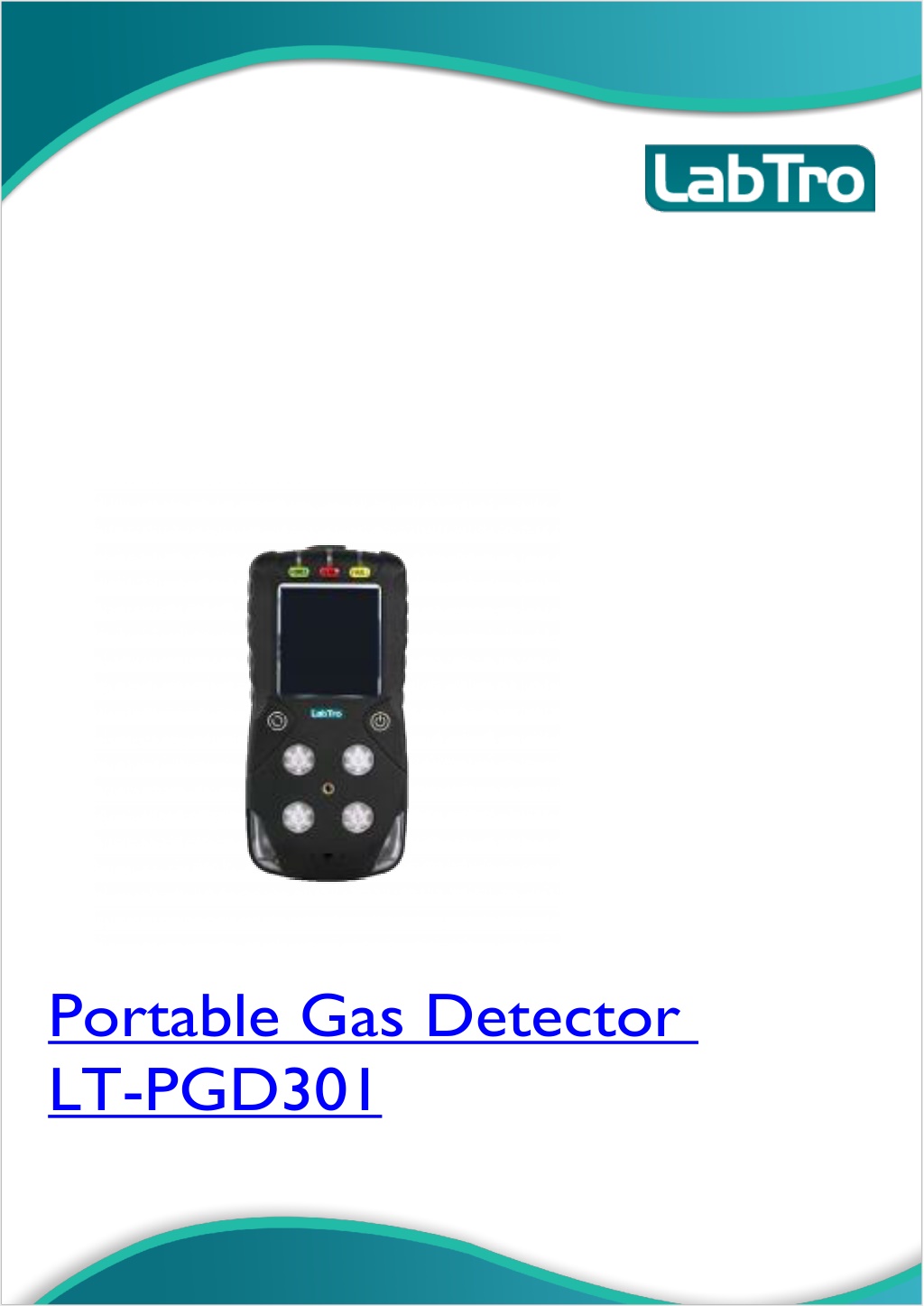

  1. Portable Gas Detector LT-PGD301

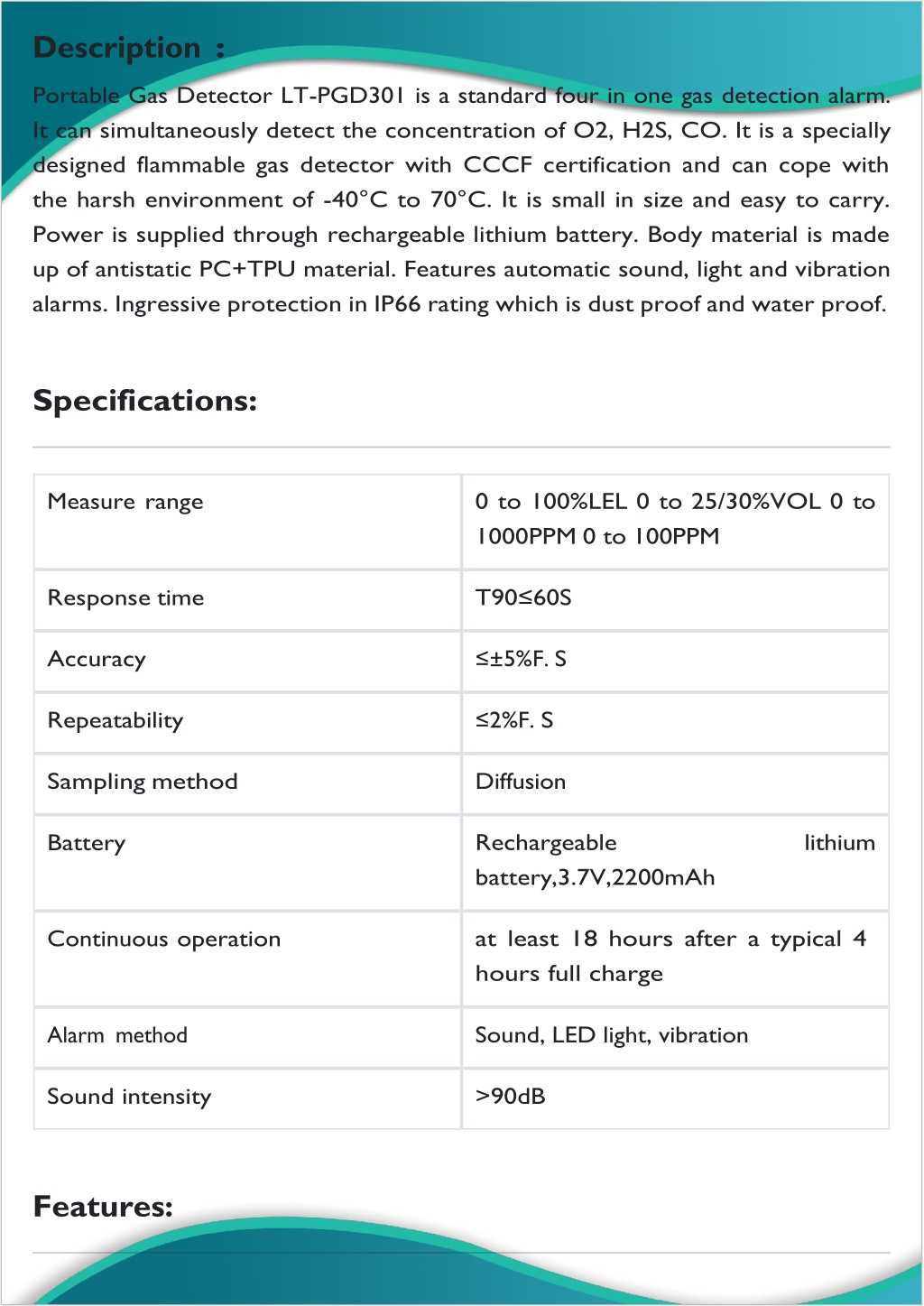

  2. Description : Portable Gas Detector LT-PGD301 is a standard four in one gas detection alarm. It can simultaneously detect the concentration of O2, H2S, CO. It is a specially designed flammable gas detector with CCCF certification and can cope with the harsh environment of -40°C to 70°C. It is small in size and easy to carry. Power is supplied through rechargeable lithium battery. Body material is made up of antistatic PC+TPU material. Features automatic sound, light and vibration alarms. Ingressive protection in IP66 rating which is dust proof and water proof. Specifications: Measure range 0 to 100%LEL 0 to 25/30%VOL 0 to 1000PPM 0 to 100PPM Response time T90≤60S Accuracy ≤±5%F.S Repeatability ≤2%F.S Sampling method Diffusion Rechargeable battery,3.7V,2200mAh lithium Battery at least 18 hours after a typical 4 hours full charge Continuous operation Alarm method Sound, LED light, vibration Sound intensity >90dB Features:

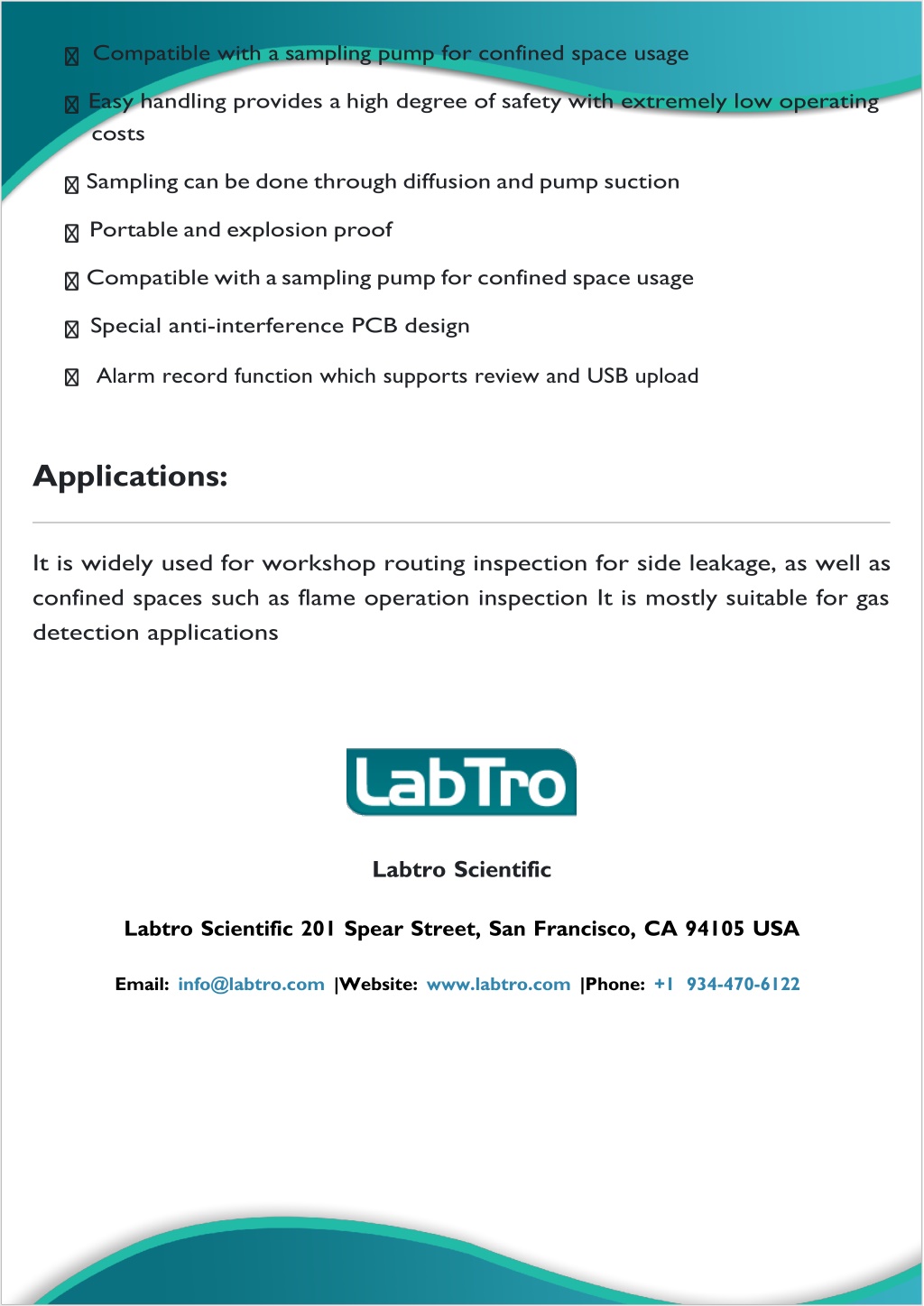

  3. Compatible with a sampling pump for confined space usage Easy handling provides a high degree of safety with extremely low operating costs Sampling can be done through diffusion and pump suction Portable and explosion proof Compatible with a sampling pump for confined space usage Special anti-interference PCB design Alarm record function which supports review and USB upload Applications: It is widely used for workshop routing inspection for side leakage, as well as confined spaces such as flame operation inspection It is mostly suitable for gas detection applications Labtro Scientific Labtro Scientific 201 Spear Street, San Francisco, CA 94105 USA Email: info@labtro.com |Website: www.labtro.com |Phone: +1 934-470-6122
