High-Speed Refrigerated Centrifuge LT-HRC2020

Labtro High-Speed Refrigerated Centrifuge features a durable three-layer steel jacket, a max speed of 21,000 rpm, and a capacity of 6u00d7100 ml. It includes a timer (1 min to 9h 59 min), stainless steel rotors, automatic error diagnosis and 10 acceleration/deceleration levels for optimal performance.

Sara235
Download Presentation

High-Speed Refrigerated Centrifuge LT-HRC2020

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

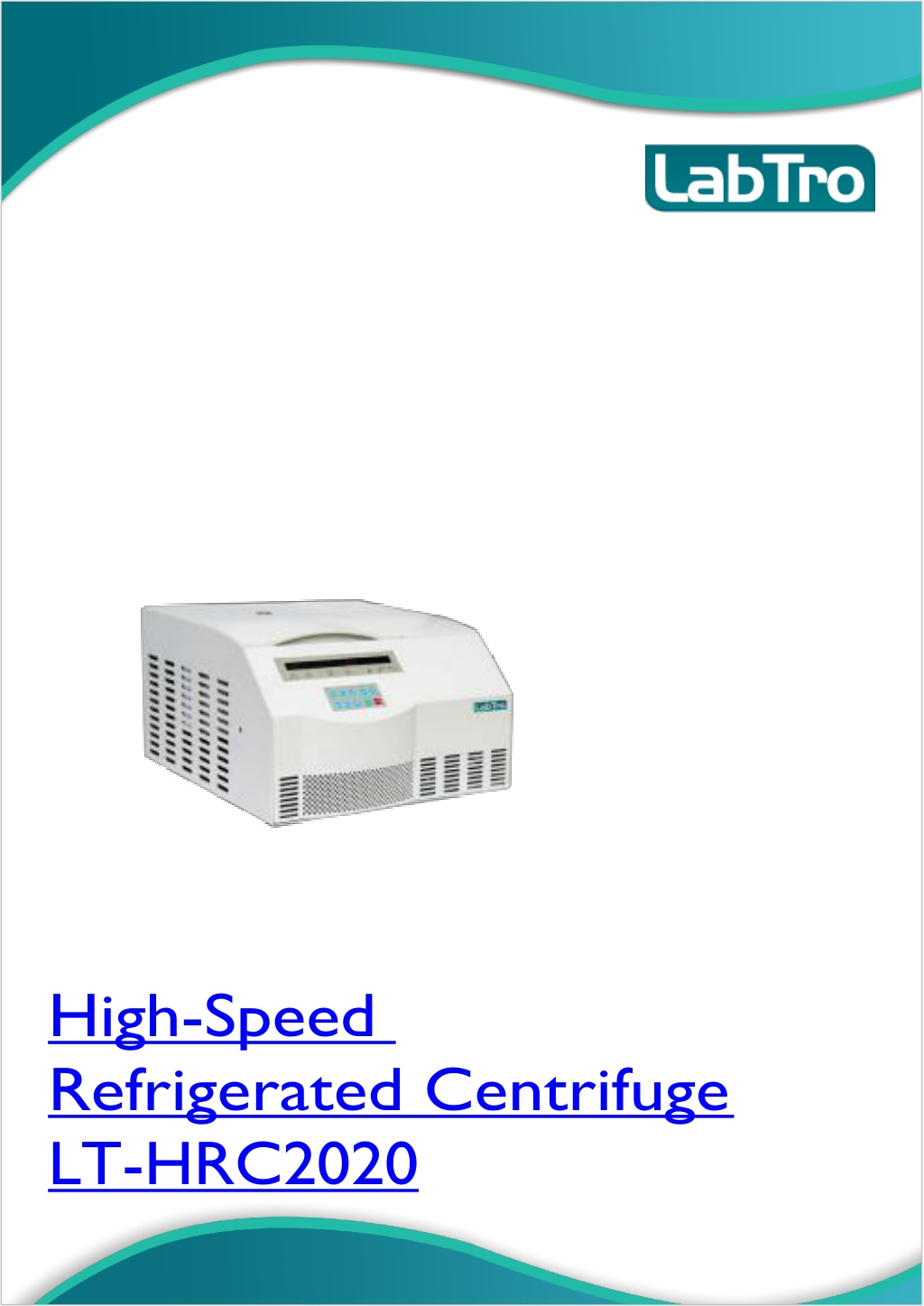

  1. High-Speed Refrigerated Centrifuge LT-HRC2020

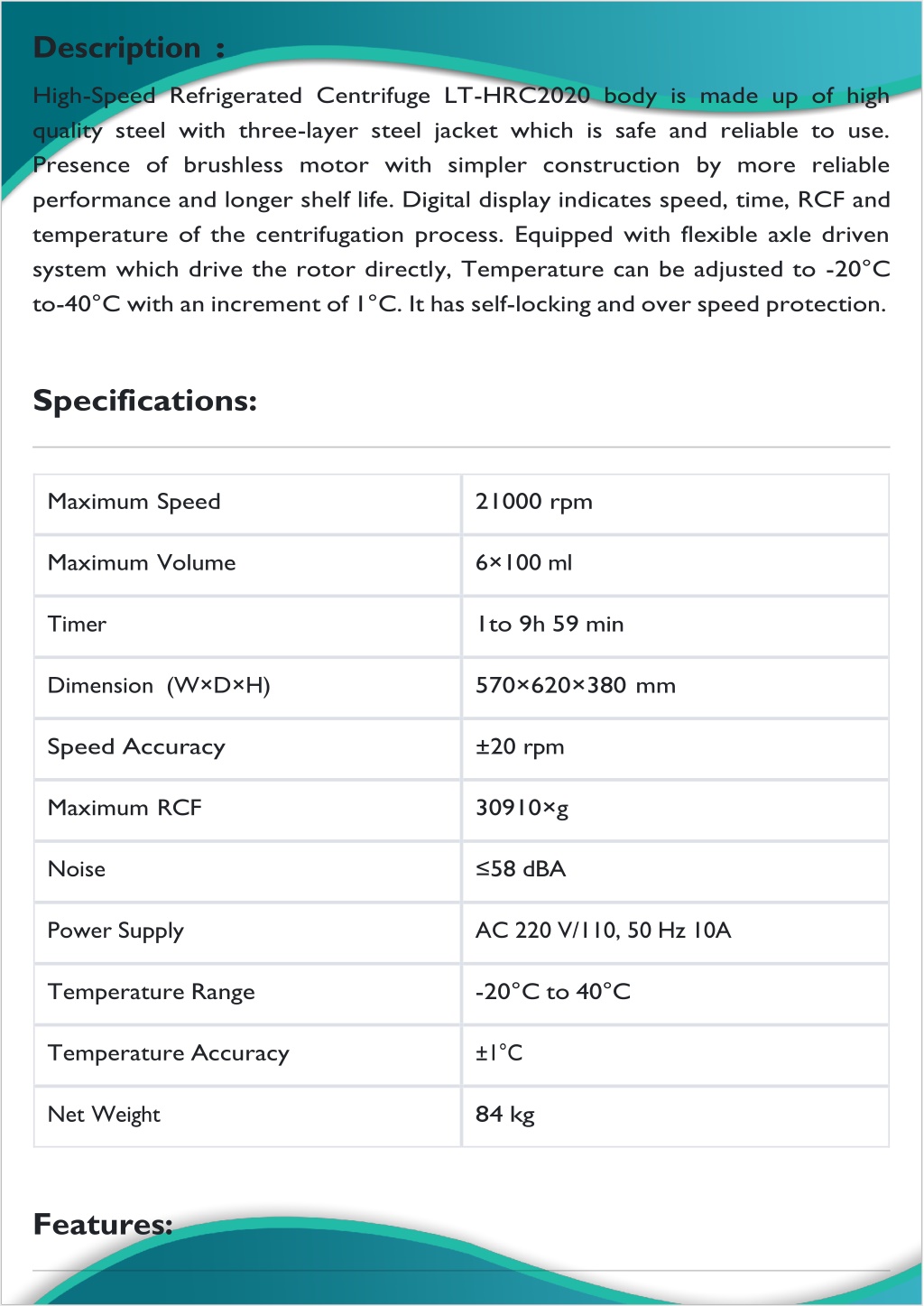

  2. Description : High-Speed Refrigerated Centrifuge LT-HRC2020 body is made up of high quality steel with three-layer steel jacket which is safe and reliable to use. Presence of brushless motor with simpler construction by more reliable performance and longer shelf life. Digital display indicates speed, time, RCF and temperature of the centrifugation process. Equipped with flexible axle driven system which drive the rotor directly, Temperature can be adjusted to -20°C to-40°C with an increment of 1°C. It has self-locking and over speed protection. Specifications: Maximum Speed 21000 rpm Maximum Volume 6×100 ml Timer 1to 9h 59 min Dimension (W×D×H) 570×620×380 mm Speed Accuracy ±20 rpm Maximum RCF 30910×g Noise ≤58 dBA Power Supply AC 220 V/110, 50 Hz 10A Temperature Range -20°C to 40°C Temperature Accuracy ±1°C Net Weight 84 kg Features:

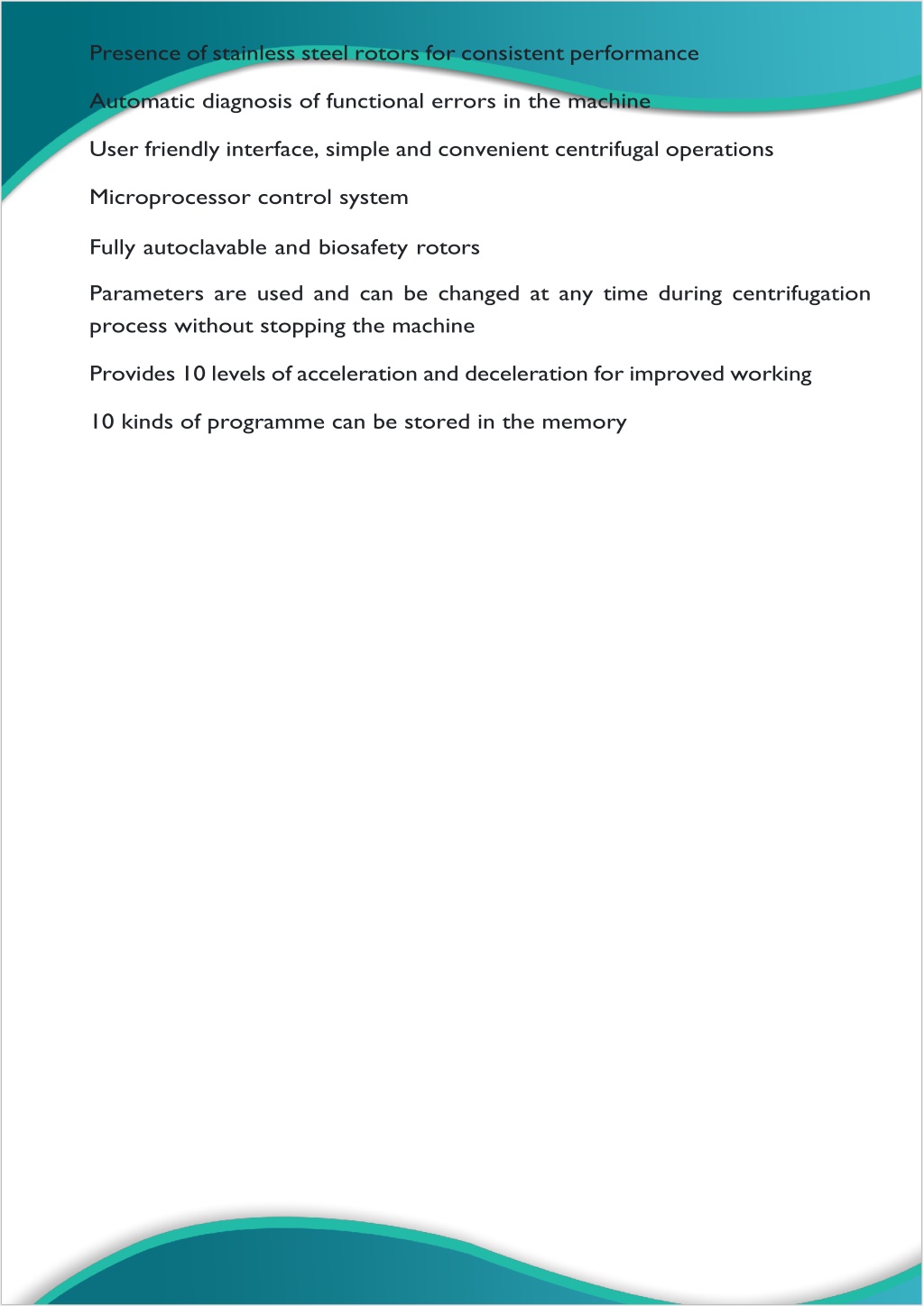

  3. Presence of stainless steel rotors for consistent performance Automatic diagnosis of functional errors in the machine User friendly interface, simple and convenient centrifugal operations Microprocessor control system Fully autoclavable and biosafety rotors Parameters are used and can be changed at any time during centrifugation process without stopping the machine Provides 10 levels of acceleration and deceleration for improved working 10 kinds of programme can be stored in the memory

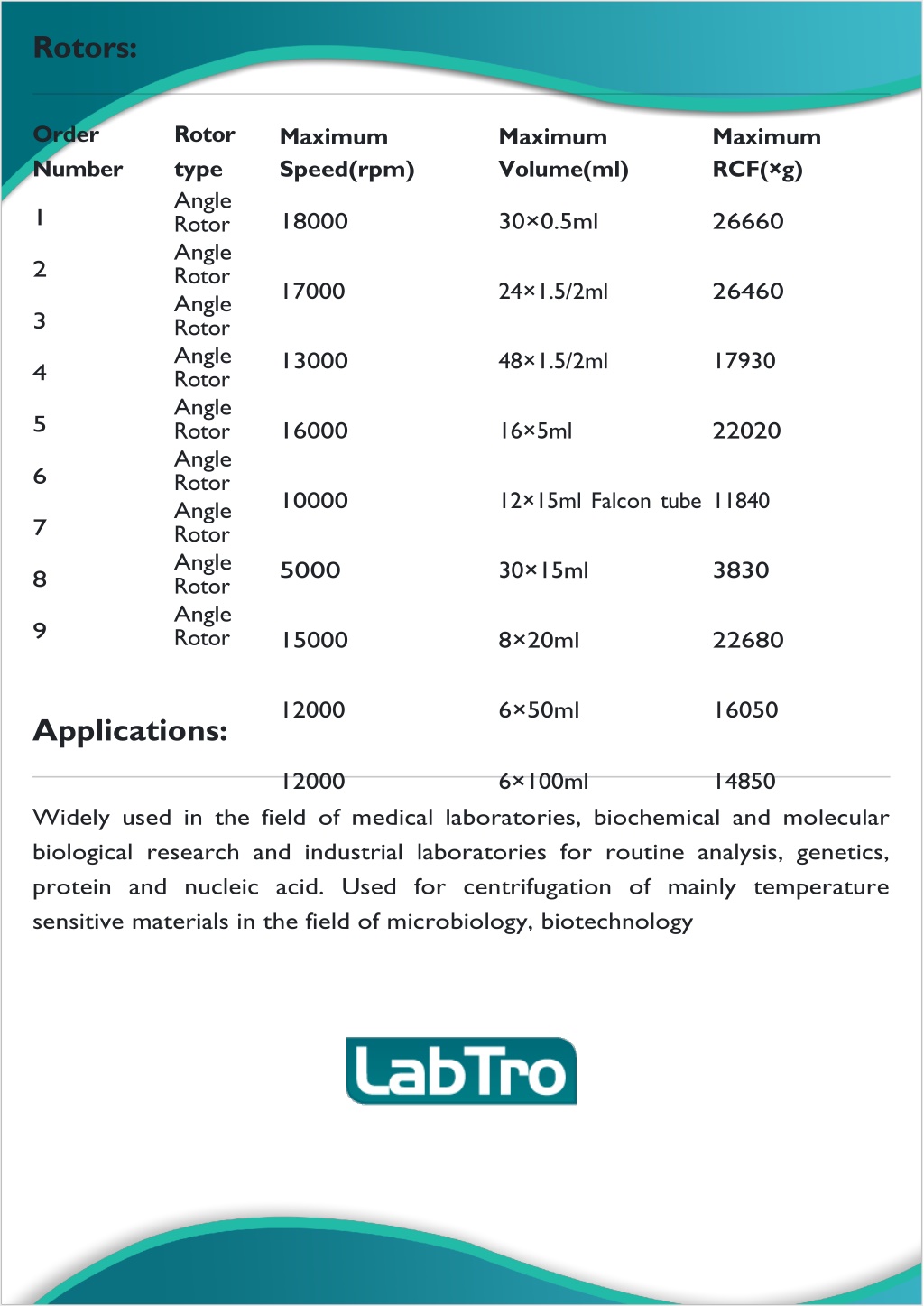

  4. Rotors: Order Number Rotor type Angle Rotor Angle Rotor Angle Rotor Angle Rotor Angle Rotor Angle Rotor Angle Rotor Angle Rotor Angle Rotor Maximum Speed(rpm) Maximum Volume(ml) Maximum RCF(×g) 1 18000 30×0.5ml 26660 2 17000 24×1.5/2ml 26460 3 13000 48×1.5/2ml 17930 4 5 16000 16×5ml 22020 6 10000 12×15ml Falcon tube 11840 7 5000 30×15ml 3830 8 9 15000 8×20ml 22680 12000 6×50ml 16050 Applications: 12000 6×100ml 14850 Widely used in the field of medical laboratories, biochemical and molecular biological research and industrial laboratories for routine analysis, genetics, protein and nucleic acid. Used for centrifugation of mainly temperature sensitive materials in the field of microbiology, biotechnology

  5. Labtro Scientific Labtro Scientific 201 Spear Street, San Francisco, CA 94105 USA Email: info@labtro.com |Website: www.labtro.com |Phone: +1 934-470-6122
