High-Speed Refrigerated Centrifuge LT-HRC2010

Labtro High-Speed Refrigerated Centrifuge achieves a max speed of 21,000 RPM and has a 4u00d7800 ml capacity with u00b120 RPM accuracy. It includes a quiet brushless DC motor, a touch panel for easy operation, and a durable autoclavable body with various rotor options.

Sara235
Download Presentation

High-Speed Refrigerated Centrifuge LT-HRC2010

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

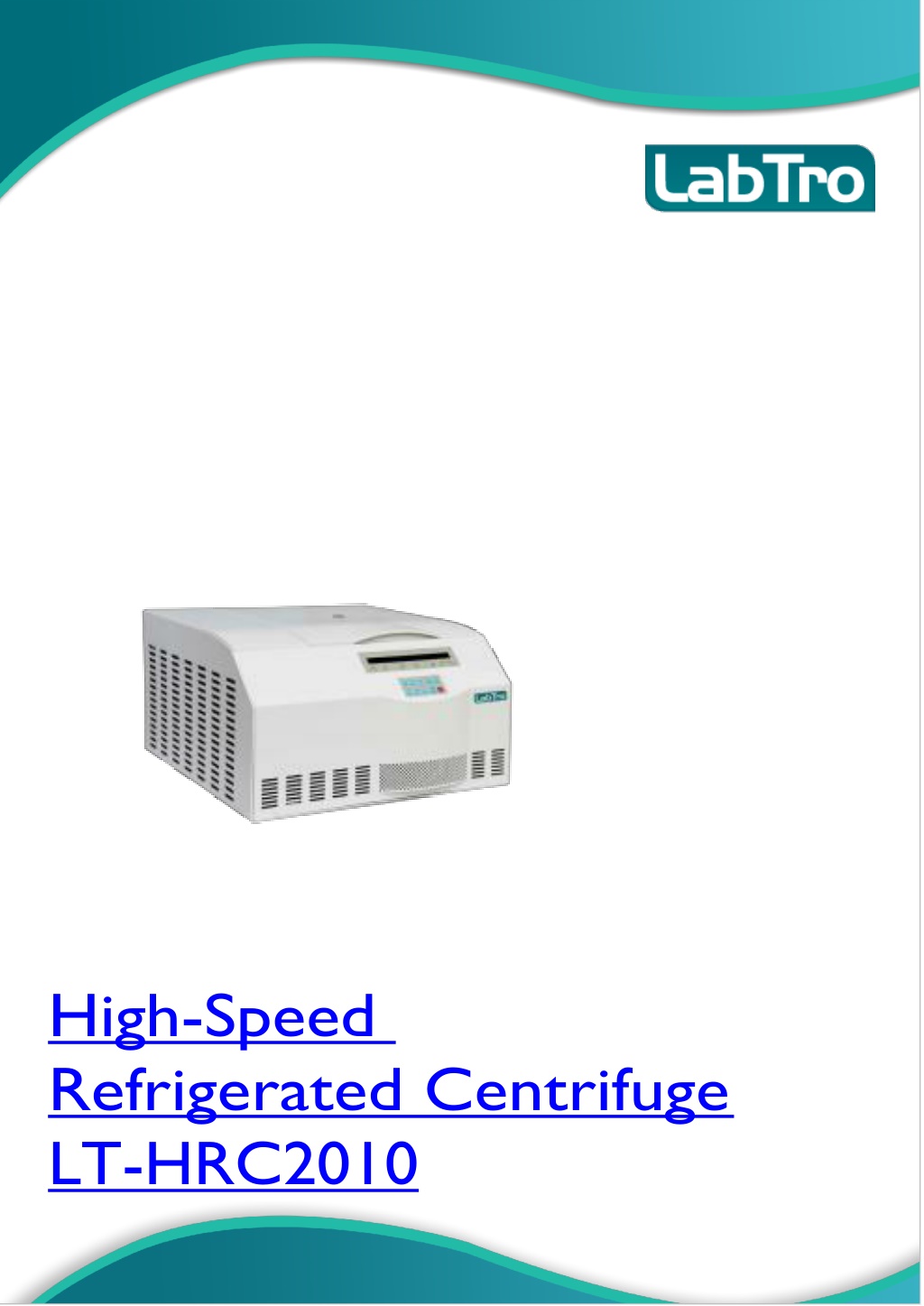

  1. High-Speed Refrigerated Centrifuge LT-HRC2010

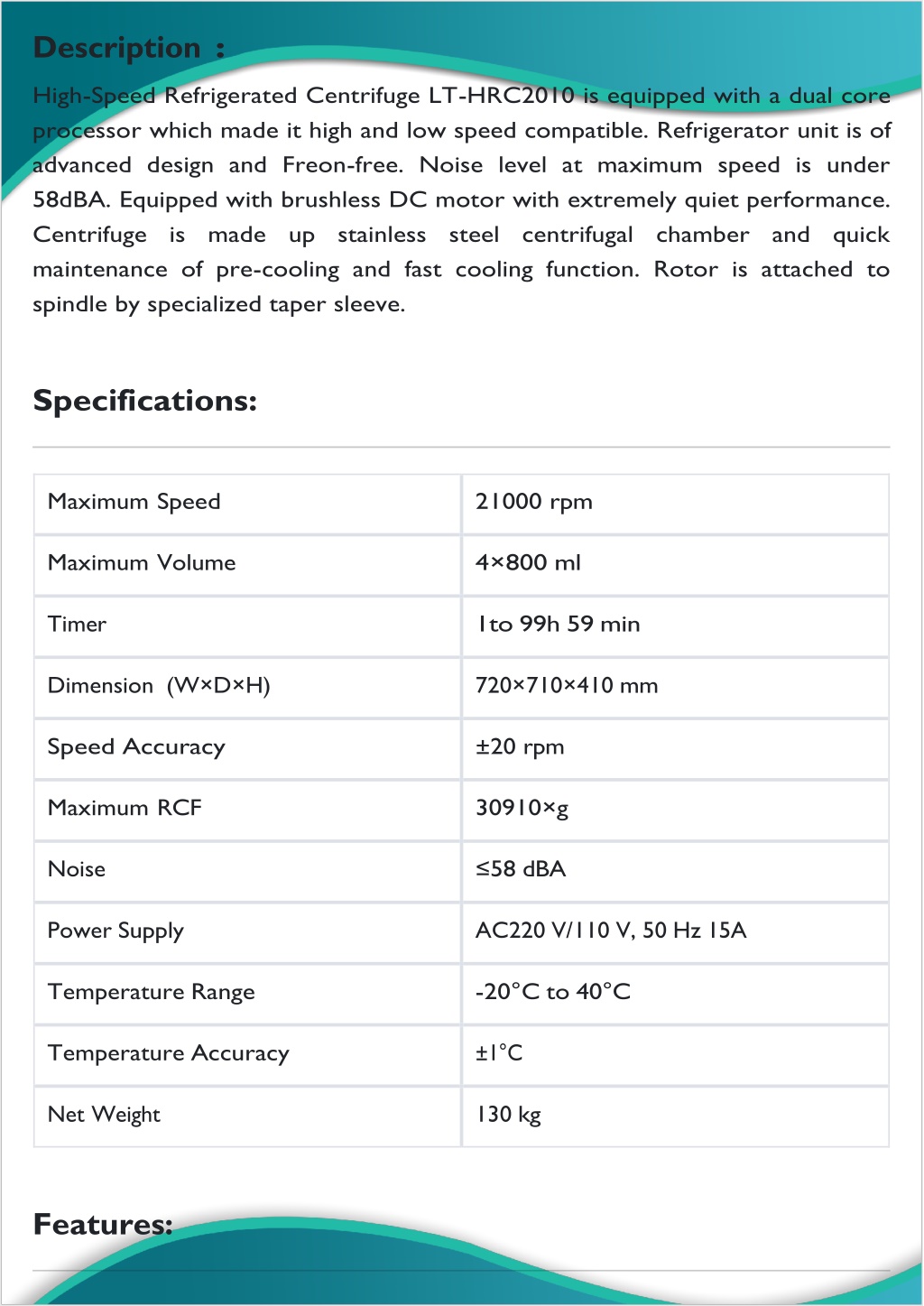

  2. Description : High-Speed Refrigerated Centrifuge LT-HRC2010 is equipped with a dual core processor which made it high and low speed compatible. Refrigerator unit is of advanced design and Freon-free. Noise level at maximum speed is under 58dBA. Equipped with brushless DC motor with extremely quiet performance. Centrifuge is made up stainless steel centrifugal chamber and quick maintenance of pre-cooling and fast cooling function. Rotor is attached to spindle by specialized taper sleeve. Specifications: Maximum Speed 21000 rpm Maximum Volume 4×800 ml Timer 1to 99h 59 min Dimension (W×D×H) 720×710×410 mm Speed Accuracy ±20 rpm Maximum RCF 30910×g Noise ≤58 dBA Power Supply AC220 V/110 V, 50 Hz 15A Temperature Range -20°C to 40°C Temperature Accuracy ±1°C Net Weight 130 kg Features:

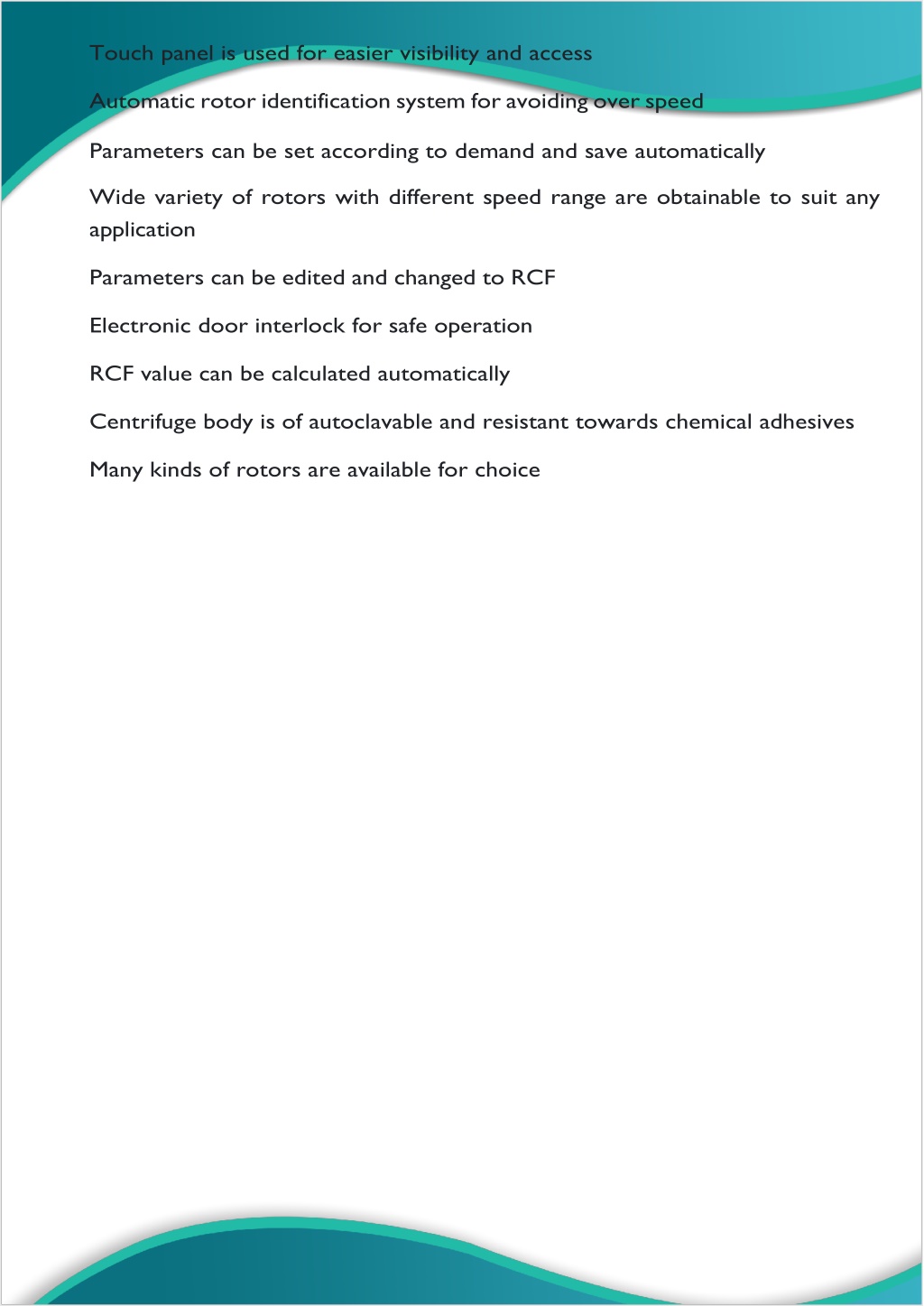

  3. Touch panel is used for easier visibility and access Automatic rotor identification system for avoiding over speed Parameters can be set according to demand and save automatically Wide variety of rotors with different speed range are obtainable to suit any application Parameters can be edited and changed to RCF Electronic door interlock for safe operation RCF value can be calculated automatically Centrifuge body is of autoclavable and resistant towards chemical adhesives Many kinds of rotors are available for choice

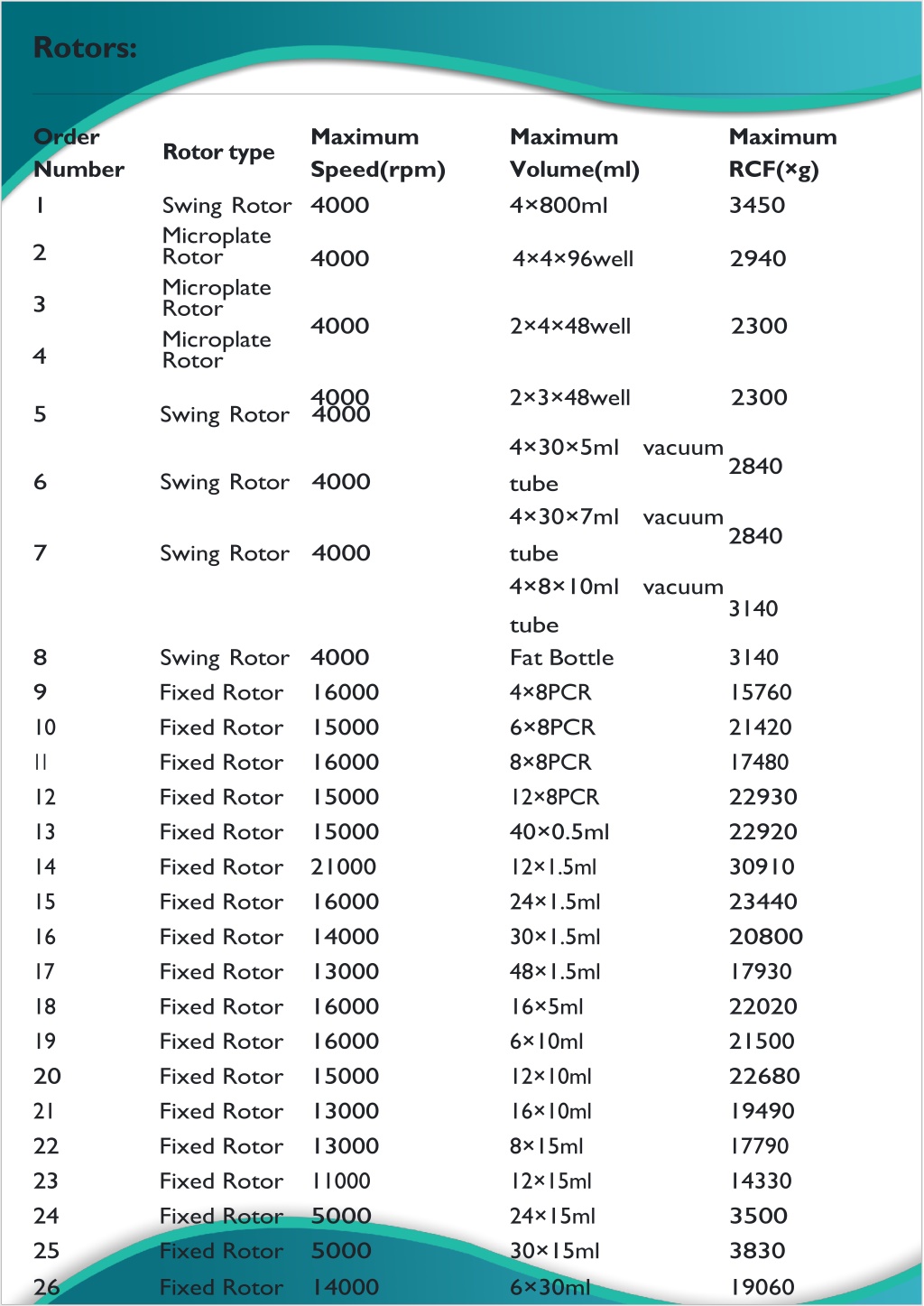

  4. Rotors: Order Number 1 Maximum Speed(rpm) Maximum Volume(ml) 4×800ml Maximum RCF(×g) 3450 Rotor type Swing Rotor4000 Microplate Rotor Microplate Rotor Microplate Rotor 2 4000 4×4×96well 2940 3 4000 2×4×48well 2300 4 4000 2×3×48well 2300 5 Swing Rotor4000 4×30×5mlvacuum tube 4×30×7mlvacuum tube 4×8×10mlvacuum tube Fat Bottle 4×8PCR 6×8PCR 8×8PCR 12×8PCR 40×0.5ml 12×1.5ml 24×1.5ml 30×1.5ml 48×1.5ml 16×5ml 6×10ml 12×10ml 16×10ml 8×15ml 12×15ml 24×15ml 30×15ml 6×30ml 2840 6 Swing Rotor4000 2840 7 Swing Rotor4000 3140 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 Swing Rotor4000 Fixed Rotor16000 Fixed Rotor15000 Fixed Rotor16000 Fixed Rotor15000 Fixed Rotor15000 Fixed Rotor21000 Fixed Rotor16000 Fixed Rotor14000 Fixed Rotor13000 Fixed Rotor16000 Fixed Rotor16000 Fixed Rotor15000 Fixed Rotor13000 Fixed Rotor13000 Fixed Rotor11000 Fixed Rotor5000 Fixed Rotor5000 Fixed Rotor14000 3140 15760 21420 17480 22930 22920 30910 23440 20800 17930 22020 21500 22680 19490 17790 14330 3500 3830 19060

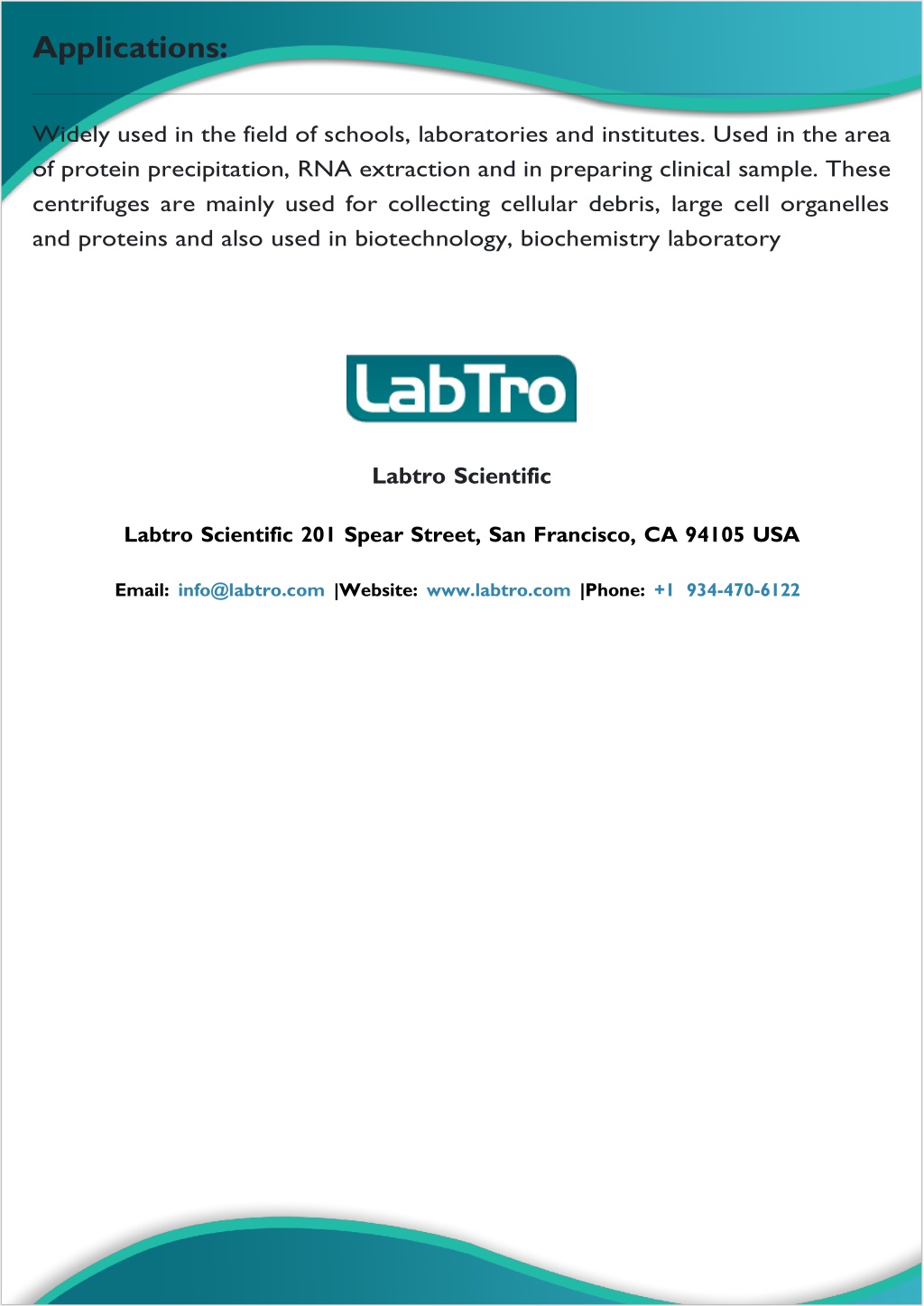

  5. Applications: Widely used in the field of schools, laboratories and institutes. Used in the area of protein precipitation, RNA extraction and in preparing clinical sample. These centrifuges are mainly used for collecting cellular debris, large cell organelles and proteins and also used in biotechnology, biochemistry laboratory Labtro Scientific Labtro Scientific 201 Spear Street, San Francisco, CA 94105 USA Email: info@labtro.com |Website: www.labtro.com |Phone: +1 934-470-6122
