High-Speed Refrigerated Centrifuge LT-HRC1015

Labtro High-Speed Refrigerated Centrifuge delivers outstanding performance with a max speed of 16,000 rpm and accommodating up to 6u00d7100 ml. It features a durable brushless motor and automatic rotor recognition, while ensuring safety with imbalance detection and three-tier steel protection.

Sara235
Download Presentation

High-Speed Refrigerated Centrifuge LT-HRC1015

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

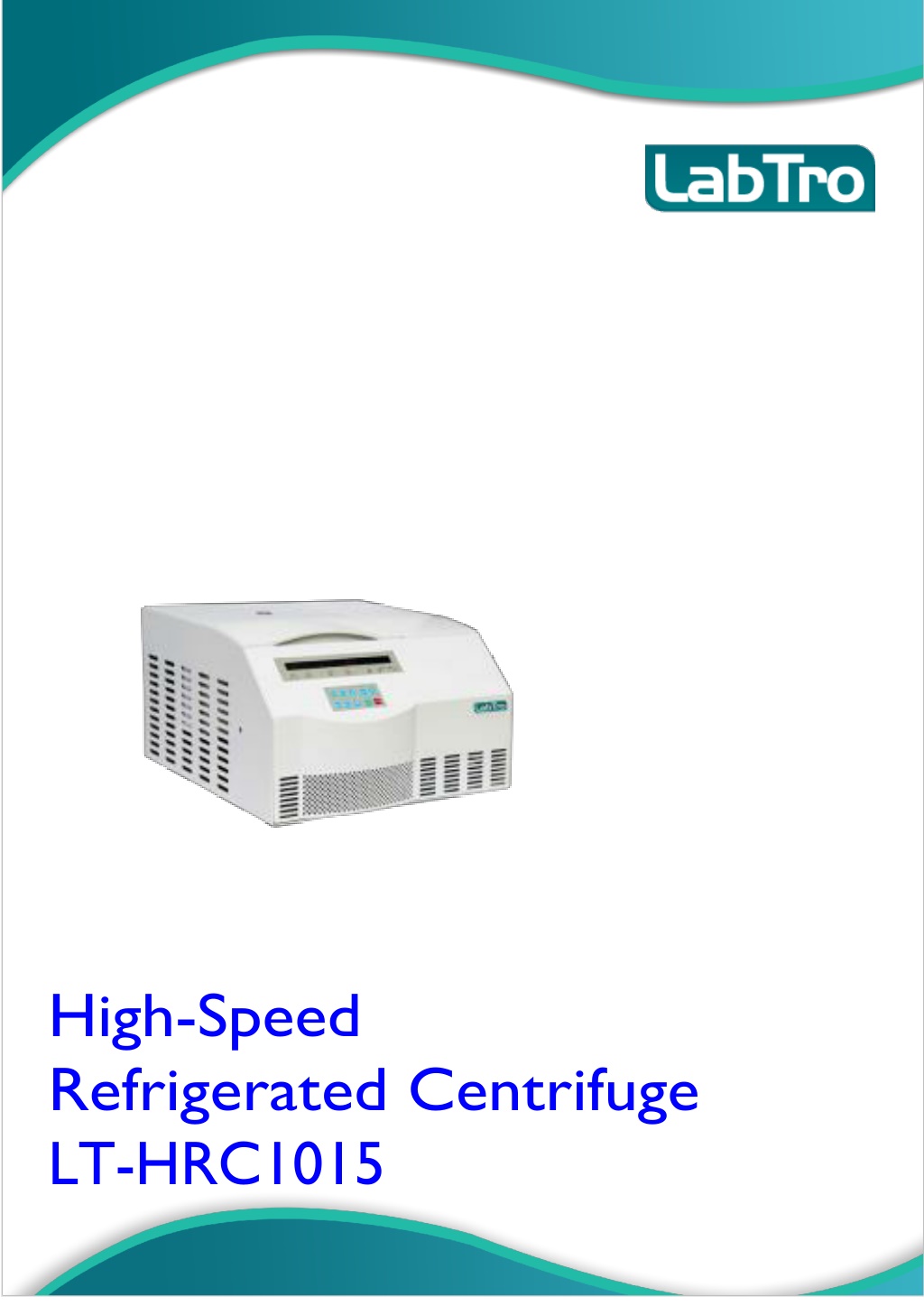

  1. High-Speed Refrigerated Centrifuge LT-HRC1015

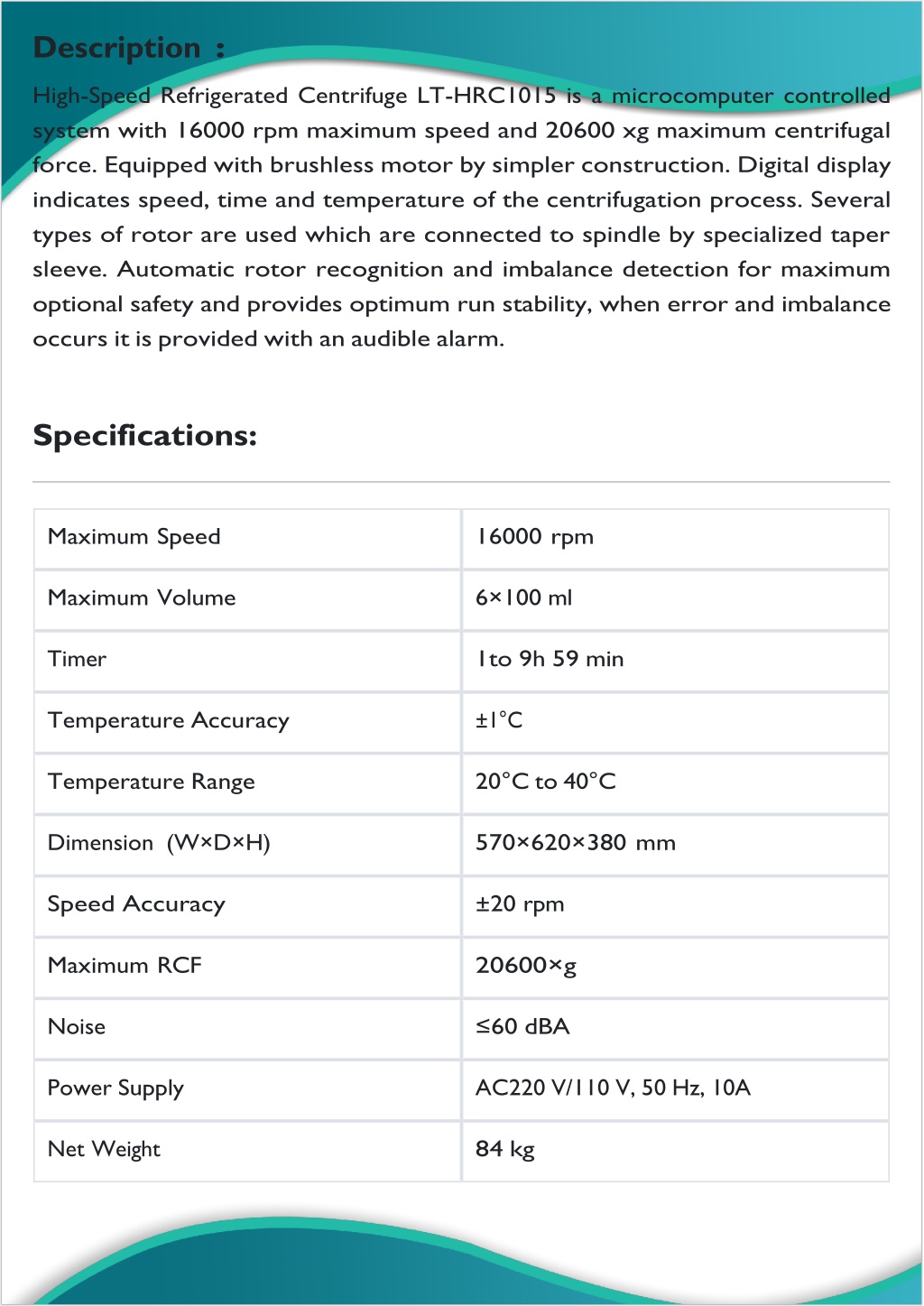

  2. Description : High-Speed Refrigerated Centrifuge LT-HRC1015 is a microcomputer controlled system with 16000 rpm maximum speed and 20600 xg maximum centrifugal force. Equipped with brushless motor by simpler construction. Digital display indicates speed, time and temperature of the centrifugation process. Several types of rotor are used which are connected to spindle by specialized taper sleeve. Automatic rotor recognition and imbalance detection for maximum optional safety and provides optimum run stability, when error and imbalance occurs it is provided with an audible alarm. Specifications: Maximum Speed 16000 rpm Maximum Volume 6×100 ml Timer 1to 9h 59 min Temperature Accuracy ±1°C Temperature Range 20°C to 40°C Dimension (W×D×H) 570×620×380 mm Speed Accuracy ±20 rpm Maximum RCF 20600×g Noise ≤60 dBA Power Supply AC220 V/110 V, 50 Hz, 10A Net Weight 84 kg

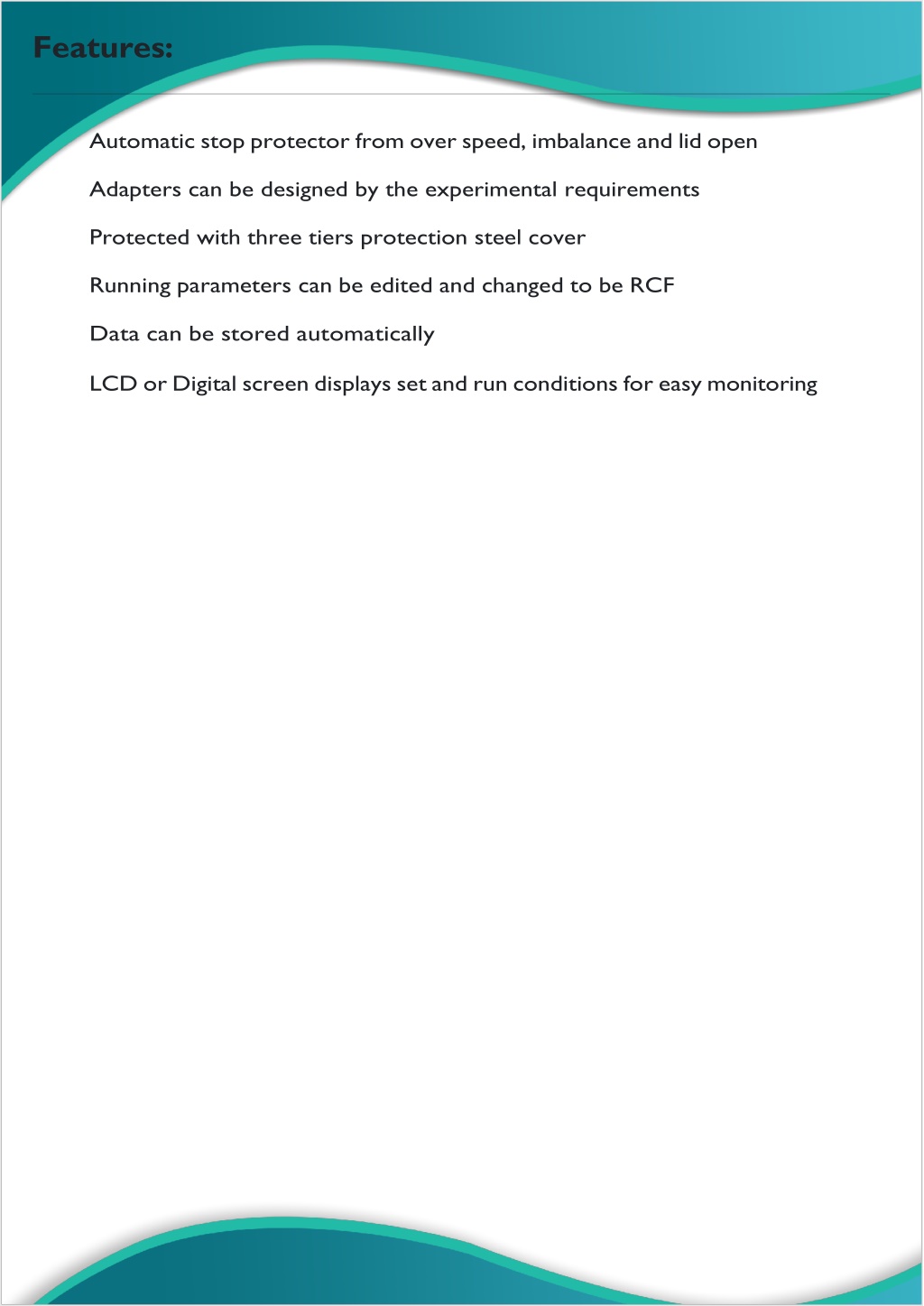

  3. Features: Automatic stop protector from over speed, imbalance and lid open Adapters can be designed by the experimental requirements Protected with three tiers protection steel cover Running parameters can be edited and changed to be RCF Data can be stored automatically LCD or Digital screen displays set and run conditions for easy monitoring

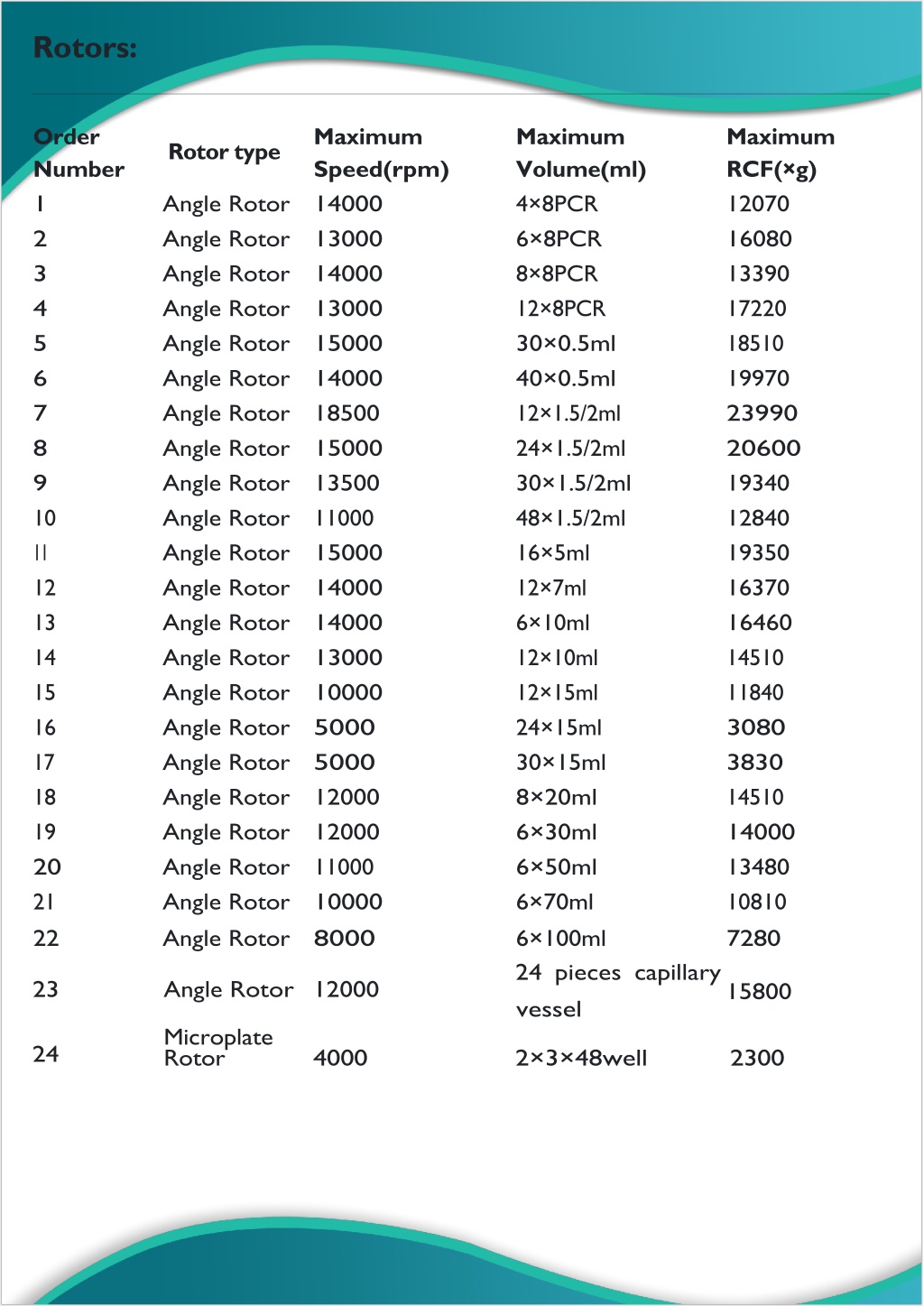

  4. Rotors: Order Number 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 Maximum Speed(rpm) Maximum Volume(ml) 4×8PCR 6×8PCR 8×8PCR 12×8PCR 30×0.5ml 40×0.5ml 12×1.5/2ml 24×1.5/2ml 30×1.5/2ml 48×1.5/2ml 16×5ml 12×7ml 6×10ml 12×10ml 12×15ml 24×15ml 30×15ml 8×20ml 6×30ml 6×50ml 6×70ml 6×100ml 24 pieces capillary vessel Maximum RCF(×g) 12070 16080 13390 17220 18510 19970 23990 20600 19340 12840 19350 16370 16460 14510 11840 3080 3830 14510 14000 13480 10810 7280 Rotor type Angle Rotor14000 Angle Rotor13000 Angle Rotor14000 Angle Rotor13000 Angle Rotor15000 Angle Rotor14000 Angle Rotor18500 Angle Rotor15000 Angle Rotor13500 Angle Rotor11000 Angle Rotor15000 Angle Rotor14000 Angle Rotor14000 Angle Rotor13000 Angle Rotor10000 Angle Rotor5000 Angle Rotor5000 Angle Rotor12000 Angle Rotor12000 Angle Rotor11000 Angle Rotor10000 Angle Rotor8000 23 Angle Rotor12000 15800 Microplate Rotor 24 4000 2×3×48well 2300

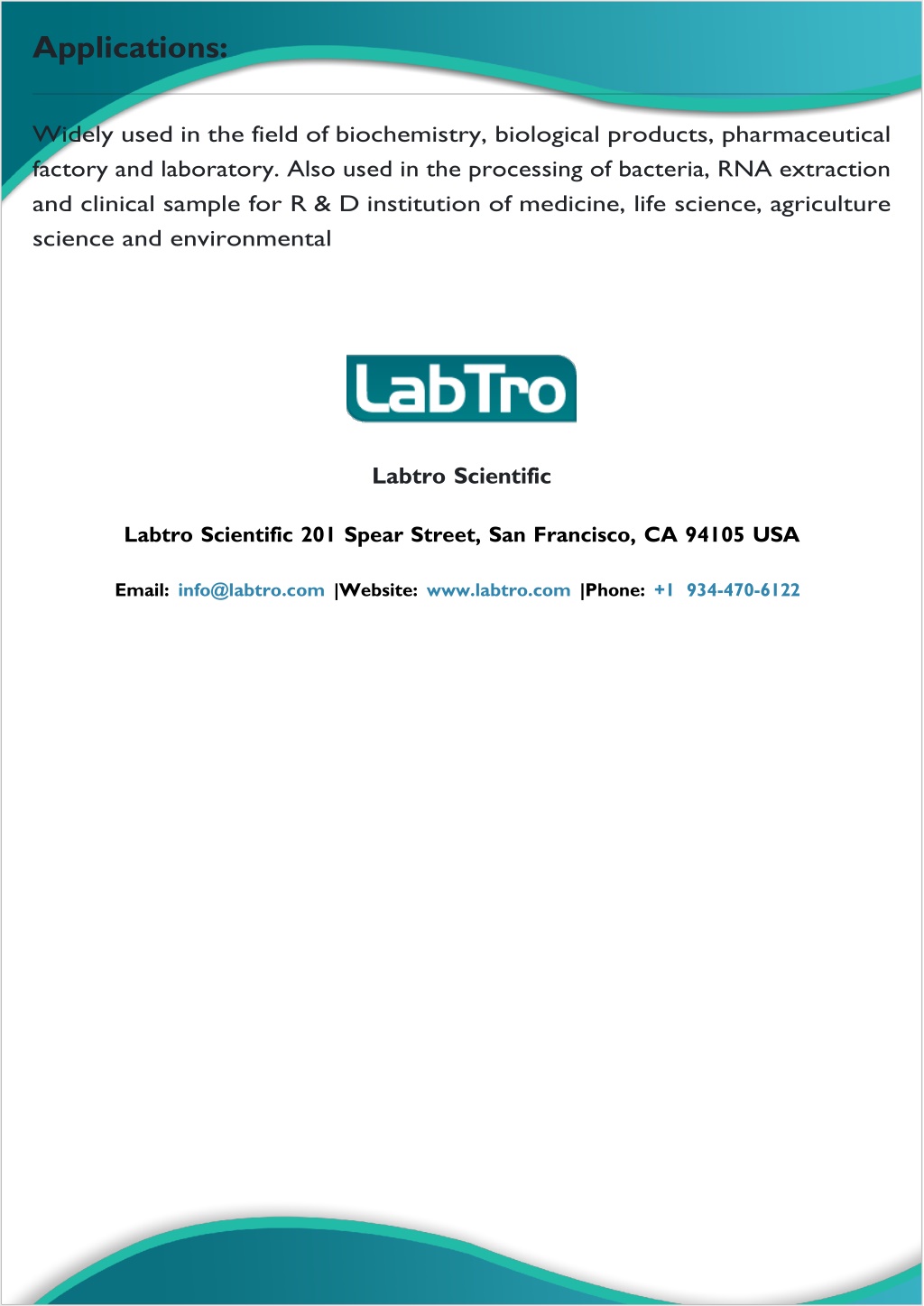

  5. Applications: Widely used in the field of biochemistry, biological products, pharmaceutical factory and laboratory. Also used in the processing of bacteria, RNA extraction and clinical sample for R & D institution of medicine, life science, agriculture science and environmental Labtro Scientific Labtro Scientific 201 Spear Street, San Francisco, CA 94105 USA Email: info@labtro.com |Website: www.labtro.com |Phone: +1 934-470-6122
