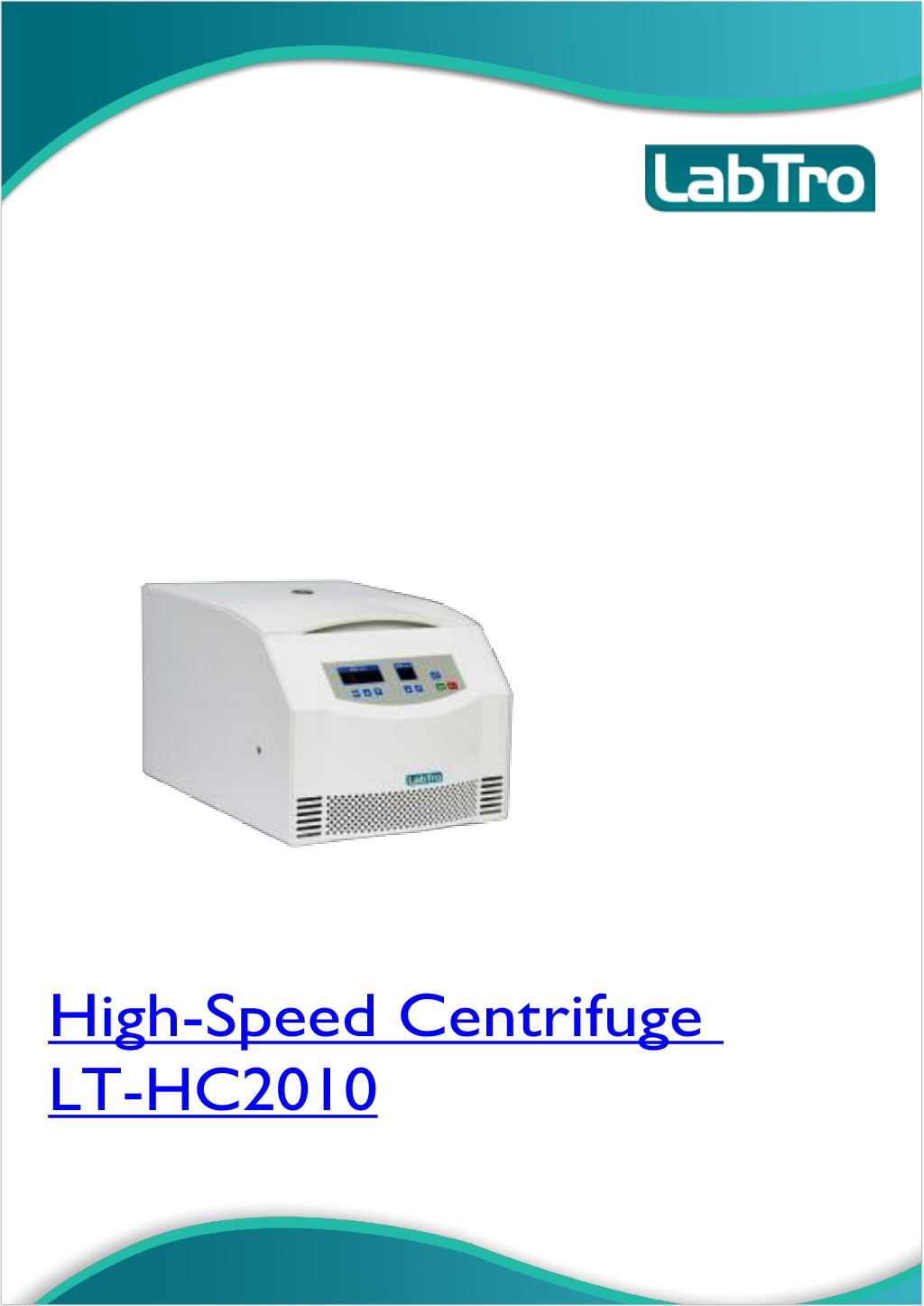

  1. High-Speed Centrifuge LT-HC2010

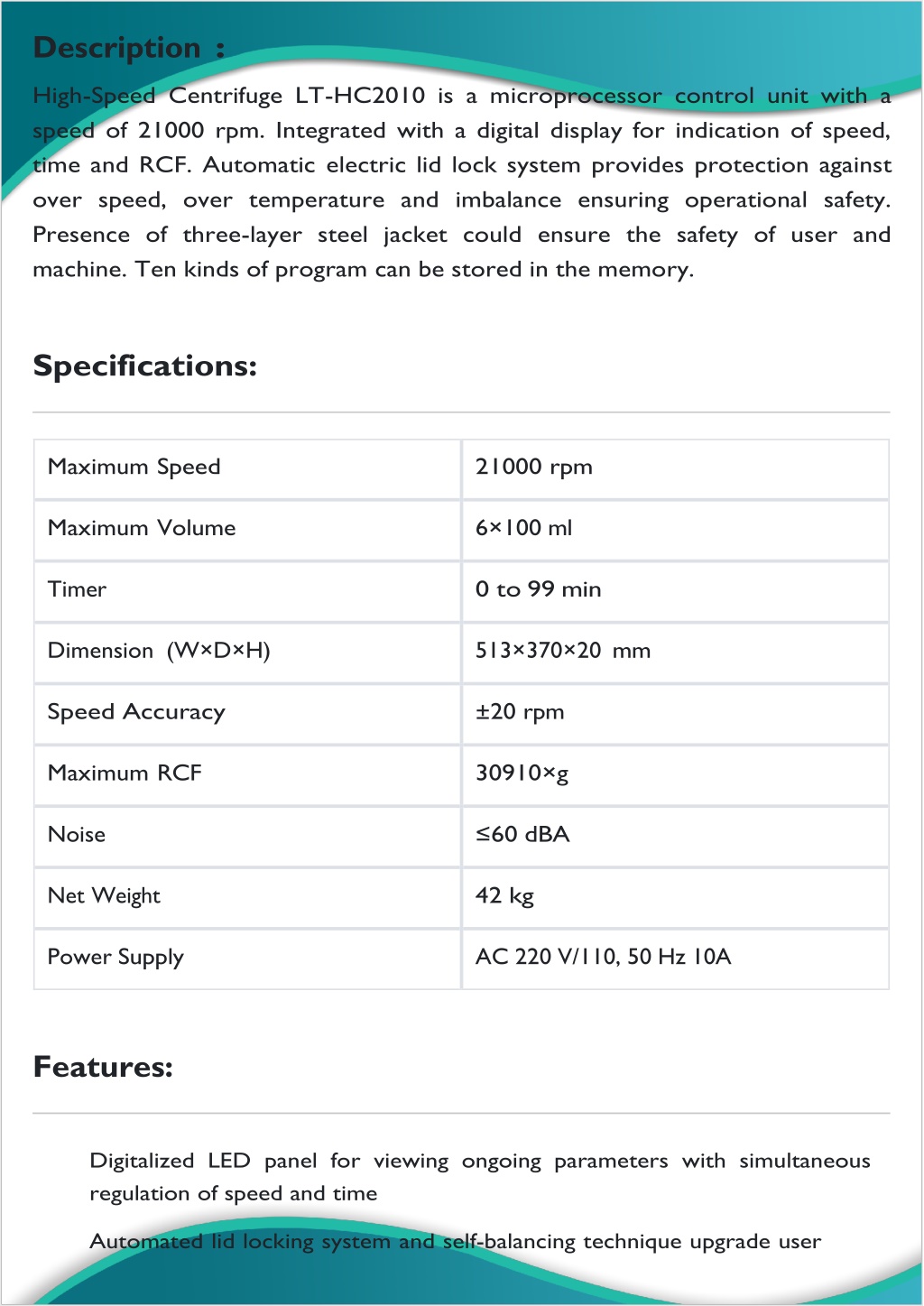

  2. Description : High-Speed Centrifuge LT-HC2010 is a microprocessor control unit with a speed of 21000 rpm. Integrated with a digital display for indication of speed, time and RCF. Automatic electric lid lock system provides protection against over speed, over temperature and imbalance ensuring operational safety. Presence of three-layer steel jacket could ensure the safety of user and machine. Ten kinds of program can be stored in the memory. Specifications: Maximum Speed 21000 rpm Maximum Volume 6×100 ml Timer 0 to 99 min Dimension (W×D×H) 513×370×20 mm Speed Accuracy ±20 rpm Maximum RCF 30910×g Noise ≤60 dBA Net Weight 42 kg Power Supply AC 220 V/110, 50 Hz 10A Features: Digitalized LED panel for viewing ongoing parameters with simultaneous regulation of speed and time Automated lid locking system and self-balancing technique upgrade user

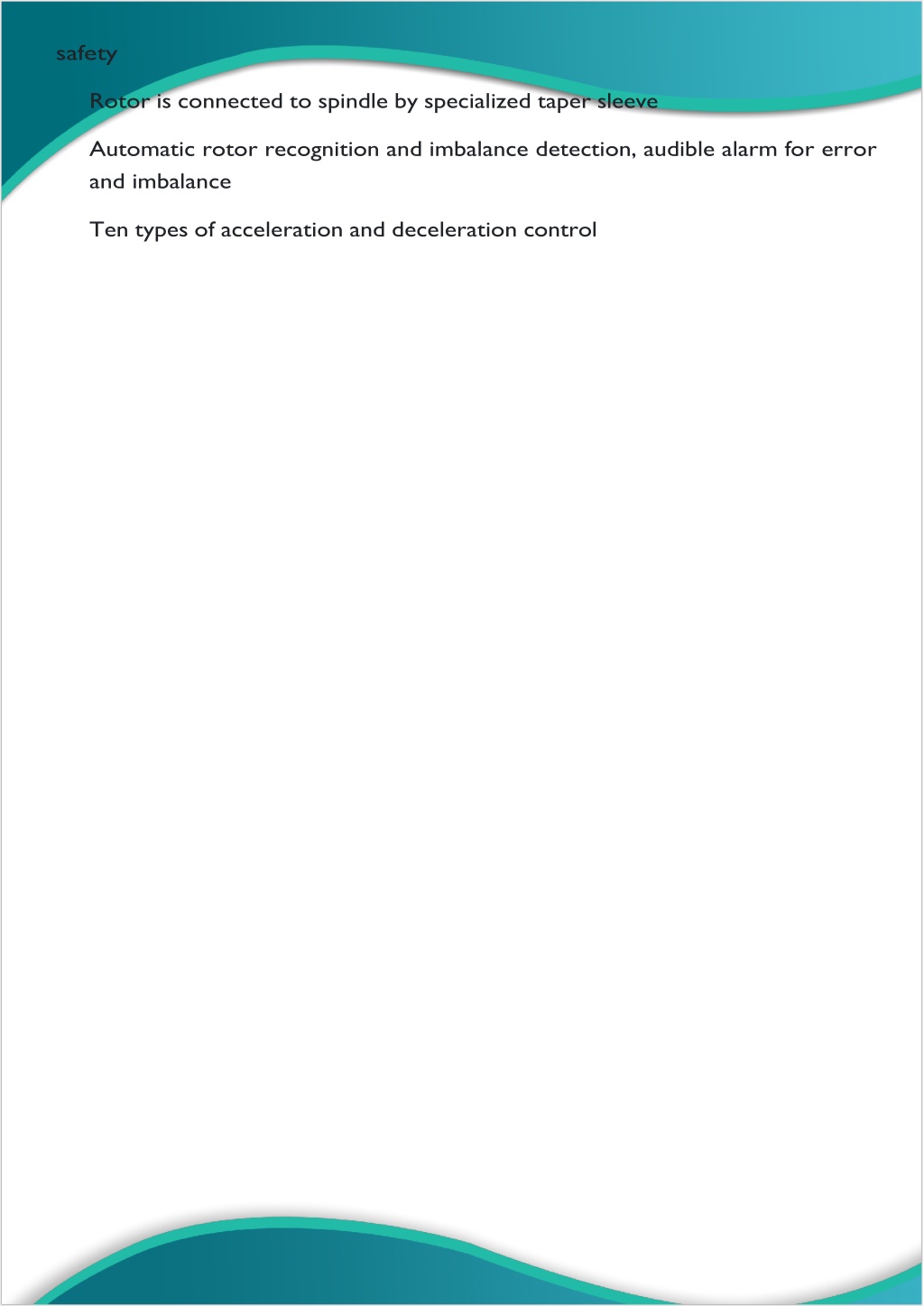

  3. safety Rotor is connected to spindle by specialized taper sleeve Automatic rotor recognition and imbalance detection, audible alarm for error and imbalance Ten types of acceleration and deceleration control

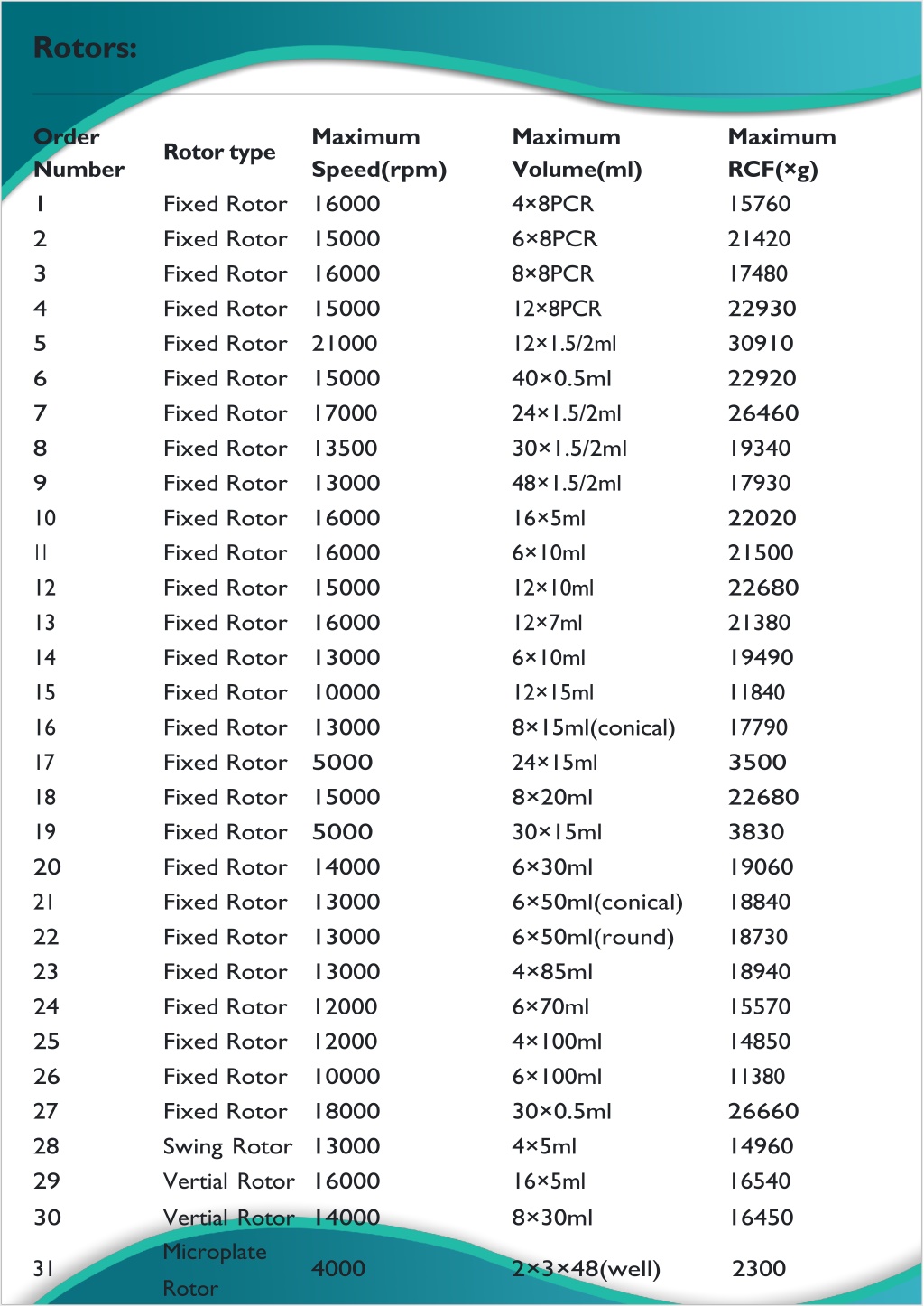

  4. Rotors: Order Number 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 Maximum Speed(rpm) Maximum Volume(ml) 4×8PCR 6×8PCR 8×8PCR 12×8PCR 12×1.5/2ml 40×0.5ml 24×1.5/2ml 30×1.5/2ml 48×1.5/2ml 16×5ml 6×10ml 12×10ml 12×7ml 6×10ml 12×15ml 8×15ml(conical) 24×15ml 8×20ml 30×15ml 6×30ml 6×50ml(conical) 6×50ml(round) 4×85ml 6×70ml 4×100ml 6×100ml 30×0.5ml 4×5ml 16×5ml 8×30ml Maximum RCF(×g) 15760 21420 17480 22930 30910 22920 26460 19340 17930 22020 21500 22680 21380 19490 11840 17790 3500 22680 3830 19060 18840 18730 18940 15570 14850 11380 26660 14960 16540 16450 Rotor type Fixed Rotor16000 Fixed Rotor15000 Fixed Rotor16000 Fixed Rotor15000 Fixed Rotor21000 Fixed Rotor15000 Fixed Rotor17000 Fixed Rotor13500 Fixed Rotor13000 Fixed Rotor16000 Fixed Rotor16000 Fixed Rotor15000 Fixed Rotor16000 Fixed Rotor13000 Fixed Rotor10000 Fixed Rotor13000 Fixed Rotor5000 Fixed Rotor15000 Fixed Rotor5000 Fixed Rotor14000 Fixed Rotor13000 Fixed Rotor13000 Fixed Rotor13000 Fixed Rotor12000 Fixed Rotor12000 Fixed Rotor10000 Fixed Rotor18000 Swing Rotor13000 Vertial Rotor16000 Vertial Rotor14000 Microplate Rotor 31 4000 2×3×48(well) 2300

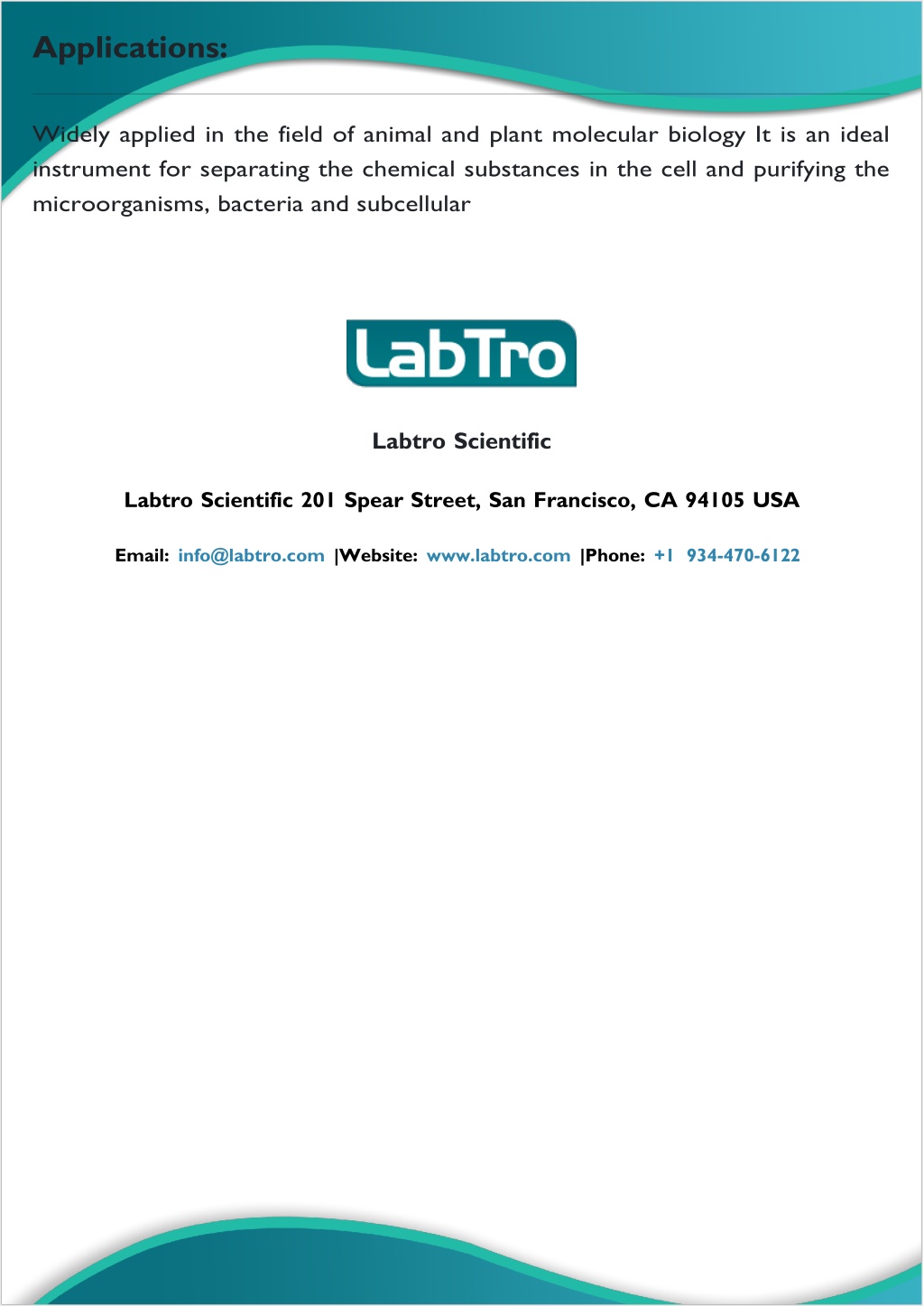

  5. Applications: Widely applied in the field of animal and plant molecular biology It is an ideal instrument for separating the chemical substances in the cell and purifying the microorganisms, bacteria and subcellular Labtro Scientific Labtro Scientific 201 Spear Street, San Francisco, CA 94105 USA Email: info@labtro.com |Website: www.labtro.com |Phone: +1 934-470-6122
