High-Speed Centrifuge LT-1010

Labtro High-Speed Centrifuge delivers a max speed of 16,000 rpm, 19,040u00d7g rcf, and a 10u00d75 ml capacity. It features a 0-99 minute timer, 10 speed modes, a brushless motor, a digital display, a key lock, temperature/imbalance protection, and 10 program memories for convenience.

Sara235
Download Presentation

High-Speed Centrifuge LT-1010

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

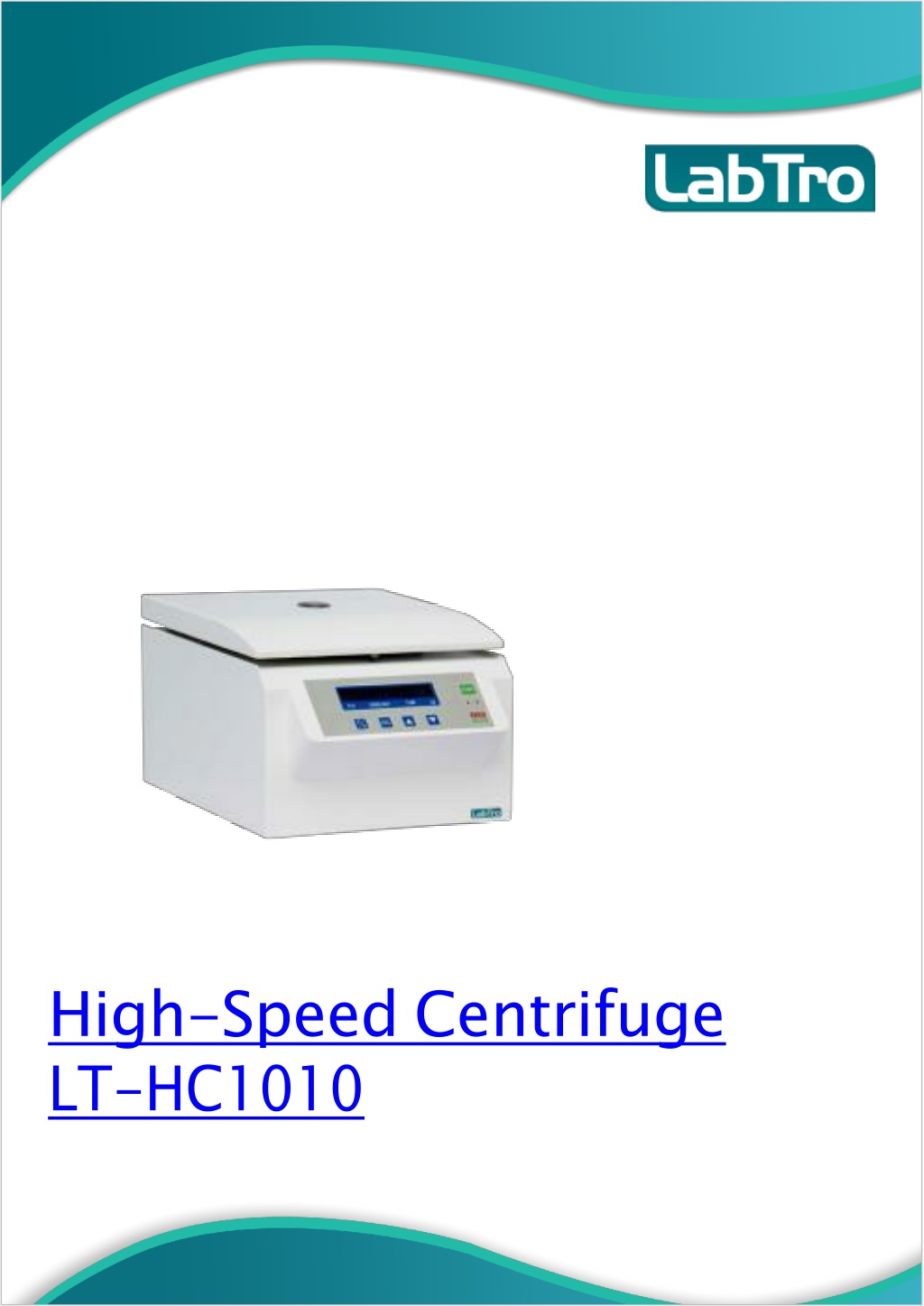

  1. High-Speed Centrifuge LT-HC1010

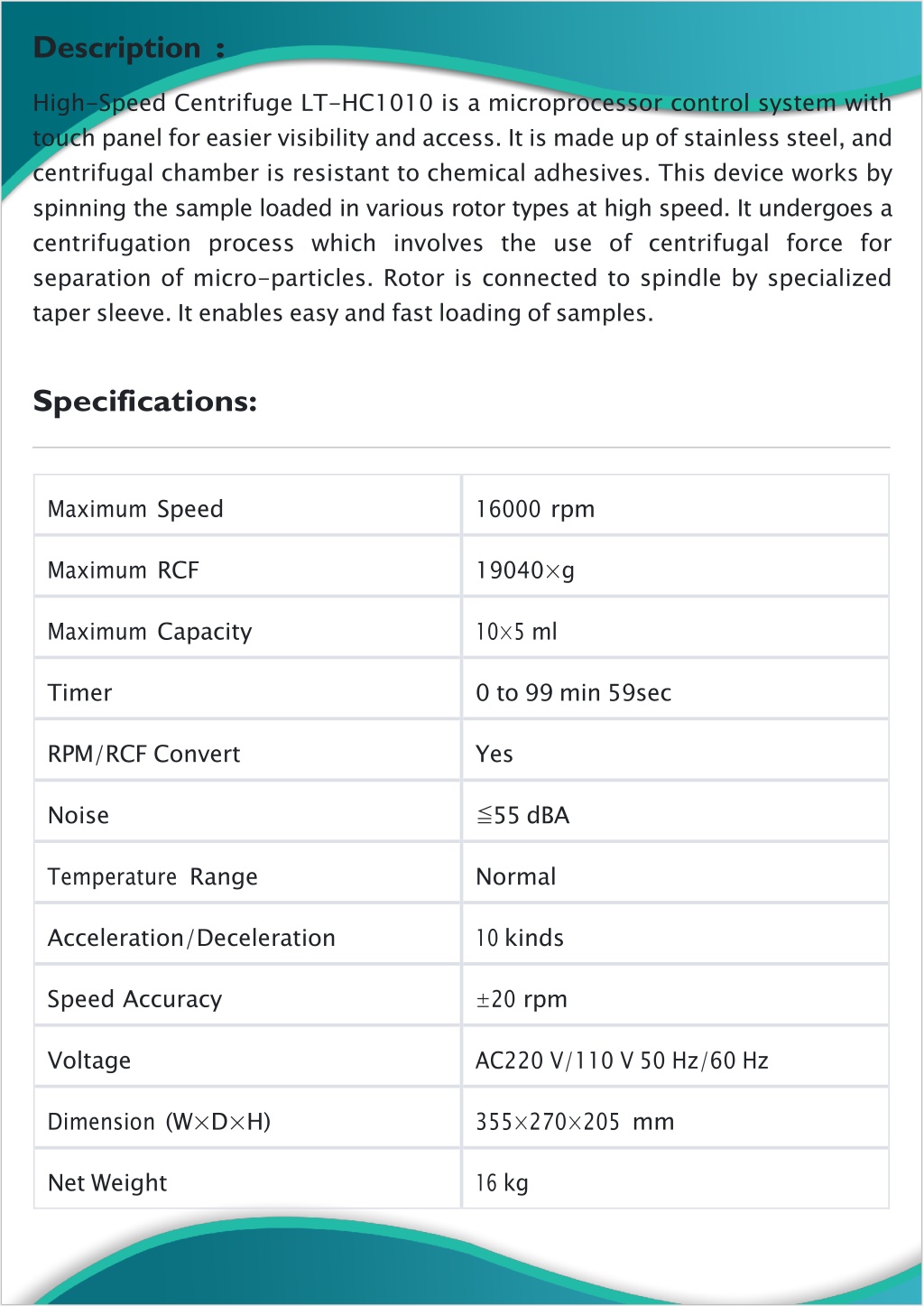

  2. Description : High-Speed Centrifuge LT-HC1010 is a microprocessor control system with touch panel for easier visibility and access. It is made up of stainless steel, and centrifugal chamber is resistant to chemical adhesives. This device works by spinning the sample loaded in various rotor types at high speed. It undergoes a centrifugation process which involves the use of centrifugal force for separation of micro-particles. Rotor is connected to spindle by specialized taper sleeve. It enables easy and fast loading of samples. Specifications: Maximum Speed 16000 rpm Maximum RCF 19040×g Maximum Capacity 10×5 ml Timer 0 to 99 min 59sec RPM/RCF Convert Yes Noise ≦55 dBA Temperature Range Normal Acceleration/Deceleration 10 kinds Speed Accuracy ±20 rpm Voltage AC220 V/110 V 50 Hz/60 Hz Dimension (W×D×H) 355×270×205 mm Net Weight 16 kg

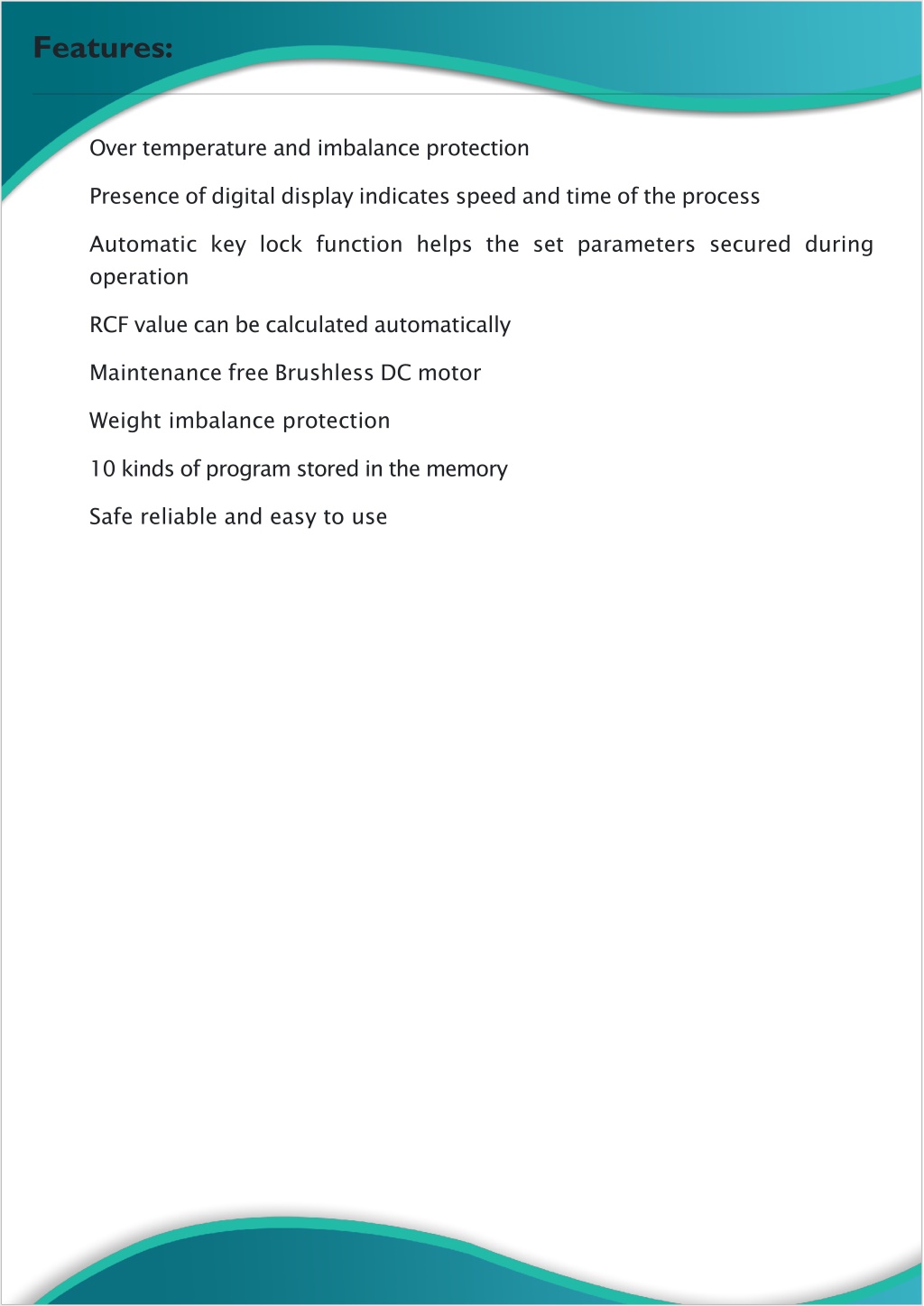

  3. Features: Over temperature and imbalance protection Presence of digital display indicates speed and time of the process Automatic key lock function helps the set parameters secured during operation RCF value can be calculated automatically Maintenance free Brushless DC motor Weight imbalance protection 10 kinds of program stored in the memory Safe reliable and easy to use

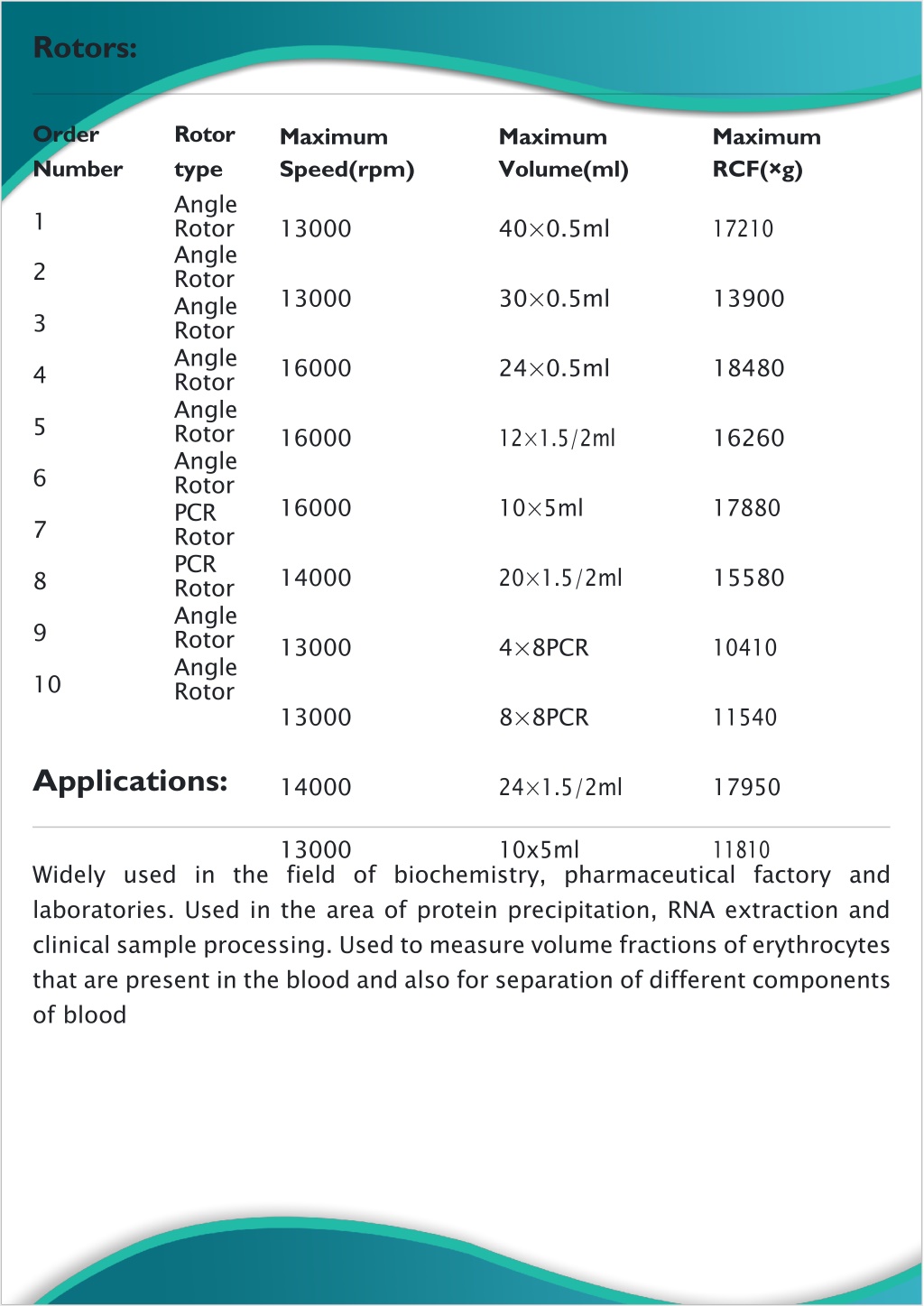

  4. Rotors: Order Number Rotor type Angle Rotor Angle Rotor Angle Rotor Angle Rotor Angle Rotor Angle Rotor PCR Rotor PCR Rotor Angle Rotor Angle Rotor Maximum Speed(rpm) Maximum Volume(ml) Maximum RCF(×g) 1 13000 40×0.5ml 17210 2 13000 30×0.5ml 13900 3 16000 24×0.5ml 18480 4 5 16000 12×1.5/2ml 16260 6 16000 10×5ml 17880 7 14000 20×1.5/2ml 15580 8 9 13000 4×8PCR 10410 10 13000 8×8PCR 11540 Applications: 14000 24×1.5/2ml 17950 13000 10x5ml 11810 Widely used in the field of biochemistry, pharmaceutical factory and laboratories. Used in the area of protein precipitation, RNA extraction and clinical sample processing. Used to measure volume fractions of erythrocytes that are present in the blood and also for separation of different components of blood

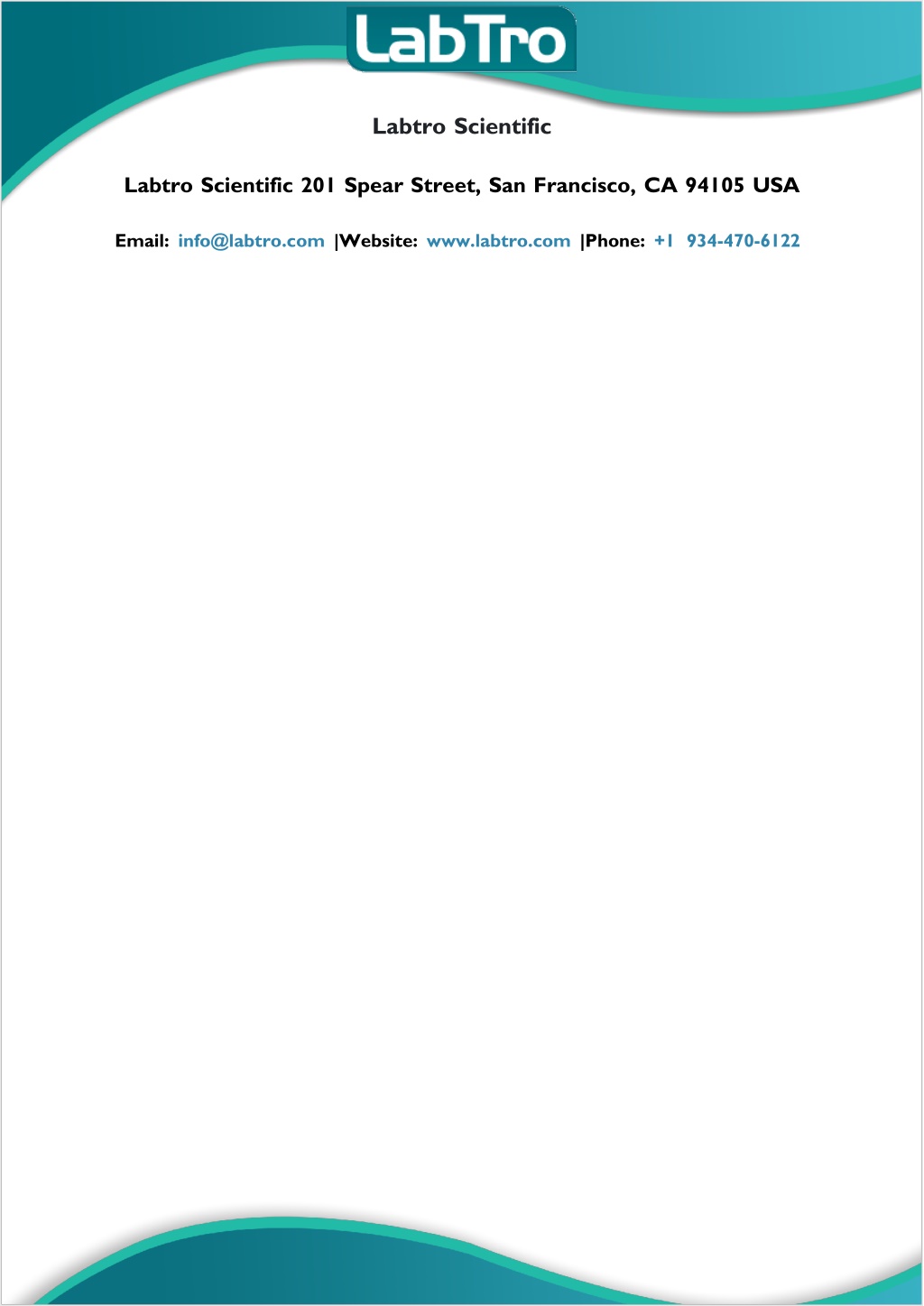

  5. Labtro Scientific Labtro Scientific 201 Spear Street, San Francisco, CA 94105 USA Email: info@labtro.com |Website: www.labtro.com |Phone: +1 934-470-6122
