How to Insert a Checkbox in Excel - Step by Step Guide

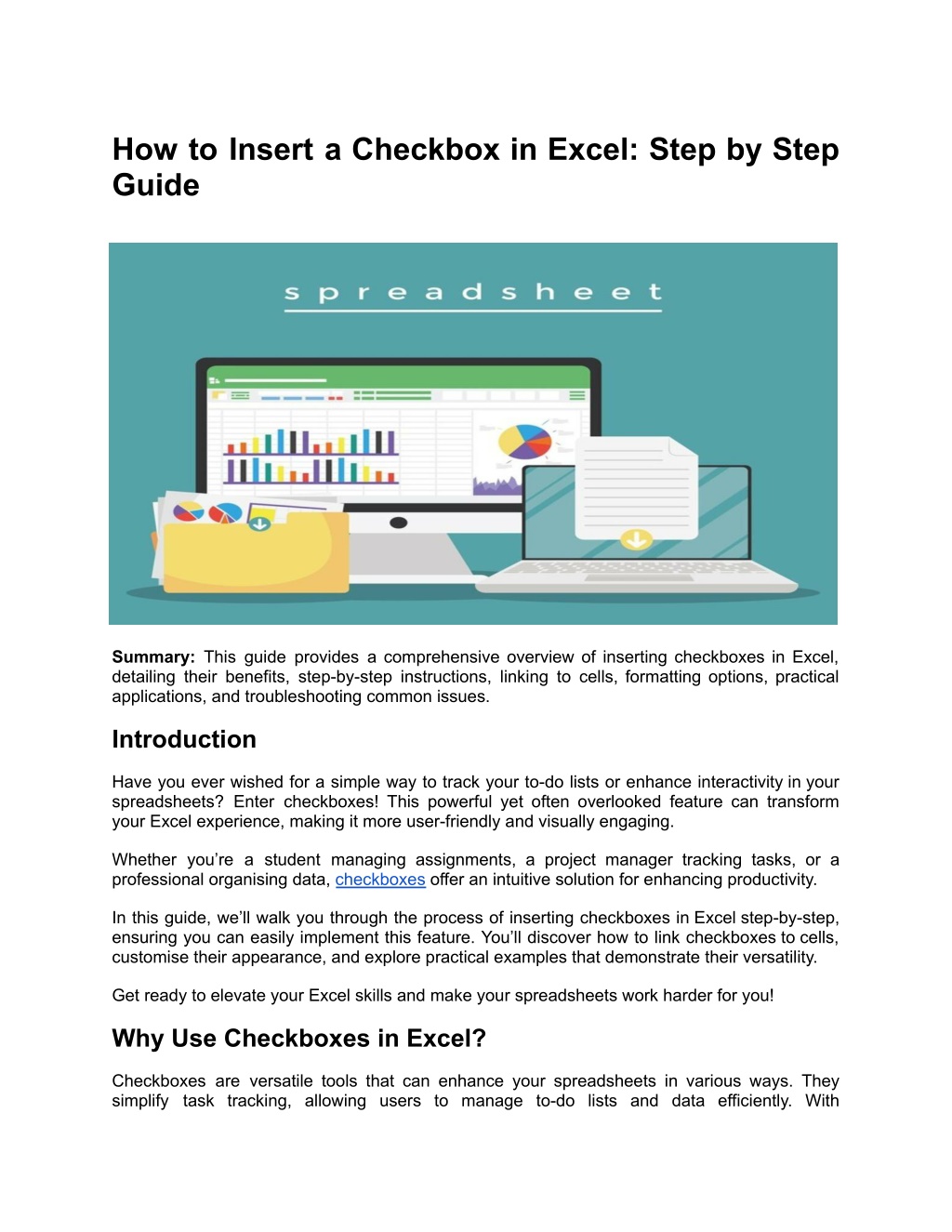

1. How to Insert a Checkbox in Excel: Step by Step Guide Summary: This guide provides a comprehensive overview of inserting checkboxes in Excel, detailing their benefits, step-by-step instructions, linking to cells, formatting options, practical applications, and troubleshooting common issues. Introduction Have you ever wished for a simple way to track your to-do lists or enhance interactivity in your spreadsheets? Enter checkboxes! This powerful yet often overlooked feature can transform your Excel experience, making it more user-friendly and visually engaging. Whether you’re a student managing assignments, a project manager tracking tasks, or a professional organising data, checkboxes offer an intuitive solution for enhancing productivity. In this guide, we’ll walk you through the process of inserting checkboxes in Excel step-by-step, ensuring you can easily implement this feature. You’ll discover how to link checkboxes to cells, customise their appearance, and explore practical examples that demonstrate their versatility. Get ready to elevate your Excel skills and make your spreadsheets work harder for you! Why Use Checkboxes in Excel? Checkboxes are versatile tools that can enhance your spreadsheets in various ways. They simplify task tracking, allowing users to manage to-do lists and data efficiently. With

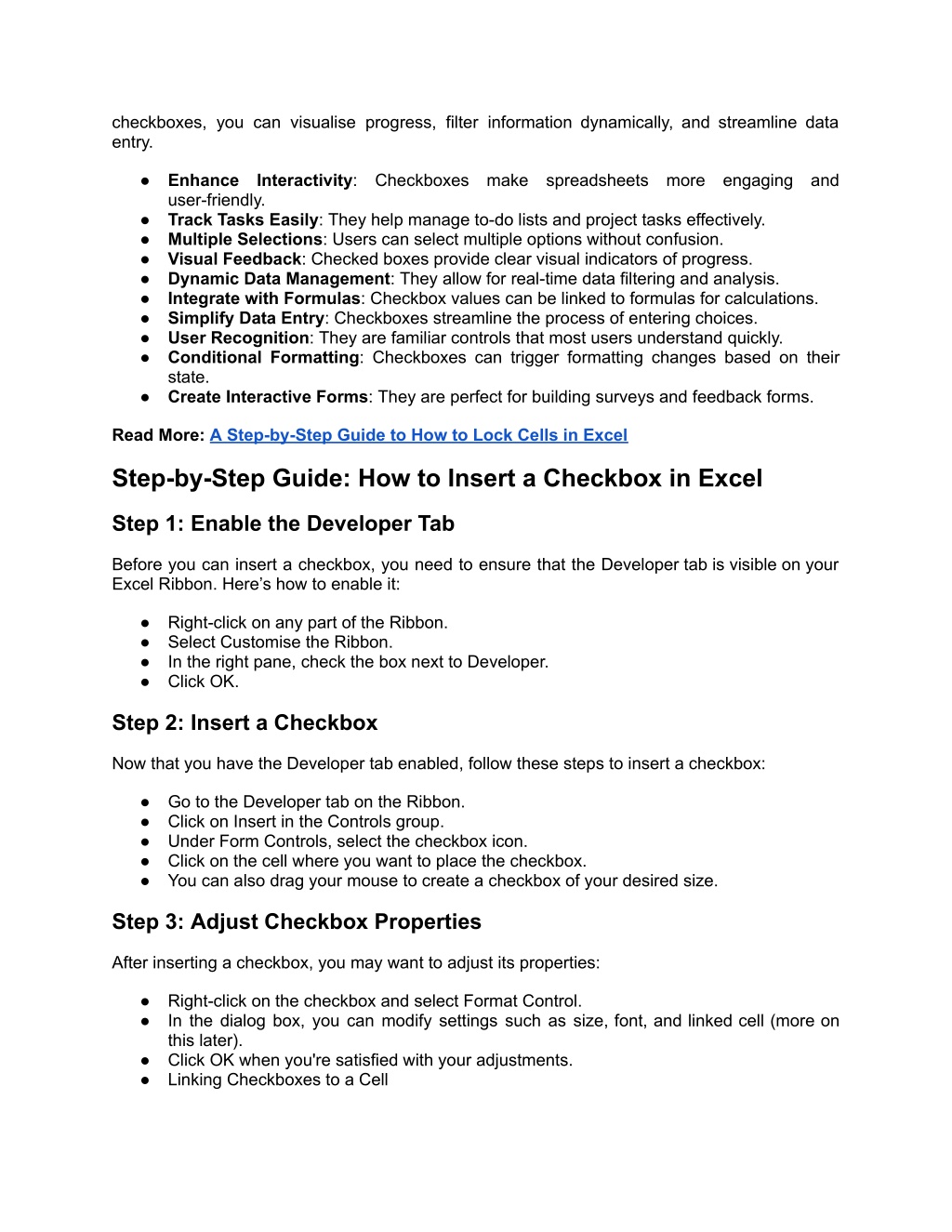

2. checkboxes, you can visualise progress, filter information dynamically, and streamline data entry. ● Enhance user-friendly. Track Tasks Easily: They help manage to-do lists and project tasks effectively. Multiple Selections: Users can select multiple options without confusion. Visual Feedback: Checked boxes provide clear visual indicators of progress. Dynamic Data Management: They allow for real-time data filtering and analysis. Integrate with Formulas: Checkbox values can be linked to formulas for calculations. Simplify Data Entry: Checkboxes streamline the process of entering choices. User Recognition: They are familiar controls that most users understand quickly. Conditional Formatting: Checkboxes can trigger formatting changes based on their state. Create Interactive Forms: They are perfect for building surveys and feedback forms. Interactivity: Checkboxes make spreadsheets more engaging and ● ● ● ● ● ● ● ● ● Read More: A Step-by-Step Guide to How to Lock Cells in Excel Step-by-Step Guide: How to Insert a Checkbox in Excel Step 1: Enable the Developer Tab Before you can insert a checkbox, you need to ensure that the Developer tab is visible on your Excel Ribbon. Here’s how to enable it: ● ● ● ● Right-click on any part of the Ribbon. Select Customise the Ribbon. In the right pane, check the box next to Developer. Click OK. Step 2: Insert a Checkbox Now that you have the Developer tab enabled, follow these steps to insert a checkbox: ● ● ● ● ● Go to the Developer tab on the Ribbon. Click on Insert in the Controls group. Under Form Controls, select the checkbox icon. Click on the cell where you want to place the checkbox. You can also drag your mouse to create a checkbox of your desired size. Step 3: Adjust Checkbox Properties After inserting a checkbox, you may want to adjust its properties: ● ● Right-click on the checkbox and select Format Control. In the dialog box, you can modify settings such as size, font, and linked cell (more on this later). Click OK when you're satisfied with your adjustments. Linking Checkboxes to a Cell ● ●

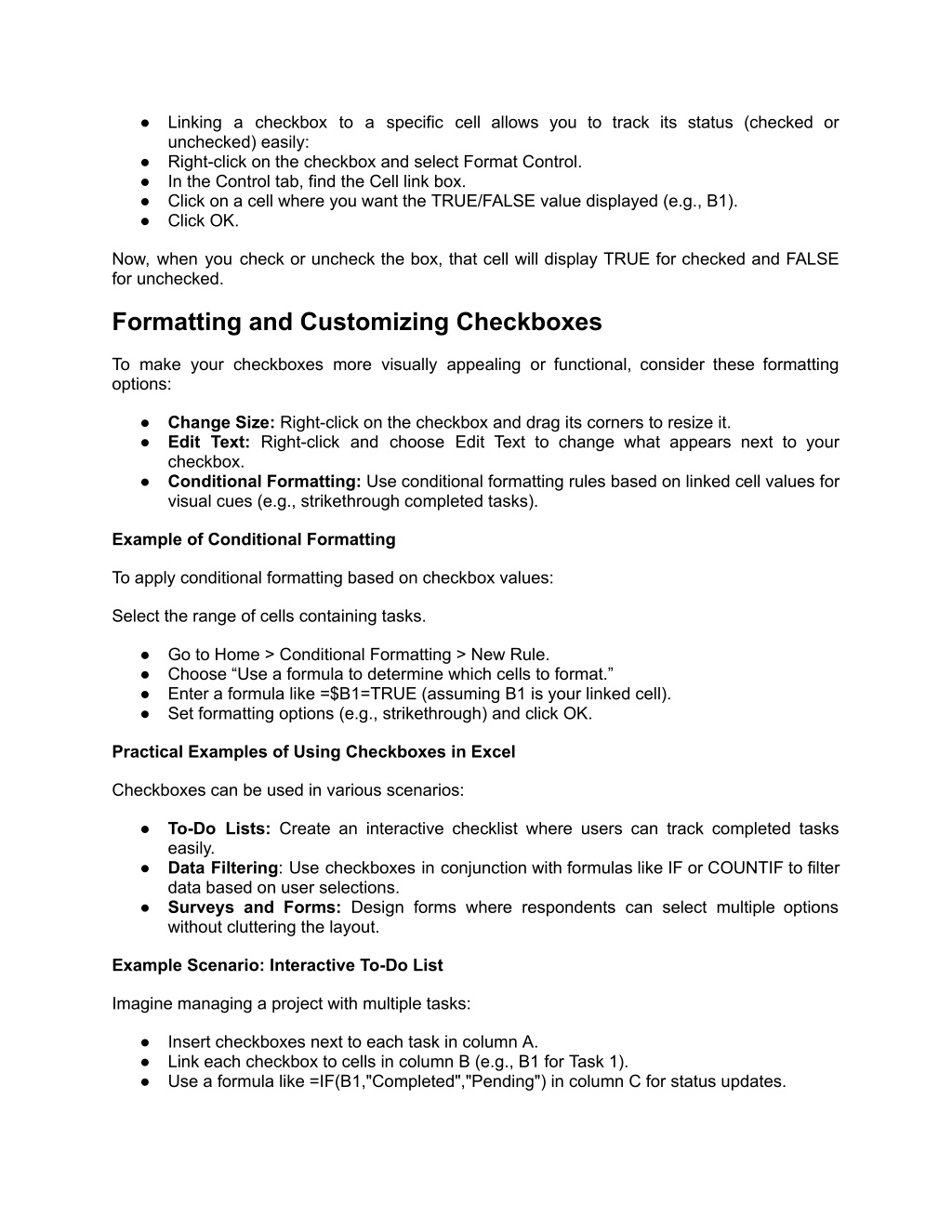

3. ● Linking a checkbox to a specific cell allows you to track its status (checked or unchecked) easily: Right-click on the checkbox and select Format Control. In the Control tab, find the Cell link box. Click on a cell where you want the TRUE/FALSE value displayed (e.g., B1). Click OK. ● ● ● ● Now, when you check or uncheck the box, that cell will display TRUE for checked and FALSE for unchecked. Formatting and Customizing Checkboxes To make your checkboxes more visually appealing or functional, consider these formatting options: ● ● Change Size: Right-click on the checkbox and drag its corners to resize it. Edit Text: Right-click and choose Edit Text to change what appears next to your checkbox. Conditional Formatting: Use conditional formatting rules based on linked cell values for visual cues (e.g., strikethrough completed tasks). ● Example of Conditional Formatting To apply conditional formatting based on checkbox values: Select the range of cells containing tasks. ● ● ● ● Go to Home > Conditional Formatting > New Rule. Choose “Use a formula to determine which cells to format.” Enter a formula like =$B1=TRUE (assuming B1 is your linked cell). Set formatting options (e.g., strikethrough) and click OK. Practical Examples of Using Checkboxes in Excel Checkboxes can be used in various scenarios: ● To-Do Lists: Create an interactive checklist where users can track completed tasks easily. Data Filtering: Use checkboxes in conjunction with formulas like IF or COUNTIF to filter data based on user selections. Surveys and Forms: Design forms where respondents can select multiple options without cluttering the layout. ● ● Example Scenario: Interactive To-Do List Imagine managing a project with multiple tasks: ● ● ● Insert checkboxes next to each task in column A. Link each checkbox to cells in column B (e.g., B1 for Task 1). Use a formula like =IF(B1,"Completed","Pending") in column C for status updates.

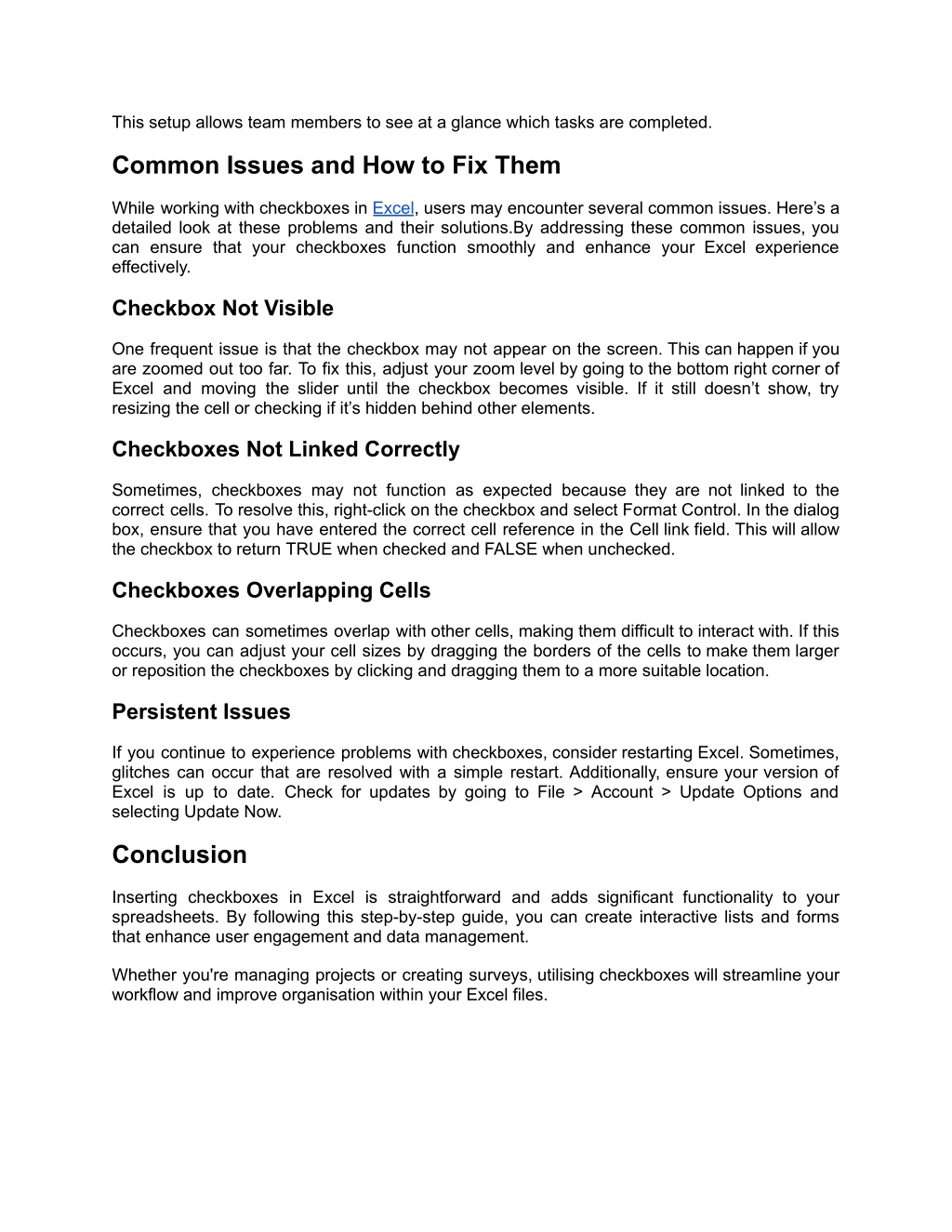

4. This setup allows team members to see at a glance which tasks are completed. Common Issues and How to Fix Them While working with checkboxes in Excel, users may encounter several common issues. Here’s a detailed look at these problems and their solutions.By addressing these common issues, you can ensure that your checkboxes function smoothly and enhance your Excel experience effectively. Checkbox Not Visible One frequent issue is that the checkbox may not appear on the screen. This can happen if you are zoomed out too far. To fix this, adjust your zoom level by going to the bottom right corner of Excel and moving the slider until the checkbox becomes visible. If it still doesn’t show, try resizing the cell or checking if it’s hidden behind other elements. Checkboxes Not Linked Correctly Sometimes, checkboxes may not function as expected because they are not linked to the correct cells. To resolve this, right-click on the checkbox and select Format Control. In the dialog box, ensure that you have entered the correct cell reference in the Cell link field. This will allow the checkbox to return TRUE when checked and FALSE when unchecked. Checkboxes Overlapping Cells Checkboxes can sometimes overlap with other cells, making them difficult to interact with. If this occurs, you can adjust your cell sizes by dragging the borders of the cells to make them larger or reposition the checkboxes by clicking and dragging them to a more suitable location. Persistent Issues If you continue to experience problems with checkboxes, consider restarting Excel. Sometimes, glitches can occur that are resolved with a simple restart. Additionally, ensure your version of Excel is up to date. Check for updates by going to File > Account > Update Options and selecting Update Now. Conclusion Inserting checkboxes in Excel is straightforward and adds significant functionality to your spreadsheets. By following this step-by-step guide, you can create interactive lists and forms that enhance user engagement and data management. Whether you're managing projects or creating surveys, utilising checkboxes will streamline your workflow and improve organisation within your Excel files.

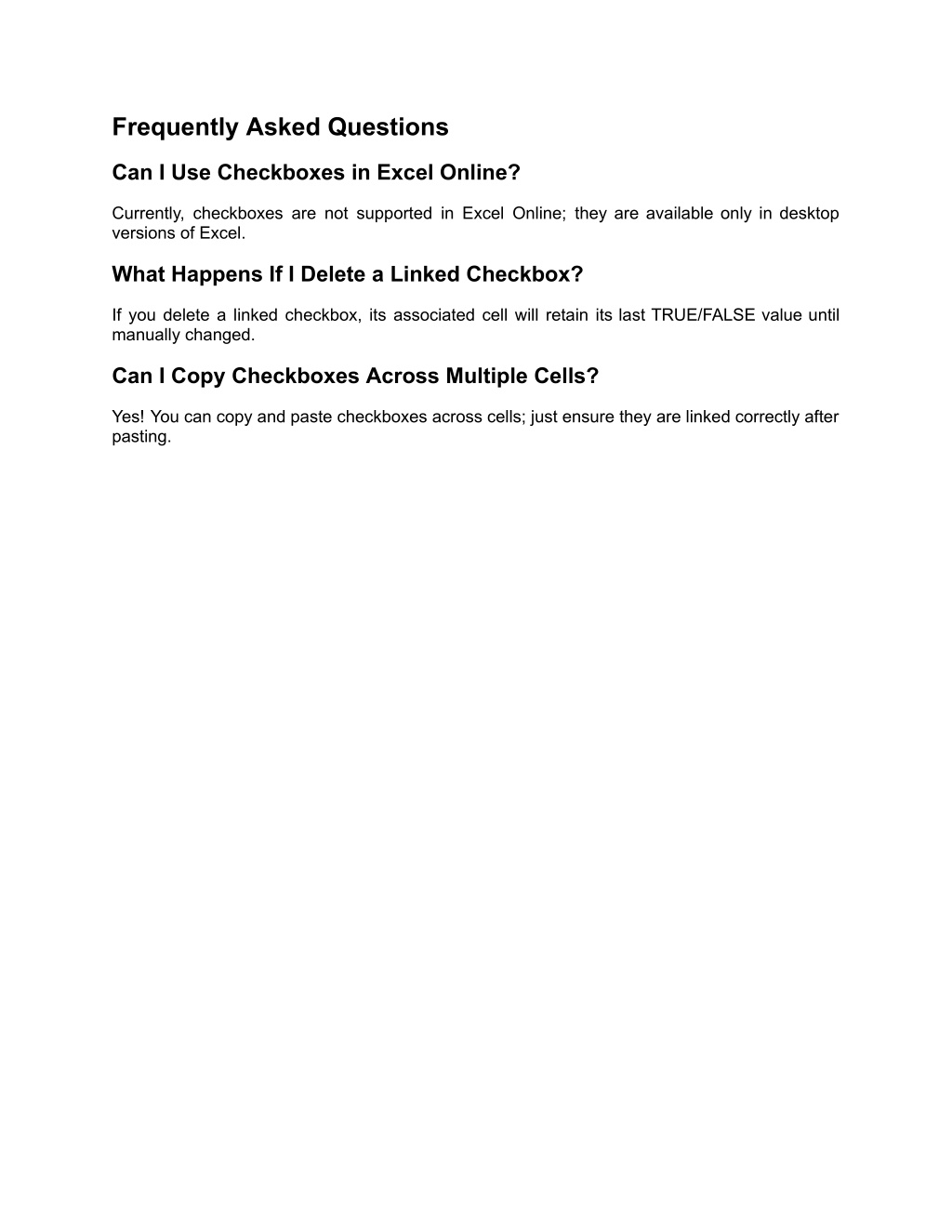

5. Frequently Asked Questions Can I Use Checkboxes in Excel Online? Currently, checkboxes are not supported in Excel Online; they are available only in desktop versions of Excel. What Happens If I Delete a Linked Checkbox? If you delete a linked checkbox, its associated cell will retain its last TRUE/FALSE value until manually changed. Can I Copy Checkboxes Across Multiple Cells? Yes! You can copy and paste checkboxes across cells; just ensure they are linked correctly after pasting.
