Buy License-Free radio at Sanchar Communication Systems. They provide a simple, reliable, cost-effective communication<br>solution to help work crews connect, coordinate and collaborate to get the job done right.It has superior audio quality, outstanding coverage, and long-lasting<br>battery life and more connects your workforce efficiently and has the flexibility to grow with your<br>business. For more details visit: https://www.sancharcomm.in/List/Product/radio/1

Sanchar1
Download Presentation

Get License-Free Radio

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

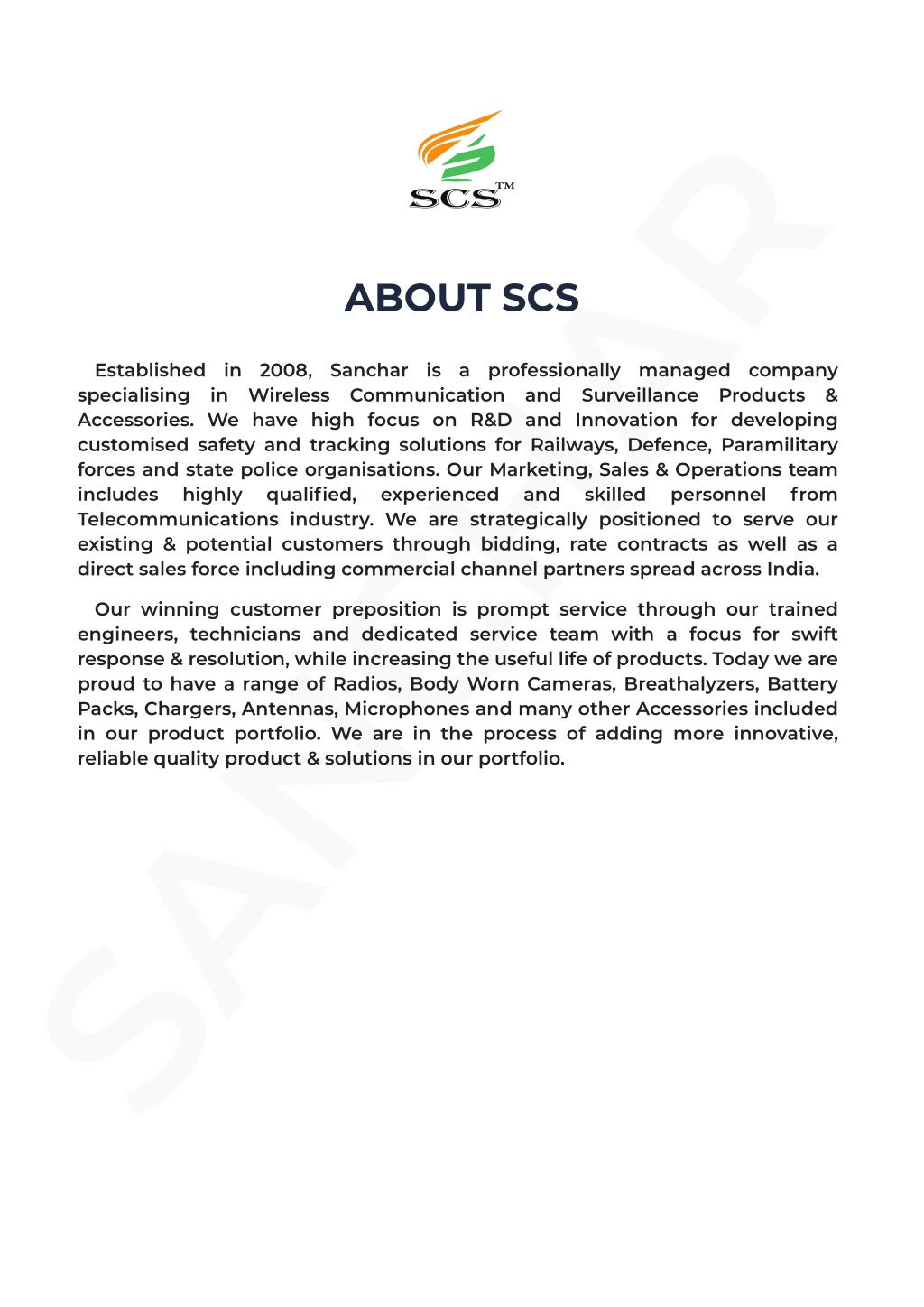

  1. SANCHAR ABOUT SCS Established in 2008, Sanchar is a professionally managed company specialising in Wireless Communication and Surveillance Products & Accessories. We have high focus on R&D and Innovation for developing customised safety and tracking solutions for Railways, Defence, Paramilitary forces and state police organisations. Our Marketing, Sales & Operations team includes highly qualified, experienced Telecommunications industry. We are strategically positioned to serve our existing & potential customers through bidding, rate contracts as well as a direct sales force including commercial channel partners spread across India. and skilled personnel from Our winning customer preposition is prompt service through our trained engineers, technicians and dedicated service team with a focus for swift response & resolution, while increasing the useful life of products. Today we are proud to have a range of Radios, Body Worn Cameras, Breathalyzers, Battery Packs, Chargers, Antennas, Microphones and many other Accessories included in our product portfolio. We are in the process of adding more innovative, reliable quality product & solutions in our portfolio.

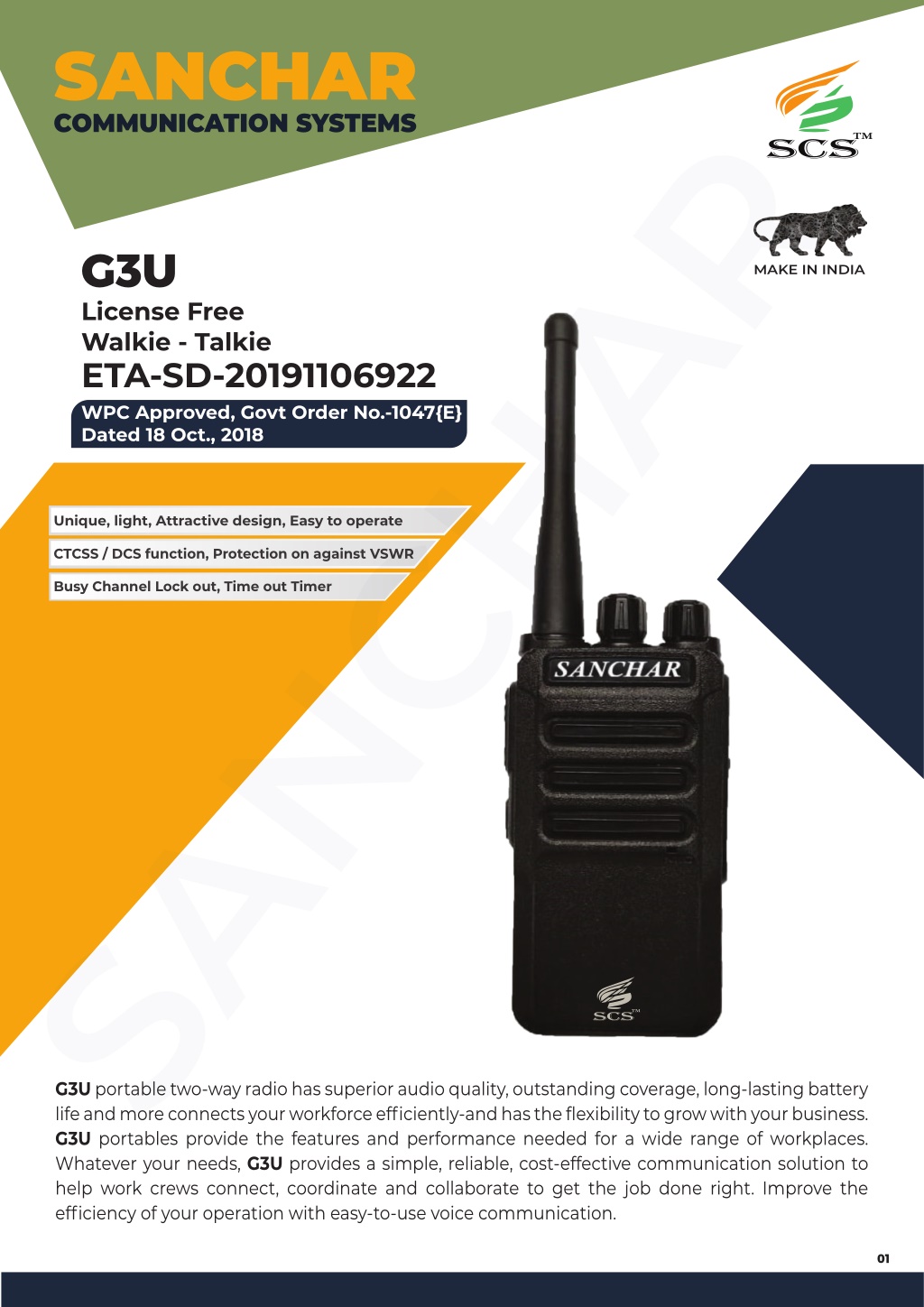

  2. SANCHAR COMMUNICATION SYSTEMS SANCHAR Whatever your needs, G3U provides a simple, reliable, cost-effective communication solution to help work crews connect, coordinate and collaborate to get the job done right. Improve the efficiency of your operation with easy-to-use voice communication. G3U License Free Walkie - Talkie ETA-SD-20191106922 MAKE IN INDIA WPC Approved, Govt Order No.-1047{E} Dated 18 Oct., 2018 Unique, light, Attractive design, Easy to operate CTCSS / DCS function, Protection on against VSWR Busy Channel Lock out, Time out Timer G3U portable two-way radio has superior audio quality, outstanding coverage, long-lasting battery life and more connects your workforce efficiently-and has the flexibility to grow with your business. G3U portables provide the features and performance needed for a wide range of workplaces. 01

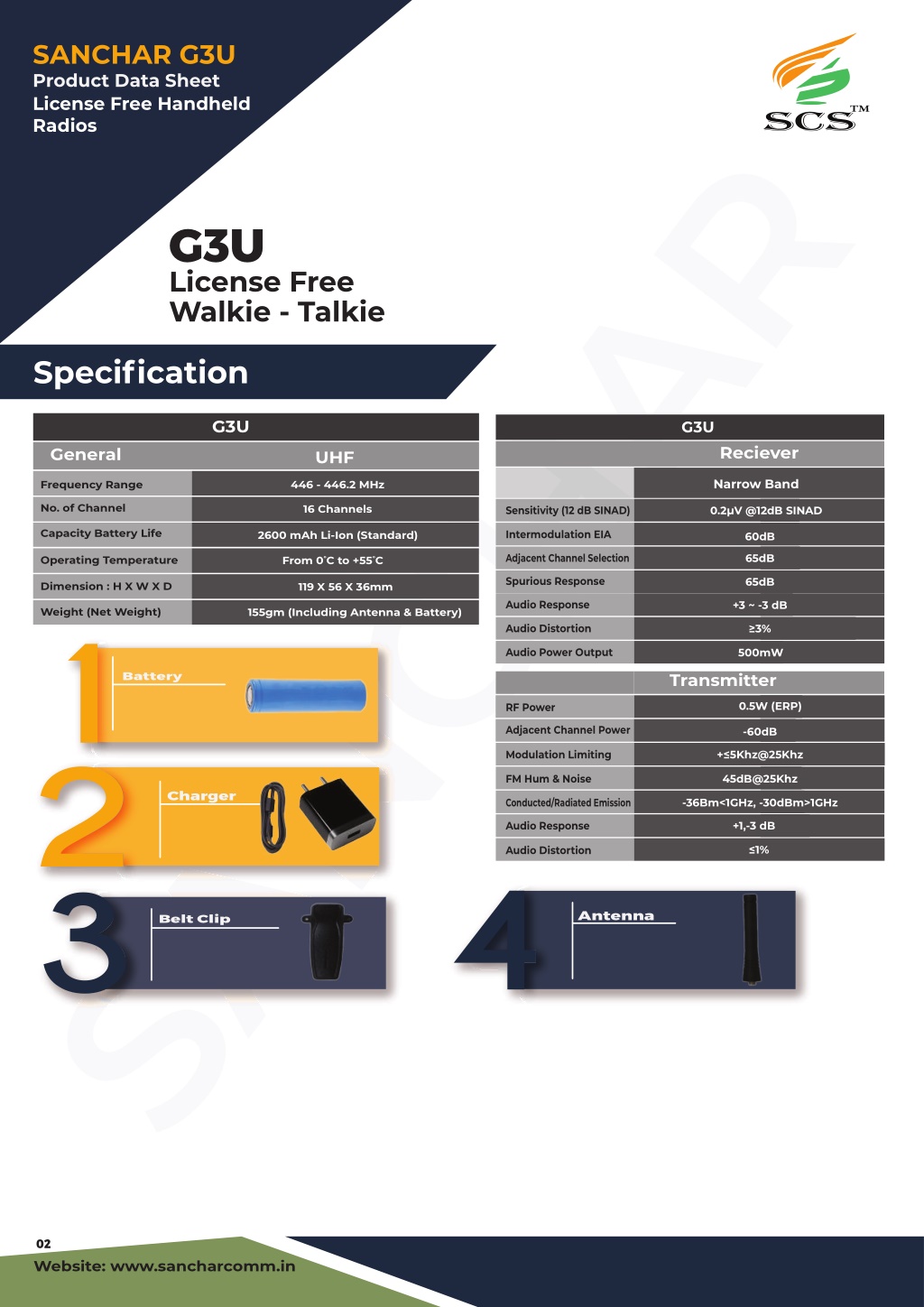

  3. SANCHAR G3U Product Data Sheet License Free Handheld Radios SANCHAR G3U License Free Walkie - Talkie Specification G3U G3U Reciever General UHF Narrow Band Frequency Range 446 - 446.2 MHz No. of Channel 16 Channels Sensitivity (12 dB SINAD) 0.2µV @12dB SINAD Capacity Battery Life Intermodulation EIA 2600 mAh Li-Ion (Standard) 60dB Adjacent Channel Selection 65dB Operating Temperature 1 2 From 0ºC to +55ºC Spurious Response 65dB Dimension : H X W X D 119 X 56 X 36mm Audio Response +3 ~ -3 dB Weight (Net Weight) 155gm (Including Antenna & Battery) Audio Distortion ≥3% Audio Power Output 500mW Transmitter Battery 0.5W (ERP) RF Power Adjacent Channel Power -60dB Modulation Limiting +≤5Khz@25Khz FM Hum & Noise 45dB@25Khz Charger Conducted/Radiated Emission -36Bm<1GHz, -30dBm>1GHz +1,-3 dB Audio Response ≤1% Audio Distortion 4 3 Antenna Belt Clip 02 Website: www.sancharcomm.in

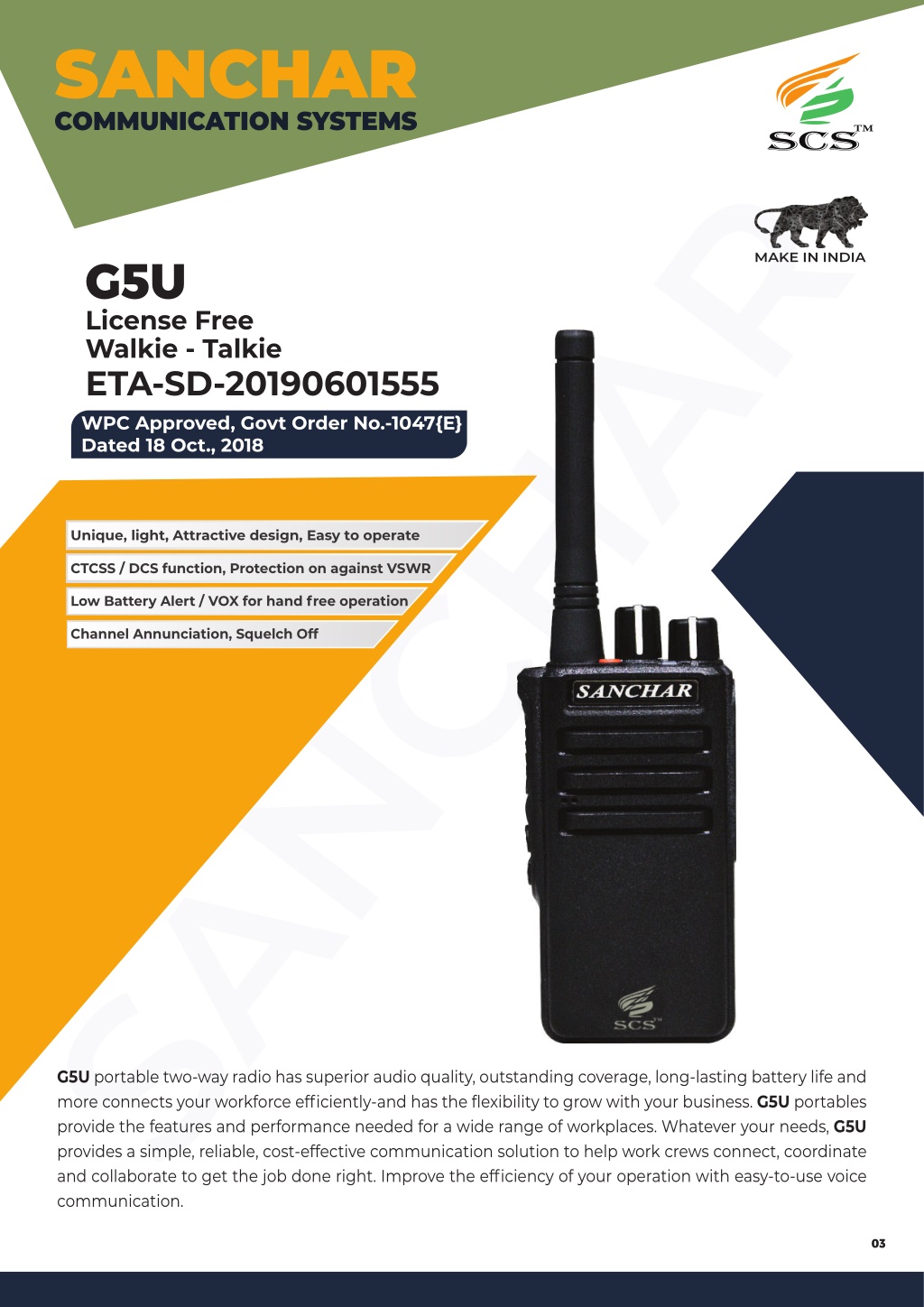

  4. SANCHAR COMMUNICATION SYSTEMS SANCHAR MAKE IN INDIA G5U License Free Walkie - Talkie ETA-SD-20190601555 WPC Approved, Govt Order No.-1047{E} Dated 18 Oct., 2018 Unique, light, Attractive design, Easy to operate CTCSS / DCS function, Protection on against VSWR Low Battery Alert / VOX for hand free operation Channel Annunciation, Squelch Off G5U portable two-way radio has superior audio quality, outstanding coverage, long-lasting battery life and more connects your workforce efficiently-and has the flexibility to grow with your business. G5U portables provide the features and performance needed for a wide range of workplaces. Whatever your needs, G5U provides a simple, reliable, cost-effective communication solution to help work crews connect, coordinate and collaborate to get the job done right. Improve the efficiency of your operation with easy-to-use voice communication. 03

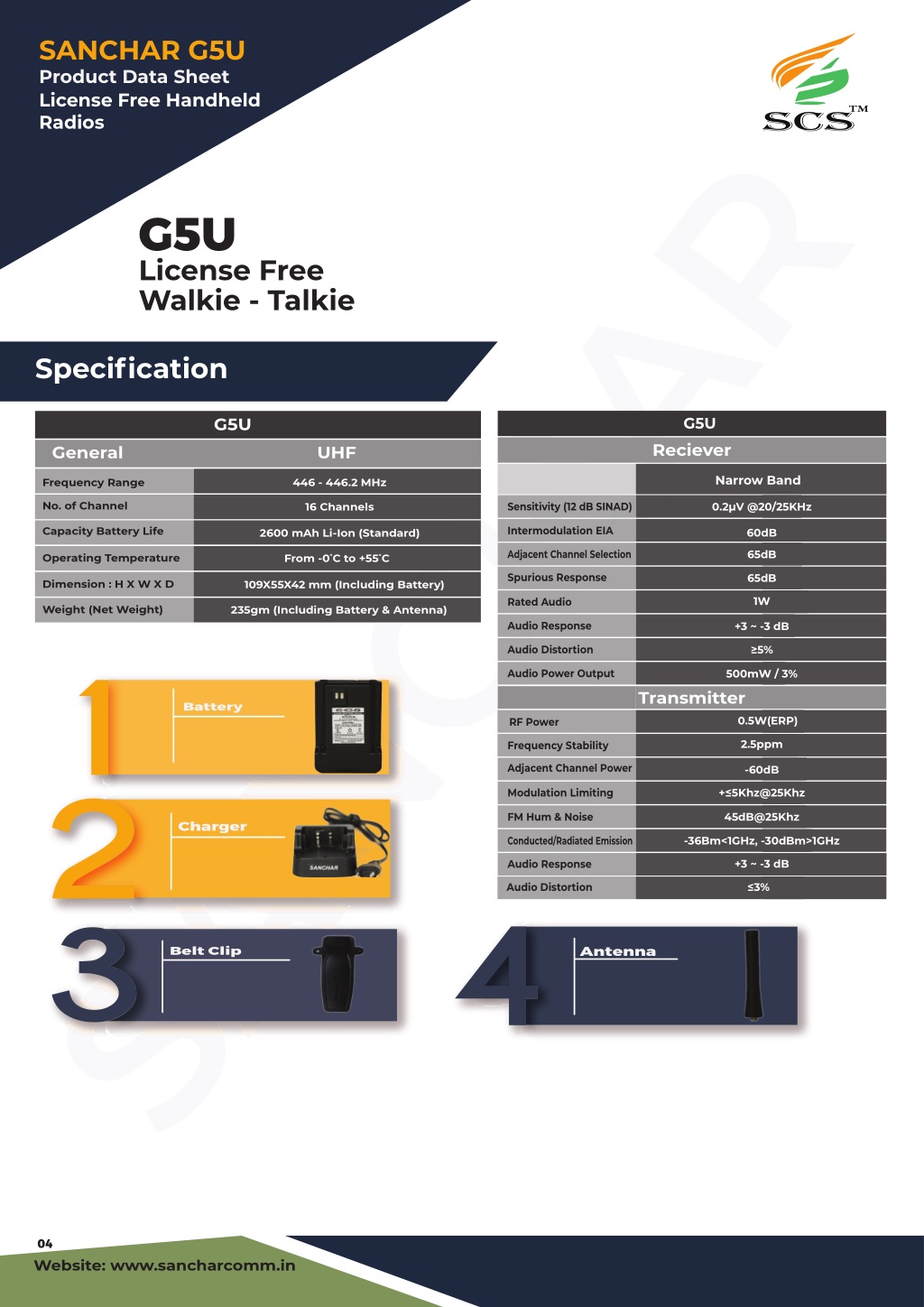

  5. SANCHAR G5U Product Data Sheet License Free Handheld Radios SANCHAR G5U License Free Walkie - Talkie Specification G5U G5U Reciever General UHF Narrow Band Frequency Range 446 - 446.2 MHz No. of Channel Sensitivity (12 dB SINAD) 0.2µV @20/25KHz 16 Channels Intermodulation EIA Capacity Battery Life 60dB 2600 mAh Li-Ion (Standard) Adjacent Channel Selection 65dB Operating Temperature From -0ºC to +55ºC Spurious Response 65dB Dimension : H X W X D 1 2 109X55X42 mm (Including Battery) 1W Rated Audio Weight (Net Weight) 235gm (Including Battery & Antenna) Audio Response +3 ~ -3 dB Audio Distortion ≥5% Audio Power Output 500mW / 3% Transmitter Battery 0.5W(ERP) RF Power 2.5ppm Frequency Stability Adjacent Channel Power -60dB Modulation Limiting +≤5Khz@25Khz FM Hum & Noise 45dB@25Khz Charger Conducted/Radiated Emission -36Bm<1GHz, -30dBm>1GHz +3 ~ -3 dB Audio Response Audio Distortion ≤3% 4 3 Antenna Belt Clip 04 Website: www.sancharcomm.in

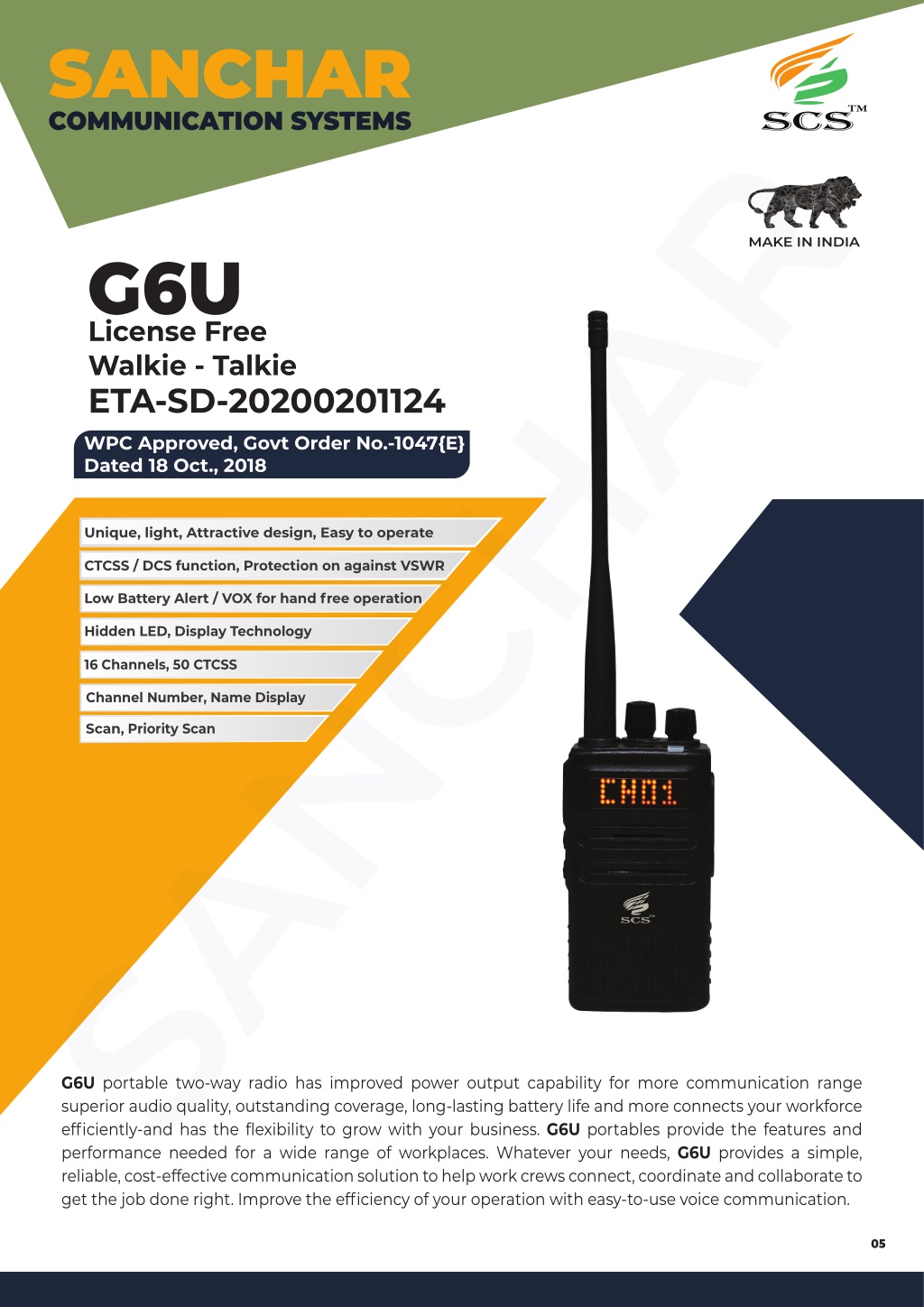

  6. SANCHAR COMMUNICATION SYSTEMS SANCHAR reliable, cost-effective communication solution to help work crews connect, coordinate and collaborate to get the job done right. Improve the efficiency of your operation with easy-to-use voice communication. MAKE IN INDIA G6U License Free Walkie - Talkie ETA-SD-20200201124 WPC Approved, Govt Order No.-1047{E} Dated 18 Oct., 2018 Unique, light, Attractive design, Easy to operate CTCSS / DCS function, Protection on against VSWR Low Battery Alert / VOX for hand free operation Hidden LED, Display Technology 16 Channels, 50 CTCSS Channel Number, Name Display Scan, Priority Scan G6U portable two-way radio has improved power output capability for more communication range superior audio quality, outstanding coverage, long-lasting battery life and more connects your workforce efficiently-and has the flexibility to grow with your business. G6U portables provide the features and performance needed for a wide range of workplaces. Whatever your needs, G6U provides a simple, 05

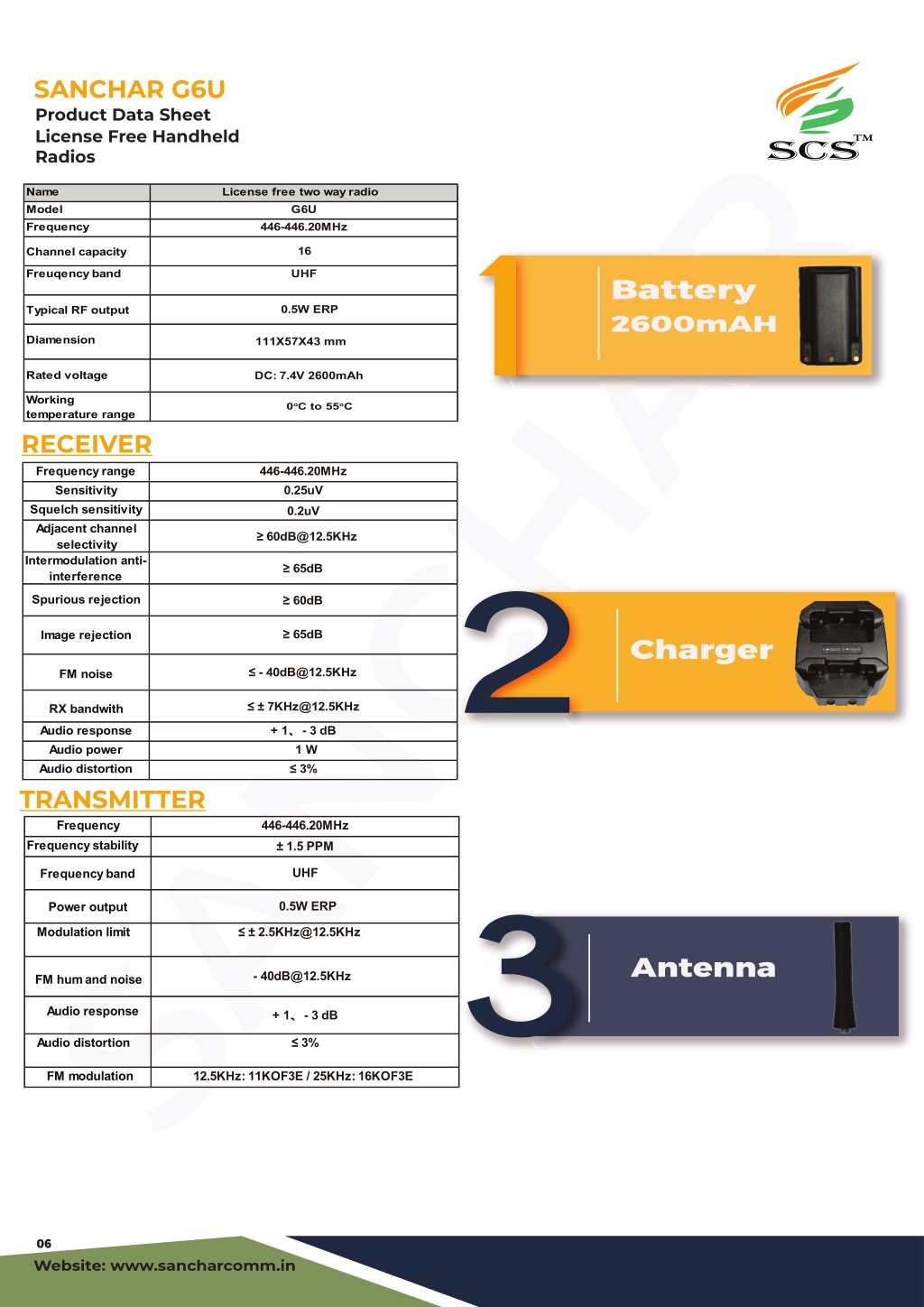

  7. SANCHAR G6U Product Data Sheet License Free Handheld Radios SANCHAR Name Model Frequency License free two way radio G6U 446-446.20MHz 1 16 Channel capacity Freuqency band UHF Battery 2600mAH 0.5W ERP Typical RF output Diamension 111X57X43 mm Rated voltage DC: 7.4V 2600mAh Working temperature range 0oC to 55oC RECEIVER Frequency range Sensitivity Squelch sensitivity Adjacent channel selectivity Intermodulation anti- interference 446-446.20MHz 0.25uV 0.2uV ≥ 60dB@12.5KHz ≥ 65dB 2 Spurious rejection ≥ 60dB ≥ 65dB Image rejection Charger ≤ - 40dB@12.5KHz FM noise ≤ ± 7KHz@12.5KHz RX bandwith Audio response Audio power Audio distortion + 1、- 3 dB 1 W ≤ 3% TRANSMITTER Frequency Frequency stability 446-446.20MHz ± 1.5 PPM UHF Frequency band 3 0.5W ERP Power output Modulation limit ≤ ± 2.5KHz@12.5KHz Antenna - 40dB@12.5KHz FM hum and noise Audio response + 1、- 3 dB Audio distortion ≤ 3% FM modulation 12.5KHz: 11KOF3E / 25KHz: 16KOF3E 06 Website: www.sancharcomm.in

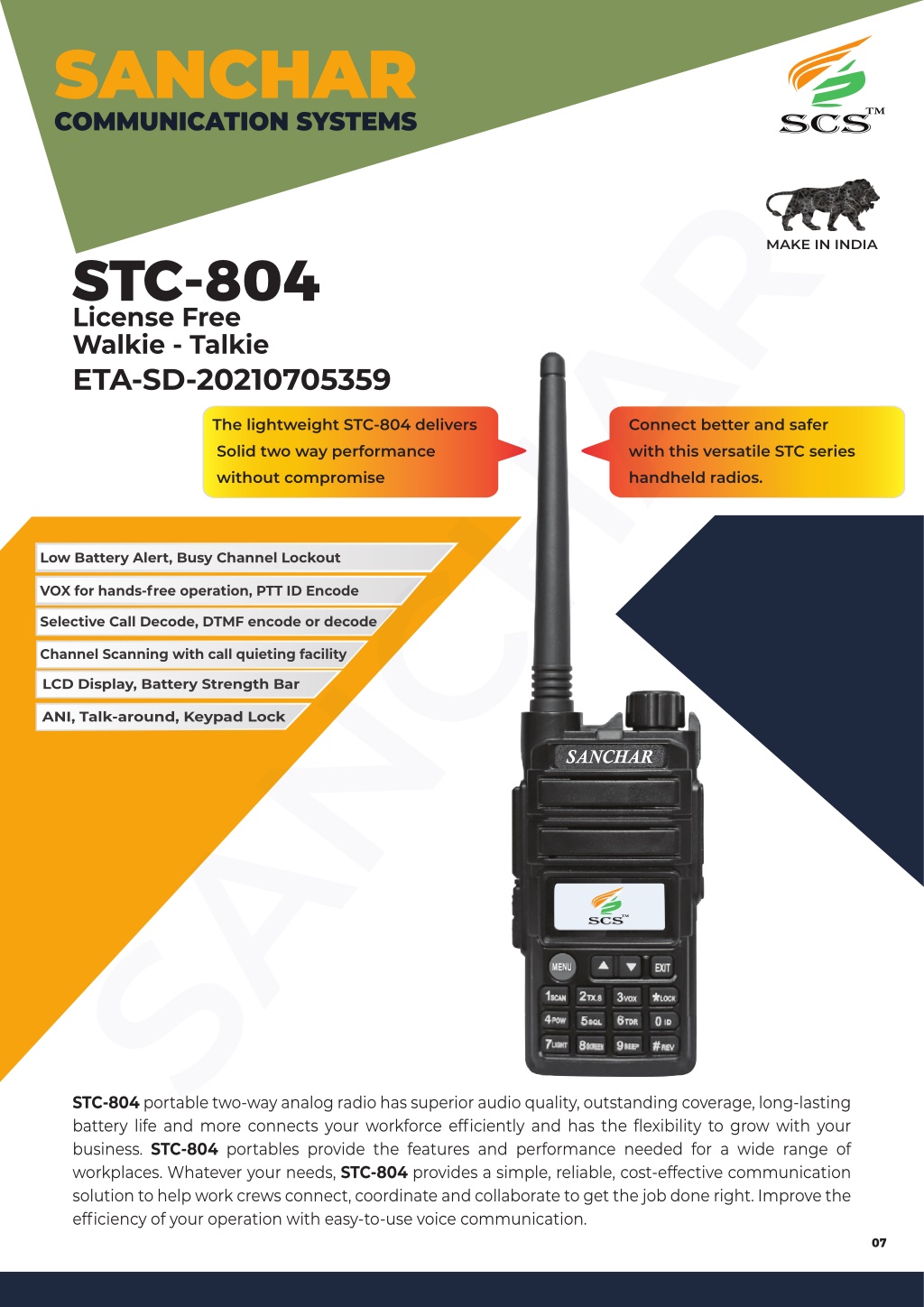

  8. SANCHAR COMMUNICATION SYSTEMS STC-804 SANCHAR business. STC-804 portables provide the features and performance needed for a wide range of workplaces. Whatever your needs, STC-804 provides a simple, reliable, cost-effective communication solution to help work crews connect, coordinate and collaborate to get the job done right. Improve the efficiency of your operation with easy-to-use voice communication. MAKE IN INDIA License Free Walkie - Talkie ETA-SD-20210705359 The lightweight STC-804 delivers Solid two way performance without compromise Connect better and safer with this versatile STC series handheld radios. Low Battery Alert, Busy Channel Lockout VOX for hands-free operation, PTT ID Encode Selective Call Decode, DTMF encode or decode Channel Scanning with call quieting facility LCD Display, Battery Strength Bar ANI, Talk-around, Keypad Lock SANCHAR STC-804 portable two-way analog radio has superior audio quality, outstanding coverage, long-lasting battery life and more connects your workforce efficiently and has the flexibility to grow with your 07

  9. SANCHAR STC-804 Product Data Sheet License Free Handheld Radios Specification & MIL-STD SANCHAR STC-804 License Free Walkie - Talkie ETA-SD-20210705359 STC-804 STC-804 General UHF Receiving Wide Band 446 ~ 446.2 MHz Frequency Range No. of Channel 16 Channels Sensitivity ≤0.25µV Selectivity Wide Band 25KHz, Narrow band 12.5 KHz ≥70dB Channel Spacing Intermodulation Distortion ≥65dB 5KHz Phase-locked Step Spurious Response ≥65dB 7.4V DC Operating Voltage +1~-3dB(0.3~3KHz) Audio Response Capacity Battery Life 2600 mAh ≥45dB Hum & Noise Operating Temperature From -10ºC to +55ºC Audio Distortion ≥5% Frequency Stability 1 2 +2.5ppm(-30ºC~+60ºC) _ Audio Power Output 500mW / 3% 60 X 119 X 35mm (Including Battery) Size (W X H X D) Transmitting Part (ETSI EN - 300 086 Standard Testing) Weight (Net Weight) 230gm (Including Battery & Antenna) 0.5W(ERP) Power Output Adjacent Channel Power ≥70dB Modulation 16K ø F3E Hum & Noise ≥40dB Battery Spurious Emission ≤-36dB +1~-3dB(0.3~3KHz) Audio Response ≤3% Audio Distortion 3 4 Antenna Adapter Charger 08 Website: www.sancharcomm.in

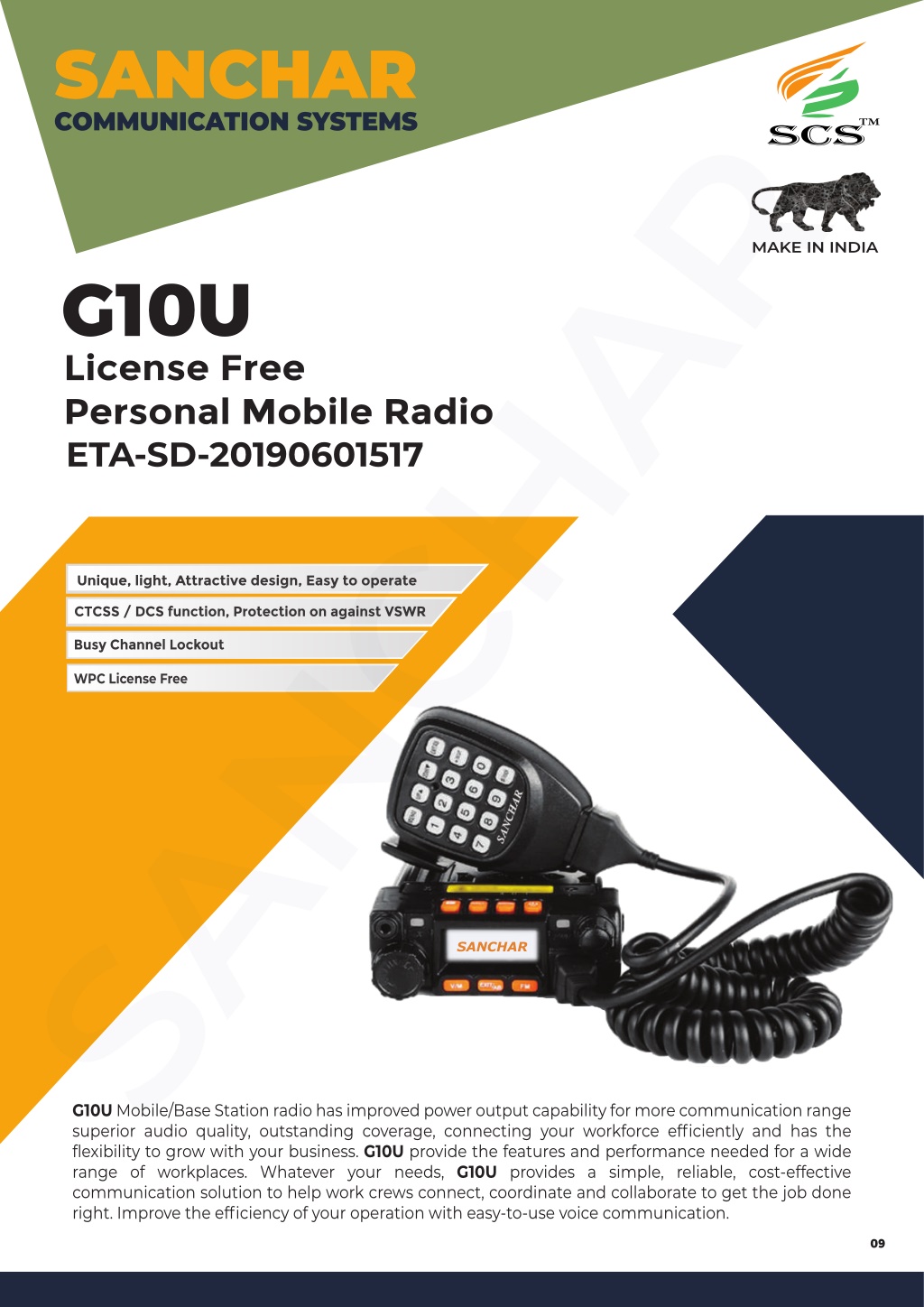

  10. SANCHAR COMMUNICATION SYSTEMS SANCHAR MAKE IN INDIA G10U ETA-SD-20190601517 WPC License Free SANCHAR G10U Mobile/Base Station radio has improved power output capability for more communication range superior audio quality, outstanding coverage, connecting your workforce efficiently and has the flexibility to grow with your business. G10U provide the features and performance needed for a wide range of workplaces. Whatever your needs, G10U provides a simple, reliable, cost-effective communication solution to help work crews connect, coordinate and collaborate to get the job done right. Improve the efficiency of your operation with easy-to-use voice communication. 09

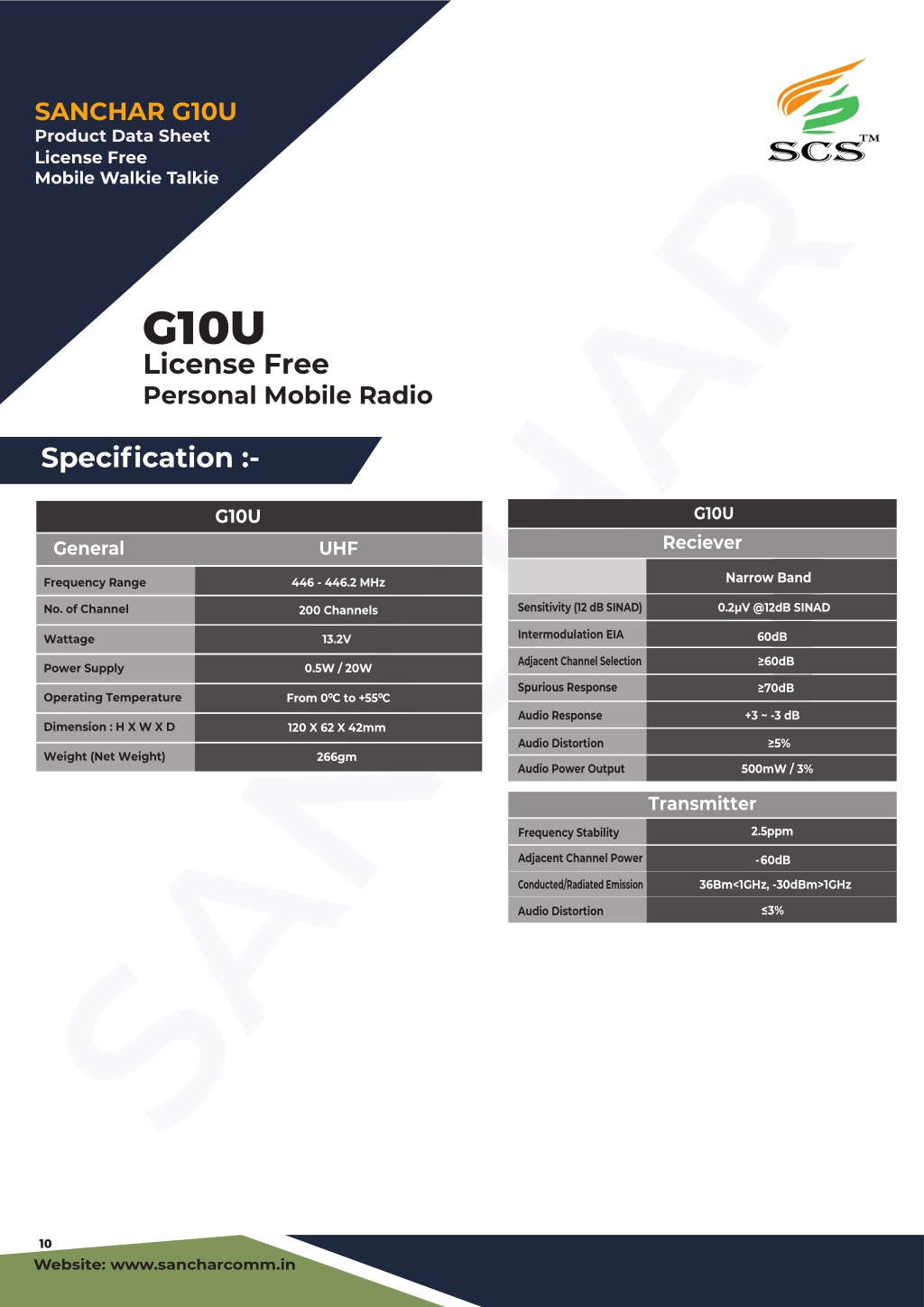

  11. SANCHAR G10U Product Data Sheet License Free Mobile Walkie Talkie SANCHAR G10U License Free Personal Mobile Radio Specification :- G10U G10U Reciever General UHF Narrow Band Frequency Range 446 - 446.2 MHz Sensitivity (12 dB SINAD) 0.2µV @12dB SINAD No. of Channel 200 Channels Intermodulation EIA 60dB Wattage 13.2V Adjacent Channel Selection ≥60dB Power Supply 0.5W / 20W Spurious Response ≥70dB Operating Temperature From 0⁰ C to +55⁰C Audio Response +3 ~ -3 dB Dimension : H X W X D 120 X 62 X 42mm Audio Distortion ≥5% Weight (Net Weight) 266gm Audio Power Output 500mW / 3% Transmitter 2.5ppm Frequency Stability Adjacent Channel Power -60dB Conducted/Radiated Emission 36Bm<1GHz, -30dBm>1GHz ≤ 3% Audio Distortion 10 Website: www.sancharcomm.in

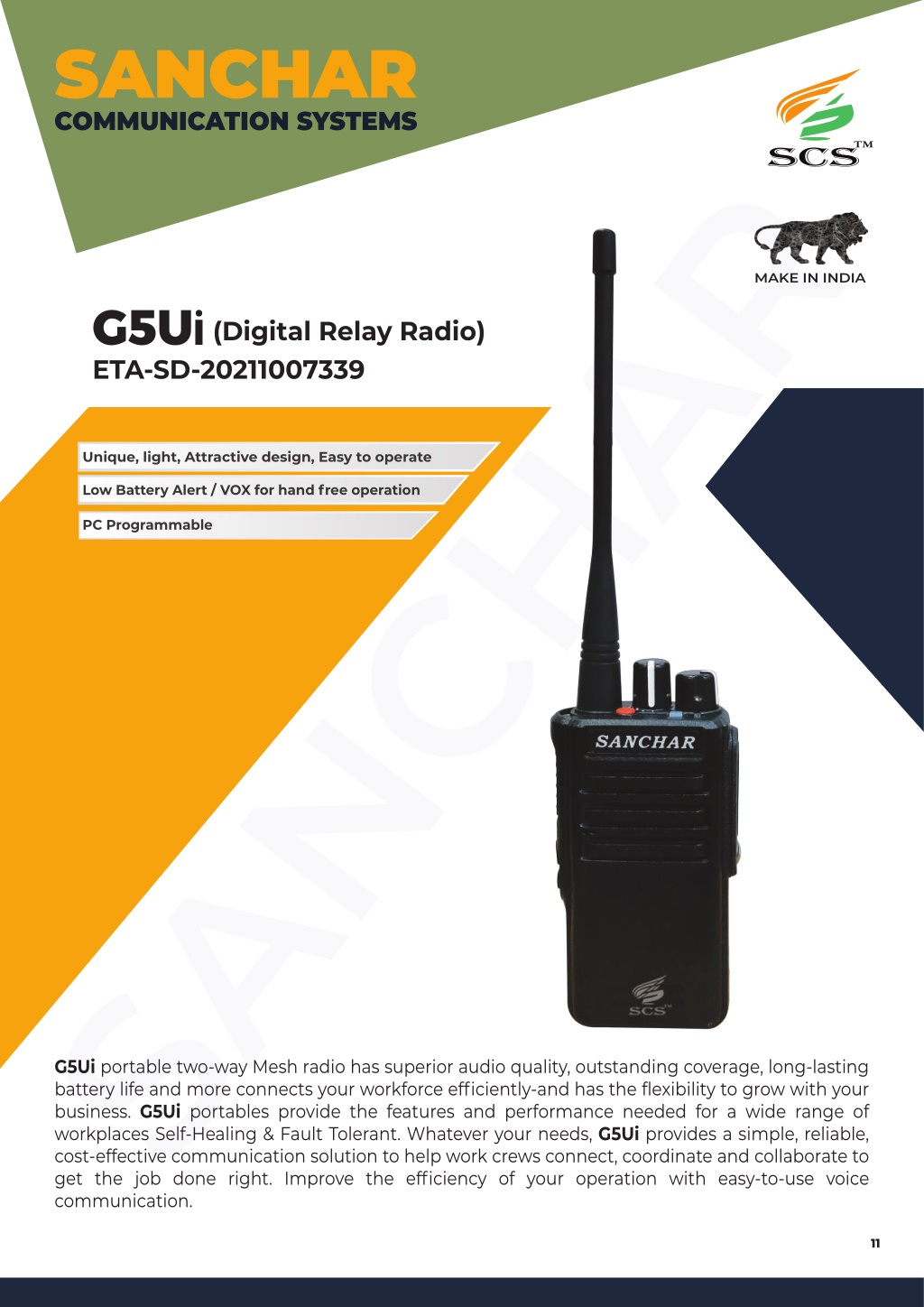

  12. SANCHAR COMMUNICATION SYSTEMS SANCHAR communication. MAKE IN INDIA . G5UI(Digital Relay Radio) ETA-SD-20211007339 Unique, light, Attractive design, Easy to operate Low Battery Alert / VOX for hand free operation PC Programmable G5Ui portable two-way Mesh radio has superior audio quality, outstanding coverage, long-lasting battery life and more connects your workforce efficiently-and has the flexibility to grow with your business. G5Ui portables provide the features and performance needed for a wide range of workplaces Self-Healing & Fault Tolerant. Whatever your needs, G5Ui provides a simple, reliable, cost-effective communication solution to help work crews connect, coordinate and collaborate to get the job done right. Improve the efficiency of your operation with easy-to-use voice 11

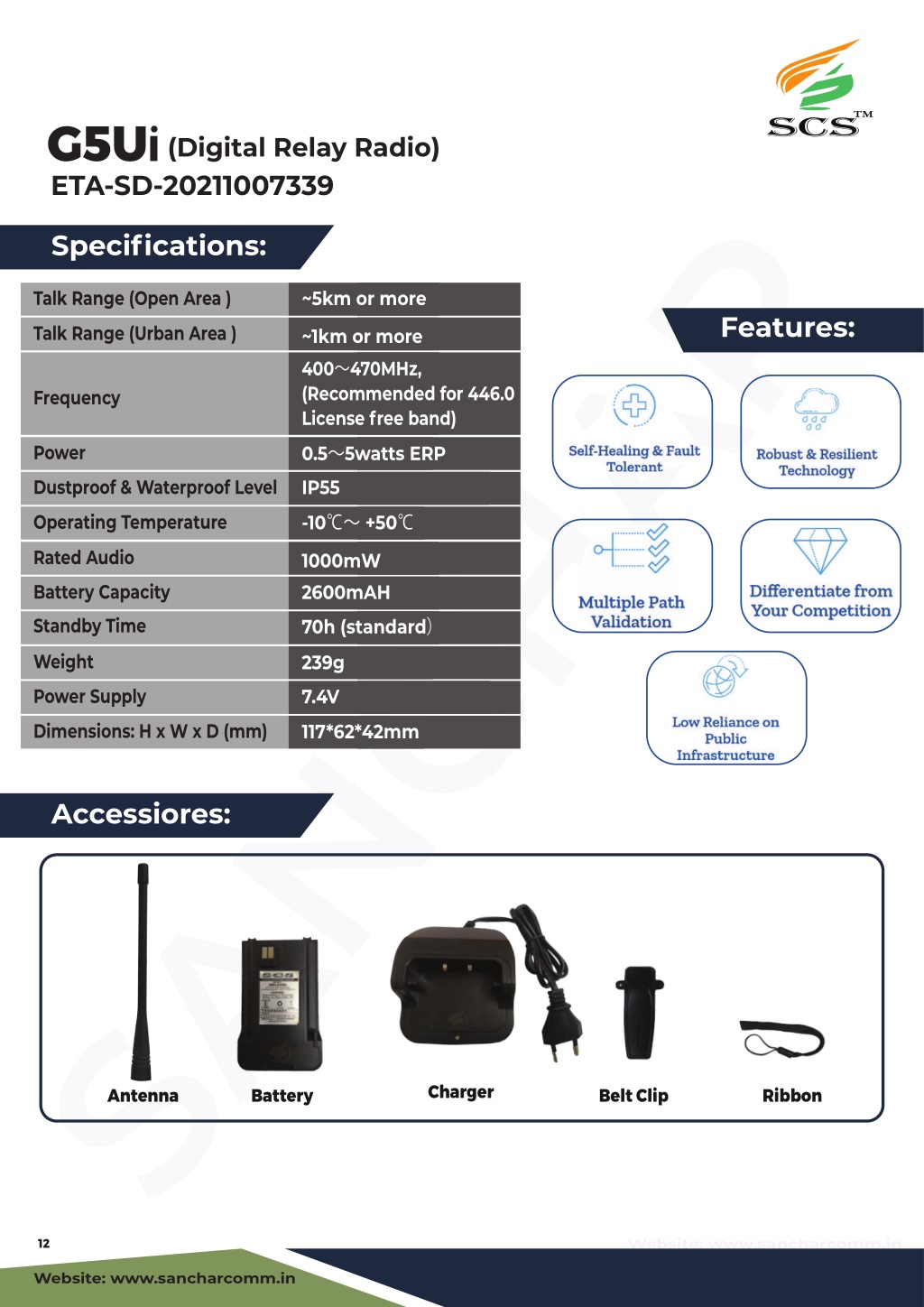

  13. . G5UI(Digital Relay Radio) ETA-SD-20211007339 SANCHAR 12 Specifications: Talk Range (Open Area ) ~5km or more Features: Talk Range (Urban Area ) ~1km or more 400～470MHz, (Recommended for 446.0 License free band) 0.5～5watts ERP Frequency Power Dustproof & Waterproof Level IP55 -10℃～ +50℃ Operating Temperature Rated Audio Battery Capacity 1000mW 2600mAH 70h (standard） 239g Standby Time Weight Power Supply 7.4V Dimensions: H x W x D (mm) 117*62*42mm Accessiores: Charger Antenna Battery Belt Clip Ribbon Website: www.sancharcomm.in Website: www.sancharcomm.in
