Presentation Transcript
so what s a class anyway

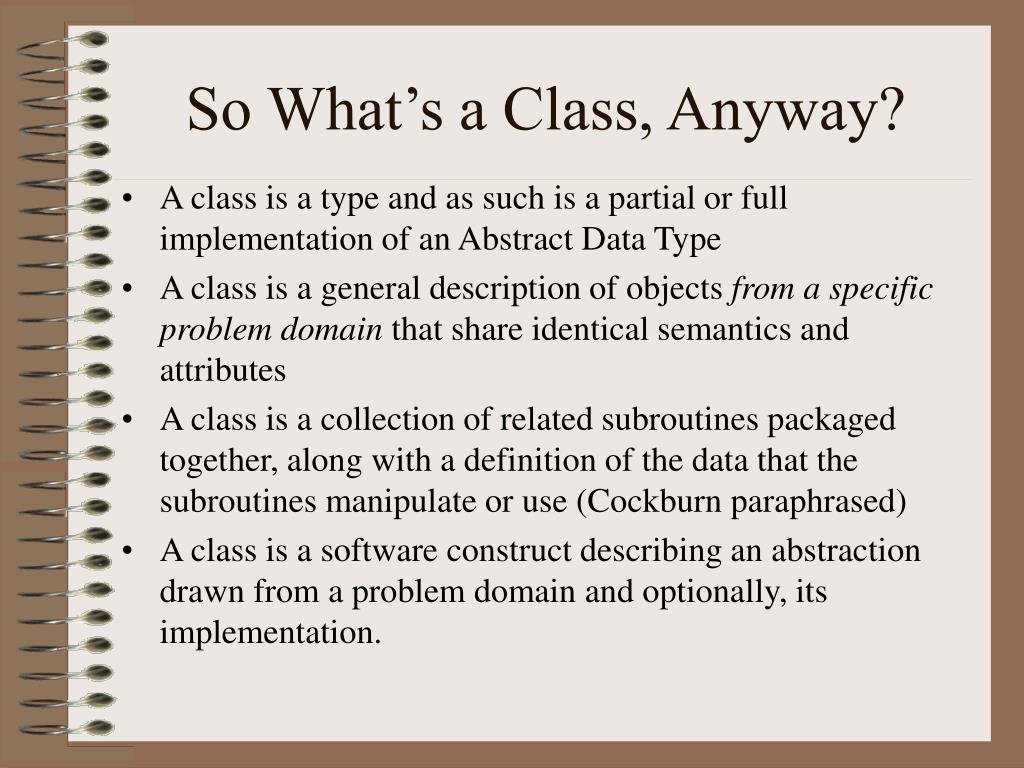

So What’s a Class, Anyway?
  • A class is a type and as such is a partial or full implementation of an Abstract Data Type
  • A class is a general description of objects from a specific problem domain that share identical semantics and attributes
  • A class is a collection of related subroutines packaged together, along with a definition of the data that the subroutines manipulate or use (Cockburn paraphrased)
  • A class is a software construct describing an abstraction drawn from a problem domain and optionally, its implementation.
classes concepts
Classes Concepts
  • In OO, a Class is the central unit of modularization
  • Every class defines a new type. A class may or may not define an implementation of its semantics (provide a full implementation of its methods). A class which does not provide a full implementation is called an Abstract Class.
  • In OO, classification is the process of creating a new language drawn from a particular problem domain.
  • A class is an ADT that defines behavior in terms of methods and state in terms of attributes
classes concepts4

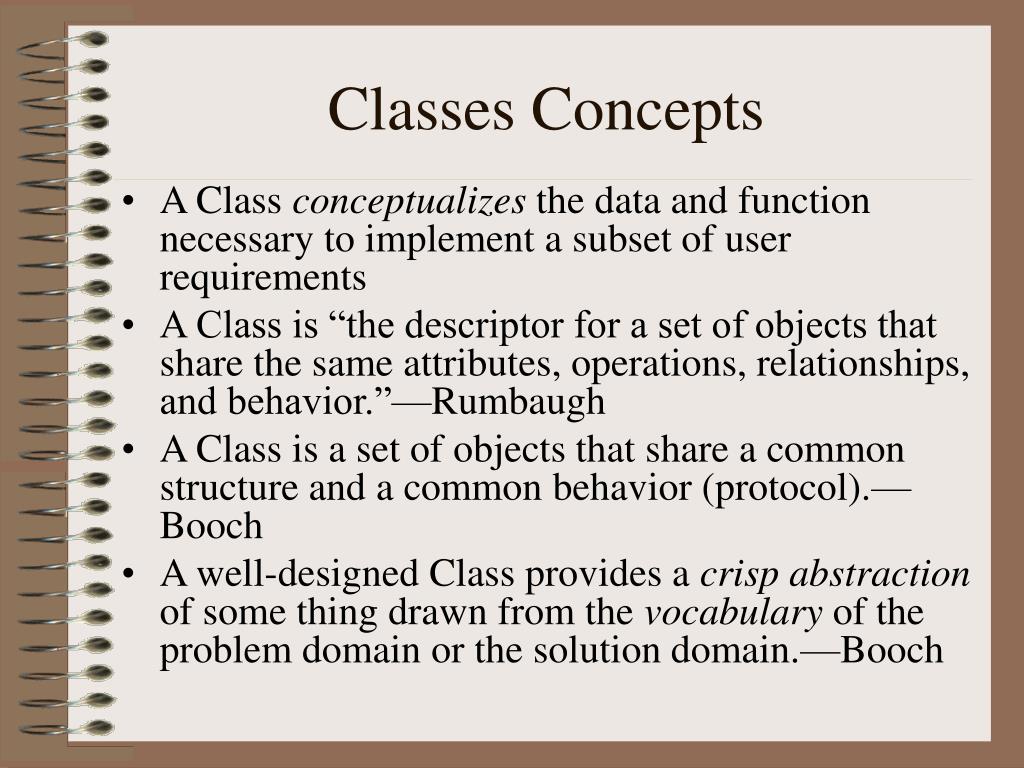

Classes Concepts
  • A Class conceptualizes the data and function necessary to implement a subset of user requirements
  • A Class is “the descriptor for a set of objects that share the same attributes, operations, relationships, and behavior.”—Rumbaugh
  • A Class is a set of objects that share a common structure and a common behavior (protocol).—Booch
  • A well-designed Class provides a crisp abstraction of some thing drawn from the vocabulary of the problem domain or the solution domain.—Booch
from a specific problem domain
… from a specific Problem Domain
  • Insurance: Claim, Policy, Bill, Provider, Coverage, Obligation
  • Accounting: Invoice, Payment, Interest, Check, AutomatedPayment
  • Banking: Customer, Account, CheckingAccount, SavingsAccount
  • Air Traffic Control System: Plane, Airport, Alarm
  • University Registration System: Student, Instructor, Course, Section
classes encapsulate state and behavior
Classes Encapsulate State and Behavior
  • Behavior is encapsulated in the code necessary to the conduct the fulfillment of some set of requirements defined for a class of things
  • State is the data that are necessary for the individualization of the class instance in fulfilling its requirements
  • A class satisfies the requirements of a given abstraction defined in a given problem domain
behavior fundamentals
Behavior Fundamentals
  • Behavior is implemented by defining operations on a class of things
  • Behavior defines the implementation for the requirements of a class
  • Instances of a Class can be treated in the same way:
    • All Policies can be renewed and cancelled
    • All Accounts can be opened and closed
    • All Checks can be issued and deposited
    • All Payments can be processed and credited
    • All Planes can descend and land
    • All Trades can be executed and validated
state fundamentals
State Fundamentals
  • State is implemented by defining Attributes on a class of things (and also relationships—but later)
  • State is the place in a Class definition where the individualization of a particular instance of a class is stored
    • An Account’s balance and number
    • A Trade’s execution price and date
    • A Plane’s altitude and speed
    • A Policy’s premium and beneficiary
    • A Course’s number of students enrolled
what is defined for a class
What is defined for a Class?
  • State (encapsulated as Attributes in UML)
  • Behavior (encapsulated as Operations in UML)

Class Name



java student

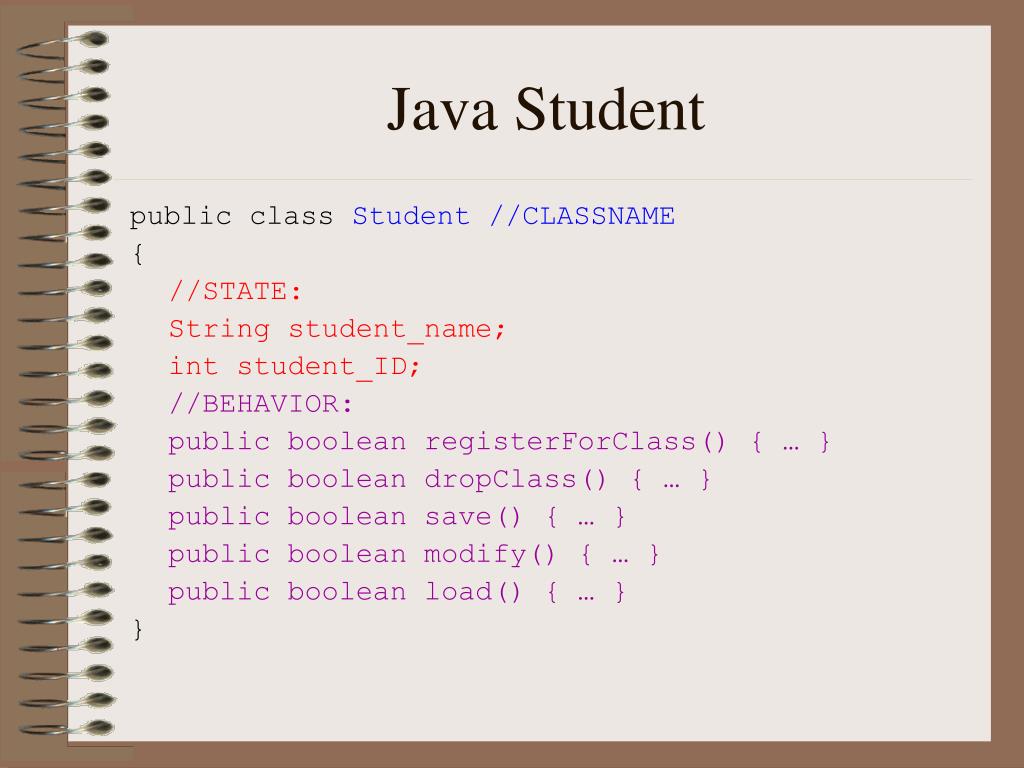

Java Student

public class Student//CLASSNAME



String student_name;

int student_ID;


public boolean registerForClass() { … }

public boolean dropClass() { … }

public boolean save() { … }

public boolean modify() { … }

public boolean load() { … }


  • There may be various ways in which an operation may be implemented.
  • These various ways are the methods by which a given requirement may be implemented
  • These methods may be encapsulated as implementations of a common operation defined in the Class’s interface

There may be various methods

by which the encrypt operation may

be implemented (DES, RSA, Blowfish, etc)

synonyms i
Synonyms I
  • The Class’s Operations are sometimes called:
    • Protocol
    • Behavior
    • Interface (Java)
    • API
    • Services
    • Methods (Java)
    • Member functions
synonyms ii
Synonyms II
  • The Class’s Attributes are sometimes called:
    • State
    • Member variables (Java)
    • Instance variables (Java)
    • Class variables (Static variables, Java)
mommy where do objects come from
Mommy, Where Do Objects Come From?
  • If Classes, as Kant says, come from your brain, where do Objects come from?
    • Classes as blueprints or molds (C++ motivation)
      • Creepy Crawlers ThingMaker by Mattel
      • Constructors
      • Destructors (in non-garbage-collected languages)
    • Classes as factories (Smalltalk motivation)
  • In Java, we create new classes using the new keyword
  • A constructor is a method on a class that has no return type and is usually public
  • A constructor is called during the process of object construction/instantiation
  • A default constructor (a constructor with 0 parameters) will be automatically created for your class if you do not define one yourself
    • Example: java ReflectionTest BasicClass
  • The default constructor sets all instance variables to the following defaults:
    • numerics to 0
    • booleans to false
    • object references to null
rules for constructors
Rules for Constructors
  • A constructor has the same name as the class
  • A class can have more than one constructor
  • A constructor can take any number of parameters, including 0
  • A constructor cannot have a return type (the implied return type is an instance of the class itself)
  • A constructor is always called by the new operator (because all Java objects are created on the heap)
object construction
Object Construction
  • When new is called, the compiler will look through the list of constructors, and try to find a constructor that matches the parameters passed in the new command:

MyObject mo = new MyObject(1,”hi”, true);

    • would match:

public MyObject(int x, String s, boolean b) {…}

  • One constructor can call another (for code reuse) by using the following syntax:
    • this(1,”hi”,true); //calls the above constructor in blue
  • Example:,,, (construction blocks)
  • Factories are objects that create other objects on request
  • Factories can hide the class of an object from the requester, delivering a generic type back which the client can then use polymorphically and ignorantly of the actual class (eg: A “Window” object with varying look and feel)
  • Sometimes you don’t want the client choosing the type of object to create—you want to hide new
  • By encapsulating object creation in a factory, when a new type is added, only the factory needs to be modified
  • We can also define Factories in Java, but more of that later when we discuss patterns
class attributes static fields
Class Attributes (Static Fields)
  • Attributes that belong to a class of things are called Class Attributes
  • Often called “static” as in static variable and static method
  • A Class Attribute is shared among all runtime instances of a given class
  • Examples:
    • Count of items on a Stack
    • Totals
class methods static methods
Class Methods (Static Methods)
  • A Class Method (or static function) is a method defined for a class that belongs to the class and not to an individual instance
  • This means that no object needs to be present in order for the method to be called—the method is called on the class
  • There is no inherent this pointer associated with a class method (therefore class methods can only access class variables)
  • Class methods cannot be called polymorphically
  • Class methods are used primarily as encapsulated methods for Class attributes
  • Example:,
member visibility applies to both variables and methods
Member Visibility (applies to both variables and methods)
  • Classes may have certain protection mechanisms that determine the degree of visibility any given attribute or operation may have:
    • public (visible to ANY OTHER OBJECT)
    • private (visible ONLY to instances of THIS class)
    • protected (visible ONLY to instances of THIS class AND its derivatives)
    • package (visible ONLY to instances of THIS class AND instances of other classes IN THE SAME PACKAGE)
member visibility

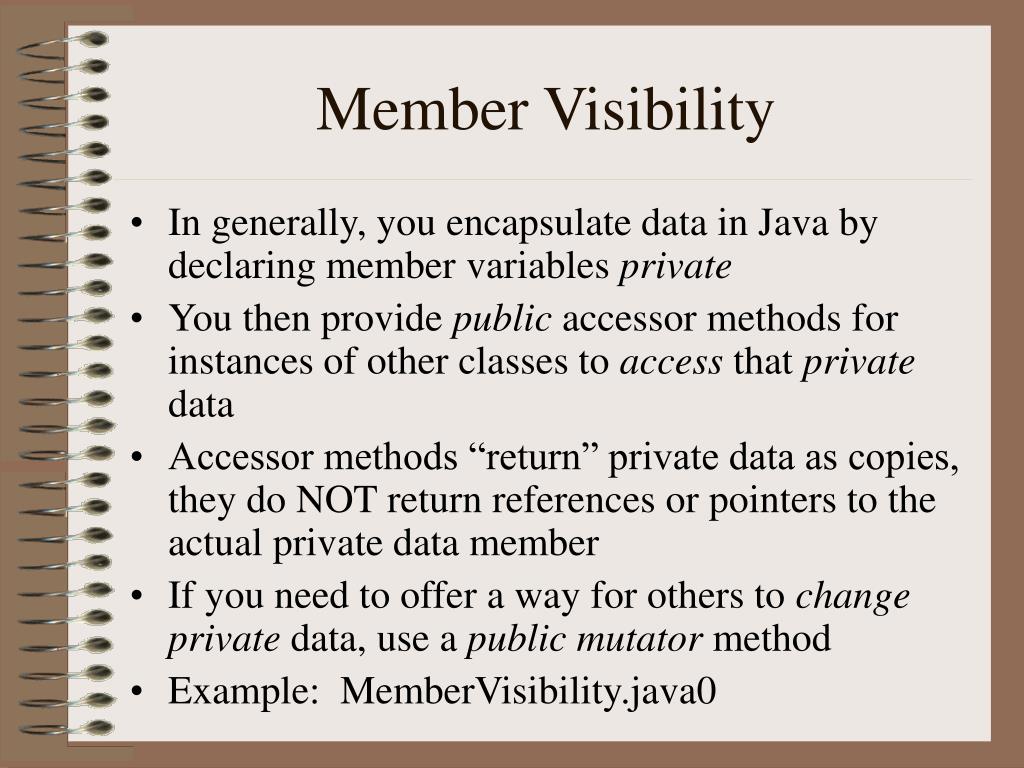

Member Visibility
  • In generally, you encapsulate data in Java by declaring member variables private
  • You then provide public accessor methods for instances of other classes to access that private data
  • Accessor methods “return” private data as copies, they do NOT return references or pointers to the actual private data member
  • If you need to offer a way for others to changeprivate data, use a publicmutator method
  • Example: MemberVisibility.java0
encapsulation revisited

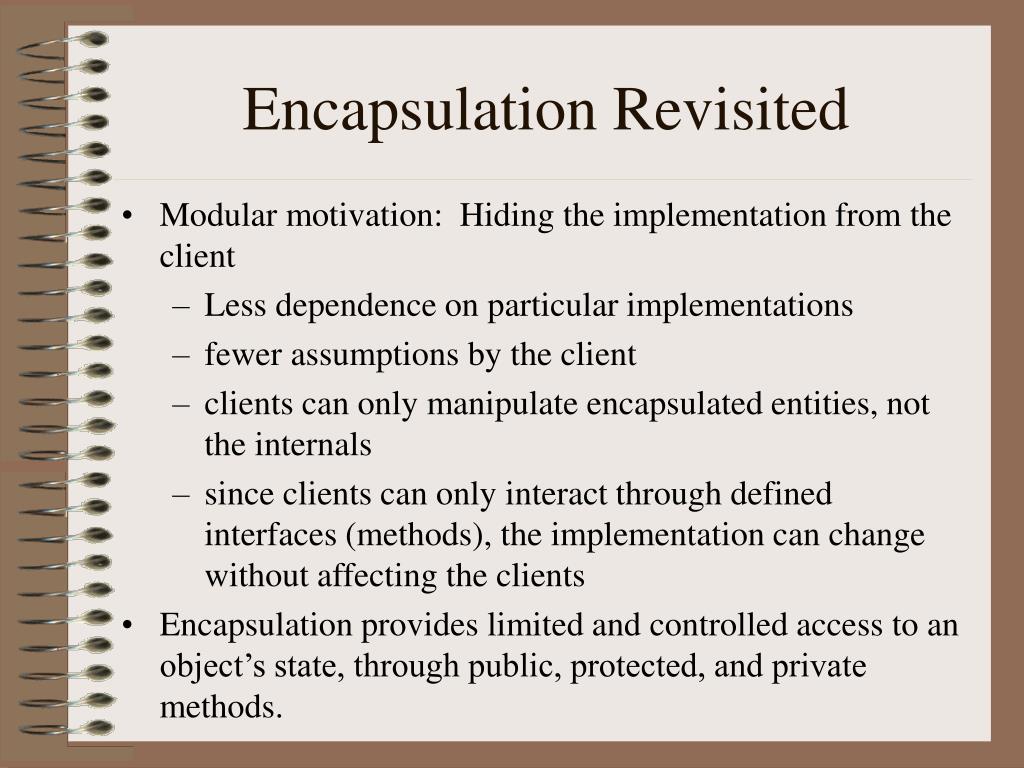

Encapsulation Revisited
  • Modular motivation: Hiding the implementation from the client
    • Less dependence on particular implementations
    • fewer assumptions by the client
    • clients can only manipulate encapsulated entities, not the internals
    • since clients can only interact through defined interfaces (methods), the implementation can change without affecting the clients
  • Encapsulation provides limited and controlled access to an object’s state, through public, protected, and private methods.
so what s an object
So What’s an Object?
  • A run-time named instance of a Class with a unique identity
  • An object is not a Class. Do not confuse the mold with the product, the blueprint with the house
  • An object has individual state, behavior, and identity. (Booch)
  • An object is an instance of a Class, similar to the way a variable is an instance of a data type in a programming language
  • An object exists only in computer memory, a Class exists in your mind and in your design
classes and instances

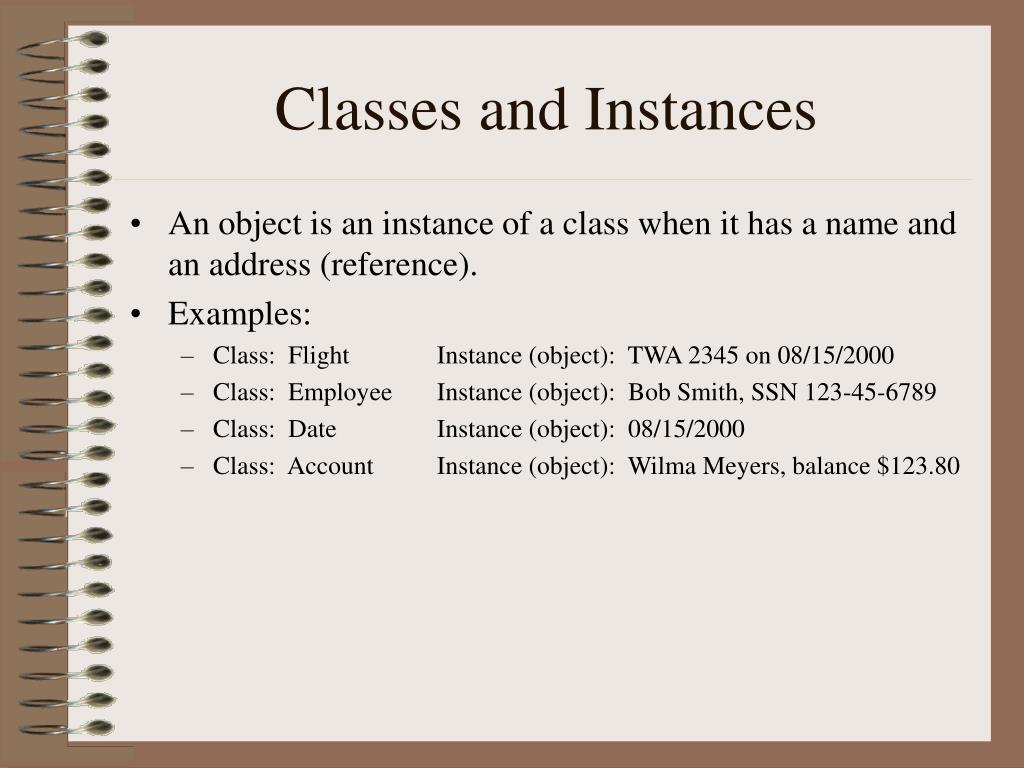

Classes and Instances
  • An object is an instance of a class when it has a name and an address (reference).
  • Examples:
    • Class: Flight Instance (object): TWA 2345 on 08/15/2000
    • Class: Employee Instance (object): Bob Smith, SSN 123-45-6789
    • Class: Date Instance (object): 08/15/2000
    • Class: Account Instance (object): Wilma Meyers, balance $123.80
object object communication
Object-Object Communication
  • Objects communicate by sending messages to other objects
  • These messages are part of the defined interface of the other class
  • An object must have an implementation of every operation defined in its interface
abstract classes
Abstract Classes
  • Abstract Classes are types that cannot be instantiated, but represent an abstraction from other classes and serve to encapsulate common class interfaces or behavior or both
  • Apples, Oranges, Pears, and Avocados are types of Fruit:
    • But what does “a fruit” taste like?
    • How many calories are in “a fruit”?
    • How much does “a fruit” cost?
  • Waiter: What you like for dinner, Sir?
    • Customer: I’d like an appetizer, an entrée, and a dessert.
abstract classes28
Abstract Classes
  • Shape s;

meaningless—a “shapeless” shape

  • An Abstract Class is:
    • a class that does not know how to instantiate itself
    • a class that therefore cannot be instantiated
    • a class that may include a partial implementation of its semantics (methods)
interface and implementation
Interface and Implementation
  • Operations defined for a Class represent that Class’s interface (sc. to user’s of the Class)
    • It’s the language other classes use to communicate with the Class
  • For any given operation, code may be defined as the method by which a requirement is accomplished
  • In some languages (like Java), an operation is called a method
  • Always remember that a method’s {implementation} is one method by which a requirement is accomplished, among other methods
    • “What method do you use to …?”
what is an java interface

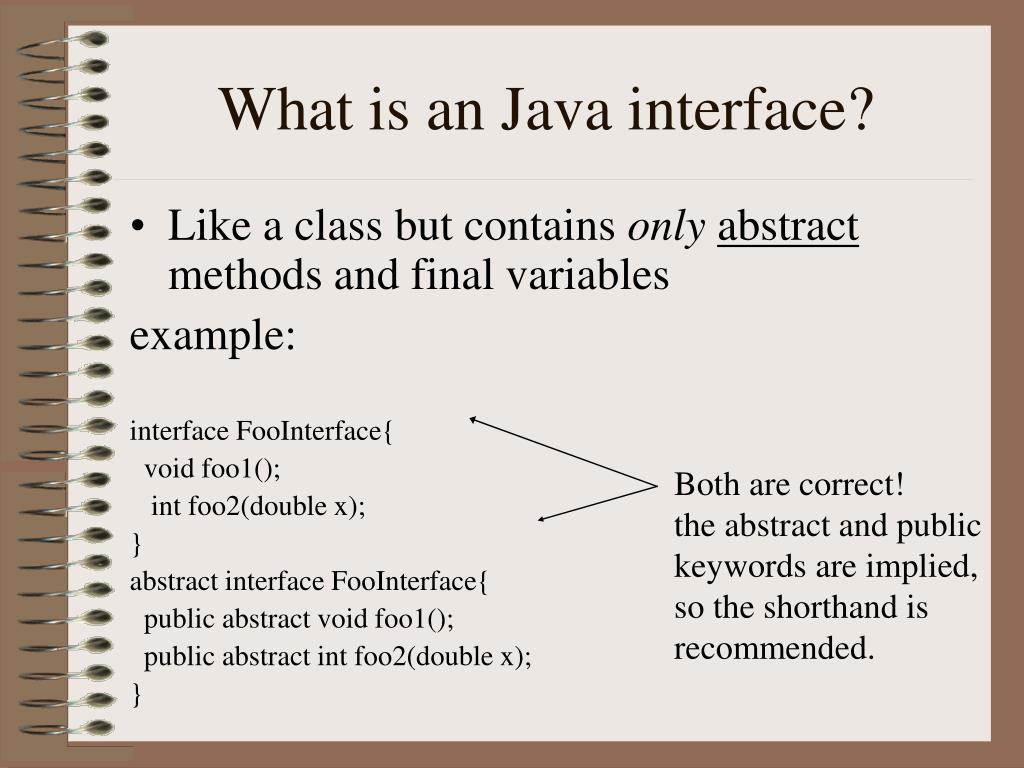

What is an Java interface?
  • Like a class but contains only abstract methods and final variables


interface FooInterface{

void foo1();

int foo2(double x);


abstract interface FooInterface{

public abstract void foo1();

public abstract int foo2(double x);


Both are correct!

the abstract and public

keywords are implied,

so the shorthand is


interfaces cont
Interfaces, cont.
  • Unlike a class, an interface cannot be instantiated (whatever would foo1() do when called???)!
  • Rather, an interface is implemented by some other class:

class FooImplementation implements FooInterface{



  • This means one thing only: FooClass must contain versions of both the methods foo1 and foo2 that actually do something. We say that FooImplementation must provide implementations for all of the methods in FooInterface.

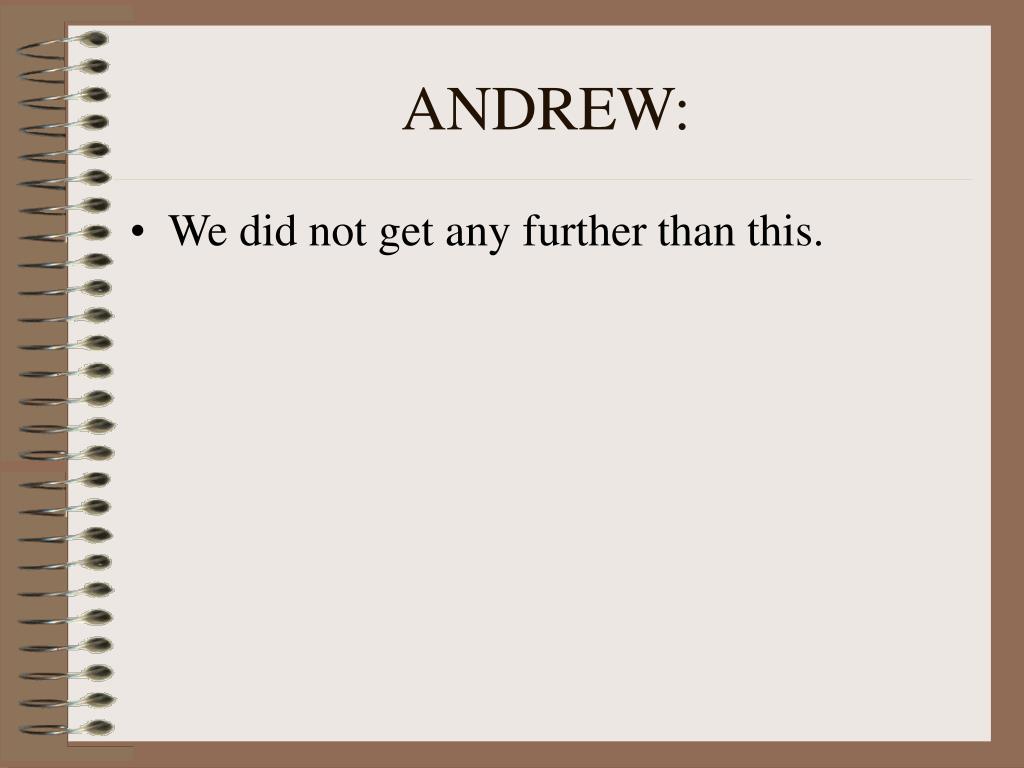

  • We did not get any further than this.
interfaces cont35

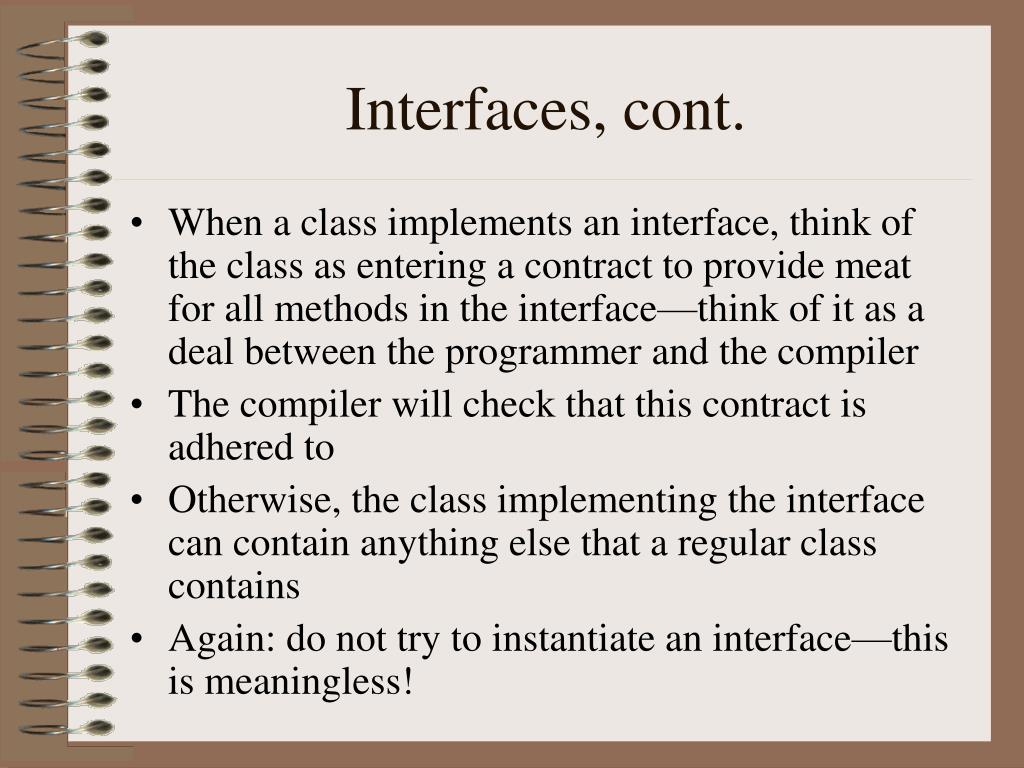

Interfaces, cont.
  • When a class implements an interface, think of the class as entering a contract to provide meat for all methods in the interface—think of it as a deal between the programmer and the compiler
  • The compiler will check that this contract is adhered to
  • Otherwise, the class implementing the interface can contain anything else that a regular class contains
  • Again: do not try to instantiate an interface—this is meaningless!
extending interfaces

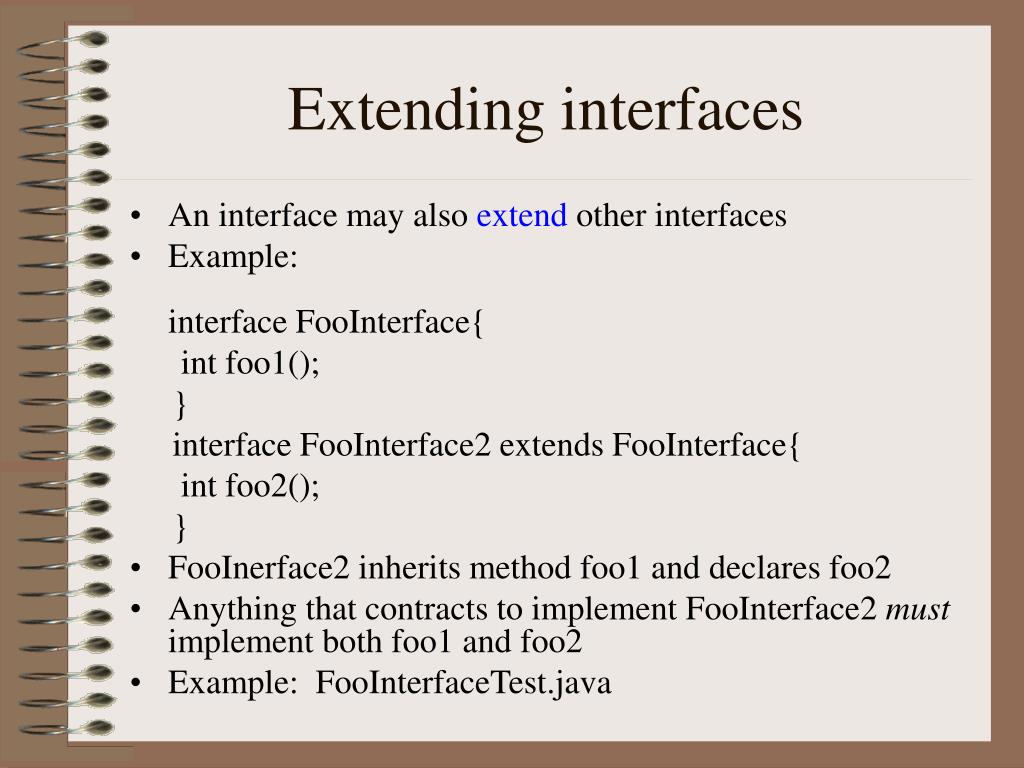

Extending interfaces
  • An interface may also extend other interfaces
  • Example:interface FooInterface{

int foo1();


interface FooInterface2 extends FooInterface{

int foo2();


  • FooInerface2 inherits method foo1 and declares foo2
  • Anything that contracts to implement FooInterface2 must implement both foo1 and foo2
  • Example:
how interfaces are used
How interfaces are used
  • This is difficult because there is no single, simple answer to the question.
  • Like any semantic feature in a programming language, there are no hard and fast rules about in what situations it should best be exploited.
  • However, there are many guidelines and general strategies (or else the feature would have never bee included).
  • We’ll cover a few ways in which interfaces are typically used.
some interface uses
Some interface uses
  • To simply clarify the the functionality associated with a particular abstraction
  • To abstract functionality in a method to make it more general, such as pointers to functions are used in C. sort is a good example.
  • To implement callbacks, such as in GUI programming
  • To write more general, implementation depending code that is easy to extend and maintain.
  • To simulate global constants.
composition another form of reuse
Composition: Another Form of Reuse
  • Composition is another form of reuse
  • Instead of reusing capabilities by inheriting operations from a base class (which implies a taxonomic relationship), you embed a reference to another class within your class, and delegate out to (reuse) operations defined by the other class
differences between inheritance and composition

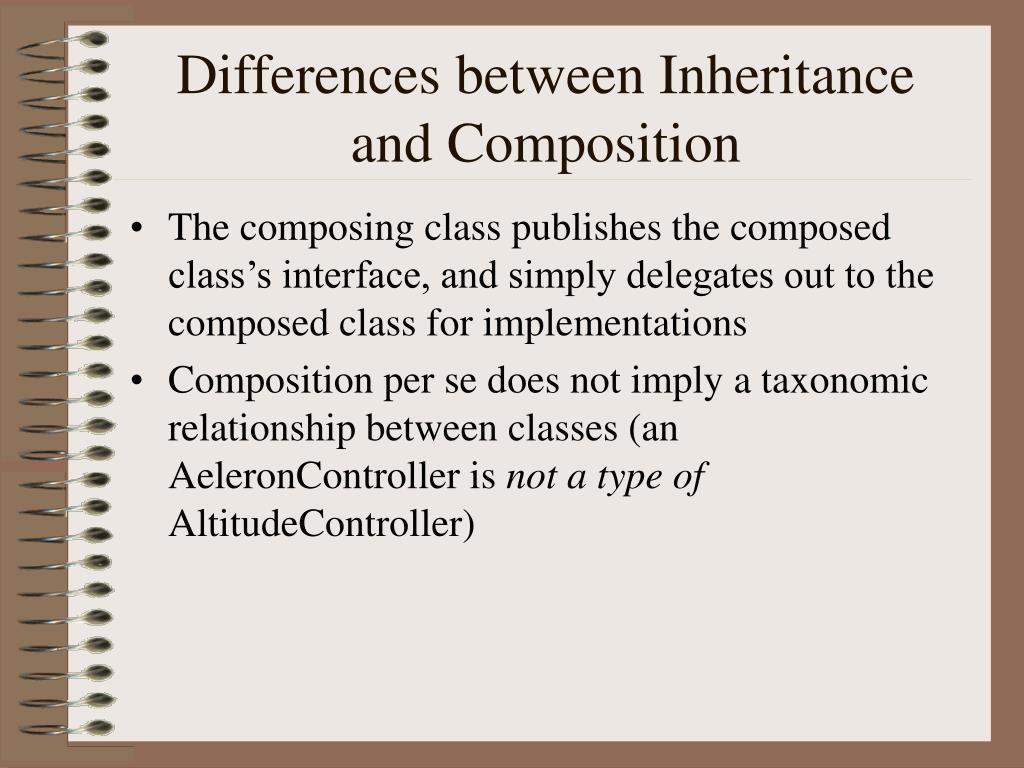

Differences between Inheritance and Composition
  • The composing class publishes the composed class’s interface, and simply delegates out to the composed class for implementations
  • Composition per se does not imply a taxonomic relationship between classes (an AeleronController is not a type of AltitudeController)
dynamic determination
Dynamic Determination
  • Composition is more flexible than inheritance because method implementations can be dynamically selectable (determined) at runtime
characteristics of composition
Characteristics of Composition
  • Composition models a has-a relationship, as opposed to Inheritance which models an is-a relationship
  • Composition is a strengthened form of aggregation implying simultaneous lifetimes
    • Square and its four sides
    • DerivedClass and its radius
    • hand and its fingers (robotics)
  • Strong Composition implies:
    • a part cannot belong to more than one whole (that’s my reference, dear)
    • concurrent instantiation and destruction with whole
composition and attribution

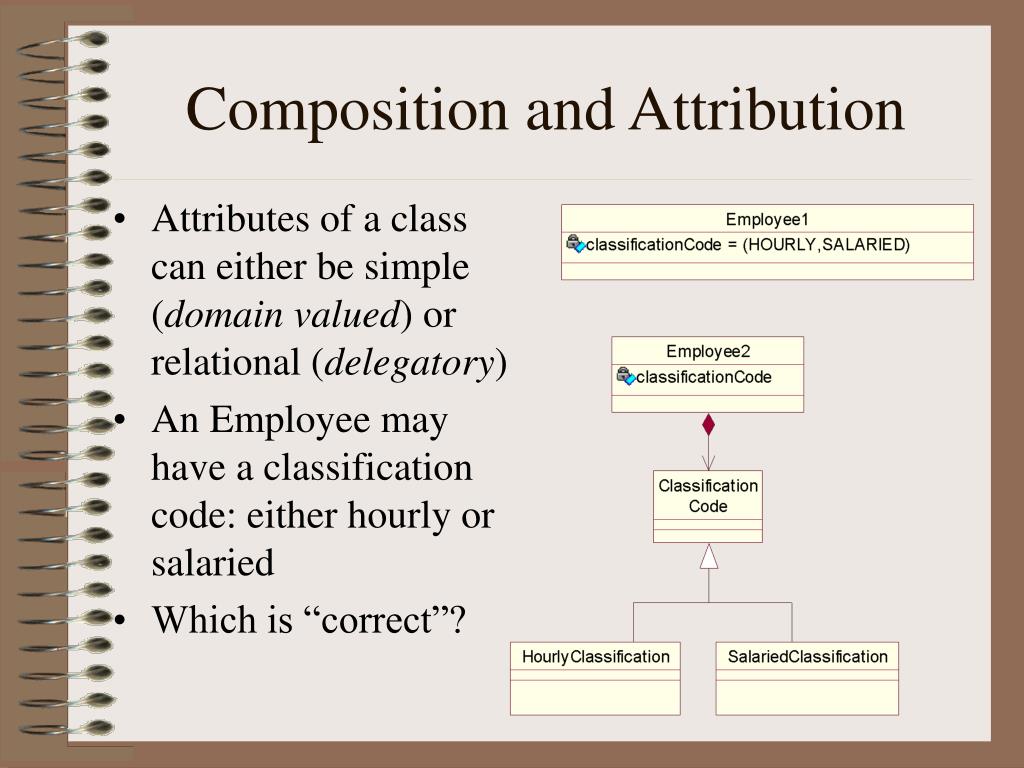

Composition and Attribution
  • Attributes of a class can either be simple (domain valued) or relational (delegatory)
  • An Employee may have a classification code: either hourly or salaried
  • Which is “correct”?
  • Might classification codes themselves participate in a hierarchy? For instance, is an person earning commission a type of salaried employee? (=relational)
  • Is the set of domain values predefined and not subject to change? Ie., regulatory mandated (=simple)
  • Might you need to add a new classification code? (=relational)
  • Would you ever need to individually manipulate (totalize, count, etc.) all salaried employees? (=relational)
  • Do classification codes themselves have attributes (rates, etc.)? (=relational)
design heuristics
Design Heuristics
  • Prefer composition over inheritance except when:
    • a clear hierarchy of types exists within the Problem Domain itself, and this hierarchy is never expected to change
    • Defined roles exist that are never expected to change within a given Problem Domain
java packaging

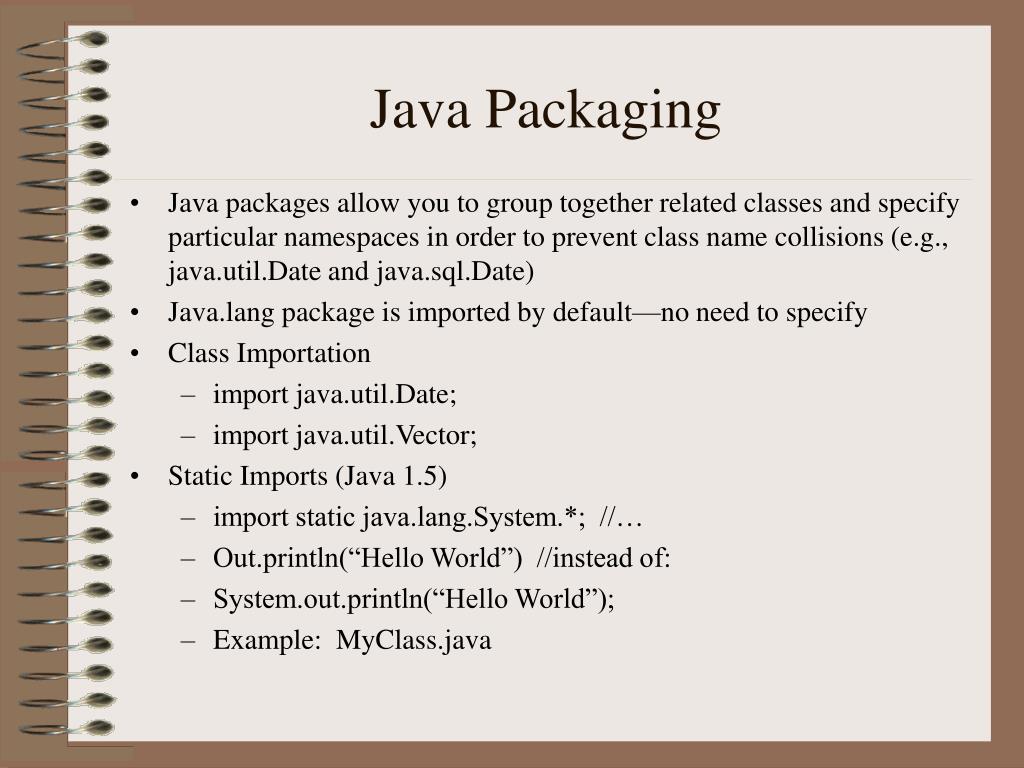

Java Packaging
  • Java packages allow you to group together related classes and specify particular namespaces in order to prevent class name collisions (e.g., java.util.Date and java.sql.Date)
  • Java.lang package is imported by default—no need to specify
  • Class Importation
    • import java.util.Date;
    • import java.util.Vector;
  • Static Imports (Java 1.5)
    • import static java.lang.System.*; //…
    • Out.println(“Hello World”) //instead of:
    • System.out.println(“Hello World”);
    • Example:
using classes from a package
Using classes from a package
  • Two ways to access classes from a package:
    • use full package name:
      • java.util.ArrayList x = new java.util.ArrayList();
    • use a class-specific import statement:
      • import java.util.ArrayList
      • then can use just class name everywhere after import
  • What if names conflict?
    • compiler warning
    • must use full name to distinguish or import exact class name or a class-specific import statement
  • Can also use wildcard for all classes in package
    • import java.util.*;
creating packages

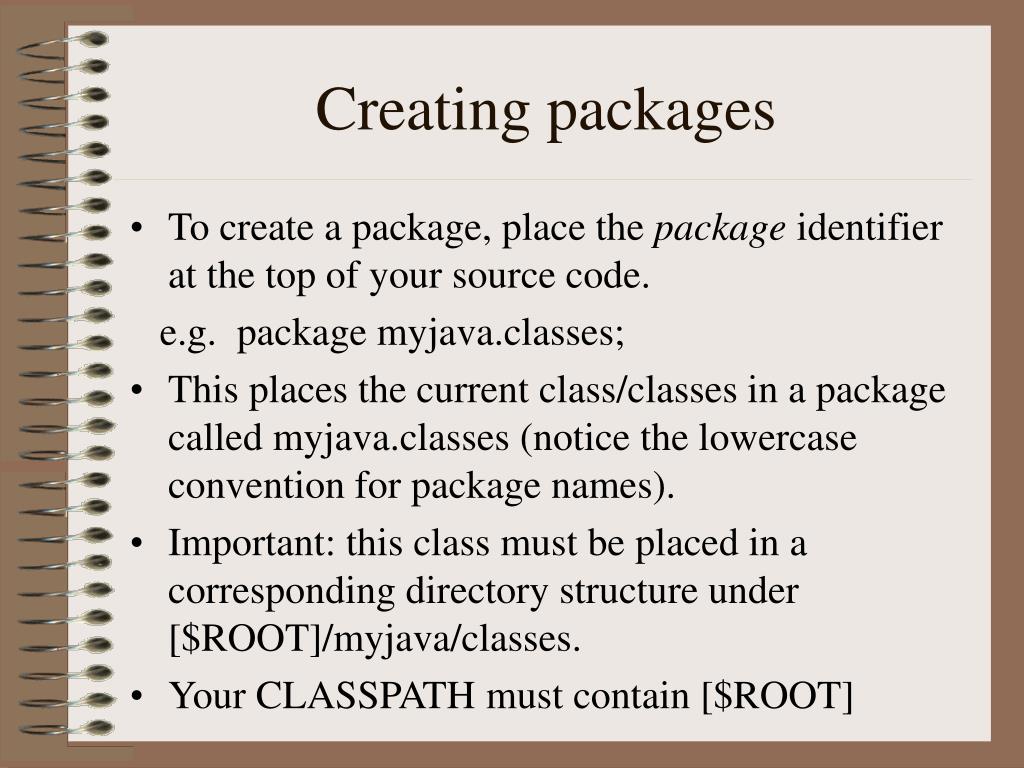

Creating packages
  • To create a package, place the package identifier at the top of your source code.

e.g. package myjava.classes;

  • This places the current class/classes in a package called myjava.classes (notice the lowercase convention for package names).
  • Important: this class must be placed in a corresponding directory structure under [$ROOT]/myjava/classes.
  • Your CLASSPATH must contain [$ROOT]
class visibility
Class visibility
  • Classes themselves can be public or default (We’ll talk about inner classes later)

public class Foo{ ...} //public access

class Foo{ ... } //default—package access

  • Classes that are public are visible outside of their package—that’s what we mean by public
  • Classes that are default are visible only within their package
  • Every source code file can have at most one public class (which it’s named after) but any number of package-scope classes.
the infamous java classpath
The Infamous Java CLASSPATH
  • Think of CLASSPATH as akin to PATH
  • On Unix, CLASSPATH entries are separated by colons (:)
  • On Windoze, CLASSPATH entries are separated by semicolons (;)
  • Think of the hierarchy of a subdirectory
  • Package declaration example:

package edu.uchicago.cs.MyClass

  • Example:, and that other class
  • What’s really going on?
  • Refer to Horstmann’s sample program on your own time—type it in!!!
how the jvm finds classes using classpath
How the JVM finds classes using CLASSPATH
  • CLASSPATH=/home/mark:/home/mark/myclasses:.
  • You execute the command:
    • java edu.uchicago.cs.YoudBetterUnderstandThis
  • When the JVM executes, it looks for a class called YoudBetterUnderstandThis.class in the following directories:
