Presentation Transcript
terms
Terms
  • Acid Mine Drainage (AMD)
    • Water that is polluted from contact with mining activity
  • Acid Rock Drainage (ARD)
    • Natural rock drainage that is acidic
  • Both produce acidic waters
  • How to distinguish?
characteristics
Characteristics
  • Increased acidity = decreased pH
  • Increased metal concentrations
  • Increased sulfate
  • Increased suspended solids

All four don’t necessarily occur at the same time

stream effects
Stream Effects
  • Colored waters:
  • “Yellow boy”
    • Iron oxides, basically rusting the stream floor
  • White
    • Aluminum
  • Black
    • Manganese
  • Determined by shifts in pH
shift in mining techniques
Shift in Mining Techniques
  • “Old school”
    • Abandoned mines
    • Tailings/waste rock piles
    • ARD
  • “New School”
    • Cyanide heap leach mining

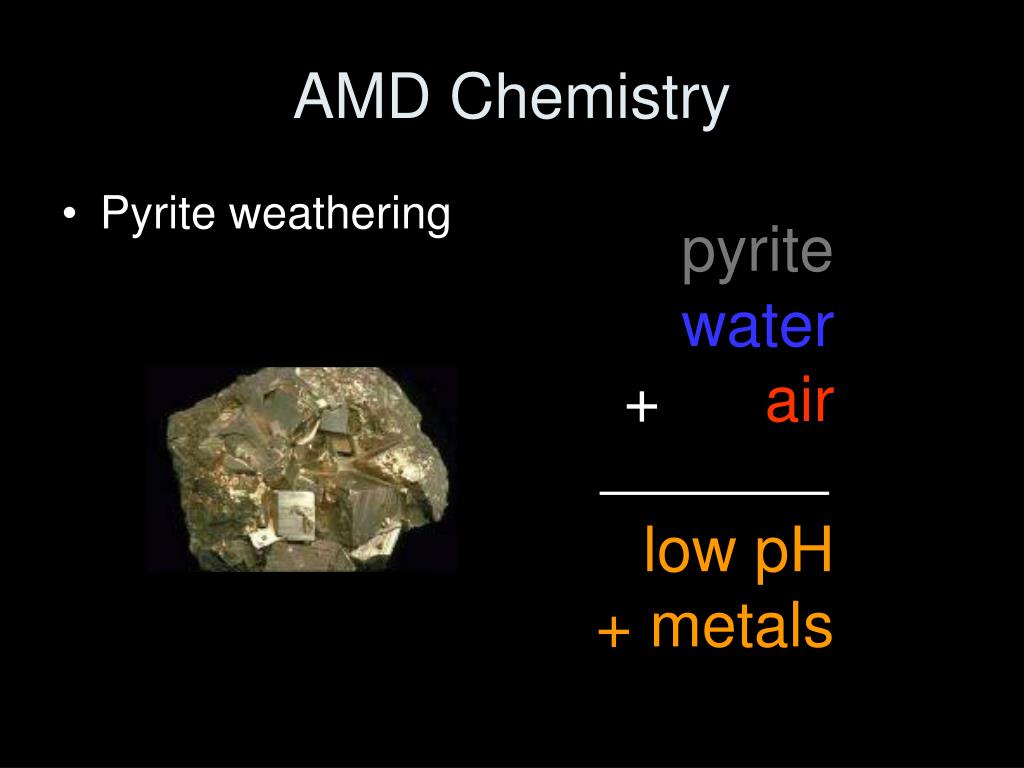

amd chemistry

pyrite

water

+ air

low pH

+ metals

AMD Chemistry
  • Pyrite weathering

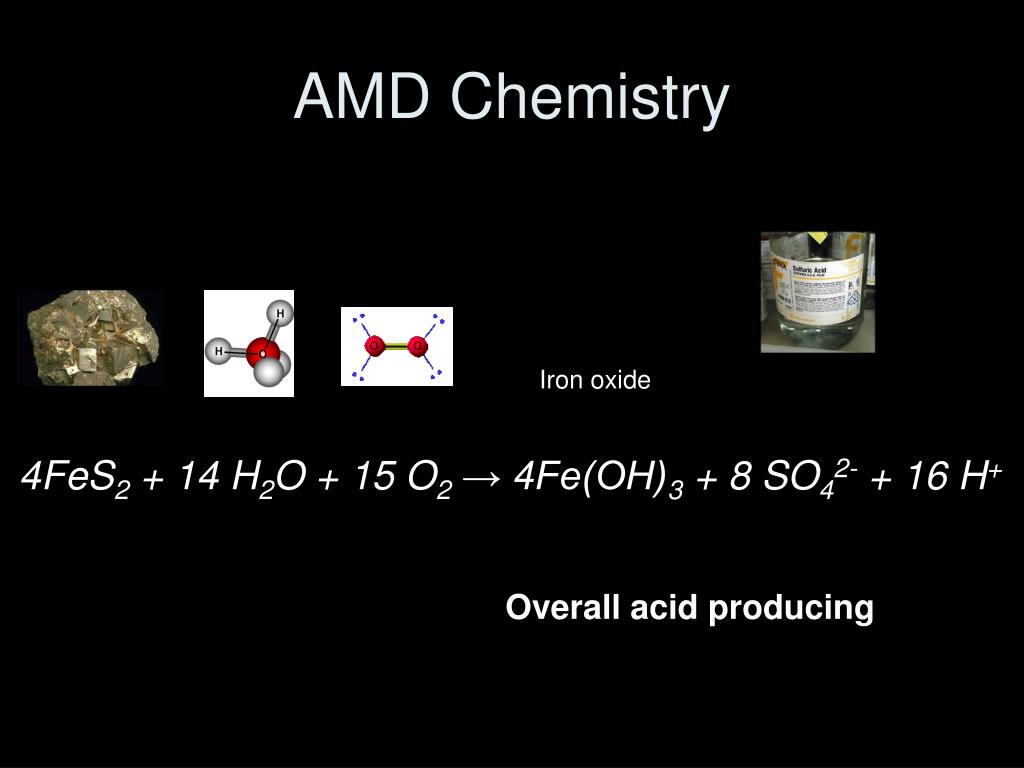

amd chemistry7
AMD Chemistry

Iron oxide

4FeS2 + 14 H2O + 15 O2 → 4Fe(OH)3 + 8 SO42- + 16 H+

Overall acid producing

amd chemistry8
AMD Chemistry
  • Surface area
    • more surface area, faster rate
    • smaller grains, more surface area
extent of problem
Extent of Problem
  • Colorado
    • 20,000+ mines
    • 1,300 miles of streams
  • Montana
    • 20,000+ mines
    • 1,000 miles of streams
  • Arizona
    • 80,000+ mines
    • 200 miles of streams
treatment
Treatment
  • Active v. Passive
  • Active
    • physical addition of alkalinity to raise pH
    • High cost
    • effective
  • Passive
    • Naturally available energy sources
    • Little maintaince
    • Driven by volume
active treatment
Active Treatment
  • Typical treatment processes (“ODAS”)
    • -oxidation
    • -dosing with alkali
    • -sedimentation
new school
“New School”
  • Cyanide Heap Leach
    • Extract gold from low grade ore
    • Ore crushed, placed in open air leach pads
    • Cyanide sprayed on top
    • Leaches gold as migrates through ore
    • Solution drained, gold recovered
    • Pretty huh?
summitville mine
Summitville Mine
  • Rio Grande Headwaters
  • Elevation 12,800’
  • Snowfall: 7-11 m/ year
  • Population: 700
  • 112 stamping machines
  • Abandoned in early 1900s
    • Gold prices fell, diminishing returns, weather issues
summitville
Summitville
  • 1984
    • Application for mining permit
  • 1985
    • Large scale open pit gold mine
    • Cyanide leaching
  • 1986
    • Construction. Problems.
    • HDPE liner ripped during placement, but not fixed.
summitville18
Summitville
  • 1987-1991: Heap Leach Pad
    • 73 acres
    • One pile >190’
    • No outlet for water, only lost through ET
    • Snowfall underestimated, ET overestimated

Now What?

summitville19
Summitville
  • 1987-1991 cont
    • Permit to discharge excess water. Limits in concentrations
    • Could not meet limits
    • Fish kills downstream for 17 miles in Alamosa River
summitville20
Summitville
  • 1992
    • EPA assumes control, $20,000,000 to ‘fix’
    • Heap leach pad near overflow, discharging 3,000 gallons/minute through leaks
    • 200 million gallons of cyanide laced water
    • Not last till spring snowmelt
costs
Costs
  • To date: $185 million
    • Annually: $1.5 million
  • Taxpayers foot bill
  • Mine owner cost: $3 million bond
summary
SUMMARY
  • 4 characteristics of AMD
  • Pyrite weathering (Fool’s gold) source of acidity in many AMD problems
  • “Old School” and “New School” mining
  • Cyanide heap leach technology
  • Summitville example
