a music search engine built upon audio based and web based similarity measures

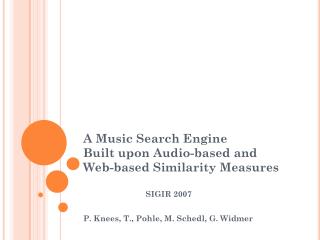

A Music Search EngineBuilt upon Audio-based andWeb-based Similarity Measures

P. Knees, T., Pohle, M. Schedl, G. Widmer

SIGIR 2007

introduction
INTRODUCTION
  • Basically all existing music search systems make use of manually assigned subjective meta-information like genre or style to index the underlying music collection.
    • Explicit manual annotations
    • A small set of meta-data
  • Recent approaches
    • Content-based analysis of the audio files
    • Collaborative recommendations
    • Incorporate information from different sources
related work
RELATED WORK
  • Query-by-example
    • Query-by-Humming/Singing (QBHS)
    • Operate on MIDI
    • Music piece → Meta-data
  • Cross-media
    • Semantic ontology
  • Semantic relations
    • Crawler on “audio blogs”
    • Word sense disambiguation
    • Text surrounding the links to audio files
    • Last.fm – listening habits & tags
preprocessing the collection
PREPROCESSING THE COLLECTION
  • ID3 tags
    • Artist
    • Album
    • Title
  • Ignored
    • Only speech pieces ( skit in rap)
    • Intro / Outro
    • Duration below 1 minute
web based features
WEB-BASED FEATURES
  • Queries to Google
    • “artist” music
    • “artist” “album” music review
    • “artist” “title” music review -lyrics
  • For each query, retrieve top-ranked 100 pages
    • Clean HTML tags and stop words in 6 languages
web based features cont
WEB-BASED FEATURES (CONT.)
  • term list of each music piece
    • Remove all terms with dftm <= 2
  • global term list
    • Remove all terms that co-occur < 0.1%
  • Resulting 78,000 terms (dimensions)
  • weight( t, m )
    • tf * idf
    • N – # of music pieces
    • mpft – music piece frequency
  • Cosine normalization
    • Removes the influence of the length of pages
audio based similarity
AUDIO-BASED SIMILARITY
  • MFCCs, Gaussian Mixture Model, KL divergence
  • Problem
    • Hubs - frequently similar
    • Outliers - never similar to others
    • Triangle inequality - does not fulfill
  • Author’s previous work solve these problems
audio based similarity cont
AUDIO-BASED SIMILARITY (CONT.)
  • Always similar – hubs
    • ndist(A) = distance to the nth nearest neighbour
    • g(A, Pi) = Dbasic(A, Pi) / ndist(Pi), for all i
    • sort g(A, Pi) ascending, pick nth value as f(A)
    • Dn-NN norm(A, B) = Dbasic(A, B) / ( f(A) * f(B) )
  • Never similar – outliers
    • like above
  • Triangle inequality
    • sort Dbasic(A, Pi), for all i
    • interpolating Dbasic(A, B) into Dbasic(A, Pi)
    • DP(A, B) is the rank of Dbasic(A, B) in Dbasic(A, Pi)
    • Dpv(A, B) = DP(A, B) + DP(B, A)
dimensionality reduction
DIMENSIONALITY REDUCTION
  • χ2 test
    • s : 100 most similar tracks
    • d : 100 most dissimilar tracks
    • Calculate χ2( t, s )
    • N terms with highest value are then joined into a global list
vector adaptation
VECTOR ADAPTATION
  • Particularly necessary for tracks where no related information could be retrieved from the web
  • Perform a simple smoothing
querying the music search engine
QUERYING THE MUSIC SEARCH ENGINE
  • Original query + “music”
    • -site:last.fm
  • Google search
  • 10 top-most web pages
  • Map to vector space
  • Calculate Euclidean distances
audioscrobbler ground truth
AUDIOSCROBBLER GROUND TRUTH
  • Common approach
    • genre information
    • several drawbacks
  • http://www.audioscrobbler.net
    • Web services to access Last.fm data
    • Tag information provided by Last.fm
    • drawbacks
  • Using top tags for tracks (total 227 tags)
performance evaluation
PERFORMANCE EVALUATION
  • Dimensionality reduction

χ2 /50 best

random permutation

pass significance test

performance evaluation14
PERFORMANCE EVALUATION
  • Vector adaptation

(re-weighting)

no significance

performance evaluation15
PERFORMANCE EVALUATION
  • Overall
  • Precision after 10 documents
examples
EXAMPLES

Rock with great riffs

Punk

Relaxing music

future work
FUTURE WORK

12601

tracks

ID3 tag

Google search

Audio similarity

Web-based feature

Vector adaptation

Dimensionality reduction

Vector space

Query

Google search

results

future work18
FUTURE WORK

12601

tracks

ID3 tag

合輯, remix

Google search

Audio similarity

Web-based feature

Vector adaptation

Dimensionality reduction

Vector space

Query

Google search

results

future work19
FUTURE WORK

12601

tracks

ID3 tag

Lyrics

Google search

Audio similarity

Web-based feature

Vector adaptation

Dimensionality reduction

Vector space

Query

Google search

results

future work20
FUTURE WORK

12601

tracks

ID3 tag

Google search

Indexing documents

Audio similarity

Web-based feature

Vector adaptation

Dimensionality reduction

Vector space

Query

Google search

results

future work21
FUTURE WORK

12601

tracks

ID3 tag

Google search

Audio similarity

Web-based feature

PLSA

Vector adaptation

Dimensionality reduction

Vector space

Query

Google search

results

future work22
FUTURE WORK

12601

tracks

ID3 tag

Google search

Audio similarity

Web-based feature

Vector adaptation

Dimensionality reduction

Vector space

Query

Google search

results

Computation inefficient

future work23
FUTURE WORK

12601

tracks

ID3 tag

Google search

Audio similarity

Web-based feature

Vector adaptation

Dimensionality reduction

Ground truth?

Vector space

Query

Google search

results
