Presentation Transcript

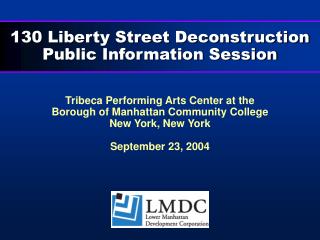

130 liberty street deconstruction public information session

Tribeca Performing Arts Center at the

Borough of Manhattan Community College

New York, New York

September 23, 2004

130 Liberty Street Deconstruction

Public Information Session

slide2

Agenda

  • Introduction
  • Consultants and Contractors
  • Presentations
      • Louis Berger - Initial Building Characterization Study
      • TRC - Overview of Exterior Air Monitoring Program
      • Gilbane – Deconstruction Activities
  • Conclusions
  • Comment Period
slide3

Introduction

  • The Lower Manhattan
  • Development Corporation
  • Owner of the former Deutsche Bank building at 130 Liberty Street as of August 31, 2004.
  • Responsible for developing a cleaning and deconstruction plan that is safe, effective, and protective of the workers, the community, and the environment.
slide4

Key Parties

  • Consultants/Contractors
  • Louis Berger Group– Lead Consultant on Building Characterization
  • TRC – Environmental Consultant
  • Ecology and Environment, Inc. – Public Outreach Consultant
  • Ambient Group – Exterior Air Monitoring
  • Gilbane – Deconstruction Contractor
      • LVI – Asbestos/Cleaning Subcontractor
      • Weston – Environmental Monitoring Subcontractor
      • CDI – Deconstruction Subcontractor
  • Kroll Associates – Integrity Monitor
slide5

Louis Berger Group

  • Role:
    • Lead on Initial Building Characterization/Testing
    • On-Site Safety/Environmental Support
    • Advise Cleaning/Deconstruction Process
  • Relevant Experience:
    • US Army Corps of Engineers
    • US Department of Justice
    • US Postal Service
    • NYC Transit
    • NYC School Construction Authority
    • Port Authority of NY/NJ
    • Tenneco
slide6

TRC

  • Role:
    • Environmental, Health and Safety, and Human Health Risk Consulting services relative to the process of deconstructing 130 Liberty Street
  • Relevant Experience:
    • Consolidated Edison Company of NY
    • NYC Law Department
    • Cleary, Gottlieb, Steen & Hamilton
    • NYC Department of Health and Mental Hygiene
    • Legal Aid Society
    • General Electric Corporate Real Estate
slide7

Gilbane

  • Role:
    • Cleaning and deconstruction general contractor.
  • Relevant Experience:
    • US Postal Service – Brentwood Facility, Washington DC
    • General Services Administration – Senator Robert F. Kennedy Justice Building, Washington DC
    • Case Western Reserve University - Cleveland, OH
    • Adriaen's Landing - Hartford, CT
slide8

Kroll Associates

  • Role:
    • Integrity Monitor
      • Prevent fraud, cost abuse and corruption
      • Review of plans, policies and procedures to identify and assess risks
      • Design and implement a prevention program
      • Monitor compliance
  • Relevant Experience:
    • Monitor for Jersey City $1.2-Billion New Office Project
    • Monitor for $750-Million Office Build-Out in Manhattan
    • Court-Appointed Private Sector Inspector General for Plumbers Local One, New York
    • Monitor for Town of Brookhaven
    • Monitor for Los Angeles Police Department
slide9

Key Parties, cont.

  • Regulators
  • US Environmental Protection Agency
  • US Occupational Safety & Health Administration
  • NYS Department of Environmental Conservation
  • NYS Department of Labor
  • NYS Department of Health
  • NYC Department of Environmental Protection
  • NYC Department of Buildings
  • NYC Department of Sanitation
  • NYC Department of Health
initial building characterization study louis berger group inc

130 Liberty Street Building Deconstruction

World Trade Center Redevelopment

New York, New York

September 23, 2004

Initial Building Characterization Study

Louis Berger Group, Inc.

slide11

Initial Building Characterization Study, cont.

The objectives of the study were to:

  • Characterize the contamination levels in the building;
  • Provide recommendations for further sampling; and
  • Serve as a reference for the development of the cleaning and deconstruction plan.

It is important to note that this was only an initial

characterization study. LMDC will conduct additional

testing and sampling.

slide12

Initial Building Characterization Study

  • In May 2004, LMDC contracted with Louis Berger Group, Inc. to perform an initial characterization study of the 130 Liberty Street building.
  • The goal of the study was to identify any contaminants present in the building that should be addressed during the cleaning and deconstruction process.
  • The building will be cleaned and methodically deconstructed. As a safety precaution, the deconstruction will not use explosive devices.
slide13

Initial Building Characterization Study, cont.

The study will help LMDC:

  • Address concerns about community and worker health and safety;
  • Develop engineering controls and precautionary work practices to ensure public health and safety and protect the environment;
  • Use cleaning and disposal procedures that properly address all identified contaminants; and
  • Comply with all applicable federal, state and local regulations throughout the cleaning and deconstruction process.
slide14

Initial Building Characterization Study, cont.

What did the initial study include?

  • Sampling and analysis of suspect asbestos-containing building materials (ACM);
  • Sampling and analysis of dust for asbestos and key WTC Contaminants of Potential Concern (“COPCs”) as defined by EPA, as well as other suspected contaminants;
  • Visual observations for the presence of mold on exposed surfaces; and
  • Screening of the indoor air for mercury vapors.
slide15

Methodology

  • Asbestos Containing Materials (ACM):Approximately 2,000 bulk material samples were taken.
  • Asbestos in Dust and Other Contaminants of Potential Concern (COPC):Approximately 1,600 bulk-dust samples were taken.

Asbestos and dust samples were characterized using either Polarized Light

Microscopy (PLM) or Transmission Electron Microscopy (TEM).

  • Mold:Visual inspection of accessible spaces.
  • Mercury Vapor:153 samples taken.
slide16

Methodology

The building was divided into six sampling zones that were established based on visible levels of dust and the potential point of entry.

task 1 study planning
Task 1: Study Planning
  • Sampling and Analysis Plan (SAP)
  • Quality Assurance Project Plan (QAPP)
  • Site Specific Health and Safety Plan (HASP)
slide18

Task 2: Asbestos Containing Material (ACM)

  • The majority of samples tested negative for asbestos, including spray-on fire-proofing, wall-board, roofing materials, and most thermal insulation for piping and ducts.
  • Approximately 155,000 square feet of flooring and wall materials, and 95,000 linear feet of caulk, insulation and sealant materials were identified throughout the building as ACM.

Most of the ACM are considered “Non-Friable” by state definition. This means that they cannot be crumbled by hand pressure.

slide19

Tasks 3 & 4: Asbestos in Dust and Other Contaminants of Potential Concern (COPC)

  • Contaminants of Potential Concern (COPC) identified by the EPA as associated with WTC dust
    • Asbestos, dioxins, lead, polycyclic aromatic hydrocarbons (PAHs), and crystalline silica
  • Other Contaminants
    • PCBs
    • Heavy metals: barium, beryllium, cadmium, chromium, copper, lead, manganese, mercury, nickel, and zinc
slide20

Tasks 3 & 4: Asbestos in Dust and Other Contaminants of Potential Concern (COPC)

  • Approximately 1,600 bulk dust samples were taken throughout the building.
  • The samples showed varying levels of asbestos, COPCs associated with WTC dust, and other contaminants.
  • The contaminants were identified in dust located above and below the suspended ceiling (plenum).
  • Further testing will be conducted on surfaces and in spaces that were previously inaccessible.
slide21

Tasks 3 & 4: Asbestos in Dust and Other Contaminants of Potential Concern.

Although they do not directly apply, the sampling results were

compared to EPA’s WTC residential background and 30-year

re-occupancy cleanup benchmarks to provide a better

understanding of the results. Analytes that exceeded the

criteria include:

  • Asbestos (exceeded in 77% of floors tested)
  • Dioxin (exceeded in 99% of samples)
  • Lead (exceeded in 97% of samples)
  • Quartz (exceeded in 94% of samples)
  • PAHs (exceeded in 80% of samples)
  • Chromium (exceeded in 30% of samples)
  • Manganese (exceeded in 21% of samples)
slide22

Task 4: Other Analytes in Dust, cont.

  • Cristobalite, Barium, Cadmium, Copper, Zinc, and Mercury exceeded the criteria in less than 5% of the samples tested.
  • Nickel, Beryllium, and PCBs did not exceed available residential criteria in any of the samples tested.
    • PCB levels were compared to the EPA spill cleanup criteria because no residential background or residential benchmark levels related to WTC are available from EPA.
slide23

Task 4: Mercury Vapors

  • A preliminary screening for mercury vapor was performed after LMDC acquired the building.
  • The screening was performed to evaluate potential worker health and safety issues associated with mercury vapor because of its unique ability to vaporize at room temperature.
  • Based on the measurements obtained from a direct-read screening device, there were no detectable mercury vapor levels in the open spaces within the building.
slide24

Task 5: Mold

  • The visual mold inspection revealed building materials with mold on exposed surfaces in seven locations distributed over five different floors (11th, 7th, 3rd, Basement A, and Basement B).
  • In total, 105 SF of mold-impacted building materials were identified.
  • Inspection was not performed for non-exposed surfaces and will be performed as part of the supplemental testing for the cleaning and deconstruction program.
slide25

Summary

  • The results of the sampling and testing revealed levels of contaminants that should be addressed in the deconstruction of the building.
  • Throughout the building, asbestos containing materials (ACM) were positively identified.
  • Detectable levels of asbestos, silica, PAHs, dioxins, PCBs, and heavy metals (including mercury) were also identified in dust above and below the suspended ceilings.
  • The results are consistent with the highly variable nature of WTC dust and the level of activity that has occurred within the building since September 11th.
slide26

Further Testing

Further testing will occur in previously inaccessible

surfaces and interstitial spaces including:

  • The curtain wall, interior walls, the exterior of the building, and cell systems and raceways within the concrete slabs; and
  • Testing for all of the constituents addressed in the initial characterization study (asbestos and other analytes as well as visual inspection for mold).

Additional testing will also be performed to characterize

waste materials prior to handling, transportation,

storage, and disposal or recycling.

slide27

Major Recommendations

  • Maintain, review, and modify the current health and safety plan and external air monitoring program as appropriate to address the conditions identified in the study;
  • Continue to review and address the potential for release of contaminants from the building and further develop and implement an emergency action plan;
  • Conduct further testing as recommended, further develop the cleaning and deconstruction plan, and continue to consult with all appropriate regulatory agencies;
slide28

Major Recommendations, cont.

  • Further develop appropriate site-specific health and safety plan and work and site operations documents;
  • File appropriate notifications and obtain necessary permits, including the Asbestos Control Program 7 (ACP-7), from the appropriate regulatory agencies and engage a contractor with a NYSDOL asbestos handling license to perform the work; and
  • LMDC should conduct appropriate monitoring and quality assurance/quality control inspections throughout the cleaning and deconstruction process.
slide29

Timeline

August 31, 2004

LMDC takes ownership of the building at

130 Liberty Street.

September 14, 2004

Release of the Initial Building Characterization Study. Begin 30-day comment period.

September 23, 2004

Public Information Session.

October 13, 2004

End 30-day comment period.

exterior air monitoring program

130 Liberty Street Building Deconstruction

World Trade Center Redevelopment

New York, New York

September 23, 2004

Exterior Air Monitoring Program

slide31

Current Program

  • Started upon LMDC ownership - August 31, 2004
  • Continuation of program implemented by Deutsche Bank since Summer 2002
  • Includes 4 sampling locations around the building:
    • Greenwich and Cedar streets
    • Greenwich and Albany streets
    • Washington and Albany streets
    • Washington and Cedar streets
current program cont
Current Program, cont.
  • Sampling conducted 24 hours per day, 7 days per week
  • Daily sampling at each location includes:
    • 3 8-hour Asbestos in Air (TEM)
    • 1 24-hour Metals in Air:
  • Results are reviewed daily
current program cont33
Current Program, cont.
  • Results are compared to:
    • Asbestos Hazardous Emergency Response Act (AHERA) standard (70 s/mm2)
    • Occupational Health and Safety Administration (OSHA)
    • National Institute for Occupational Safety and Health (NIOSH)
    • TEM Asbestos air results are submitted daily to NYCDEP for review
  • Air sampling results will soon be available on LMDC website:
  • www.renewnyc.com
  • Fact Sheet No. 3 Exterior Air Monitoring at 130 Liberty
future enhanced program
Future Enhanced Program
  • Implemented prior to deconstruction of building
  • Enhanced program currently under development includes:
    • Additional sampling locations around the building
    • Additional sampling locations at elevation (i.e. rooftops and setbacks)
    • Daily real-time monitoring component
    • Enhanced analyte list
    • Tiered notification component
  • Public Notification Protocol
  • Continued submission of results to NYCDEP
  • Continued public access to air results via LMDC website
preparation for deconstruction

130 Liberty Street Building Deconstruction

World Trade Center Redevelopment

New York, New York

September 23, 2004

Preparation for Deconstruction

slide36

Preparation for Deconstruction

  • Deconstruction team and roles
  • Site Utilization Plan
  • Permitting and Notification Plan
slide37

Preparation for Deconstruction, cont.

  • Emergency Action Plan
  • Health and Safety Plan (HASP)/Safety Plan
  • Environmental Assurance Plan
  • Cleaning and Deconstruction Plan
  • Waste Management Plan
slide38

Timeline

Fall 2004

LMDC develops deconstruction plan.

Regulator review of deconstruction plan.

Public information session on deconstruction plan.

Regulator approval of deconstruction plan.

Start deconstruction activities.

slide39

Opportunities for Public Involvement

  • E-Updates
  • Public Information Sessions
  • Comment through the LMDC Website
  • Community Board One meetings
slide40

Give Us

Your Comments!

slide44

Thank you for

your comment!
