How Do Flameproof AC Drive Panels Work? The Ultimate Guide Here!

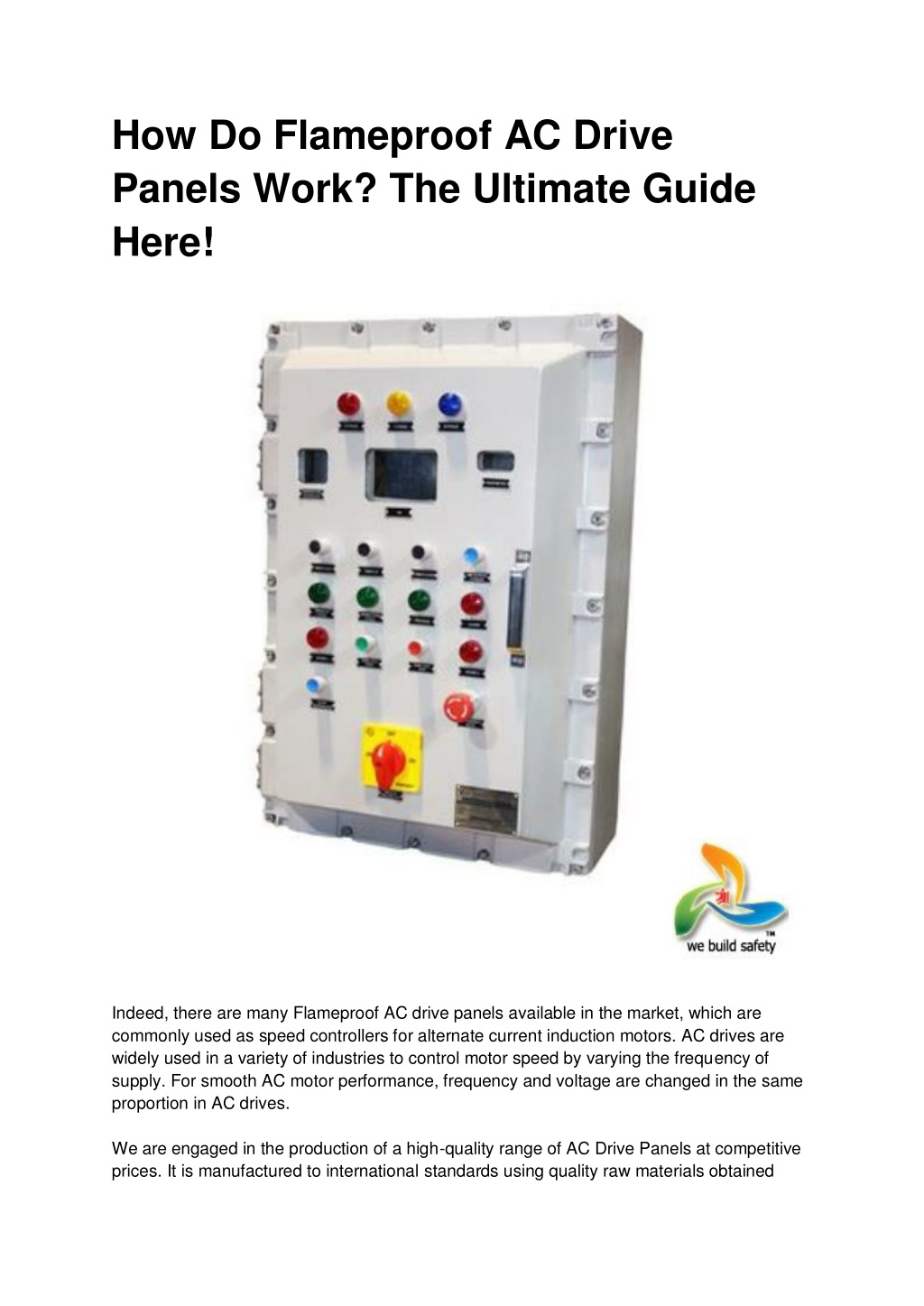

1. How Do Flameproof AC Drive Panels Work? The Ultimate Guide Here! Indeed, there are many Flameproof AC drive panels available in the market, which are commonly used as speed controllers for alternate current induction motors. AC drives are widely used in a variety of industries to control motor speed by varying the frequency of supply. For smooth AC motor performance, frequency and voltage are changed in the same proportion in AC drives. We are engaged in the production of a high-quality range of AC Drive Panels at competitive prices. It is manufactured to international standards using quality raw materials obtained

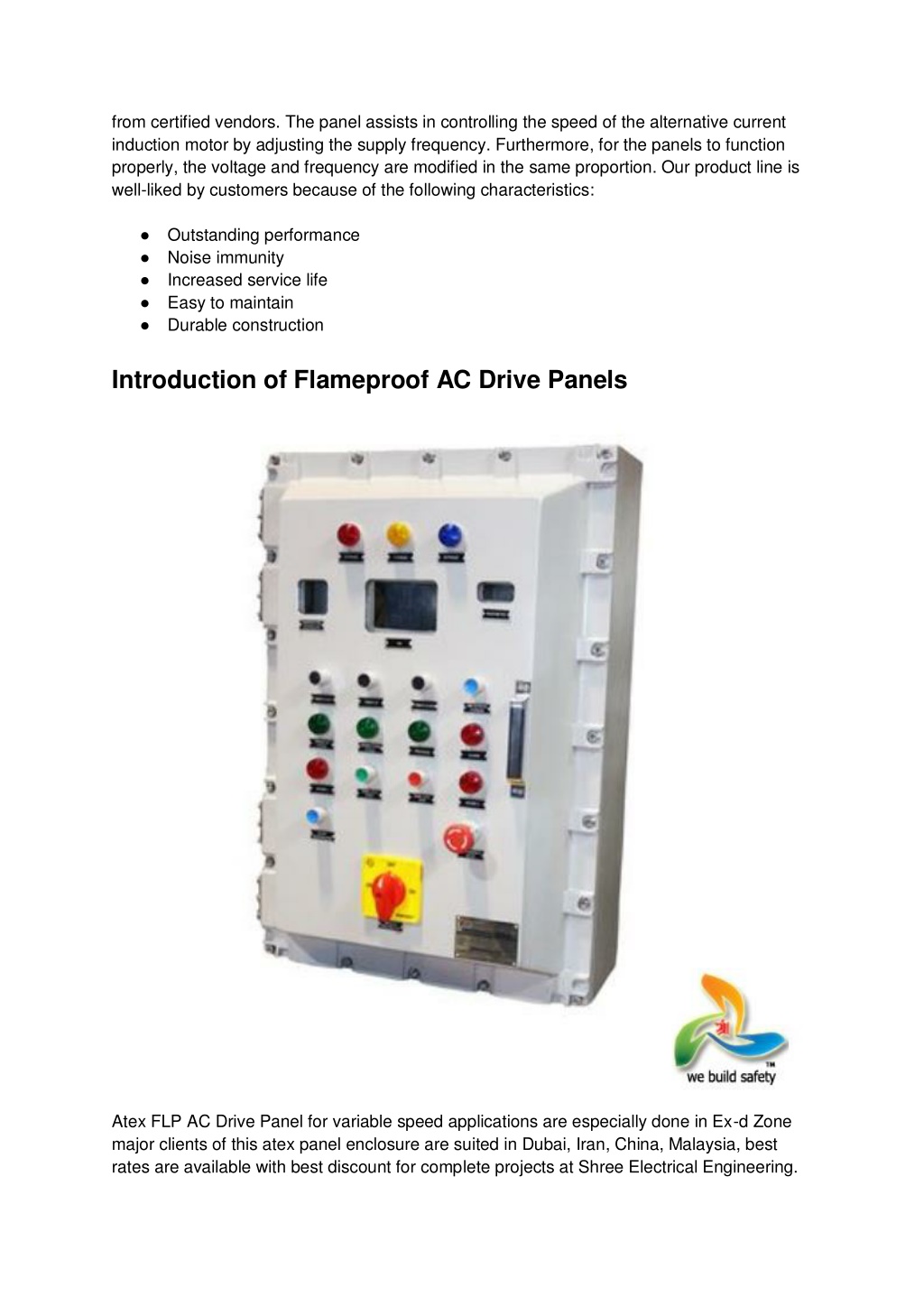

2. from certified vendors. The panel assists in controlling the speed of the alternative current induction motor by adjusting the supply frequency. Furthermore, for the panels to function properly, the voltage and frequency are modified in the same proportion. Our product line is well-liked by customers because of the following characteristics: ● Outstanding performance ● Noise immunity ● Increased service life ● Easy to maintain ● Durable construction Introduction of Flameproof AC Drive Panels Atex FLP AC Drive Panel for variable speed applications are especially done in Ex-d Zone major clients of this atex panel enclosure are suited in Dubai, Iran, China, Malaysia, best rates are available with best discount for complete projects at Shree Electrical Engineering.

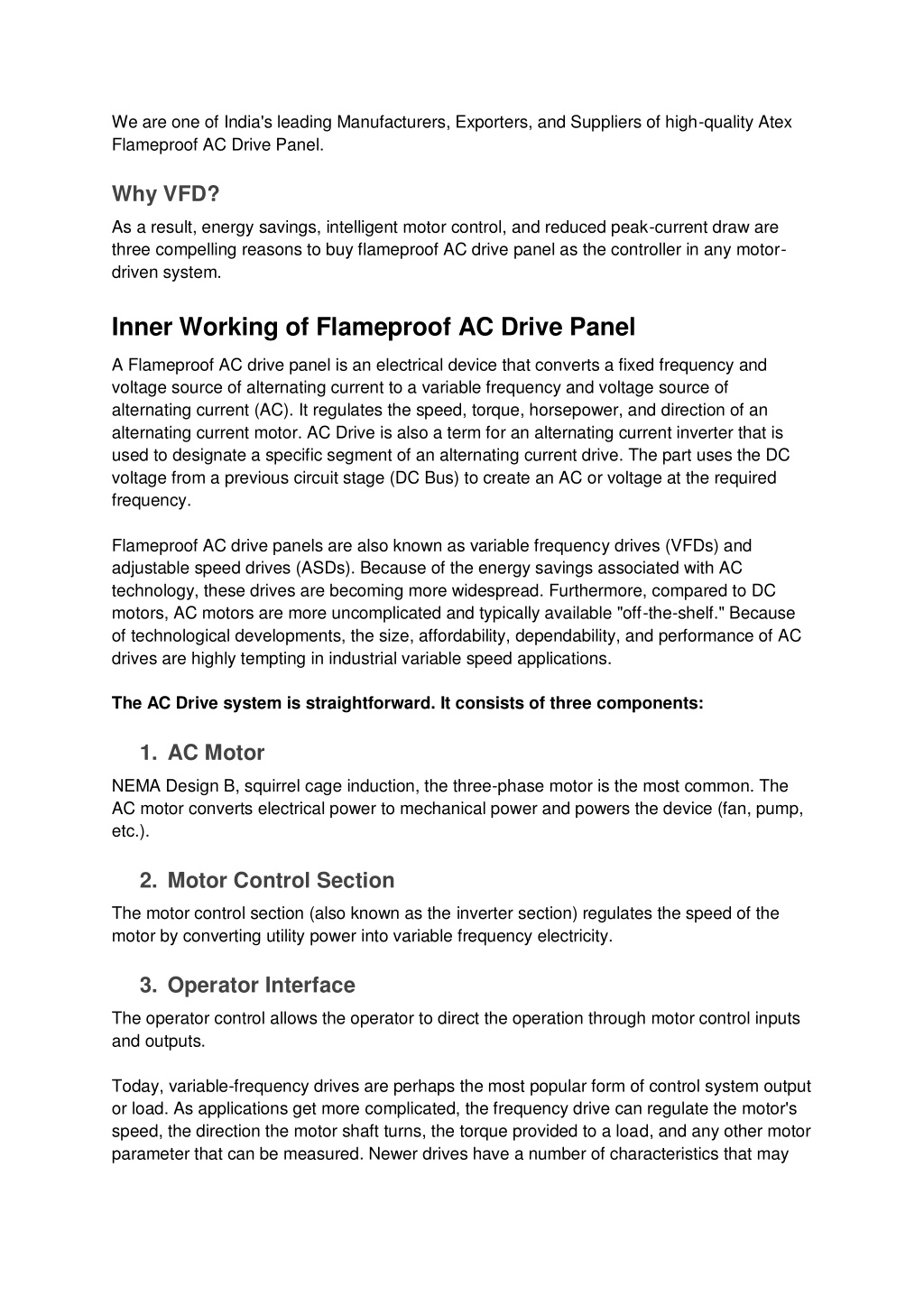

3. We are one of India's leading Manufacturers, Exporters, and Suppliers of high-quality Atex Flameproof AC Drive Panel. Why VFD? As a result, energy savings, intelligent motor control, and reduced peak-current draw are three compelling reasons to buy flameproof AC drive panel as the controller in any motor- driven system. Inner Working of Flameproof AC Drive Panel A Flameproof AC drive panel is an electrical device that converts a fixed frequency and voltage source of alternating current to a variable frequency and voltage source of alternating current (AC). It regulates the speed, torque, horsepower, and direction of an alternating current motor. AC Drive is also a term for an alternating current inverter that is used to designate a specific segment of an alternating current drive. The part uses the DC voltage from a previous circuit stage (DC Bus) to create an AC or voltage at the required frequency. Flameproof AC drive panels are also known as variable frequency drives (VFDs) and adjustable speed drives (ASDs). Because of the energy savings associated with AC technology, these drives are becoming more widespread. Furthermore, compared to DC motors, AC motors are more uncomplicated and typically available "off-the-shelf." Because of technological developments, the size, affordability, dependability, and performance of AC drives are highly tempting in industrial variable speed applications. The AC Drive system is straightforward. It consists of three components: 1. AC Motor NEMA Design B, squirrel cage induction, the three-phase motor is the most common. The AC motor converts electrical power to mechanical power and powers the device (fan, pump, etc.). 2. Motor Control Section The motor control section (also known as the inverter section) regulates the speed of the motor by converting utility power into variable frequency electricity. 3. Operator Interface The operator control allows the operator to direct the operation through motor control inputs and outputs. Today, variable-frequency drives are perhaps the most popular form of control system output or load. As applications get more complicated, the frequency drive can regulate the motor's speed, the direction the motor shaft turns, the torque provided to a load, and any other motor parameter that can be measured. Newer drives have a number of characteristics that may

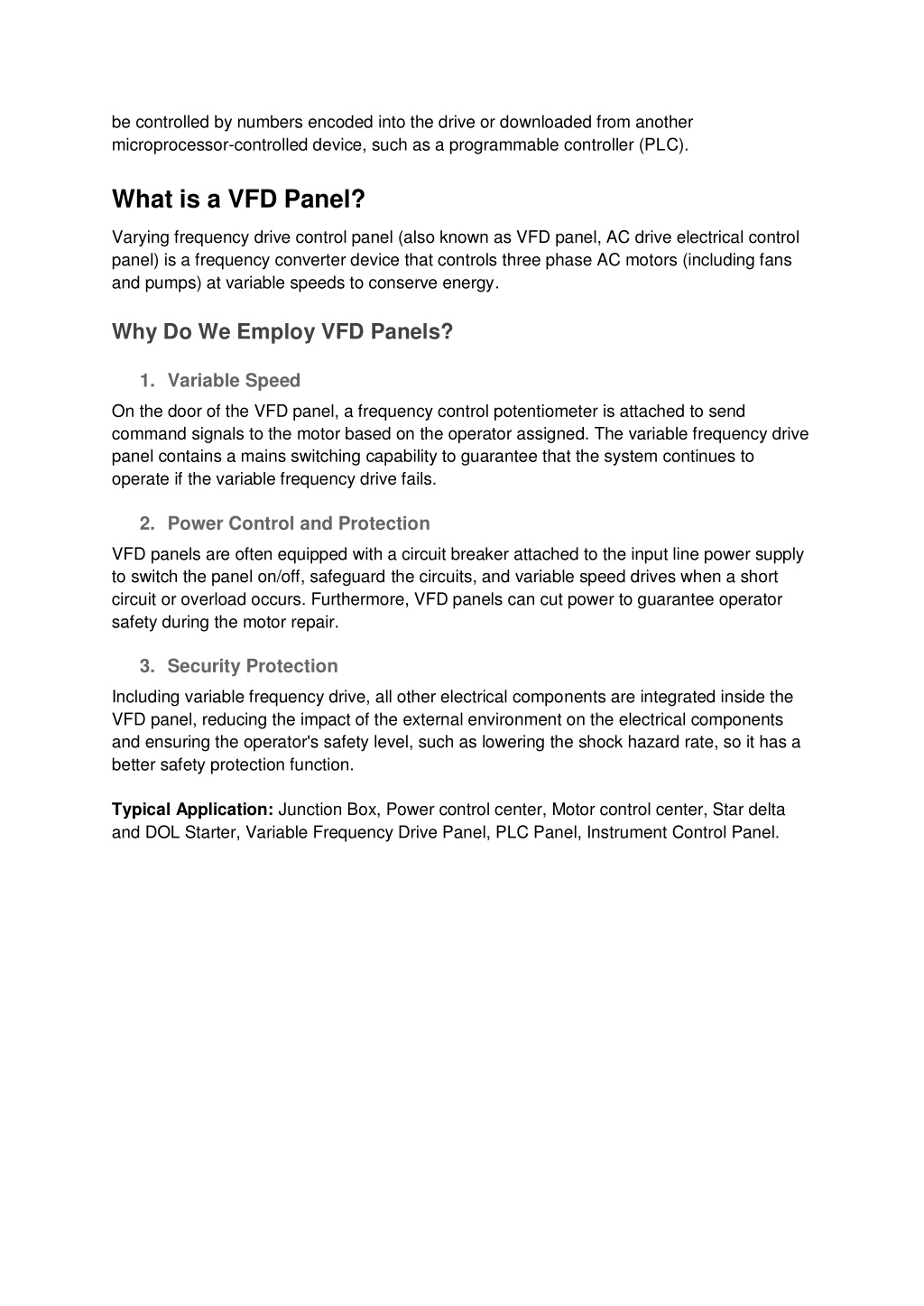

4. be controlled by numbers encoded into the drive or downloaded from another microprocessor-controlled device, such as a programmable controller (PLC). What is a VFD Panel? Varying frequency drive control panel (also known as VFD panel, AC drive electrical control panel) is a frequency converter device that controls three phase AC motors (including fans and pumps) at variable speeds to conserve energy. Why Do We Employ VFD Panels? 1. Variable Speed On the door of the VFD panel, a frequency control potentiometer is attached to send command signals to the motor based on the operator assigned. The variable frequency drive panel contains a mains switching capability to guarantee that the system continues to operate if the variable frequency drive fails. 2. Power Control and Protection VFD panels are often equipped with a circuit breaker attached to the input line power supply to switch the panel on/off, safeguard the circuits, and variable speed drives when a short circuit or overload occurs. Furthermore, VFD panels can cut power to guarantee operator safety during the motor repair. 3. Security Protection Including variable frequency drive, all other electrical components are integrated inside the VFD panel, reducing the impact of the external environment on the electrical components and ensuring the operator's safety level, such as lowering the shock hazard rate, so it has a better safety protection function. Typical Application: Junction Box, Power control center, Motor control center, Star delta and DOL Starter, Variable Frequency Drive Panel, PLC Panel, Instrument Control Panel.
