SMD High Precision Servo Gearbox

SMD Gearbox are widely used in Automation, Automobile, Pharmaceutical, Aerospace, Engineering, Medical, Agriculture, Machine tool, etc. Industries. SMD is popular in market for outstanding and speedy deliveries of quality gearboxes. SMD is one of the largest manufacturer and exporter of Gearbox as well as Motion Products. SMD earned their position in the market as professional manufacture of mechanical products, which specialize in designing, planning, production and sales of integrity. Global Head office is situated in Taichung City, Taiwan.

SMD_Gearbox
Download Presentation

SMD High Precision Servo Gearbox

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

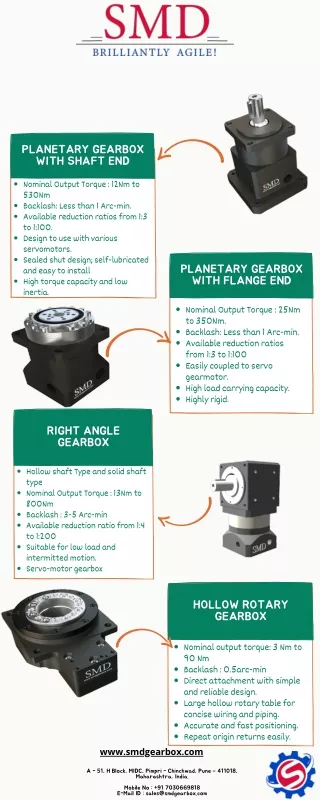

  1. PLANETARYGEARBOX WITHSHAFTEND Nominal Output Torque : 12Nm to 530Nm Backlash: Less than 1 Arc-min. Available reduction ratios from 1:3 to 1:100. Design to use with various servomotors. Sealed shut design; self-lubricated and easy to install High torque capacity and low inertia. PLANETARYGEARBOX WITHFLANGEEND Nominal Output Torque : 25Nm to 350Nm. Backlash: Less than 1 Arc-min. Available reduction ratios from 1:3 to 1:100 Easily coupled to servo gearmotor. High load carrying capacity. Highly rigid. RIGHTANGLE GEARBOX Hollow shaft Type and solid shaft type Nominal Output Torque : 13Nm to 800Nm Backlash : 3-5 Arc-min Available reduction ratio from 1:4 to 1:200 Suitable for low load and intermitted motion. Servo-motor gearbox HOLLOWROTARY GEARBOX Nominal output torque: 3 Nm to 90 Nm Backlash : 0.5arc-min Direct attachment with simple and reliable design. Large hollow rotary table for concise wiring and piping. Accurate and fast positioning. Repeat origin returns easily. www.smdgearbox.com A-51,HBlock,MIDC,Pimpri-Chinchwad,Pune–411018, Maharashtra,India. MobileNo:+917030669818 E-MailID:sales@smdgearbox.com

  2. HARMONICGEARBOXWITH SOLIDSHAFTEND Nominal Output torque : 21Nm to 180Nm Backlash : less than 0.4 Arc min Available reduction ratio :1:50,1:80 1:100, 1:120 High rigidity for stable precision work. More compact and higher accurate. Applied in robot industry, especially for multi-axis robot joints. HARMONICGEARBOXWITH HOLLOWSHAFTEND Diverse appearance; suitable for robot arm. Precision: less than 0.4 Arc-min. Torque Capacity: 20Nm to 180Nm Available reduction ratios 1:50 ,1:80, 1:100, 1:120 Short axial dimension. High rigidity for stable precision work. More compact and higher accurate. Applied in robot industry, especially for multi-axis robot joints. CYCLOIDALGEARBOX Rated Output Torque : 72Nm to 4410Nm Backlash : Less than 1 Arc- min. Ratio : 1:82 to 1:300 for case run. High load impact resistance Compact and light weight www.smdgearbox.com A-51,HBlock,MIDC,Pimpri-Chinchwad,Pune–411018, Maharashtra,India. MobileNo:+917030669818 E-MailID:sales@smdgearbox.com
