Right Angle Gearbox by SMD gearbox

SMDu2019s Right-angle gearbox models are available in various sizes and offer torque capacities of up to 800 Nm. Their user-friendly shaft mounting design provides flexibility to choose the shaft diameter best suited for your application. Plus, with a fully enclosed design, they require minimal maintenance, making them a cost-effective choice for long-term use.<br><br>These gearboxes are widely used in machinery, automotive systems, and various industrial equipment due to their compact size, high efficiency, strength, and reliable performance.<br><br>Contact us today to learn more:<br>https://www.smdgearbox.com/

SMD9
Download Presentation

Right Angle Gearbox by SMD gearbox

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. Right Angle Gearbox

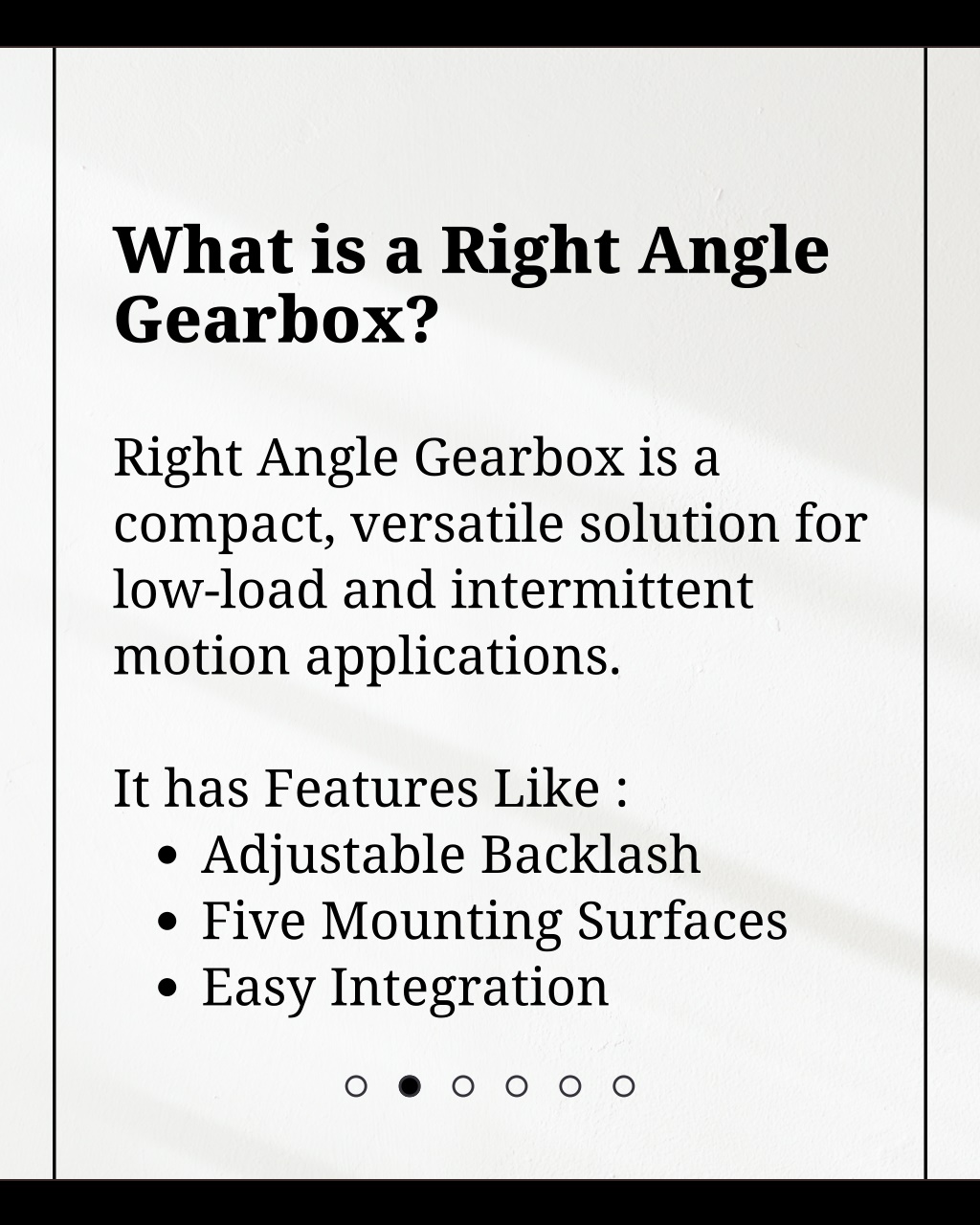

  2. What is a Right Angle Gearbox? Right Angle Gearbox is a compact, versatile solution for low-load and intermittent motion applications. It has Features Like : Adjustable Backlash Five Mounting Surfaces Easy Integration

  3. SRAE Series Technical Details: Torque range: 36 Nm to 1200 Nm Backlash: 8–10 arc-min Durable : Robust design for demanding environments. Versatile use: Ideal for automation, robotics, and industrial applications.

  4. SS Series Technical Details: Torque range: 44Nm to 1390Nm. Backlash: 3-15 Arc-Min. Available reduction ratios: 1:1 to 1:100 Available Types: Shaft Output, Collar Clamp, and Hollow Bore configurations. High Load Capacity & Rigidity

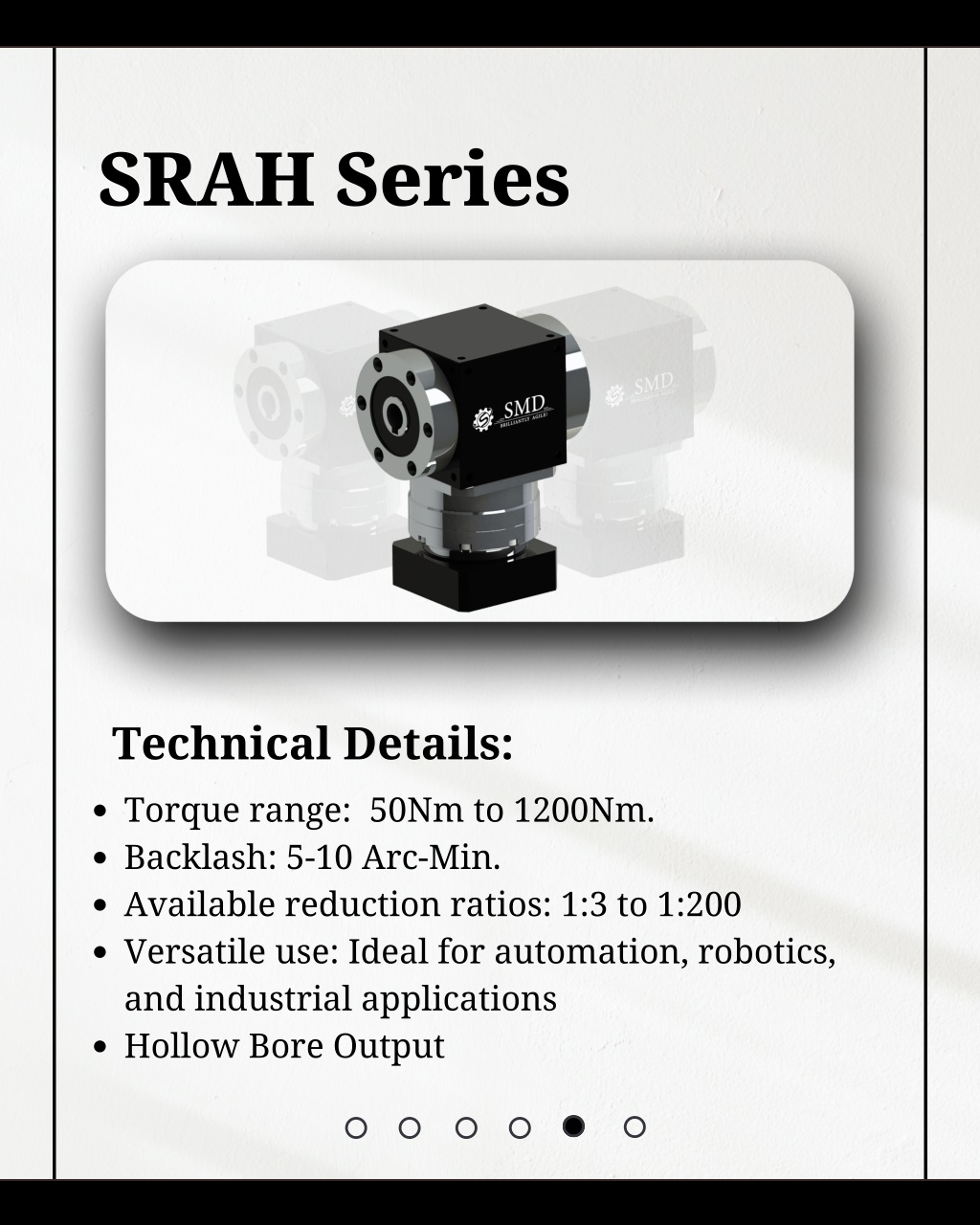

  5. SRAH Series Technical Details: Torque range: 50Nm to 1200Nm. Backlash: 5-10 Arc-Min. Available reduction ratios: 1:3 to 1:200 Versatile use: Ideal for automation, robotics, and industrial applications Hollow Bore Output

  6. Get In Touch With Us www.smdgearbox.com sales@smdgearbox.com Follow Us At :
