LED_A19_Bulbs_JK_Series

Beyond LED JK Series A19 bulbs for everyday fixtures, are an ideal fit for the ordinary yet <br>vital fixtures of your home & office, such as lamps and ceiling fans. Engineered to be shatter <br>resistant and long-lasting, our LED bulbs save you money by drastically reducing your <br>replacement and electrical costs.

SEO33
Download Presentation

LED_A19_Bulbs_JK_Series

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

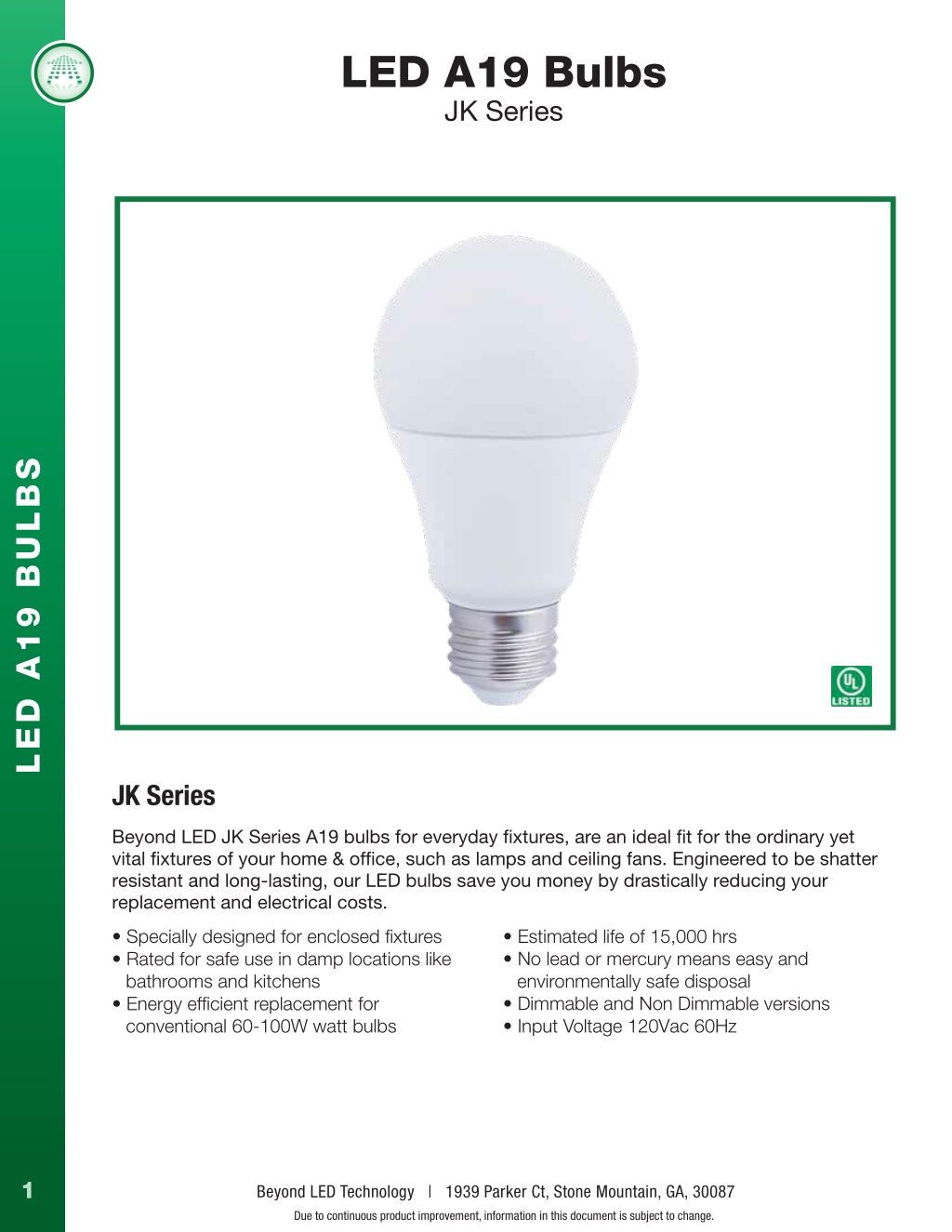

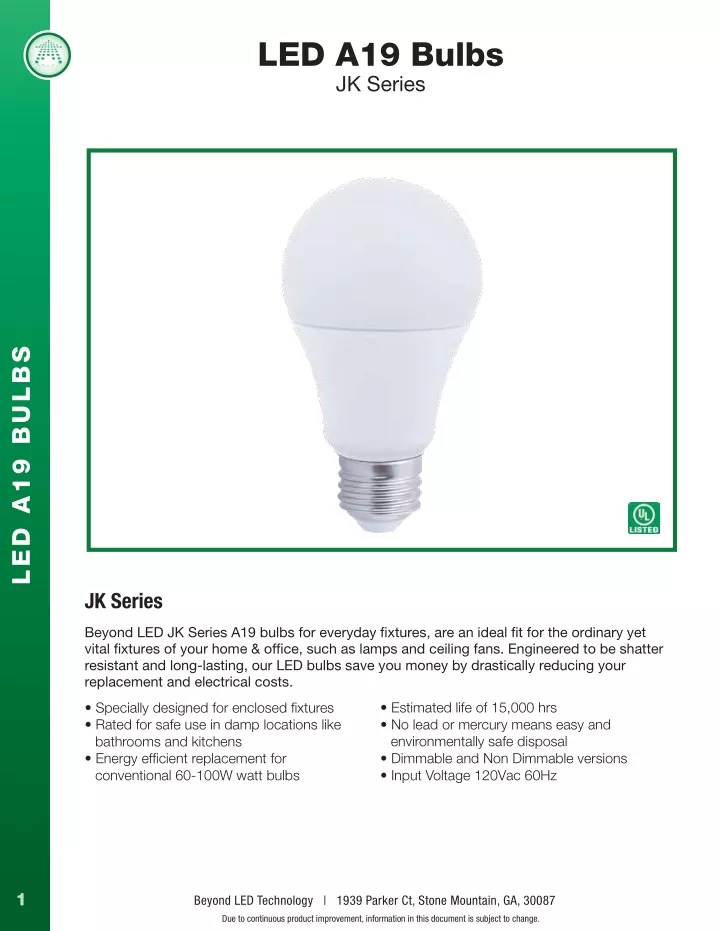

  1. LED A19 Bulbs JK Series LED A19 BULBS JK Series Beyond LED JK Series A19 bulbs for everyday fixtures, are an ideal fit for the ordinary yet vital fixtures of your home & office, such as lamps and ceiling fans. Engineered to be shatter resistant and long-lasting, our LED bulbs save you money by drastically reducing your replacement and electrical costs. • Estimated life of 15,000 hrs • No lead or mercury means easy and environmentally safe disposal • Dimmable and Non Dimmable versions • Input Voltage 120Vac 60Hz • Specially designed for enclosed fixtures • Rated for safe use in damp locations like bathrooms and kitchens • Energy efficient replacement for conventional 60-100W watt bulbs 1 Beyond LED Technology | 1939 Parker Ct, Stone Mountain, GA, 30087 Due to continuous product improvement, information in this document is subject to change.

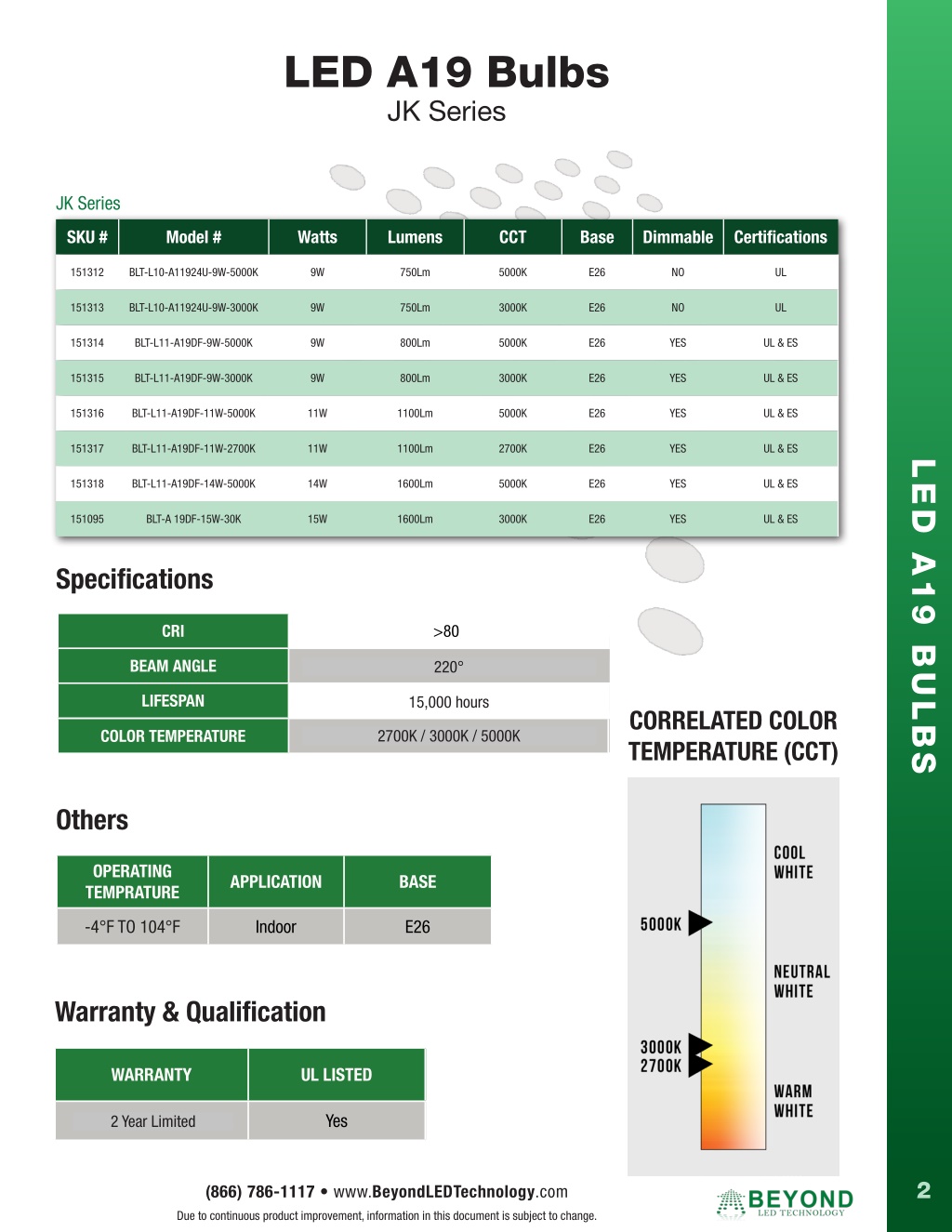

  2. LED A19 Bulbs JK Series LED A19 Bulbs Indoor Lighting LED A19 Bulbs LED A19 Bulbs Indoor Lighting JK Series LED A19 Bulbs Indoor Lighting SKU # Indoor Lighting Model # Watts Lumens A19 LED Bulb CCT Base Dimmable Certifications 151312 BLT-L10-A11924U-9W-5000K SKU # 9W 750Lm 5000K 150565 E26 NO UL A19 LED Bulb 151313 LED A19 Bulbs Indoor Lighting LUMENS CONSUMPTION BLT-L10-A11924U-9W-3000K MODEL # SKU # 9W 750Lm A19 LED Bulb 3000K E26 NO UL LED A19 Bulbs Indoor Lighting A19 LED Bulb BLT-L8-A19F-9W 150565 151314 BLT-L11-A19DF-9W-5000K SKU # CONSUMPTION MODEL # 9W 800Lm 150565 5000K 150565 9W BLT-L8-A19F-9W E26 YES UL & ES SKU # 151315 BLT-L11-A19DF-9W-3000K MODEL # 9W 800Lm 3000K 800lm 9W E26 YES UL & ES BLT-L8-A19F-9W BLT-L8-A19F-9W MODEL # 151316 BLT-L11-A19DF-11W-5000K CONSUMPTION LUMENS 11W 1100Lm 9W 5000K 9W 800lm E26 YES UL & ES CONSUMPTION BLT-L11-A19DF-11W-2700K A19 LED Bulb LUMENS Specifications Specifications 151317 11W 1100Lm 800lm A19 LED Bulb 2700K 800lm E26 YES UL & ES LUMENS LED A19 BULBS 151318 BLT-L11-A19DF-14W-5000K SKU # 14W 1600Lm 5000K 150565 E26 YES UL & ES 150565 SKU # 151095 BLT-A 19DF-15W-30K MODEL # COLOR TEMPERATURE 15W 1600Lm 3000K E26 YES UL & ES 5000K BLT-L8-A19F-9W BLT-L8-A19F-9W MODEL # Specifications CONSUMPTION LED A19 BULBS Specifications CONSUMPTION COLOR TEMPERATURE CRI >80 5000K 9W 9W Specifications COLOR TEMPERATURE COLOR TEMPERATURE LUMENS LED A19 BULBS 5000K 5000K >200° >80 BEAM ANGLE CRI 800lm 800lm LUMENS CRI CRI >80 LED A19 BULBS LED A19 BULBS LIFESPAN BEAM ANGLE 15,000Hr >200° BEAM ANGLE LED BRAND LIFESPAN >200° 220° Samsung 15,000Hr Specifications Specifications LIFESPAN LED BRAND 15,000Hr 15,000 hours CORRELATED COLOR TEMPERATURE (CCT) CORRELATED COLOR TEMPERATURE (CCT) CORRELATED COLOR TEMPERATURE (CCT) CORRELATED COLOR TEMPERATURE (CCT) 15,000Hr DIMMABLE Samsung LED BRAND COLOR TEMPERATURE Samsung COLOR TEMPERATURE 5000K 2700K / 3000K / 5000K 5000K CRI >80 LED A19 BULBS LED A19 BULBS CORRELATED COLOR TEMPERATURE (CCT) Others Others BEAM ANGLE OPERATING TEMPRATURE OPERATING >200° Others Others -4°F TO 104°F TEMPRATURE APPLICATION BASE LIFESPAN Others LED BRAND Samsung No DIMMABLE APPLICATION E26 BASE Indoor OPERATING TEMPRATURE OPERATING APPLICATION TEMPRATURE -4°F TO 104°F APPLICATION Indoor BASE DIMMABLE BASE E26 DIMMABLE No CORRELATED CORRELATED COLOR TEMPERATURE (CCT) No COLOR TEMPERATURE (CCT) No -4°F TO 104°F -4°F TO 104°F Indoor Indoor E26 E26 Others Others Warranty & Qualification Warranty & Qualification APPLICATION TEMPRATURE WARRANTY Warranty & Qualification OPERATING TEMPRATURE OPERATING BASE APPLICATION DIMMABLE BASE DIMMABLE UL LISTED Warranty & Qualification -4°F TO 104°F Indoor Warranty & Qualification -4°F TO 104°F WARRANTY 2 Year Limited No No E26 Indoor E26 Energy Star UL LISTED Yes 5 Year Limited Yes Energy Star Energy Star WARRANTY WARRANTY UL LISTED UL LISTED _______________________________________________________ 5 Year Limited Yes Yes Yes Yes 5 Year Limited 5 Year Limited Yes Yes 2 (866) 786-1117 • www.BeyondLEDTechnology.com _______________________________________________________ Warranty & Qualification 1939 Parket Ct, Stone Mountain, GA 30087 | Phone: (866) 786-1117 | www.beyondledtechnology.com Revision Date: 05/23/2017 1939 Parket Ct, Stone Mountain, GA 30087 | Phone: (866) 786-1117 | www.beyondledtechnology.com Due to continuous product improvement, information in this document is subject to change. _______________________________________________________ _______________________________________________________ Warranty & Qualification Due to continuous product improvement, information in this document is subject to change. Revision Date: 05/23/2017 1939 Parket Ct, Stone Mountain, GA 30087 | Phone: (866) 786-1117 | www.beyondledtechnology.com Due to continuous product improvement, information in this document is subject to change. Revision Date: 05/23/2017 Due to continuous product improvement, information in this document is subject to change. Due to continuous product improvement, information in this document is subject to change. Revision Date: 05/23/2017 1939 Parket Ct, Stone Mountain, GA 30087 | Phone: (866) 786-1117 | www.beyondledtechnology.com 5 Year Limited Yes 5 Year Limited Energy Star UL LISTED Energy Star WARRANTY UL LISTED WARRANTY Yes Yes Yes _______________________________________________________ _______________________________________________________ Due to continuous product improvement, information in this document is subject to change. Revision Date: 05/23/2017 1939 Parket Ct, Stone Mountain, GA 30087 | Phone: (866) 786-1117 | www.beyondledtechnology.com 1939 Parket Ct, Stone Mountain, GA 30087 | Phone: (866) 786-1117 | www.beyondledtechnology.com Due to continuous product improvement, information in this document is subject to change. Revision Date: 05/23/2017

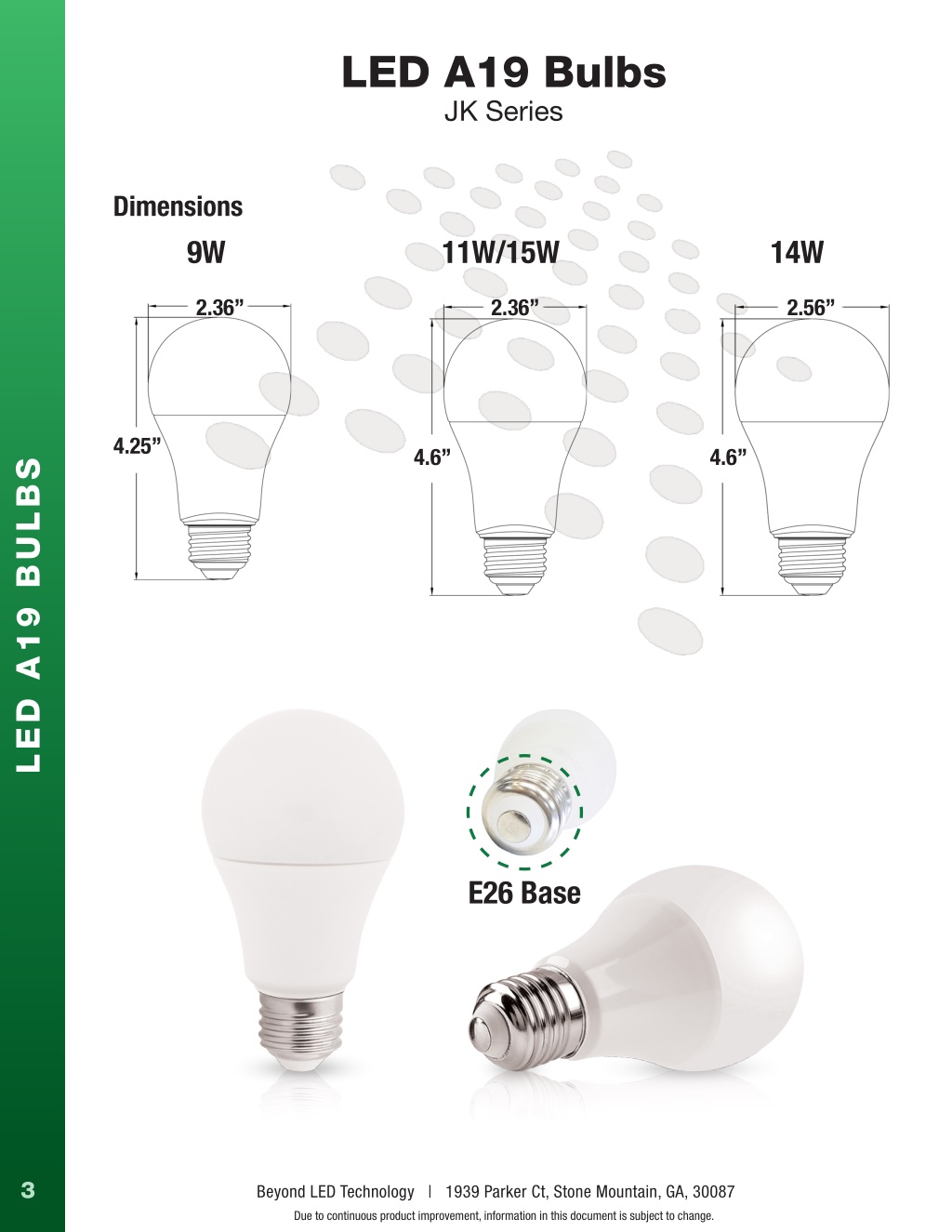

  3. LED A19 Bulbs JK Series Dimensions 9W 11W/15W 14W 2.36” 2.36” 2.56” 4.25” 4.6” 4.6” LED A19 BULBS E26 Base 3 Beyond LED Technology | 1939 Parker Ct, Stone Mountain, GA, 30087 Due to continuous product improvement, information in this document is subject to change.

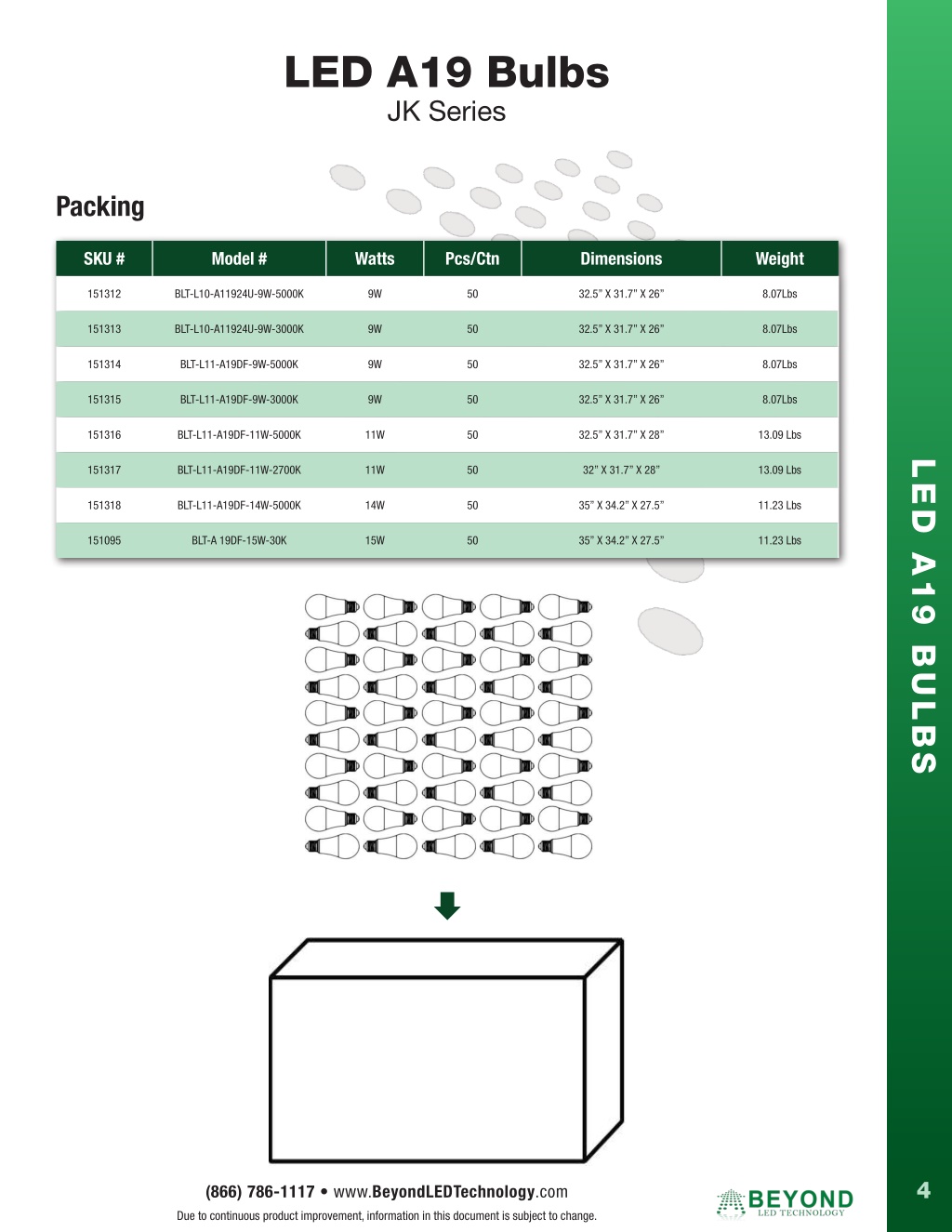

  4. LED A19 Bulbs JK Series Packing SKU # Model # Watts Pcs/Ctn Dimensions Weight 151312 BLT-L10-A11924U-9W-5000K 9W 50 32.5” X 31.7” X 26” 8.07Lbs 151313 BLT-L10-A11924U-9W-3000K 9W 50 32.5” X 31.7” X 26” 8.07Lbs 151314 BLT-L11-A19DF-9W-5000K 9W 50 32.5” X 31.7” X 26” 8.07Lbs 151315 BLT-L11-A19DF-9W-3000K 9W 50 32.5” X 31.7” X 26” 8.07Lbs 151316 Due to continuous pnxluct improvement, information in this document is subjectto change. BLT-L11-A19DF-11W-5000K _______________________________________________________ LED TECHNOLOGY 11W 50 32.5” X 31.7” X 28” Packaging Packaging 16" X 9" X 10.5" 16" X 9" X 10.5" SIZE 12 4 13.09 Lbs Packaging Packaging Revision Date: 05/23/2017 Revision Date: 05/23/2017 Due to continuous pnxluct improvement, information in this document is subjectto change. Revision Date: 05/23/2017 Due to continuous pnxluct improvement, information in this document is subjectto change. Revision Date: 05/23/2017 Due to continuous pnxluct improvement, information in this document is subjectto change. Revision Date: 05/23/2017 Due to continuous pnxluct improvement, information in this document is subjectto change. 1939 Parket Ct, Stone Mountain, GA 30087 I Phone: (866) 786-1117 I www.beyondledtechnology.com 1939 Parket Ct, Stone Mountain, GA 30087 I Phone: (866) 786-1117 I www.beyondledtechnology.com 1939 Parket Ct, Stone Mountain, GA 30087 I Phone: (866) 786-1117 I www.beyondledtechnology.com 1939 Parket Ct, Stone Mountain, GA 30087 I Phone: (866) 786-1117 I www.beyondledtechnology.com 1939 Parket Ct, Stone Mountain, GA 30087 I Phone: (866) 786-1117 I www.beyondledtechnology.com Packaging Packaging BOX TYPE Packaging Packaging BOX TYPE Packaging Packaging _______________________________________________________ _______________________________________________________ _______________________________________________________ _______________________________________________________ LED A19 BULBS 151317 BLT-L11-A19DF-11W-2700K 11W 50 32” X 31.7” X 28” 13.09 Lbs Packaging 151318 BLT-L11-A19DF-14W-5000K 14W 50 Inner Box 35” X 34.2” X 27.5” BOX TYPE 11.23 Lbs BOX TYPE BOX TYPE BOX TYPE BOX TYPE Outer Box Outer Box Outer Box Outer Box Outer Box Inner Box Inner Box Inner Box Inner Box Bulbs Bulbs Bulbs Bulbs Bulbs 151095 Due to continuous pnxluct improvement, information in this document is subjectto change. BLT-A 19DF-15W-30K _______________________________________________________ 15W 50 35” X 34.2” X 27.5” 11.23 Lbs Revision Date: 05/23/2017 Revision Date: 05/23/2017 Due to continuous pnxluct improvement, information in this document is subjectto change. Revision Date: 05/23/2017 Due to continuous pnxluct improvement, information in this document is subjectto change. Revision Date: 05/23/2017 Due to continuous pnxluct improvement, information in this document is subjectto change. Revision Date: 05/23/2017 Due to continuous pnxluct improvement, information in this document is subjectto change. 1939 Parket Ct, Stone Mountain, GA 30087 I Phone: (866) 786-1117 I www.beyondledtechnology.com 1939 Parket Ct, Stone Mountain, GA 30087 I Phone: (866) 786-1117 I www.beyondledtechnology.com 1939 Parket Ct, Stone Mountain, GA 30087 I Phone: (866) 786-1117 I www.beyondledtechnology.com 1939 Parket Ct, Stone Mountain, GA 30087 I Phone: (866) 786-1117 I www.beyondledtechnology.com 1939 Parket Ct, Stone Mountain, GA 30087 I Phone: (866) 786-1117 I www.beyondledtechnology.com _______________________________________________________ _______________________________________________________ _______________________________________________________ _______________________________________________________ Revision Date: 05/23/2017 Due to continuous pnxluct improvement, information in this document is subjectto change. Revision Date: 05/23/2017 Due to continuous pnxluct improvement, information in this document is subjectto change. Revision Date: 05/23/2017 Due to continuous pnxluct improvement, information in this document is subjectto change. Revision Date: 05/23/2017 Due to continuous pnxluct improvement, information in this document is subjectto change. Revision Date: 05/23/2017 Due to continuous pnxluct improvement, information in this document is subjectto change. BOX TYPE SIZE QTY / CARTON WEIGHT / CARTON 1939 Parket Ct, Stone Mountain, GA 30087 I Phone: (866) 786-1117 I www.beyondledtechnology.com 1939 Parket Ct, Stone Mountain, GA 30087 I Phone: (866) 786-1117 I www.beyondledtechnology.com 1939 Parket Ct, Stone Mountain, GA 30087 I Phone: (866) 786-1117 I www.beyondledtechnology.com 1939 Parket Ct, Stone Mountain, GA 30087 I Phone: (866) 786-1117 I www.beyondledtechnology.com 1939 Parket Ct, Stone Mountain, GA 30087 I Phone: (866) 786-1117 I www.beyondledtechnology.com BOX TYPE BOX TYPE BOX TYPE BOX TYPE BOX TYPE 2.36"x4.61" BOX TYPE BOX TYPE BOX TYPE Packaging Packaging Packaging Packaging Packaging Outer Box Outer Box Outer Box Outer Box Outer Box Outer Box Outer Box Outer Box Outer Box Outer Box _______________________________________________________ _______________________________________________________ _______________________________________________________ _______________________________________________________ _______________________________________________________ Inner Box Inner Box Inner Box Inner Box Inner Box Inner Box Inner Box Inner Box Inner Box Inner Box Bulbs Bulbs Bulbs Bulbs Bulbs 8.5" X 2.5" X 4.7" 8.5" X 2.5" X 4.7" 8.5" X 2.5" X 4.7" 8.5" X 2.5" X 4.7" 8.5" X 2.5" X 4.7" 8.5" X 2.5" X 4.7" 8.5" X 2.5" X 4.7" 8.5" X 2.5" X 4.7" 8.5" X 2.5" X 4.7" 8.5" X 2.5" X 4.7" 16" X 9" X 10.5" 16" X 9" X 10.5" 4 16" X 9" X 10.5" 16" X 9" X 10.5" 4 16" X 9" X 10.5" 16" X 9" X 10.5" 16" X 9" X 10.5" 16" X 9" X 10.5" Bulbs Bulbs Bulbs Bulbs Bulbs 2.36"x4.61" 2.36"x4.61" 2.36"x4.61" 2.36"x4.61" Outer Box 16" X 9" X 10.5" 1 13 lbs SIZE SIZE SIZE SIZE SIZE Inner Box 8.5" X 2.5" X 4.7" 12 1 lbs 2.36"x4.61" 2.36"x4.61" 2.36"x4.61" 2.36"x4.61" 2.36"x4.61" SIZE 2.36"x4.61" SIZE 2.36"x4.61" SIZE 2.36"x4.61" SIZE SIZE Bulbs 4 2.36"x4.61" <1lbs 8.5" X 2.5" X 4.7" 8.5" X 2.5" X 4.7" 8.5" X 2.5" X 4.7" 8.5" X 2.5" X 4.7" 8.5" X 2.5" X 4.7" 16" X 9" X 10.5" 16" X 9" X 10.5" 16" X 9" X 10.5" 16" X 9" X 10.5" 16" X 9" X 10.5" QTY / CARTON QTY / CARTON QTY / CARTON QTY / CARTON QTY / CARTON 2.36"x4.61" 2.36"x4.61" SIZE SIZE 4 SIZE SIZE 12 12 12 12 4 1 1 1 1 1 ,;:: ;_; ,;:: ;_; ,;:: ;_; ,;:: ;_; ,;:: ;_; ·ff!tt" B E Y Q N O' LED TECHNOLOGY ·ff!tt" B E Y Q N O' LED TECHNOLOGY ·ff!tt" B E Y Q N O' ·ff!tt" B E Y Q N O' LED TECHNOLOGY ·ff!tt" B E Y Q N O' LED TECHNOLOGY QTY / CARTON <1lbs QTY / CARTON <1lbs QTY / CARTON <1lbs QTY / CARTON QTY / CARTON 12 12 12 12 12 4 1 4 1 4 1 4 1 4 1 LED TECHNOLOGY ·ff!tt" B E Y Q N O' LED TECHNOLOGY ·ff!tt" B E Y Q N O' LED TECHNOLOGY ·ff!tt" B E Y Q N O' LED TECHNOLOGY ·ff!tt" B E Y Q N O' LED TECHNOLOGY ·ff!tt" B E Y Q N O' QTY / CARTON QTY / CARTON QTY / CARTON QTY / CARTON QTY / CARTON WEIGHT / CARTON WEIGHT / CARTON <1lbs WEIGHT / CARTON WEIGHT / CARTON <1lbs WEIGHT / CARTON WEIGHT / CARTON <1lbs WEIGHT / CARTON WEIGHT / CARTON WEIGHT / CARTON WEIGHT / CARTON ,;:: ;_; ,;:: ;_; ,;:: ;_; ,;:: ;_; ,;:: ;_; ,;:: ;_; ,;:: ;_; ,;:: ;_; ,;:: ;_; ,;:: ;_; ·ff!tt" B E Y Q N O' ·ff!tt" B E Y Q N O' ·ff!tt" B E Y Q N O' ·ff!tt" B E Y Q N O' ·ff!tt" B E Y Q N O' 12 12 12 12 12 4 1 4 1 4 1 4 1 4 1 <1lbs <1lbs 13 lbs 13 lbs 13 lbs 13 lbs 13 lbs 1 lbs 1 lbs 1 lbs 1 lbs 1 lbs LED TECHNOLOGY LED TECHNOLOGY LED TECHNOLOGY LED TECHNOLOGY LED TECHNOLOGY <1lbs <1lbs 13 lbs <1lbs 13 lbs <1lbs 13 lbs <1lbs 13 lbs 13 lbs 1 lbs 1 lbs 1 lbs 1 lbs 1 lbs WEIGHT / CARTON WEIGHT / CARTON WEIGHT / CARTON WEIGHT / CARTON WEIGHT / CARTON 4 (866) 786-1117 • www.BeyondLEDTechnology.com <1lbs <1lbs 13 lbs 13 lbs 13 lbs 13 lbs 13 lbs 1 lbs 1 lbs 1 lbs 1 lbs 1 lbs Due to continuous product improvement, information in this document is subject to change. _______________________________________________________

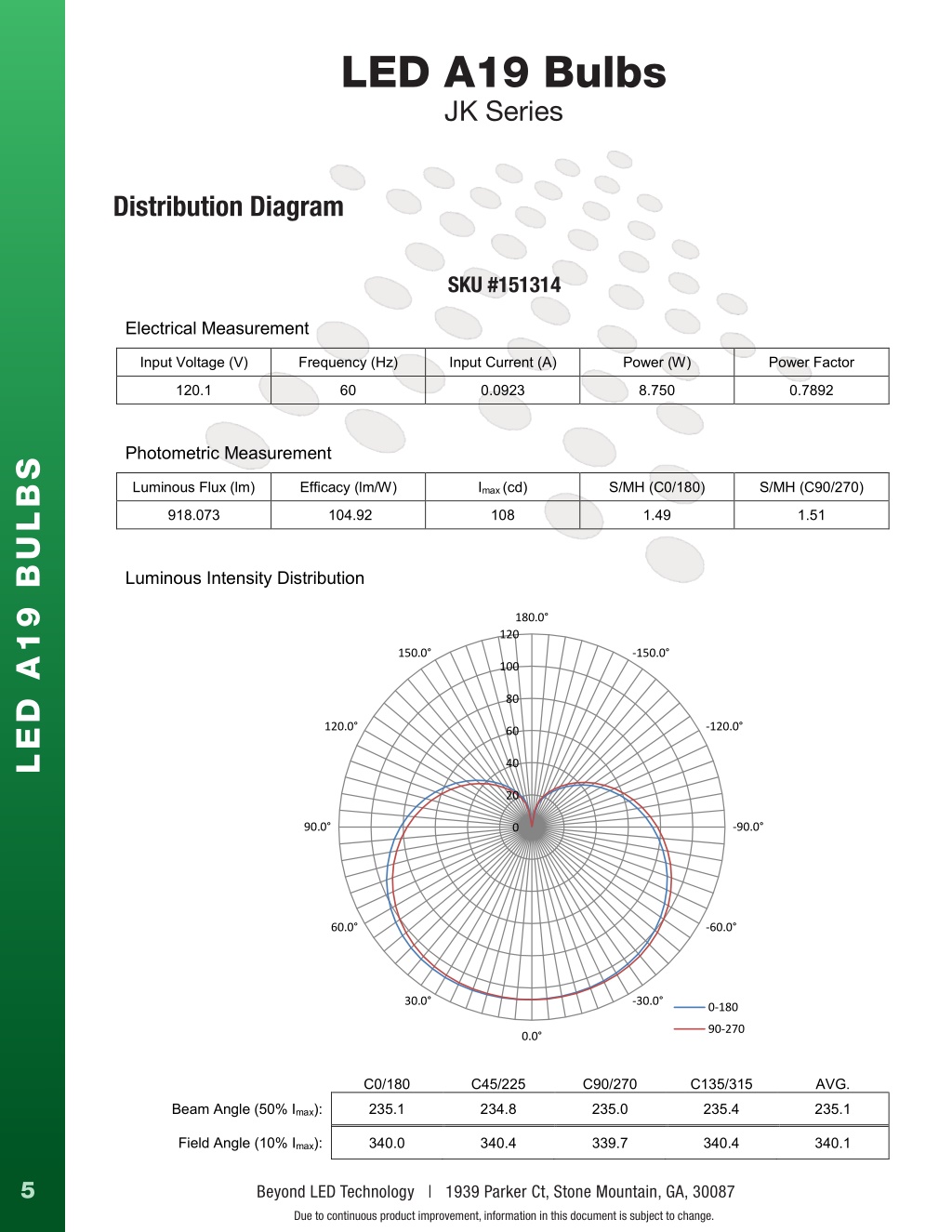

  5. LED A19 Bulbs JK Series Bay Area Compliance Laboratories Corp. (Dongguan) No.69, Pulongcun, Puxinhu Industrial Area Tangxia , Dongguan, Guangdong, China. The IAS Accreditation Number TL-460. [Goniophotometer System] Distribution Diagram Total operating time for luminous intensity distribution: 1.0 hour Test orientation: Base up SKU #151314 Electrical Measurement Input Voltage (V) Frequency (Hz) Input Current (A) Power (W) Power Factor 120.1 60 0.0923 8.750 0.7892 Photometric Measurement LED A19 BULBS Luminous Flux (lm) Efficacy (lm/W) Imax (cd) S/MH (C0/180) S/MH (C90/270) 918.073 104.92 108 1.49 1.51 Luminous Intensity Distribution 180.0° 120 150.0° -150.0° 100 80 120.0° -120.0° 60 40 20 90.0° -90.0° 0 60.0° -60.0° 30.0° -30.0° 0-180 90-270 0.0° C0/180 C45/225 C90/270 C135/315 AVG. Beam Angle (50% Imax): 235.1 234.8 235.0 235.4 235.1 Field Angle (10% Imax): 340.0 340.4 339.7 340.4 340.1 5 Beyond LED Technology | 1939 Parker Ct, Stone Mountain, GA, 30087 Due to continuous product improvement, information in this document is subject to change. Report No. RSZ191120504-10-1 Page 9 of 14

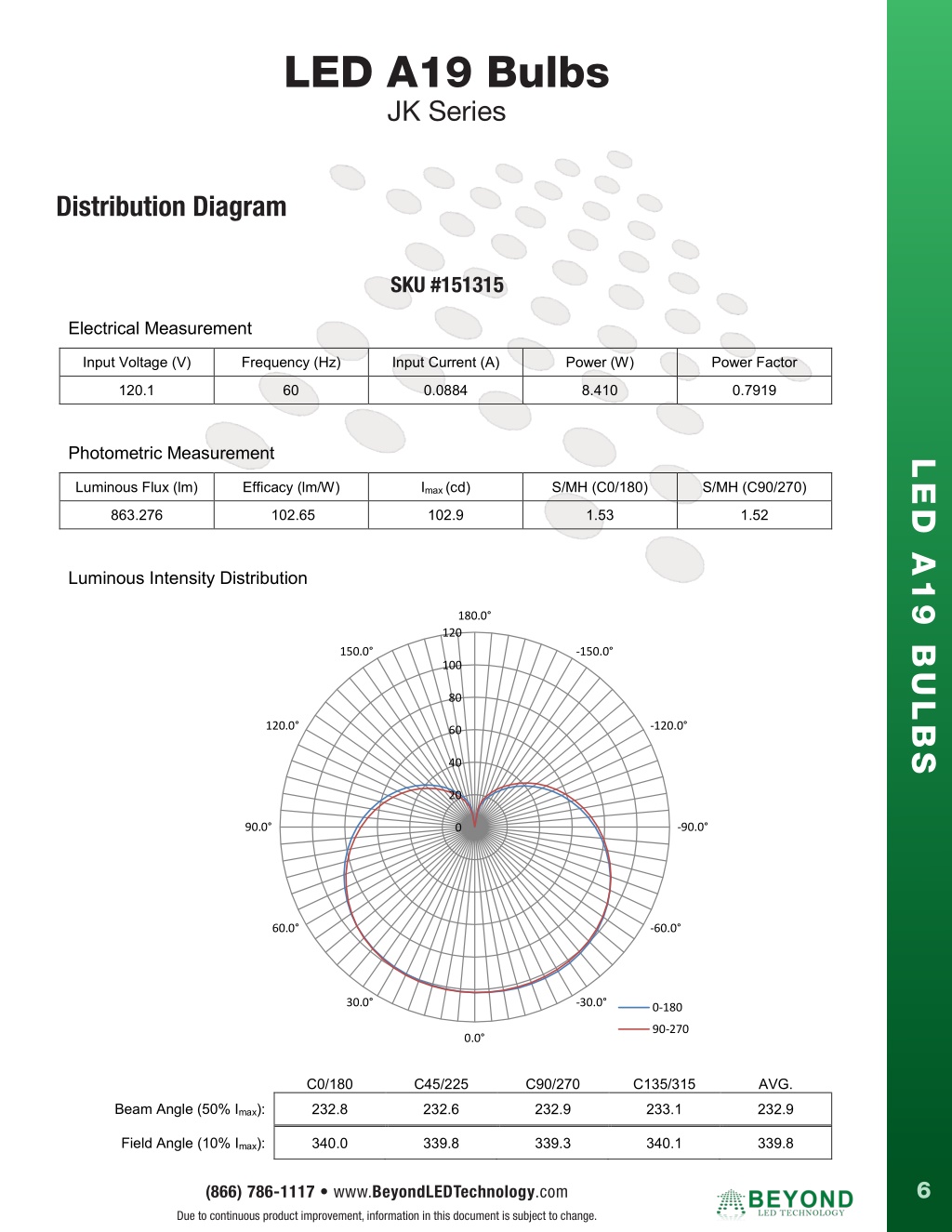

  6. LED A19 Bulbs JK Series Bay Area Compliance Laboratories Corp. (Dongguan) No.69, Pulongcun, Puxinhu Industrial Area Tangxia , Dongguan, Guangdong, China. The IAS Accreditation Number TL-460. Distribution Diagram [Goniophotometer System] Total operating time for luminous intensity distribution: 1.0 hour Test orientation: Base up SKU #151315 Electrical Measurement Input Voltage (V) Frequency (Hz) Input Current (A) Power (W) Power Factor 120.1 60 0.0884 8.410 0.7919 Photometric Measurement LED A19 BULBS Luminous Flux (lm) Efficacy (lm/W) Imax (cd) S/MH (C0/180) S/MH (C90/270) 863.276 102.65 102.9 1.53 1.52 Luminous Intensity Distribution 180.0° 120 150.0° -150.0° 100 80 120.0° -120.0° 60 40 20 90.0° -90.0° 0 60.0° -60.0° 30.0° -30.0° 0-180 90-270 0.0° C0/180 C45/225 C90/270 C135/315 AVG. Beam Angle (50% Imax): 232.8 232.6 232.9 233.1 232.9 Field Angle (10% Imax): 340.0 339.8 339.3 340.1 339.8 6 (866) 786-1117 • www.BeyondLEDTechnology.com Due to continuous product improvement, information in this document is subject to change. Report No. RSZ191120503-10-1 Page 9 of 14

  7. LED A19 Bulbs JK Series Bay Area Compliance Laboratories Corp. (Dongguan) No.69, Pulongcun, Puxinhu Industrial Area Tangxia , Dongguan, Guangdong, China. The IAS Accreditation Number TL-460. Distribution Diagram [Goniophotometer System] Total operating time for luminous intensity distribution: 1.0 hour Test orientation: Base up SKU #151316 Electrical Measurement Input Voltage (V) Frequency (Hz) Input Current (A) Power (W) Power Factor 120.0 60 0.1078 10.62 0.8215 Photometric Measurement LED A19 BULBS Luminous Flux (lm) Efficacy (lm/W) Imax (cd) S/MH (C0/180) S/MH (C90/270) 1219.62 114.80 144 1.51 1.51 Luminous Intensity Distribution 180.0° 160 150.0° -150.0° 140 120 100 120.0° -120.0° 80 60 40 20 90.0° -90.0° 0 60.0° -60.0° 30.0° -30.0° 0-180 90-270 0.0° C0/180 C45/225 C90/270 C135/315 AVG. Beam Angle (50% Imax): 233.6 233.5 233.3 233.1 233.4 Field Angle (10% Imax): 340.4 340.6 340.4 339.6 340.3 7 Beyond LED Technology | 1939 Parker Ct, Stone Mountain, GA, 30087 Due to continuous product improvement, information in this document is subject to change. Report No. RSZ191128503-10-1 Page 9 of 14

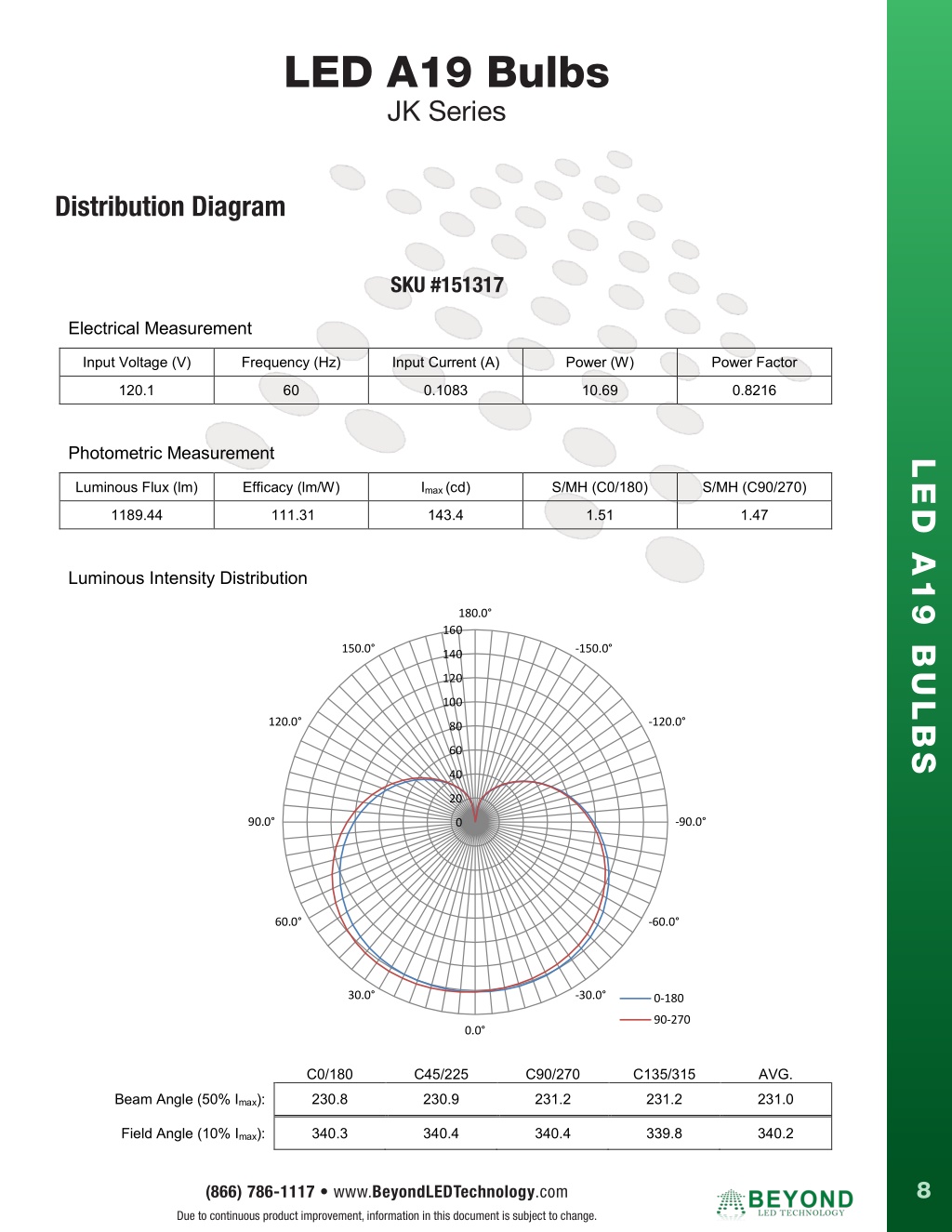

  8. LED A19 Bulbs JK Series Bay Area Compliance Laboratories Corp. (Dongguan) No.69, Pulongcun, Puxinhu Industrial Area Tangxia , Dongguan, Guangdong, China. The IAS Accreditation Number TL-460. Distribution Diagram [Goniophotometer System] Total operating time for luminous intensity distribution: 1.0 hour Test orientation: Base up SKU #151317 Electrical Measurement Input Voltage (V) Frequency (Hz) Input Current (A) Power (W) Power Factor 120.1 60 0.1083 10.69 0.8216 Photometric Measurement LED A19 BULBS Luminous Flux (lm) Efficacy (lm/W) Imax (cd) S/MH (C0/180) S/MH (C90/270) 1189.44 111.31 143.4 1.51 1.47 Luminous Intensity Distribution 180.0° 160 150.0° -150.0° 140 120 100 120.0° -120.0° 80 60 40 20 90.0° -90.0° 0 60.0° -60.0° 30.0° -30.0° 0-180 90-270 0.0° C0/180 C45/225 C90/270 C135/315 AVG. Beam Angle (50% Imax): 230.8 230.9 231.2 231.2 231.0 Field Angle (10% Imax): 340.3 340.4 340.4 339.8 340.2 8 (866) 786-1117 • www.BeyondLEDTechnology.com Due to continuous product improvement, information in this document is subject to change. Report No. RSZ190802507-10-1 Page 9 of 14

  9. LED A19 Bulbs JK Series Bay Area Compliance Laboratories Corp. (Dongguan) No.69, Pulongcun, Puxinhu Industrial Area Tangxia , Dongguan, Guangdong, China. The IAS Accreditation Number TL-460. Distribution Diagram [Goniophotometer System] Total operating time for luminous intensity distribution: 1.0 hour Test orientation: Base up SKU #151318 Electrical Measurement Input Voltage (V) Frequency (Hz) Input Current (A) Power (W) Power Factor 120.0 60 0.1119 12.99 0.9674 Photometric Measurement LED A19 BULBS Luminous Flux (lm) Efficacy (lm/W) Imax (cd) S/MH (C0/180) S/MH (C90/270) 1743.97 134.25 217.2 1.49 1.49 Luminous Intensity Distribution 180.0° 250 150.0° -150.0° 200 150 120.0° -120.0° 100 50 90.0° -90.0° 0 60.0° -60.0° 30.0° -30.0° 0-180 90-270 0.0° C0/180 C45/225 C90/270 C135/315 AVG. Beam Angle (50% Imax): 221.1 222.7 222.6 221.1 221.9 Field Angle (10% Imax): 334.0 333.1 333.9 333.4 333.6 9 Beyond LED Technology | 1939 Parker Ct, Stone Mountain, GA, 30087 Due to continuous product improvement, information in this document is subject to change. Report No. RSZ191220513-10-1 Page 9 of 14

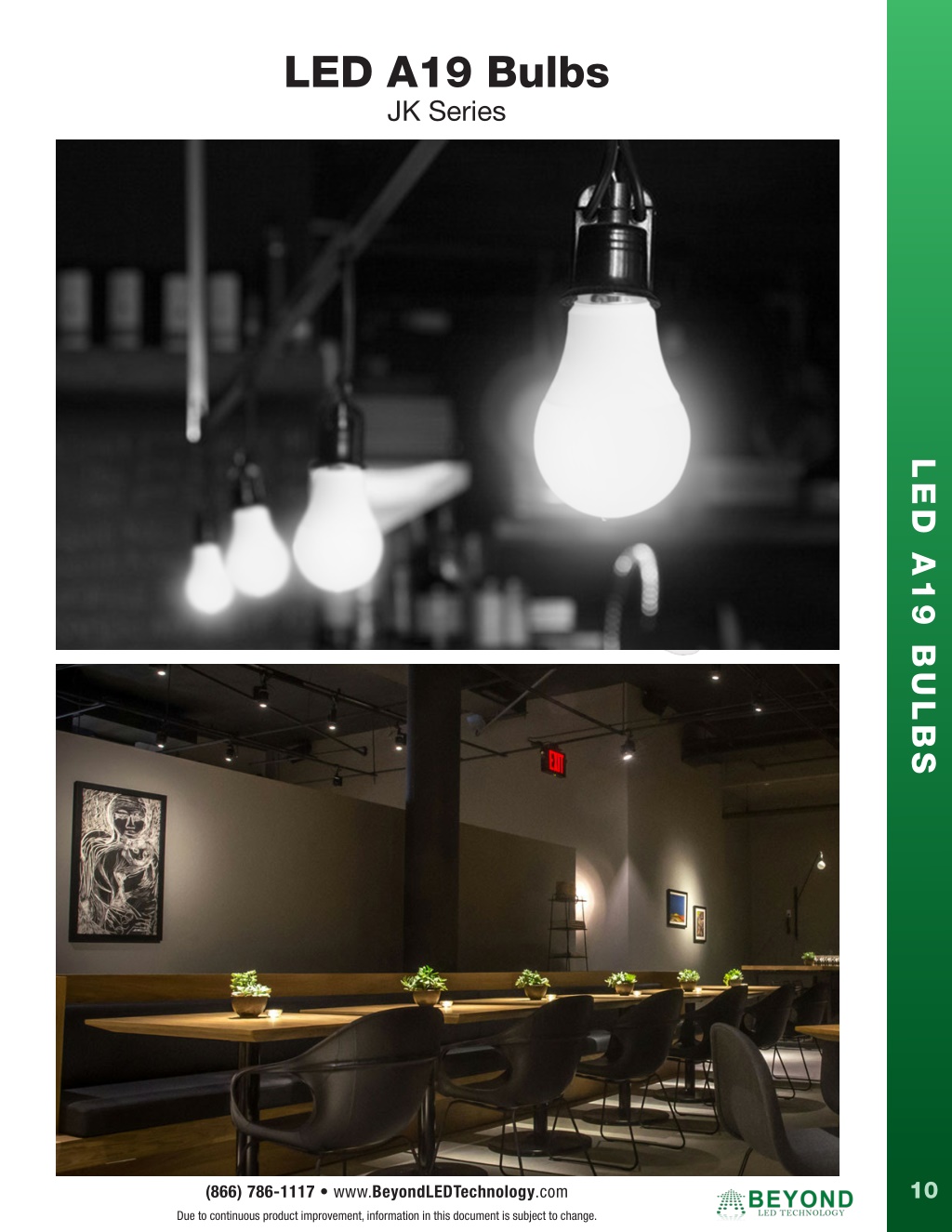

  10. LED A19 Bulbs JK Series LED A19 BULBS 10 (866) 786-1117 • www.BeyondLEDTechnology.com Due to continuous product improvement, information in this document is subject to change.
