What is a Rubber Bellow With Flanges?

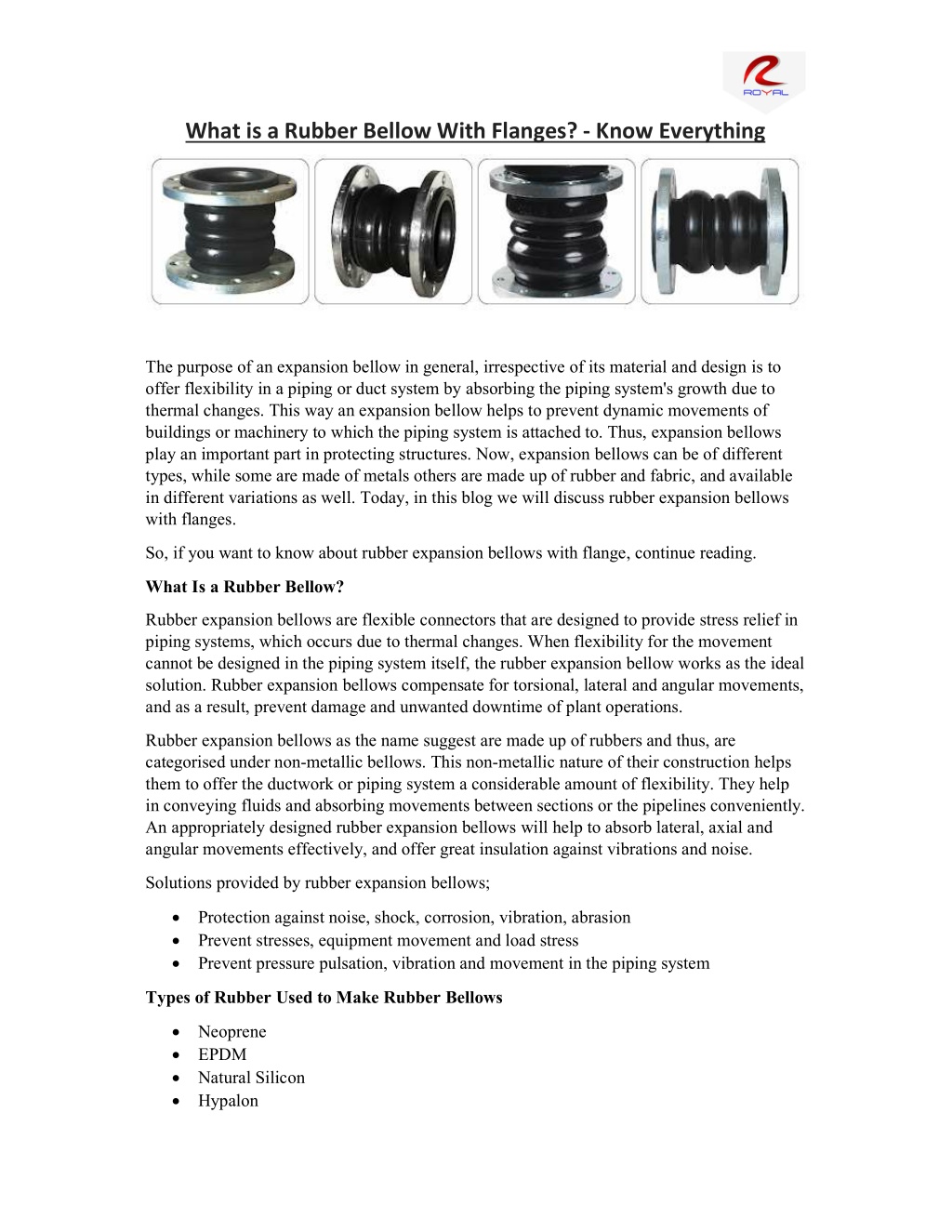

1. What is a Rubber Bellow With Flanges? - Know Everything The purpose of an expansion bellow in general, irrespective of its material and design is to offer flexibility in a piping or duct system by absorbing the piping system's growth due to thermal changes. This way an expansion bellow helps to prevent dynamic movements of buildings or machinery to which the piping system is attached to. Thus, expansion bellows play an important part in protecting structures. Now, expansion bellows can be of different types, while some are made of metals others are made up of rubber and fabric, and available in different variations as well. Today, in this blog we will discuss rubber expansion bellows with flanges. So, if you want to know about rubber expansion bellows with flange, continue reading. What Is a Rubber Bellow? Rubber expansion bellows are flexible connectors that are designed to provide stress relief in piping systems, which occurs due to thermal changes. When flexibility for the movement cannot be designed in the piping system itself, the rubber expansion bellow works as the ideal solution. Rubber expansion bellows compensate for torsional, lateral and angular movements, and as a result, prevent damage and unwanted downtime of plant operations. Rubber expansion bellowsas the name suggest are made up of rubbers and thus, are categorised under non-metallic bellows. This non-metallic nature of their construction helps them to offer the ductwork or piping system a considerable amount of flexibility. They help in conveying fluids and absorbing movements between sections or the pipelines conveniently. An appropriately designed rubber expansion bellows will help to absorb lateral, axial and angular movements effectively, and offer great insulation against vibrations and noise. Solutions provided by rubber expansion bellows; Protection against noise, shock, corrosion, vibration, abrasion Prevent stresses, equipment movement and load stress Prevent pressure pulsation, vibration and movement in the piping system Types of Rubber Used to Make Rubber Bellows Neoprene EPDM Natural Silicon Hypalon

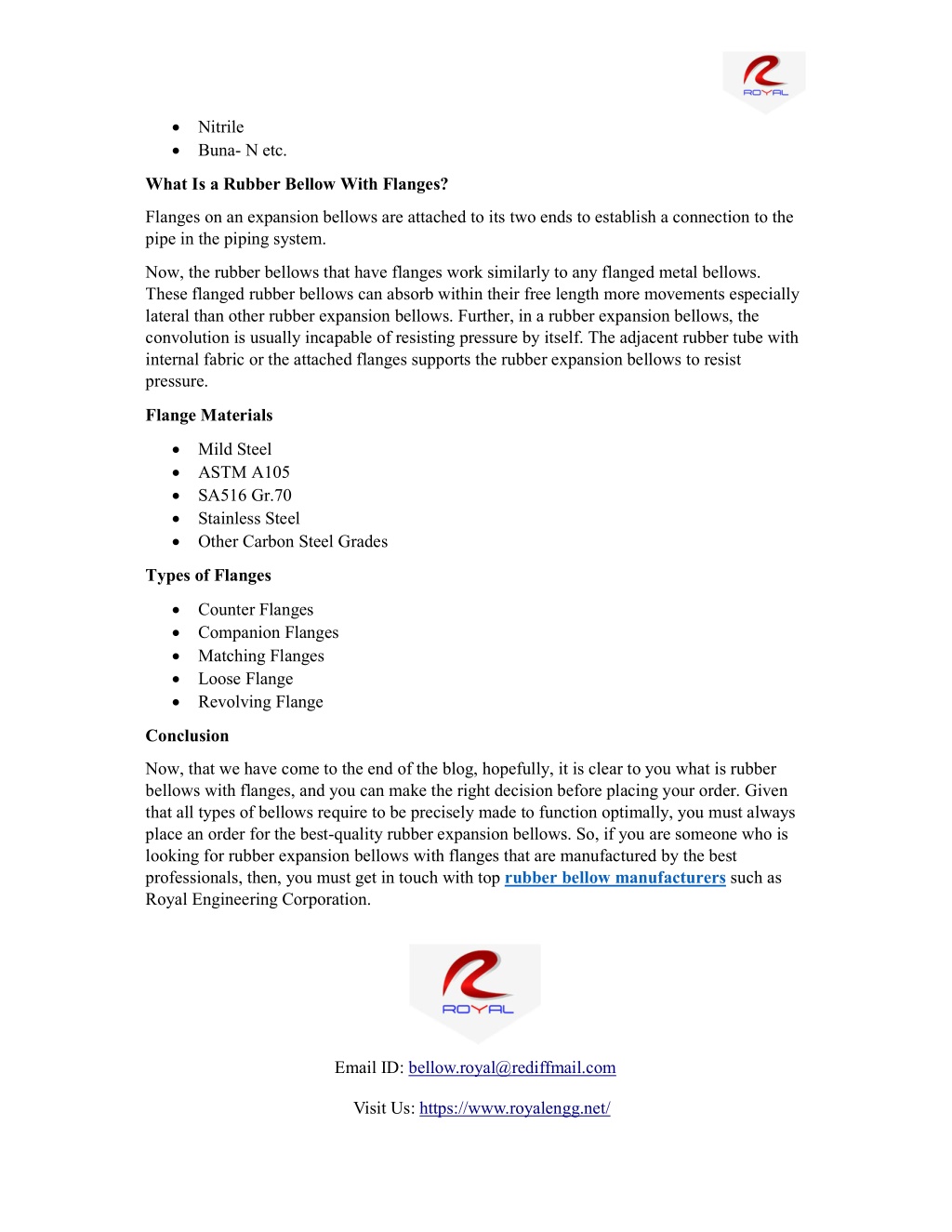

2. Nitrile Buna- N etc. What Is a Rubber Bellow With Flanges? Flanges on an expansion bellows are attached to its two ends to establish a connection to the pipe in the piping system. Now, the rubber bellows that have flanges work similarly to any flanged metal bellows. These flanged rubber bellows can absorb within their free length more movements especially lateral than other rubber expansion bellows. Further, in a rubber expansion bellows, the convolution is usually incapable of resisting pressure by itself. The adjacent rubber tube with internal fabric or the attached flanges supports the rubber expansion bellows to resist pressure. Flange Materials Mild Steel ASTM A105 SA516 Gr.70 Stainless Steel Other Carbon Steel Grades Types of Flanges Counter Flanges Companion Flanges Matching Flanges Loose Flange Revolving Flange Conclusion Now, that we have come to the end of the blog, hopefully, it is clear to you what is rubber bellows with flanges, and you can make the right decision before placing your order. Given that all types of bellows require to be precisely made to function optimally, you must always place an order for the best-quality rubber expansion bellows. So, if you are someone who is looking for rubber expansion bellows with flanges that are manufactured by the best professionals, then, you must get in touch with top rubber bellow manufacturers such as Royal Engineering Corporation. Email ID: bellow.royal@rediffmail.com Visit Us: https://www.royalengg.net/
