molecular interactions

Molecular Interactions

Dr. Henry Curran

NUI Galway

Physical Chemistry (CH313)

Atkins and de Paula, Chapter 17


Atoms and molecules with complete valence shells can still interact with one another even though all of their valences are satisfied. They attract one another over a range of several atomic diameters and repel one another when pressed together.

molecular interactions account for
Molecular interactions account for:
  • condensation of gases to liquids
  • structures of molecular solids
  • structural organisation of biological macromolecules as they pin molecular building blocks (polypeptides, polynucleotides, and lipids) together in the arrangement essential to their proper physiological function.
van der waals interactions
van der Waals interactions
  • Interaction between partial charges in polar molecules
  • Electric dipole moments or charge distribution
  • Interactions between dipoles
  • Induced dipole moments
  • Dispersion interactions
    • Interaction between species with neither a net charge nor a permanent electric dipole moment (e.g. two Xe atoms)
the total interaction
The total interaction
  • Hydrogen bonding
  • The hydrophobic effect
  • Modelling the total interaction
  • Molecules in motion
van der waals interactions6
van der Waals interactions

Interactions between molecules include the attractive and repulsive interactions between the partial electric charges of polar molecules and the repulsive interactions that prevent the complete collapse of matter to densities as high as those characteristic of atomic nuclei.

van der waals interactions contd
van der Waals interactions (contd.)

Repulsive interactions arise from the exclusion of electrons from regions of space where the orbitals of closed-shell species overlap.

Those interactions proportional to the inverse sixth power of the separation are called van der Waals interactions.

van der waals interactions8
van der Waals interactions
  • Typically one discusses the potential energy arising from the interaction.

If the potential energy is denoted V, then the force is –dV/dr. If V = -C/r6

the magnitude of the force is:

interactions between partial charges
Interactions between partial charges

Atoms in molecules generally have partial


interactions between partial charges10
Interactions between partial charges
  • If these charges were separated by a vacuum, they would attract or repel one another according to Coulomb’s Law:

where q1 and q2 are the partial charges

and r is their separation

interactions between partial charges11
Interactions between partial charges

However, other parts of the molecule, or

other molecules, lie between the charges, and

decrease the strength of the interaction.

Thus, we view the medium as a uniform

continuum and we write:

Where e is the permittivity of the medium lying between the charges.

The permittivity is usually expressed as a multiple of the vacuum permittivity by writing e = ere0, where er is the relative permittivity (dielectric constant). The effect of the medium can be very large, for water at 250C, er = 78.

The PE of two charges separated by bulk water is reduced by nearly two orders of magnitude compared to that if the charges were separated by a vacuum.

ion ion interaction lattice enthalpy
Ion-Ion interaction/Lattice Enthalpy

Consider two ions in a lattice

ion ion interaction lattice enthalpy15
Ion-Ion interaction/Lattice Enthalpy

two ions in a lattice of charge numbers z1 and

z2 with centres separated by a distance r12:

where e0 is the vacuum permittivity.

ion ion interaction lattice enthalpy16
Ion-Ion interaction/Lattice Enthalpy

To calculate the total potential energy of all the ions in the crystal, we have to sum this expression over all the ions. Nearest neighbours attract, while second-nearest repel and contribute a slightly weaker negative term to the overall energy. Overall, there is a net attraction resulting in a negative contribution to the energy of the solid.

For instance, for a uniformly spaced line of alternating cations and anions for which z1= +z and z2 = -z, with d the distance between the centres of adjacent ions, we find:
lattice enthalpies dh l 0 kj mol 1
Lattice Enthalpies, DHL0 / (kJ mol-1)

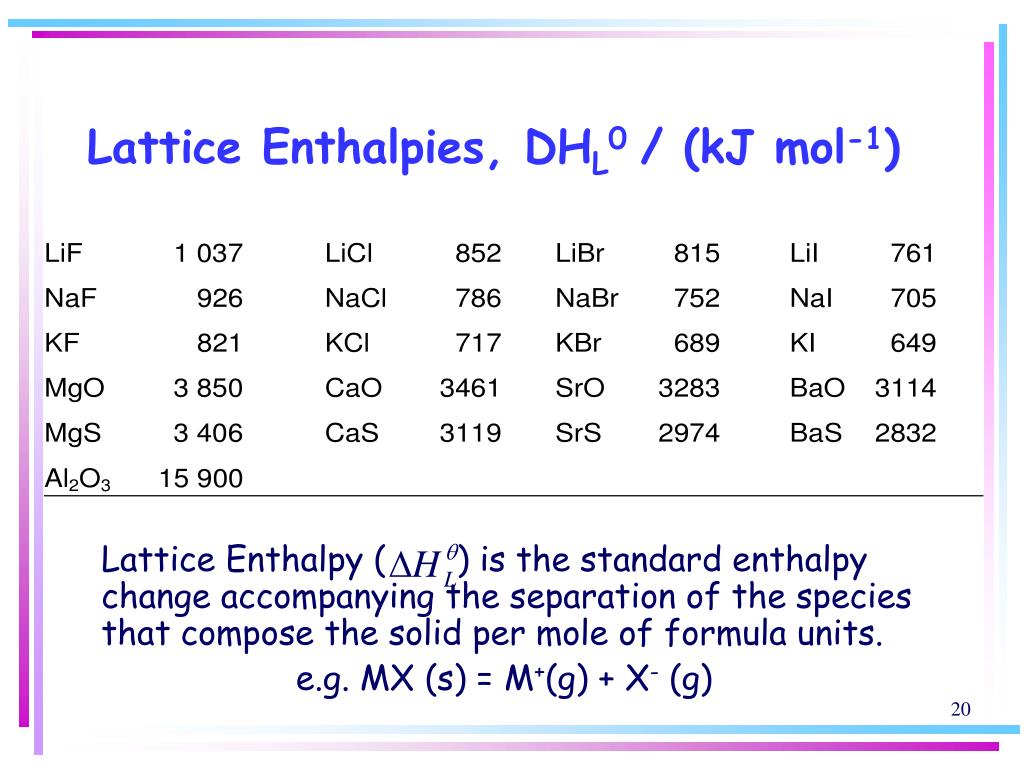

Lattice Enthalpy ( ) is the standard enthalpy change accompanying the separation of the species that compose the solid per mole of formula units.

e.g. MX (s) = M+(g) + X- (g)

Calculate the lattice enthalpy of KCl (s) using a Born-Haber cycle and the following information at 25oC:

ProcessDH0 (kJ mol-1)

Sublimation of K (s) +89

Ionization of K (g) +418

Dissociation of Cl2 (g) +244

Electron attachment to Cl (g) -349

Formation of KCl (s) -437

calculation of lattice enthalpy
Calculation of lattice enthalpy

ProcessDH0 (kJ mol-1)

KCl (s) K (s) + ½ Cl2 (g) +437

K (s) K (g) +89

K (g) K+ (g) + e- (g) +418

½ Cl2 (g) Cl (g) +122

Cl (g) + e- (g) Cl- (g) -349

KCl (s) K+ (g) + Cl- (g) +717 kJ mol-1

electric dipole moments
Electric dipole moments

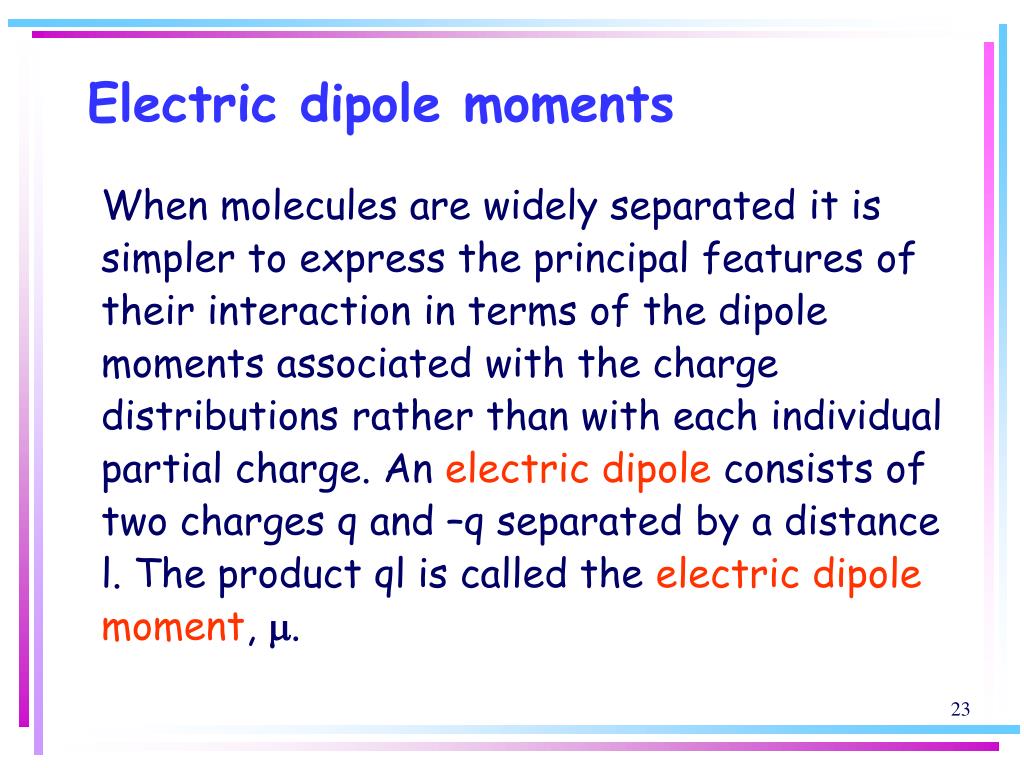

When molecules are widely separated it is simpler to express the principal features of their interaction in terms of the dipole moments associated with the charge distributions rather than with each individual partial charge. An electric dipole consists of two charges q and –q separated by a distance l. The product ql is called the electric dipole moment, m.

electric dipole moments24
Electric dipole moments

We represent dipole moments by an arrow with a length proportional to m and pointing from the negative charge to the positive charge:




Because a dipole moment is the product of a

charge and a length the SI unit of dipole moment is the coulomb-metre (C m)

electric dipole moments25
Electric dipole moments

It is often much more convenient to report a dipole moment in debye, D, where:

1D = 3.335 64 x 10-30 C m

because the experimental values for molecules are close to 1 D. The dipole moment of charges e and –e separated by 100 pm is 1.6 x 10-29 C m, corresponding to 4.8 D.

electric dipole moments diatomic molecules
Electric dipole moments: diatomic molecules

A polar molecule has a permanent electric dipole moment arising from the partial charges on its atoms. All hetero-nuclear diatomic molecules are polar because the difference in electronegativities of their two atoms results in non-zero partial charges.

electric dipole moments diatomic molecules28
Electric dipole moments: diatomic molecules

More electronegative atom is usually the negative end of the dipole. There are exceptions, particularly when anti-bonding orbitals are occupied.

  • CO dipole moment is small (0.12 D) but negative end is on C atom. Anti-bonding orbitals are occupied in CO and electrons in anti-bonding orbitals are closer to the less electronegative atom, contributing a negative partial charge to that atom. If this contribution is larger than the opposite contribution from the electrons in bonding orbitals, there is a small negative charge on the less electronegative atom.
electric dipole moments polyatomic molecules
Electric dipole moments: polyatomic molecules

Molecular symmetry is of the greatest importance in deciding whether a polyatomic molecule is polar or not. Homo-nuclear polyatomic molecules may be polar if they have low symmetry

  • in ozone, dipole moments associated with each bond make an angle with one another and do not cancel.







Ozone, O3

electric dipole moments polyatomic molecules30
Electric dipole moments: polyatomic molecules

Molecular symmetry is of the greatest importance in deciding whether a polyatomic molecule is polar or not.

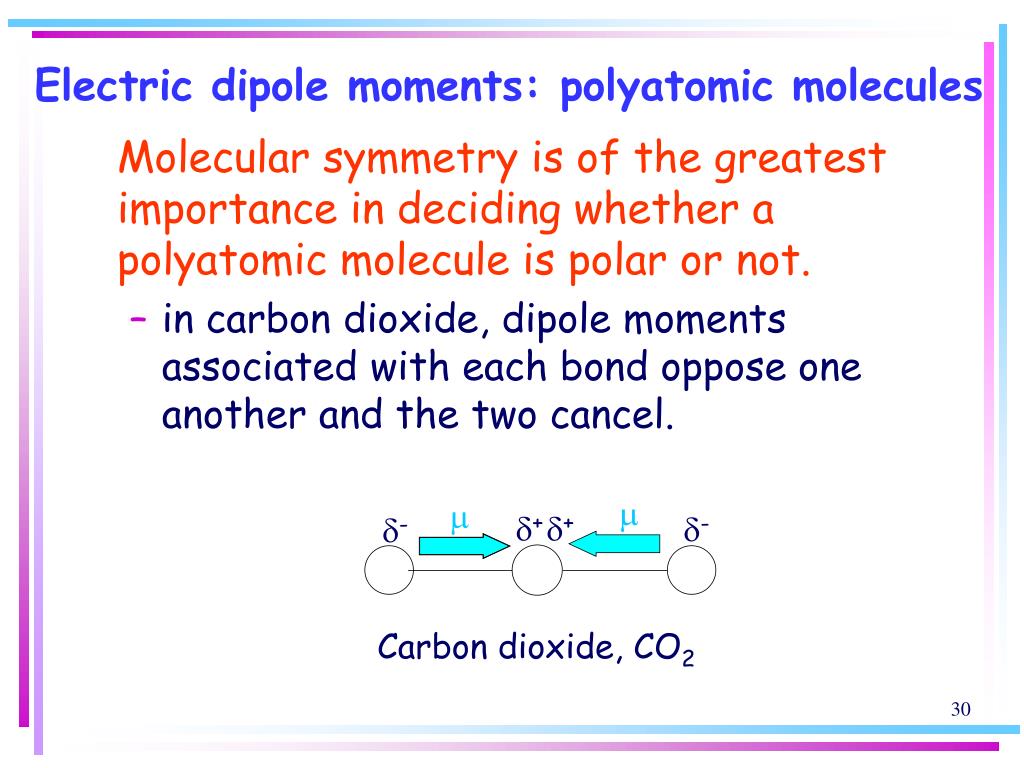

  • in carbon dioxide, dipole moments associated with each bond oppose one another and the two cancel.







Carbon dioxide, CO2

electric dipole moments polyatomic molecules31
Electric dipole moments: polyatomic molecules

It is possible to resolve the dipole moment of a polyatomic molecule into contributions from various groups of atoms in the molecule and the direction in which each of these contributions lie.

electric dipole moments polyatomic molecules32
Electric dipole moments: polyatomic molecules

1,2-dichlorobenzene: two chlorobenzene dipole moments arranged at 60o to each other. Using vector addition the resultant dipole moment (mres) of two dipole moments m1 and m2 that make an angle q with one another is approximately:






Electric dipole moments: polyatomic molecules

Better to consider the locations and magnitudes of the partial charges on all the atoms. These partial charges are included in the output of many molecular structure software packages. Dipole moments are calculated considering a vector, m, with three components, mx, my, and mz. The direction of mshows the orientation of the dipole in the molecule and the length of the vector is the magnitude, m, of the dipole moment.


Electric dipole moments: polyatomic molecules

To calculate the x-component we need to know the partial charge on each atom and the atom’s x-coordinate relative to a point in the molecule and from the sum:



where qJ is the partial charge of atom J, xJ is the x coordinate of atom J, and the sum is over all atoms in molecule



calculating a molecular dipole moment
Calculating a Molecular dipole moment














mx = (-0.36e) x (132 pm) + (0.45e) x (0 pm)

+(0.18e) x (182 pm) + (-0.38e) x (-62 pm)

= 8.8e pm

= 8.8 x (1.602 x 10-19 C) x (10-12 m)

= 1.4 x 10-30 C m = 0.42 D

calculating a molecular dipole moment38
Calculating a Molecular dipole moment

my = (-0.36e) x (0 pm) + (0.45e) x (0 pm)

+(0.18e) x (-86.6 pm) + (-0.38e) x (107 pm)

= -56e pm = -9.1 x 10-30 C m = -2.7 D

mz = 0

m =[(0.42 D)2 + (-2.7 D)2]1/2 = 2.7 D

Thus, we can find the orientation of the dipole

moment by arranging an arrow 2.7 units of length (magnitude) to have x, y, and z components of 0.42, -2.7, 0 units

(Exercise: calculate m for formaldehyde)

interactions between dipoles
Interactions between dipoles

The potential energy of a dipole m1 in the presence of a charge q2 is calculated taking into account the interaction of the charge with the two partial charges of the dipole, one a repulsion the other an attraction.






interactions between dipoles40
Interactions between dipoles

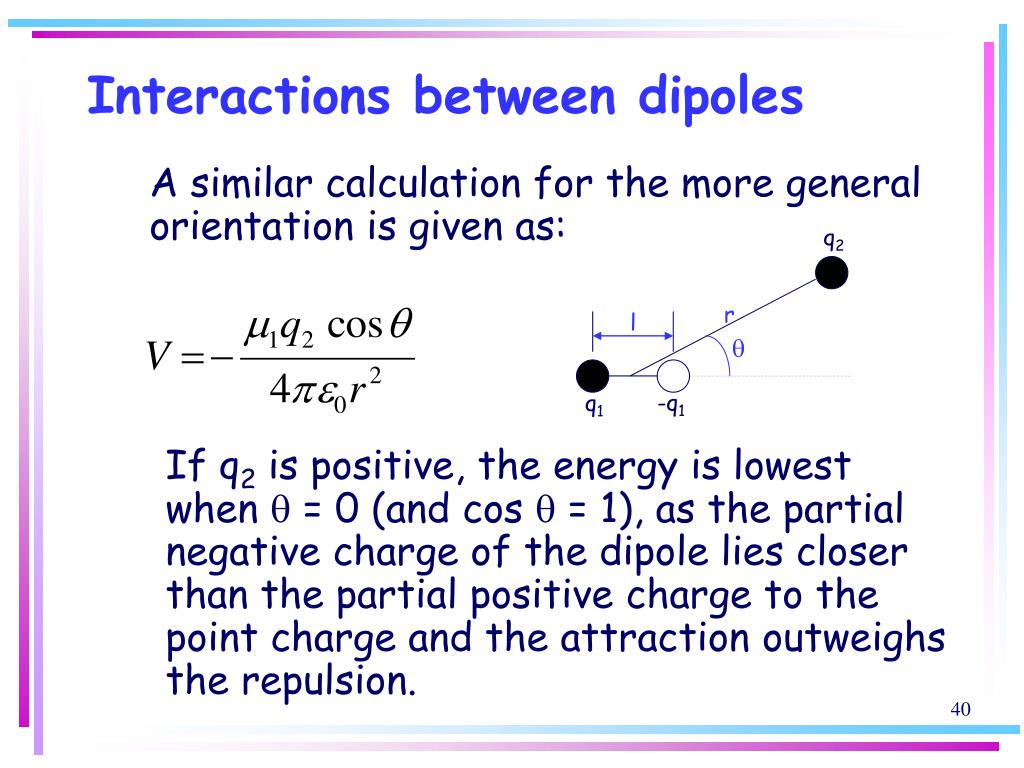

A similar calculation for the more general orientation is given as:







If q2 is positive, the energy is lowest when q = 0 (and cos q = 1), as the partial negative charge of the dipole lies closer than the partial positive charge to the point charge and the attraction outweighs the repulsion.

interactions between dipoles41
Interactions between dipoles

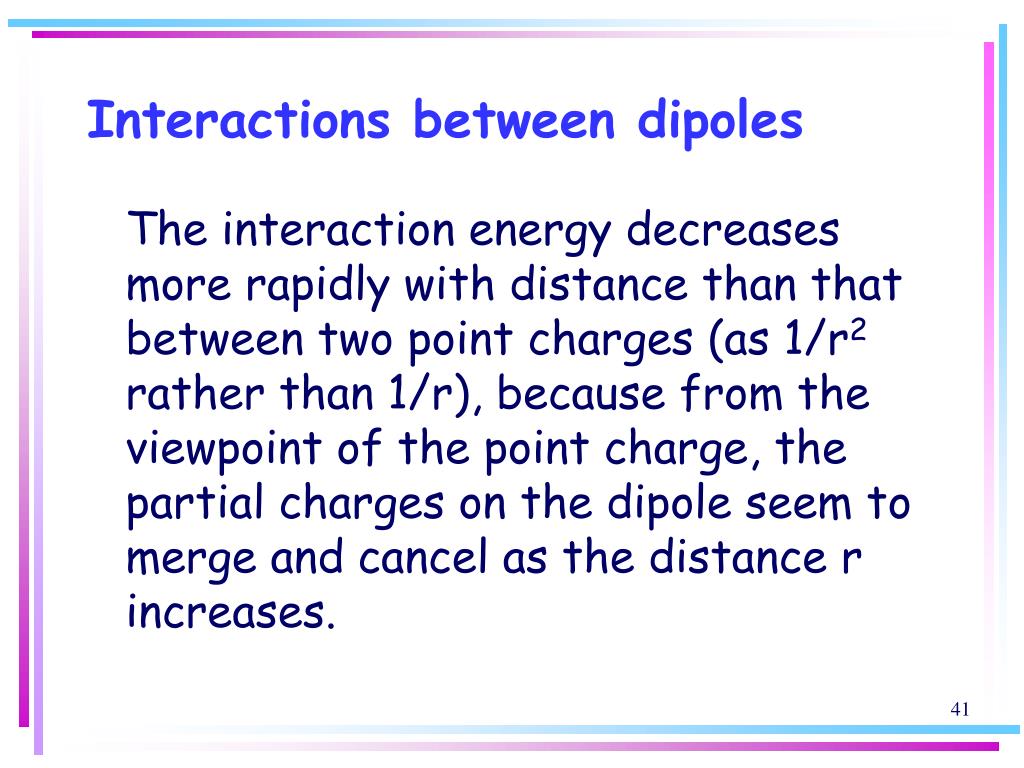

The interaction energy decreases more rapidly with distance than that between two point charges (as 1/r2 rather than 1/r), because from the viewpoint of the point charge, the partial charges on the dipole seem to merge and cancel as the distance r increases.

interactions between dipoles42
Interactions between dipoles

Interaction energy between two dipoles m1 and m2:









For dipole-dipole interaction the potential energy decreases as 1/r3 (instead of 1/r2 for point-dipole) because the charges of both dipoles seem to merge as the separation of the dipoles increases.

interactions between dipoles43
Interactions between dipoles

The angular factor takes into account how the like or opposite charges come closer to one another as the relative orientations of the dipoles is changed.

  • The energy is lowest when q = 0 or 180o (when 1 – 3 cos2q = -2), because opposite partial charges then lie closer together than like partial charges.
  • The energy is negative (attractive) when q < 54.7o (the angle when 1 – 3 cos2q = 0) because opposite charges are closer than like charges.
  • The energy is positive (repulsive) when q > 54.7o because like charges are then closer than opposite charges.
  • The energy is zero on the lines at 54.7o and (180 – 54.7) = 123.3o because at those angles the two attractions and repulsions cancel.
interactions between dipoles44
Interactions between dipoles

Calculate the molar potential energy of the dipolar interaction between two peptide links separated by 3.0 nm in different regions of a polypeptide chain with q = 180o, m1 = m2 = 2.7 D, corresponding to 9.1 x 10-30 C m

interactions between dipoles45
Interactions between dipoles

The average energy of interaction between polar molecules that are freely rotating in a fluid (gas or liquid) is zero (attractions and repulsions cancel). However, because the potential energy for dipole-dipole interaction depends on their relative orientations, the molecules exert forces on one another, and do not rotate completely freely, even in a gas. Thus, the lower energy orientations are marginally favoured so there is a non-zero interaction between rotating polar molecules.

interactions between dipoles46
Interactions between dipoles

When a pair of molecules can adopt all relative orientations with equal probability, the favourable orientations (a) and the unfavourable ones (b) cancel, and the average interaction is zero.

In an actual fluid (a) predominates slightly.

interactions between dipoles47
Interactions between dipoles

E a 1/r6 => van der Waals interaction

E a 1/T => greater thermal motion overcomes the mutual orientating effects of the dipoles at higher T

interactions between dipoles48
Interactions between dipoles
  • At 25oC the average interaction energy for pairs of molecules with m = 1 D is about -1.4 kJ mol-1 when the separation is 0.3 nm.
  • This energy is comparable to average molar kinetic energy of 3/2RT = 3.7 kJ mol-1 at 25oC.
  • These are similar but much less than the energies involved in the making and breaking of chemical bonds.
induced dipole moments
Induced dipole moments

A non-polar molecule may acquire a temporary induced dipole moment m* as a result of the influence of an electric field generated by a nearby ion or polar molecule. The field distorts the electron distribution of the molecule and gives rise to an electric dipole. The molecule is said to be polarizable.

The magnitude of the induced dipole moment is proportional to the strength of the electric field, E, giving:

m* = aE

where a is the polarizability of the molecule.

induced dipole moments50
Induced dipole moments
  • The larger the polarizability of the molecule the greater is the distortion caused by a given strength of electric field.
  • If a molecule has few electrons (N2) they are tightly controlled by the nuclear charges and the polarizability is low.
  • If the molecule contains large atoms with electrons some distance from the nucleus (I2) nuclear control is low and polarizability is high.
induced dipole moments51
Induced dipole moments

Polarizability also depends on the orientation of the molecule wrt the electric field unless the molecule is tetrahedral (CCl4), octahedral (SF6), or icosahedral (C60).

  • Atoms and tetrahedral, octahedral, and icosahedral molecules have isotropic (orientation-independent) polarizabilities
  • All other molecules have anisotropic (orientation-dependent) polarizabilities
polarizability volume
Polarizability volume

The polarizability volume has the dimensions of volume and is comparable in magnitude to the volume of the molecule

polarizability volume54
Polarizability volume

What strength of electric field is required to induce an electric dipole moment of 1 mD in a molecule of polarizability volume 1.1 x 10-31 m3?

dipole induced dipole moments
Dipole-induced dipole moments

A polar molecule with dipole

moment m1 can induce a dipole

moment in a polarizable


the induced dipole interacts with the permanent dipole of the first molecule and the two are attracted together

the induced dipole (light arrows) follows the changing orientation of the permanent dipole (yellow arrows)

dipole induced dipole moments56
Dipole-induced dipole moments

For a molecule with m = 1 D (HCl) near a molecule of polarizability volume a’ = 1.0 x 10-31 m3 (benzene), the average interaction energy is about -0.8 kJ mol-1 when the separation is 0.3 nm.

E a 1/r6 => van der Waals interaction

dispersion interactions
Dispersion interactions
  • Interactions between species with neither a net charge nor a permanent electric dipole moment
    • uncharged non-polar species can interact because they form condensed phases such as benzene, liquid hydrogen and liquid xenon
  • The dispersion interaction (London Force) between non-polar species arises from transient dipoles which result from fluctuations in the instantaneous positions of their electrons
dispersion interactions58
Dispersion interactions

Electrons from one molecule may

flicker into an arrangement that

results in partial positive and

negative charges and thus gives an

instantaneous dipole moment m1.

This dipole can polarize another

molecule and induce in it an

instantaneous dipole moment m2.

Although the first dipole will go on

to change the size and direction of

its dipole (≈ 10-16 s) the second

dipole will follow it; the two dipoles

are correlated in direction, with

the positive charge on one molecule

close to a negative partial charge on

the other molecule and vice versa.

An instantaneous dipole on one molecule induces a dipole on another molecule, and the two dipoles attract thus lowering the energy.

dispersion interactions59
Dispersion interactions
  • Overall, net attractive interaction
  • Polar molecules interact by:
    • dispersion interactions and dipole-dipole interactions
    • dispersion interactions often dominant
  • Dispersion interaction strength depends on:
    • polarizability of first molecule which is decided by nulcear control
      • loose => large fluctuations in e- distribution
    • polarizability of second molecule
dispersion interactions60
Dispersion interactions



I1, I2 are the ionization energies of the two molecules

Potential energy of interaction is proportional to 1/r6 so this too is a contribution to the van der Waals interaction. For two CH4 molecules, V = -5 kJ mol-1 (r = 0.3 nm)

total interaction hydrogen bonding
Total interaction- Hydrogen bonding

The coulombic interaction between the partly exposed positive charge of a proton bound to an electron withdrawing X atom (in X—H) and the negative charge of a lone pair on the second atom Y, as in: d-X—Hd+ ……Yd-

  • Strongest intermolecular interaction
  • Denoted X—H……Y, with X and Y being N, O, or F
    • only molecules with these atoms
  • ‘Contact’ interaction
    • turns on when X—H group is in contact with Y atom
hydrogen bonding
Hydrogen bonding
  • Leads to:
    • rigidity of molecular solids (sucrose, ice)
    • low vapour pressure (water)
    • high viscosity (water)
    • high surface tension (water)
    • secondary structure of proteins (helices)
    • attachment of drugs to receptor sites in proteins
the hydrophobic effect
The Hydrophobic effect
  • An apparent force that influences the shape of a macromolecule mediated by the properties of the solvent, water.
  • Why don’t HC molecules dissolve appreciably in water?
  • Experiments show that the transfer of a hydrocarbon molecule from a non-polar solvent into water is often exothermic (DH < 0)
  • The fact that dissolving is not spontaneous must mean that entropy change is negative

(DS < 0).

the hydrophobic effect65
The Hydrophobic effect
  • For example, the process:

CH4 (in CCl4) = CH4 (aq)

has DH = - 10 kJ mol-1, DS = - 75 J K-1 mol-1, and DG = + 12 kJ mol-1 at 298 K.

  • Substances characterized by a positive Gibbs energy of transfer from a non-polar to a polar solvent are classified as hydrophobic.
the hydrophobic effect66
The Hydrophobic effect

When a HC molecule is surrounded by water, the water molecules form a clathrate cage. As a result of this acquisition of structure, the entropy of the water decreases, so the dispersal of the HC into water is entropy-opposed.

The coalescence of the HC into a single large blob is entropy-favoured.

the hydrophobic effect67
The Hydrophobic effect
  • The formation of the clathrate cage decreases the entropy of the system because the water molecules must adopt a less disordered arrangement than in the bulk liquid.
  • However, when many solute molecules cluster together fewer (but larger) cages are required and more solvent molecules are free to move.
  • This leads to a net decrease in the organization of the solvent and thus a net increase in the entropy of the system.
the hydrophobic effect68
The Hydrophobic effect
  • This increase in entropy of the solvent is large enough to render spontaneous the association of hydrophobic molecules in a polar solvent.
  • The increase in entropy that results in the decrease in structural demands on the solvent is the origin of the hydrophobic effect.
  • The presence of hydrophobic groups in polypeptides results in an increase in structure of the surrounding water molecules and a decrease in entropy.
modelling the total interaction
Modelling the total interaction

The total attractive interaction energy between rotating molecules that cannot participate in hydrogen bonding is the sum of the contributions from the dipole-dipole, dipole-induced-dipole, and dispersion interactions.

Only the dispersion interaction contributes if both molecules are non-polar.

modelling the total interaction70
Modelling the total interaction

All three interactions vary as the inverse sixth power of the separation. Thus the total van der Waals interaction energy is:

where C is a coefficient that depends on the identity of the molecules and the type of interaction between them.

modelling the total interaction71
Modelling the total interaction

The attractive (negative) contribution has a long range, but the repulsive (positive) interaction increases more sharply once the molecules come into contact.

Repulsive terms become important and begin to dominate the attractive forces when molecules are squeezed together.

graph of the potential energy of two closed-shell species as the distance between them is changed

modelling the total interaction72
Modelling the total interaction
  • These repulsive interactions arise primarily from the Pauli exclusion principle, which forbids pairs of electrons being in the same region of space.
  • The repulsions increase steeply in a way that can be deduced only by very extensive, complicated, molecular structure calculations.
modelling the total interaction73
Modelling the total interaction
  • In many cases one may use a greatly simplified representation of the potential energy.
    • details ignored
    • general features expressed using a few adjustable parameters
  • Hard-Sphere potential (approximation)
    • Assume potential energy rises abruptly to infinity as soon as the particles come within some separation s
modelling the total interaction74
Modelling the total interaction
  • V = ∞ for r ≤ s
  • V = 0 for r > s

There is no potential energy of interaction until the two molecules are separated by a distance s when the potential energy rises abruptly to infinity


This very simple assumption is surprisingly useful in assessing a number of properties.

modelling the total interaction75
Modelling the total interaction

Another approximation is to express the short-range repulsive potential energy as inversely proportional to a high power of r:

where C* is another constant (the star signifies repulsion). Typically, n is set to 12, in which case the repulsion dominates the 1/r6 attractions strongly at short separations as:

C*/r12 >> C/r6

modelling the total interaction76
Modelling the total interaction

The sum of the repulsive interaction with n = 12 and the attractive interaction given by:

is called the Lennard-Jones (12,6)-potential.It is normally written in the form:

modelling the total interaction77
Modelling the total interaction

The two parameters are e (epsilon), the depth of the well, and s, the separation at which V = 0.

The Lennard-Jones potential models the attractive component by a contribution that is proportional to 1/r6, and a repulsive component by a contribution proportional to 1/r12
