Presentation Transcript
Text historical geology l.jpg

Text: Historical Geology

Evolution of Earth and Life Through Time

4th edition

by Wicander and Monroe

Slide2 l.jpg

Chapter 1

The Dynamic and Evolving Earth

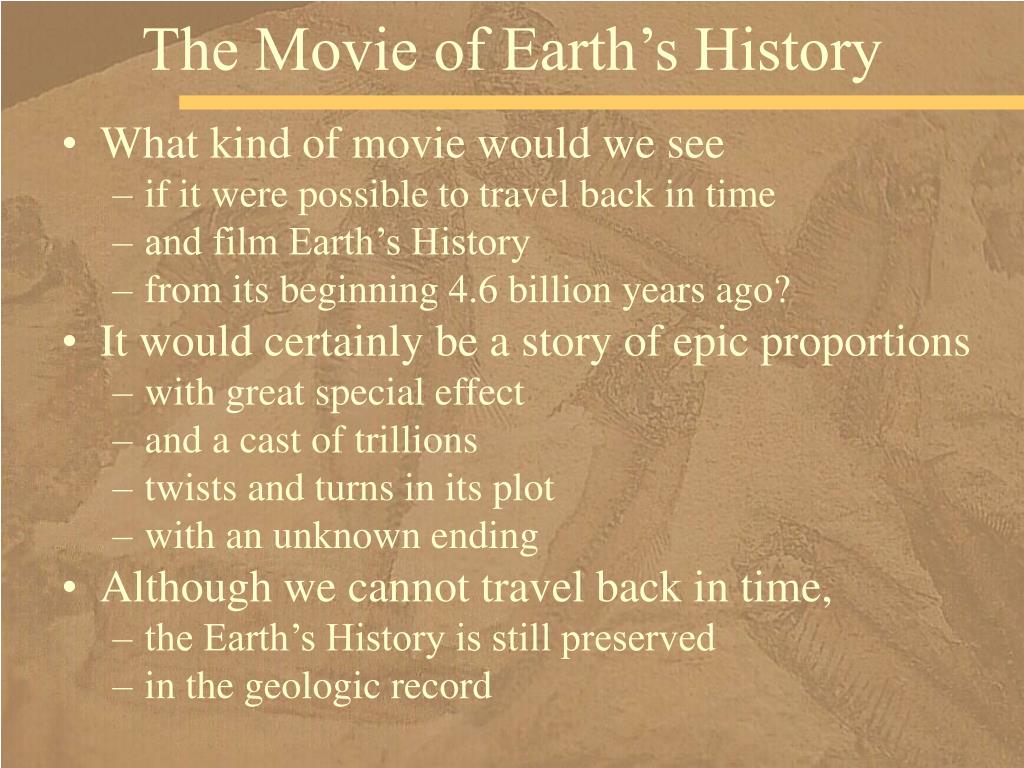

The movie of earth s history l.jpg
The Movie of Earth’s History

  • What kind of movie would we see

    • if it were possible to travel back in time

    • and film Earth’s History

    • from its beginning 4.6 billion years ago?

  • It would certainly be a story of epic proportions

    • with great special effect

    • and a cast of trillions

    • twists and turns in its plot

    • with an unknown ending

  • Although we cannot travel back in time,

    • the Earth’s History is still preserved

    • in the geologic record

Subplot landscape history l.jpg
Subplot: Landscape History

  • In this movie we would see

    • a planet undergoing remarkable change as

    • continents moved about

    • ocean basins opened

    • mountain ranges grew along continental margins

    • and where continents collided

  • The oceans and atmosphere would

    • form and grow

    • change circulation patterns

    • cause massive ice sheets to form and grow

    • and then melt away

  • Extensive swamps or vast interior deserts

    • would sweep across the landscape

Subplot life s history l.jpg
Subplot: Life’s History

  • We would also witness

    • the first living cells evolving

    • from a primordial organic soup

    • between 4.6 and 3.6 billion years ago

  • Cell nuclei would evolve,

    • then multicelled soft-bodied animals

    • followed by animals with skeletons and then backbones

  • The barren landscape would come to life as

    • plants and animals moved from their watery home

    • insects, amphibians, reptiles, birds and mammals

    • would eventually evolve

Earth is a dynamic and evolving planet l.jpg

  • Changes in life

Earth is a Dynamic and Evolving Planet

At the end of the movie l.jpg
At the End of the Movie

  • The movie’s final image is of Earth,

    • a shimmering blue-green oasis

    • in the black void of space

    • and a voice says,

  • “To be continued.”

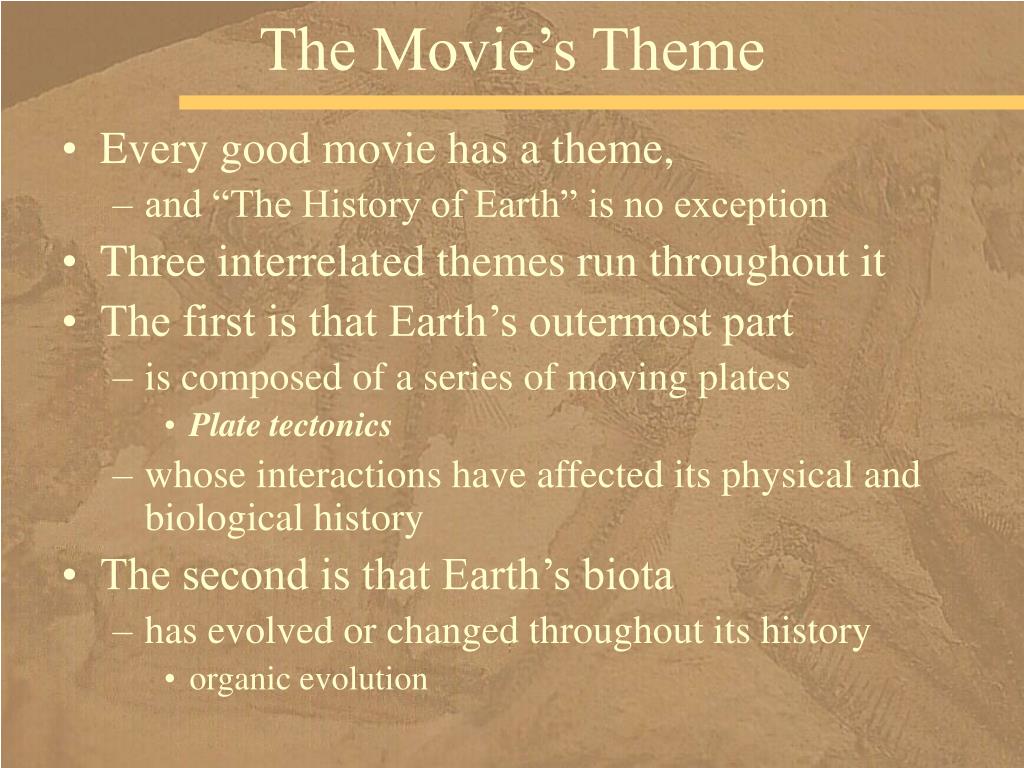

The movie s theme l.jpg
The Movie’s Theme

  • Every good movie has a theme,

    • and “The History of Earth” is no exception

  • Three interrelated themes run throughout it

  • The first is that Earth’s outermost part

    • is composed of a series of moving plates

      • Plate tectonics

    • whose interactions have affected its physical and biological history

  • The second is that Earth’s biota

    • has evolved or changed throughout its history

      • organic evolution

Earth is a system of interconnected subsystems l.jpg
Earth is a System of Interconnected Subsystems

  • Atmosphere (air and gases)

  • Hydrosphere (water and oceans)

  • Biosphere (plants and animals)

  • Lithosphere (Earth’s rocky surface)

  • Interior (mantle and core)

Interactions in earth s subsystems l.jpg
Interactions in Earth’s Subsystems



Gasesfrom respiration

Transport of seeds and spores

Interactions in earth s subsystems11 l.jpg
Interactions in Earth’s Subsystems

Wind erosion, transport of water vapor for precipitation

Mountainsdivert air movements



Interactions in earth s subsystems12 l.jpg
Interactions in Earth’s Subsystems

Source of sediment and dissolved material

Water and glacial erosion, solution of minerals

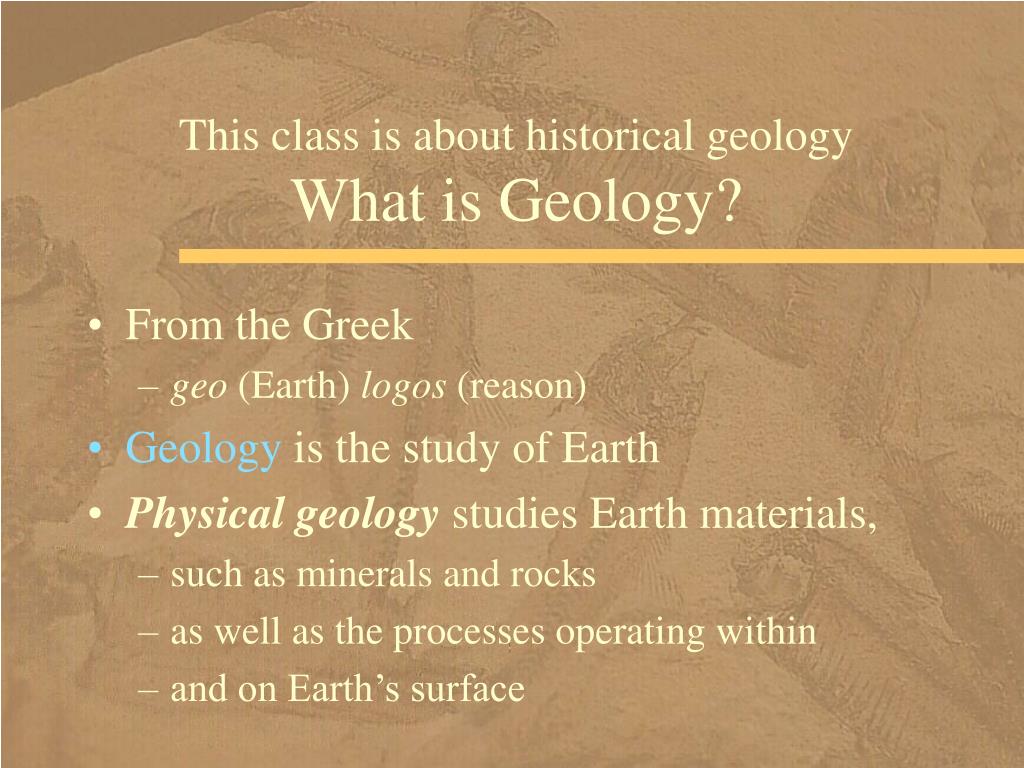

This class is about historical geology what is geology l.jpg
This class is about historical geologyWhat is Geology?

  • From the Greek

    • geo (Earth) logos (reason)

  • Geology is the study of Earth

  • Physical geology studies Earth materials,

    • such as minerals and rocks

    • as well as the processes operating within

    • and on Earth’s surface

Historical geology l.jpg
Historical Geology

  • In historical geology we study

    • changes in our dynamic planet

    • how and why past events happened

    • implication for today’s global ecosystems

  • Principles of historical geology

    • not only aid in interpreting Earth’s history

    • but also have practical applications

  • William Smith, an English surveyor/engineer

    • used study of rock sequences

    • to help predict the difficulty of excavation

    • in constructing canals

Scientific method l.jpg
Scientific Method

  • The scientific method

    • an orderly and logical approach

    • Gather and analyze facts or data

  • A hypothesis is a tentative explanation

    • to explain observed phenomena

  • Scientists make predictions using hypotheses

    • then they test the predictions

  • After repeated tests,

    • if one hypothesis continues

    • to explain the phenomena,

    • scientists propose it as a theory

Formulation of theories l.jpg
Formulation of Theories


  • colloquial usage - speculation or conjecture

  • scientific usage

    • coherent explanation for one or several related natural phenomena

    • supported by a large body of objective evidence

Origin of the universe l.jpg
Origin of the Universe

  • The Big Bang

    • occurred 15 billion years ago

    • and is a model for the beginning of the universe

Evidence for the big bang l.jpg
Evidence for the Big Bang

  • Universe is expanding

  • How do we determine the age?

    • measure the rate of expansion

    • backtrack to a time when the galaxies

    • were all together at a single point

  • Pervasive background radiation of 2.7º above absolute zero

    • is the afterglow of the Big Bang

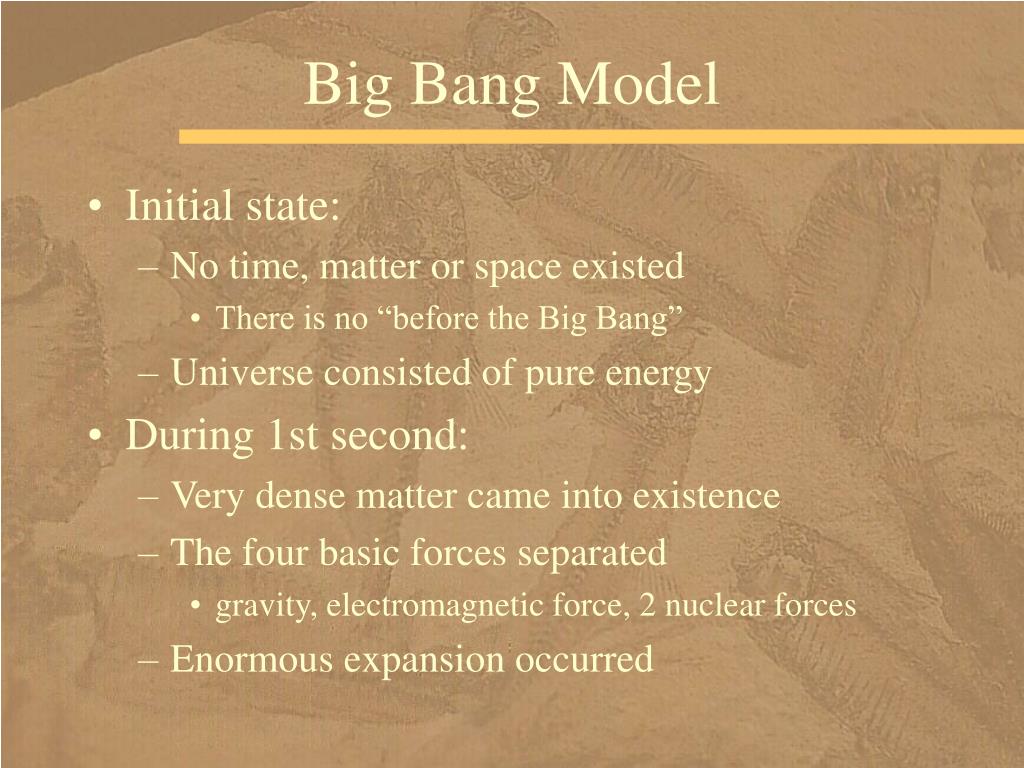

Big bang model l.jpg
Big Bang Model

  • Initial state:

    • No time, matter or space existed

      • There is no “before the Big Bang”

    • Universe consisted of pure energy

  • During 1st second:

    • Very dense matter came into existence

    • The four basic forces separated

      • gravity, electromagnetic force, 2 nuclear forces

    • Enormous expansion occurred

Big bang model cont l.jpg
Big Bang Model (cont.)

  • 300,000 years later:

    • atoms of hydrogen and helium formed

    • light (photons) burst forth for the first time

  • During the next 200 million years:

    • Continued expansion and cooling

    • Stars and galaxies began to form

    • Elements heavier than hydrogen and helium

    • began to form within stars by nuclear fusion

Features of our solar system l.jpg
Features of Our Solar System

  • In a spiral arm of the Milky Way Galaxy

  • Sun

  • 9 planets

  • 101 known moons (satellites)

  • a tremendous number of asteroids

    • most orbit the Sun between the orbits of Mars and Jupiter

  • millions of comets and meteorites

  • interplanetary dust and gases

Relative sizes of the sun and planets l.jpg
Relative Sizes of the Sun and Planets

Origin of our solar system l.jpg
Origin of Our Solar System

Solar nebula theory

  • cloud of gases and dust

  • formed a rotating disk

  • condensed and collapsed due to gravity

  • forming solar nebula

    • with an embryonic Sun

    • surrounded by a rotating cloud

Embryonic sun and rotating cloud l.jpg
Embryonic Sun and Rotating Cloud

  • Planetesimals have formed

    • in the inner solar system,

    • and large eddies of gas and dust

    • remain far from the protosun

The planets l.jpg
The Planets

  • Jovian Planets

    • Jupiter

    • Saturn

    • Uranus

    • Neptune

  • large, composed of hydrogen, helium, ammonia, methane, relatively small rocky cores

  • Terrestrial Planets

    • Mercury

    • Venus

    • Earth

    • Mars

  • small, composed of rock, with metal cores

Earth s very early history l.jpg
Earth’s Very Early History

  • Started out cool about 4.6 billion years ago

    • probably with uniform composition/density

  • Mostly:

    • silicate compounds

    • iron and magnesium oxides

  • Temperature increased. Heat sources:

    • meteorite impacts

    • gravitational compression

    • radioactive decay

  • Heated up enough to melt iron and nickel

Earth s differentiation l.jpg
Earth’s Differentiation

  • Differentiation = segregated into layers of differing composition and density

  • Early Earth was probably uniform

  • Molten iron and nickel sank to form the core

  • Lighter silicates flowed up to form mantle and crust

Forming the earth moon system l.jpg
Forming the Earth-Moon System

  • Impact by Mars-sized or larger planetesimal with young Earth

    • 4.6 to 4.4 billion years ago

  • ejected large quantity of hot material,

  • and formed the Moon

Forming the earth moon system30 l.jpg
Forming the Earth-Moon System

  • Most of the lunar material

    • came from the mantle of the colliding planetesimal

  • The material cooled

    • and crystallized

    • into lunar layers

Forming the earth moon system31 l.jpg
Forming the Earth-Moon System

  • Most of the lunar material

    • came from the mantle of the colliding planetesimal

  • The material cooled

    • and crystallized

    • into lunar layers

Slide32 l.jpg

  • Light-colored areas are lunar highlands

  • Heavily cratered

  • Provide striking evidence

    • of massive meteorite bombardment

  • Earth dynamic planet l.jpg
    Earth—Dynamic Planet

    • Earth was also subjected

      • to the same meteorite barrage

      • that pock-marked the Moon

    • Why isn’t Earth’s surface also densely cratered?

      • Because Earth is a dynamic and evolving planet

      • Craters have long since been worn away

    Earth s interior layers l.jpg
    Earth’s Interior Layers

    • Crust - 5-90 km thick

      • continental and oceanic

    • Mantle

      • composed largely of peridotite

      • dark, dense igneous rock

      • rich in iron and magnesium

    • Core

      • iron and a small amount of nickel

    Earth s interior layers35 l.jpg
    Earth’s Interior Layers

    • Lithosphere

      • solid upper mantle and crust

    • Crust - 5-90 km thick

      • continental and oceanic

    • Mantle

      • composed largely of peridotite

      • dark, dense igneous rock

      • rich in iron and magnesium

    • Asthenosphere

      • part of upper mantle

    • behaves plastically and slowly flows

    • Core

      • iron and a small amount of nickel

    Earth s interior layers36 l.jpg
    Earth’s Interior Layers

    • Lithosphere

      • solid upper mantle and crust

    • broken into platesthat move over the asthenosphere

    • Asthenosphere

      • part of upper mantle

      • behaves plastically and slowly flows

    Earth s crust l.jpg
    Earth’s Crust

    • outermost layer

    • continental (20-90 km thick)

    • density 2.7 g/cm3

    • contains Si, Al

  • oceanic (5-10 km thick)

    • density 3.0 g/cm3

    • composed of basalt

    Plate tectonic theory l.jpg
    Plate Tectonic Theory

    • Lithosphere is broken into individual pieces called plates

    • Plates move over the asthenosphere

      • as a result of underlying convection cells

    Plate tectonic theory40 l.jpg
    Plate Tectonic Theory

    • At plate boundaries

      • Volcanic activity occurs

      • Earthquakes occur

    • Movement at plate boundaries

      • plates diverge

      • plates converge

      • plates slide sideways past each other

    Plate tectonic theory41 l.jpg

    Continental-continental convergent plate boundary

    Divergent plate boundary

    Continental-oceanic convergent plate boundary

    Oceanic-oceanic convergent plate boundary

    Divergent plate boundary

    Mid-oceanic ridge


    Plate Tectonic Theory

    • Types of plate boundaries

    Transform plate boundary

    Plate tectonic theory42 l.jpg
    Plate Tectonic Theory

    Influence on geological sciences:

    • Revolutionary concept

      • major milestone

        • comparable to Darwin’s theory of evolution in biology

    • Provides a framework for

      • interpreting many aspects of Earth on a global scale

      • relating many seemingly unrelated phenomena

      • interpreting Earth history

    Plate tectonics and earth systems l.jpg
    Plate Tectonics and Earth Systems

    Plate tectonics is driven by convection

    in the mantle

    and in turn drives mountain building

    and associated igneous and metamorphic activity


    Arrangement of continents affects

    solar heating and cooling,

    and thus winds and weather systems

    Rapid plate spreading and hot-spot activity

    may release volcanic carbon dioxide

    and affect global climate


    Plate tectonics and earth systems44 l.jpg
    Plate Tectonics and Earth Systems

    Continental arrangement affects ocean currents

    Rate of spreading affects volume

    of mid-oceanic ridges and hence sea level

    Placement of continents may contribute

    to the onset of ice ages


    Movement of continents creates corridors

    or barriers to migration,

    the creation of ecological niches,

    and transport of habitats into

    more or less favorable climates


    Theory of organic evolution l.jpg
    Theory of Organic Evolution

    • Provides a framework

      • for understanding the history of life

    • Darwin’s

      • On the Origin of Species by Means of Natural Selection, published in 1859,

      • revolutionized biology

    Central thesis of evolution l.jpg

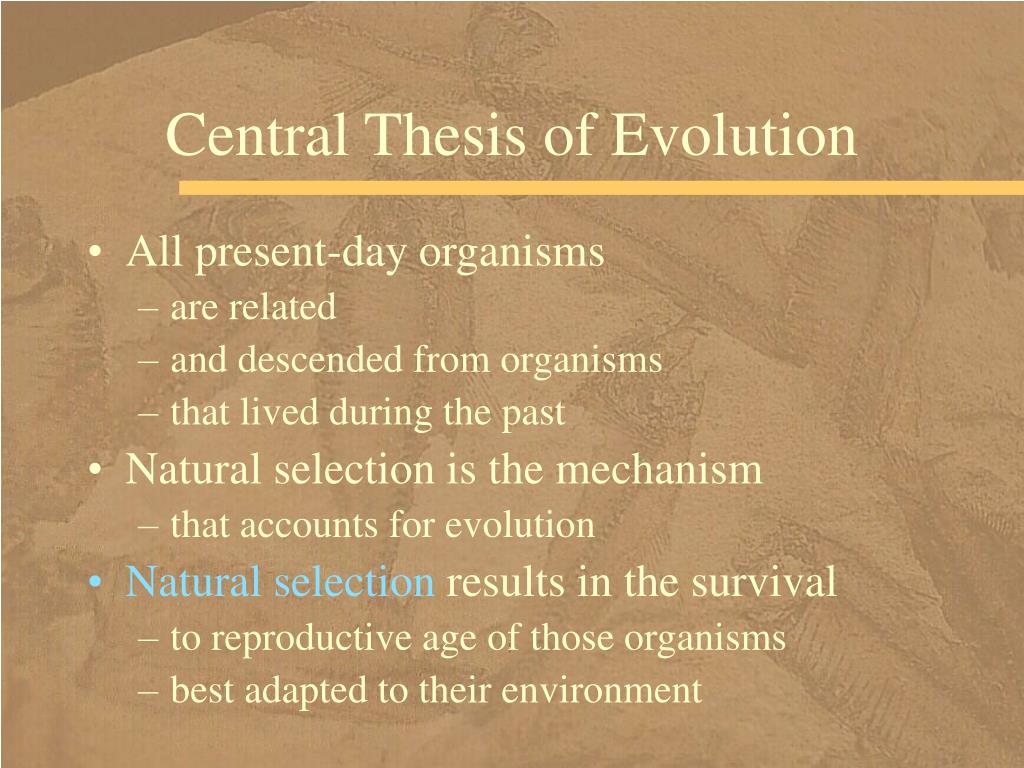

    Central Thesis of Evolution

    • All present-day organisms

      • are related

      • and descended from organisms

      • that lived during the past

    • Natural selection is the mechanism

      • that accounts for evolution

    • Natural selection results in the survival

      • to reproductive age of those organisms

      • best adapted to their environment

    History of life l.jpg
    History of Life

    • The fossil record provides perhaps

      • the most compelling evidence

      • in favor of evolution

    • Fossils are the remains or traces

      • of once-living organisms

    • Fossils demonstrate that Earth

      • has a history of life

    Geologic time l.jpg
    Geologic Time

    • From the human perspective time units are in

      • seconds, hours, days, years

    • Ancient human history

      • hundreds or even thousands of years

    • Geologic history

      • millions, hundreds of millions, billions of years

    Geologic time scale l.jpg

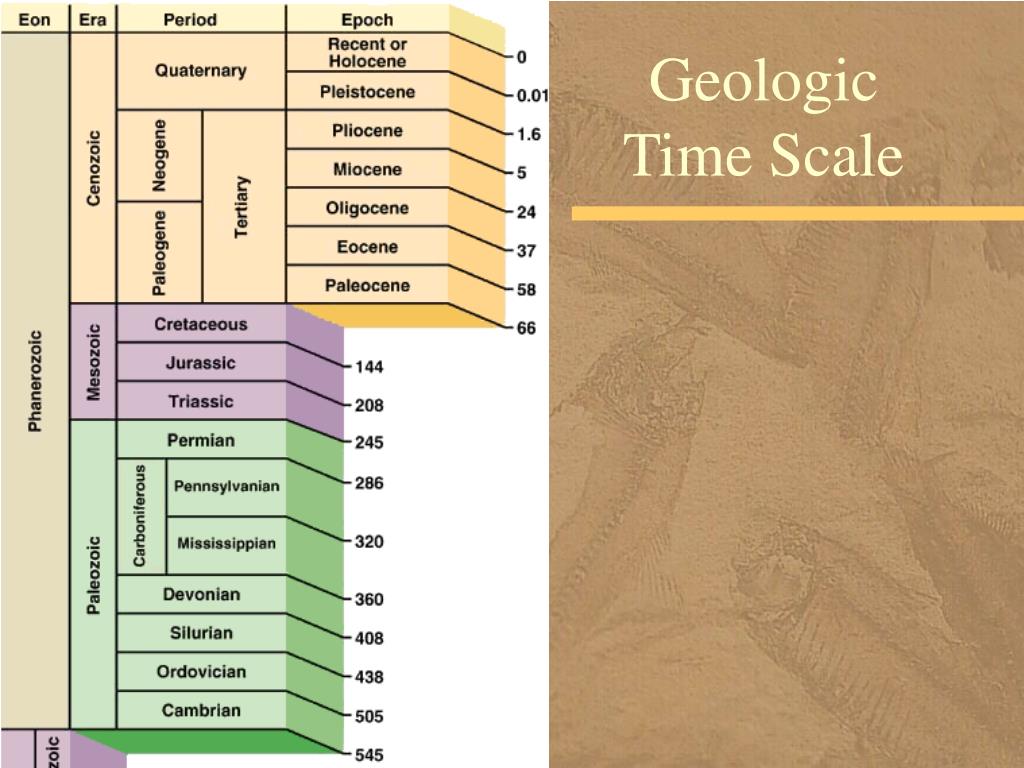

    Geologic Time Scale

    • Resulted from the work of many 19th century geologists who

      • pieced together information

      • from numerous rock exposures,

      • constructed a sequential chronology

      • based on changes in Earth’s biota through time

    • The time scale was subsequently dated in years

      • using radiometric dating techniques

    Uniformitarianism l.jpg

    • Uniformitarianism is a cornerstone of geology

      • is based on the premise that present-day processes

      • have operated throughout geologic time

    • The physical and chemical laws of nature

      • have remained the same through time

    • To interpret geologic events

      • from evidence preserved in rocks

      • we must first understand present-day processes

      • and their results

    • Rates and intensities of geologic processes

      • may have changed with time

    How does the study of historical geology benefit us l.jpg
    How Does the Study of Historical Geology Benefit Us?

    • Survival of the human species

      • depends on understanding

      • how Earth’s various subsystems

      • work and interact

    • Study what has happened in the past,

      • on a global scale,

      • to try and determine how our actions

      • might affect the balance of subsystems in the future

    We live geology l.jpg
    We “Live” Geology

    • Our standard of living depends directly on

      • our consumption of natural resources

      • resources that formed millions and billions of years ago

    • How we consume natural resources

      • and interact with the environment determines

      • our ability to pass on this standard of living

      • to the next generation

    Summary l.jpg

    • Earth is a system

      • of interconnected subsystems

    • Geology is the study of Earth

    • Historical geology is the study

      • of the origin and evolution of Earth

    • Scientific method is

      • an orderly, logical approach

      • to explain phenomena,

      • using data,

      • formulating and testing hypotheses and theories

    • Universe began with

      • a big bang 15 billion years ago

    Summary55 l.jpg

    • Solar system formed 4.6 billion years ago

      • by condensation and gravitational collapse

      • of a rotating interstellar cloud

    • Earth formed 4.6 billion years ago

      • as a swirling eddy in the solar system nebula

    • Moon may have formed

      • when a planetesimal collided with Earth

      • 4.6 to 4.4 billion years ago

    • Earth probably started solid

      • then differentiated into layers

      • as it heated and melted

    Summary56 l.jpg

    • Earth’s layers mostly solidified

      • into the core, mantle and crust,

      • with the upper mantle and crust

      • making up the soft asthenosphere

      • and the solid lithosphere

    • Lithosphere is broken into plates

      • that diverge, converge and

      • slide sideways past each other

    • Plate tectonics is a unifying theory

      • that helps explain features and events

      • including volcanic eruptions,

      • earthquakes and mountain forming

    Summary57 l.jpg

    • Central thesis of organic evolution is

      • that all living organisms evolved

      • from organisms that existed in the past

    • An appreciation

      • of the immensity of geologic time

      • is central to understanding Earth’s evolution

    • Uniformitarianism holds that the laws

      • of nature have been constant through time

    • Geology is part of our lives

      • and our standard of living depends

      • on our use of natural resources

      • that formed over billions of years
