analysis and modeling of the open source software community

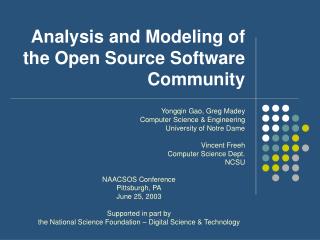

Analysis and Modeling of the Open Source Software Community

Yongqin Gao, Greg Madey

Computer Science & Engineering

University of Notre Dame

Vincent Freeh

Computer Science Dept.

NCSU

NAACSOS Conference

Pittsburgh, PA

June 25, 2003

Supported in part by

the National Science Foundation – Digital Science & Technology

outline
Outline
  • Overview
  • Data collection
  • Network modeling
  • Topological statistical analysis
  • Conclusion
overview
Overview
  • What is OSS
    • Free to use, distribution
    • Unlimited user and usage
    • Source code available and modifiable
  • Potential advantages over commercial software
    • Higher quality
    • Faster development
    • Lower cost
  • Our goal
    • Understanding the OSS phenomenon
  • Approach
    • SourceForge is the source of our empirical data
    • Modeling as social network
    • Analysis of topological statistics
data collection monthly
Data Collection — Monthly
  • Web crawler (scripts)
    • Python
    • Perl
    • AWK
    • Sed
  • Monthly
  • Since Jan 2001
  • ProjectID
  • DeveloperID
  • Almost 2 million records
  • Relational database

PROJ|DEVELOPER

8001|dev348

8001|dev8972

8001|dev9922

8002|dev27650

8005|dev31351

8006|dev12409

8007|dev19935

8007|dev4262

8007|dev36711

8008|dev8972

modeling as collaboration network
Modeling as collaboration network
  • What is collaboration network
    • A social network representing the collaborating relationships.
    • Movie actor network and scientist collaboration network
  • Difference of SourceForge collaboration network
    • Detachment
    • Virtual collaboration
    • Voluntary
    • Global
  • Bipartite property of collaboration network
sourceforge developer network

dev[72]

dev[67]

dev[52]

dev[65]

dev[70]

dev[57]

7597 dev[46]

6882 dev[47]

dev[45]

dev[64]

dev[99]

7597 dev[46]

7597 dev[46]

dev[52]

dev[72]

dev[67]

7597 dev[46]

dev[47]

6882 dev[47]

dev[55]

dev[55]

dev[55]

7597 dev[46]

7028 dev[46]

dev[70]

7597 dev[46]

7028 dev[46]

dev[57]

dev[45]

dev[51]

dev[99]

7597 dev[46]

7028 dev[46]

6882 dev[47]

6882 dev[58]

dev[61]

dev[51]

dev[79]

dev[47]

dev[58]

7597 dev[46]

dev[58]

dev[46]

9859 dev[46]

dev[54]

15850 dev[46]

dev[58]

9859 dev[46]

dev[79]

dev[58]

9859 dev[46]

dev[49]

dev[53]

9859 dev[46]

15850 dev[46]

dev[59]

dev[56]

15850 dev[46]

dev[83]

15850 dev[46]

dev[48]

dev[53]

dev[56]

dev[83]

dev[48]

SourceForge developer network

OSS Developer Network (Part)

Project 7597

Developers are nodes / Projects are links

24 Developers

dev[64]

5 Projects

2 hub Developers

Project 6882

1 Cluster

Project 7028

dev[61]

dev[54]

dev[49]

dev[59]

Project 9859

Project 15850

topological analysis
Topological analysis
  • Statistics inspected
    • Diameter
    • Average degree
    • Clustering coefficient
    • Degree distribution
    • Cluster size distribution
    • Relative size of major cluster
    • Fitness and lift cycle
  • Evolution of these statistics
diameter of developer network vs time
Diameter of developer network vs. time
  • The average of shortest paths between any pairs of vertices
  • The values for developer network (30,000 – 70,000) are between 6 and 8
diameter of project network vs time
Diameter of project network vs. time
  • The values for project network (20,000 – 50,000) are between 6 and 7
  • Diameter decreasing with time both for developer network and project network
average degree vs time
Average degree vs. time
  • The values for developer network are between 7 and 8
  • The values for project network are just between 3 and 4
degree distribution developers
Degree distribution (developers)
  • Power law in developer distribution.
  • R2 = 0.9714
degree distribution projects
Degree distribution (projects)
  • Power law in project distribution
  • R2 = 0.9838
cluster size distribution
Cluster size distribution
  • Cluster distribution of developer network
  • R2 with major cluster is 0.7426
  • R2 without major cluster is 0.9799
relative size of major cluster vs time
Relative size of major cluster vs. time
  • Stable increase of the relative size of the major cluster
  • Going to slowly converge to some fixed percentage at around 35%
  • May be an indication of the network evolution
existence of fitness
Existence of fitness
  • Investigation of development of single project can verify the existence of “young upcomer” phenomenon
  • We tracked the development of every new project in July 2001 until now (total 1660 projects)
  • Maximal monthly growth per project is 13 while average monthly growth per project is just 0.3639
summary of results
Summary of results
  • Power law rules
    • Degree distributions, cluster distribution
  • Average degree increasing with time
  • Diameter decreasing with time
  • Clustering coefficient decreasing with time
  • Fitness existed in SourceForge
  • Projects have life cycle behaviors
conclusion
Conclusion
  • Study of SourceForge collaboration network can help us understanding the OSS community
  • We investigate not only the topological statistics but also the evolution of these statistics.
  • Simulation is needed to further investigation of SourceForge collaboration network.
terminology
Terminology
  • Degree
    • The count of edges connected to given vertex
  • Degree distribution
    • The distribution of degrees throughout a network
  • Cluster
    • The connected components of the network
  • Diameter
    • Average length of shortest paths between all pairs of vertices
  • Clustering coefficient (CC)
    • CCi: Fraction representing the number of links actually present relative to the total possible number of links among the vertices in its neighborhood.
    • CC: average of all CCi in a network
