slide1

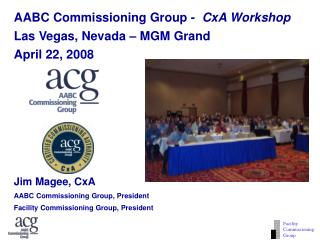

AABC Commissioning Group - CxA Workshop

Las Vegas, Nevada – MGM Grand

April 22, 2008

Jim Magee, CxA

AABC Commissioning Group, President

Facility Commissioning Group, President

overview
Cx Advocacy

Cx Process

Cx Team Roles and Responsibilities

Guidelines, Certifications, and Associations

Discussion

Overview
why commission
Better Buildings

Building owners are finding that the energy, water, and productivity savings achieved by commissioned buildings can offset the cost of the commissioning process. Studies indicate 8 to 20 percent savings in building operating costs over those in a non-commissioned building.

(Building Commissioning Guide, Version 2.2, GSA/DOE, dated July 30, 1998)

Why Commission?
why commission5
Better People

Aside from achieving documented cost savings and cost avoidance, commissioning enhances customer satisfaction by promoting proper training of the owner’s Operations & Maintenance staff, which increases the longevity and efficient operation of building systems.

Why Commission?
what is commissioning
A process of documentation, adjustment, testing, verification, and training, performed specifically to ensure that the finished facility operates in accordance with the owner’s documented project requirements and the construction documents.

It begins in pre-design and continues through design, construction, and the life of the facility.

(BCA draft document, 2004.)

What is Commissioning?
what is commissioning13
Design Intent Document

Details functional requirements and Owner’s expectations of how a building will be used and operated - OWNER’S PROJECT REQUIREMENTS

Basis for building commissioning

Basis of Design

The concepts, calculations, decisions, and product selections used to meet the OWNER’S PROJECT REQUIREMENTS

What is Commissioning?
what commissioning is not
Completing Standard Forms

Contractors’ QA/QC Program

Verification of the Contractors’ QA/QC Program

Construction Inspection

Construction Management Substitute

What Commissioning is NOT?
commissioning definitions
Commissioning Authority (CxA):

A person (or firm) representing the facility owner

Leader of the Commissioning Team

Authority of Cx Process – not design or means and methods

CxA not in chain of command – preserves objectivity

Commissioning Definitions
commissioning definitions16
Commissioning Provider (CP):

Independent Third-Party Commissioning Firm

A/E Firm

General Contractor

Construction Manager

Owner's Personnel

Commissioning Definitions
commissioning definitions17
Retro-Commissioning (RetroCx):

Commissioning an existing building that has never been commissioned

Re-Commissioning (ReCx):

Commissioning a building that has been previously commissioned

Continuous Commissioning (CCx):

Owner continues to collect and compare baseline data on selected building systems to ensure that the building functions optimally throughout its operating life

Commissioning Definitions
commissioning definitions18
Total Building Commissioning (TBCx)

Emphasizes that Commissioning is NOT only for the Mechanical and HVAC system, or any single system

Commissioning Team

Experts who, through coordinated actions, are responsible for carrying out the Commissioning Process

Commissioning Plan

A strategy overseen by the Commissioning Authority and prepared by the Commissioning Team

Commissioning Definitions
systems typically commissioned
Mechanical Systems

Heating, Ventilation and Air Conditioning (HVAC)

Building Automation Systems (BAS)

Fire Protection

Electrical Systems

Switchgear and Transformers

Grounding/Bonding, Circuitry

Generators and UPS Systems

Lighting and Lighting Controls

Specialty Systems

Security Systems and Fire Alarm

Voice/Data Systems

Systems Typically Commissioned
future commissioned systems
The National Institute for Building Sciences (NIBS) is currently developing commissioning requirements for the following systems.

Exterior Envelope

Roofing Systems

Structural Systems

Interior Systems

Elevator Systems

Plumbing Systems

Lighting Systems

Electrical Systems

Fire Protection Systems

Telecommunication Systems

Future Commissioned Systems
objections to commissioning
“Haven’t I already paid for a quality building in my design and construction fees?”

Designer’s (A/E) services typically do not include field verification that their design works as intended.

Construction Manager’s services typically do not include functional verification that the installed systems meet design intent.

Objections To Commissioning
objections to commissioning22
“Isn’t the Commissioning Authority just a ‘bigger hammer’ for the owner to use to pound the designer and contractor?”

No. The CA must be a team builder by using the commissioning process to the benefit of all.

No. The CA should respect the traditional construction disciplines. The CA has a distinct responsibility to owner for system quality and performance.

Objections To Commissioning
objections to commissioning23
“Isn’t commissioning just another layer of inspection?”

The CA is not a layer, but a catalyst for communication that makes quality solutions possible.

The CA is not inspector (fault finder, accuser).

The commissioning process provides verification that Owner’s Project Requirements implemented in design and construction.

Objections To Commissioning
commissioning costs
Commissioning New Construction

Approximately 0.5%-1.5% of Total Construction Cost

Commissioning Existing Buildings (RetroCx)

Approximately 3.0% - 5.0% of Annual Operating Cost

(Building Commissioning Guide, Version 2.2, DOE/GSA, July 30, 1998)

Commissioning Costs
commissioning costs25
Commissioning New Construction

Approximately 2%-3% of Mechanical System Construction Cost – (BCA Case Studies)

Approximately 1%-2% of Electrical System Construction Cost – (BCA Case Studies)

Commissioning Costs
what does commissioning cost
Commissioning(Cx)

(New Construction)

0.5 to 1.5 Percent of Total Construction Cost

Retrocommissioning (RetroCx)

(Existing Construction)

3.0 to 5.0 Percent of Total Operating Cost

Source: Building Commissioning Guide, Version 2.2, DOE/GSA, July 30, 1998

What Does Commissioning Cost?
what does commissioning cost27
The Economics of Commissioning What Does Commissioning Cost?
  • An Initial Budget Setting Thumb-Rule:

2 % - 3 % of mechanical construction cost

plus

1 % - 2 % of electrical construction cost

(Source: BCA. Based on six science building projects.)

what does commissioning cost28
The Economics of Commissioning What Does Commissioning Cost?

With Commissioning

Design Phase

Costs

Construction Phase Costs

First Year Warranty Period Costs

If planned correctly and implemented early enough in the design process, commissioning can be included with little or no cost impact*.

Without Commissioning

First Year Warranty Period Costs

Construction Phase Costs

Design Phase

Costs

* Based on research findings from University of Wisconsin,

ASERTTI Training Module, 1998

ashrae guideline 1
ASHRAE Guideline 1
  • Cx responsibilities statement in request for A/E design services.
  • Owner’s Program development and commitment.
  • Assign O&M personnel to the commissioning process.
  • Review and approve the Design Intent Document.
  • Review and approve the construction documents.
  • Provide competent documenting of training sessions (video, etc.)
  • Record construction progress (photo, video, narratives, etc.)
  • Review and comment on CA verification report.
  • 9. Review and accept the commissioning report
guideline o
Cx responsibilities statement in request for A/E design services.

Develop and commit to Owner’s Project Requirements.

Assign O&M personnel to the commissioning process.

Review and approve changes made in the Owner’s Project Requirements.

Review and approve the Construction Documents.

Provide competent documenting of training sessions (video, etc.)

Review and comment on the Cx Process Progress Reports.

Review and comment on the Cx Authority’s verification reports.

Review and accept the Cx Authority’s Commissioning Process Report

Guideline O:
owner s project requirements
Program requirements

Community context

Codes and regulations

Site and climate

Facility context and function

Facility technology

Sustainability

Cost

Schedule

Client’s needs and capabilities

Owner’s Project Requirements
leed ea prerequisite 1
Experienced, independent, CxA to owner

Review OPR and DID

Incorporate Cx requirements into CD’s

Create/execute Cx Plan

Verify installation and performance of Systems to be Commissioned

Complete and submit a Cx Report

LEED EA Prerequisite 1
ea credit 3 enhanced commissioning
Independent 3rd Party CxA

Review OPR, BOD and Design by mid-CD’s

Independent submittal review

Systems Manual

O&M and Occupant Training Verification

EA Credit 3 Enhanced Commissioning
elements of commissioning
Design Intent Documents (DID or OPR)

Design review

Site observations and site meetings

Resolution Tracking Forms (RTF’s)

System Verification Checklists (SVC’s)

Organized systems start-ups

Functional Performance Tests (FPT's)

Operation and Maintenance (O&M) training

O&M documentation

Commissioning report

Elements of Commissioning
phases of commissioning
Pre-Design Phase

Design Phase

Construction Phase

Acceptance Phase

Post-Acceptance Phase

Phases of Commissioning
pre design phase
Establish commissioning:

Allocate funds in budget

Comprehensive or Construction

Independent 3rd Party , Design Team, or Construction Team

HVAC, Electrical, Etc.

Pre-Design Phase
pre design phase40
Select a Commissioning Agency (CA)

Request for Qualifications

Request for Proposal

Pre-Design Phase
pre design phase41
Develop commissioning scope:

Match scope to budget

Needs based

Past experience

End-user needs

Maintenance priorities

Pre-Design Phase
pre design phase42
CA review of DID or OPR

Defined usage

Defined goals

Short term needs

Long term needs

Pre-Design Phase
design phase
Review design for commissioning, testing and O&M access and provisions

Adequate testing access

Adequate access for valves, dampers, control

Quantity and location of service valves

Coil pull access

Ladders and catwalks

Conformity to Owner’s Design Standards

Design Phase
design phase44
Prepare commissioning specification / plan

Develop commissioning plan

Commissioning team

Systems to be commissioned

Define approximate extent of testing

Contractor roles and responsibilities

Design Phase
design phase45
Establish commissioning in the project schedule:

General and Supplemental Conditions

Define commissioning activities in schedule

Note blocks of time for FPT’s in schedule – especially for phased projects

Define frequency of Cx meetings

Design Phase
construction phase
Review submittals

Checklist based on specification and Owner’s Design Standards

Check options – especially access

Check size for spatial application

Check valve sizing and application

Check for integration of components

Construction Phase
construction phase47
Update commissioning plan

Include revised schedule

SVC’s based on current information

Draft FPT’s for review

Discuss O&M Documentation

Provide construction observation procedures

Construction Phase
construction phase48
Coordination

Site observation

Cx Meetings

Resolution Tracking Forms (RTF’s)

System Verification Checklists (SVC’s)

Functional Performance Tests (FPT’s)

O&M Training Provisions

Construction Phase
construction phase49
Equipment and systems start-ups

Contractor start-up

Factory start-up

Documentation chain of submission

Temporary conditions

Maintenance responsibility

Construction Phase
construction phase50
TAB HVAC systems

Systems properly started

Systems under full control

Appropriate hardware and software interface

Coordination with other trades, especially TCC

Access to space

Construction Phase
construction phase51
Verify Building Automation System (BAS)

Installation complete per design

Installation complete per submittal / drawings

Start-up performed and documented

Project specific programming

Point-to-point checklists

Safeties tested and documented

Construction Phase
acceptance phase
Review TAB Report

Pages are numbered with index

All equipment is accounted for in report

No “extra” equipment shown in report

Performance is per design (± XX %)

Problems sufficiently documented in footnotes

Acceptance Phase
acceptance phase53
Functional Performance Tests (FPT’s)

Systems tested as noted in the Cx Plan

“Failure” modes for valves and dampers are not software driven

System is properly networked

Workstation graphics show appropriate response

Occupied / Unoccupied / Optimal Start

Acceptance Phase
acceptance phase54
O&M Training and Documentation

Manuals contain useable maintenance documents

Proper indexing and tabs

Training agenda tailored for owner’s needs

Documentation provided prior to training

Additional documentation provided at training

Training for systems and components

Acceptance Phase
acceptance phase55
Commissioning Report

Proper indexing and tabs

Documentation for all phases

Executive Summary

Provide supporting documentation (Sequence of Operation, Control Drawings, Etc.)

Acceptance Phase
post acceptance phase
Correct unresolved deficiencies

Unresolved RTF issues

Uncompleted CM/Owner punch lists

Conduct required re-tests

Outstanding or additional training

Post Acceptance Phase
post acceptance phase57
Carry out specified off-season testing

FPT’s per the Commissioning Plan

Choose near-design day

Build on completed FPT’s

Utilize BAS trending

Post Acceptance Phase
post acceptance phase58
Post-occupancy monitoring

Scheduled site visits

Remote (web) monitoring

Warranty items

Owner conference

User conference

Post Acceptance Phase
post acceptance phase59
Review usage changes

Computers / office machines

Furniture placement

Occupancy change

Closet to office

Energy saving methodology

Post Acceptance Phase
post acceptance phase60
Update commissioning documentation

Resolved issues

Off-Season tests

Usage Changes

Provide additional volume for Cx Report

Post Acceptance Phase
team effort
Commissioning succeeds when…

Every team member understands and carries out their responsibilities

Every team member cooperates and coordinates with each other and third-party agencies

Communication and accountability essential for effective teamwork – and they are the responsibility of the commissioning agent.

Team Effort
commissioning team members
Owner / Operator

Architect

Design Consultants

Commissioning Agent

Construction Manager (or General Contractor)

Mechanical Contractor

Electrical Contractor

Temperature Controls Contractor

Test and Balance Contractor

Commissioning Team Members
commissioning team members64
Potential Team Members:

Equipment Vendors

Specialty Trades

Specialty Consultants

Program Manager

Service Contract Providers

BAS Specialists

IT Support Groups

Commissioning Team Members
commissioning team roles
Owner / Operator

Assign Cx Team Member and attend meetings

Retain a commissioning agent

Communicate project requirements to the design team

Coordinate facilities and staff participation

Conduct regular site observation

Commissioning Team Roles
commissioning team roles66
Architect

Assign Cx Team Member and attend meetings

Coordinate work of design consultants

Consider spatial requirements

Consider room naming convention

Conduct regular site observation

Coordinate design and changes with owner and end-users

Commissioning Team Roles
commissioning team roles67
Design Consultants

Assign Cx Team Members and attend meetings

Provide Basis of Design and Design Intent

Respond to RFI’s and CO’s

Conduct regular site observation

Coordinate design and changes with owner and end-users

Review O&M manuals, as-built drawings and other specified documentation

Provide HVAC training on the design intent

Commissioning Team Roles
commissioning team roles68
Commissioning Agent

Assign Cx Team Leader and attend meetings

Review Design

Provide Commissioning Plan and Specification

Conduct regular site observation visits

Provide System Verification Checklists

Monitor system start-ups

Conduct Functional Performance Tests

Review O&M documentation and training

Commissioning Team Roles
commissioning team roles69
Construction Manager

Assign Cx Team Member and attend meetings

Project Scheduling

Manage overall completion of work

Manage project documentation

Coordination of contractors

Maintaining specified building conditions

Commissioning Team Roles
commissioning team roles70
Mechanical Contractor

Assign Cx Team Member and attend meetings

Manage subcontractors and vendors

Document Progress (SVC’s)

Coordinate equipment start-up

Operate systems as required for Functional Performance Tests

Plan and deliver O&M staff training

Provide O&M manuals, as-built drawings and other specified documentation

Commissioning Team Roles
commissioning team roles71
Electrical Contractor

Assign Cx Team Member and attend meetings

Coordinate electrical installation with mechanical work

Attend meetings

Document Progress (SVC’s)

Operate systems as required for Functional Performance Tests

Plan and deliver O&M staff training

Provide O&M manuals, as-built drawings and other specified documentation

Commissioning Team Roles
commissioning team roles72
Temperature Controls Contractor

Assign Cx Team member and attend meetings

Design and complete controls installation as required by DID/OPR

Document Progress (SVC’s)

Coordinate with TAB agency

Operate systems as required for Functional Performance Tests

Plan and deliver O&M staff training

Provide O&M manuals, as-built drawings and other specified documentation

Commissioning Team Roles
commissioning team roles73
Test and Balance Contractor

Assign Cx team member and attend meetings

Review design for adequate testing provisions

Submit TAB data sheets for approval

Coordinate work with master schedule

Review site conditions prior to field work

Submit complete and accurate TAB Report

Participate in verification of TAB Report

Commissioning Team Roles
the need for guidelines
Uniform delivery of services

Cx adoption as standard practice

Owner procurement / selection of providers

Continuing education

Benchmarking of Cx Benefits

Training competent Cx service providers

Client education and cooperation

Efficient Cx interface with designers, contractors, vendors, etc

The Need for Guidelines
guidelines
ASHRAE Guideline 0-2005: The Commissioning Process

ASHRAE Guideline 1 –1996: The HVAC Commissioning Process

ACG Commissioning Guideline – 2005

NECA90-2004: Recommended Practices for Commissioning Building Electrical Systems

ISPE Pharmaceutical Engineering Guide Volume 5: Commissioning and Qualification

Guidelines
certifications
AABC Commissioning Group (ACG)

Building Commissioning Association (BCxA)

Institute of Electrical & Electronic Engineers (IEEE)

International Society For Pharmaceutical Engineering (ISPE)

National Environmental Balancing Bureau (NEBB)

Sheet Metal and Air Conditioning Contractors' National Association / Testing Adjusting and Balancing Bureau (SMACNA / TABB)

University of Wisconsin

Certifications
resources
www.commissioning.org for AABC Commissioning Group

www.ashrae.org for American Society of Heating, Refrigerating, and Air-Conditioning Engineers

www.bcxa.org for Building Commissioning Association

www.buildingamerica.gov for U. S. Dept. of Energy Building America Program

www.facomgrp.com for Facility Commissioning Group

Resources
resources79
www.ieee.org for Institute of Electrical & Electronic Engineers

www.ispe.org for International Society For Pharmaceutical Engineering

www.nebb.org for National Environmental Balancing Bureau

www.peci.org for Portland Energy Conservation, Inc.

www.smacna.org for Sheet Metal and Air Conditioning Contractors' National Balancing Bureau

www.usgbc.org for United States Green Building Council

Resources
slide80

What is Commissioning?

(validates the “design”!)

“retro” ; “re”; or “ongoing”

Cx

Commissioning

Design

Construction

Commissioning

validates the design!

That the design works and meets the “design intent”

Design

Intent

O & M

Changing Needs

“Inspections” validate construction

That the construction is installed correctly per the “design”

This is not commissioning!

architect s role
“Master Builder”

Coordinates the whole project

Supports Commissioning

Manages relationship with the Owner

Maintain the Owner’s Program Requirements

Architect’s Role
benefits
Better bid documents

More accurate budgets

More “control” of project

Projects delivered on time

Fewer change orders

Fewer warranty issues

Satisfied Client

Benefits
slide83

AABC Commissioning Group CxA Workshop

New York City – Javits Convention Center

AHR Expo

January 23, 2008

Jim Magee, CxA

AABC Commissioning Group, President

Facility Commissioning Group, President
