1. Reversible data hiding scheme based on image interpolation using decimal signed digit stream Reza Ghorbandost Soveiri Maryam Rajabzadeh Asaar

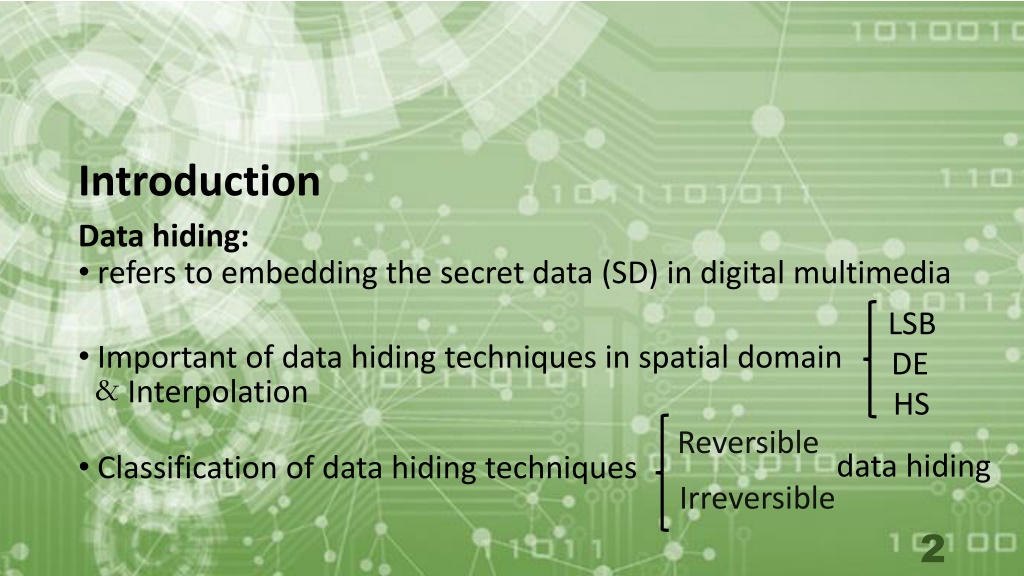

2. Introduction Data hiding: • refers to embedding the secret data (SD) in digital multimedia • Important of data hiding techniques in spatial domain & Interpolation • Classification of data hiding techniques LSB DE HS Reversible data hiding Irreversible

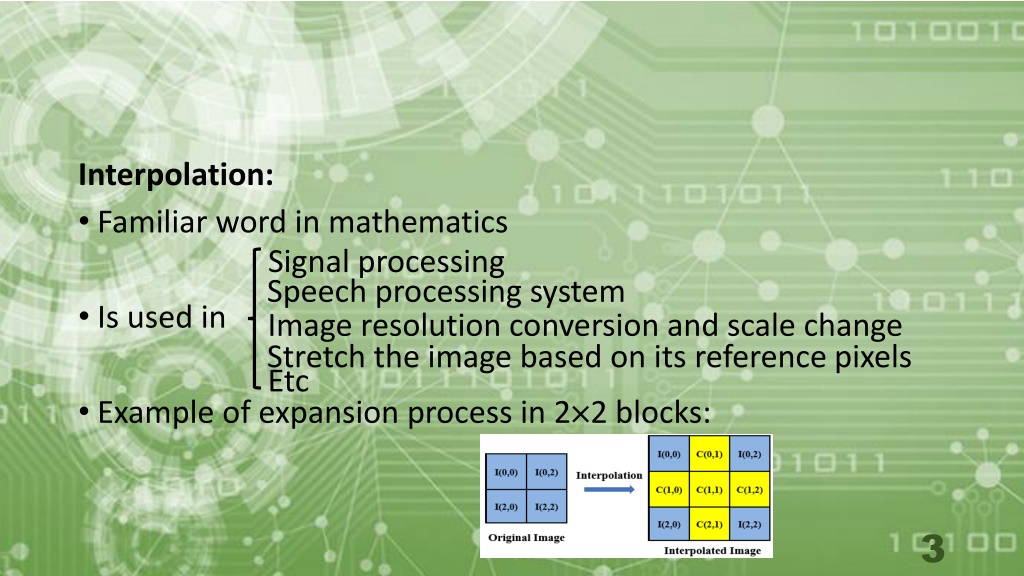

3. Interpolation: • Familiar word in mathematics • Is used in • Example of expansion process in 2×2 blocks: Signal processing Speech processing system Image resolution conversion and scale change Stretch the image based on its reference pixels Etc

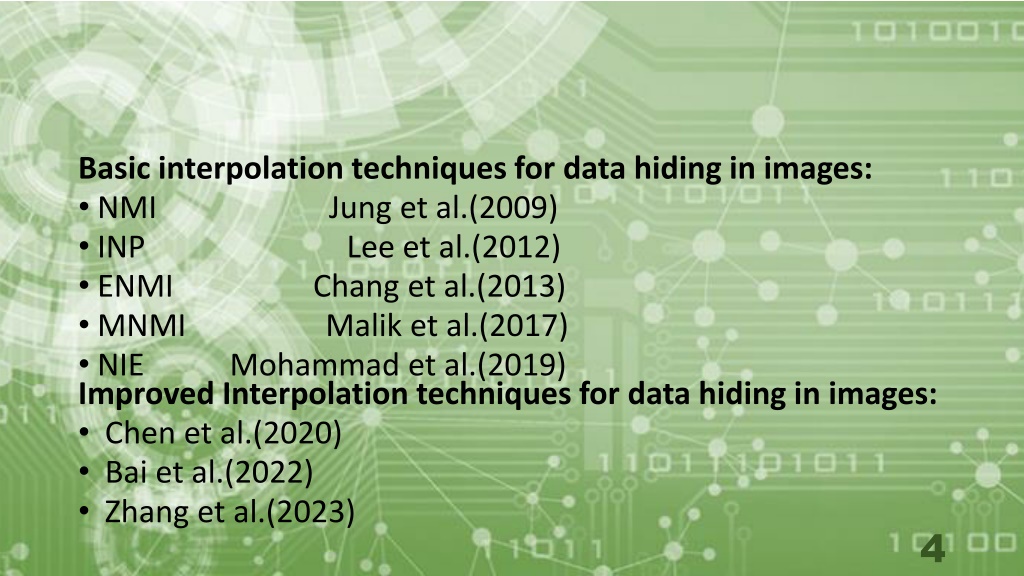

4. Basic interpolation techniques for data hiding in images: • NMIJung et al.(2009) • INP Lee et al.(2012) • ENMI Chang et al.(2013) • MNMI Malik et al.(2017) • NIE Mohammad et al.(2019) Improved Interpolation techniques for data hiding in images: • Chen et al.(2020) • Bai et al.(2022) • Zhang et al.(2023)

5. The objectives of research • Achieving a simple algorithmcompared to previous methods • Achieving a high EC compared to previous methods • Appropriatevisual quality compared to previous methods • Independence of embeddable SD from reference pixels size • Security in accessing to SD with strategy of SD conversion

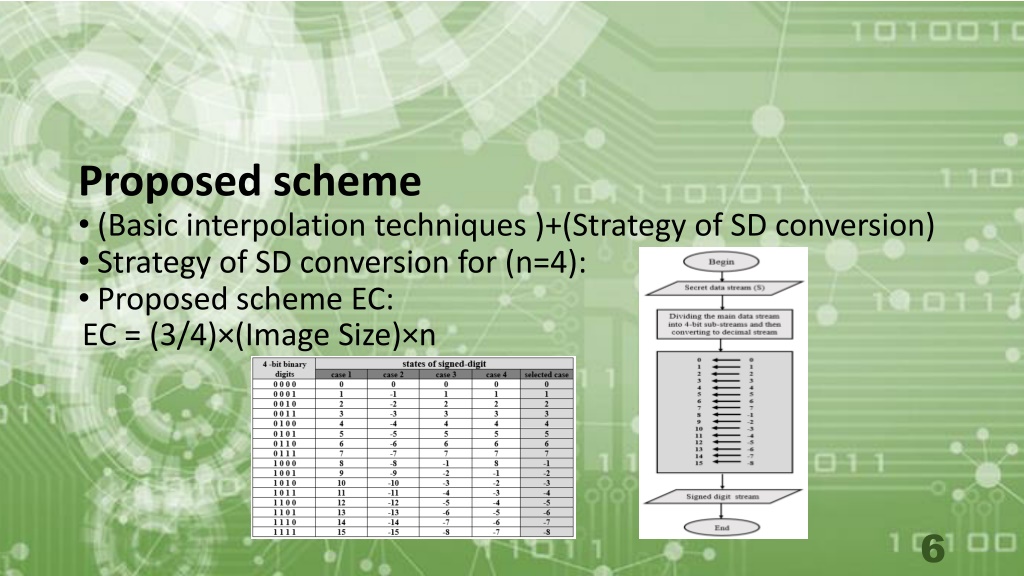

6. Proposed scheme • (Basic interpolation techniques )+(Strategy of SD conversion) • Strategy of SD conversion for (n=4): • Proposed scheme EC: EC = (3/4)×(Image Size)×n

7. Strategy of SD conversion for (n=5):

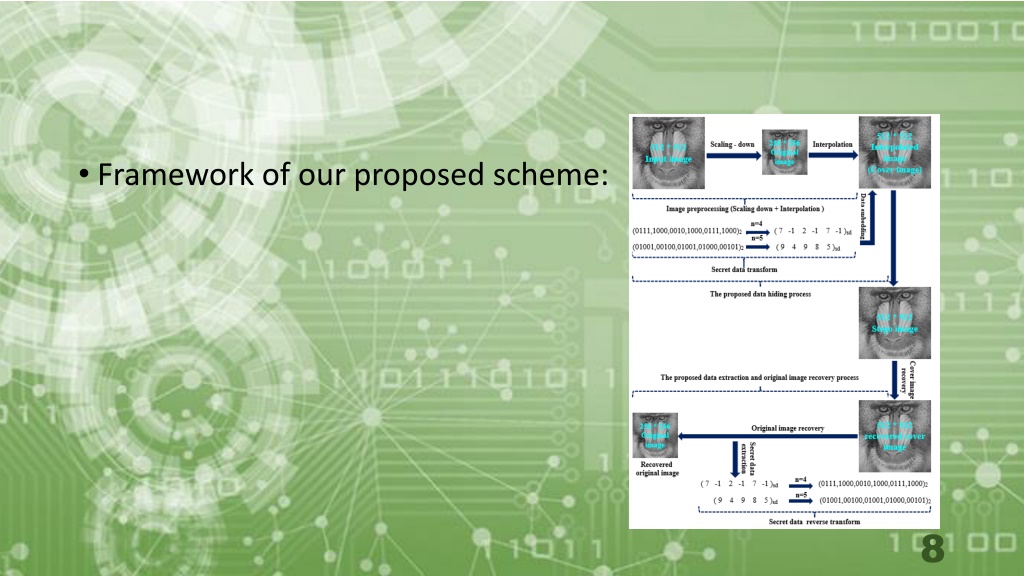

8. Framework of our proposed scheme:

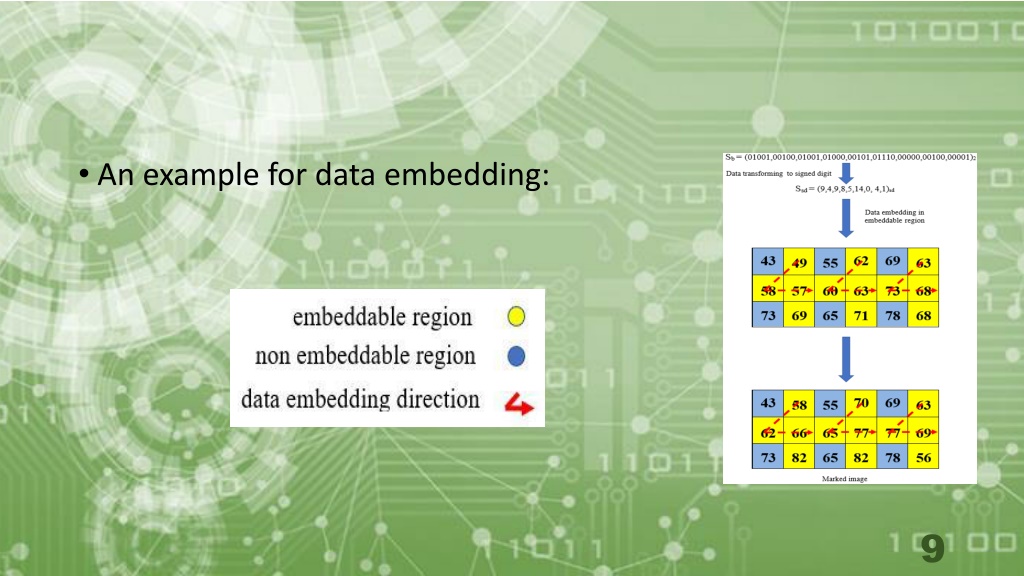

9. An example for data embedding:

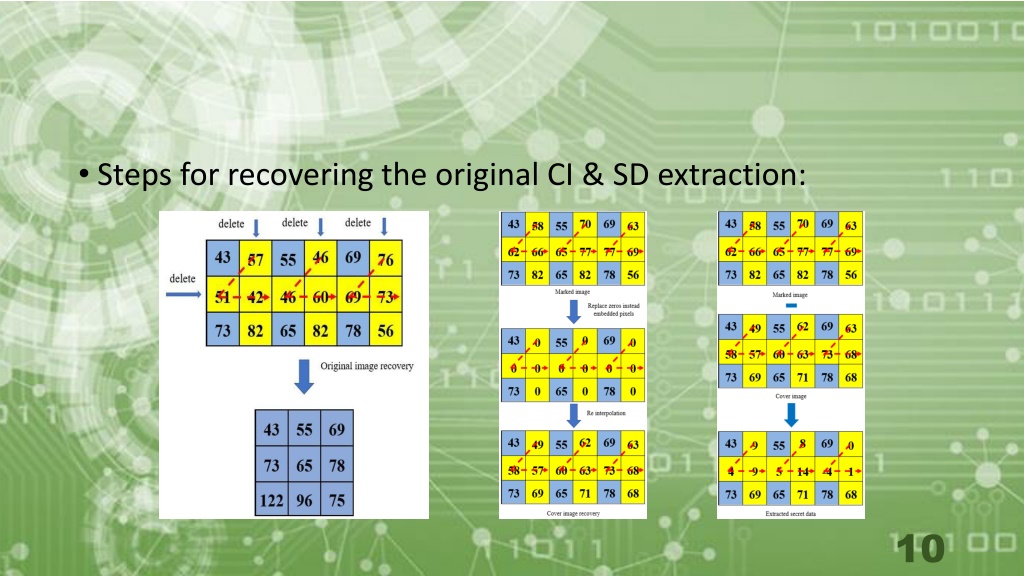

10. Steps for recovering the original CI & SD extraction:

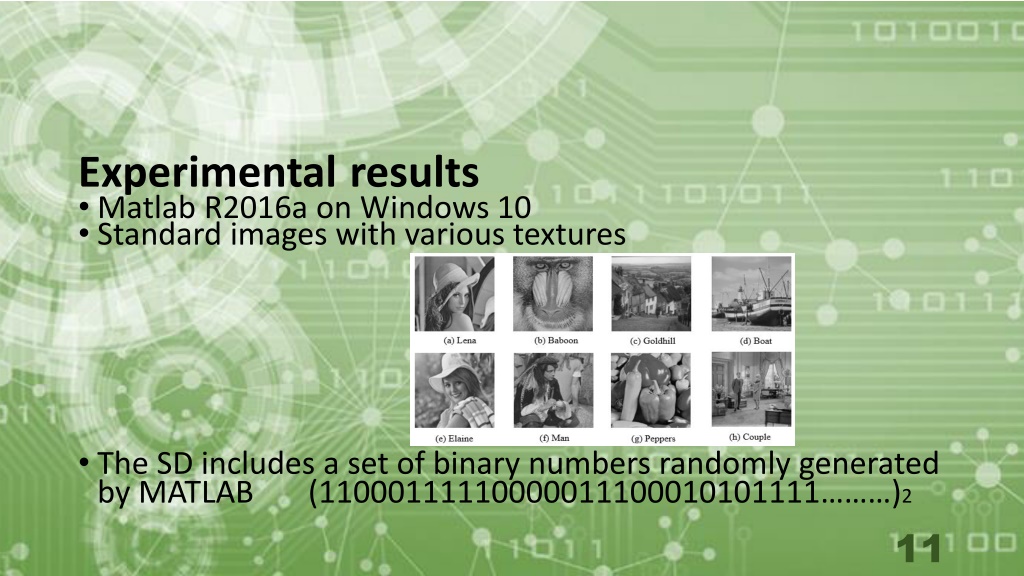

11. Experimentalresults • Matlab R2016a on Windows 10 • Standard images with various textures • The SD includes a set of binary numbers randomly generated by MATLAB (11000111110000011100010101111………)2

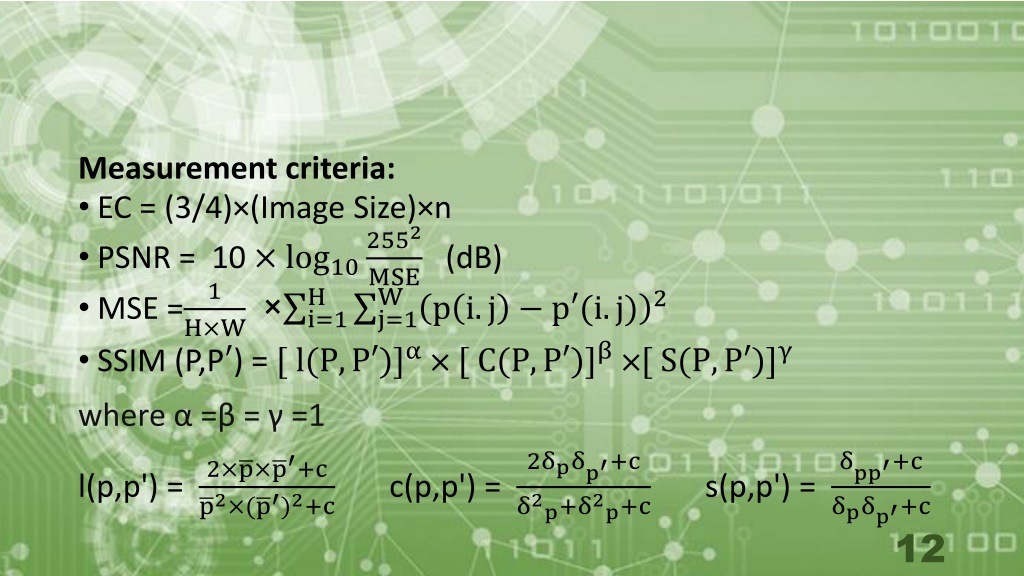

12. Measurement criteria: • EC = (3/4)×(Image Size)×n • PSNR = 10 (dB) • MSE =× • SSIM (P,P) = × × where α =β = γ =1 l(p,p') =c(p,p') =s(p,p') =

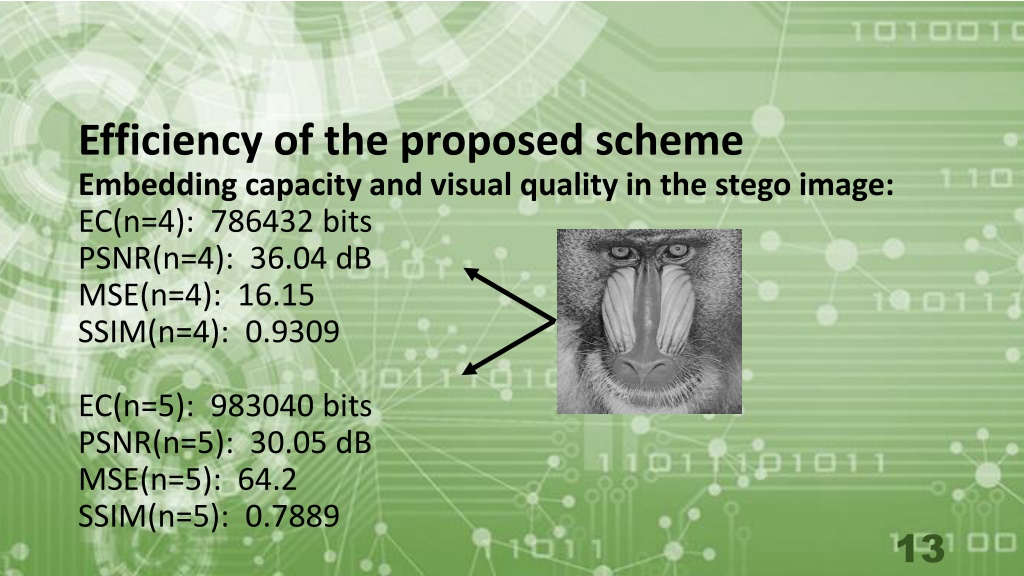

13. Efficiency of the proposed schemeEmbedding capacity and visual quality in the stego image:EC(n=4): 786432 bits PSNR(n=4): 36.04 dBMSE(n=4): 16.15SSIM(n=4): 0.9309EC(n=5): 983040 bitsPSNR(n=5): 30.05 dBMSE(n=5): 64.2SSIM(n=5): 0.7889

14. Overall comparisons of HC and PSNR for (n=4)

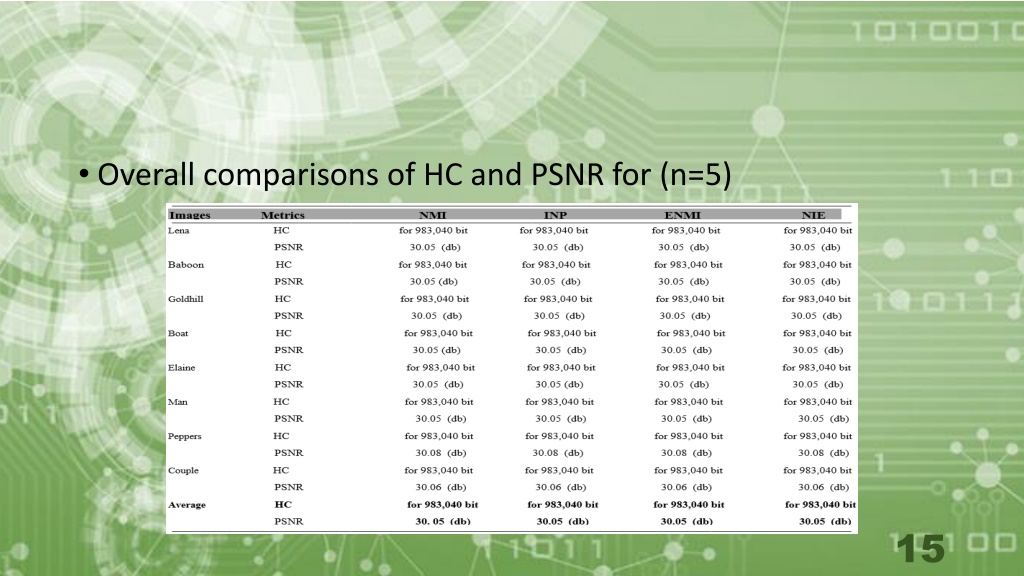

15. Overall comparisons of HC and PSNR for (n=5)

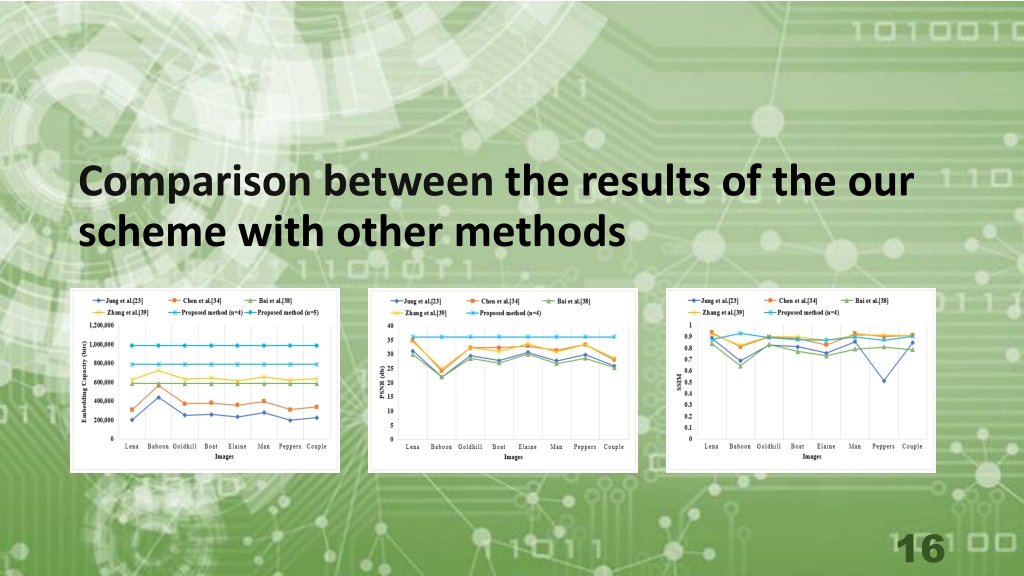

16. Comparison between the results of the our scheme with other methods

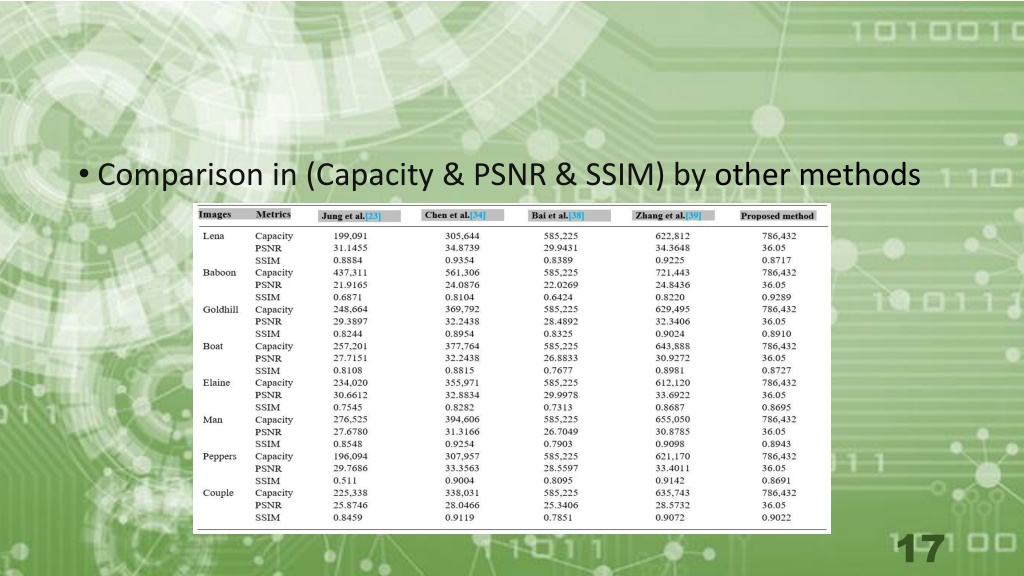

17. Comparison in (Capacity & PSNR & SSIM) by other methods

18. Overall comparisons of EC and PSNR in standard images

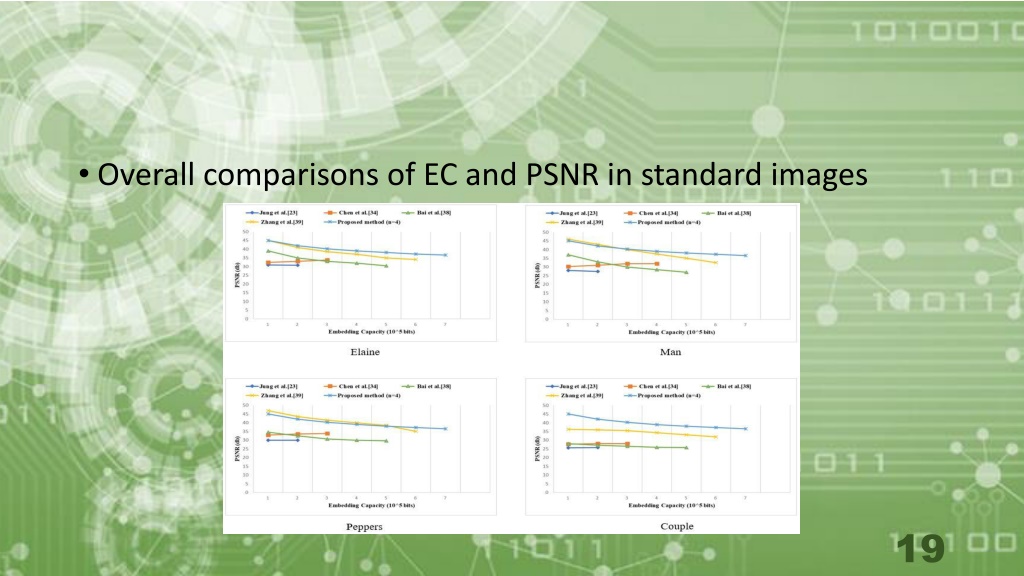

19. Overall comparisons of EC and PSNR in standard images

20. Conclusion • Reversible data hiding scheme based on interpolation • Applicable on all interpolation techniques • Using a strategy of data conversion for embedding • Creating the high embedding capacity on all standard images • Achieving to good visual quality on all standard images

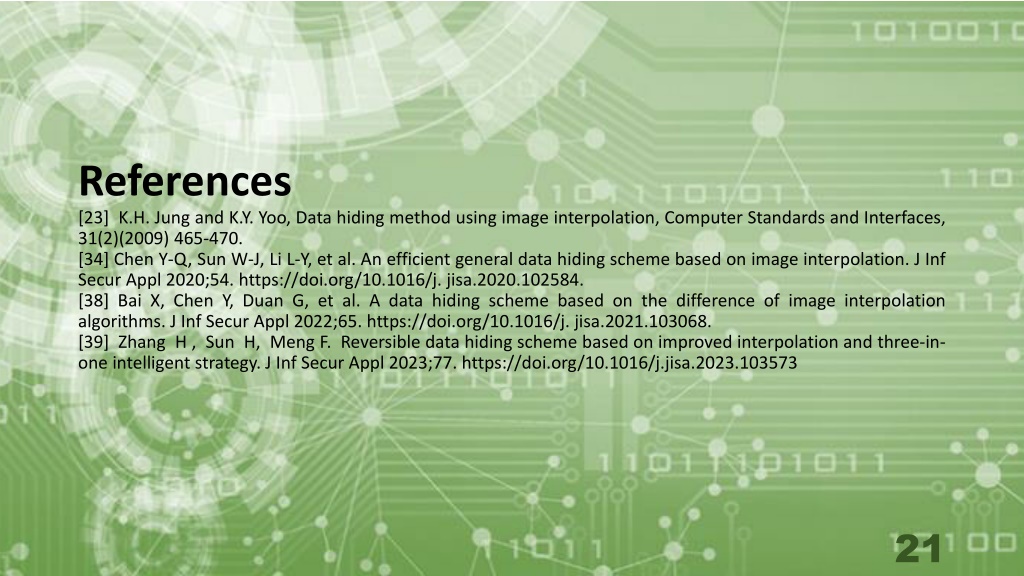

21. References [23] K.H. Jung and K.Y. Yoo, Data hiding method using image interpolation, Computer Standards and Interfaces, 31(2)(2009) 465-470. [34] Chen Y-Q, Sun W-J, Li L-Y, et al. An efficient general data hiding scheme based on image interpolation. J Inf Secur Appl 2020;54. https://doi.org/10.1016/j. jisa.2020.102584. [38] Bai X, Chen Y, Duan G, et al. A data hiding scheme based on the difference of image interpolation algorithms. J Inf Secur Appl 2022;65. https://doi.org/10.1016/j. jisa.2021.103068. [39] Zhang H , Sun H, Meng F. Reversible data hiding scheme based on improved interpolation and three-in-one intelligent strategy. J Inf Secur Appl 2023;77. https://doi.org/10.1016/j.jisa.2023.103573
