cis 570 advanced computer systems university of massachusetts dartmouth

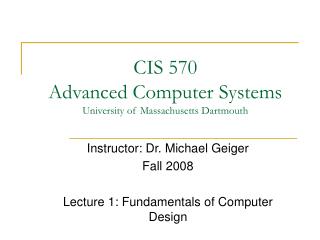

CIS 570Advanced Computer SystemsUniversity of Massachusetts Dartmouth

Instructor: Dr. Michael Geiger

Fall 2008

Lecture 1: Fundamentals of Computer Design

outline
Outline
  • Syllabus & course policies
  • Changes in computer architecture
  • What is computer architecture?
  • Design principles

M. Geiger CIS 570 Lec. 1

syllabus notes
Syllabus notes
  • Course web site (still under construction): http://www.cis.umassd.edu/~mgeiger/ cis570/f08.htm
  • TA: To be determined
  • My info:
    • Office: Science & Engineering, 221C
    • Office hours: M 1:30-2:30, T 2-3:30, Th 2:30-4
    • E-mail: mgeiger@umassd.edu
  • Course text: Hennessy & Patterson’s Computer Architecture: A Quantitative Approach, 4th ed.

M. Geiger CIS 570 Lec. 1

course objectives
Course objectives
  • To understand the operation of modern microprocessors at an architectural level.
  • To understand the operation of memory and I/O subsystems and their relation to overall system performance.
  • To understand the benefits of multiprocessor systems and the difficulties in designing and utilizing them.
  • To gain familiarity with simulation techniques used in research in computer architecture.

M. Geiger CIS 570 Lec. 1

course policies
Course policies
  • Prereqs: CIS 273 & 370 or equivalent
  • Academic honesty
    • All work individual unless explicitly stated otherwise (e.g., final projects)
    • May discuss concepts (e.g., how does Tomasulo’s algorithm work) but not solutions
    • Plagiarism is also considered cheating
    • Any assignment or portion of an assignment violating this policy will receive a grade of 0
    • More severe or repeat infractions may incur additional penalties, up to and including a failing grade in the class

M. Geiger CIS 570 Lec. 1

grading policies
Grading policies
  • Assignment breakdown:
    • Problem sets: 20%
    • Simulation exercises: 10%
    • Research project (including report & presentation): 20%
    • Midterm exam: 15%
    • Final exam: 25%
    • Quizzes & participation: 10%
  • Late assignments: 10% per day

M. Geiger CIS 570 Lec. 1

topic schedule
Topic schedule
  • Computer design fundamentals
  • Basic ISA review
  • Architectural simulation
  • Uniprocessor systems
    • Advanced pipelining—exploiting ILP & TLP
    • Memory hierarchy design
    • Storage & I/O
  • Multiprocessor systems
    • Memory in multiprocessors
    • Synchronization
    • Interconnection networks

M. Geiger CIS 570 Lec. 1

changes in computer architecture
Changes in computer architecture
  • Old Conventional Wisdom: Power is free, Transistors expensive
  • New Conventional Wisdom: “Power wall” Power expensive, Xtors free (Can put more on chip than can afford to turn on)
  • Old CW: Sufficiently increasing Instruction Level Parallelism via compilers, innovation (Out-of-order, speculation, VLIW, …)
  • New CW: “ILP wall” law of diminishing returns on more HW for ILP
  • Old CW: Multiplies are slow, Memory access is fast
  • New CW: “Memory wall” Memory slow, multiplies fast (200 clock cycles to DRAM memory, 4 clocks for multiply)
  • Old CW: Uniprocessor performance 2X / 1.5 yrs
  • New CW: Power Wall + ILP Wall + Memory Wall = Brick Wall
    • Uniprocessor performance now 2X / 5(?) yrs

 Sea change in chip design: multiple “cores” (2X processors per chip / ~ 2 years)

      • More simpler processors are more power efficient

M. Geiger CIS 570 Lec. 1

uniprocessor performance
Uniprocessor performance

From Hennessy and Patterson, Computer Architecture: A Quantitative Approach, 4th edition, October, 2006

  • VAX : 25%/year 1978 to 1986
  • RISC + x86: 52%/year 1986 to 2002
  • RISC + x86: ??%/year 2002 to present

M. Geiger CIS 570 Lec. 1

chip design changes
Chip design changes
  • Intel 4004 (1971): 4-bit processor,2312 transistors, 0.4 MHz, 10 micron PMOS, 11 mm2 chip
  • RISC II (1983): 32-bit, 5 stage pipeline, 40,760 transistors, 3 MHz, 3 micron NMOS, 60 mm2 chip
  • 125 mm2 chip, 0.065 micron CMOS = 2312 RISC II+FPU+Icache+Dcache

M. Geiger CIS 570 Lec. 1

from ilp to tlp dlp
From ILP to TLP & DLP
  • (Almost) All microprocessor companies moving to multiprocessor systems
    • Embedded domain is the lone holdout
  • Single processors gain performance by exploiting instruction level parallelism (ILP)
  • Multiprocessors exploit either:
    • Thread level parallelism (TLP), or
    • Data level parallelism (DLP)
  • What’s the problem?

M. Geiger CIS 570 Lec. 1

from ilp to tlp dlp cont
From ILP to TLP & DLP (cont.)
  • We’ve got tons of infrastructure for single-processor systems
    • Algorithms, languages, compilers, operating systems, architectures, etc.
    • These don’t exactly scale well
  • Multiprocessor design: not as simple as creating a chip with 1000 CPUs
    • Task scheduling/division
    • Communication
    • Memory issues
    • Even programming  moving from 1 to 2 CPUs is extremely difficult
  • Not strictly computer architecture, but it can’t happen without architects

M. Geiger CIS 570 Lec. 1

cis 570 approach
CIS 570 Approach
  • How are we going to address this change?
    • Start by going through single-processor systems
      • Study ILP and ways to exploit that
      • Delve into memory hierarchies for single processors
      • Talk about storage and I/O systems
      • We may touch on embedded systems at this point
    • Then, we’ll look at multiprocessor systems
      • Discuss TLP and DLP
      • Talk about how multiprocessors affect memory design
      • Cover interconnection networks

M. Geiger CIS 570 Lec. 1

what is computer architecture
What is computer architecture?

software

instruction set

  • Classical view: instruction set architecture (ISA)
    • Boundary between hardware and software
    • Provides abstraction at both high level and low level

hardware

M. Geiger CIS 570 Lec. 1

isa vs computer architecture
ISA vs. Computer Architecture
  • Modern issues aren’t in instruction set design
    • “Architecture is dead” … or is it?
  • Computer architecture now encompasses a larger range of technical issues
  • Modern view: ISA + design of computer organization & hardware to meet goals and functional requirements
    • Organization: high-level view of system
    • Hardware: specifics of a given system
  • Function of complete system now the issue

M. Geiger CIS 570 Lec. 1

the roles of computer architecture
The roles of computer architecture
  • … as David Patterson sees it, anyway
  • Other fields borrow ideas from architecture
  • Anticipate and exploit advances in technology
  • Develop well-defined, thoroughly tested interfaces
  • Quantitative comparisons to determine when goals are reached
  • Quantitative principles of design

M. Geiger CIS 570 Lec. 1

goals and requirements
Goals and requirements
  • What goals might we want to meet?
    • Performance
    • Power
    • Price
    • Dependability
  • We’ll talk about how to quantify these as needed throughout the semester
    • Primarily focus on performance (both uniprocessor & multiprocessor systems) and dependability (mostly storage systems)

M. Geiger CIS 570 Lec. 1

design principles
Design principles
  • Take advantage of parallelism
  • Principle of locality
  • Focus on the common case
  • Amdahl’s Law
  • Generalized processor performance

M. Geiger CIS 570 Lec. 1

1 take advantage of parallelism
1. Take advantage of parallelism
  • Increasing throughput of server computer via multiple processors or multiple disks
  • Detailed HW design
    • Carry lookahead adders uses parallelism to speed up computing sums from linear to logarithmic in number of bits per operand
    • Multiple memory banks searched in parallel in set-associative caches
  • Pipelining: overlap instruction execution to reduce the total time to complete an instruction sequence.
    • Not every instruction depends on immediate predecessor  executing instructions completely/partially in parallel possible
    • Classic 5-stage pipeline: 1) Instruction Fetch (Ifetch), 2) Register Read (Reg), 3) Execute (ALU), 4) Data Memory Access (Dmem), 5) Register Write (Reg)

M. Geiger CIS 570 Lec. 1

2 principle of locality
2. Principle of locality
  • The Principle of Locality:
    • Program access a relatively small portion of the address space at any instant of time.
  • Two Different Types of Locality:
    • Temporal Locality (Locality in Time): If an item is referenced, it will tend to be referenced again soon (e.g., loops, reuse)
    • Spatial Locality (Locality in Space): If an item is referenced, items whose addresses are close by tend to be referenced soon (e.g., straight-line code, array access)
  • Last 30 years, HW relied on locality for memory perf.
    • Guiding principle behind caches
  • To some degree, guides instruction execution, too (90/10 rule)

MEM

P

$

M. Geiger CIS 570 Lec. 1

3 focus on the common case
3. Focus on the common case
  • In making a design trade-off, favor the frequent case over the infrequent case
    • E.g., Instruction fetch and decode unit used more frequently than multiplier, so optimize it 1st
    • E.g., If database server has 50 disks / processor, storage dependability dominates system dependability, so optimize it 1st
  • Frequent case is often simpler and can be done faster than the infrequent case
    • E.g., overflow is rare when adding 2 numbers, so improve performance by optimizing more common case of no overflow
    • May slow down overflow, but overall performance improved by optimizing for the normal case
  • What is frequent case and how much performance improved by making case faster => Amdahl’s Law

M. Geiger CIS 570 Lec. 1

4 amdahl s law
4. Amdahl’s Law

Best you could ever hope to do:

M. Geiger CIS 570 Lec. 1

5 processor performance

CPU time = Seconds = Instructions x Cycles x Seconds

Program Program Instruction Cycle

5. Processor performance

Inst Count CPI Clock Rate

Program X

Compiler X (X)

Inst. Set. X X

Organization X X

Technology X

M. Geiger CIS 570 Lec. 1

next week
Next week
  • Review of ISAs (Appendix B)
  • Review of pipelining basics (Appendix A)
  • Discussion of architectural simulation

M. Geiger CIS 570 Lec. 1

acknowledgements
Acknowledgements
  • This lecture borrows heavily from David Patterson’s lecture slides for EECS 252: Graduate Computer Architecture, at the University of California, Berkeley
  • Many figures and other information are taken from Hennessy and Patterson, Computer Architecture: A Quantitative Approach, 4th ed unless otherwise noted

M. Geiger CIS 570 Lec. 1
