Functions Of A Grounding Rod

A grounding system, which is made up of a grounding rod and wires, provides a low-impedance path to the ground. We are a full service firm aligned to solve your most complex challenges in grounding, surge suppression and lightning protection. Our integrated approach weighs all of the factors affecting your exposure to lightning and ensures the resulting solution brings the risks within your acceptable range. Contact an LEC expert today - https://www.lightningprotection.com/grounding-earthing/<br>

RandolphPerkins
Download Presentation

Functions Of A Grounding Rod

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. Functions Of A Functions Of A Grounding Rod Grounding Rod

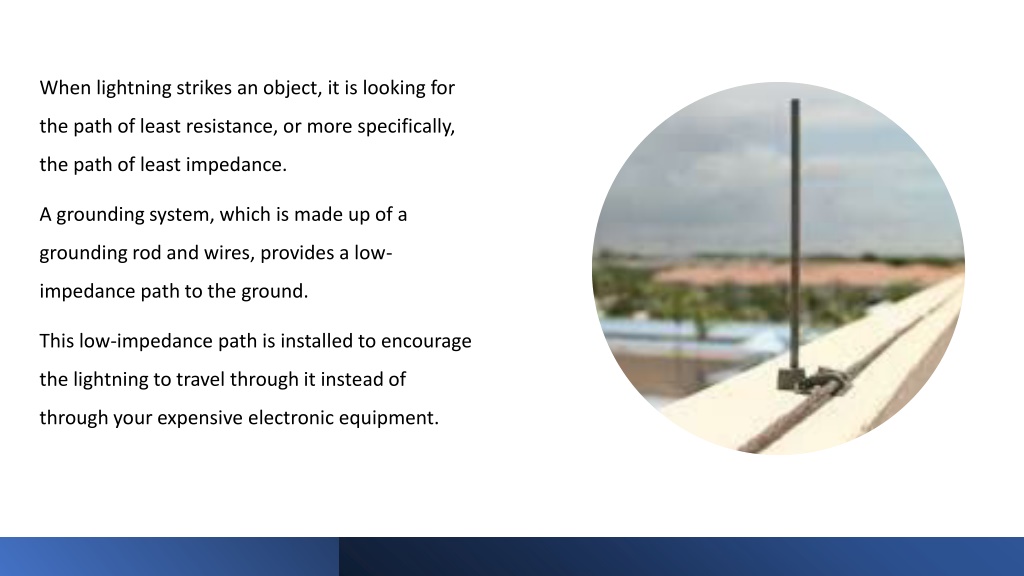

  2. When lightning strikes an object, it is looking for the path of least resistance, or more specifically, the path of least impedance. A grounding system, which is made up of a grounding rod and wires, provides a low- impedance path to the ground. This low-impedance path is installed to encourage the lightning to travel through it instead of through your expensive electronic equipment.

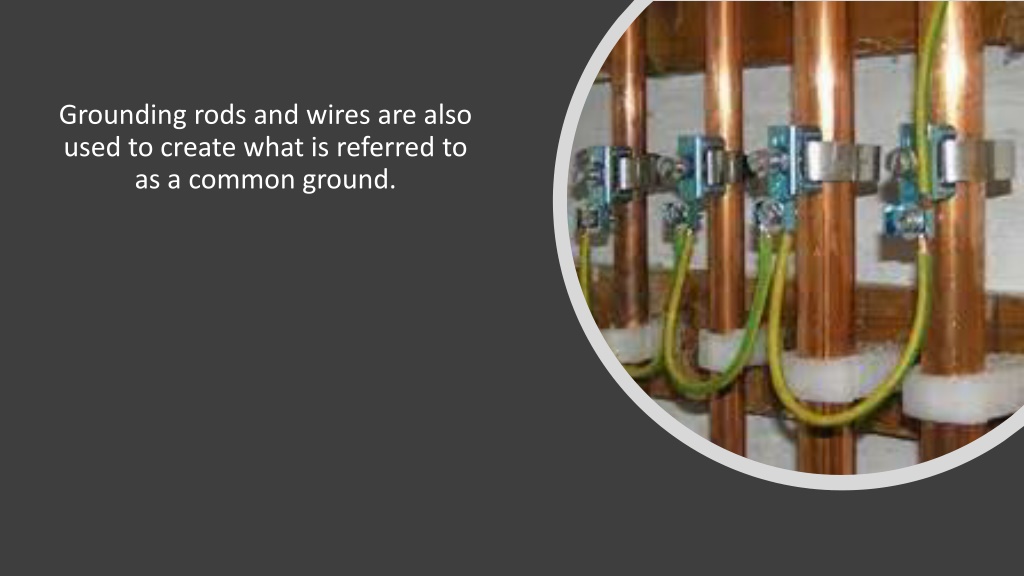

  3. Grounding rods and wires are also used to create what is referred to as a common ground.

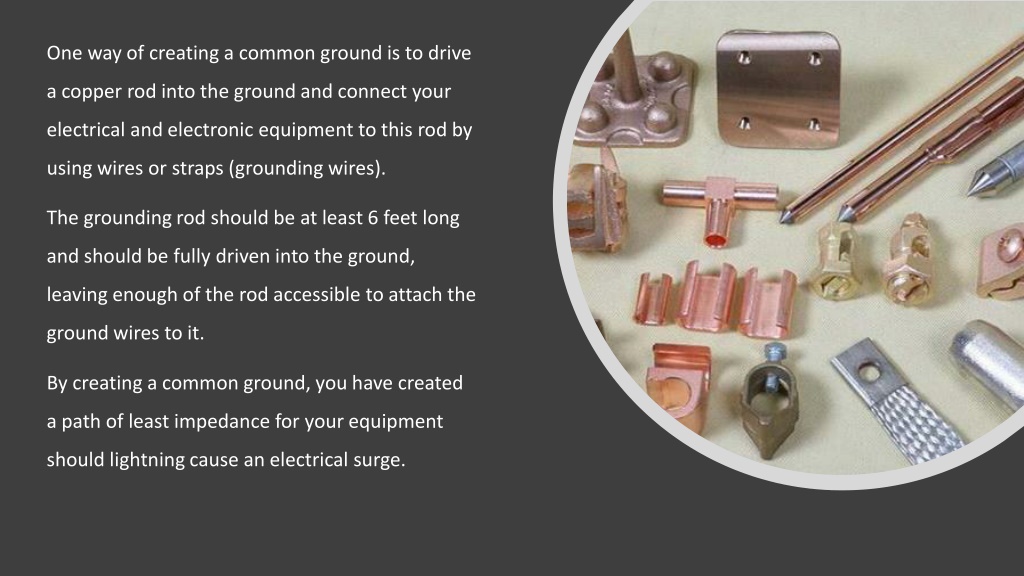

  4. One way of creating a common ground is to drive a copper rod into the ground and connect your electrical and electronic equipment to this rod by using wires or straps (grounding wires). The grounding rod should be at least 6 feet long and should be fully driven into the ground, leaving enough of the rod accessible to attach the ground wires to it. By creating a common ground, you have created a path of least impedance for your equipment should lightning cause an electrical surge.

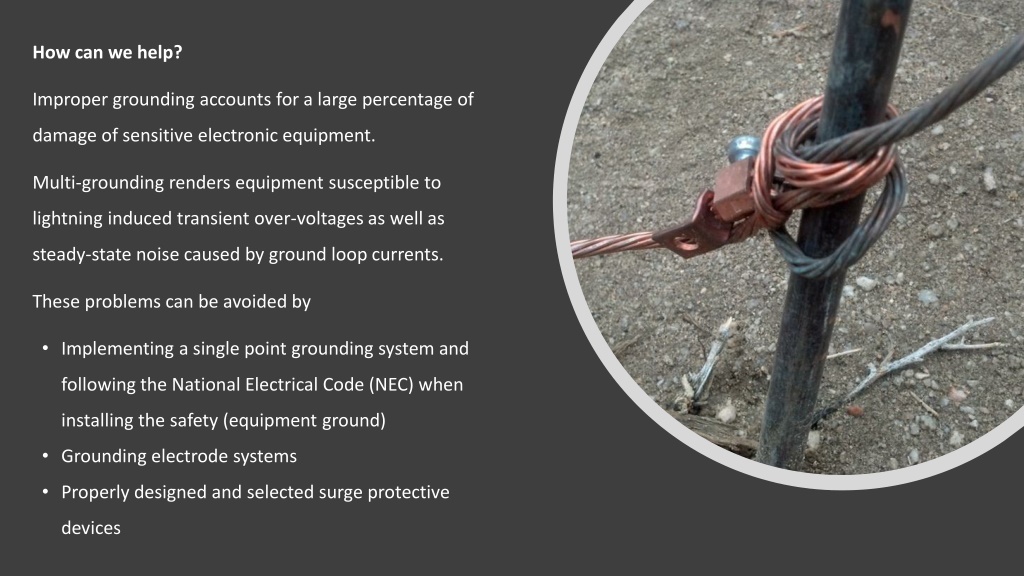

  5. How can we help? Improper grounding accounts for a large percentage of damage of sensitive electronic equipment. Multi-grounding renders equipment susceptible to lightning induced transient over-voltages as well as steady-state noise caused by ground loop currents. These problems can be avoided by • Implementing a single point grounding system and following the National Electrical Code (NEC) when installing the safety (equipment ground) • Grounding electrode systems • Properly designed and selected surge protective devices

  6. Our patented Chem rod uses advanced engineering to achieve a consistent, low-impedance electrical connection with the earth, even in unfavourable and varying ground conditions (like permafrost). We are a full-service firm aligned to solve your most complex challenges in grounding, surge suppression and lightning protection. Our integrated approach weighs the factors affecting your exposure to lightning and ensures the resulting solution brings the risks within your acceptable range. Contact an LEC expert today!
