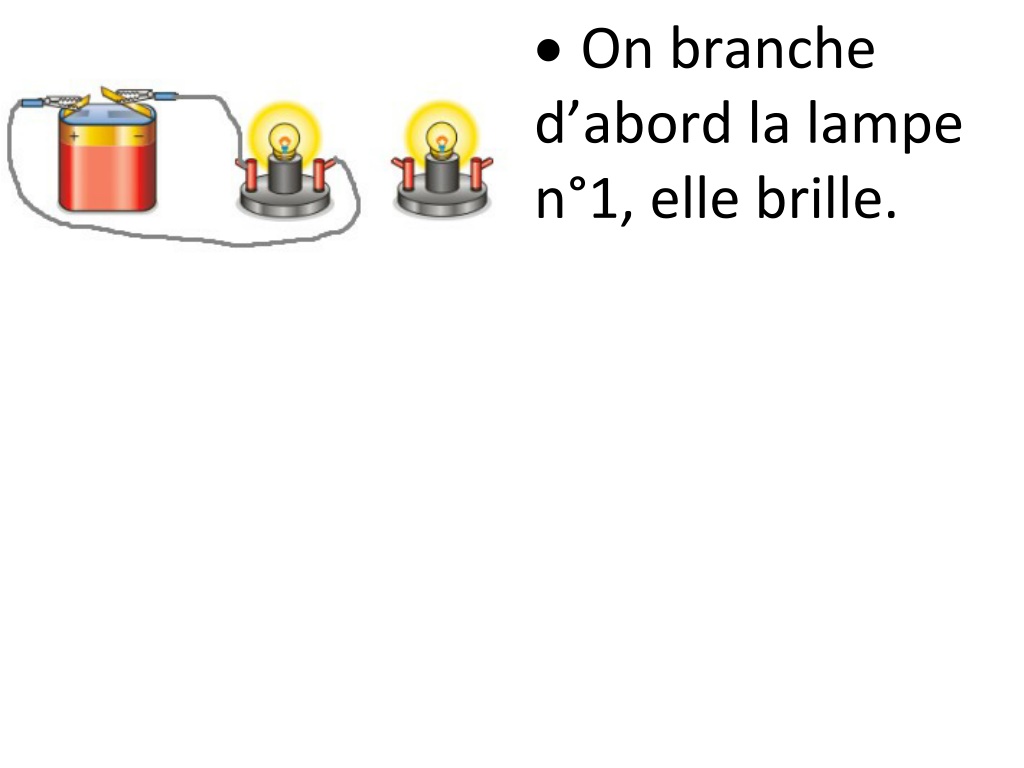

  1. On branche d’abord la lampe n°1, elle brille.

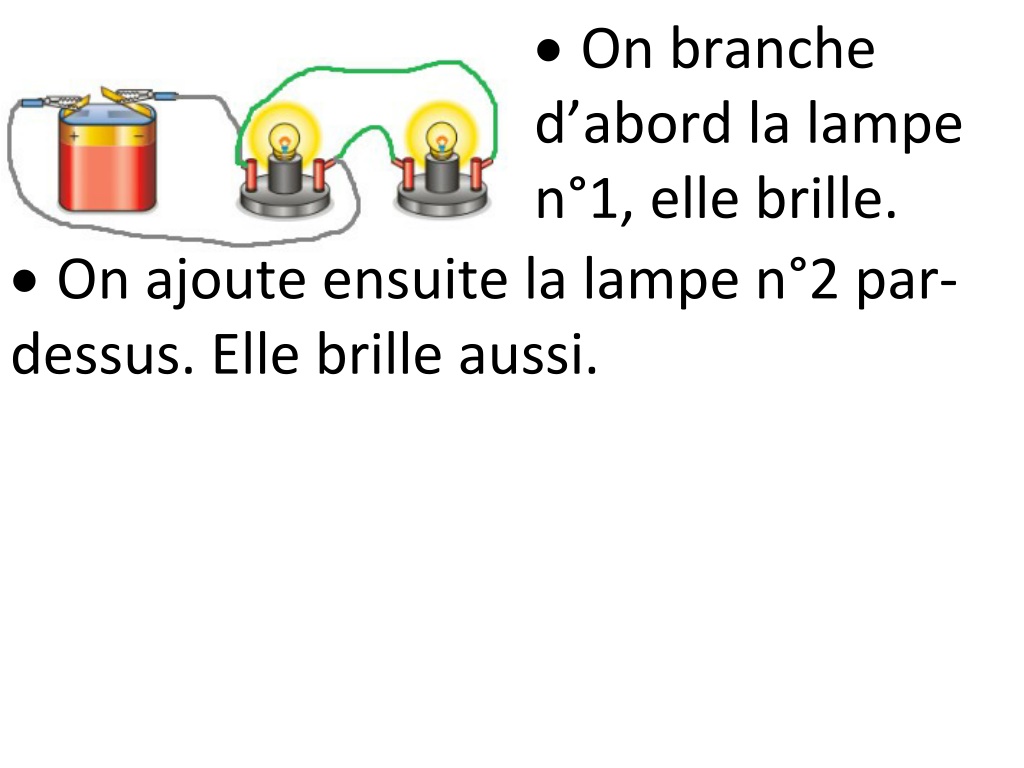

  2. On branche d’abord la lampe n°1, elle brille. On ajoute ensuite la lampe n°2 par- dessus. Elle brille aussi.

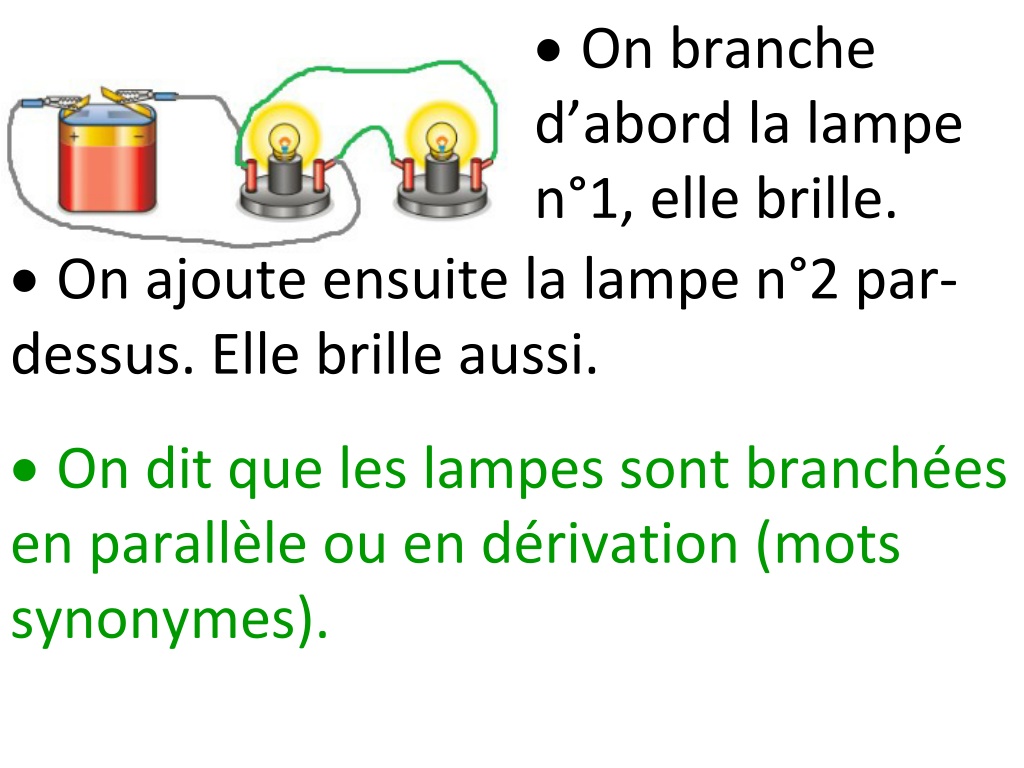

  3. On branche d’abord la lampe n°1, elle brille. On ajoute ensuite la lampe n°2 par- dessus. Elle brille aussi. On dit que les lampes sont branchées en parallèle ou en dérivation (mots synonymes).

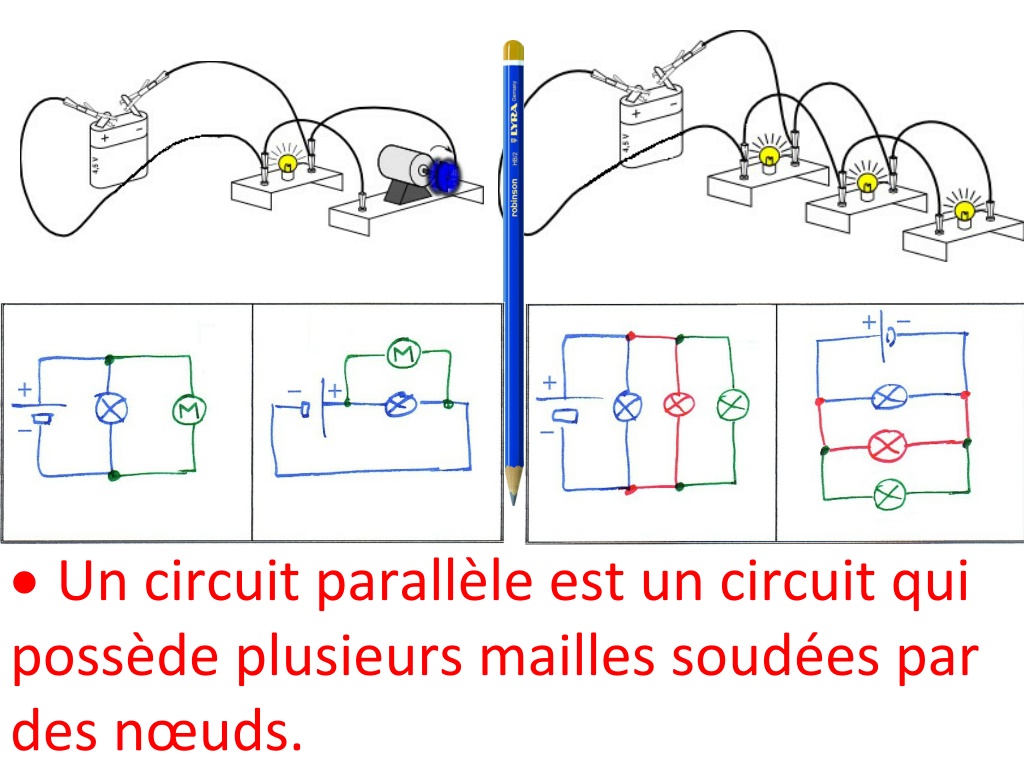

  4. Un circuit parallèle est un circuit qui possède plusieurs mailles soudées par des nœuds.
