Efficient Flow Meter for Natural Gas Measurement & Control

Designed for industrial and commercial applications, our natural gas flowmeter delivers high performance with sizes from DN15 to DN150, handling flow rates up to 500 SMu00b3/hr. Operating efficiently in -40 to 150u00b0C, it withstands up to 10 bar pressure and ensures u00b13% accuracy with u00b10.5% repeatability. Featuring BSP threaded or flanged connections, a 4-20 mA output, and RS485 MODBUS communication, it integrates seamlessly into your system for precise flow monitoring.

Process3
Download Presentation

Efficient Flow Meter for Natural Gas Measurement & Control

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

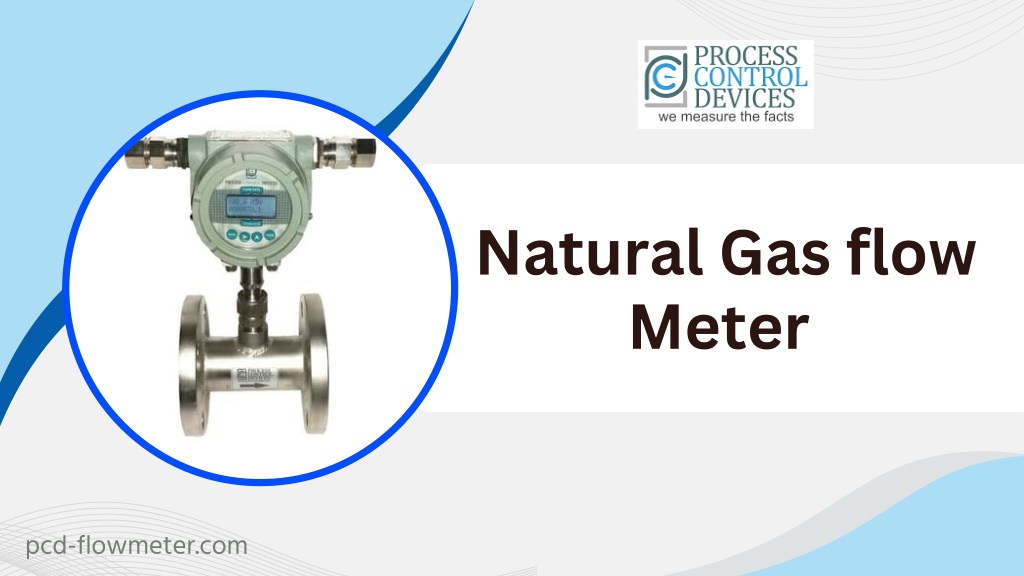

  1. Natural Gas flow Meter pcd-flowmeter.com

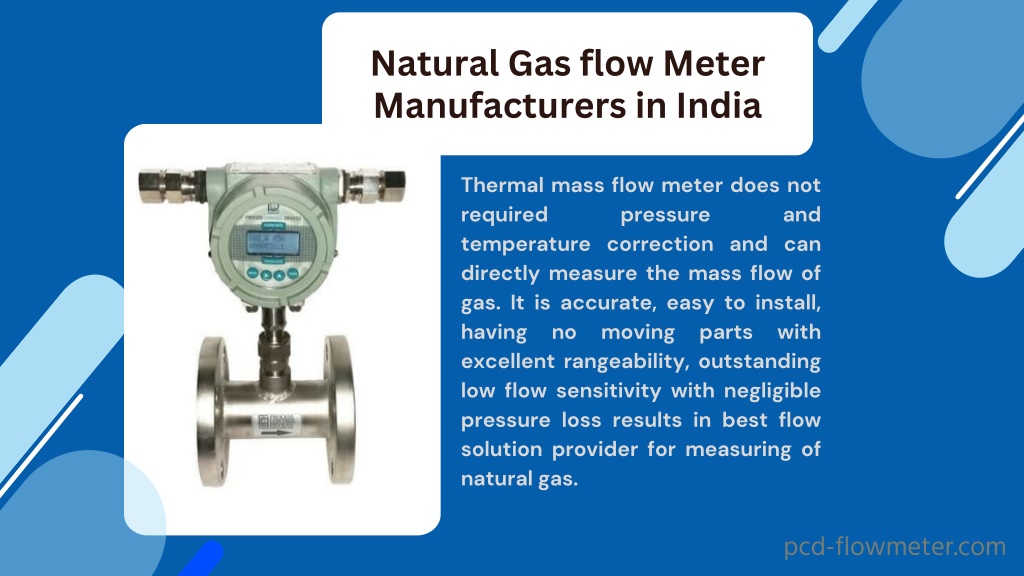

  2. Natural Gas flow Meter Manufacturers in India Thermal mass flow meter does not required pressure temperature correction and can directly measure the mass flow of gas. It is accurate, easy to install, having no moving excellent rangeability, outstanding low flow sensitivity with negligible pressure loss results in best flow solution provider for measuring of natural gas. and parts with pcd-flowmeter.com

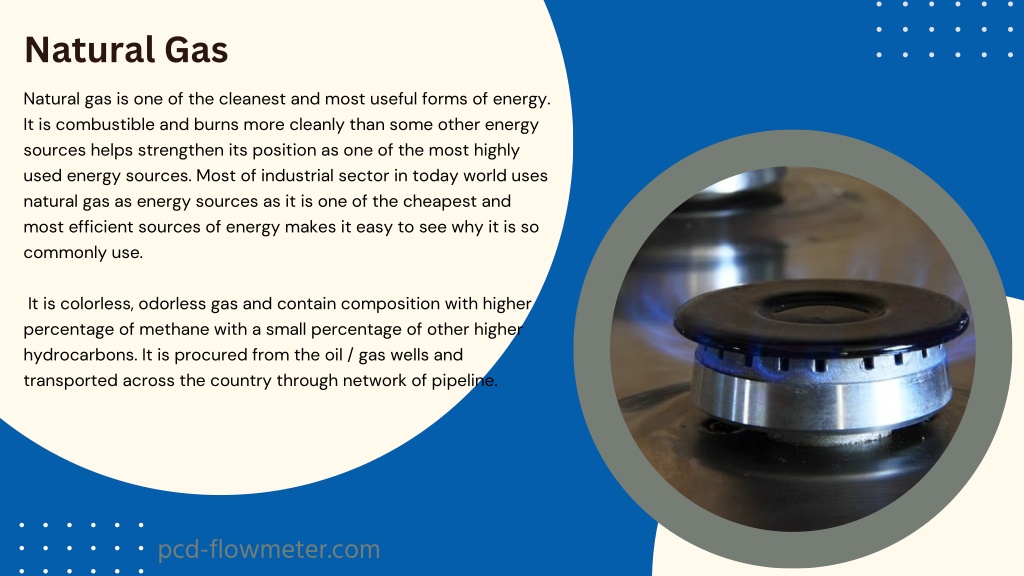

  3. Natural Gas Natural gas is one of the cleanest and most useful forms of energy. It is combustible and burns more cleanly than some other energy sources helps strengthen its position as one of the most highly used energy sources. Most of industrial sector in today world uses natural gas as energy sources as it is one of the cheapest and most efficient sources of energy makes it easy to see why it is so commonly use. It is colorless, odorless gas and contain composition with higher percentage of methane with a small percentage of other higher hydrocarbons. It is procured from the oil / gas wells and transported across the country through network of pipeline. pcd-flowmeter.com

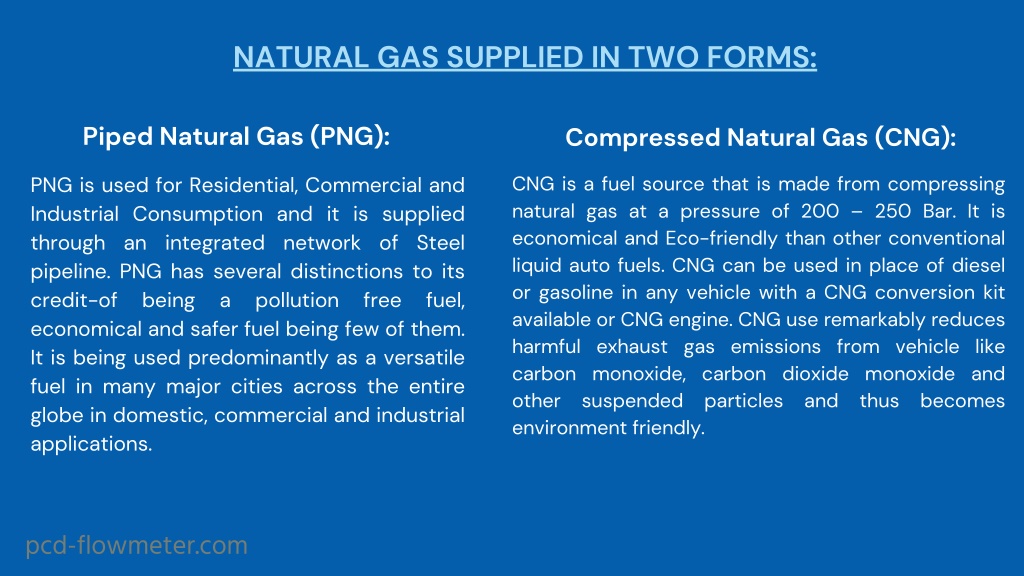

  4. NATURAL GAS SUPPLIED IN TWO FORMS: Piped Natural Gas (PNG): Compressed Natural Gas (CNG): CNG is a fuel source that is made from compressing natural gas at a pressure of 200 – 250 Bar. It is economical and Eco-friendly than other conventional liquid auto fuels. CNG can be used in place of diesel or gasoline in any vehicle with a CNG conversion kit available or CNG engine. CNG use remarkably reduces harmful exhaust gas emissions from vehicle like carbon monoxide, carbon dioxide monoxide and other suspended particles and thus becomes environment friendly. PNG is used for Residential, Commercial and Industrial Consumption and it is supplied through an integrated network of Steel pipeline. PNG has several distinctions to its credit-of being a economical and safer fuel being few of them. It is being used predominantly as a versatile fuel in many major cities across the entire globe in domestic, commercial and industrial applications. pollution free fuel, pcd-flowmeter.com

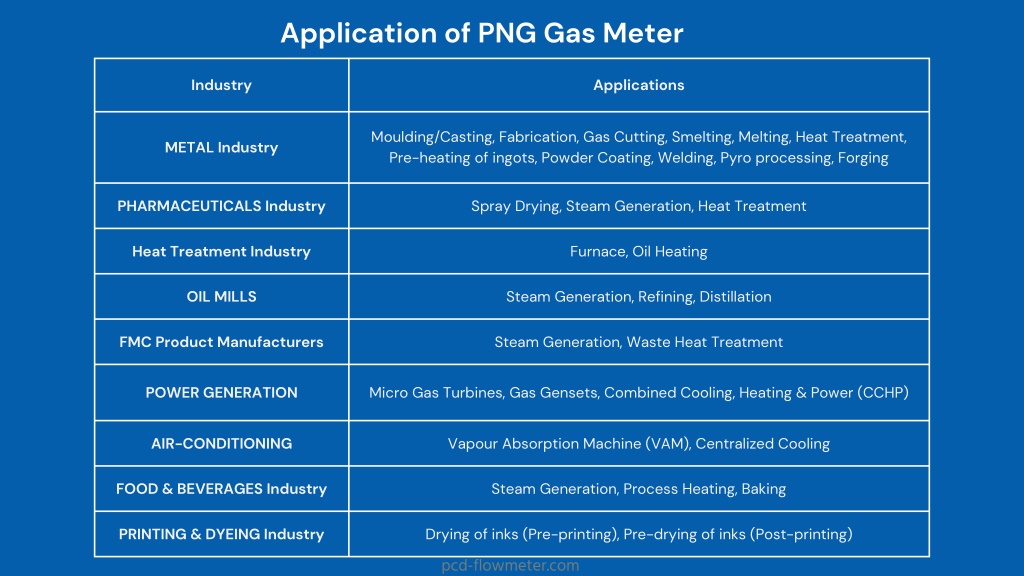

  5. Application of PNG Gas Meter Industry Applications Moulding/Casting, Fabrication, Gas Cutting, Smelting, Melting, Heat Treatment, Pre-heating of ingots, Powder Coating, Welding, Pyro processing, Forging METAL Industry PHARMACEUTICALS Industry Spray Drying, Steam Generation, Heat Treatment Heat Treatment Industry Furnace, Oil Heating OIL MILLS Steam Generation, Refining, Distillation FMC Product Manufacturers Steam Generation, Waste Heat Treatment POWER GENERATION Micro Gas Turbines, Gas Gensets, Combined Cooling, Heating & Power (CCHP) AIR-CONDITIONING Vapour Absorption Machine (VAM), Centralized Cooling FOOD & BEVERAGES Industry Steam Generation, Process Heating, Baking PRINTING & DYEING Industry Drying of inks (Pre-printing), Pre-drying of inks (Post-printing) pcd-flowmeter.com

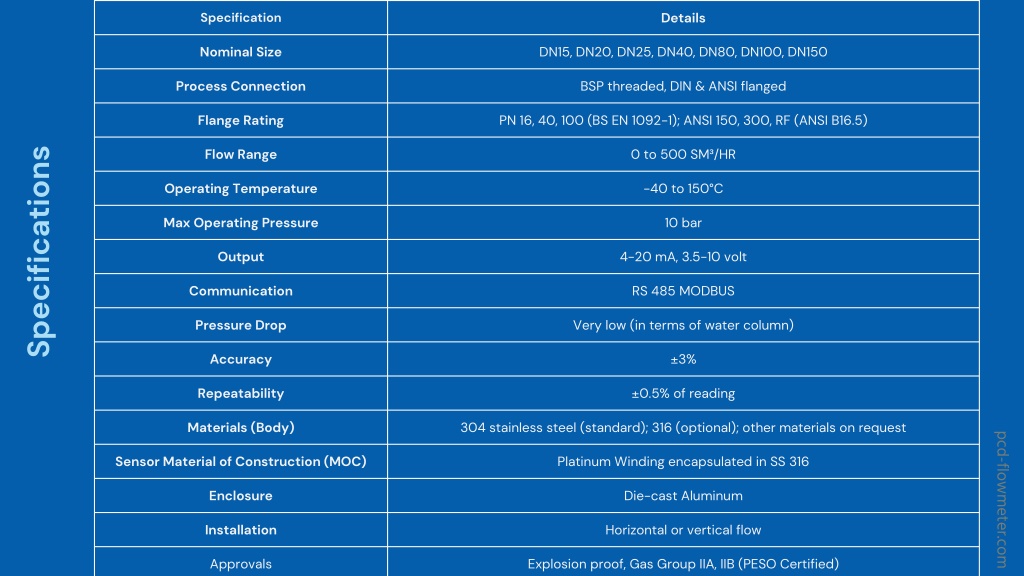

  6. Details Specification Nominal Size DN15, DN20, DN25, DN40, DN80, DN100, DN150 Process Connection BSP threaded, DIN & ANSI flanged Flange Rating PN 16, 40, 100 (BS EN 1092-1); ANSI 150, 300, RF (ANSI B16.5) Specifications Flow Range 0 to 500 SM³/HR Operating Temperature -40 to 150°C Max Operating Pressure 10 bar Output 4-20 mA, 3.5-10 volt Communication RS 485 MODBUS Pressure Drop Very low (in terms of water column) Accuracy ±3% Repeatability ±0.5% of reading Materials (Body) 304 stainless steel (standard); 316 (optional); other materials on request pcd-flowmeter.com Sensor Material of Construction (MOC) Platinum Winding encapsulated in SS 316 Enclosure Die-cast Aluminum Installation Horizontal or vertical flow Approvals Explosion proof, Gas Group IIA, IIB (PESO Certified)

  7. INFORMATION GET MORE pcd-flowmeter.com sales@pcd-flowmeter.com +91 86555 87403

  8. THANK YOU pcd-flowmeter.com
