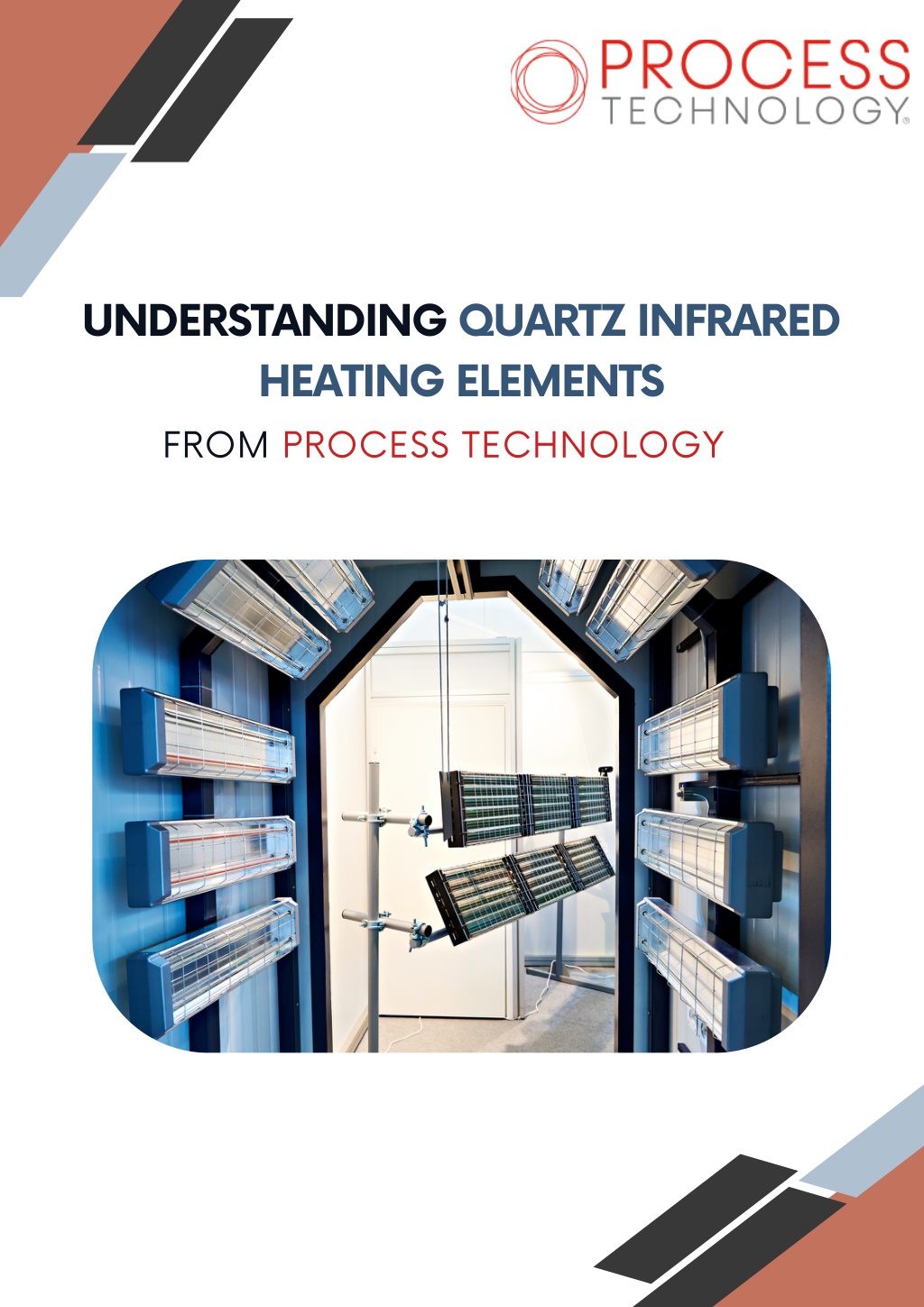

  1. UNDERSTANDING QUARTZ INFRARED HEATING ELEMENTS FROM PROCESS TECHNOLOGY

  2. INTRODUCTION In the land of industrial heating applications, quartz infrared heating elements have developed as a useful and efficient choice and their capacity to immediately apply targeted heat to the specified surface makes them indispensable in a variation of industries, including food processing and manufacturing in this complete guide, we will delve into the intricacies of quartz infrared heating elements, exploring their working values, benefits, applications and considerations for selection.

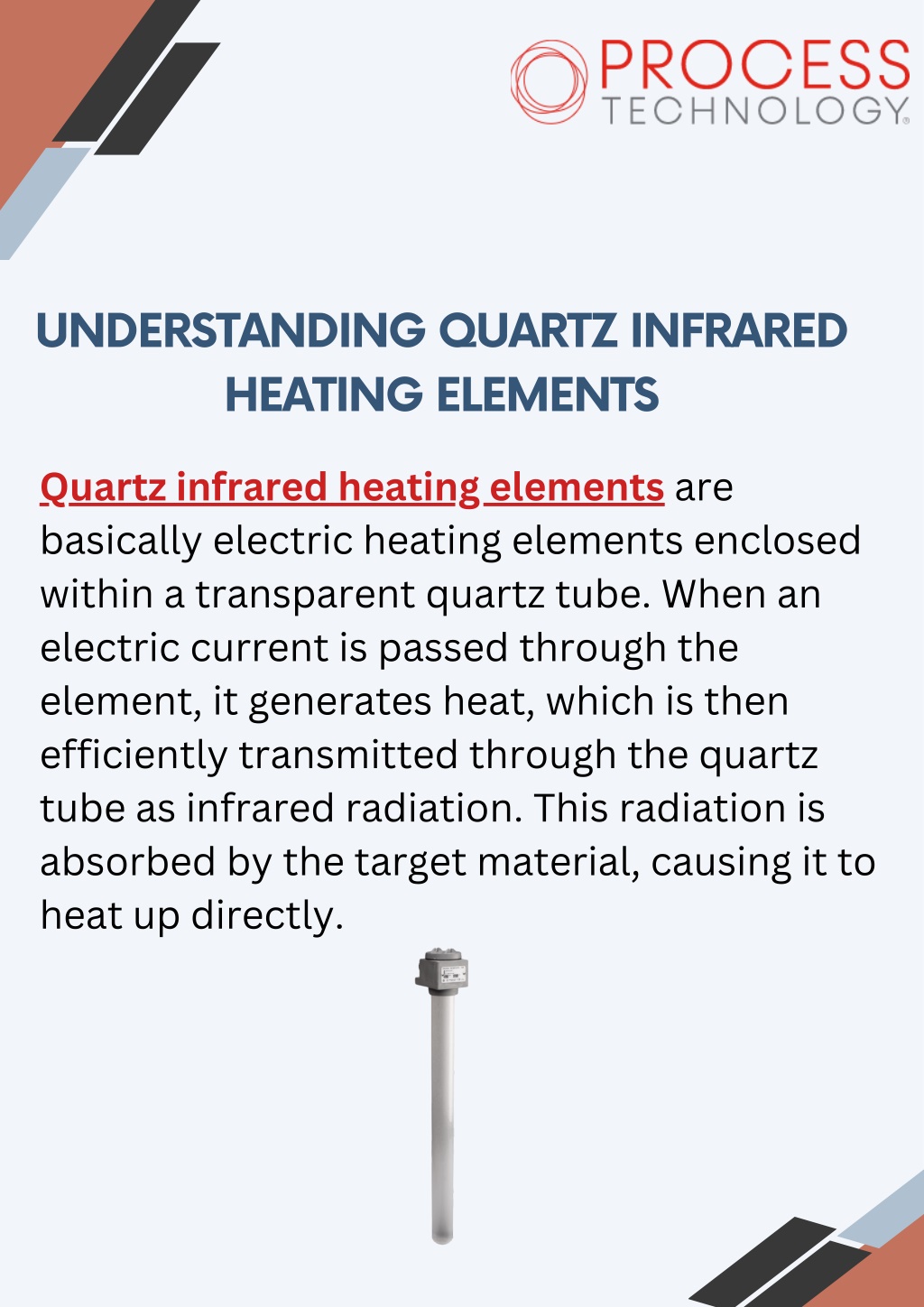

  3. UNDERSTANDING QUARTZ INFRARED HEATING ELEMENTS Quartz infrared heating elements are basically electric heating elements enclosed within a transparent quartz tube. When an electric current is passed through the element, it generates heat, which is then efficiently transmitted through the quartz tube as infrared radiation. This radiation is absorbed by the target material, causing it to heat up directly.

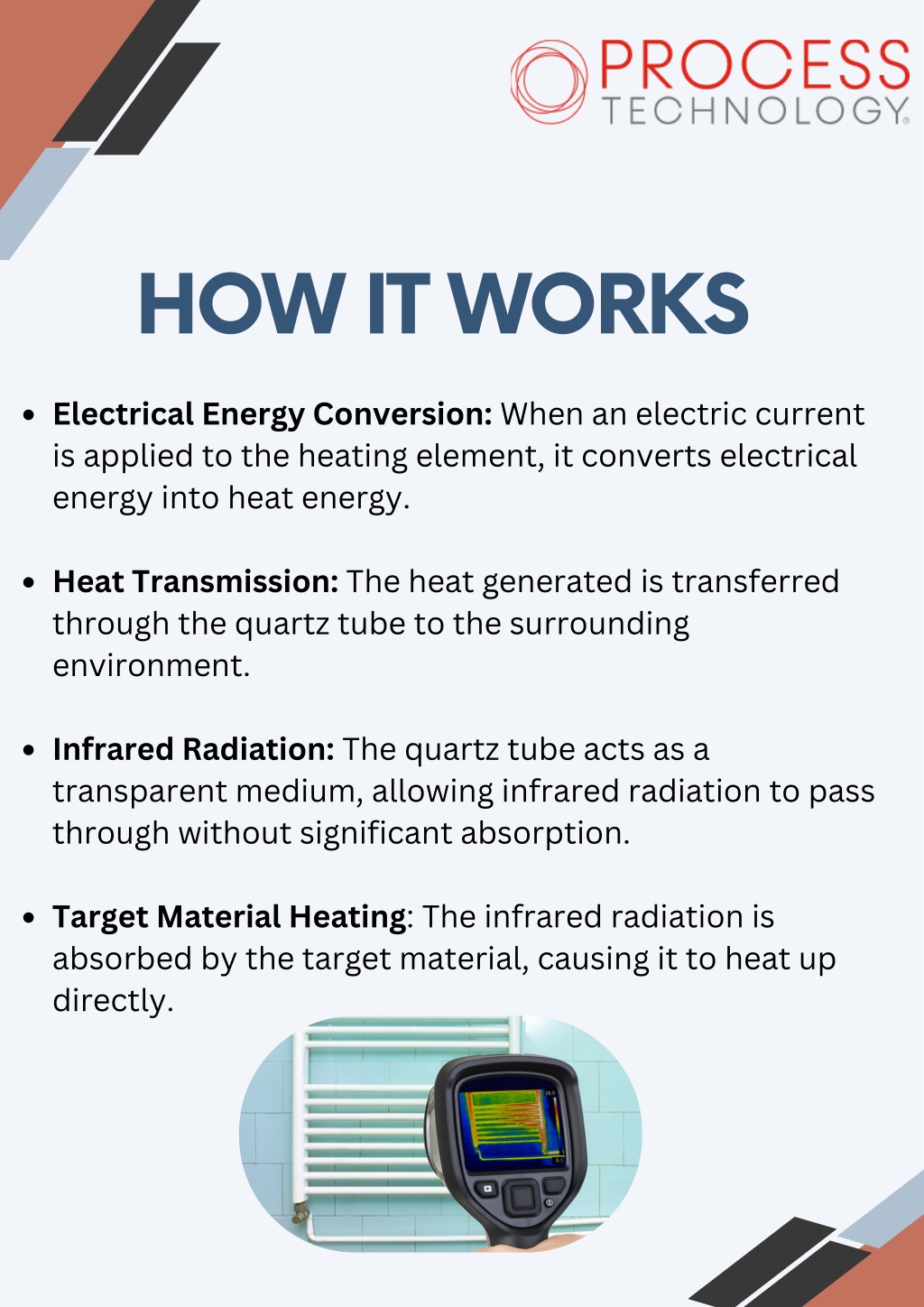

  4. HOW IT WORKS Electrical Energy Conversion: When an electric current is applied to the heating element, it converts electrical energy into heat energy. Heat Transmission: The heat generated is transferred through the quartz tube to the surrounding environment. Infrared Radiation: The quartz tube acts as a transparent medium, allowing infrared radiation to pass through without significant absorption. Target Material Heating: The infrared radiation is absorbed by the target material, causing it to heat up directly.

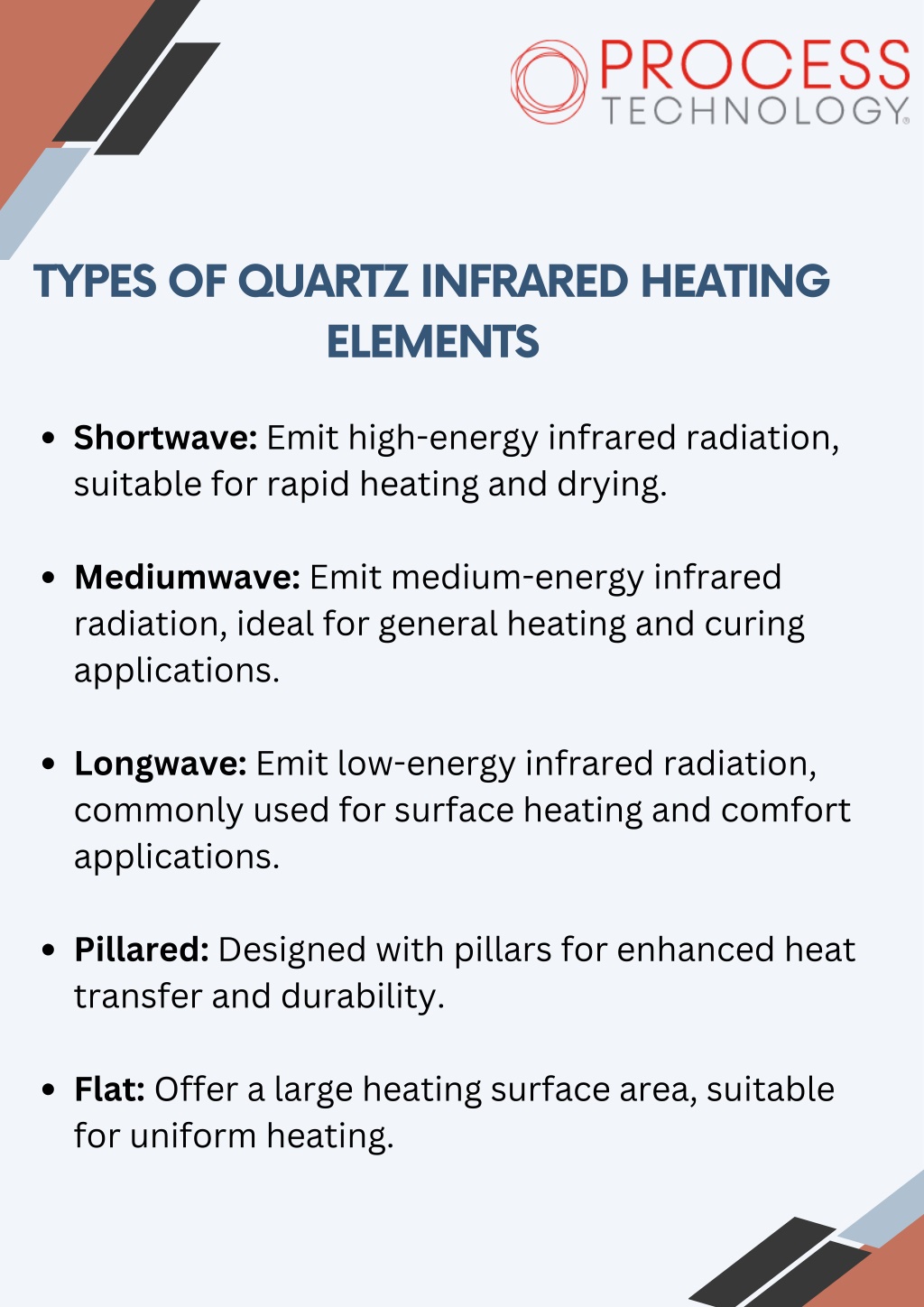

  5. TYPES OF QUARTZ INFRARED HEATING ELEMENTS Shortwave: Emit high-energy infrared radiation, suitable for rapid heating and drying. Mediumwave: Emit medium-energy infrared radiation, ideal for general heating and curing applications. Longwave: Emit low-energy infrared radiation, commonly used for surface heating and comfort applications. Pillared: Designed with pillars for enhanced heat transfer and durability. Flat: Offer a large heating surface area, suitable for uniform heating.

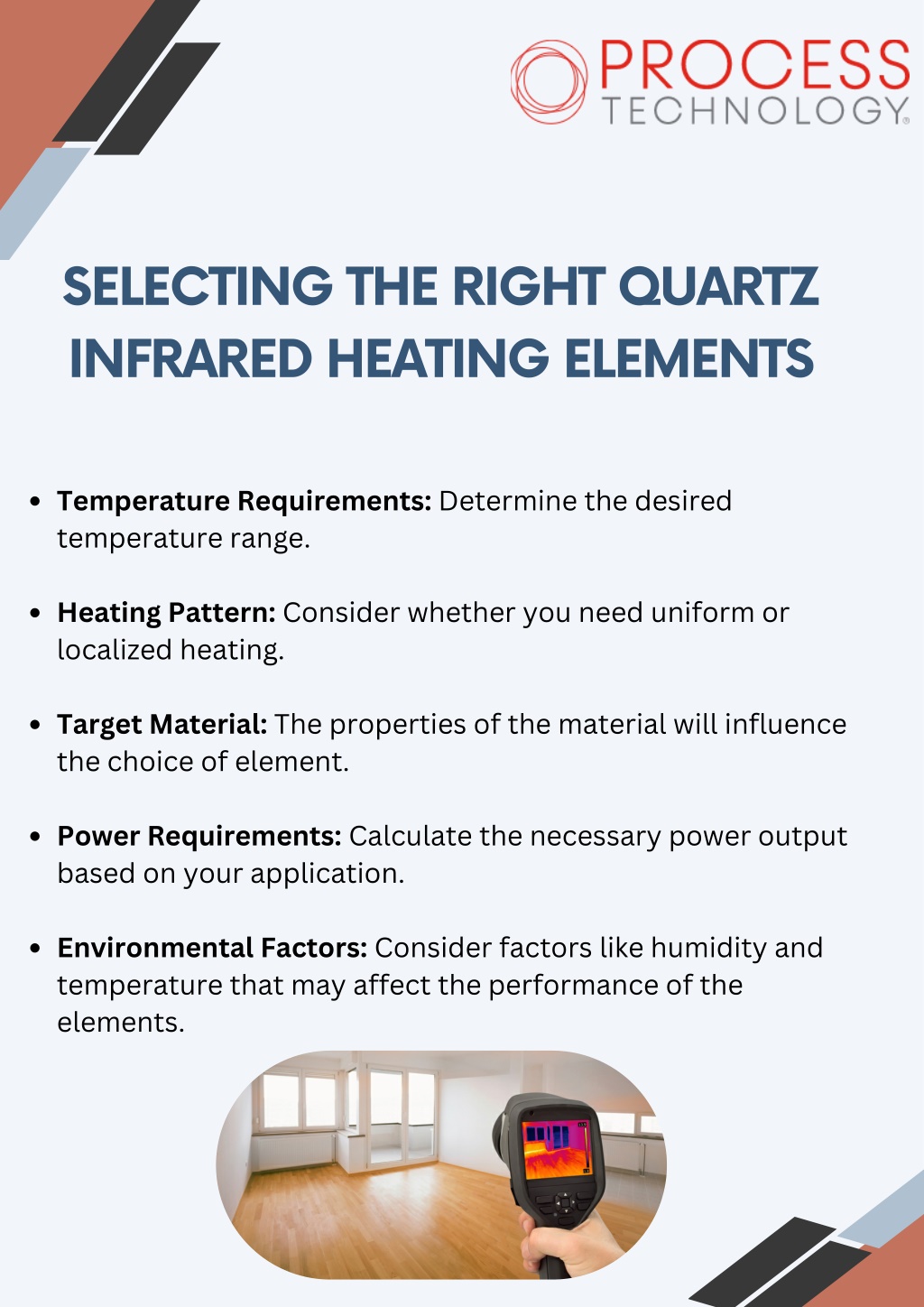

  6. SELECTING THE RIGHT QUARTZ INFRARED HEATING ELEMENTS Temperature Requirements: Determine the desired temperature range. Heating Pattern: Consider whether you need uniform or localized heating. Target Material: The properties of the material will influence the choice of element. Power Requirements: Calculate the necessary power output based on your application. Environmental Factors: Consider factors like humidity and temperature that may affect the performance of the elements.

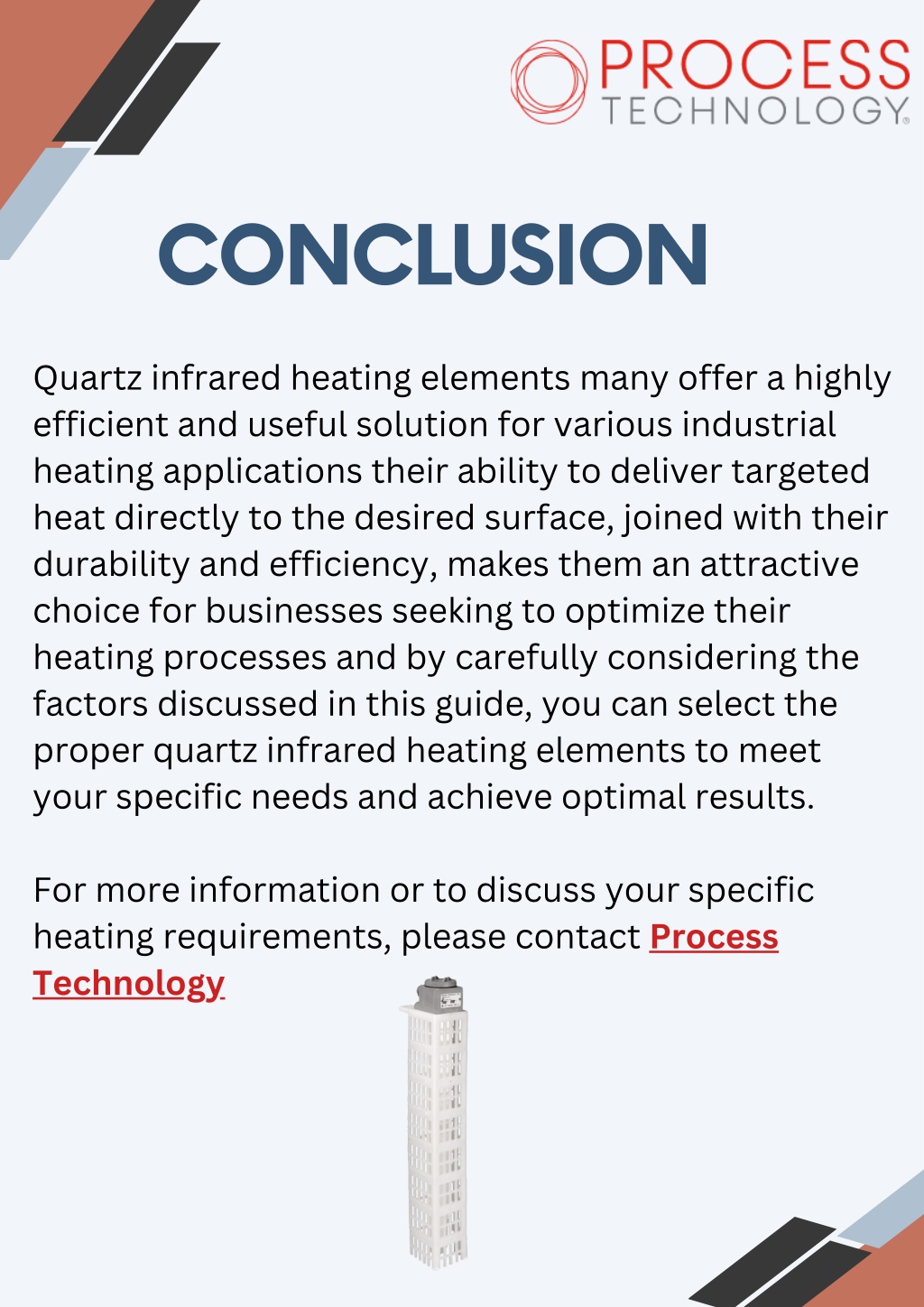

  7. CONCLUSION Quartz infrared heating elements many offer a highly efficient and useful solution for various industrial heating applications their ability to deliver targeted heat directly to the desired surface, joined with their durability and efficiency, makes them an attractive choice for businesses seeking to optimize their heating processes and by carefully considering the factors discussed in this guide, you can select the proper quartz infrared heating elements to meet your specific needs and achieve optimal results. For more information or to discuss your specific heating requirements, please contact Process Technology

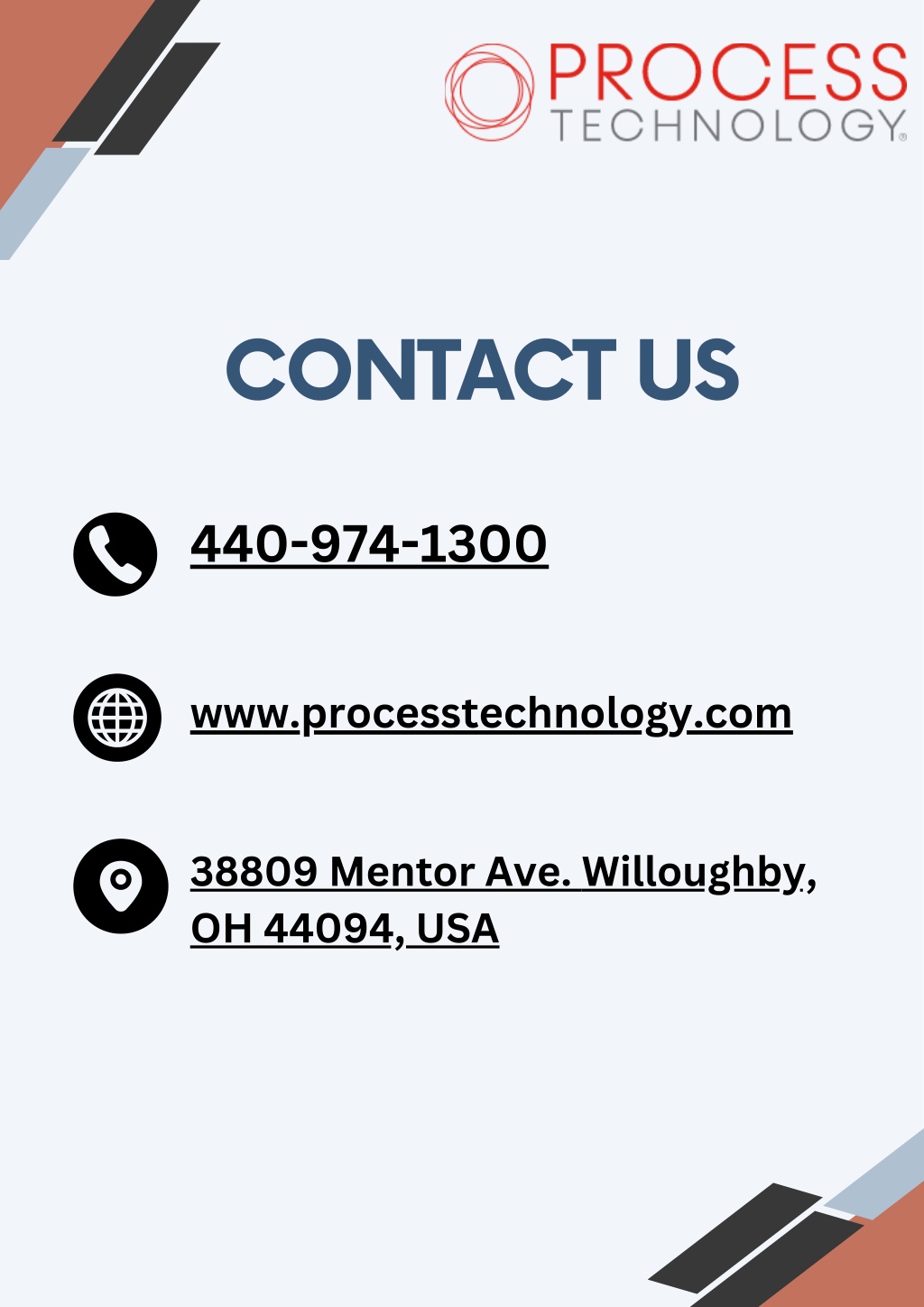

  8. CONTACT US 440-974-1300 www.processtechnology.com 38809 Mentor Ave. Willoughby, OH 44094, USA
