What Is Bursting Strength Testing instrument?

Bursting Strength Tester is a reliable index of measurement of strength and performance of materials like paper, paper boards, corrugated boards and boxes, solid fiber boards, filter cloth, industrial fabric, leather and Rexene. With the help of a bursting strength tester, industries can ensure the best quality of products to their clients. Presto is one of the leading manufacturers of Bursting Strength tester.<br>The bursting strength of the sample is measured by applying the hydrostatic pressure required for producing rupture of the material.<br>

Prestogroupweb
Download Presentation

What Is Bursting Strength Testing instrument?

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

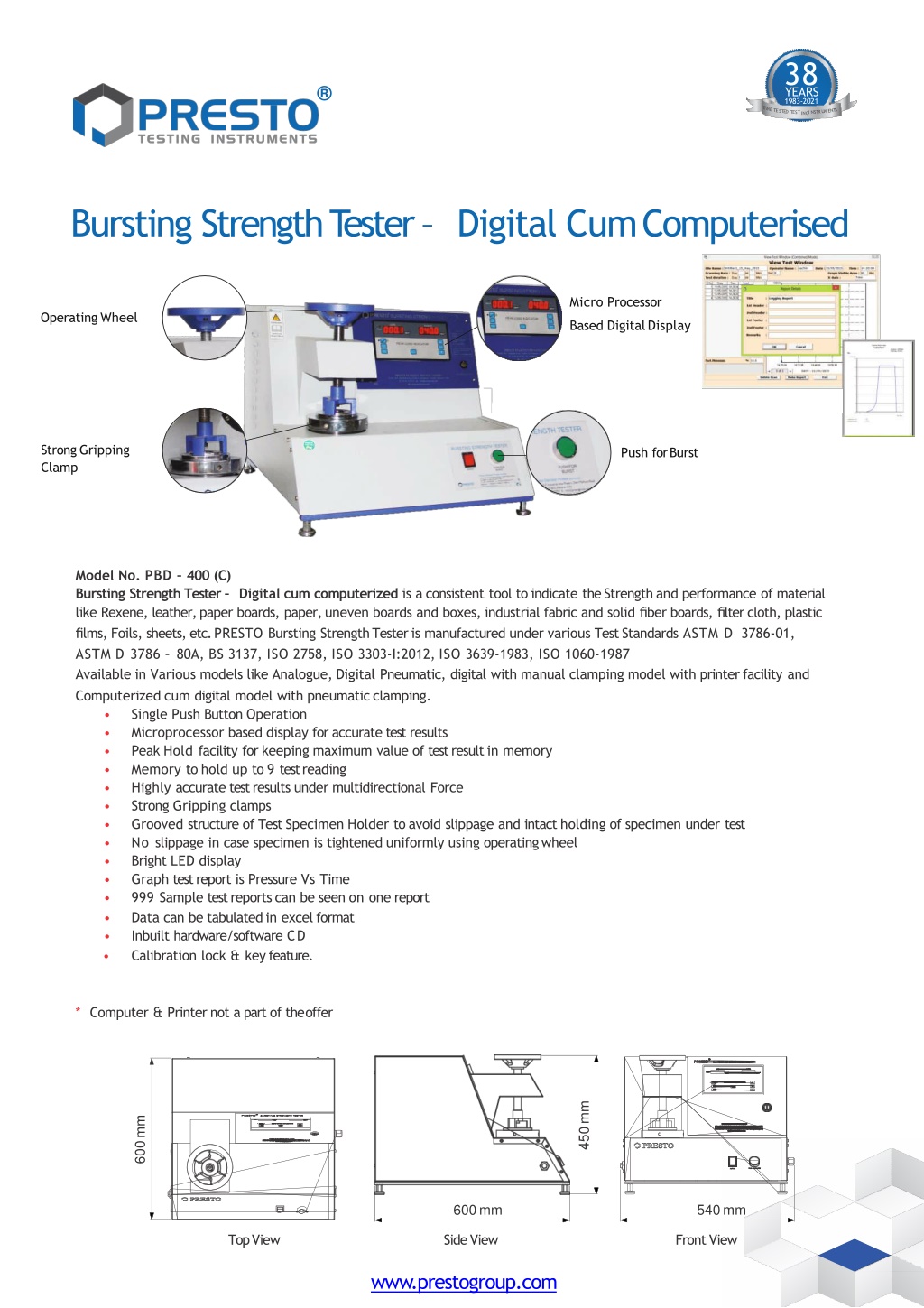

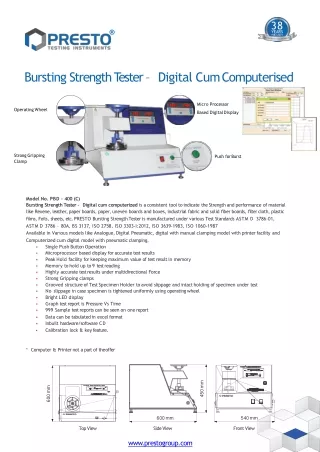

  1. 38 ® YEARS 1983-2021 ING T I M S E NT T E UME STE R D NST TE I ST Bursting Strength Tester – Digital CumComputerised Micro Processor Based DigitalDisplay OperatingWheel StrongGripping Clamp Push forBurst • Model No. PBD –400 (C) • Bursting Strength Tester – Digital cum computerized is a consistent tool to indicate the Strength and performance ofmaterial • like Rexene, leather, paper boards, paper, uneven boards and boxes, industrial fabric and solid fiber boards, filter cloth, plastic films, Foils, sheets, etc. PRESTO Bursting Strength Tester is manufactured under various Test Standards ASTM D 3786-01, ASTMD3786–80A,BS3137,ISO2758,ISO3303-I:2012,ISO3639-1983,ISO1060-1987 • Available in Various models like Analogue, Digital Pneumatic, digital with manual clamping model with printer facilityand • Computerized cum digital model with pneumaticclamping. • Single Push ButtonOperation • Microprocessor based display for accurate testresults • Peak Hold facility for keeping maximum value of test result in memory • Memory to hold up to 9 testreading • Highly accurate test results under multidirectionalForce • Strong Grippingclamps • Grooved structure of Test Specimen Holder to avoid slippage and intact holding of specimen undertest • No slippage in case specimen is tightened uniformly using operatingwheel • Bright LEDdisplay • Graph test report is Pressure VsTime • 999 Sample test reports can be seen on onereport • Data can be tabulated in excelformat • Inbuilt hardware/softwareCD • Calibration lock & keyfeature. • * Computer & Printer not a part of theoffer 450mm 600mm 600mm 540mm TopView SideView FrontView www.prestogroup.com

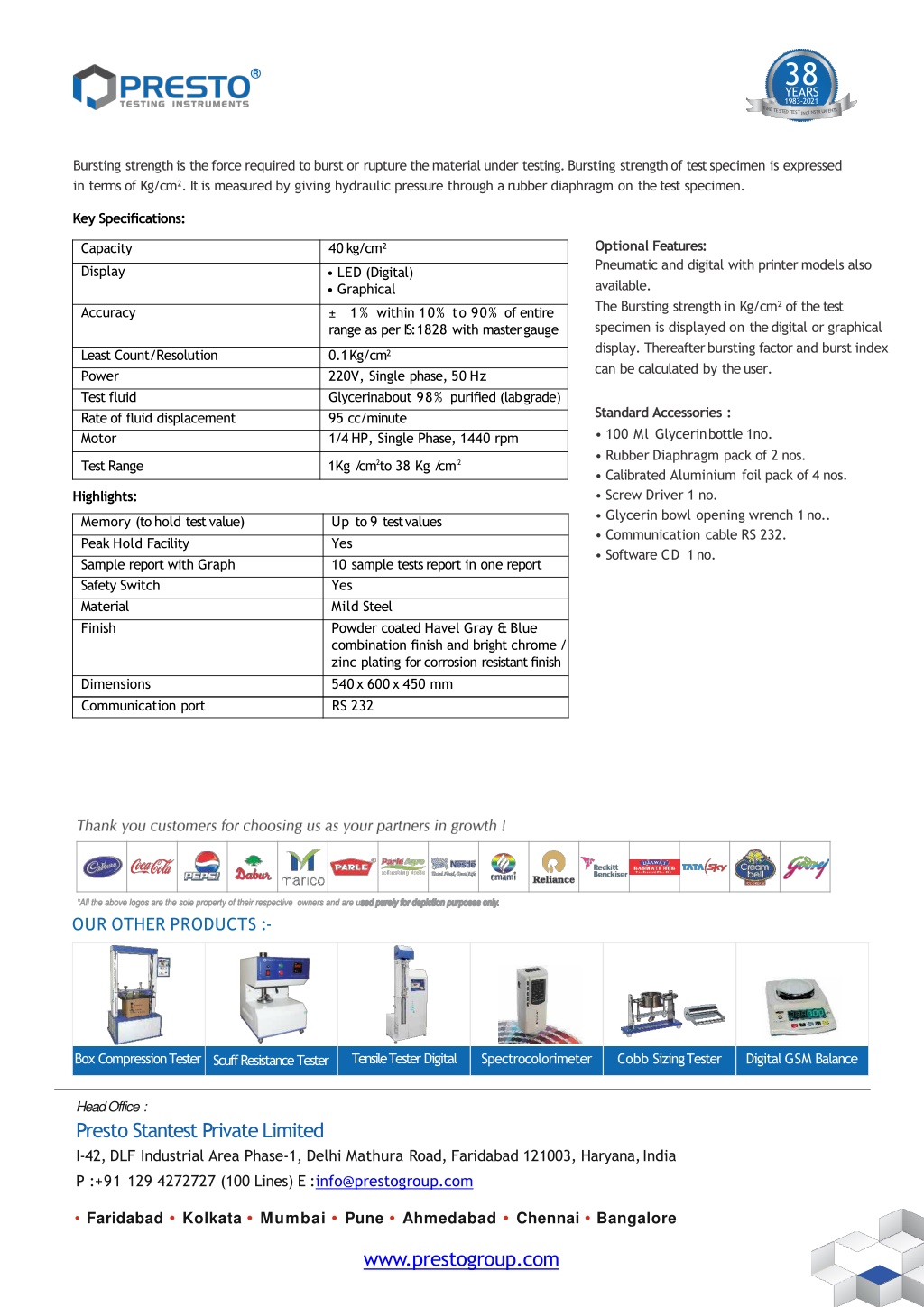

  2. 38 ® YEARS 1983-2021 ING T I M S E NT T E UME STE R D NST TE I ST Bursting strength is the force required to burst or rupture the material under testing. Bursting strength of test specimen is expressed in terms of Kg/cm². It is measured by giving hydraulic pressure through a rubber diaphragm on the testspecimen. KeySpecifications: OptionalFeatures: Pneumatic and digital with printer models also available. The Bursting strength in Kg/cm² of the test specimen is displayed on the digital or graphical display. Thereafter bursting factor and burst index can be calculated by theuser. • Standard Accessories: • 100 Ml Glycerinbottle 1no. • Rubber Diaphragm pack of 2nos. • Calibrated Aluminium foil pack of 4nos. • Screw Driver 1no. • Glycerin bowl opening wrench 1no.. • Communication cable RS232. • Software CD 1no. Highlights: OUROTHERPRODUCTS:- FRAGILE HANDLE WITHCARE • Head Office: • Presto Stantest Private Limited • I-42, DLF Industrial Area Phase-1, Delhi Mathura Road, Faridabad 121003, Haryana,India P : +91 129 4272727 (100 Lines) E :info@prestogroup.com • Faridabad • Kolkata • Mumbai • Pune • Ahmedabad • Chennai •Bangalore • www.prestogroup.com
