Top Load Tester - Digital

The Top Load Tester gives the compressive buckling load in digital format. This is a fully automatic motorized model. The Digital display of the Digital Top Load Tester is aesthetically appealing and sophisticated. It has the capability of measuring the maximum load a container can withstand without deforming when the force is applied from the top.<br><br>For more information visit our website:- https://www.prestogroup.com/products/top-load-tester-digital/<br>

Prestogroup1
Download Presentation

Top Load Tester - Digital

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

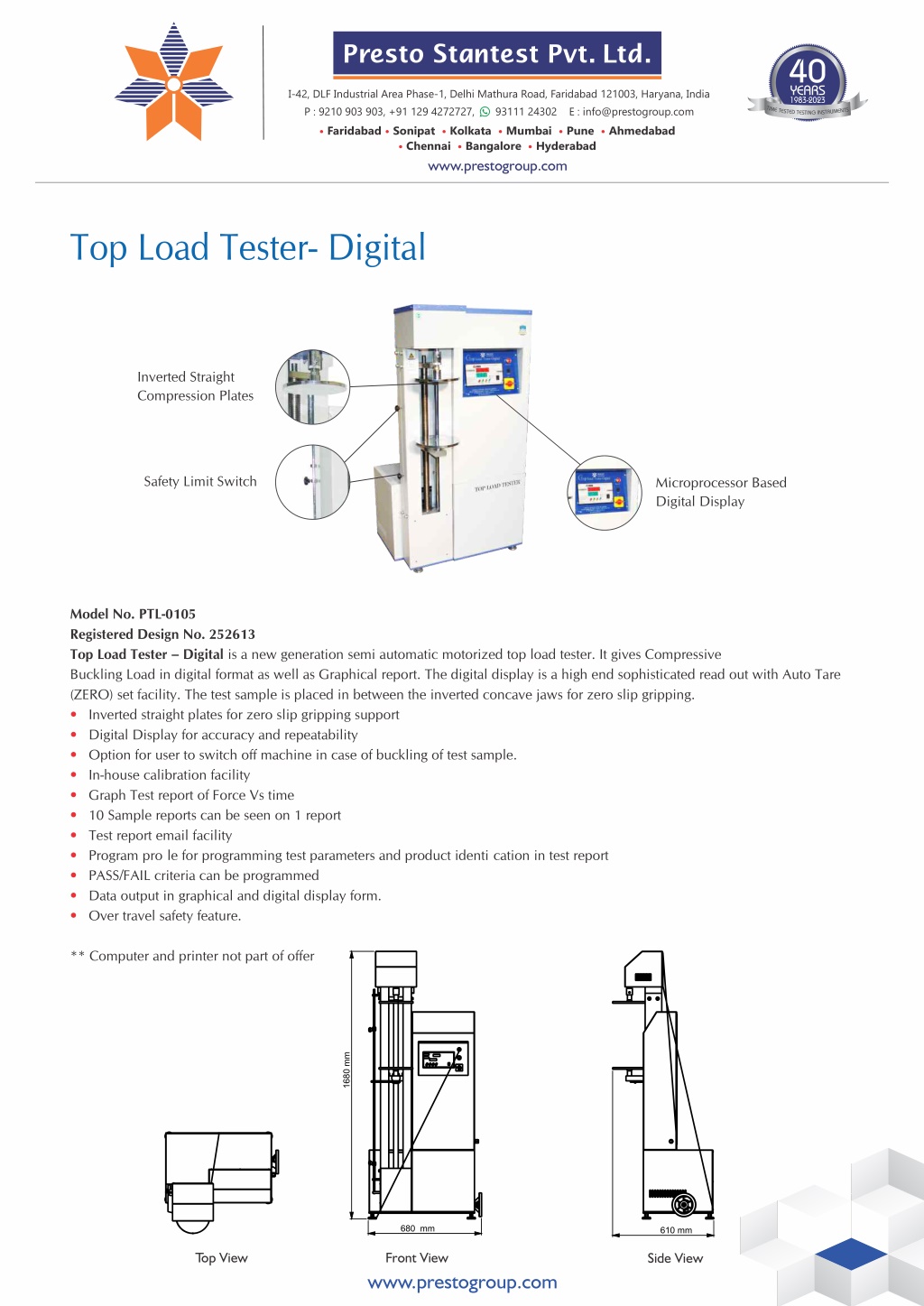

  1. Presto Stantest Pvt. Ltd. I-42, DLF Industrial Area Phase-1, Delhi Mathura Road, Faridabad 121003, Haryana, India P : 9210 903 903, +91 129 4272727, 93111 24302 E : info@prestogroup.com 40 YEARS 1983-2023 TIME S T T EN ES UM TE STR D T ESTING IN • Faridabad Sonipat • Kolkata Mumbai Pune Ahmedabad • • Chennai Bangalore Hyderabad www.prestogroup.com • • • • • Top Load Tester- Digital Inverted Straight Compression Plates Safety Limit Switch Microprocessor Based Digital Display Model No. PTL-0105 Registered Design No. 252613 Top Load Tester – Digital is a new generation semi automatic motorized top load tester. It gives Compressive Buckling Load in digital format as well as Graphical report. The digital display is a high end sophisticated read out with Auto Tare (ZERO) set facility. The test sample is placed in between the inverted concave jaws for zero slip gripping. • Inverted straight plates for zero slip gripping support • Digital Display for accuracy and repeatability • Option for user to switch off machine in case of buckling of test sample. • In-house calibration facility • Graph Test report of Force Vs time • 10 Sample reports can be seen on 1 report • Test report email facility • Program pro?le for programming test parameters and product identi?cation in test report • PASS/FAIL criteria can be programmed • Data output in graphical and digital display form. • Over travel safety feature. ** Computer and printer not part of offer 1680 mm 680 mm 610 mm Top View Front View Side View www.prestogroup.com

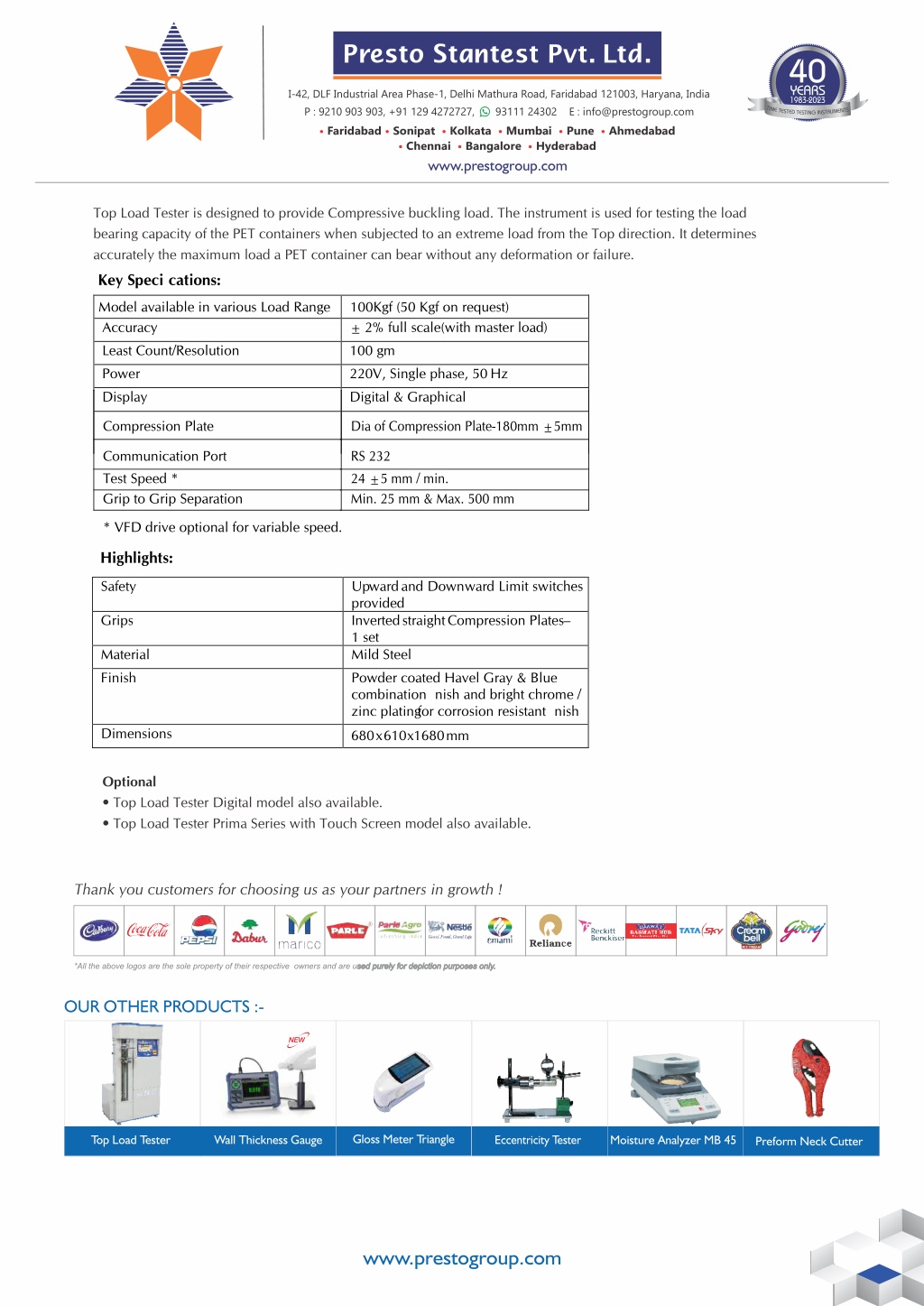

  2. Presto Stantest Pvt. Ltd. I-42, DLF Industrial Area Phase-1, Delhi Mathura Road, Faridabad 121003, Haryana, India P : 9210 903 903, +91 129 4272727, 93111 24302 E : info@prestogroup.com 40 YEARS 1983-2023 TIME S T T EN ES UM TE STR D T ESTING IN • Faridabad Sonipat • Kolkata Mumbai Pune Ahmedabad • • Chennai Bangalore Hyderabad www.prestogroup.com • • • • • Top Load Tester is designed to provide Compressive buckling load. The instrument is used for testing the load bearing capacity of the PET containers when subjected to an extreme load from the Top direction. It determines accurately the maximum load a PET container can bear without any deformation or failure. Key Speci?cations: Model available in various Load Range 100Kgf (50 Kgf on request) Accuracy ± 2% full scale(with master load) Least Count/Resolution 100 gm Power 220V, Single phase, 50 Hz Display Digital & Graphical Compression Plate Dia of Compression Plate-180mm ±5mm Communication Port Test Speed * Grip to Grip Separation RS 232 24 ±5 mm / min. Min. 25 mm & Max. 500 mm * VFD drive optional for variable speed. Highlights: Safety Upward and Downward Limit switches provided Inverted straight Compression Plates – 1 set Mild Steel Grips Material Finish Powder coated Havel Gray & Blue combination ?nish and bright chrome / zinc plating for corrosion resistant ?nish 680x610x1680mm Dimensions Optional • Top Load Tester Digital model also available. • Top Load Tester Prima Series with Touch Screen model also available. OUR OTHER PRODUCTS :- Gloss Meter Triangle Top Load Tester Wall Thickness Gauge Eccentricity Tester Moisture Analyzer MB 45 Preform Neck Cutter www.prestogroup.com
