A tensile testing machine is an essential tool for evaluating the mechanical properties of materials by applying controlled tension. It helps determine tensile strength, elongation, and yield properties, ensuring product reliability in industries like manufacturing, automotive, and aerospace. With advanced digital controls and precision load cells, these machines provide accurate and repeatable results. Read more:- https://www.prestogroup.com/products/tensile-tester-digital/
E N D

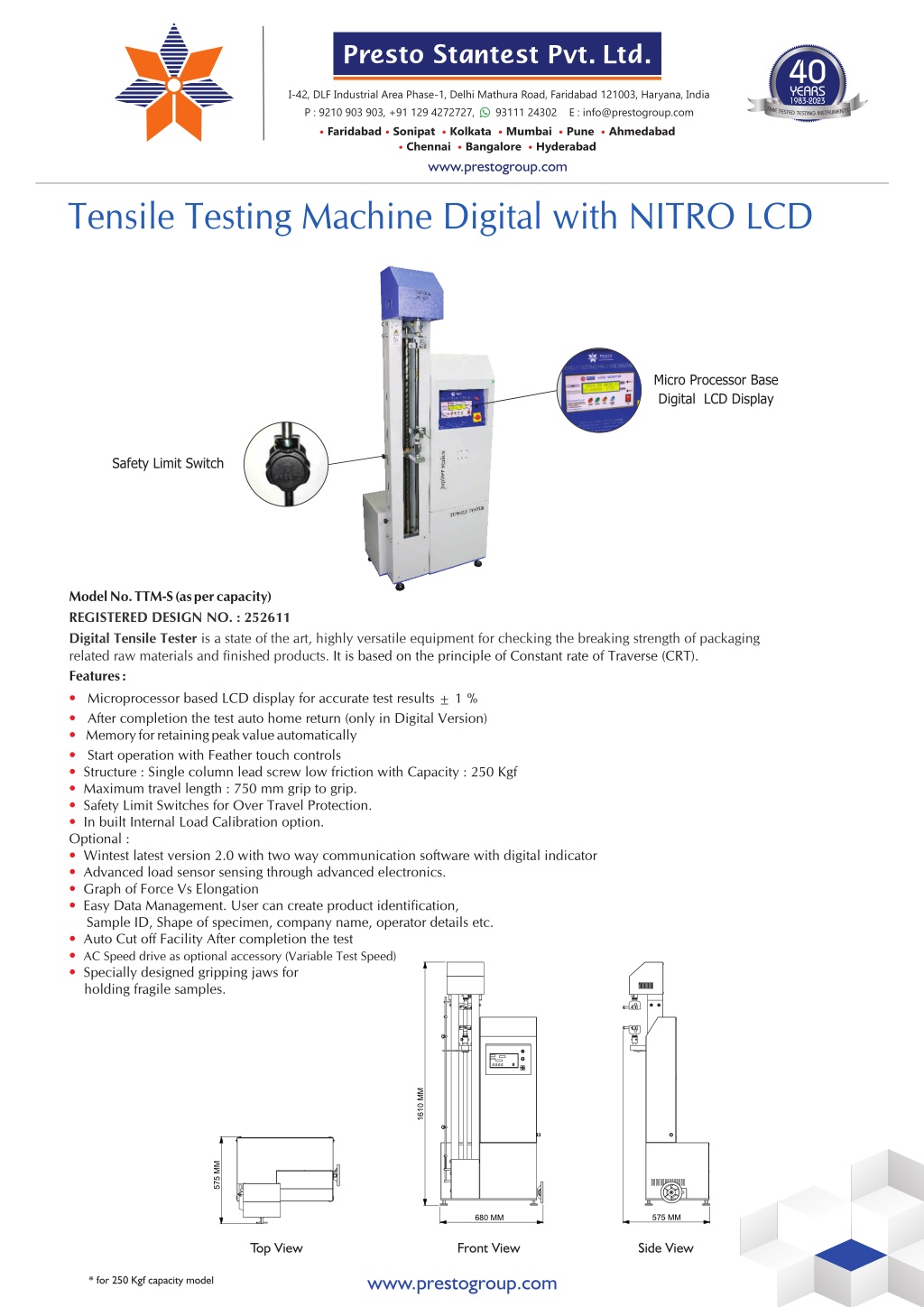

Presto Stantest Pvt. Ltd. I-42, DLF Industrial Area Phase-1, Delhi Mathura Road, Faridabad 121003, Haryana, India P : 9210 903 903, +91 129 4272727, 93111 24302 E : info@prestogroup.com 40 YEARS 1983-2023 TIME S T T EN ES UM TE STR D T ESTING IN • Faridabad Sonipat • Kolkata Mumbai Pune Ahmedabad • • Chennai Bangalore Hyderabad www.prestogroup.com • • • • • Tensile Testing Machine Digital with NITRO LCD Micro Processor Base Digital LCD Display Safety Limit Switch Model No. TTM-S (as per capacity) REGISTERED DESIGN NO. : 252611 Digital Tensile Tester is a state of the art, highly versatile equipment for checking the breaking strength of packaging related raw materials and finished products. It is based on the principle of Constant rate of Traverse (CRT). Features : • Microprocessor based LCD display for accurate test results ± 1 % • After completion the test auto home return (only in Digital Version) • Memory for retaining peak value automatically • Start operation with Feather touch controls • Structure : Single column lead screw low friction with Capacity : 250 Kgf • Maximum travel length : 750 mm grip to grip. • Safety Limit Switches for Over Travel Protection. • In built Internal Load Calibration option. Optional : • Wintest latest version 2.0 with two way communication software with digital indicator • Advanced load sensor sensing through advanced electronics. • Graph of Force Vs Elongation • Easy Data Management. User can create product identification, Sample ID, Shape of specimen, company name, operator details etc. • Auto Cut off Facility After completion the test • AC Speed drive as optional accessory (Variable Test Speed) • Specially designed gripping jaws for holding fragile samples. Model No. TTM-S (as per capacity) REGISTERED DESIGN NO. : 252611 Tensile Testing Machine Digitalcum computerised is a consistent tool that helps the manufacturer in testing the breaking, tensile and compression strength of various materials, components and finished products. It is based on the principle of Constant rate of Traverse (CRT). PRESTO Tensile Testing Machine Digital is manufactured under various test standards such as ASTM D412, ASTM D429-73, ASTM D624, ATM D638-01, ASTM D76, IS 13360-5-7, IS 3400(Part1-1987). • Advanced load sensor sensing through advanced electronics. • Highly sensitive load sensor with linearity feature and repeatability • Cross head travel length: 700mm grip to grip ( with standard vice type grip) • Single column rugged structure • Safety limit switches for over travel safety • Hardened lead screws for frictionless movement • Load cell calibrated by NABL approved proving ring/dynamometers • Highly accurate micro-controller based system controls • Peak Hold facility available (Max. value save in memory) • Bright LED display • Immediate analysis of results after test with complete accuracy & precision • Feather touch controls 1610 MM 575 MM 575 MM 680 MM Top View Front View Side View www.prestogroup.com * for 250 Kgf capacity model

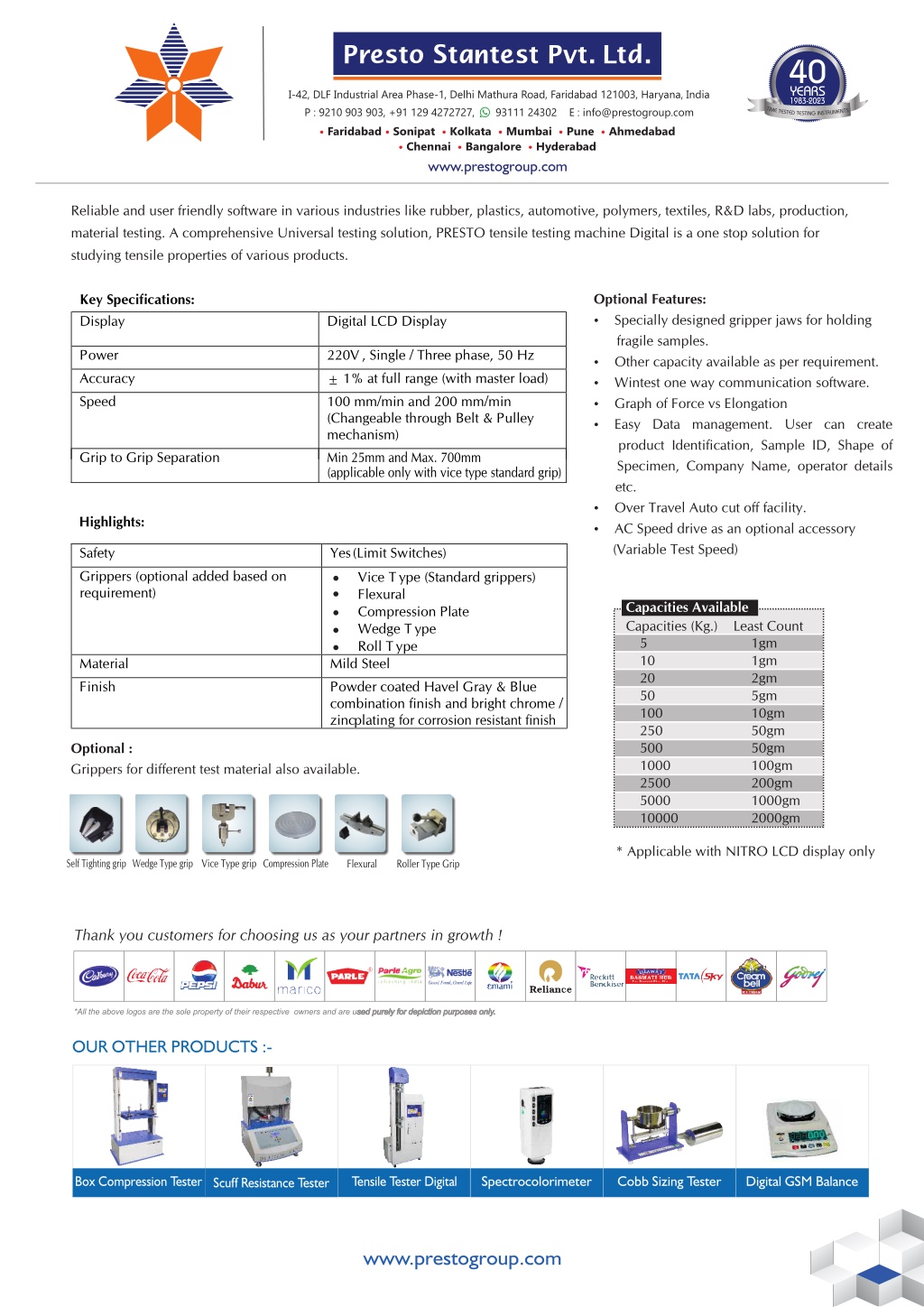

Presto Stantest Pvt. Ltd. I-42, DLF Industrial Area Phase-1, Delhi Mathura Road, Faridabad 121003, Haryana, India P : 9210 903 903, +91 129 4272727, 93111 24302 E : info@prestogroup.com 40 YEARS 1983-2023 TIME S T T EN ES UM TE STR D T ESTING IN • Faridabad Sonipat • Kolkata Mumbai Pune Ahmedabad • • Chennai Bangalore Hyderabad www.prestogroup.com • • • • • Reliable and user friendly software in various industries like rubber, plastics, automotive, polymers, textiles, R&D labs, production, material testing. A comprehensive Universal testing solution, PRESTO tensile testing machine Digital is a one stop solution for studying tensile properties of various products. Optional Features: Specially designed gripper jaws for holding fragile samples. Other capacity available as per requirement. Wintest one way communication software. Graph of Force vs Elongation Easy Data management. User can create product Identification, Sample ID, Shape of Specimen, Company Name, operator details etc. Over Travel Auto cut off facility. AC Speed drive as an optional accessory (Variable Test Speed) Key Specifications: Display Digital LCD Display 220V, Single / Three phase, 50 Hz ± 1% at full range (with master load) 100 mm/min and 200 mm/min (Changeable through Belt & Pulley mechanism) Min 25mm and Max. 700mm (applicable only with vice type standard grip) Ÿ Power Accuracy Speed Ÿ Ÿ Ÿ Ÿ Grip to Grip Separation Ÿ Highlights: Ÿ Safety Grippers (optional added based on requirement) Yes (Limit Switches) Vice Type (Standard grippers) • • • • • Flexural Compression Plate Roll Type Mild Steel Powder coated Havel Gray & Blue combination finish and bright chrome / zinc plating for corrosion resistant finish Capacities Available Capacities (Kg.) Least Count 5 10 20 50 100 250 500 1000 2500 5000 10000 Wedge Type 1gm 1gm 2gm 5gm 10gm 50gm 50gm 100gm 200gm 1000gm 2000gm Material Finish Optional : Grippers for different test material also available. * Applicable with NITRO LCD display only Self Tighting grip Wedge Type grip Vice Type grip Compression Plate Flexural Roller Type Grip OUR OTHER PRODUCTS :- Tensile Tester Digital Box Compression Tester Spectrocolorimeter Cobb Sizing Tester Digital GSM Balance Scuff Resistance Tester www.prestogroup.com
