Seal Integrity Tester For Cups / Pouches

The Seal integrity tester for pouches is used for testing the intactness of the pouches that are used for packaging of a variety of products. If these pouches are not intact, the products can leak from them and can cause spillage.<br><br>For more information visit our website:- https://www.prestogroup.com/products/seal-integrity-tester-for-pouches/

Prestogroup1
Download Presentation

Seal Integrity Tester For Cups / Pouches

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

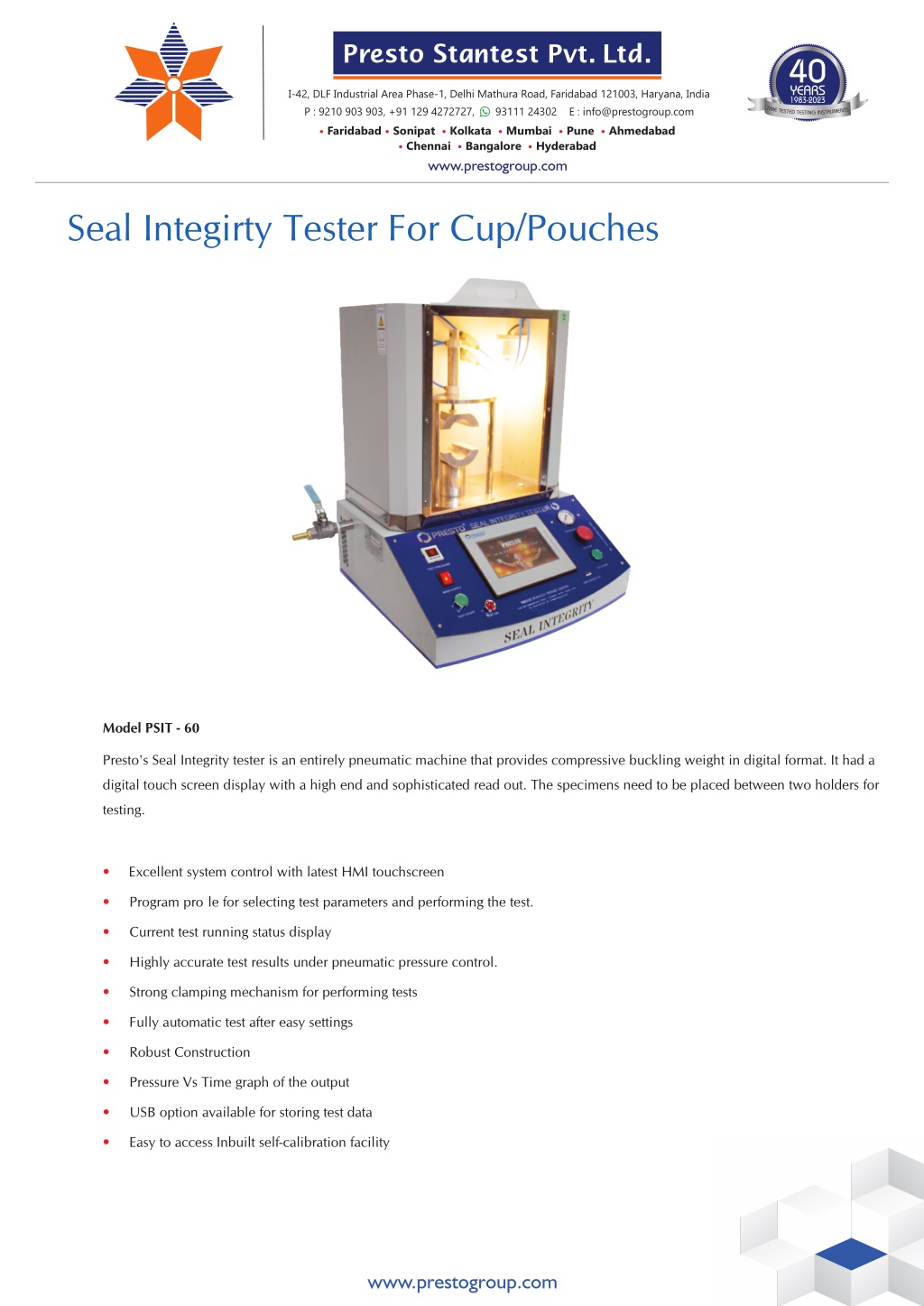

  1. Presto Stantest Pvt. Ltd. I-42, DLF Industrial Area Phase-1, Delhi Mathura Road, Faridabad 121003, Haryana, India P : 9210 903 903, +91 129 4272727, 93111 24302 E : info@prestogroup.com 40 YEARS 1983-2023 TIME S T T EN ES UM TE STR D T ESTING IN • Faridabad Sonipat • Kolkata Mumbai Pune Ahmedabad • • Chennai Bangalore Hyderabad www.prestogroup.com • • • • • Seal Integirty Tester For Cup/Pouches Model PSIT - 60 Presto's Seal Integrity tester is an entirely pneumatic machine that provides compressive buckling weight in digital format. It had a digital touch screen display with a high end and sophisticated read out. The specimens need to be placed between two holders for testing. • Excellent system control with latest HMI touchscreen • Program pro? le for selecting test parameters and performing the test. • Current test running status display • Highly accurate test results under pneumatic pressure control. • Strong clamping mechanism for performing tests • Fully automatic test after easy settings • Robust Construction • Pressure Vs Time graph of the output • USB option available for storing test data • Easy to access Inbuilt self-calibration facility www.prestogroup.com

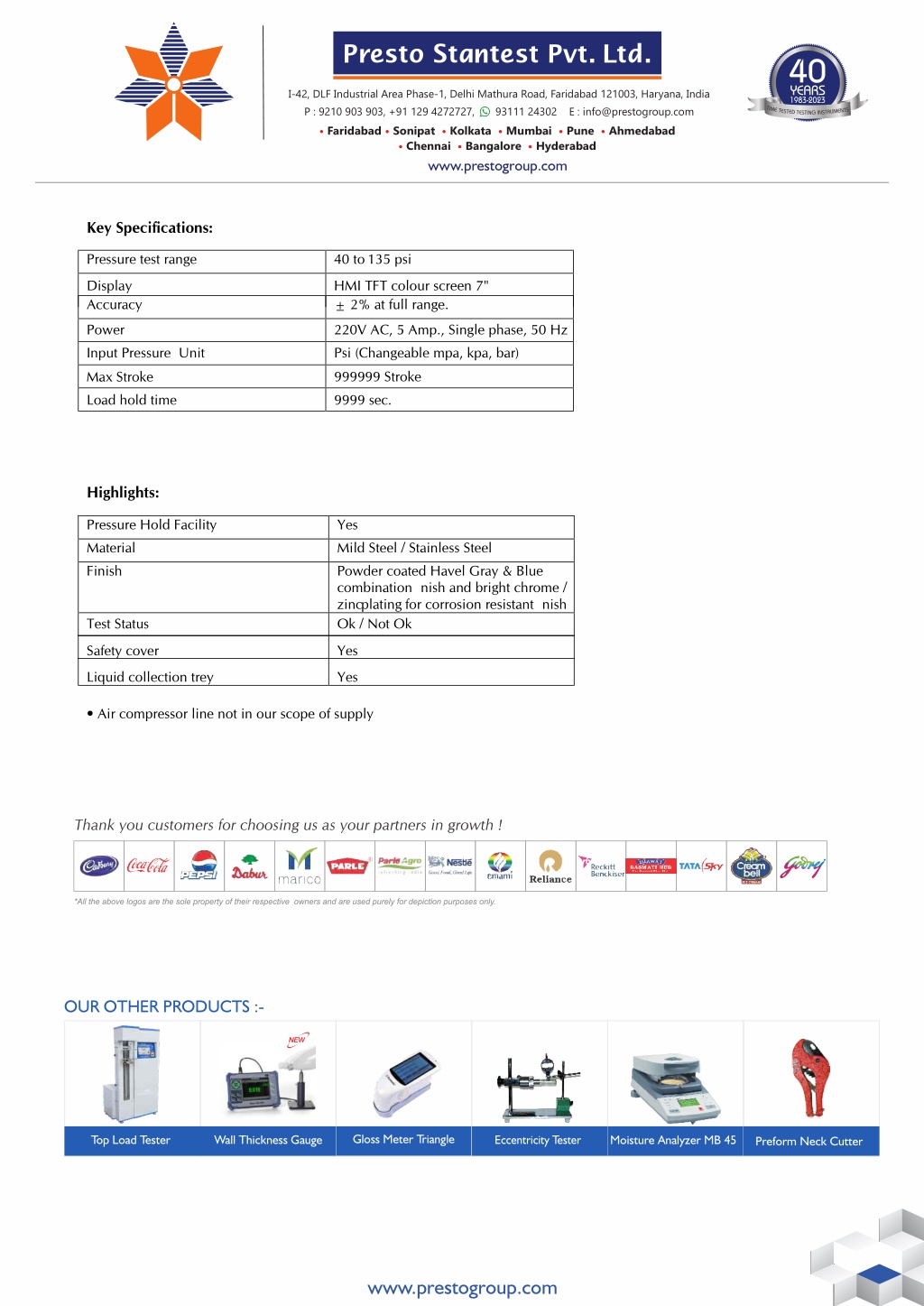

  2. Presto Stantest Pvt. Ltd. I-42, DLF Industrial Area Phase-1, Delhi Mathura Road, Faridabad 121003, Haryana, India P : 9210 903 903, +91 129 4272727, 93111 24302 E : info@prestogroup.com 40 YEARS 1983-2023 TIME S T T EN ES UM TE STR D T ESTING IN • Faridabad Sonipat • Kolkata Mumbai Pune Ahmedabad • • Chennai Bangalore Hyderabad www.prestogroup.com • • • • • Key Specifications: Pressure test range 40 to 135 psi HMI TFT colour screen 7" ± 2% at full range. Display Accuracy Power Input Pressure Unit 220V AC, 5 Amp., Single phase, 50 Hz Psi (Changeable mpa, kpa, bar) 9999 sec. 999999 Stroke Max Stroke Load hold time Highlights: Pressure Hold Facility Material Finish Yes Mild Steel / Stainless Steel Powder coated Havel Gray & Blue combination ? nish and bright chrome / zinc plating for corrosion resistant ? nish Ok / Not Ok Yes Test Status Safety cover Liquid collection trey Yes • Air compressor line not in our scope of supply OUR OTHER PRODUCTS :- Gloss Meter Triangle Top Load Tester Wall Thickness Gauge Eccentricity Tester Moisture Analyzer MB 45 Preform Neck Cutter www.prestogroup.com
