UNISOL Miniature Din Rail Patch Panel offers up to 24 ports for connection and is designed to be compact in order to save cabinet space. These DIN rail LIUs can be installed in substation automation networks to give as many fiber connections as possible in the smallest amount of space. The maximum number of cable entries that the fiber enclosure can support is four. They are used in the oil and gas, CCTV and surveillance, rail signalling and control, process automation and control systems, renewable energy, and power transmission industries, where they can be mounted on the backplane or side p

Preethi19
Download Presentation

MINI DINRAIL FBER OPTIC PATCH PANELPDF

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. UNISOL COMMUNICATIONS MINI DINRAIL PATCH PANEL

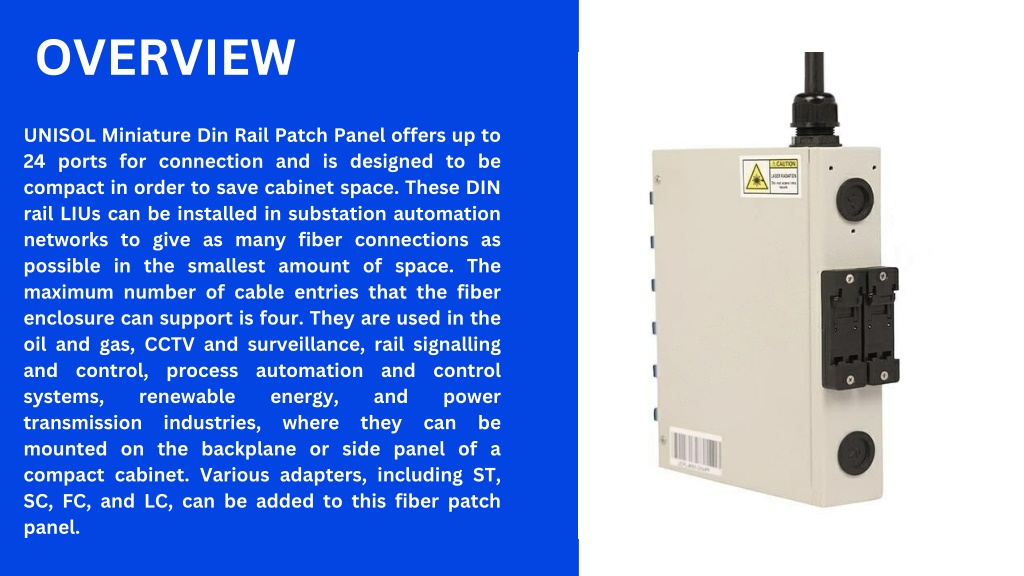

  2. OVERVIEW UNISOL Miniature Din Rail Patch Panel offers up to 24 ports for connection and is designed to be compact in order to save cabinet space. These DIN rail LIUs can be installed in substation automation networks to give as many fiber connections as possible in the smallest amount of space. The maximum number of cable entries that the fiber enclosure can support is four. They are used in the oil and gas, CCTV and surveillance, rail signalling and control, process automation and control systems, renewable transmission industries, where they can be mounted on the backplane or side panel of a compact cabinet. Various adapters, including ST, SC, FC, and LC, can be added to this fiber patch panel. energy, and power

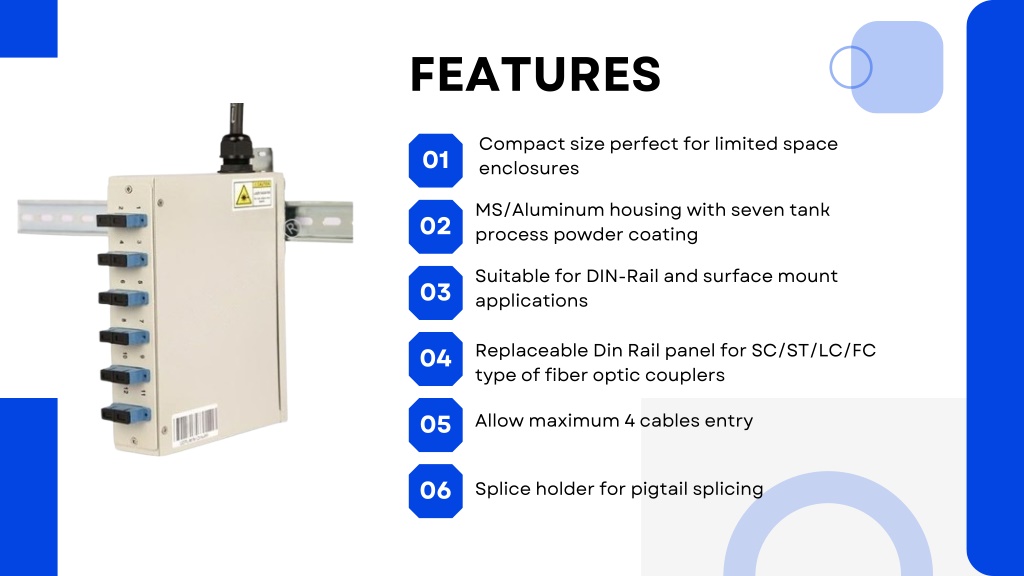

  3. FEATURES Compact size perfect for limited space enclosures 01 MS/Aluminum housing with seven tank process powder coating 02 Suitable for DIN-Rail and surface mount applications 03 Replaceable Din Rail panel for SC/ST/LC/FC type of fiber optic couplers 04 05 Allow maximum 4 cables entry 06 Splice holder for pigtail splicing

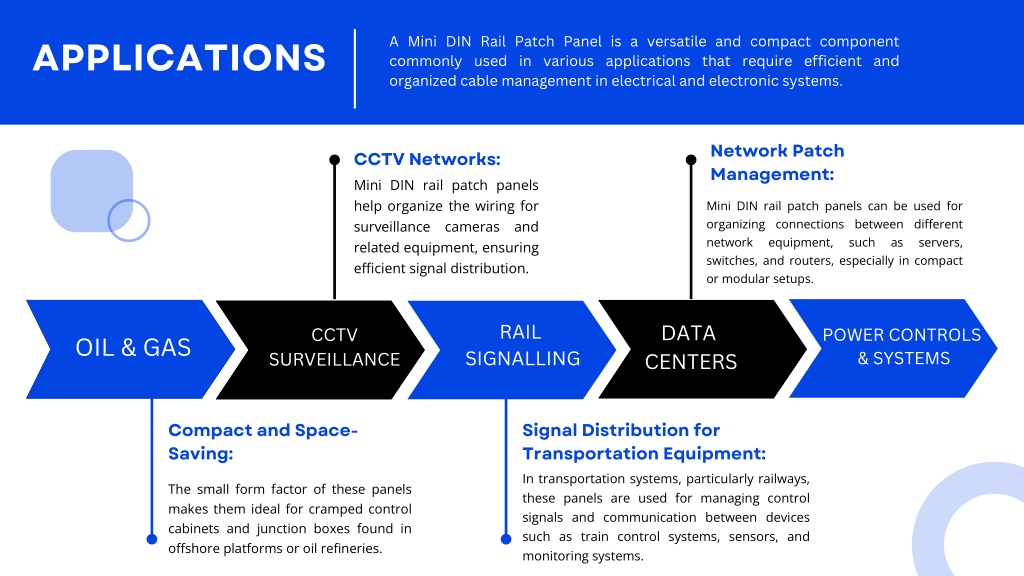

  4. APPLICATIONS A Mini DIN Rail Patch Panel is a versatile and compact component commonly used in various applications that require efficient and organized cable management in electrical and electronic systems. Network Patch Management: CCTV Networks: Mini DIN rail patch panels help organize the wiring for surveillance cameras and related equipment, ensuring efficient signal distribution. Mini DIN rail patch panels can be used for organizing connections between different network equipment, switches, and routers, especially in compact or modular setups. such as servers, RAIL DATA CENTERS CCTV POWER CONTROLS & SYSTEMS OIL & GAS SIGNALLING SURVEILLANCE Compact and Space- Saving: Signal Distribution for Transportation Equipment: In transportation systems, particularly railways, these panels are used for managing control signals and communication between devices such as train control systems, sensors, and monitoring systems. The small form factor of these panels makes them ideal for cramped control cabinets and junction boxes found in offshore platforms or oil refineries.
