Precihole Machine Tools is a global leader in providing hi-precision deep hole drilling and hole finishing technology. Our focus on this niche technology over the last three decades has made us a highly recognized brand with the most complete range of solutions offered in this technology. Our strength is to be creative and customize an engineering solution that is perfectly suited to the needs of the customer. This is by no means an easy task since deep hole drilling and hole finishing solutions have over 150 different applications spread across 20 industries. Our business strategy revolves around customer success by combining a state-of-the-art machine tool, application support, and excellent service together in our offering.

Precihole
Download Presentation

Gun Drilling Machine - Precihole Machine Tools

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

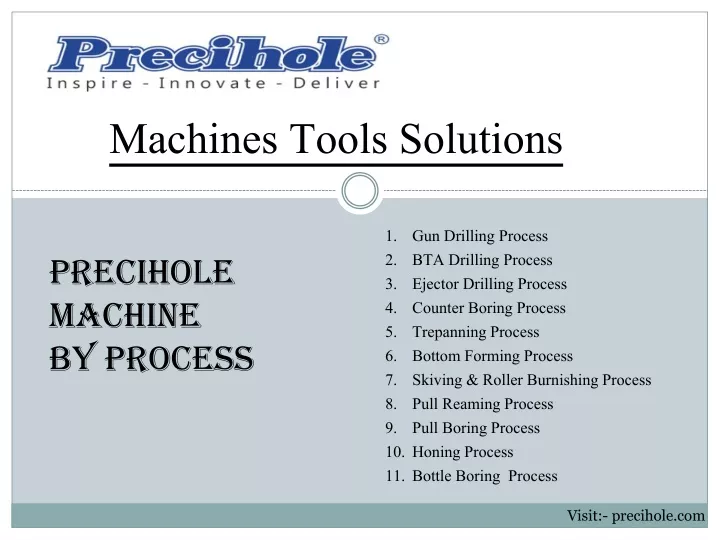

  1. Machines Tools Solutions Gun Drilling Process BTA Drilling Process Ejector Drilling Process Counter Boring Process Trepanning Process Bottom Forming Process Skiving & Roller Burnishing Process Pull Reaming Process Pull Boring Process Honing Process Bottle Boring Process Precihole Machine By Process Visit:- precihole.com

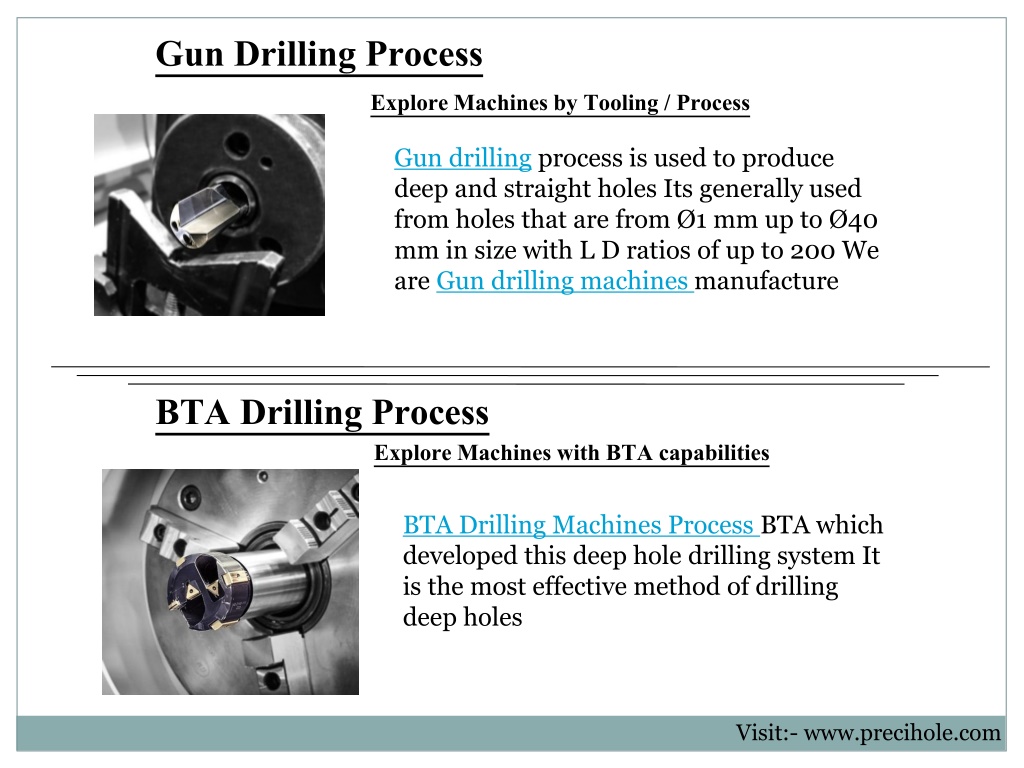

  2. Gun Drilling Process Explore Machines by Tooling / Process Gun drilling process is used to produce deep and straight holes Its generally used from holes that are from Ø1 mm up to Ø40 mm in size with L D ratios of up to 200 We are Gun drilling machines manufacture BTA Drilling Process Explore Machines with BTA capabilities BTA Drilling Machines Process BTA which developed this deep hole drilling system It is the most effective method of drilling deep holes Visit:- www.precihole.com

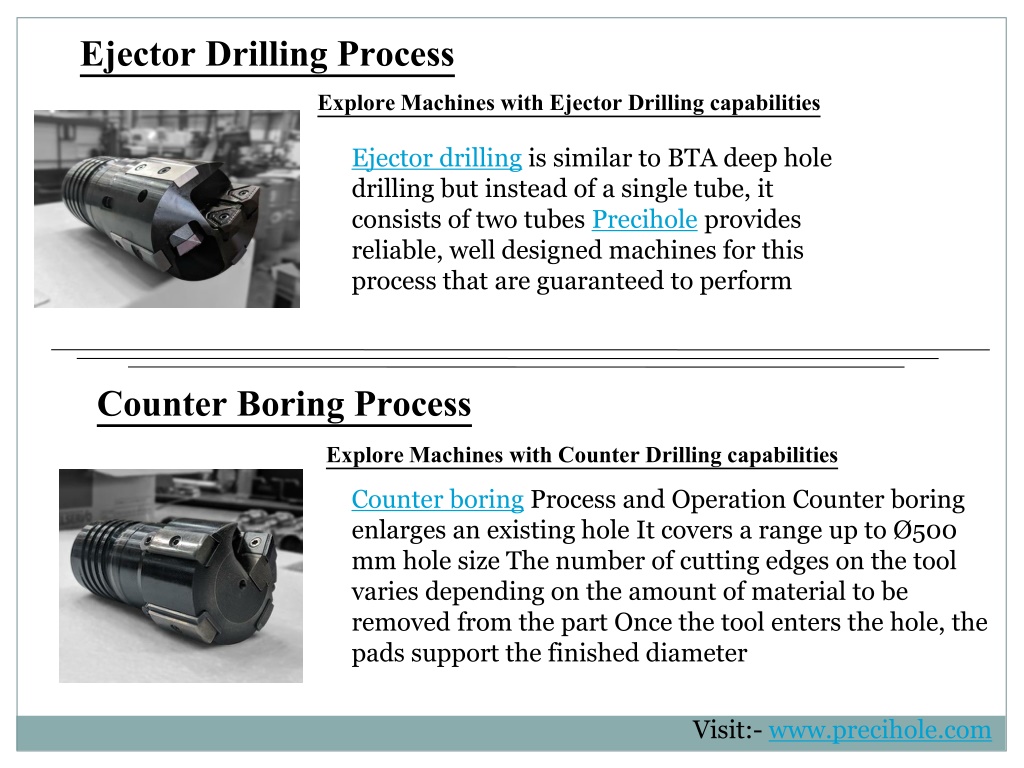

  3. Ejector Drilling Process Explore Machines with Ejector Drilling capabilities Ejector drilling is similar to BTA deep hole drilling but instead of a single tube, it consists of two tubes Precihole provides reliable, well designed machines for this process that are guaranteed to perform Counter Boring Process Explore Machines with Counter Drilling capabilities Counter boringProcess and Operation Counter boring enlarges an existing hole It covers a range up to Ø500 mm hole size The number of cutting edges on the tool varies depending on the amount of material to be removed from the part Once the tool enters the hole, the pads support the finished diameter Visit:- www.precihole.com

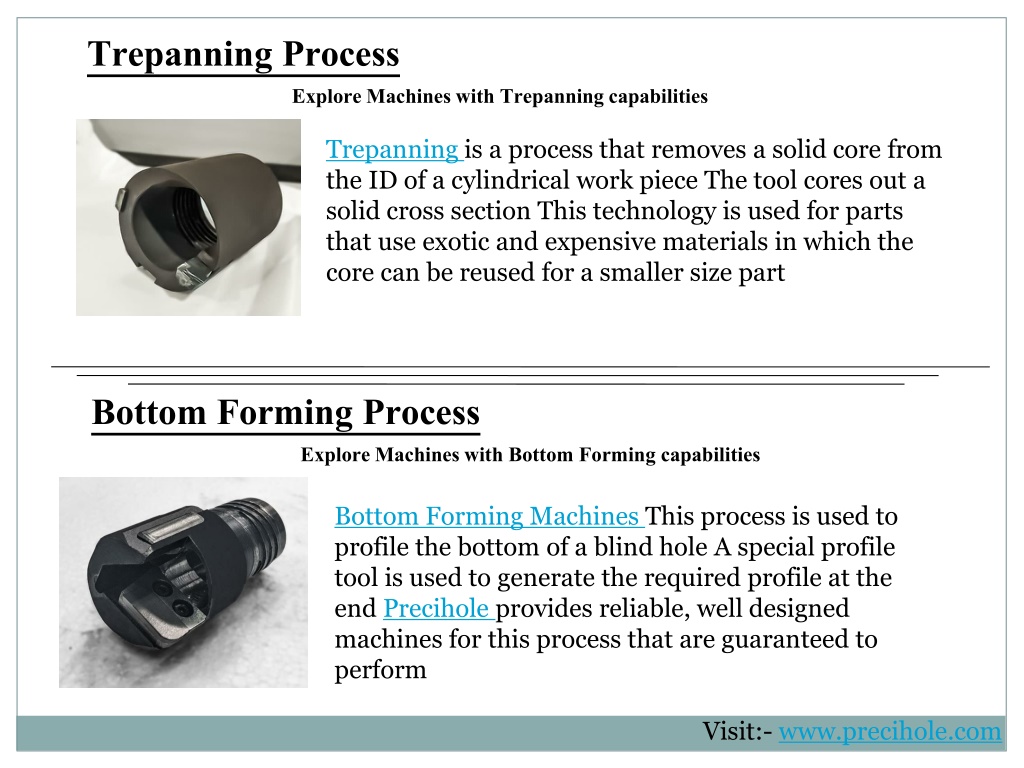

  4. Trepanning Process Explore Machines with Trepanning capabilities Trepanning is a process that removes a solid core from the ID of a cylindrical work piece The tool cores out a solid cross section This technology is used for parts that use exotic and expensive materials in which the core can be reused for a smaller size part Bottom Forming Process Explore Machines with Bottom Forming capabilities Bottom Forming Machines This process is used to profile the bottom of a blind hole A special profile tool is used to generate the required profile at the end Preciholeprovides reliable, well designed machines for this process that are guaranteed to perform Visit:- www.precihole.com

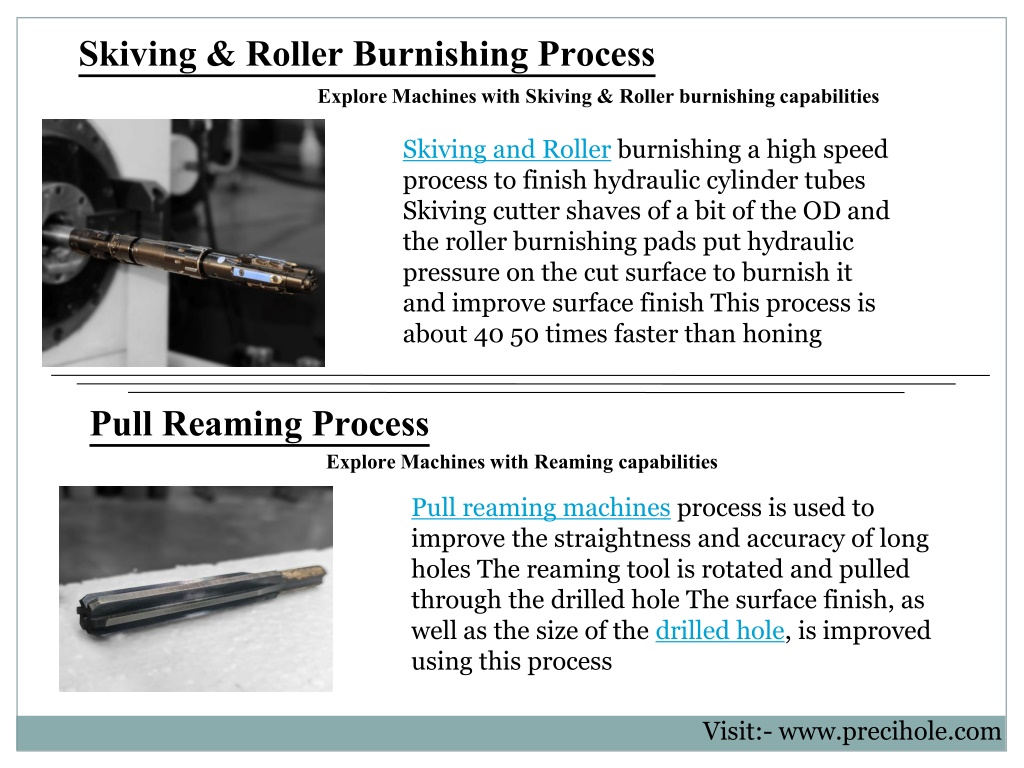

  5. Skiving & Roller Burnishing Process Explore Machines with Skiving & Roller burnishing capabilities Skiving and Roller burnishing a high speed process to finish hydraulic cylinder tubes Skiving cutter shaves of a bit of the OD and the roller burnishing pads put hydraulic pressure on the cut surface to burnish it and improve surface finish This process is about 40 50 times faster than honing Pull Reaming Process Explore Machines with Reaming capabilities Pull reaming machines process is used to improve the straightness and accuracy of long holes The reaming tool is rotated and pulled through the drilled hole The surface finish, as well as the size of the drilled hole, is improved using this process Visit:- www.precihole.com

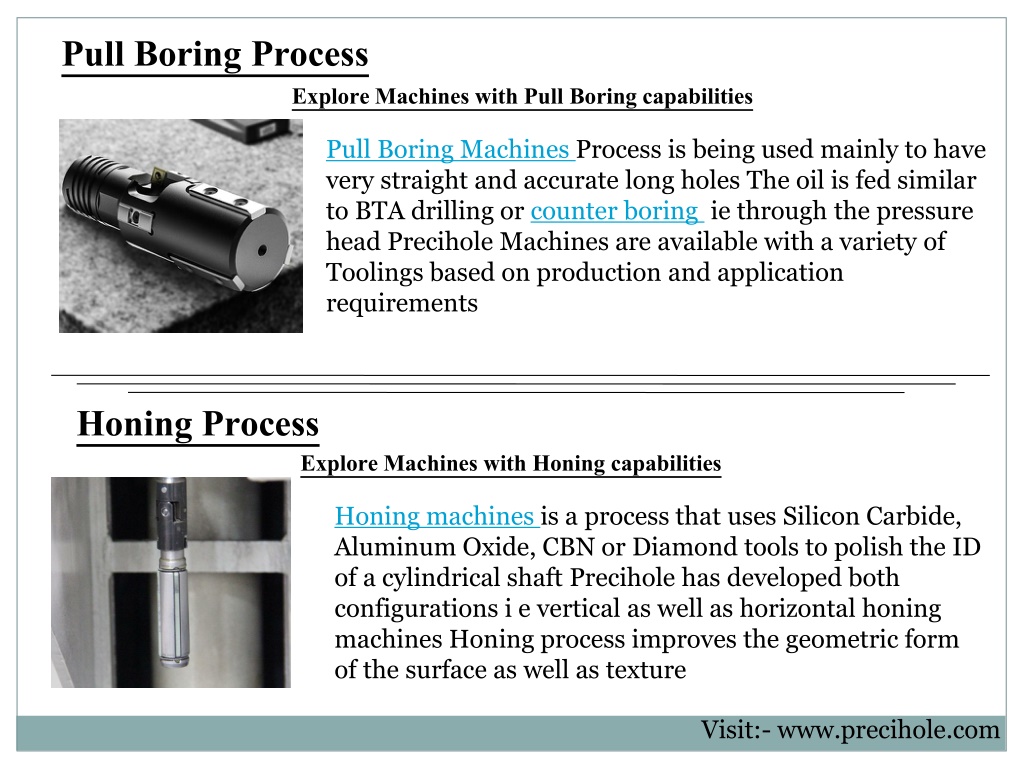

  6. Pull Boring Process Explore Machines with Pull Boring capabilities Pull Boring Machines Process is being used mainly to have very straight and accurate long holes The oil is fed similar to BTA drilling or counter boring ie through the pressure head Precihole Machines are available with a variety of Toolings based on production and application requirements Honing Process Explore Machines with Honing capabilities Honing machines is a process that uses Silicon Carbide, Aluminum Oxide, CBN or Diamond tools to polish the ID of a cylindrical shaft Precihole has developed both configurations i e vertical as well as horizontal honing machines Honing process improves the geometric form of the surface as well as texture Visit:- www.precihole.com

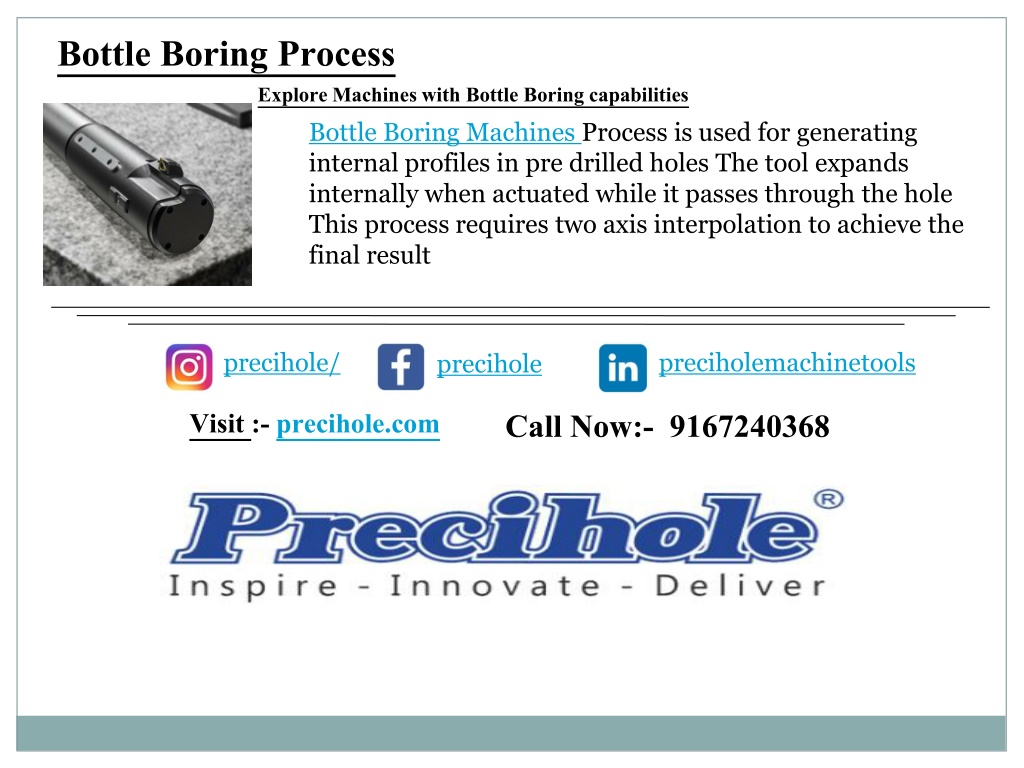

  7. Bottle Boring Process Explore Machines with Bottle Boring capabilities Bottle Boring Machines Process is used for generating internal profiles in pre drilled holes The tool expands internally when actuated while it passes through the hole This process requires two axis interpolation to achieve the final result precihole/ preciholemachinetools precihole Visit :- precihole.com Call Now:- 9167240368
