Maintenance & Troubleshooting Tips For Isolation Transformers

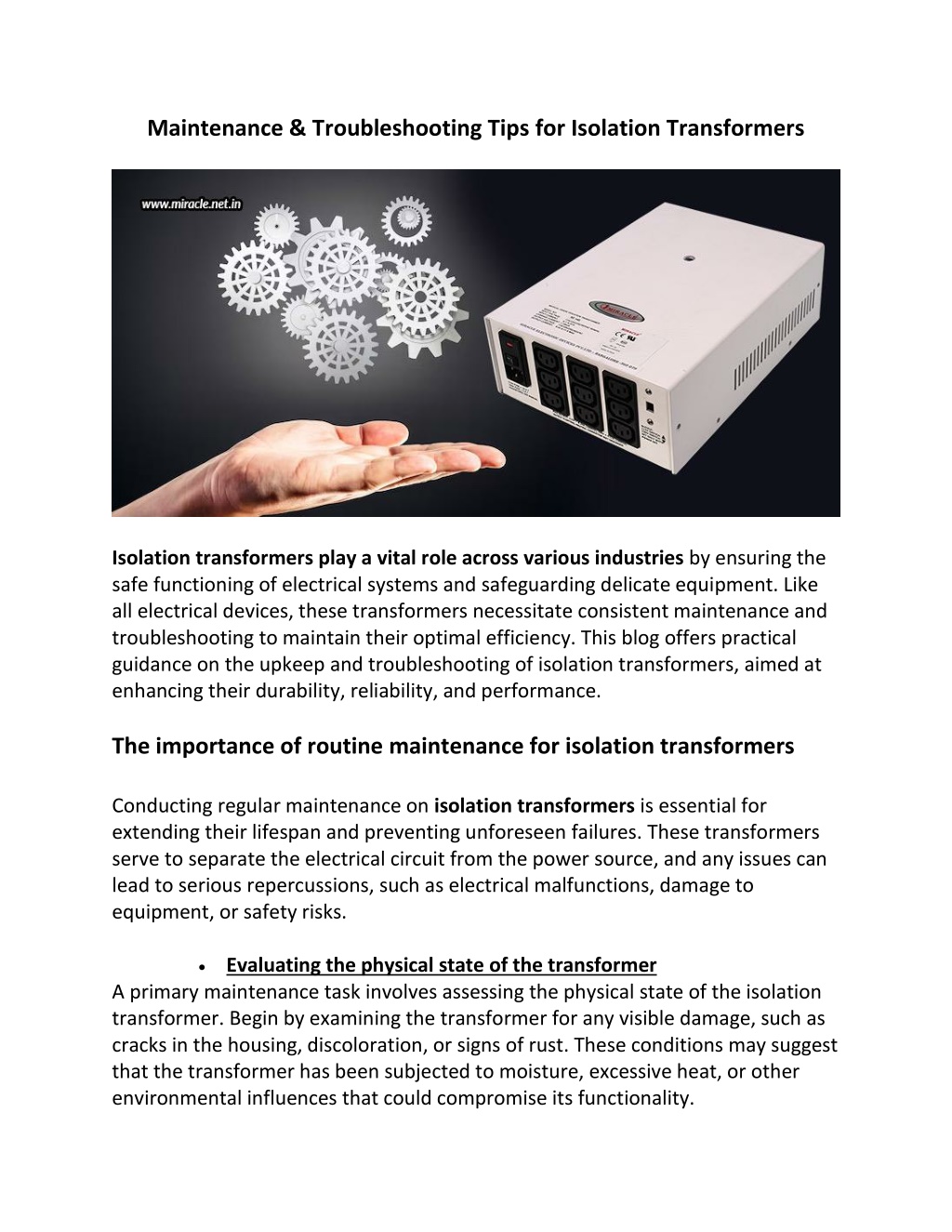

1. Maintenance & Troubleshooting Tips for Isolation Transformers Isolation transformers play a vital role across various industries by ensuring the safe functioning of electrical systems and safeguarding delicate equipment. Like all electrical devices, these transformers necessitate consistent maintenance and troubleshooting to maintain their optimal efficiency. This blog offers practical guidance on the upkeep and troubleshooting of isolation transformers, aimed at enhancing their durability, reliability, and performance. The importance of routine maintenance for isolation transformers Conducting regular maintenance on isolation transformers is essential for extending their lifespan and preventing unforeseen failures. These transformers serve to separate the electrical circuit from the power source, and any issues can lead to serious repercussions, such as electrical malfunctions, damage to equipment, or safety risks. •Evaluating the physical state of the transformer A primary maintenance task involves assessing the physical state of the isolation transformer. Begin by examining the transformer for any visible damage, such as cracks in the housing, discoloration, or signs of rust. These conditions may suggest that the transformer has been subjected to moisture, excessive heat, or other environmental influences that could compromise its functionality.

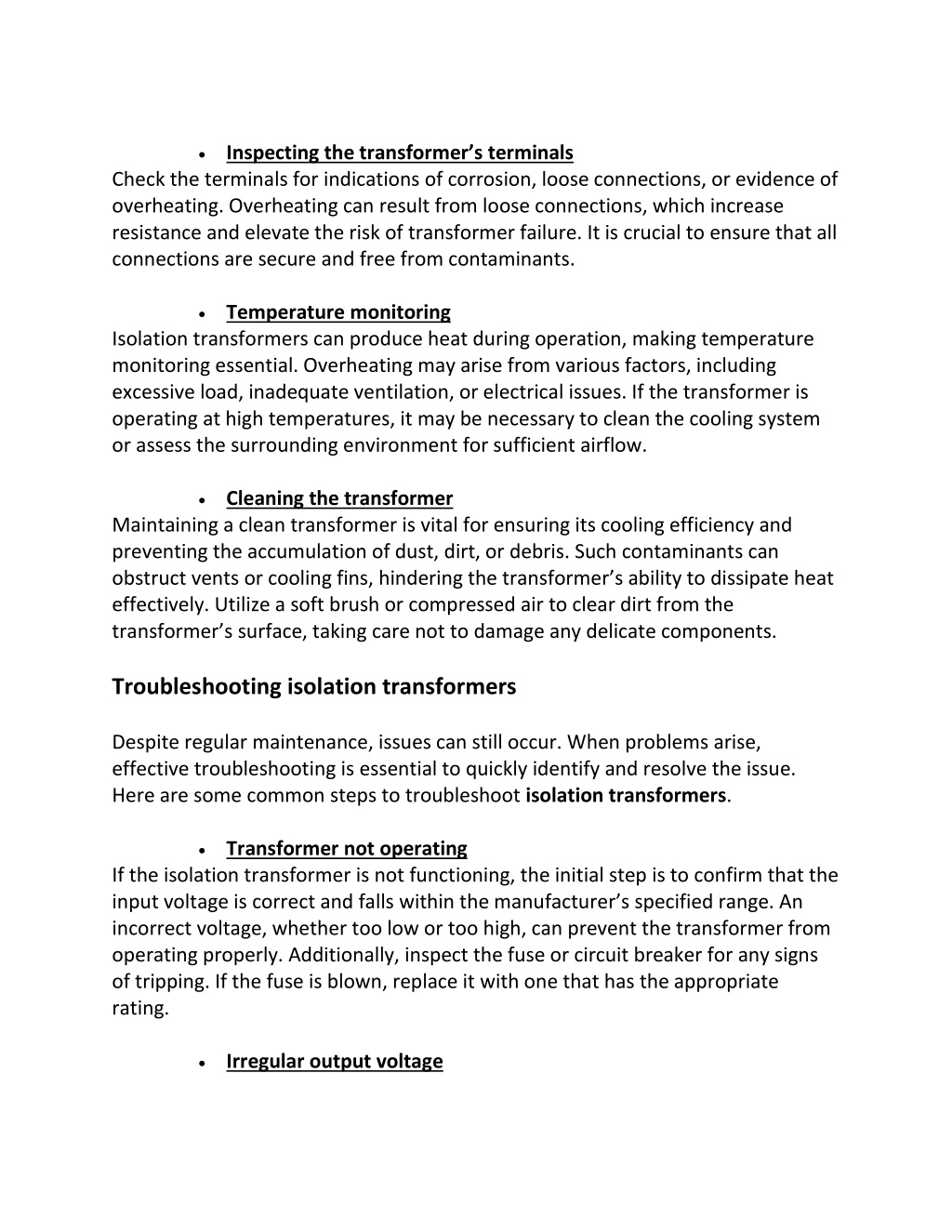

2. •Inspecting the transformer’s terminals Check the terminals for indications of corrosion, loose connections, or evidence of overheating. Overheating can result from loose connections, which increase resistance and elevate the risk of transformer failure. It is crucial to ensure that all connections are secure and free from contaminants. •Temperature monitoring Isolation transformers can produce heat during operation, making temperature monitoring essential. Overheating may arise from various factors, including excessive load, inadequate ventilation, or electrical issues. If the transformer is operating at high temperatures, it may be necessary to clean the cooling system or assess the surrounding environment for sufficient airflow. •Cleaning the transformer Maintaining a clean transformer is vital for ensuring its cooling efficiency and preventing the accumulation of dust, dirt, or debris. Such contaminants can obstruct vents or cooling fins, hindering the transformer’s ability to dissipate heat effectively. Utilize a soft brush or compressed air to clear dirt from the transformer’s surface, taking care not to damage any delicate components. Troubleshooting isolation transformers Despite regular maintenance, issues can still occur. When problems arise, effective troubleshooting is essential to quickly identify and resolve the issue. Here are some common steps to troubleshoot isolation transformers. •Transformer not operating If the isolation transformer is not functioning, the initial step is to confirm that the input voltage is correct and falls within the manufacturer’s specified range. An incorrect voltage, whether too low or too high, can prevent the transformer from operating properly. Additionally, inspect the fuse or circuit breaker for any signs of tripping. If the fuse is blown, replace it with one that has the appropriate rating. •Irregular output voltage

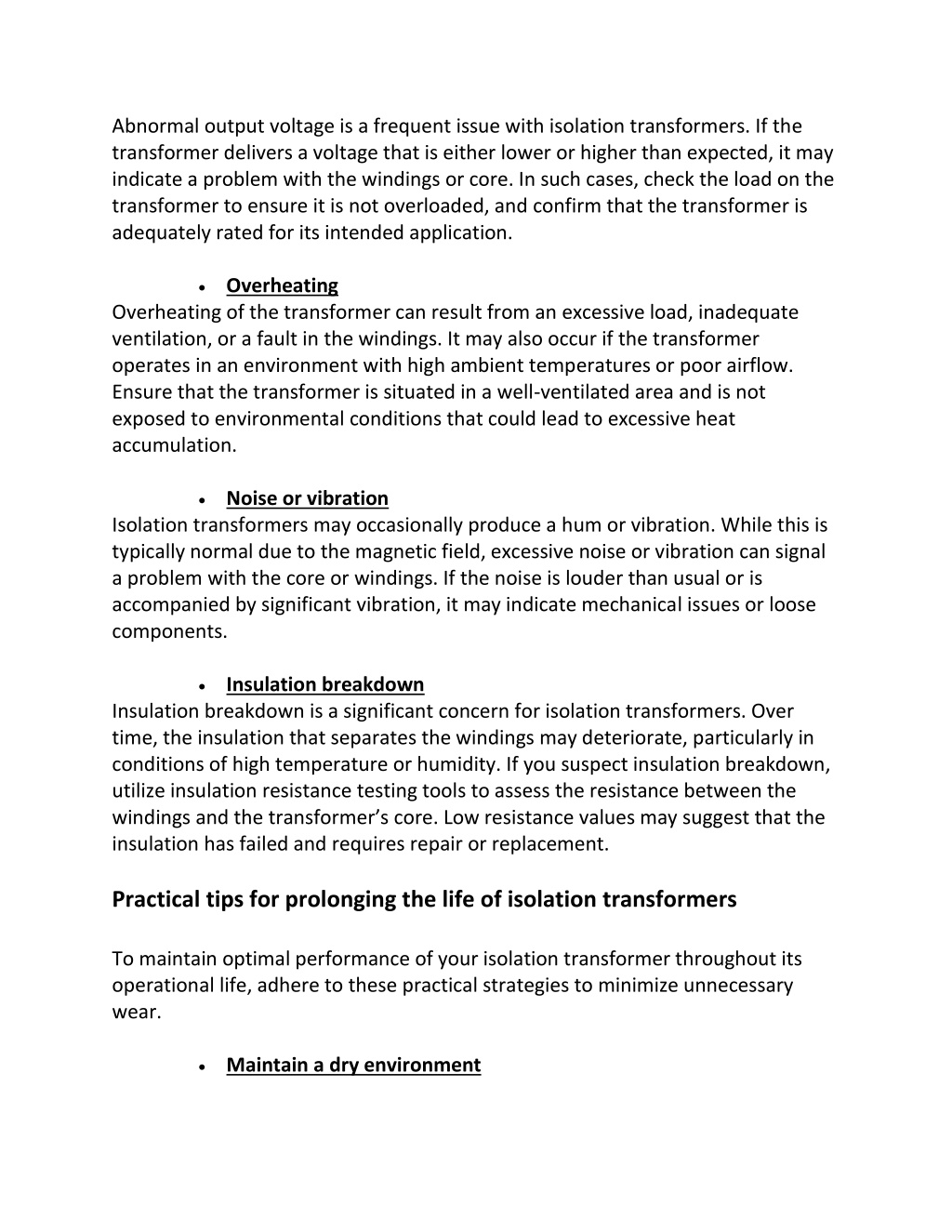

3. Abnormal output voltage is a frequent issue with isolation transformers. If the transformer delivers a voltage that is either lower or higher than expected, it may indicate a problem with the windings or core. In such cases, check the load on the transformer to ensure it is not overloaded, and confirm that the transformer is adequately rated for its intended application. •Overheating Overheating of the transformer can result from an excessive load, inadequate ventilation, or a fault in the windings. It may also occur if the transformer operates in an environment with high ambient temperatures or poor airflow. Ensure that the transformer is situated in a well-ventilated area and is not exposed to environmental conditions that could lead to excessive heat accumulation. •Noise or vibration Isolation transformers may occasionally produce a hum or vibration. While this is typically normal due to the magnetic field, excessive noise or vibration can signal a problem with the core or windings. If the noise is louder than usual or is accompanied by significant vibration, it may indicate mechanical issues or loose components. •Insulation breakdown Insulation breakdown is a significant concern for isolation transformers. Over time, the insulation that separates the windings may deteriorate, particularly in conditions of high temperature or humidity. If you suspect insulation breakdown, utilize insulation resistance testing tools to assess the resistance between the windings and the transformer’s core. Low resistance values may suggest that the insulation has failed and requires repair or replacement. Practical tips for prolonging the life of isolation transformers To maintain optimal performance of your isolation transformer throughout its operational life, adhere to these practical strategies to minimize unnecessary wear. •Maintain a dry environment

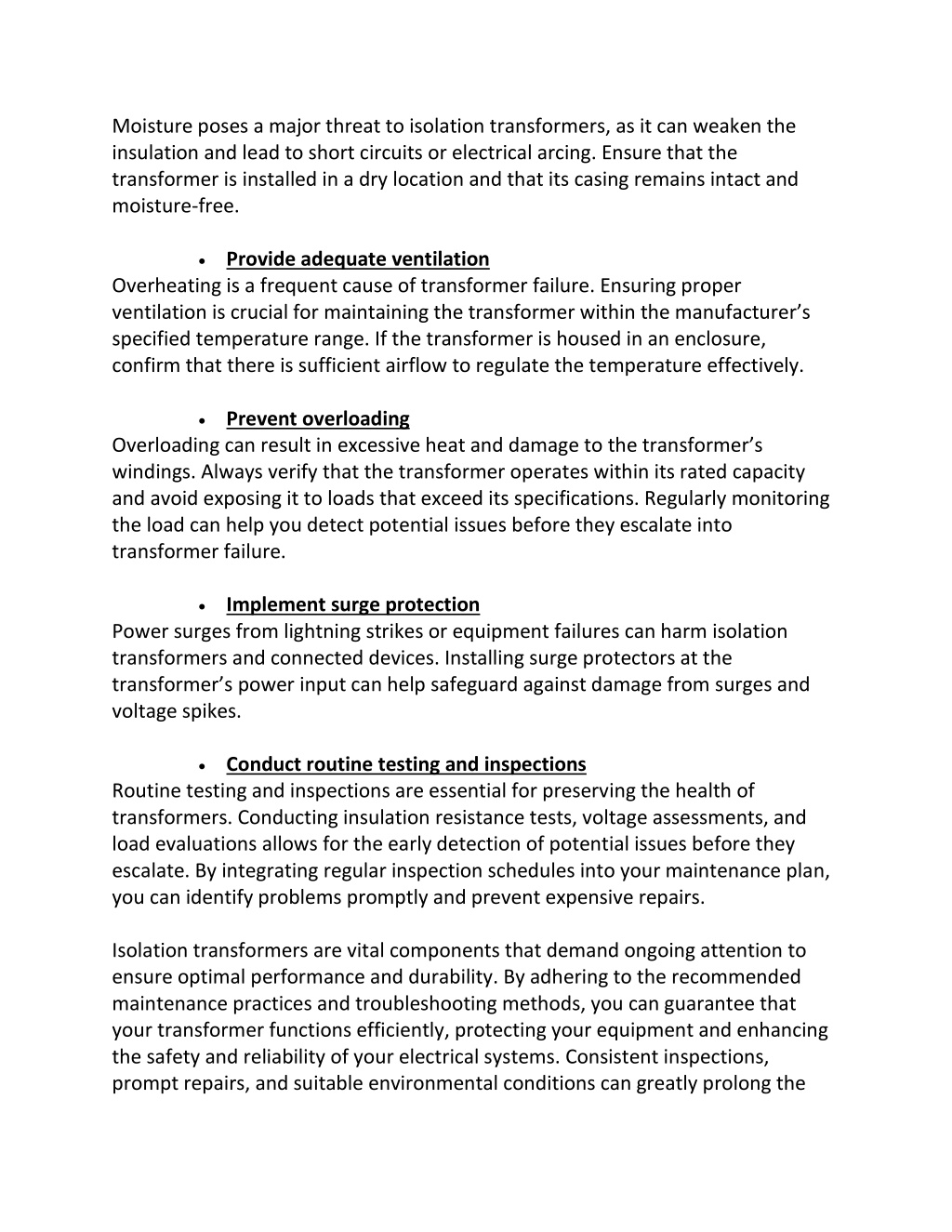

4. Moisture poses a major threat to isolation transformers, as it can weaken the insulation and lead to short circuits or electrical arcing. Ensure that the transformer is installed in a dry location and that its casing remains intact and moisture-free. •Provide adequate ventilation Overheating is a frequent cause of transformer failure. Ensuring proper ventilation is crucial for maintaining the transformer within the manufacturer’s specified temperature range. If the transformer is housed in an enclosure, confirm that there is sufficient airflow to regulate the temperature effectively. •Prevent overloading Overloading can result in excessive heat and damage to the transformer’s windings. Always verify that the transformer operates within its rated capacity and avoid exposing it to loads that exceed its specifications. Regularly monitoring the load can help you detect potential issues before they escalate into transformer failure. •Implement surge protection Power surges from lightning strikes or equipment failures can harm isolation transformers and connected devices. Installing surge protectors at the transformer’s power input can help safeguard against damage from surges and voltage spikes. •Conduct routine testing and inspections Routine testing and inspections are essential for preserving the health of transformers. Conducting insulation resistance tests, voltage assessments, and load evaluations allows for the early detection of potential issues before they escalate. By integrating regular inspection schedules into your maintenance plan, you can identify problems promptly and prevent expensive repairs. Isolation transformers are vital components that demand ongoing attention to ensure optimal performance and durability. By adhering to the recommended maintenance practices and troubleshooting methods, you can guarantee that your transformer functions efficiently, protecting your equipment and enhancing the safety and reliability of your electrical systems. Consistent inspections, prompt repairs, and suitable environmental conditions can greatly prolong the

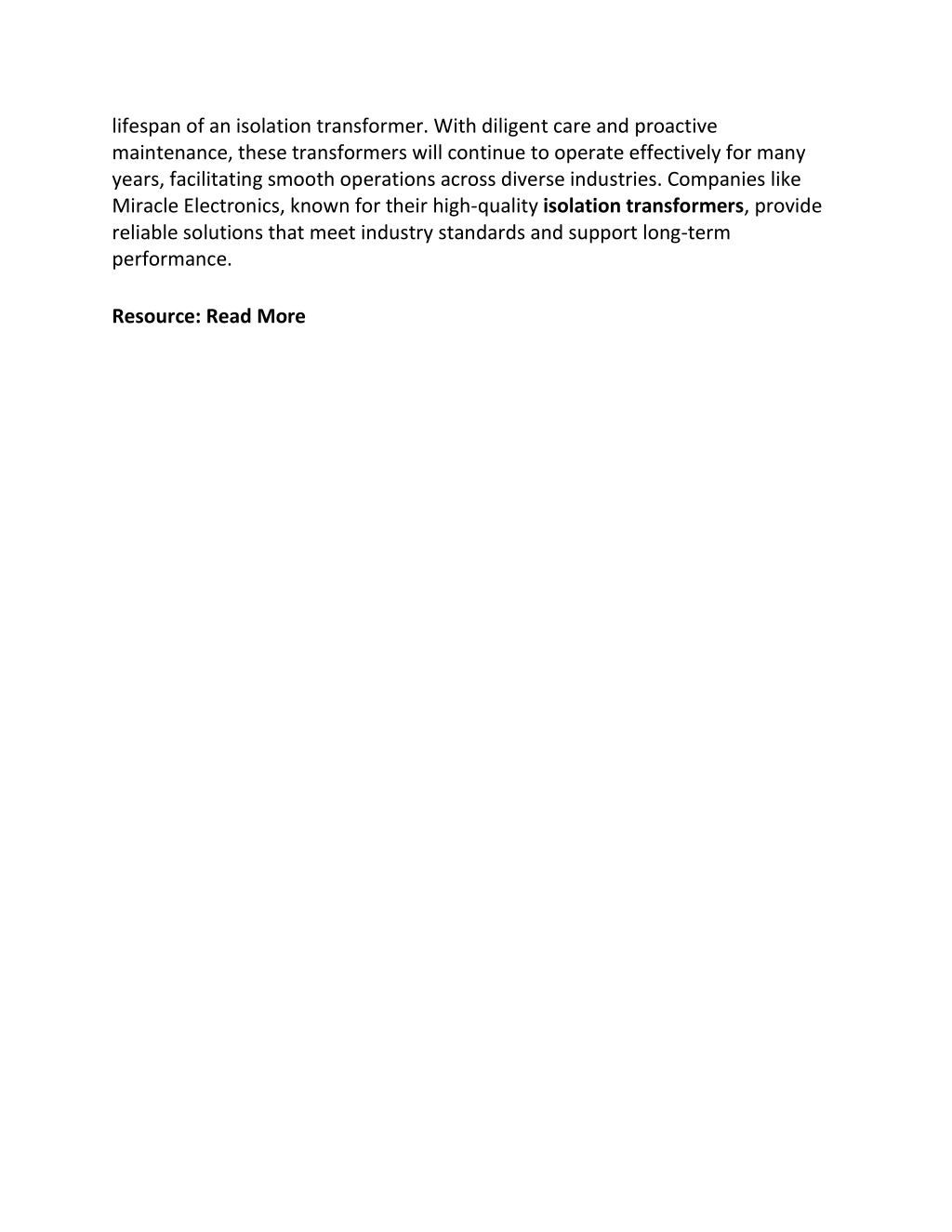

5. lifespan of an isolation transformer. With diligent care and proactive maintenance, these transformers will continue to operate effectively for many years, facilitating smooth operations across diverse industries. Companies like Miracle Electronics, known for their high-quality isolation transformers, provide reliable solutions that meet industry standards and support long-term performance. Resource: Read More
