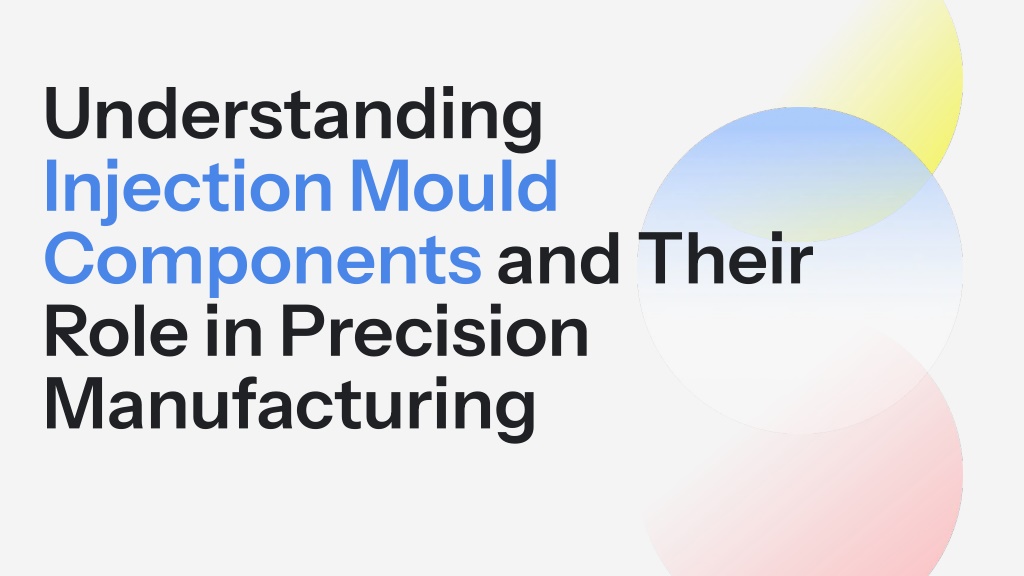

  1. Understanding Injection Mould Components and Their Role in Precision Manufacturing

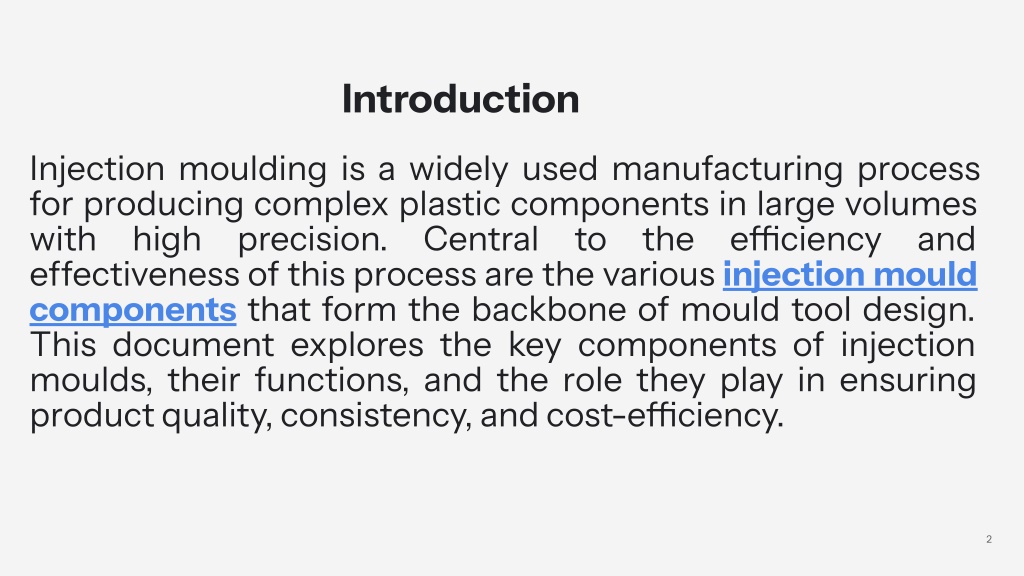

  2. Introduction Injection moulding is a widely used manufacturing process for producing complex plastic components in large volumes with high precision. Central to the efficiency and effectiveness of this process are the various injection mould components that form the backbone of mould tool design. This document explores the key components of injection moulds, their functions, and the role they play in ensuring product quality, consistency, and cost-efficiency. 2

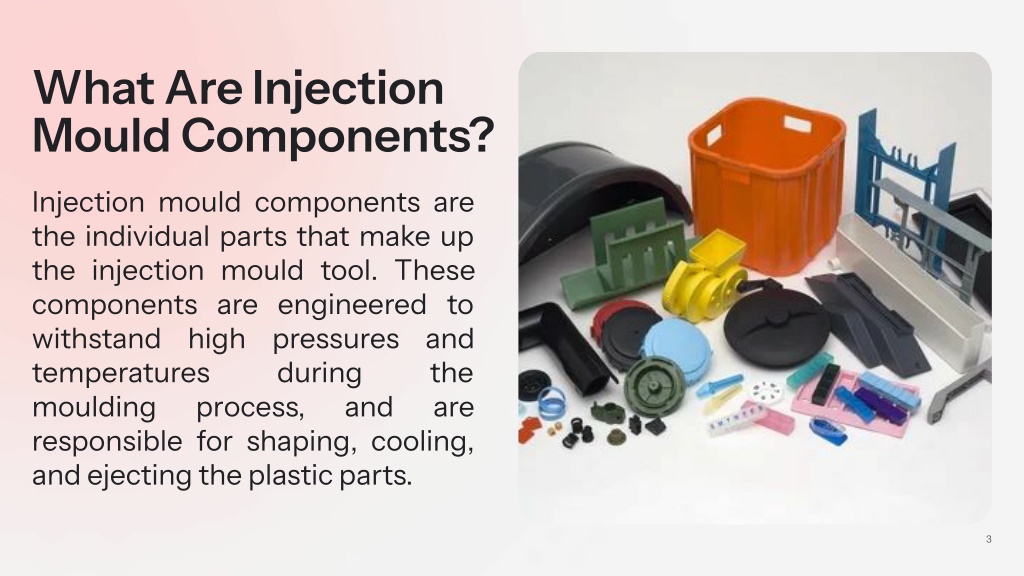

  3. What Are Injection Mould Components? Injection mould components are the individual parts that make up the injection mould tool. These components are engineered to withstand high pressures and temperatures moulding process, responsible for shaping, cooling, and ejecting the plastic parts. during the are and 3

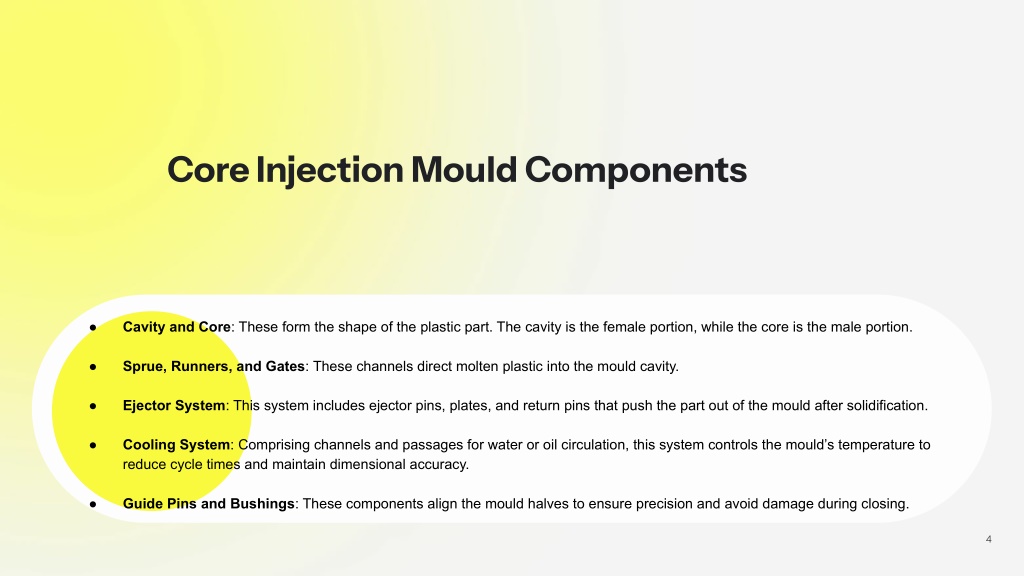

  4. Core Injection Mould Components ● Cavity and Core: These form the shape of the plastic part. The cavity is the female portion, while the core is the male portion. ● Sprue, Runners, and Gates: These channels direct molten plastic into the mould cavity. ● Ejector System: This system includes ejector pins, plates, and return pins that push the part out of the mould after solidification. ● Cooling System: Comprising channels and passages for water or oil circulation, this system controls the mould’s temperature to reduce cycle times and maintain dimensional accuracy. ● Guide Pins and Bushings: These components align the mould halves to ensure precision and avoid damage during closing. 4

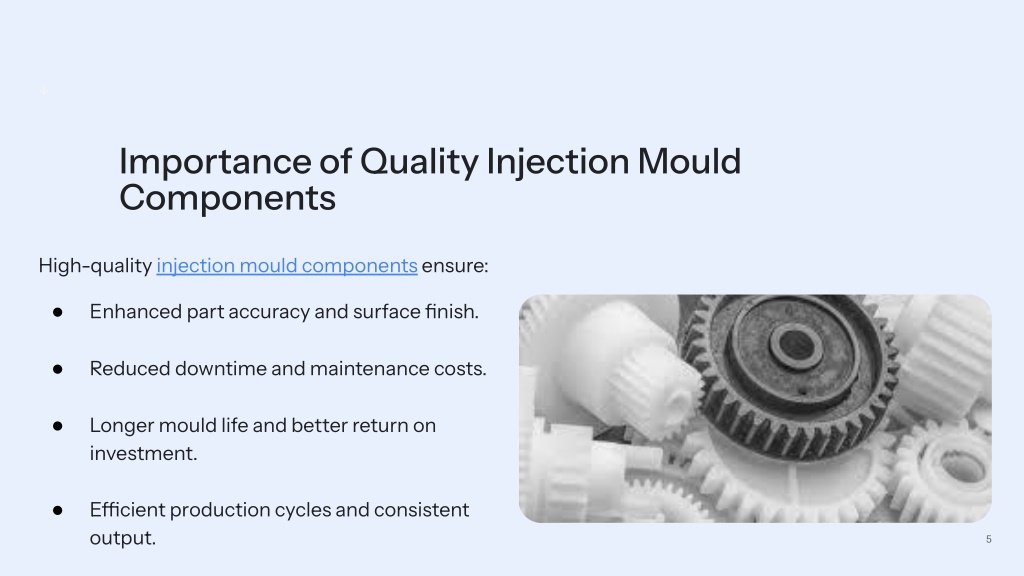

  5. Importance of Quality Injection Mould Components High-quality injection mould components ensure: ● Enhanced part accuracy and surface finish. ● Reduced downtime and maintenance costs. ● Longer mould life and better return on investment. ● Efficient production cycles and consistent output. 5

  6. Dae Applications Across Industries Material Selection for Injection Mould Components Injection mould components are used in a wide range of industries, including: Material choice is crucial for performance and longevity. Common materials include: Automotive ● Hardened tool steels (e.g., H13, P20) ● Medical devices ● Stainless steels (for corrosion resistance) ● Consumer electronics ● Beryllium copper (for enhanced thermal conductivity in specific applications) ● Packaging ● Household products ● 6

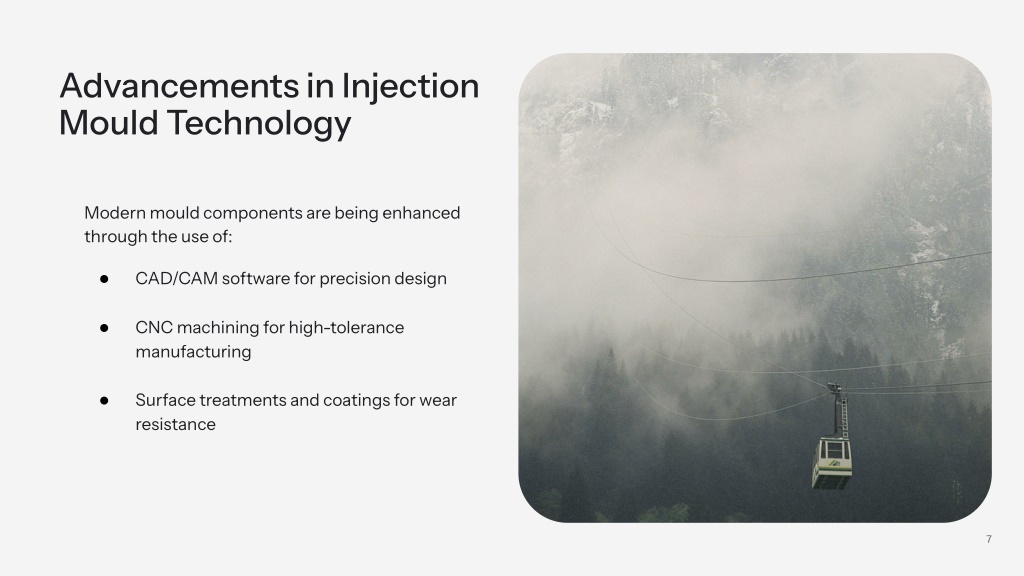

  7. Advancements in Injection Mould Technology Modern mould components are being enhanced through the use of: ● CAD/CAM software for precision design ● CNC machining for high-tolerance manufacturing ● Surface treatments and coatings for wear resistance 7

  8. Conclusion Bangalore-5 60048, Karnataka, Indi a NO.B51, ITI Ancillary Estate, Maha devapura, plasmotek@ plasmotek.com +91-9 845681205 Co ntact: - Injection mould components are critical to the success of the injection moulding process. Selecting the right components, materials, and design strategies can significantly impact production efficiency, part quality, and overall manufacturing costs. As the demand for precision-engineered plastic parts grows, the role of advanced injection mould components will continue to evolve, supporting innovation across industries.
