Surface Grinding Machines_ Precision for Flat Surfaces

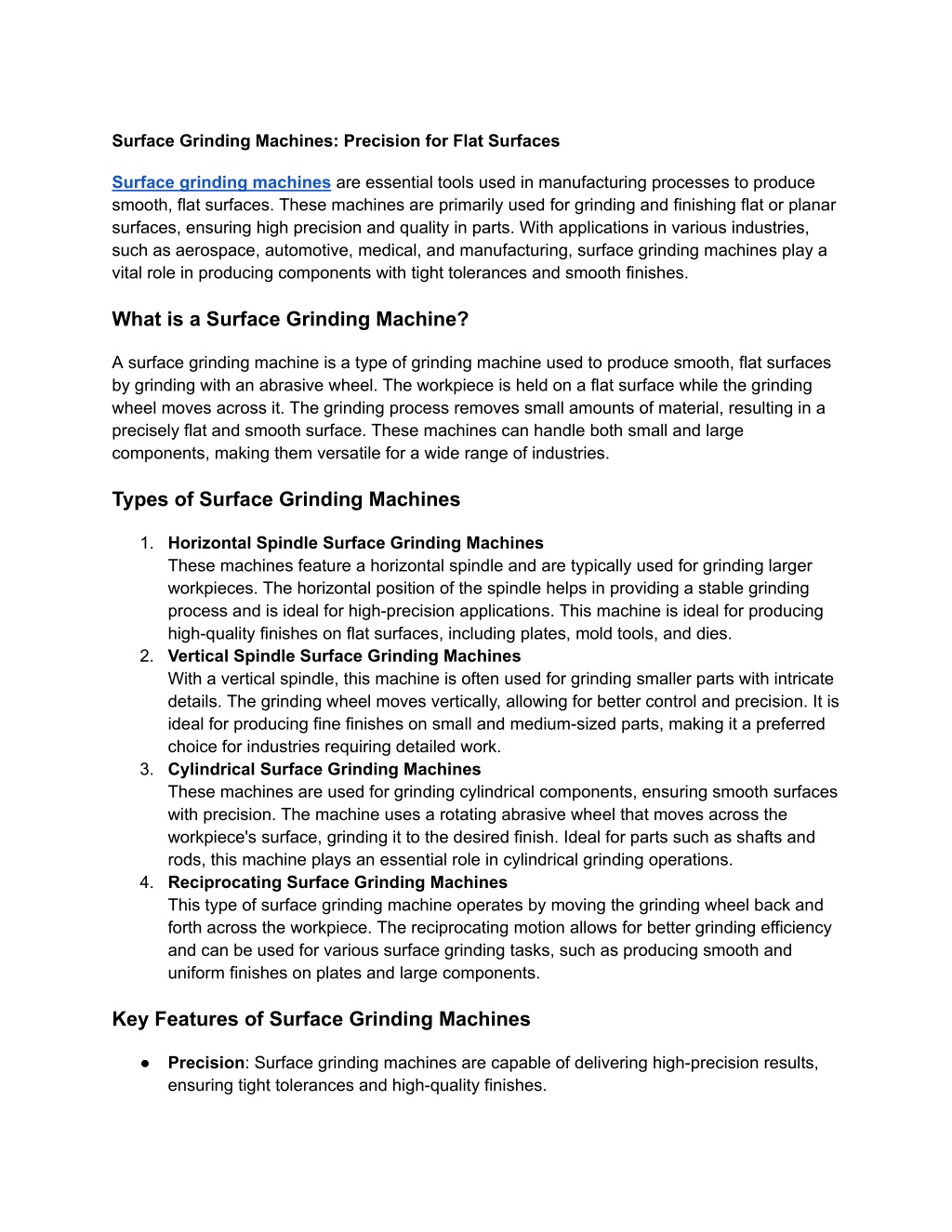

1. Surface Grinding Machines: Precision for Flat Surfaces Surface grinding machines are essential tools used in manufacturing processes to produce smooth, flat surfaces. These machines are primarily used for grinding and finishing flat or planar surfaces, ensuring high precision and quality in parts. With applications in various industries, such as aerospace, automotive, medical, and manufacturing, surface grinding machines play a vital role in producing components with tight tolerances and smooth finishes. What is a Surface Grinding Machine? A surface grinding machine is a type of grinding machine used to produce smooth, flat surfaces by grinding with an abrasive wheel. The workpiece is held on a flat surface while the grinding wheel moves across it. The grinding process removes small amounts of material, resulting in a precisely flat and smooth surface. These machines can handle both small and large components, making them versatile for a wide range of industries. Types of Surface Grinding Machines 1. Horizontal Spindle Surface Grinding Machines These machines feature a horizontal spindle and are typically used for grinding larger workpieces. The horizontal position of the spindle helps in providing a stable grinding process and is ideal for high-precision applications. This machine is ideal for producing high-quality finishes on flat surfaces, including plates, mold tools, and dies. 2. Vertical Spindle Surface Grinding Machines With a vertical spindle, this machine is often used for grinding smaller parts with intricate details. The grinding wheel moves vertically, allowing for better control and precision. It is ideal for producing fine finishes on small and medium-sized parts, making it a preferred choice for industries requiring detailed work. 3. Cylindrical Surface Grinding Machines These machines are used for grinding cylindrical components, ensuring smooth surfaces with precision. The machine uses a rotating abrasive wheel that moves across the workpiece's surface, grinding it to the desired finish. Ideal for parts such as shafts and rods, this machine plays an essential role in cylindrical grinding operations. 4. Reciprocating Surface Grinding Machines This type of surface grinding machine operates by moving the grinding wheel back and forth across the workpiece. The reciprocating motion allows for better grinding efficiency and can be used for various surface grinding tasks, such as producing smooth and uniform finishes on plates and large components. Key Features of Surface Grinding Machines ● Precision: Surface grinding machines are capable of delivering high-precision results, ensuring tight tolerances and high-quality finishes.

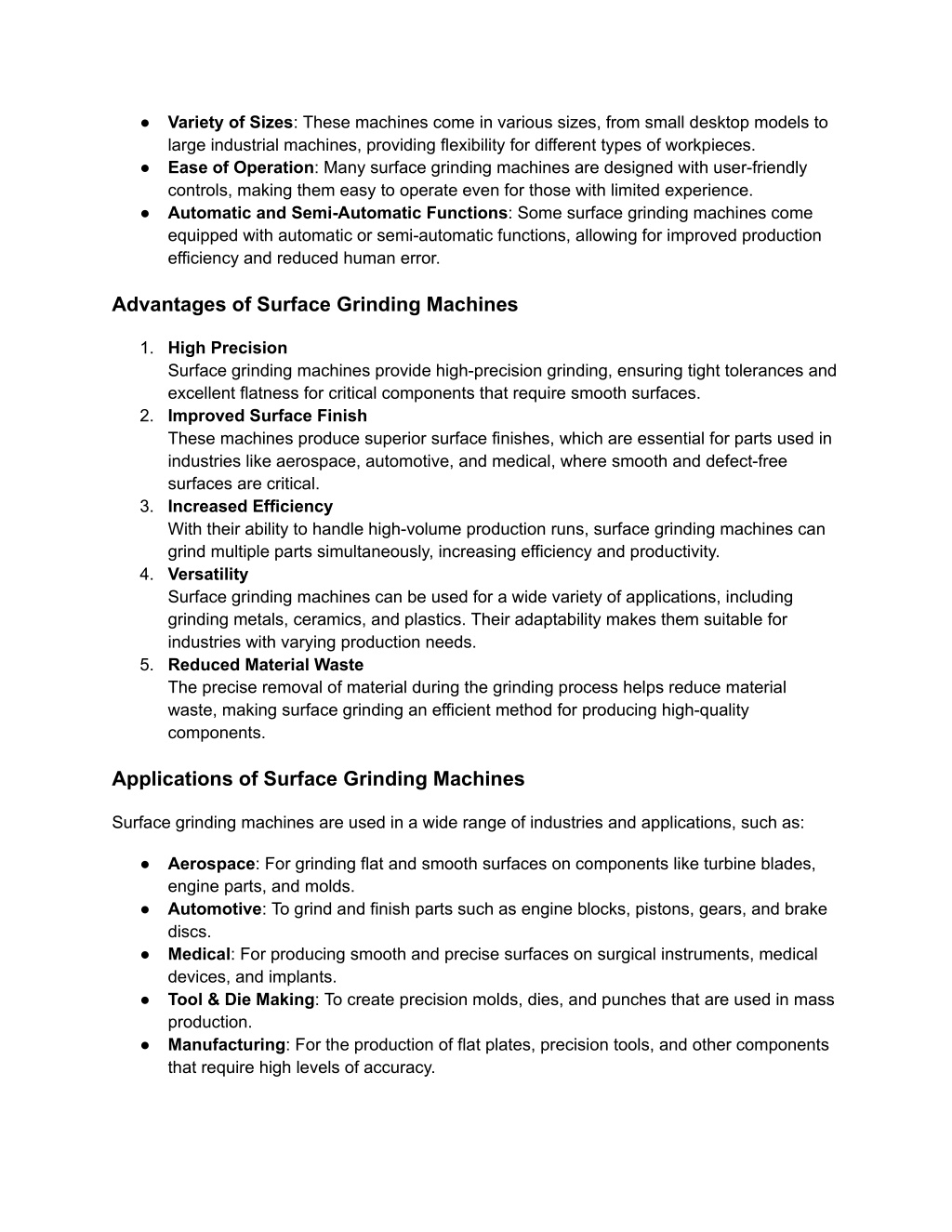

2. ● Variety of Sizes: These machines come in various sizes, from small desktop models to large industrial machines, providing flexibility for different types of workpieces. ● Ease of Operation: Many surface grinding machines are designed with user-friendly controls, making them easy to operate even for those with limited experience. ● Automatic and Semi-Automatic Functions: Some surface grinding machines come equipped with automatic or semi-automatic functions, allowing for improved production efficiency and reduced human error. Advantages of Surface Grinding Machines 1. High Precision Surface grinding machines provide high-precision grinding, ensuring tight tolerances and excellent flatness for critical components that require smooth surfaces. 2. Improved Surface Finish These machines produce superior surface finishes, which are essential for parts used in industries like aerospace, automotive, and medical, where smooth and defect-free surfaces are critical. 3. Increased Efficiency With their ability to handle high-volume production runs, surface grinding machines can grind multiple parts simultaneously, increasing efficiency and productivity. 4. Versatility Surface grinding machines can be used for a wide variety of applications, including grinding metals, ceramics, and plastics. Their adaptability makes them suitable for industries with varying production needs. 5. Reduced Material Waste The precise removal of material during the grinding process helps reduce material waste, making surface grinding an efficient method for producing high-quality components. Applications of Surface Grinding Machines Surface grinding machines are used in a wide range of industries and applications, such as: ● Aerospace: For grinding flat and smooth surfaces on components like turbine blades, engine parts, and molds. ● Automotive: To grind and finish parts such as engine blocks, pistons, gears, and brake discs. ● Medical: For producing smooth and precise surfaces on surgical instruments, medical devices, and implants. ● Tool & Die Making: To create precision molds, dies, and punches that are used in mass production. ● Manufacturing: For the production of flat plates, precision tools, and other components that require high levels of accuracy.

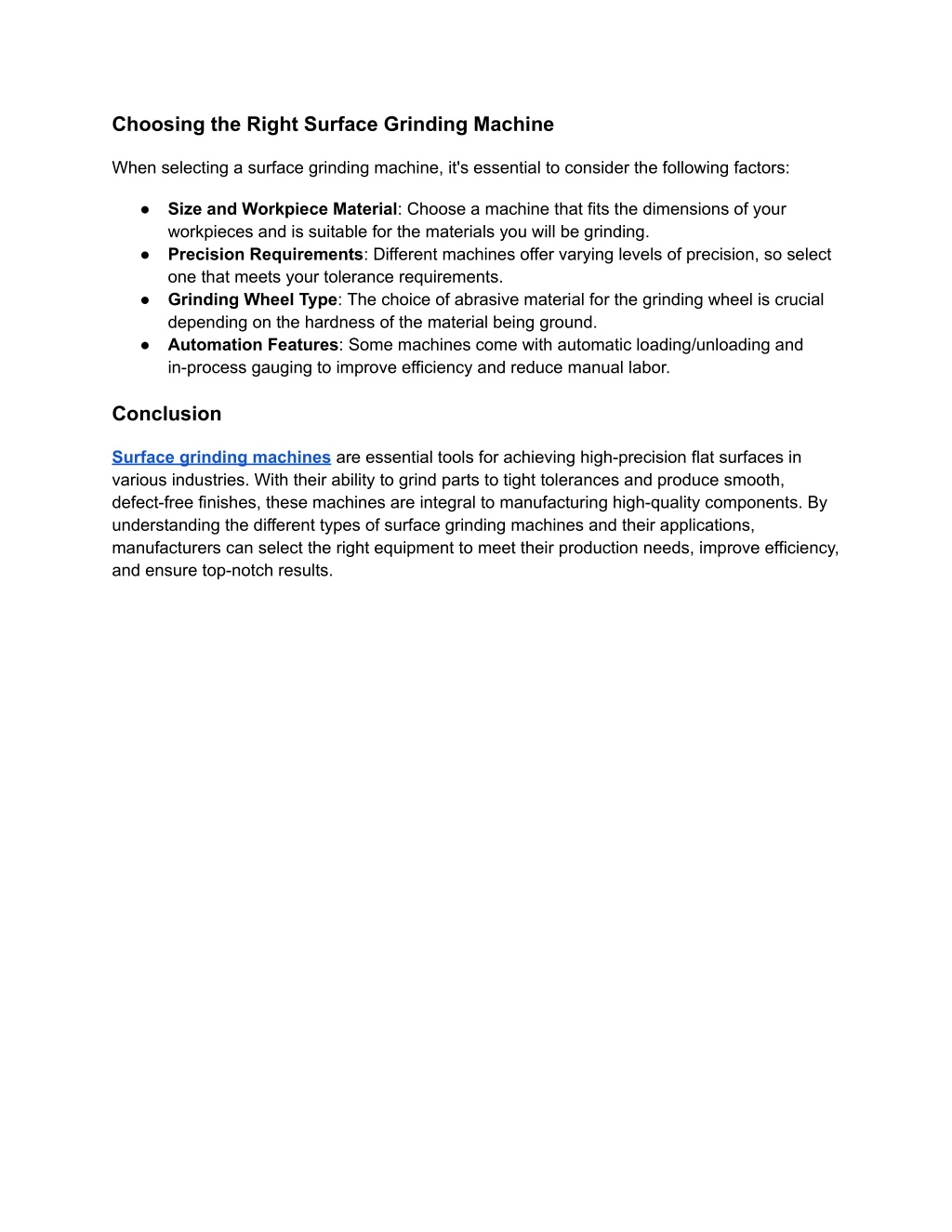

3. Choosing the Right Surface Grinding Machine When selecting a surface grinding machine, it's essential to consider the following factors: ● Size and Workpiece Material: Choose a machine that fits the dimensions of your workpieces and is suitable for the materials you will be grinding. ● Precision Requirements: Different machines offer varying levels of precision, so select one that meets your tolerance requirements. ● Grinding Wheel Type: The choice of abrasive material for the grinding wheel is crucial depending on the hardness of the material being ground. ● Automation Features: Some machines come with automatic loading/unloading and in-process gauging to improve efficiency and reduce manual labor. Conclusion Surface grinding machines are essential tools for achieving high-precision flat surfaces in various industries. With their ability to grind parts to tight tolerances and produce smooth, defect-free finishes, these machines are integral to manufacturing high-quality components. By understanding the different types of surface grinding machines and their applications, manufacturers can select the right equipment to meet their production needs, improve efficiency, and ensure top-notch results.
