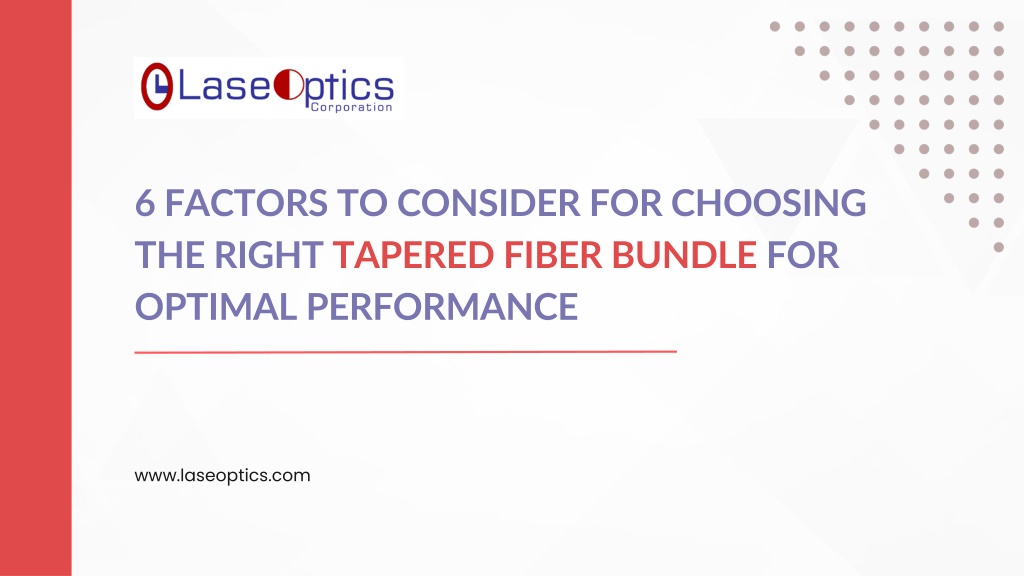

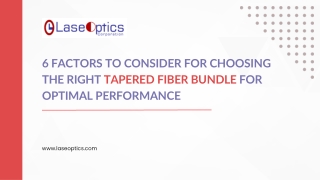

  1. 6 FACTORS TO CONSIDER FOR CHOOSING THE RIGHT TAPERED FIBER BUNDLE FOR OPTIMAL PERFORMANCE www.laseoptics.com

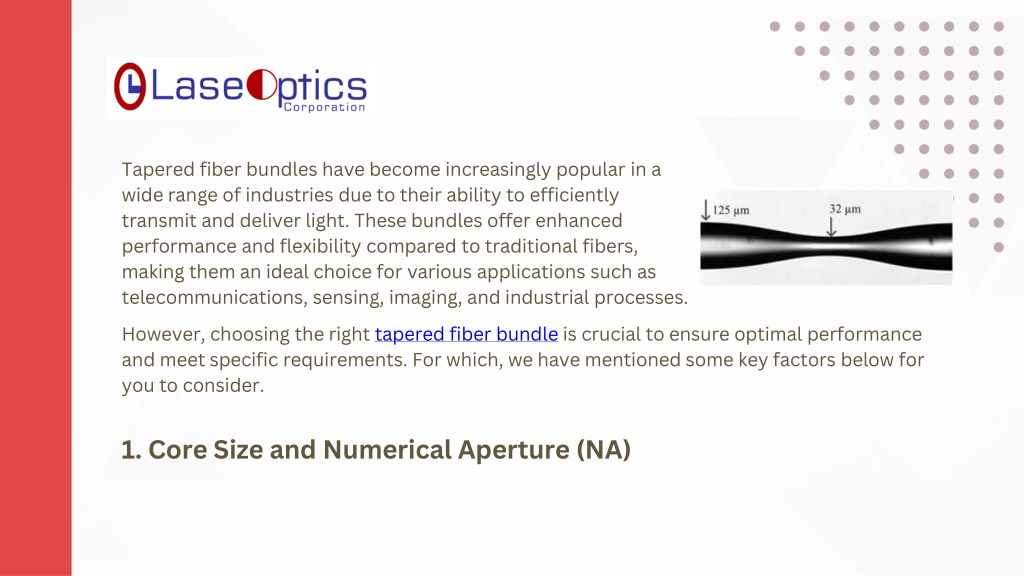

  2. Tapered fiber bundles have become increasingly popular in a wide range of industries due to their ability to efficiently transmit and deliver light. These bundles offer enhanced performance and flexibility compared to traditional fibers, making them an ideal choice for various applications such as telecommunications, sensing, imaging, and industrial processes. However, choosing the right tapered fiber bundle is crucial to ensure optimal performance and meet specific requirements. For which, we have mentioned some key factors below for you to consider. 1. Core Size and Numerical Aperture (NA)

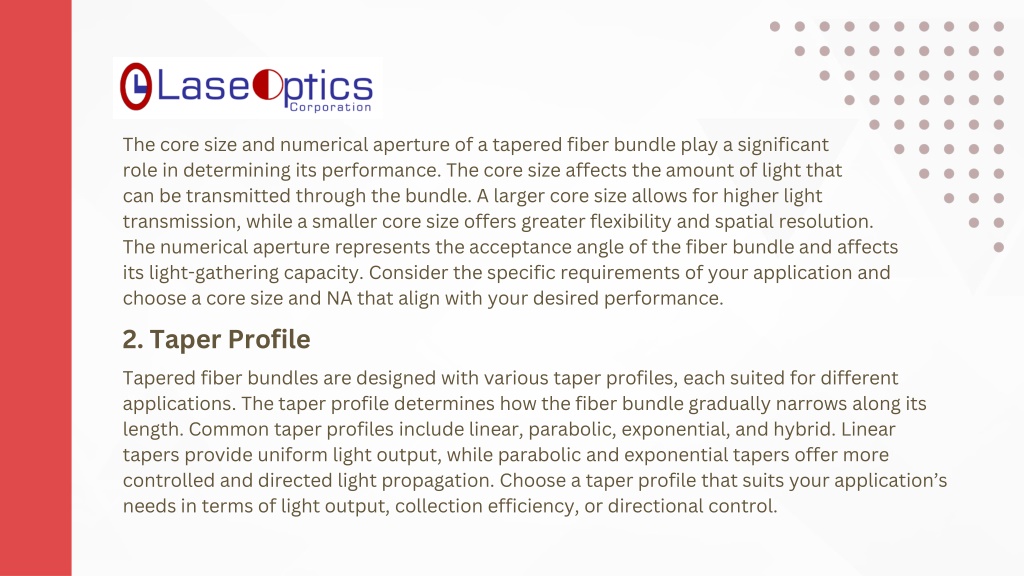

  3. The core size and numerical aperture of a tapered fiber bundle play a significant role in determining its performance. The core size affects the amount of light that can be transmitted through the bundle. A larger core size allows for higher light transmission, while a smaller core size offers greater flexibility and spatial resolution. The numerical aperture represents the acceptance angle of the fiber bundle and affects its light-gathering capacity. Consider the specific requirements of your application and choose a core size and NA that align with your desired performance. 2. Taper Profile Tapered fiber bundles are designed with various taper profiles, each suited for different applications. The taper profile determines how the fiber bundle gradually narrows along its length. Common taper profiles include linear, parabolic, exponential, and hybrid. Linear tapers provide uniform light output, while parabolic and exponential tapers offer more controlled and directed light propagation. Choose a taper profile that suits your application’s needs in terms of light output, collection efficiency, or directional control.

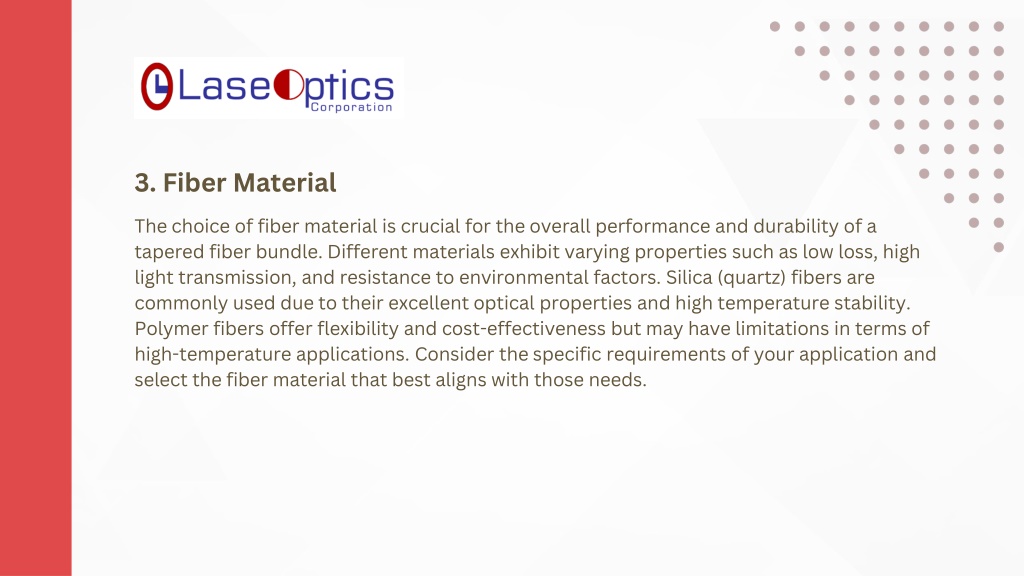

  4. 3. Fiber Material The choice of fiber material is crucial for the overall performance and durability of a tapered fiber bundle. Different materials exhibit varying properties such as low loss, high light transmission, and resistance to environmental factors. Silica (quartz) fibers are commonly used due to their excellent optical properties and high temperature stability. Polymer fibers offer flexibility and cost-effectiveness but may have limitations in terms of high-temperature applications. Consider the specific requirements of your application and select the fiber material that best aligns with those needs.

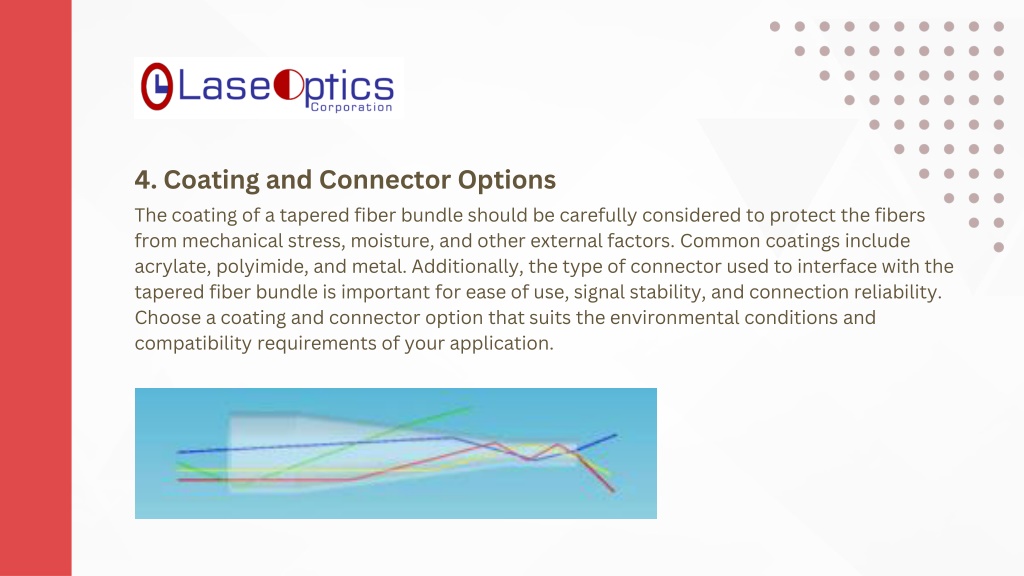

  5. 4. Coating and Connector Options The coating of a tapered fiber bundle should be carefully considered to protect the fibers from mechanical stress, moisture, and other external factors. Common coatings include acrylate, polyimide, and metal. Additionally, the type of connector used to interface with the tapered fiber bundle is important for ease of use, signal stability, and connection reliability. Choose a coating and connector option that suits the environmental conditions and compatibility requirements of your application.

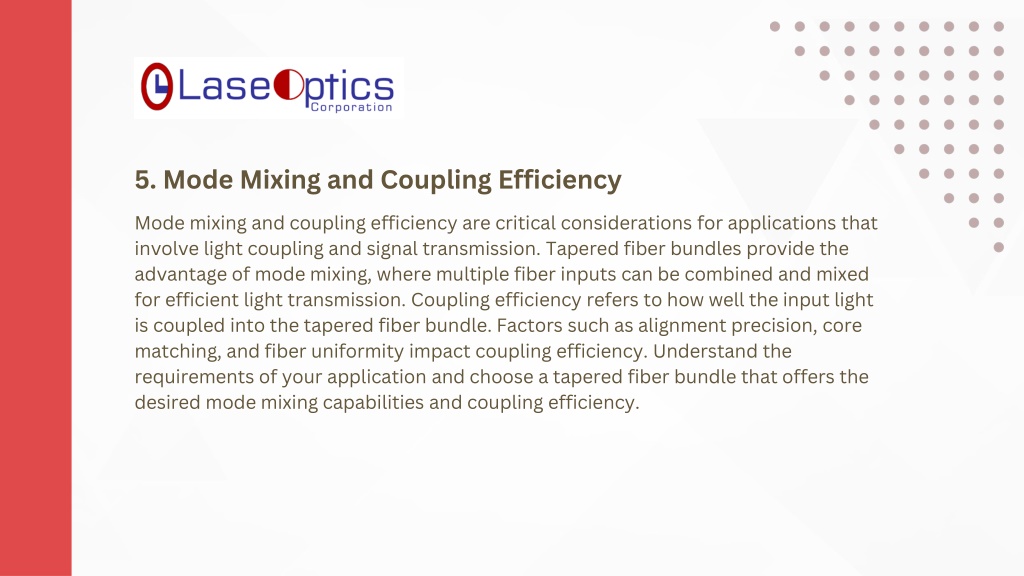

  6. 5. Mode Mixing and Coupling Efficiency Mode mixing and coupling efficiency are critical considerations for applications that involve light coupling and signal transmission. Tapered fiber bundles provide the advantage of mode mixing, where multiple fiber inputs can be combined and mixed for efficient light transmission. Coupling efficiency refers to how well the input light is coupled into the tapered fiber bundle. Factors such as alignment precision, core matching, and fiber uniformity impact coupling efficiency. Understand the requirements of your application and choose a tapered fiber bundle that offers the desired mode mixing capabilities and coupling efficiency.

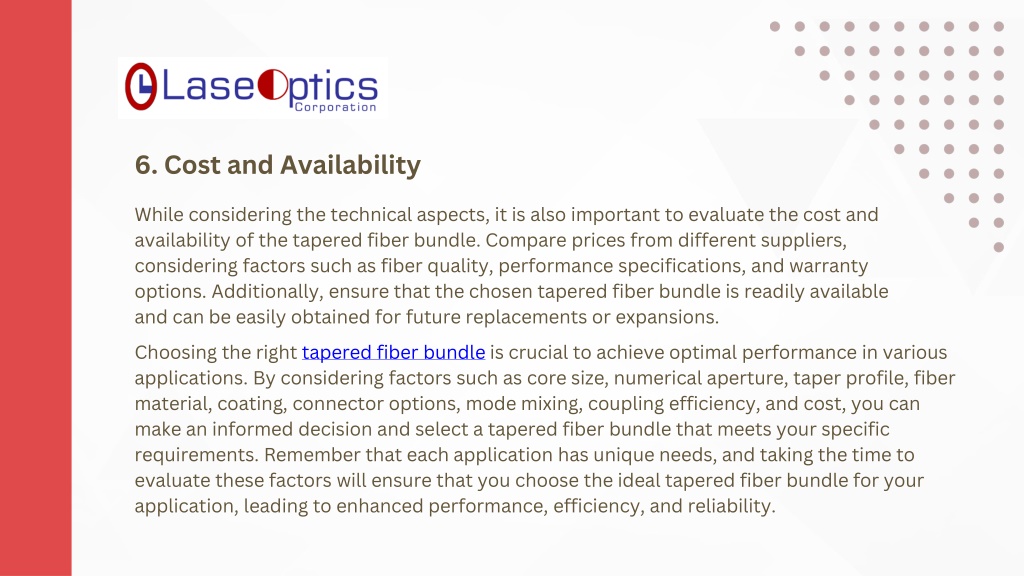

  7. 6. Cost and Availability While considering the technical aspects, it is also important to evaluate the cost and availability of the tapered fiber bundle. Compare prices from different suppliers, considering factors such as fiber quality, performance specifications, and warranty options. Additionally, ensure that the chosen tapered fiber bundle is readily available and can be easily obtained for future replacements or expansions. Choosing the right tapered fiber bundle is crucial to achieve optimal performance in various applications. By considering factors such as core size, numerical aperture, taper profile, fiber material, coating, connector options, mode mixing, coupling efficiency, and cost, you can make an informed decision and select a tapered fiber bundle that meets your specific requirements. Remember that each application has unique needs, and taking the time to evaluate these factors will ensure that you choose the ideal tapered fiber bundle for your application, leading to enhanced performance, efficiency, and reliability.

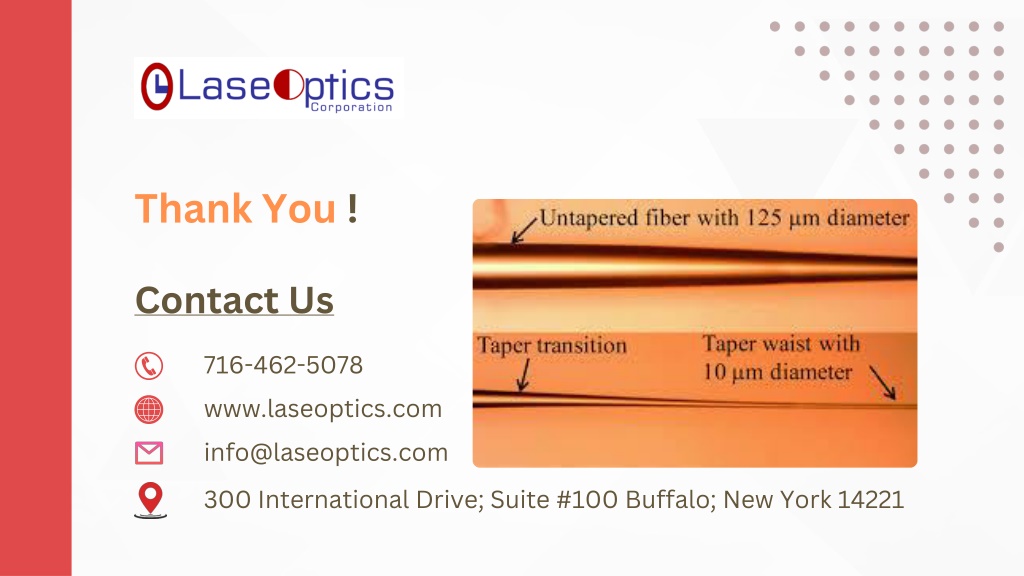

  8. Thank You ! Contact Us 716-462-5078 www.laseoptics.com info@laseoptics.com 300 International Drive; Suite #100 Buffalo; New York 14221
