space network access system snas operational readiness review orr

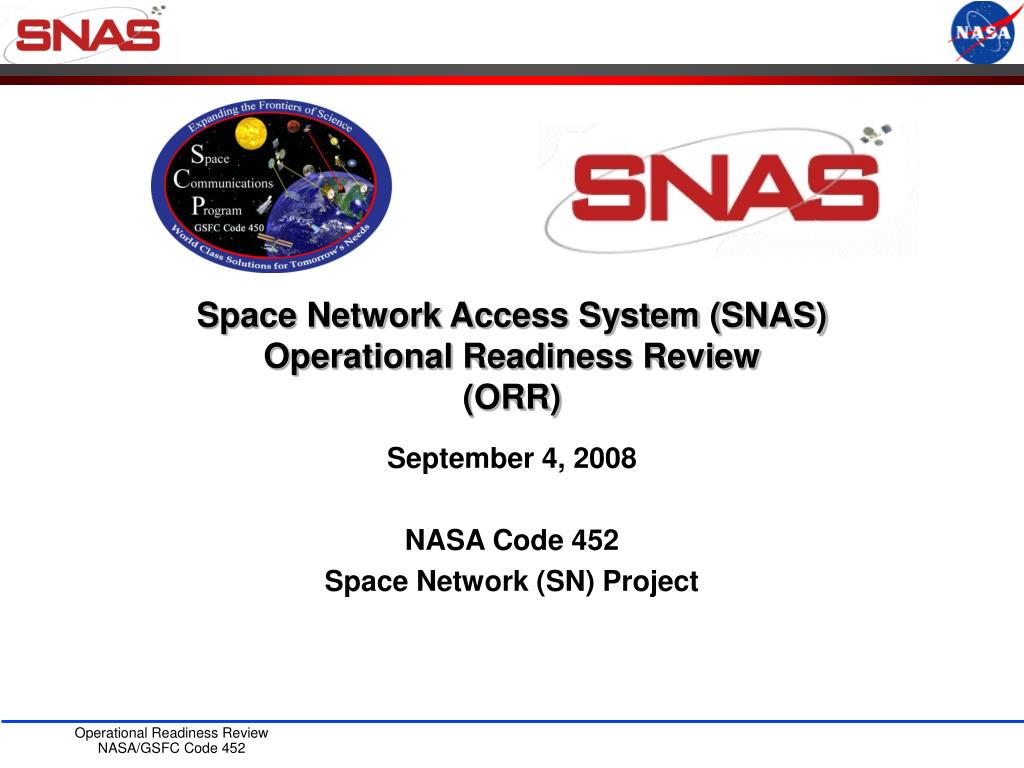

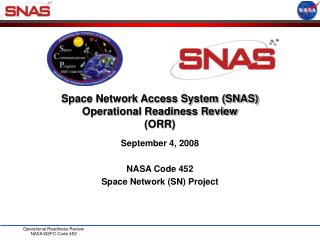

Space Network Access System (SNAS) Operational Readiness Review (ORR)

September 4, 2008

NASA Code 452

Space Network (SN) Project

orr agenda

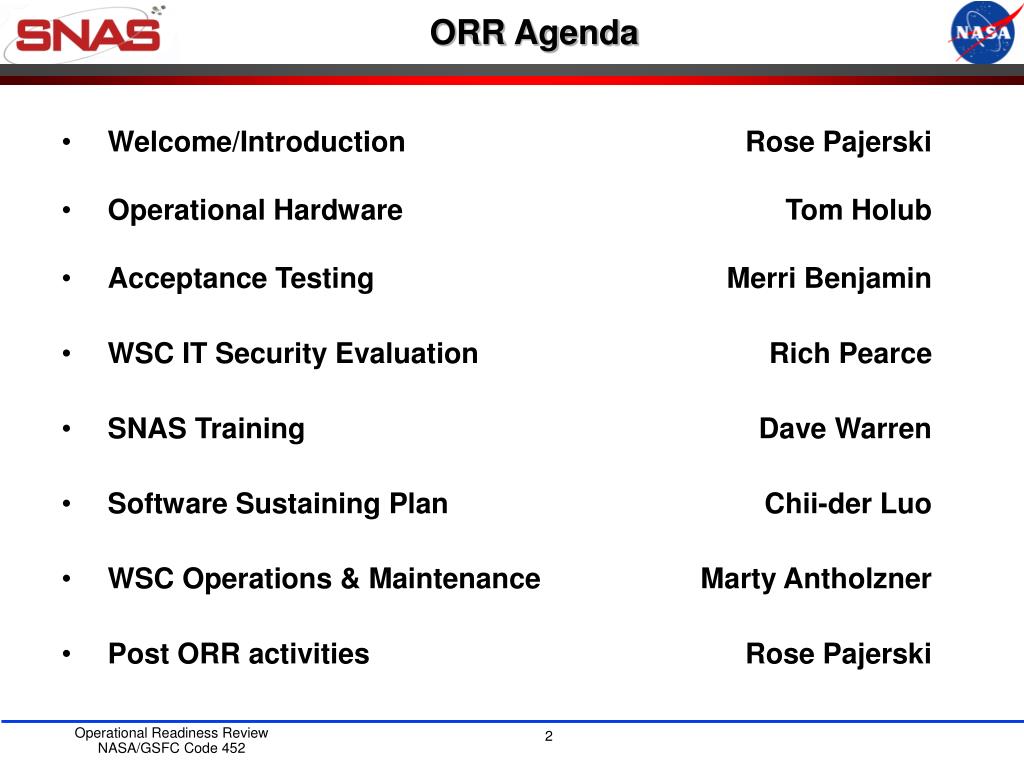

ORR Agenda

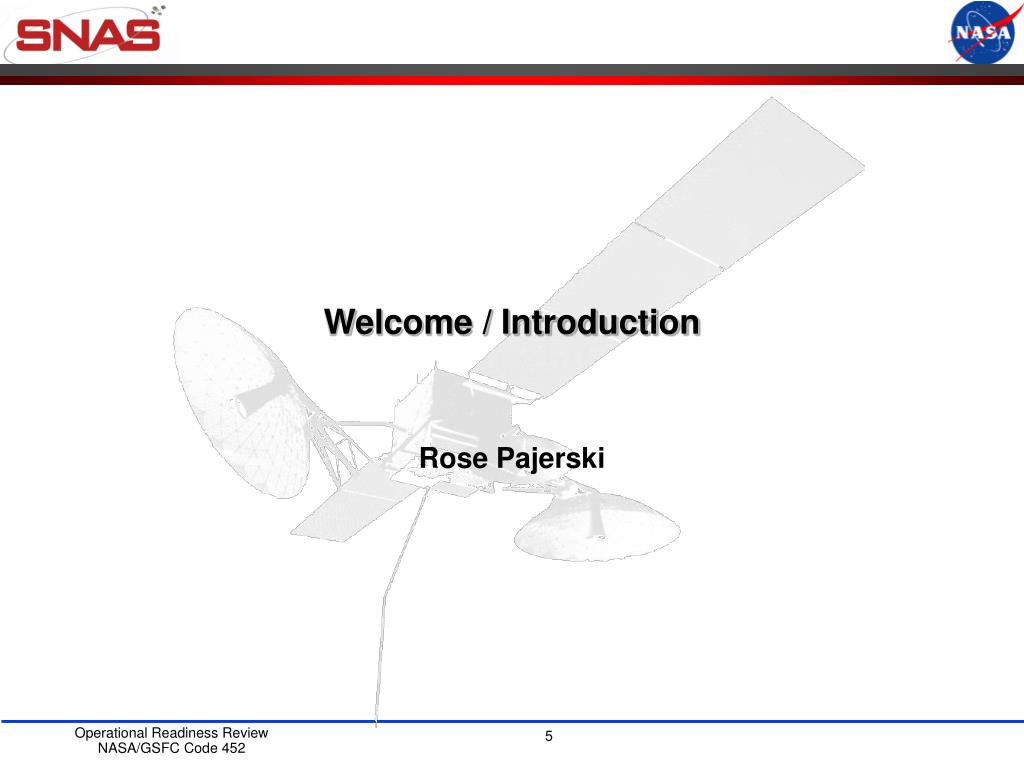

  • Welcome/Introduction Rose Pajerski

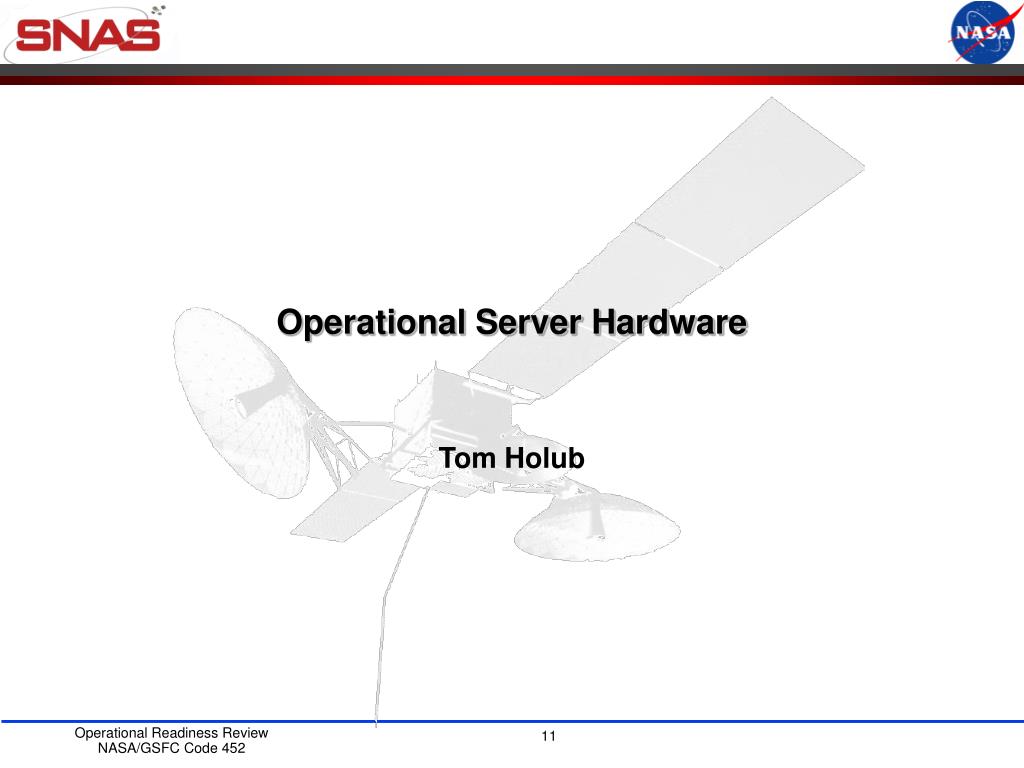

  • Operational Hardware Tom Holub
  • Acceptance Testing Merri Benjamin
  • WSC IT Security Evaluation Rich Pearce
  • SNAS Training Dave Warren
  • Software Sustaining Plan Chii-der Luo
  • WSC Operations & Maintenance Marty Antholzner
  • Post ORR activities Rose Pajerski
purpose of review
Purpose of Review
  • The objectives of the review are to provide a comprehensive briefing to
    • Review SNAS requirements and results of acceptance testing activities
    • Present transition plans and activities
    • Brief on the system, personnel and documentation readiness for transition
    • Demonstrate the system’s readiness to support NCCDS operations at WSC
  • Readiness criteria
    • All applicable functional, unit, subsystem testing, etc. has been successfully completed.
    • All RFAs / issues from previous reviews have been satisfied according to plan.
    • All known significant system discrepancies have been identified and dispositioned
    • Interfaces under configuration management
    • Operations personnel identified, trained and ready
  • Upon completion of the review, the SNAS team seeks approval to proceed with transition to operations for NCCDS interface
orr objectives
ORR Objectives
  • ORR Presentation will address each item below:
    • All validation testing is complete
    • Test failures and anomalies from validation testing have been resolved
    • All operational and enabling products necessary for normal and contingency operations have been tested and in place
    • Operations handbook has been approved
    • Training has been provided to users and operators
    • Operational contingency planning has been accomplished, and all personnel have been trained
review board

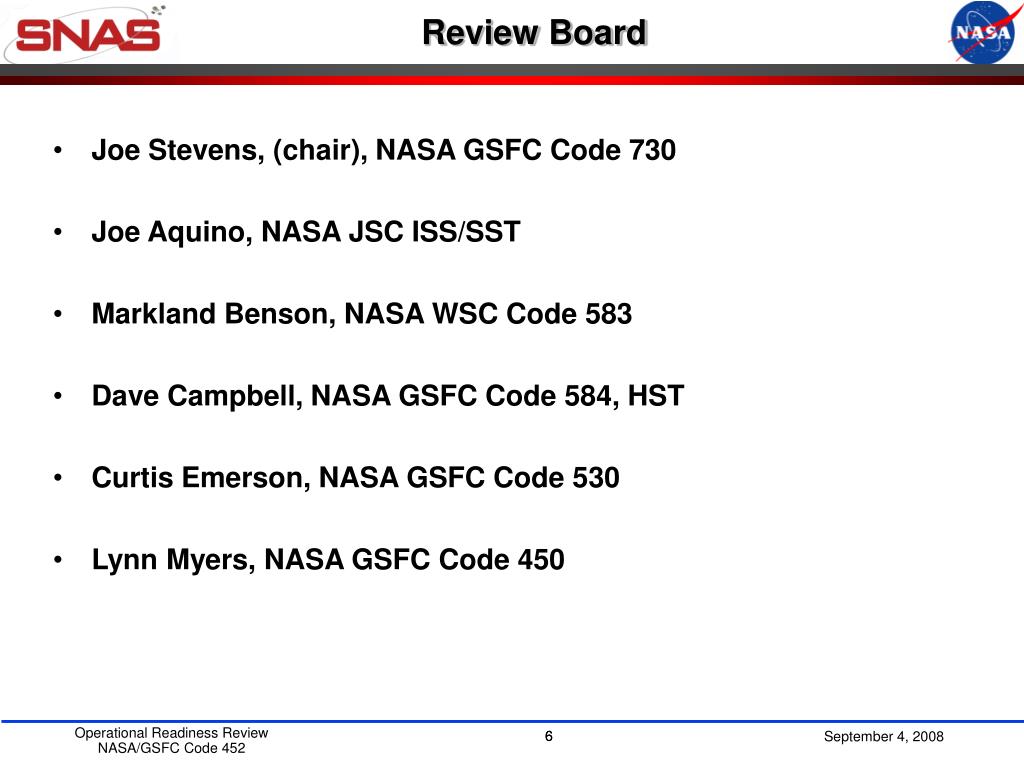

Review Board
  • Joe Stevens, (chair), NASA GSFC Code 730
  • Joe Aquino, NASA JSC ISS/SST
  • Markland Benson, NASA WSC Code 583
  • Dave Campbell, NASA GSFC Code 584, HST
  • Curtis Emerson, NASA GSFC Code 530
  • Lynn Myers, NASA GSFC Code 450

6

prior milestones
Prior Milestones
  • SNAS Release 1 Milestones
    • System Requirements Review 7/08/03
    • Delta-System Requirements Design Review 4/28/05
    • Preliminary Design Review 9/12/05
    • Critical Design Review 5/04/06
    • Implementation 6/5/06 - 7/20/07
    • Integration/System Testing 8/07 - 5/08
    • Beta Testing 8/07 - 8/08
    • Server Shipment to WSC 5/06-12/08
    • System Installation and Checkout 5/14-30/08
    • Test Readiness Review 6/6/08
    • NCCDS Acceptance Testing 6/23-8/29/08
    • Customer Training 7/08-8/08
    • WSC Operations Training 8/26/08
    • Performance test 8/28/08

7

moving forward schedule

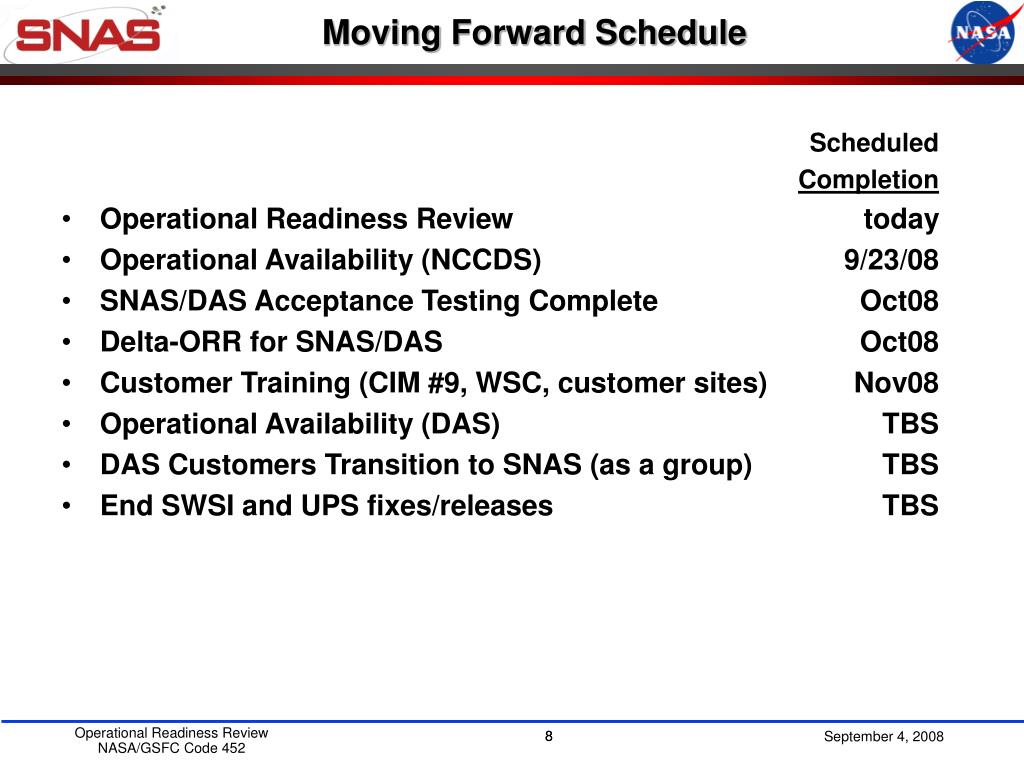

Moving Forward Schedule

Scheduled

Completion

  • Operational Readiness Review today
  • Operational Availability (NCCDS) 9/23/08
  • SNAS/DAS Acceptance Testing Complete Oct08
  • Delta-ORR for SNAS/DAS Oct08
  • Customer Training (CIM #9, WSC, customer sites) Nov08
  • Operational Availability (DAS) TBS
  • DAS Customers Transition to SNAS (as a group) TBS
  • End SWSI and UPS fixes/releases TBS

8

customer community milestones

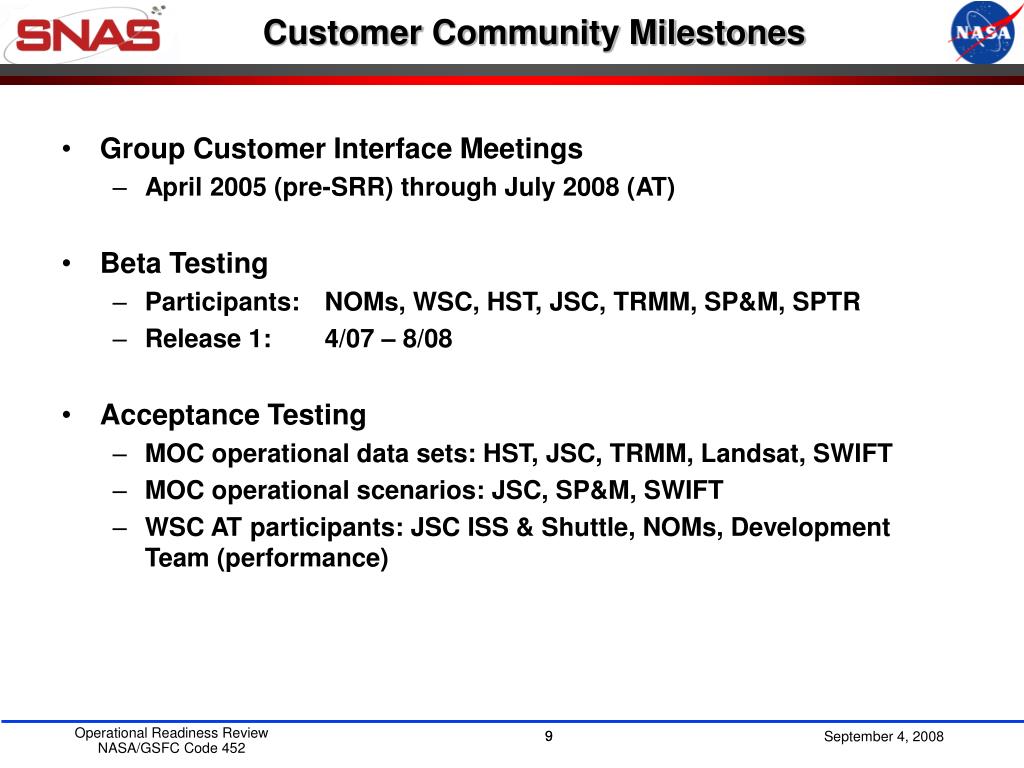

Customer Community Milestones
  • Group Customer Interface Meetings
    • April 2005 (pre-SRR) through July 2008 (AT)
  • Beta Testing
    • Participants: NOMs, WSC, HST, JSC, TRMM, SP&M, SPTR
    • Release 1: 4/07 – 8/08
  • Acceptance Testing
    • MOC operational data sets: HST, JSC, TRMM, Landsat, SWIFT
    • MOC operational scenarios: JSC, SP&M, SWIFT
    • WSC AT participants: JSC ISS & Shuttle, NOMs, Development Team (performance)

9

project documentation
Project Documentation

System Requirements Doc. (DCN 002) CCB approved (4/30/08)

Operations Concept Doc. (DCN 002) CCB approved (11/15/06)

ICD between DAS/SNAS CCB approved (5/03/06)

ICD between EPS/SNAS CCB approved (11/15/06)

ICD between SN/CSM (DCN 002) CCB approved (10/29/07)

Security Documentation 452 Approved (10/29/07)

System Test Document Final, 5/16/08

Acceptance Test Plan Final, 6/04/08

MOC Client Users Guides Draft to CCB

O&M Client Users Guides Draft to CCB

Server Operators Guide Draft to CCB

10

hardware status

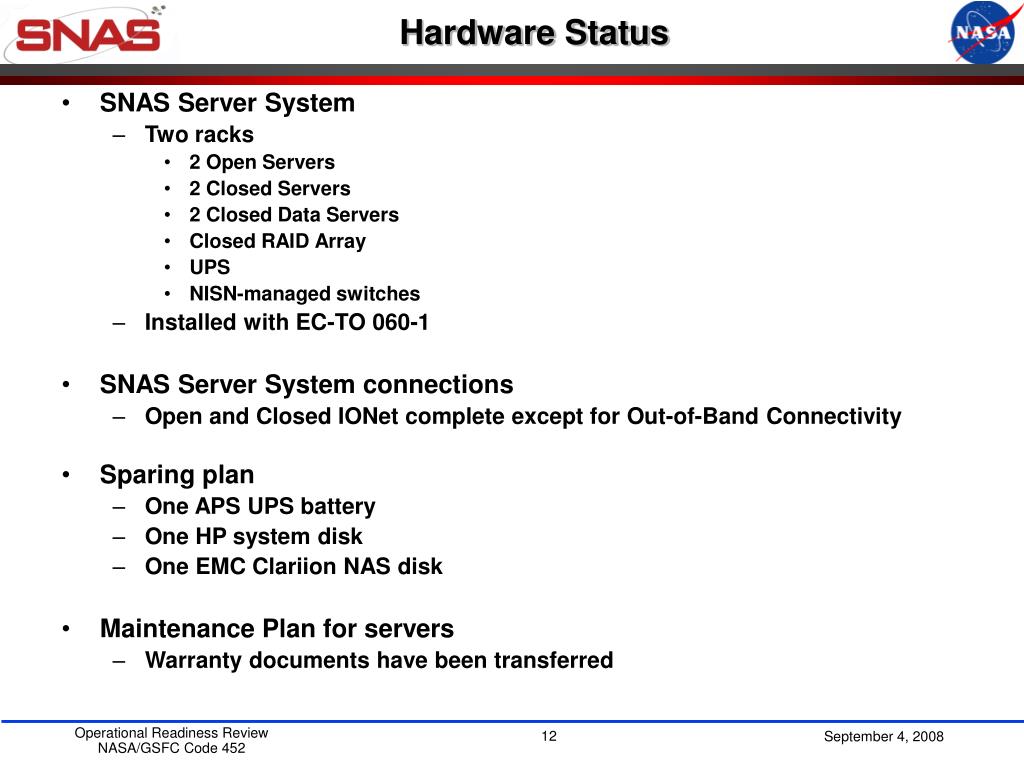

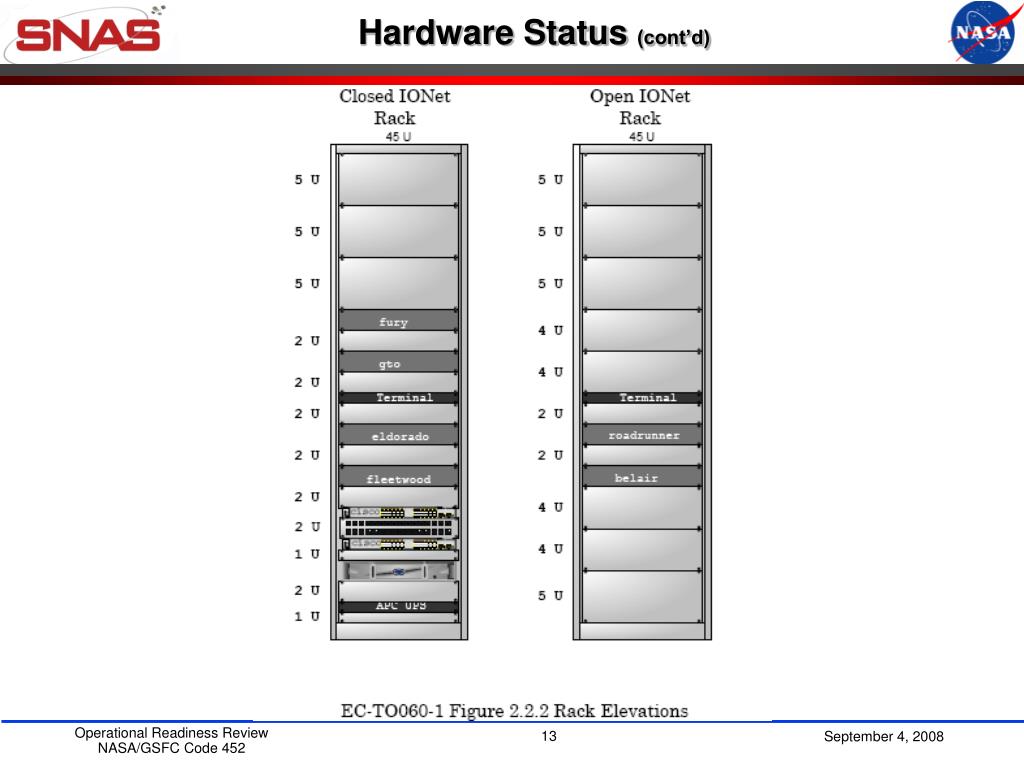

Hardware Status
  • SNAS Server System
    • Two racks
      • 2 Open Servers
      • 2 Closed Servers
      • 2 Closed Data Servers
      • Closed RAID Array
      • UPS
      • NISN-managed switches
    • Installed with EC-TO 060-1
  • SNAS Server System connections
    • Open and Closed IONet complete except for Out-of-Band Connectivity
  • Sparing plan
    • One APS UPS battery
    • One HP system disk
    • One EMC Clariion NAS disk
  • Maintenance Plan for servers
    • Warranty documents have been transferred
acceptance testing

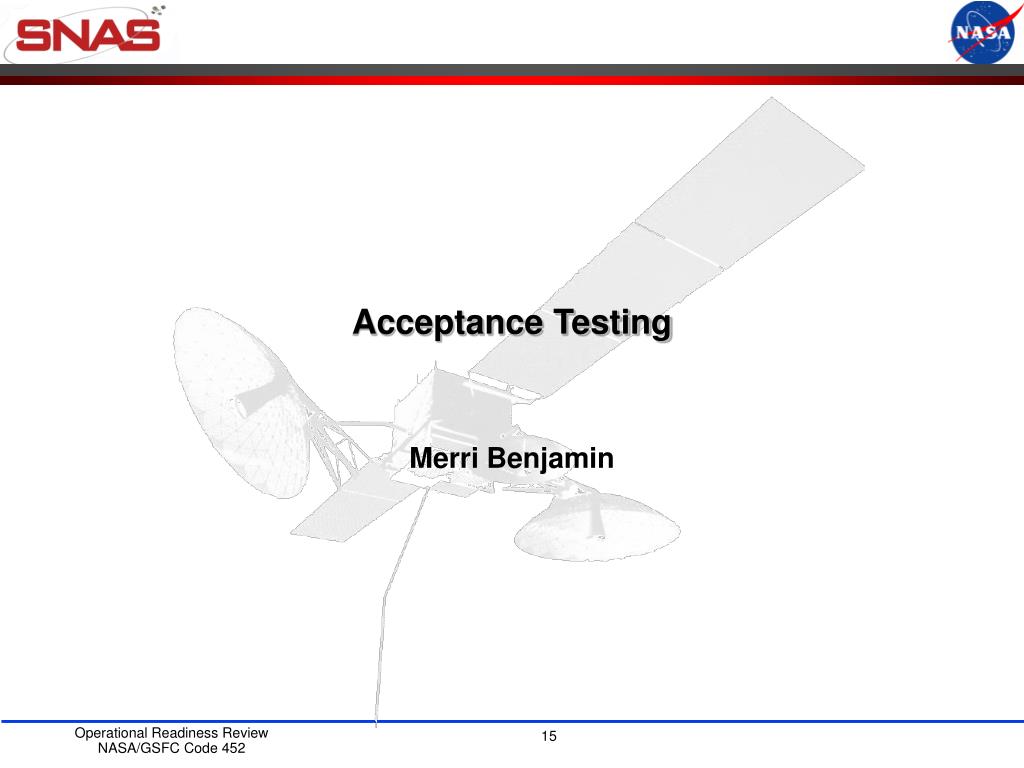

Acceptance Testing

Merri Benjamin

acceptance test overview 1 of 3
Acceptance Test Overview (1 of 3)
  • Testing Overview – Scope
    • Both MOC and O&M Client functionality
    • SNAS/NCCDS interface (ANCC)
    • SNAS/DAS interface (HMD DAS)
    • Limited EPS/SNAS interface testing
      • Used PC Client platform directory as pseudo-EPS
      • JSC EPS end-to-end with Beta System
    • Server operations (e.g., High Availability (HA), logging)
    • Exercised operational procedures (e.g., database recovery, SW delivery, etc.)
  • Test Cases executed and procedures exercised to verify system functional and performance requirements
acceptance test overview 2 of 3

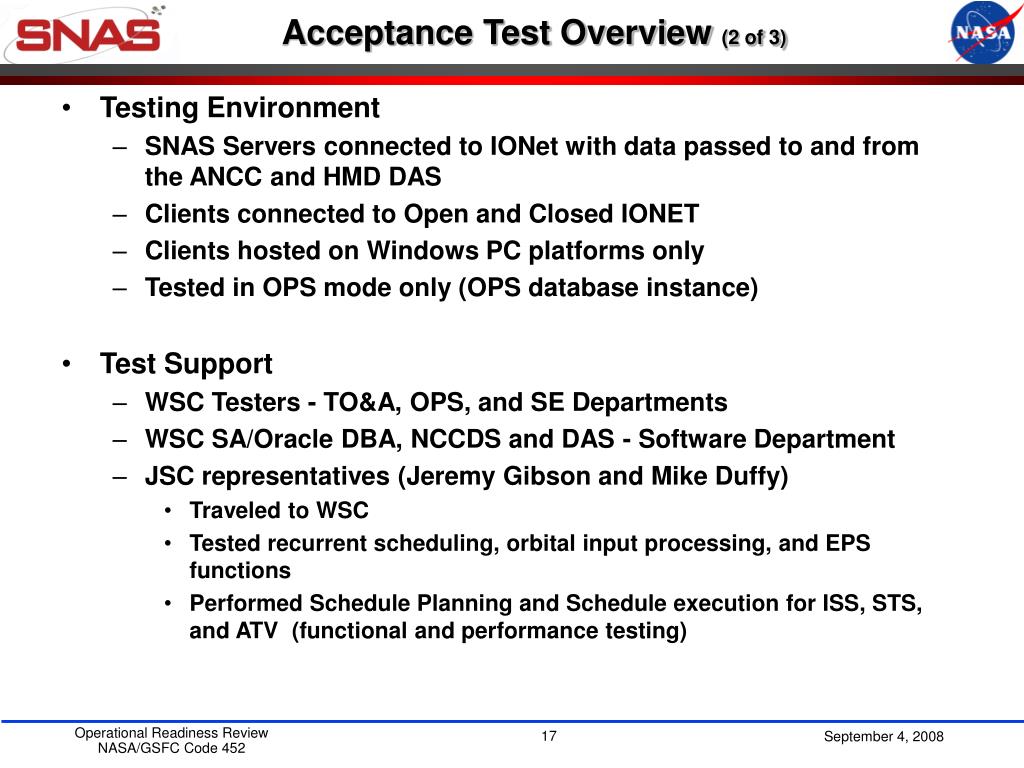

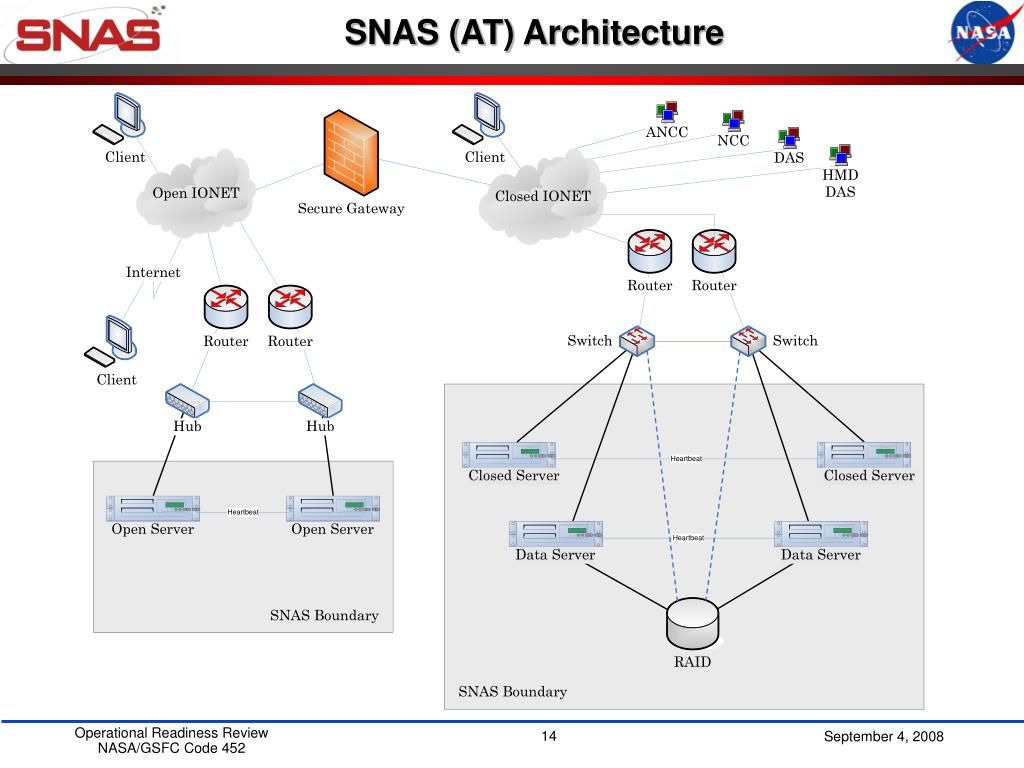

Acceptance Test Overview (2 of 3)
  • Testing Environment
    • SNAS Servers connected to IONet with data passed to and from the ANCC and HMD DAS
    • Clients connected to Open and Closed IONET
    • Clients hosted on Windows PC platforms only
    • Tested in OPS mode only (OPS database instance)
  • Test Support
    • WSC Testers - TO&A, OPS, and SE Departments
    • WSC SA/Oracle DBA, NCCDS and DAS - Software Department
    • JSC representatives (Jeremy Gibson and Mike Duffy)
      • Traveled to WSC
      • Tested recurrent scheduling, orbital input processing, and EPS functions
      • Performed Schedule Planning and Schedule execution for ISS, STS, and ATV (functional and performance testing)
acceptance test overview 3 of 3

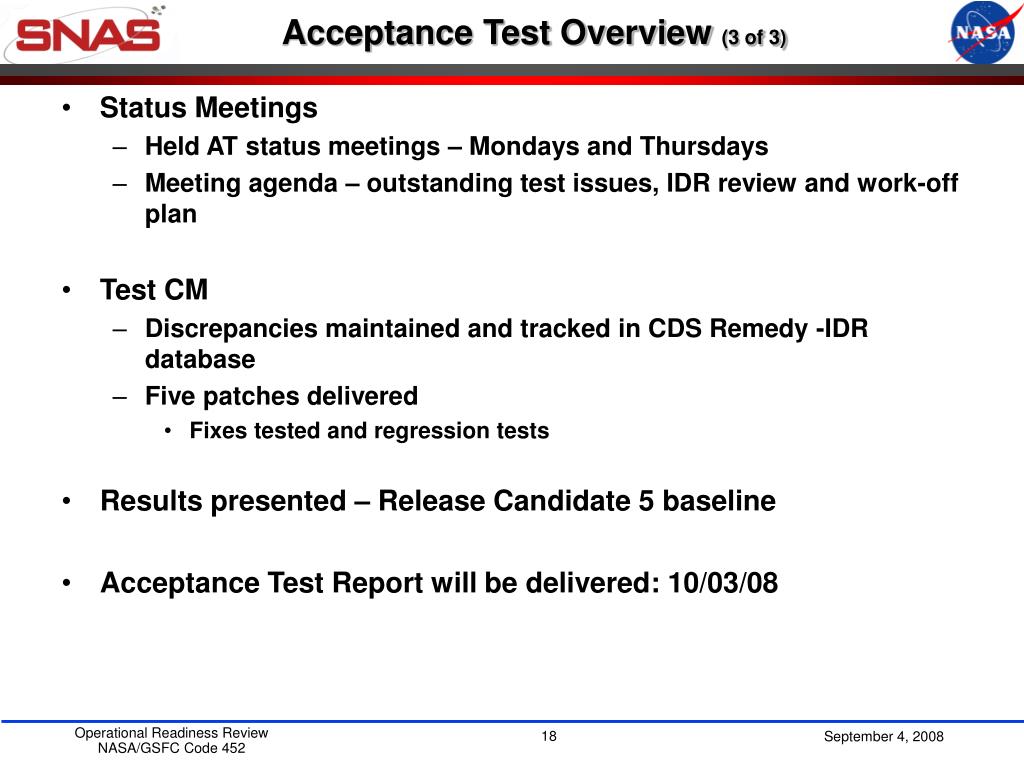

Acceptance Test Overview (3 of 3)
  • Status Meetings
    • Held AT status meetings – Mondays and Thursdays
    • Meeting agenda – outstanding test issues, IDR review and work-off plan
  • Test CM
    • Discrepancies maintained and tracked in CDS Remedy -IDR database
    • Five patches delivered
      • Fixes tested and regression tests
  • Results presented – Release Candidate 5 baseline
  • Acceptance Test Report will be delivered: 10/03/08
acceptance test results

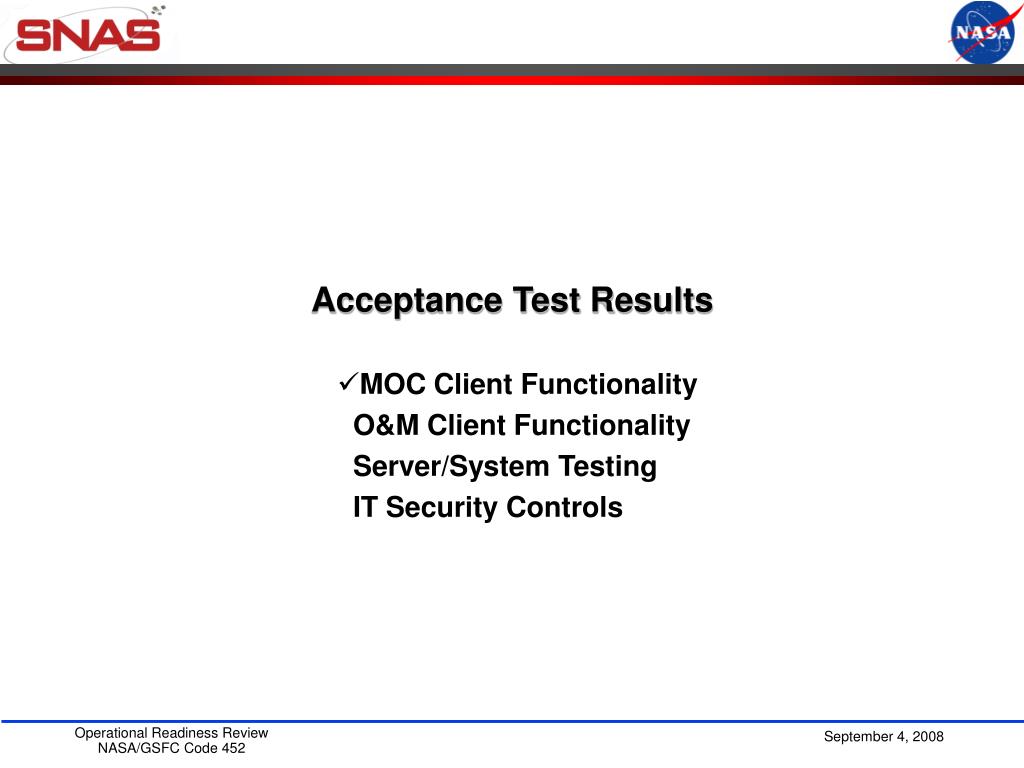

Acceptance Test Results

MOC Client Functionality

O&M Client Functionality

Server/System Testing

IT Security Controls

acceptance test results moc client 1 of 6
Acceptance Test Results - MOC Client (1 of 6)
  • 5 Test Cases - general functions for configuring User/Client environment
    • Login, setting session preference, workspace set-up, etc.
    • Results: 5 passed
  • 8 Test Cases - general functions for configuring Mission
    • MOC roles/accounts, EPS set-up, Service Codes, Orbital data, etc.
    • Results: 8 passed
  • 6 Test Cases – import data for both DAS and NCCDS customers
    • State vectors, TCW, TSW, and PSAT/UAV files
    • Results: 4 passed and 2 partial success
      • State vector transmits to ANCC successful; state vector transmits to HMD DAS failed
acceptance test results moc client 2 of 6

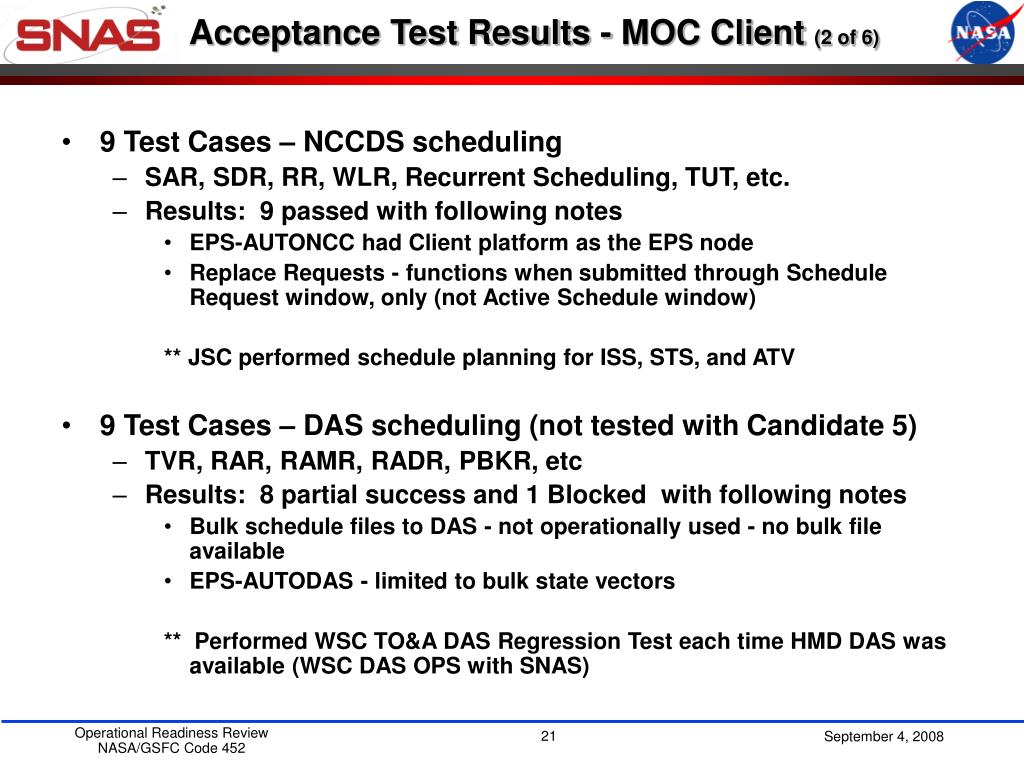

Acceptance Test Results - MOC Client (2 of 6)
  • 9 Test Cases – NCCDS scheduling
    • SAR, SDR, RR, WLR, Recurrent Scheduling, TUT, etc.
    • Results: 9 passed with following notes
      • EPS-AUTONCC had Client platform as the EPS node
      • Replace Requests - functions when submitted through Schedule Request window, only (not Active Schedule window)

** JSC performed schedule planning for ISS, STS, and ATV

  • 9 Test Cases – DAS scheduling (not tested with Candidate 5)
    • TVR, RAR, RAMR, RADR, PBKR, etc
    • Results: 8 partial success and 1 Blocked with following notes
      • Bulk schedule files to DAS - not operationally used - no bulk file available
      • EPS-AUTODAS - limited to bulk state vectors

** Performed WSC TO&A DAS Regression Test each time HMD DAS was available (WSC DAS OPS with SNAS)

acceptance test results moc client 3 of 6
Acceptance Test Results - MOC Client (3 of 6)
  • 6 Test Cases – Scheduling Tools (both NCCDS and DAS)
    • Active Schedule Summary, Request Schedule Summary, TSW shift, etc.
    • Results: 6 passed
  • 2 Test Cases – Real-time monitoring
    • UPDs, Switch User
    • Results: 2 passed
  • 3 Test Cases – Reports and Queries
    • Confirmed events report, Rejected/Decline report, User environment displays, etc.
    • Results: 3 passed
acceptance test results moc client 4 of 6
Acceptance Test Results - MOC Client (4 of 6)
  • MOC Client Summary
  • Remaining Open IDRS
    • SNAS/NCCDS - 3 Low Priority
      • IDR #26506 (Low) - TSW deletes when overlap data range
      • IDR #26507 (Low) - TSW Msg ID validation
      • IDR #26451 (Low) - Replace Request submitted through Active Schedule
acceptance test results moc client 5 of 6
Acceptance Test Results - MOC Client (5 of 6)
  • Remaining Open IDRS (cont’d)

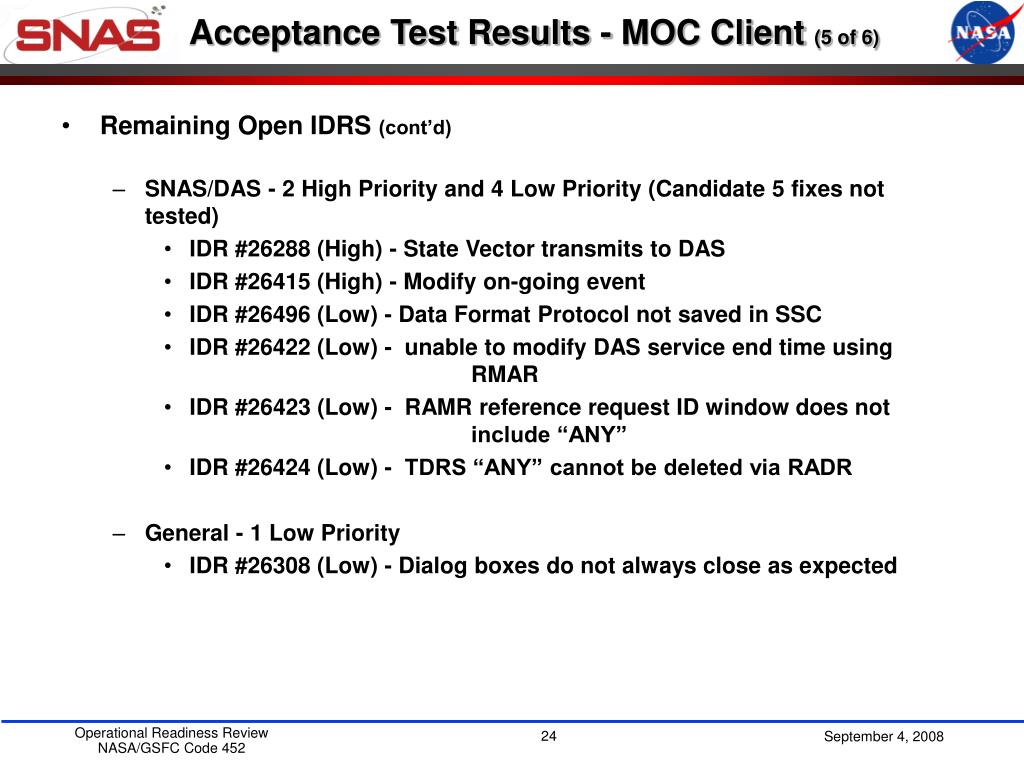

    • SNAS/DAS - 2 High Priority and 4 Low Priority (Candidate 5 fixes not tested)
      • IDR #26288 (High) - State Vector transmits to DAS
      • IDR #26415 (High) - Modify on-going event
      • IDR #26496 (Low) - Data Format Protocol not saved in SSC
      • IDR #26422 (Low) - unable to modify DAS service end time using RMAR
      • IDR #26423 (Low) - RAMR reference request ID window does not include “ANY”
      • IDR #26424 (Low) - TDRS “ANY” cannot be deleted via RADR
    • General - 1 Low Priority
      • IDR #26308 (Low) - Dialog boxes do not always close as expected
acceptance test results moc client 6 of 6

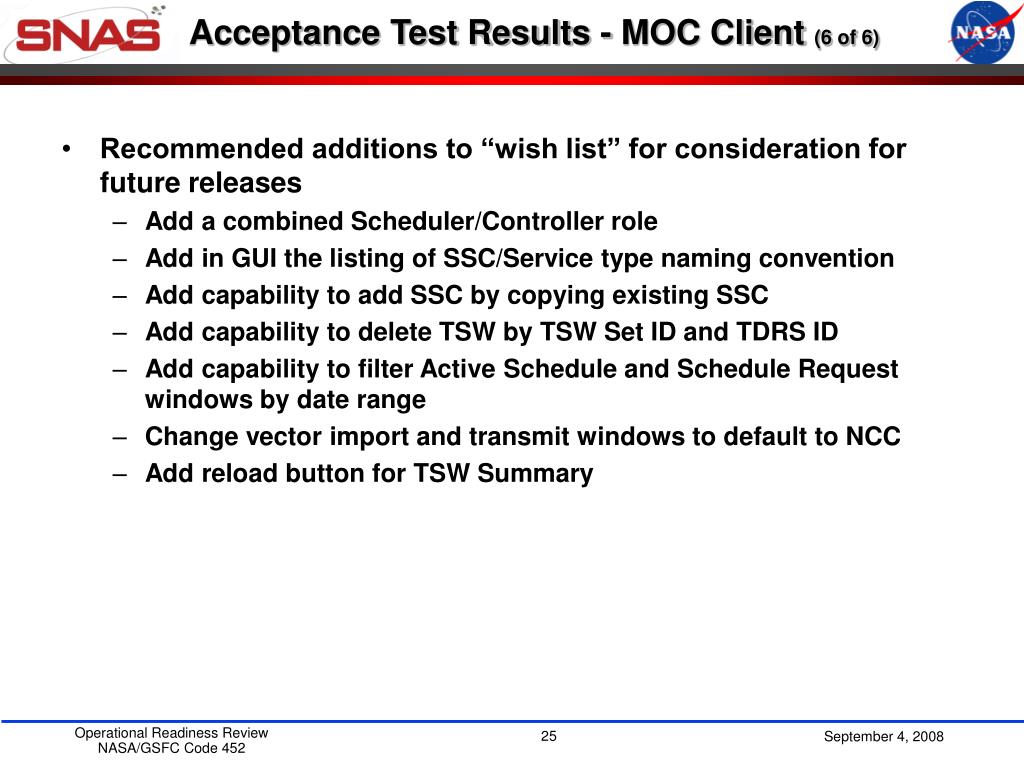

Acceptance Test Results - MOC Client (6 of 6)
  • Recommended additions to “wish list” for consideration for future releases
    • Add a combined Scheduler/Controller role
    • Add in GUI the listing of SSC/Service type naming convention
    • Add capability to add SSC by copying existing SSC
    • Add capability to delete TSW by TSW Set ID and TDRS ID
    • Add capability to filter Active Schedule and Schedule Request windows by date range
    • Change vector import and transmit windows to default to NCC
    • Add reload button for TSW Summary
acceptance test results26

Acceptance Test Results

MOC Client Functionality

O&M Client Functionality

Server/System Testing

IT Security Controls

acceptance test results o m client 1 of 2

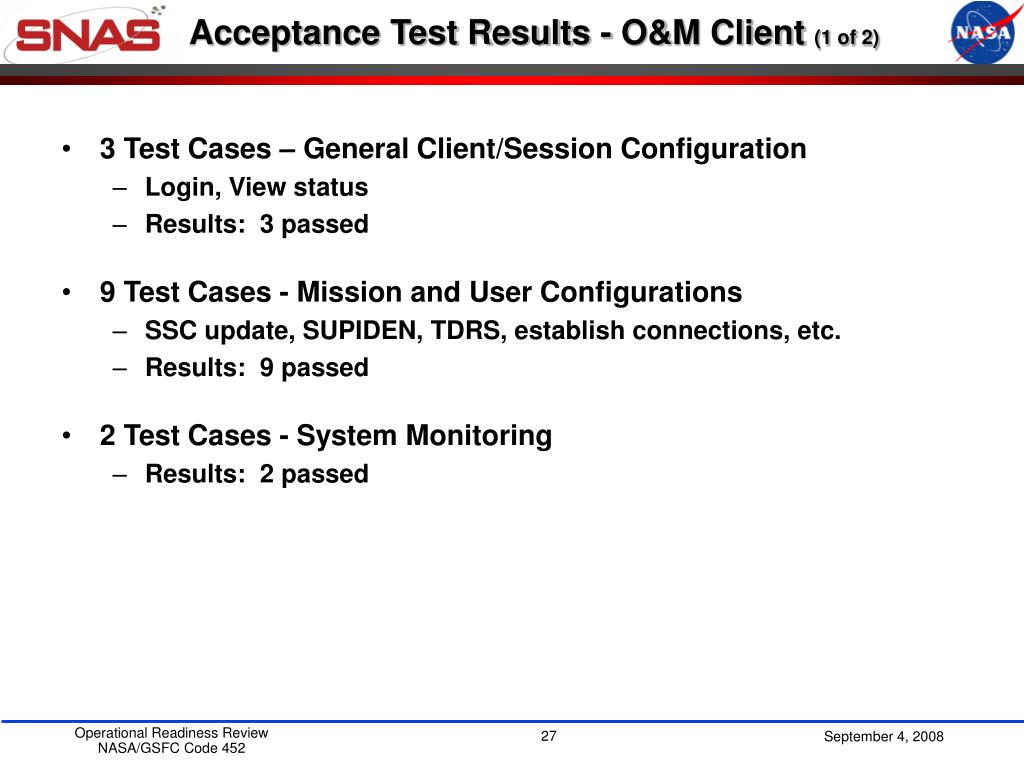

Acceptance Test Results - O&M Client (1 of 2)
  • 3 Test Cases – General Client/Session Configuration
    • Login, View status
    • Results: 3 passed
  • 9 Test Cases - Mission and User Configurations
    • SSC update, SUPIDEN, TDRS, establish connections, etc.
    • Results: 9 passed
  • 2 Test Cases - System Monitoring
    • Results: 2 passed
acceptance test results o m client 2 of 2
Acceptance Test Results – O&M Client(2 of 2)
  • O&M Client Summary
  • Remaining Open IDRS – none
    • Alert window will be delivered in next release
  • Recommended additions to “wish list” for consideration for future releases
    • Add capability to add SSC by copying existing SSC
    • Add role/access privileges – allows for system monitoring without DBA account
    • O&M approval window
      • Mark the changes being requested from the MOC Client
      • Allow for dialog for approval (not just rejected requests)
acceptance test results29

Acceptance Test Results

MOC Client Functionality

O&M Client Functionality

Server/System Testing

IT Security Controls

acceptance test results server system 1 of 8
Acceptance Test Results - Server/System(1 of 8)
  • Test overview
    • High Availability application and configuration
    • System/Application Logging
    • SNAS/SN Interface
    • End-to-end testing – EPS–Client- Server-ANCC/HMD DAS
      • EPS to Client – same platform
      • Limited HMD DAS availability
    • System Performance and Loading Test
acceptance test results server system 2 of 8

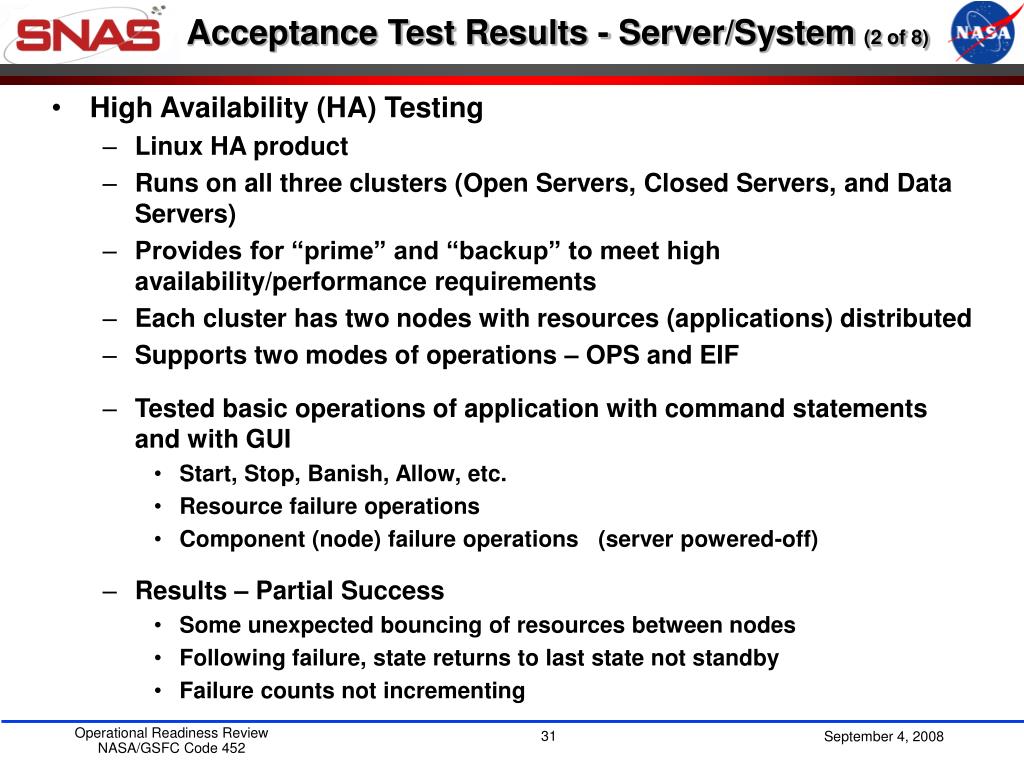

Acceptance Test Results - Server/System(2 of 8)
  • High Availability (HA) Testing
    • Linux HA product
    • Runs on all three clusters (Open Servers, Closed Servers, and Data Servers)
    • Provides for “prime” and “backup” to meet high availability/performance requirements
    • Each cluster has two nodes with resources (applications) distributed
    • Supports two modes of operations – OPS and EIF
    • Tested basic operations of application with command statements and with GUI
      • Start, Stop, Banish, Allow, etc.
      • Resource failure operations
      • Component (node) failure operations (server powered-off)
    • Results – Partial Success
      • Some unexpected bouncing of resources between nodes
      • Following failure, state returns to last state not standby
      • Failure counts not incrementing
acceptance test results server system 3 of 8
Acceptance Test Results - Server/System (3 of 8)
  • System/Application Logging
    • Applications Logs
      • SAM, SvE, DSDM, SNIF, and SDIF
      • Logs required to contain
        • Source
        • Severity code
        • Timestamp field
        • Explanation code
      • Results: Pass
  • SNAS/SN Interface
    • SNAS/SN – TCP/IP protocol
    • Results: Pass
acceptance test results server system 4 of 8
Acceptance Test Results - Server/System(4 of 8)
  • End-to-end System Testing
    • EPS - Client - Server - ANCC/HMD DAS
      • Interfaces verified during Performance Test
      • Part of Candidate 5 regression testing
    • Results: Partial Success
      • Limited EPS to Client testing - EPS simulation not a function of ANCC (JSC verified in Beta environment)
      • Limited time available for SNAS/HMD DAS testing - no regression testing for Candidate 5
acceptance test results server system 5 of 8

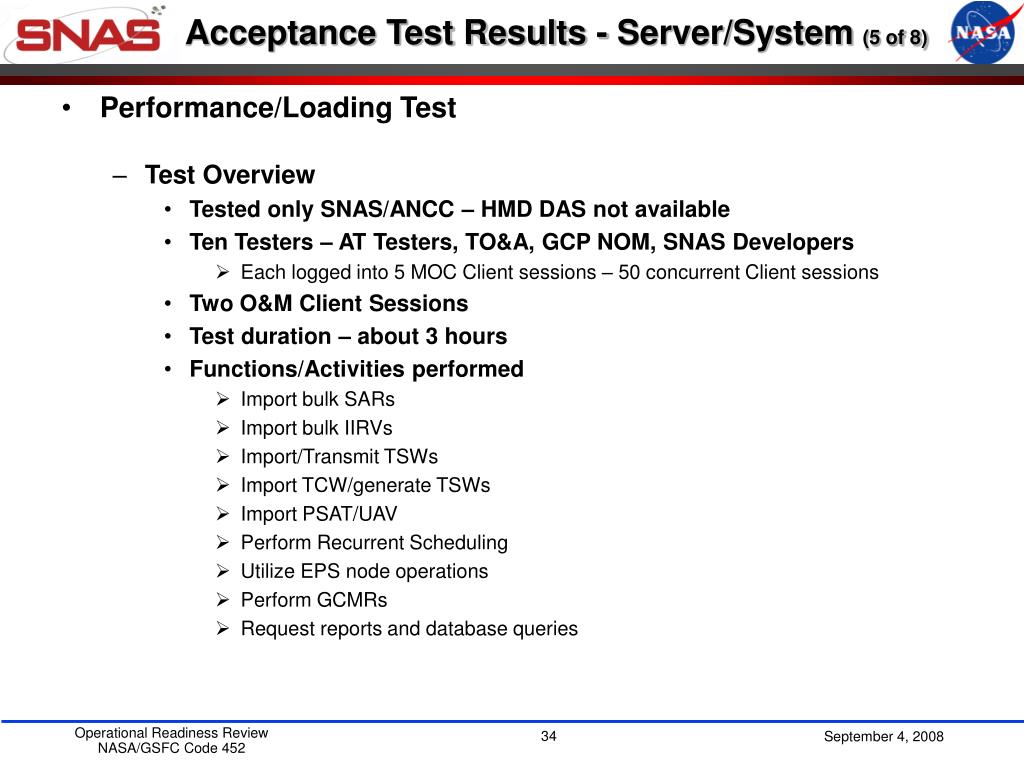

Acceptance Test Results - Server/System(5 of 8)
  • Performance/Loading Test
    • Test Overview
      • Tested only SNAS/ANCC – HMD DAS not available
      • Ten Testers – AT Testers, TO&A, GCP NOM, SNAS Developers
        • Each logged into 5 MOC Client sessions – 50 concurrent Client sessions
      • Two O&M Client Sessions
      • Test duration – about 3 hours
      • Functions/Activities performed
        • Import bulk SARs
        • Import bulk IIRVs
        • Import/Transmit TSWs
        • Import TCW/generate TSWs
        • Import PSAT/UAV
        • Perform Recurrent Scheduling
        • Utilize EPS node operations
        • Perform GCMRs
        • Request reports and database queries
acceptance test results server system 6 of 8
Acceptance Test Results - Server/System(6 of 8)
  • Performance/Loading Test (cont’d)
    • Data Collected
      • Server Performance Logs
        • Eldorado – OPS Data Server – (241/1720-241/2350)
        • Roadrunner – OPS Open Server – (241/0000-242/0000)
        • Fury – Ops Closed Server- (241/0000-242/0000)
      • Client Alert Logs / Tester’s notes
    • Results: Passed
      • No node/resource failures noted
      • Over 900 requests/interactions with ANCC at one time (~200 normal ops)
      • Some delay noted at Client for window refresh (e.g. Active Summary)
        • Alert logs indicate no latency in server processing
      • Interactions between SvE and SNIF < 2 seconds
      • Interactions between SvE and DSDM < 5 seconds
      • Available MEM at pre-test ~30%. 50 simultaneous Client sessions, added ~2%. Assuming 250 simultaneous Client session, add ~ 10%, then available MEM > 60%.

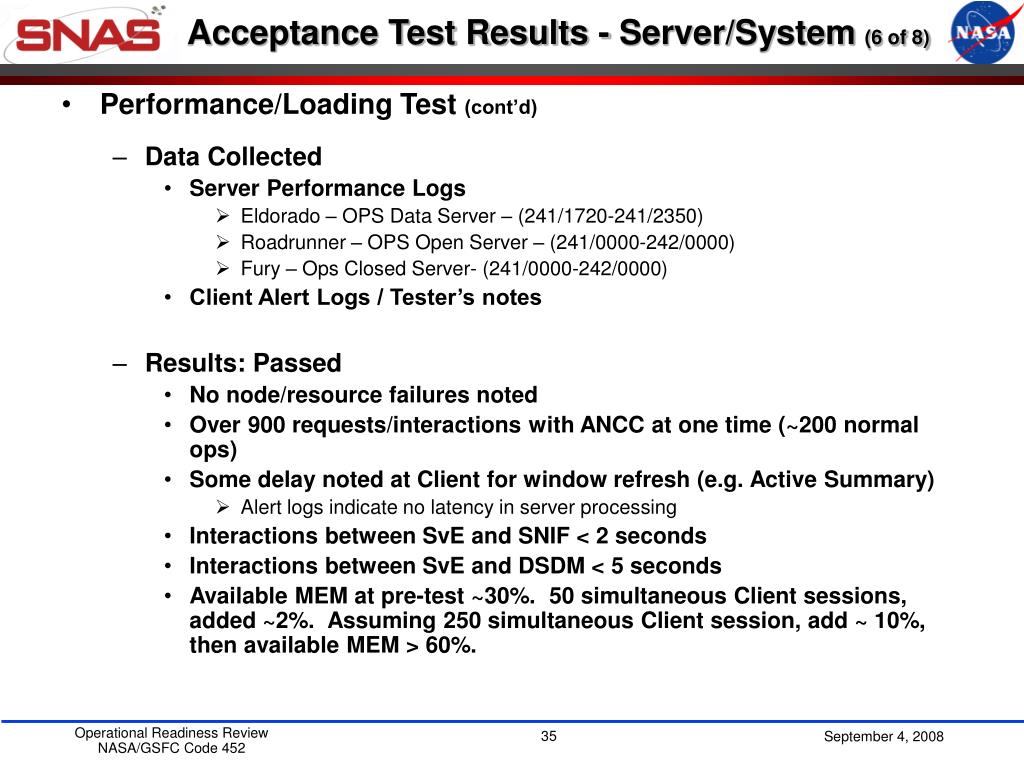

acceptance test results server system 7 of 8
Acceptance Test Results - Server/System(7 of 8)
  • Performance/Loading Test (cont’d)

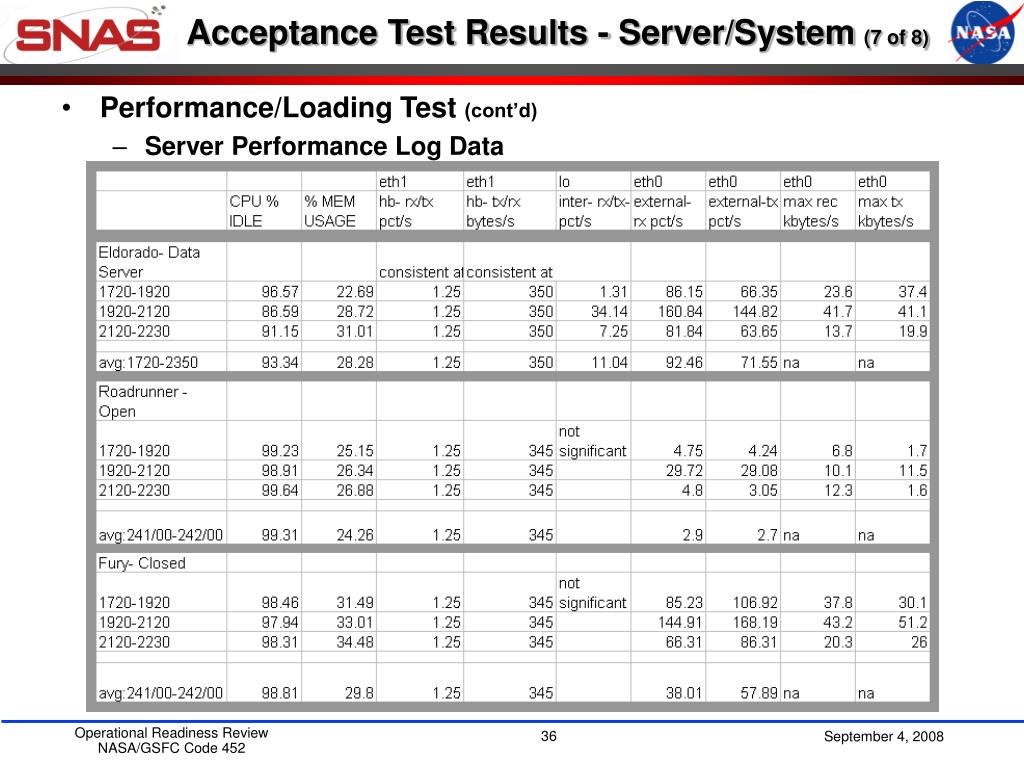

    • Server Performance Log Data
acceptance test results server system 8 of 8

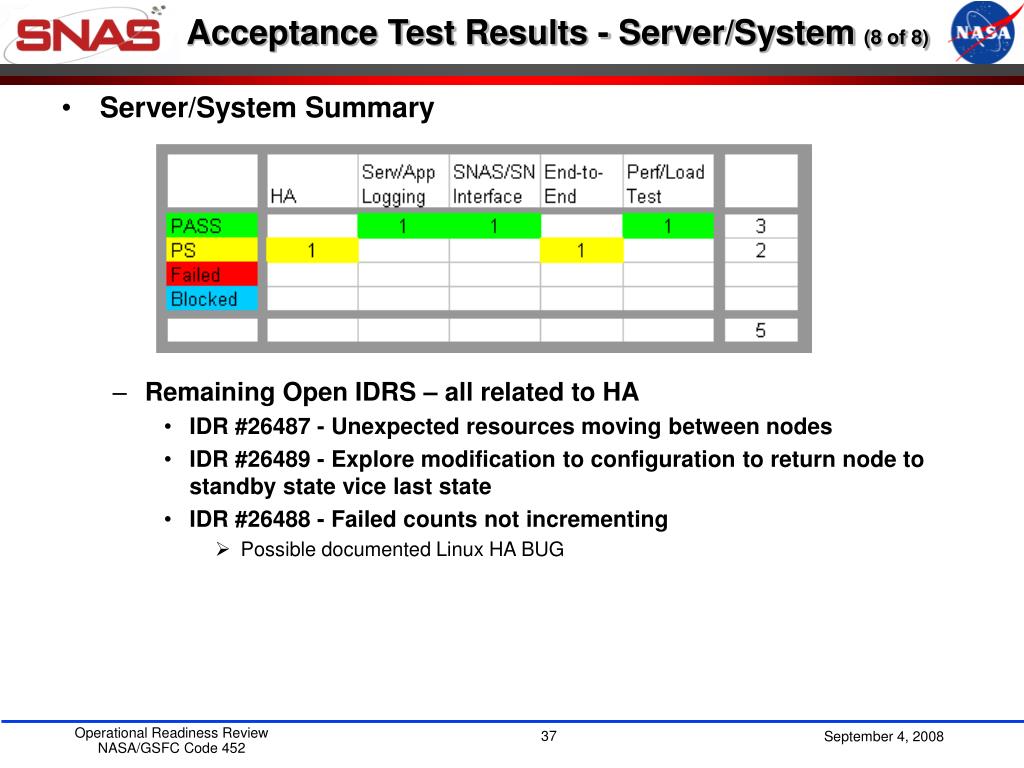

Acceptance Test Results - Server/System(8 of 8)
  • Server/System Summary
    • Remaining Open IDRS – all related to HA
      • IDR #26487 - Unexpected resources moving between nodes
      • IDR #26489 - Explore modification to configuration to return node to standby state vice last state
      • IDR #26488 - Failed counts not incrementing
        • Possible documented Linux HA BUG
acceptance test results38

Acceptance Test Results

MOC Client Functionality

O&M Client Functionality

Server/System Testing

IT Security Controls

acceptance test results security controls

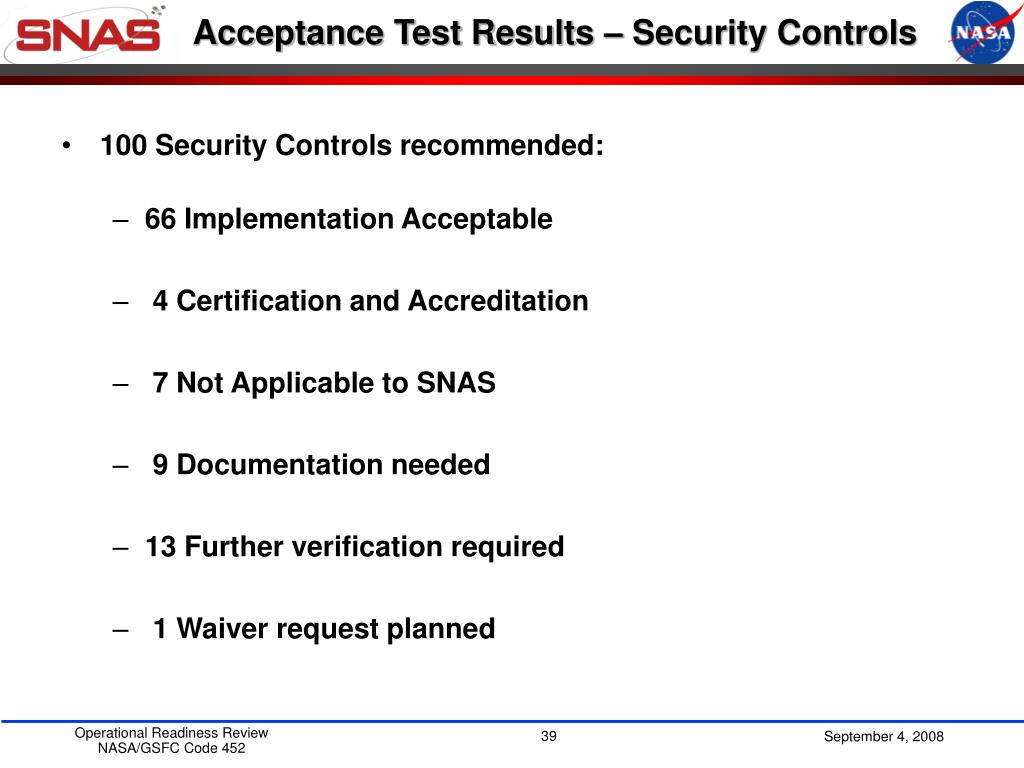

Acceptance Test Results – Security Controls
  • 100 Security Controls recommended:
    • 66 Implementation Acceptable
    • 4 Certification and Accreditation
    • 7 Not Applicable to SNAS
    • 9 Documentation needed
    • 13 Further verification required
    • 1 Waiver request planned
acceptance test results summary
Acceptance Test Results - Summary
  • 66/67 Test Cases executed

1 Blocked - Bulk schedules to DAS

54 Passes

12 Partial Successes

  • IDRs remaining Open - 13

3 - related to SNAS/NCCDS - (TSW, RR)

6 - related to SNAS/DAS

1 - general Client operations - dialog box not closing

3 - related to HA

  • IDRs Closed - 34
wsc it security evaluation 1 of 6

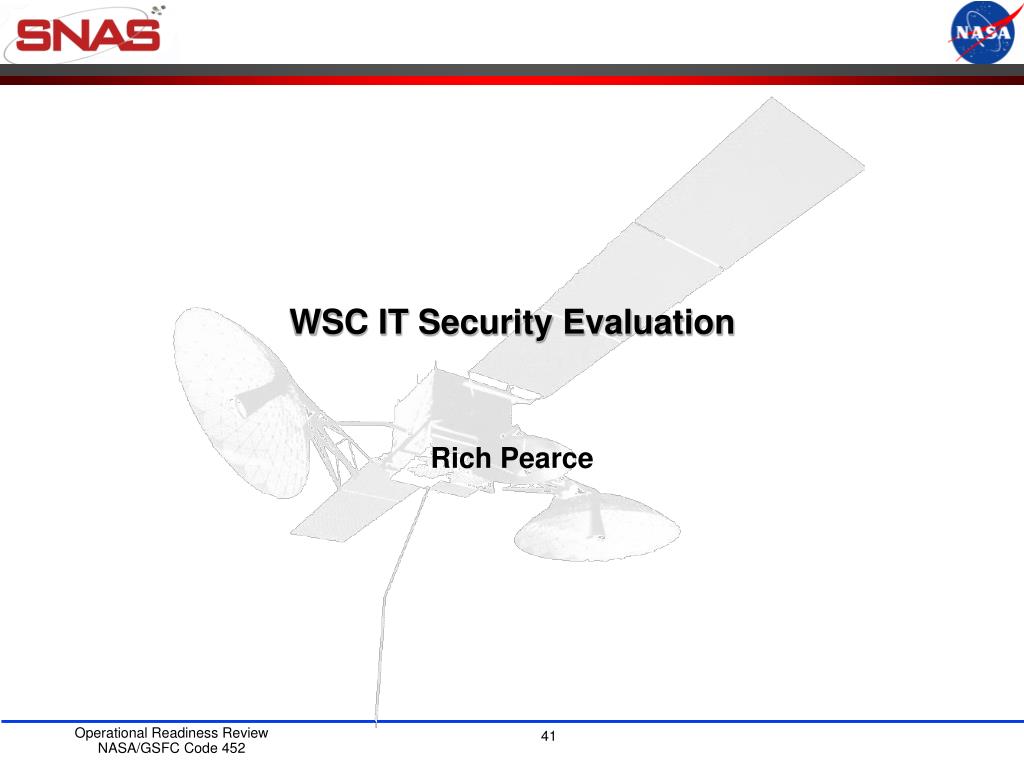

WSC IT Security Evaluation (1 of 6)
  • IT Security Acceptance Testing is centered on availability of approve documentation, the draft IT Security Plan, and implementation of system-specific security controls (WSC-wide and NASA common controls not considered for testing).
    • Required NASA Approved documentation
      • Final Risk Assessment, IT Security Plan, Contingency Plan
    • Account Management
      • Server accounts
      • Client accounts
    • System/Audit Logging & Review
    • Disaster Recovery
      • Software
      • Oracle database
wsc it security evaluation 2 of 6

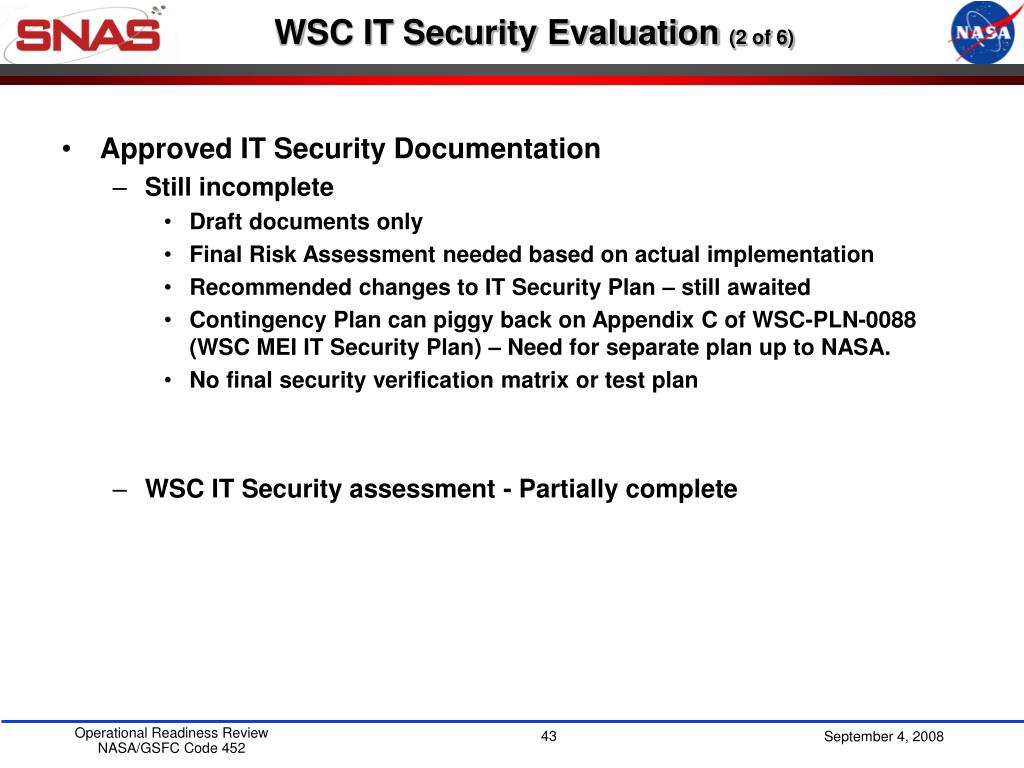

WSC IT Security Evaluation (2 of 6)
  • Approved IT Security Documentation
    • Still incomplete
      • Draft documents only
      • Final Risk Assessment needed based on actual implementation
      • Recommended changes to IT Security Plan – still awaited
      • Contingency Plan can piggy back on Appendix C of WSC-PLN-0088 (WSC MEI IT Security Plan) – Need for separate plan up to NASA.
      • No final security verification matrix or test plan
    • WSC IT Security assessment - Partially complete
wsc it security evaluation 3 of 6
WSC IT Security Evaluation (3 of 6)
  • Account Management
    • Server Account Management
      • Server accounts created and managed based on approved account request (Form WSC-0325)
      • WSC SA responsible for creating and configuring accounts based on the approved form
      • Server accounts will be restricted to System Admins (SA), Database Admins (DBAs), ADPE Techs and IT Security
    • MOC and O&M Client Account Management
      • No provision for account requests. MOC User Guide requires list of users and data required
      • Completed/signed SNAS Rules of Behavior will be required of all users
      • Local O&M Client accounts (for WSC O&M personnel only) will follow MOC requirements
      • OPS DBA is responsible for MOC and O&M Client account management through O&M tools and procedures
    • WSC IT Security assessment - PASS
      • Local procedure needed for Server account management or change to existing LOP, as necessary
wsc it security evaluation 4 of 6
WSC IT Security Evaluation (4 of 6)
  • System/Audit Logging and Review
    • Audit logging still not configured for security requirements
      • Server application log containing audit data (violates separation of duties requirements)
      • Designated “Audit” log empty
    • No tools for syslog or audit data review (dependence on System Messages)
    • Unable to test alerting for audit process failure (could not stop audit process)
    • WSC IT Security assessment - Fail
      • Need to finalize syslog and audit data locations and ensure only IT Security/Root-level access
      • Need tools for audit data extraction and syslog/audit log backup to removable media
wsc it security evaluation 5 of 6
WSC IT Security Evaluation (5 of 6)
  • Disaster Recovery
    • No procedure/plan for system/database backups including off-site storage
    • SNAS software disaster recovery procedure
      • WSC LOP Volume IV - Book 2, LOP #32 “Software Configuration Management Disaster Control” provides for SW recovery
      • Five software patches (Client/Server/DB) have been delivered during AT - GSFC remote access for software delivery exercised
    • Oracle database recovery
      • EIF instance – auto backup is functioning
        • Open IDR #26368 – repeat for OPS instance
      • EIF shutdown and database recovery successfully exercised
        • Open IDR #26433 – repeat for Ops instance
      • Procedure to be documented
      • Procedure exercised on OPS instance
  • WSC IT Security assessment – Partially complete
    • Document procedures for database and system backup – Close IDRs #26368 and #26433
wsc it security evaluation 6 of 6

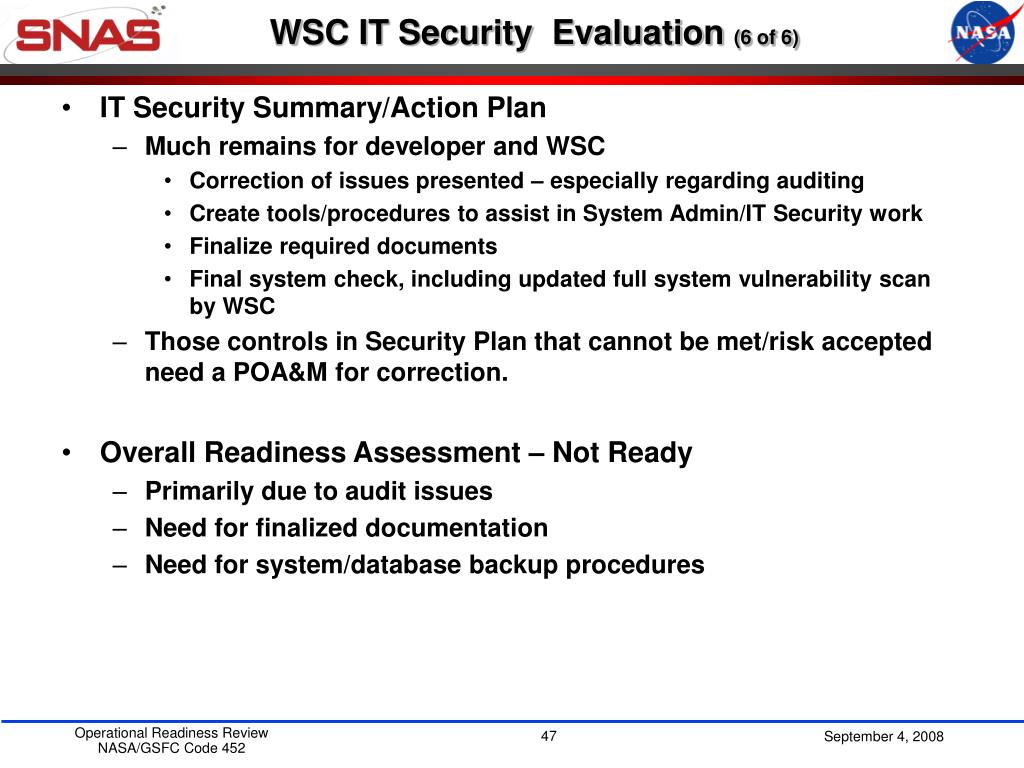

WSC IT Security Evaluation (6 of 6)
  • IT Security Summary/Action Plan
    • Much remains for developer and WSC
      • Correction of issues presented – especially regarding auditing
      • Create tools/procedures to assist in System Admin/IT Security work
      • Finalize required documents
      • Final system check, including updated full system vulnerability scan by WSC
    • Those controls in Security Plan that cannot be met/risk accepted need a POA&M for correction.
  • Overall Readiness Assessment – Not Ready
    • Primarily due to audit issues
    • Need for finalized documentation
    • Need for system/database backup procedures
snas training

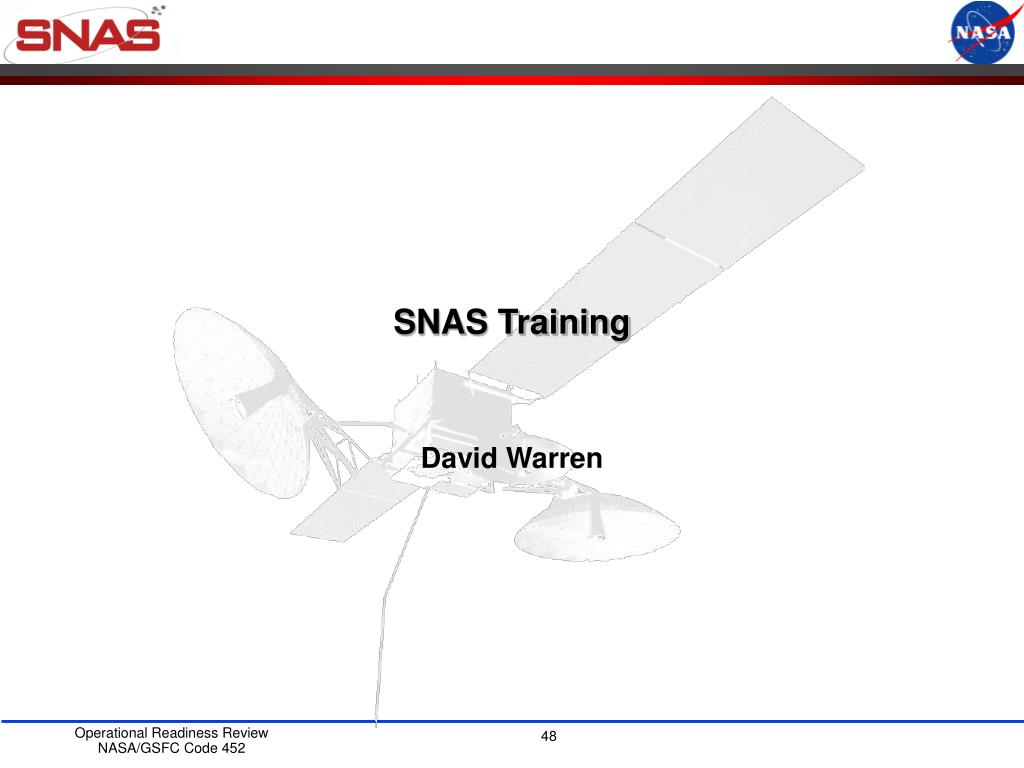

SNAS Training

David Warren

customer moc client

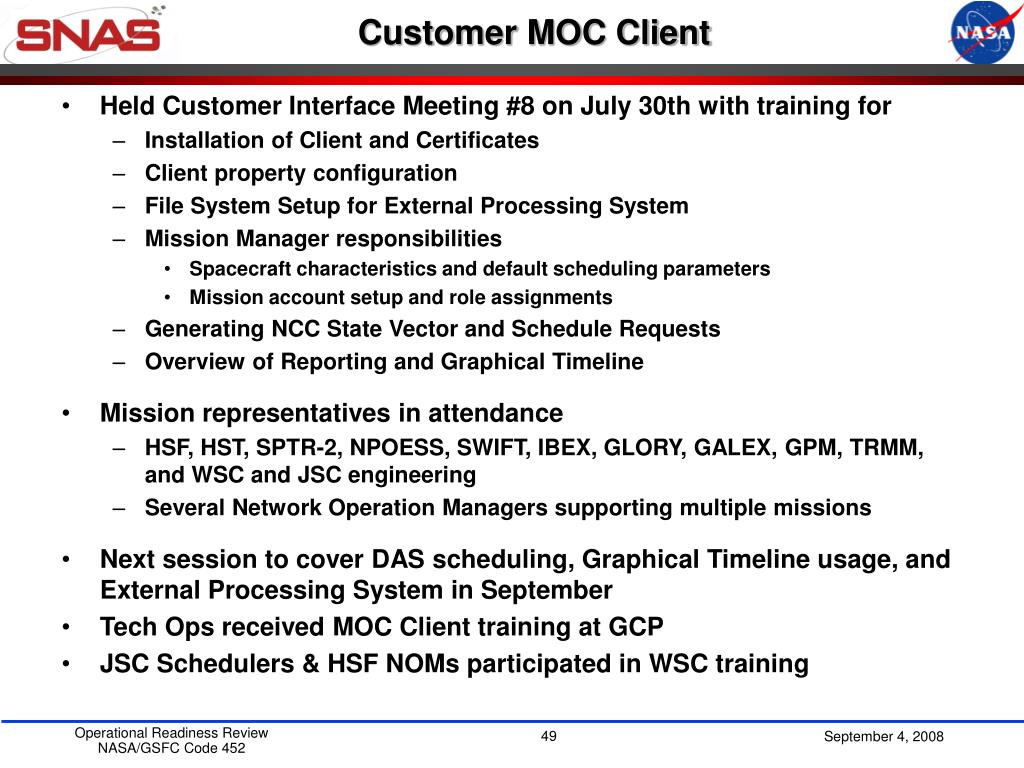

Customer MOC Client
  • Held Customer Interface Meeting #8 on July 30th with training for
    • Installation of Client and Certificates
    • Client property configuration
    • File System Setup for External Processing System
    • Mission Manager responsibilities
      • Spacecraft characteristics and default scheduling parameters
      • Mission account setup and role assignments
    • Generating NCC State Vector and Schedule Requests
    • Overview of Reporting and Graphical Timeline
  • Mission representatives in attendance
    • HSF, HST, SPTR-2, NPOESS, SWIFT, IBEX, GLORY, GALEX, GPM, TRMM, and WSC and JSC engineering
    • Several Network Operation Managers supporting multiple missions
  • Next session to cover DAS scheduling, Graphical Timeline usage, and External Processing System in September
  • Tech Ops received MOC Client training at GCP
  • JSC Schedulers & HSF NOMs participated in WSC training
wsc o m

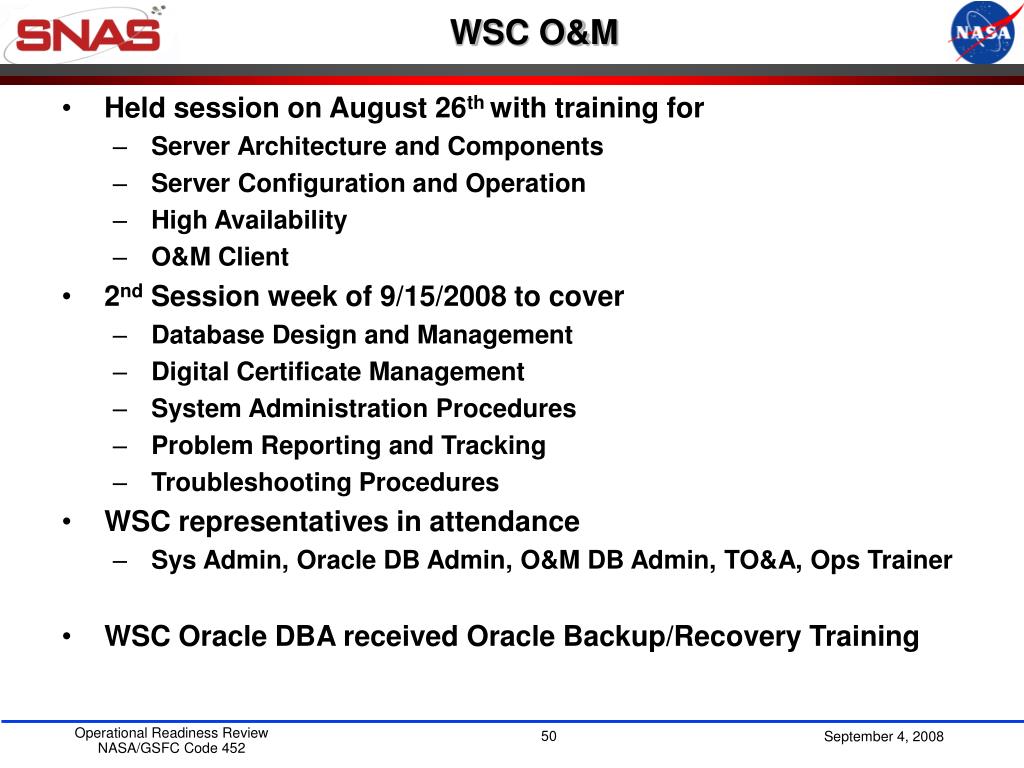

WSC O&M
  • Held session on August 26th with training for
    • Server Architecture and Components
    • Server Configuration and Operation
    • High Availability
    • O&M Client
  • 2nd Session week of 9/15/2008 to cover
    • Database Design and Management
    • Digital Certificate Management
    • System Administration Procedures
    • Problem Reporting and Tracking
    • Troubleshooting Procedures
  • WSC representatives in attendance
    • Sys Admin, Oracle DB Admin, O&M DB Admin, TO&A, Ops Trainer
  • WSC Oracle DBA received Oracle Backup/Recovery Training
software sustaining plan52
Software Sustaining Plan
  • Discrepancy Reporting Process
    • Comprehensive Discrepancy System (CDS) Network DB will be used to report problems occurring in the Operational Network including SNAS
    • Bugzilla will be used for reporting development and Beta (I&T) discrepancies, or ‘Wishlist’ functionality for future releases
  • A SNAS System Engineering Review Board (SERB) will be chartered to collect discrepancy and enhancement requests and work with SN lead to work them into a delivery schedule
    • Follow the SERB process currently used by SWSI
    • Participants from WSC Operations and SN User Community
software sustaining plan cont d
Software Sustaining Plan (cont’d)
  • Development for future functionality and maintenance release
    • plan to support development of current release fixes
  • Configuration Management / Delivery Process
    • SNAS CM Plan to be followed throughout SNAS life cycle
    • Developers provide tested code to CM lead, who pulls from CM tool (CVS) and integrates on Beta system, then moves to Operations
    • System and Database backups performed
    • Media delivered to WSC CM for data archive
    • Maintain documents on SNAS website
wsc operations and maintenance

WSC Operations and Maintenance

Marty Antholzner

Melissa Jones

54

wsc snas staffing plan
WSC SNAS Staffing Plan

Key WSC personnel to support the sustainment of SNAS O & M

55

methodology of review
Methodology of Review
  • Conducted a review of the major SN Core elements to ensure SNAS is providing all required items to support transition to customer testing
  • Utilized a status matrix with drill down capability to review each area
  • Conducted weekly meetings to work issues and provide status
  • Quickly brought issues to management’s attention for action
  • Provided weekly status to local WSC NASA management
  • Objective was to “get the red out”

56

operations summary
Operations Summary

WSC recommends that SNAS be declared operational upon the completion of the previously briefed open items

  • Keys items include
    • IT security audit logging (3.5),
    • EC completion (1.1 and 3.7),
    • Training (3.9) and
    • Procedures (3.1, 3.2 and 3.3)
  • Working to close all open items by 09/19/08

DAS customer usage is tied to successful completion of Acceptance Testing (yet to be scheduled)

At WSC O&M determination (based on item closure), SNAS would be available for MOCC usage and NASA would begin asking customers to switch from SWSI/UPS to SNAS

  • WSC OPS DBA functions for Customer support would begin at that time
  • WSC TOCC Operations may utilize O&M Client to monitor system
  • HMD ADPE Techs would begin 24X7 monitoring of Server System

61

slide62

Post ORR Activities

Rose Pajerski

62

orr objectives63
ORR Objectives
  • Items addressed in ORR Presentation:
    • All validation testing is complete

SNAS/DAS testing to resume when HMD DAS is available

    • Test failures and anomalies from validation testing have been resolved

Action Plan to resolve IT Security issues

    • All operational and enabling products necessary for normal and contingency operations have been tested and in place

Hardware under WSC CM

    • Operations handbook has been approved

WSC LOPs in-work

Server Operators Guide/Client User’s Guide

    • Training has been provided to users and operators

Training sessions have begun/training material complete

    • Operational contingency planning has been accomplished, and all personnel have been trained

Database Recovery partially exercised – procedure to be documented

forward schedule release 1
Forward Schedule - Release 1

Scheduled

Completion

  • Operational Readiness Review today
  • Operational Availability (NCCDS) 9/23/08
  • SNAS/DAS Acceptance Testing Complete Oct08
  • Delta-ORR for SNAS/DAS Oct08
  • Customer Training (CIM #9, WSC, customer sites) Nov08
  • Operational Availability (DAS) TBS
  • DAS Customers Transition to SNAS (as a group) TBS
  • End SWSI and UPS fixes/releases TBS

64

post release 1 schedule
Post-Release 1 Schedule
  • Release 2
    • Implementation ongoing
    • Beta Testing 9/08 - 11/08
    • Acceptance Testing 10/08
    • Operational Availability 12/08
  • Release 3 1/09 - 9/09

65

post orr activities
Post-ORR Activities
  • Respond to RFAs
    • Previous from earlier reviews (all closed but 1 security-related pending action)
    • New from today’s review
  • Finalize WSC SNAS OPS, EIF configurations
  • Finalize Release 1 documentation
    • MOC and O&M User’s Guides
    • Server Operators Guide
    • WSC Operations Procedures
  • Support Customers with their Transition to SNAS
    • Schedule Customer Interface Meetings
    • Work with Network Operations Managers
    • Host Customers at WSC
    • Visit Customer Sites

66

in closing
In Closing
  • Closing remarks from review board
  • Thank you for your attendance
  • RFAs
    • Due date: Monday (9/8)
    • Submit to Shina Sangani-Dave (Code 452, PAAC II)
      • Email: shina.sangani-dave-1@nasa.gov

67

organization
Organization

SN Project Manager

Code 452

Keiji Tasaki

SNAS Product Development

Lead

Rose Pajerski

Resource/Business Manager

Paula Tidwell

IT Security

Curtis Emerson

Implementation Contractor

NENS

Systems Engineering Contractor

ITT

Product ManagementContractor

PAAC-II

NASA

Contractor

69

acronyms
Acronyms

ANCC Auxiliary Network Control Center

ADPE Automated Data Processing Equipment

AT Acceptance Testing

CIM Customer Interface Meeting

CCB Configuration Control Board

CSM Customer for Service Management

DAS Demand Access System

DBA Data Base Administrator

EC Engineering Change

EPS External Processing System

GALEX Galaxy Evolution Explorer

Glory Solar Irradiance Gap Filler

GPM Global Precipitation Mission

GSFC Goddard Space Flight Center

HA High Availability

HMD Hardware Maintenance Depot

HSF Human Space Fight

HST Hubble Space Telescope

HTSI Honeywell Technical Solutions Inc

IBEX Interstellar Boundary Explorer

ICD Interface Control Document

IDR Internal Discrepancy Report

ISS International Space Station

JSC Johnson Space Center

LOP Local Operating Procedure

NCCDS Network Control Center

Data System

NOM Network Operations Manager

NPOESS National Polar-orbiting Operational Environmental Satellite System

NENS Near Earth Network Services

O&M Operations and Maintenance

PE Prototype Event

PVM Performance Verification Matrix

RFA Request For Action

RTVM Requirements Traceability and Verification Matrix

SA System Administrator

SERB System Engineering Review Board

SIC Spacecraft Identification Code

SN Space Network

SNAS Space Network Access System

SP&M Special Projects & Missions

SPTR South Pole TDRS Relay

SRR System Requirements Review

SSC Service Specification Code

STS Space Transportation System

SUPIDEN Support Identification

Swift Swift Gamma Ray Burst Explorer

TDRS Tracking and Data Relay Satellite

TO&A Tech Operations and Analysis

TRMM Tropical Rainfall Measurement Mission

TSW TDRS Scheduling Window

WSC White Sands Complex

70
