Physics 211: Lecture 12Today's Agenda
  • Problems using work/energy theorem
    • Spring shot
    • Escape velocity
    • Loop the loop
    • Vertical springs
  • Definition of Power, with example
problem spring shot
Problem: Spring Shot
  • A sling shot is made from a pair of springs each having spring constant k. The initial length of each spring is x0. A puck of mass m is placed at the point connecting the two springs and pulled back so that the length of each spring is x1. The puck is released. What is its speed v after leaving the springs? (The relaxed length of each spring is xr).

xr

x1

x0

m

m

m

v

problem spring shot3
Problem: Spring Shot
  • Only conservative forces are at work, so K+U energy is conserved. EI = EFK = -Us

x1

x0

m

m

problem spring shot4
Problem: Spring Shot
  • Only conservative forces are at work, so K+U energy is conserved. EI = EFK = -Us

m

m

at rest

v

problem spring shot5

m

Problem: Spring Shot

Spring

Shot

  • Only conservative forces are at work, so K+U energy is conserved. EI = EFK = -Us

m

v

problem how high
Problem: How High?
  • A projectile of mass m is launched straight up from the surface of the earth with initial speedv0. What is the maximum distance from the center of the earth RMAX it reaches before falling back down.

RMAX

m

RE

v0

M

problem how high7
All forces are conservative:

WNC = 0

K = -U

And we know:

Problem: How High...

RMAX

m

RE

v0

hMAX

M

problem how high8
Problem: How High...

RMAX

m

RE

v0

hMAX

M

escape velocity
Escape Velocity
  • If we want the projectile to escape to infinity we need to make the denominator in the above equation zero:

We call this value of v0 the escape velocity,vesc

escape velocity10

gp(m/s2)

vesc(m/s)

Rp(m)

Mp(kg)

Earth

6.378x106

5.976x1024

9.81

11.2 x103

Moon

1.737x106

7.349x1022

1.62

2.38 x103

Jupiter

7.149x107

1.900x1027

24.8

59.5 x103

Sun

6.950x108

1.989x1030

275

618 x103

Escape Velocity
  • Remembering that we find the escape velocity froma planet of mass Mp and radius Rpto be:(where G = 6.67 x 10-11 m3 kg-1 s-2).
lecture 12 act 1 escape velocity
Lecture 12, Act 1Escape Velocity
  • Two identical spaceships are awaiting launch on two planets with the same mass. Planet 1 is stationary, while Planet 2 is rotating with an angular velocity .
    • Which spaceship needs more fuel to escape to infinity?

(a) 1 (b)2 (c)same

(1)

(2)

lecture 12 act 1 solution
Lecture 12, Act 1Solution
  • Both spaceships require the same escape velocity to reach infinity.
  • Thus, they require the same kinetic energy.
  • Both initially have the same potential energy.
  • Spaceship 2 already has some kinetic energy due to its rotational motion, so it requires less work (i.e. less fuel).
lecture 12 act 1 aside

r1

r2

K1 = m(r1)2

K2 = m(r2)2 >

Lecture 12, Act 1Aside

v = r

  • This is one of the reasons why all of the world’s spaceports are located as close to the equator as possible.

r2 > r1

problem space spring

d

k

Problem: Space Spring
  • A low budget space program decides to launch a 10,000 kg spaceship into space using a big spring. If the spaceship is to reach a height RE above the surface of the Earth, what distance d must the launching spring be compressed if it has a spring constant of 108 N/m.
problem space spring15
Problem: Space Spring...
  • Since gravity is a conservative force, energy is conserved. Since K = 0 both initially and at the maximum height (v = 0) we know:
  • Ubefore = Uafter
  • (US + UG )before = (UG )after
problem space spring16

d

k

Problem: Space Spring

So we find

  • For the numbers given, d = 79.1 m
  • But don’t get too happy...
  • F = kd = ma
  • a = kd/m
  • a = 79.1 x 104 m/s2
  • a = 80,600 g
  • unhappy astronaut!

a

problem loop the loop
Problem: Loop the loop
  • A mass m starts at rest on a frictionless track a distance H above the floor. It slides down to the level of the floor where it encounters a loop of radius R. What is H if the mass just barely makes it around the loop without losing contact with the track.

H

R

problem loop the loop18

N

v

mg

=

v

Rg

Problem: Loop the loop
  • Draw a FBD of the mass at the top of the loop:
  • FTOT = -(mg+N) j
  • ma = -mv2/R j
  • If it “just” makes it, N = 0.
    • mg = mv2/R

v

j

H

R

i

problem loop the loop19

H = h + 2R

5

1

=

=

mgh = 1/2 mRg

H

R

h

R

2

2

Loop

the

Loop

Problem: Loop the loop
  • Now notice that K+U is conserved. K = -U.
  • U = -mgh
  • K = 1/2 mv2= 1/2 mRg

v

h

H

R

lecture 12 act 2 energy conservation
Lecture 12, Act 2Energy Conservation
  • A mass starts at rest on a frictionless track a distance H above the floor. It slides down to the level of the floor where it encounters a loop of radius R. What is H if the normal force on the block by the track at the top of the loop is equal to the weight of the block ?

(a)3R(b)3.5R (c)4R

H

R

lecture 12 act 2 solution

N

v

mg

Lecture 12, Act 2Solution
  • Draw a FBD of the mass at the top of the loop:
  • FNET = -(mg+N) j
  • ma = -mv2/R j
  • In this case, N = mg.
    • 2mg = mv2/R

v

j

H

R

i

lecture 12 act 2 solution22
Lecture 12, Act 2Solution
  • Use the fact that K+U energy is conserved: DK = -DU.
  • DU = -mg(h) = -mg(H - 2R), DK = 1/2 mv2 = mRg
  • mg(H - 2R) = mRg

h = H - 2R

v

H

R

vertical springs

m

mg = -kye

(ok since yeis a negative number)

Vertical Springs

(b)

(a)

  • A spring is hung vertically. Its relaxed position is at y = 0(a). When a mass m is hung from its end, the new equilibrium position is ye(b).

j

k

  • Recall that the force of a spring is Fs = -kx. In case (b) Fs = mg and x = ye:-kye - mg = 0 (ye < 0)

y = 0

y = ye

-kye

mg

vertical springs24

but mg = -kye

Vertical Springs

(b)

(a)

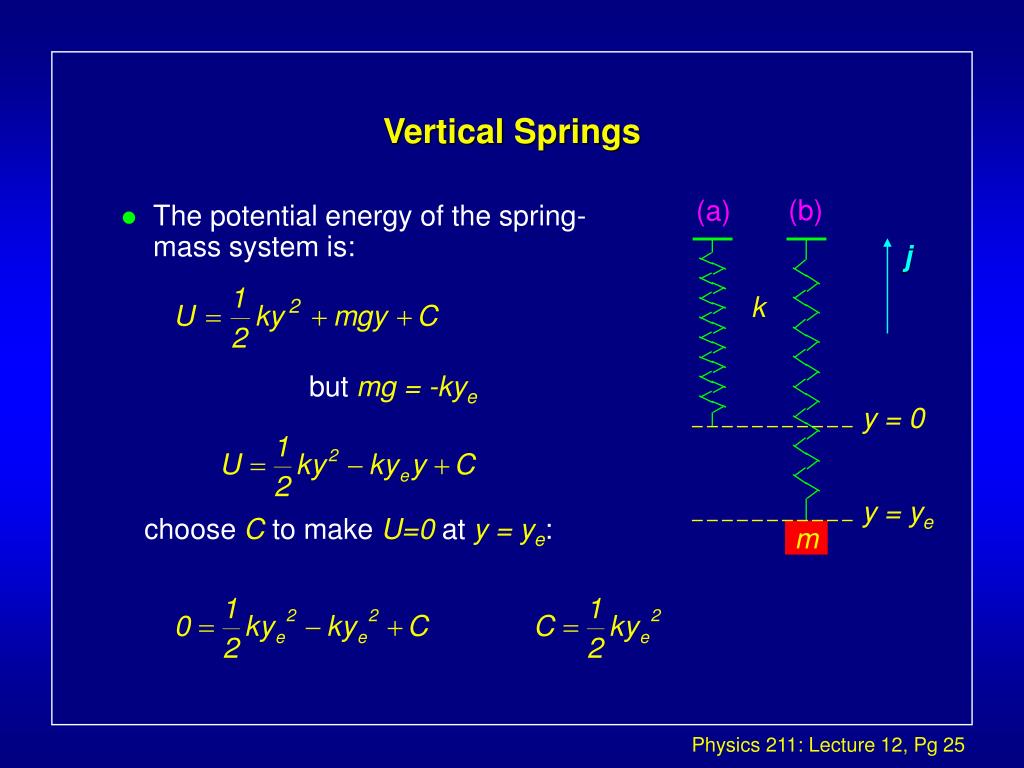

  • The potential energy of the spring-mass system is:

j

k

y = 0

y = ye

choose C to make U=0 at y = ye:

m

vertical springs25
Vertical Springs

(b)

(a)

  • So:

j

k

y = 0

which can be written:

y = ye

m

vertical springs26
Vertical Springs

(b)

(a)

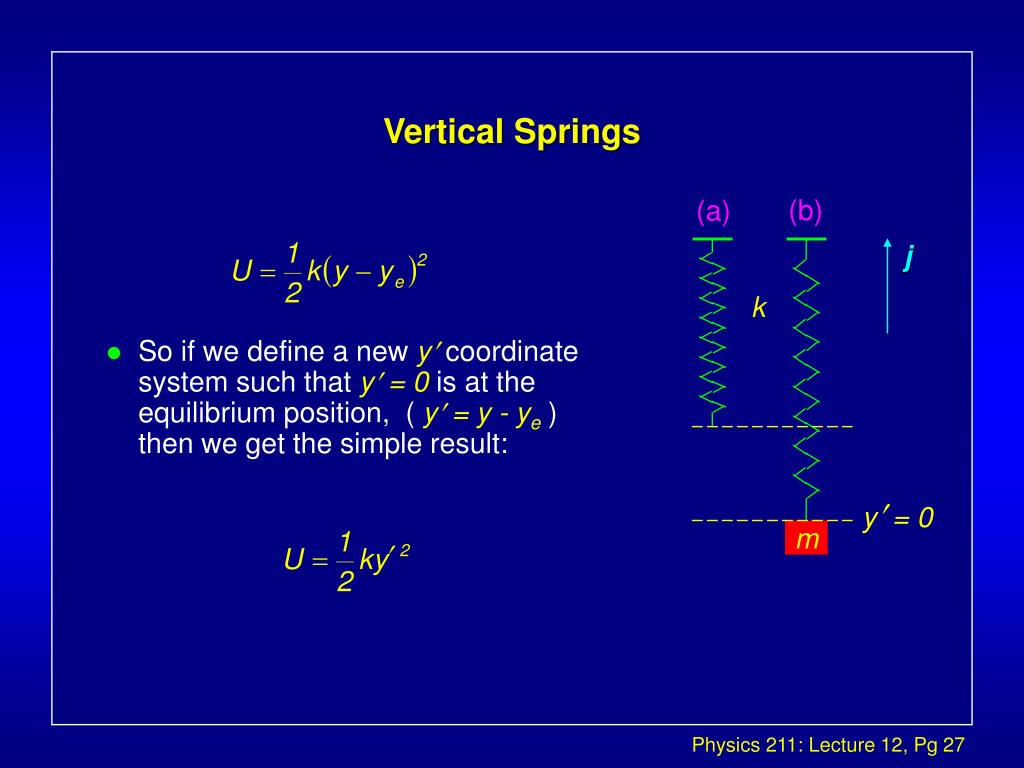

  • So if we define a new y coordinate system such that y = 0 is at the equilibrium position, ( y = y - ye ) then we get the simple result:

j

k

y = 0

m

vertical springs27
Vertical Springs

(b)

(a)

  • If we choose y = 0 to be at the equilibrium position of the mass hanging on the spring, we can define the potential in the simple form.
  • Notice that g does not appear in this expression!!
    • By choosing our coordinates and constants cleverly, we can hide the effects of gravity.

j

k

y = 0

m

slide28

160

140

Uof Spring

120

U

100

US = 1/2ky2

80

60

40

20

0

-10

-8

-6

-4

-2

0

2

4

6

8

10

-20

y

-40

-60

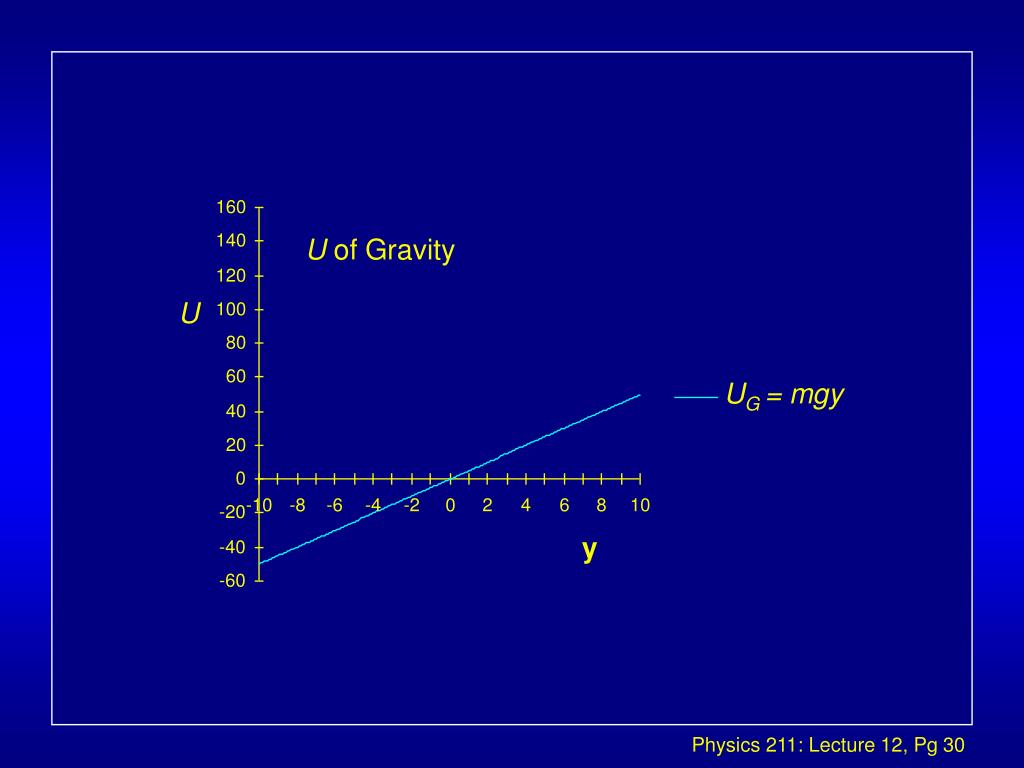

slide29

160

140

Uof Gravity

120

U

100

80

60

UG = mgy

40

20

0

-10

-8

-6

-4

-2

0

2

4

6

8

10

-20

y

-40

-60

slide30

160

UNET = UG + US

140

Uof Spring + Gravity

120

U

100

US = 1/2ky2

80

60

UG = mgy

40

20

0

-10

-8

-6

-4

-2

0

2

4

6

8

10

-20

y

-40

-60

ye

0

shift due to mgy term

slide31

160

Choose C such as to

show that the new

equilibrium position

has zero potential

energy:

140

Uof Spring + Gravity

120

U

100

80

60

40

UNET =UG + US + C

20

0

-10

-8

-6

-4

-2

0

2

4

6

8

10

-20

US = 1/2ky2

y

-40

-60

ye

0

shift due to mgy term

lecture 12 act 3 energy conservation
Lecture 12, Act 3Energy Conservation
  • In (1) a mass is hanging from a spring. In (2) an identical mass is held at the height of the end of the same spring in its relaxed position.
    • Which correctly describes the relation of the potential energies of the two cases?

(a)U1 > U2(b)U1 < U2(c)U1 = U2

case 2

case 1

d

lecture 12 act 3 solution

In case 2 the total potential energy is then .

relaxed

y = d

d

y = 0, U1 = 0

Lecture 12, Act 3Solution
  • In case 1, it is simplest to choose the mass to have zero total potential energy (sum of spring and gravitational potential energies) at its equilibrium position.

The answer is (b) U1 < U2.

vertical springs example problem

m

We know:

Vertical Springs:Example Problem
  • If we displace the mass a distance d from equilibrium and let it go, it will oscillate up & down. Relate the maximum speed of the mass v to d and the spring constant k.
  • Since all forces are conservative,E = K + U is constant.

j

k

y = d

v

y = 0

y = -d

vertical springs example problem35

m

Vertical Springs:Example Problem

Spring

  • At the initial stretched positionand K = 0 (since v=0).

j

  • Since E=K+U is conserved,will always be true !

k

y = d

  • Energy is shared between the K and U terms.
    • At y = d or -d the energy is all potential
    • At y = 0, the energy is all kinetic.

v

y = 0

y = -d

power

Power is the “rate of doing work”:

  • If the force does not depend on time: dW/dt = F.dr/dt = F.v P = F.v
Power

Ladder

  • We have seen that W = F.r
    • This does not depend on time!

F

r

  • Units of power: J/sec = N-m/sec = Watts

v

power37

y

x

v

T

winch

mg

Power
  • A 2000 kg trolley is pulled up a 30 degreehill at 20 mi/hrby a winch at the top of thehill. How much power is thewinch providing?
  • The power is P = F.v = T.v
  • Since the trolley is not accelerating, the net force on it must be zero. In the x direction:
    • T - mg sin= 0
    • T = mg sin
power38

y

x

v

T

winch

mg

Power
  • P= T.v= Tvsince T is parallel to v
  • So P= mgv sin

v = 20 mi/hr = 8.94 m/sg = 9.81 m/s2m = 2000 kgsin = sin(30o) = 0.5

and P = (2000 kg)(9.81 m/s2)(8.94 m/s)(0.5) = 87,700 W

recap of today s lecture
Recap of today’s lecture
  • Problems using work/energy theorem
    • Spring shot
    • Escape velocity
    • Loop the loop
    • Vertical springs
  • Definition of Power, with example
