micromachined vibrating gyroscopes intro to mems final presentation december 12 2002

Micromachined Vibrating GyroscopesIntro to MEMS final presentationDecember 12, 2002

presented by:

Kimberly S. Elliot

Parag Gupta

Kyle Reed

Raquel C. Rodriguez

presentation outline

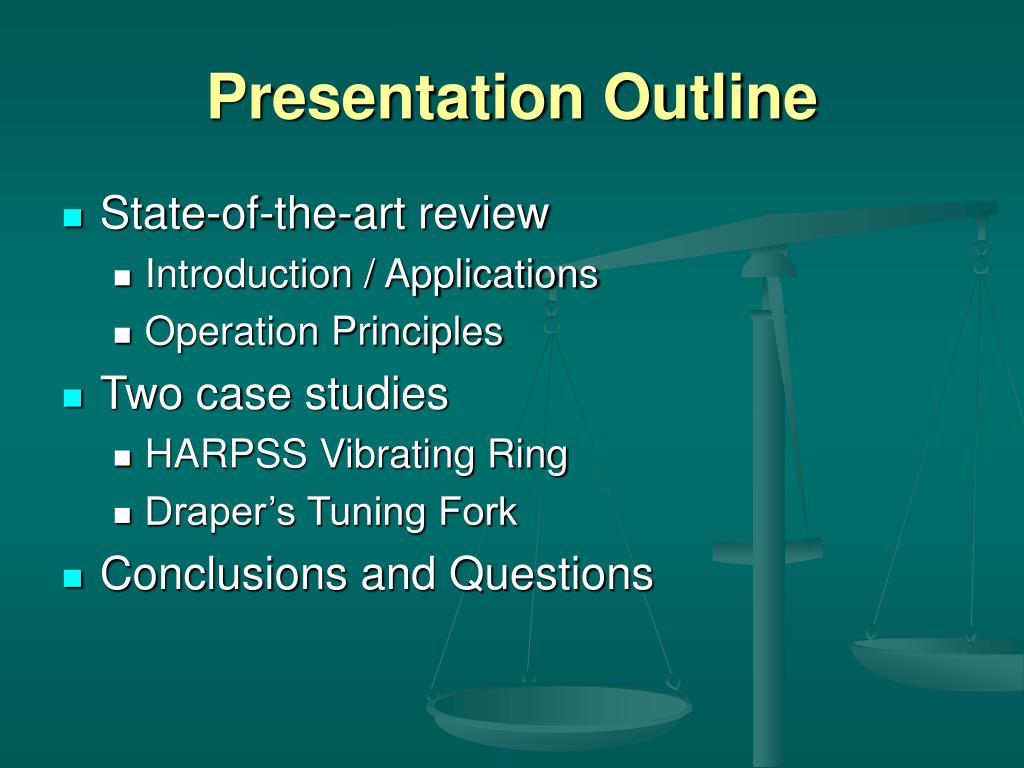

Presentation Outline
  • State-of-the-art review
    • Introduction / Applications
    • Operation Principles
  • Two case studies
    • HARPSS Vibrating Ring
    • Draper’s Tuning Fork
  • Conclusions and Questions
introduction

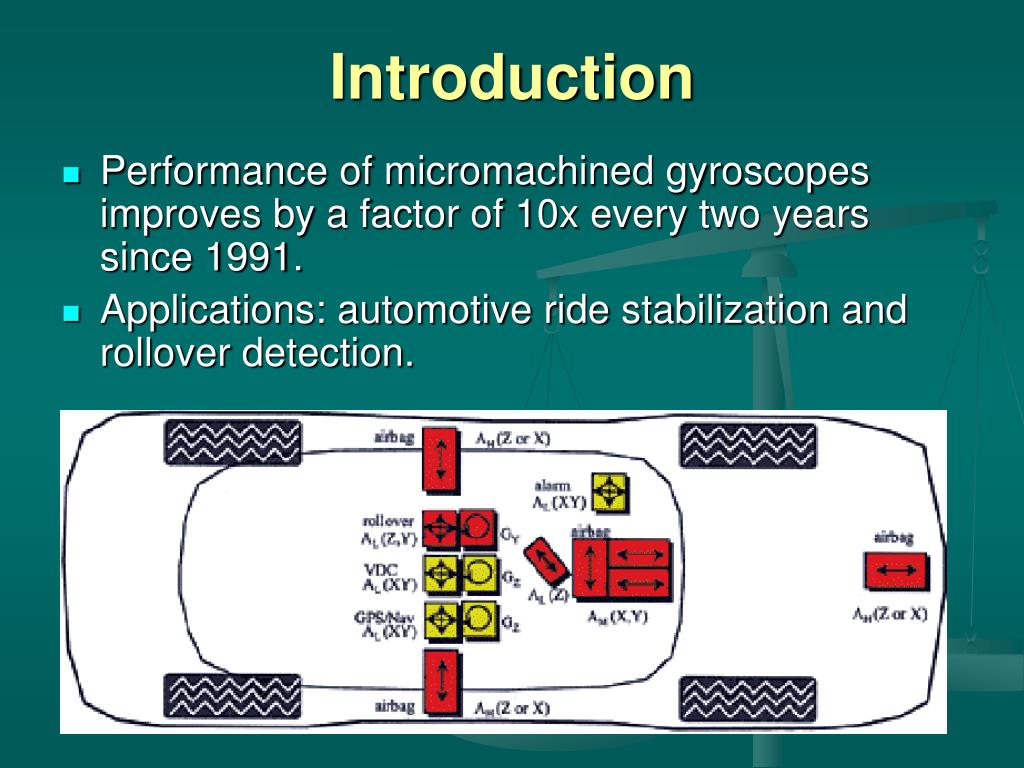

Introduction
  • Performance of micromachined gyroscopes improves by a factor of 10x every two years since 1991.
  • Applications: automotive ride stabilization and rollover detection.
applications cont d

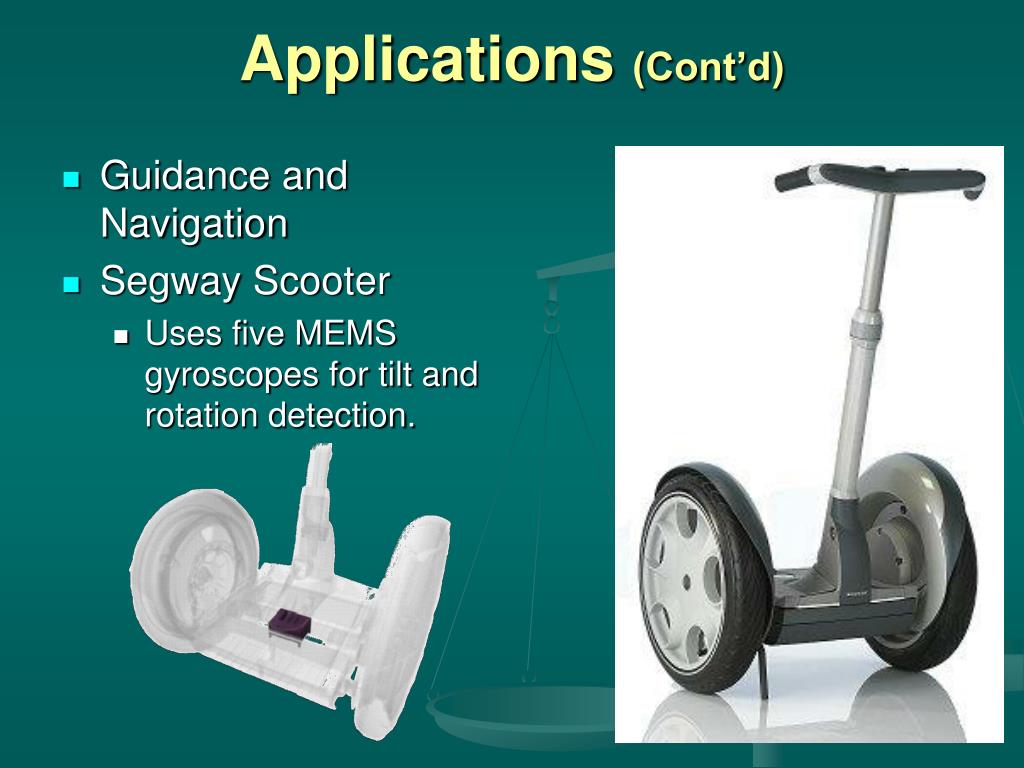

Applications (Cont’d)
  • Guidance and Navigation
  • Segway Scooter
    • Uses five MEMS gyroscopes for tilt and rotation detection.
basic operating principles
Follows Newton’s Laws

Force required to change velocity

Resistance to change in velocity increases with mass

Gyroscope provides information about angular orientation.

Three types of Gyros:

Spinning Mass – tilting produces precession

Impractical in MEMS

Optical – measure time differences in laser paths

Very expensive, but also the best performance

Vibrating – based on Coriolis effect

The most common

Basic Operating Principles

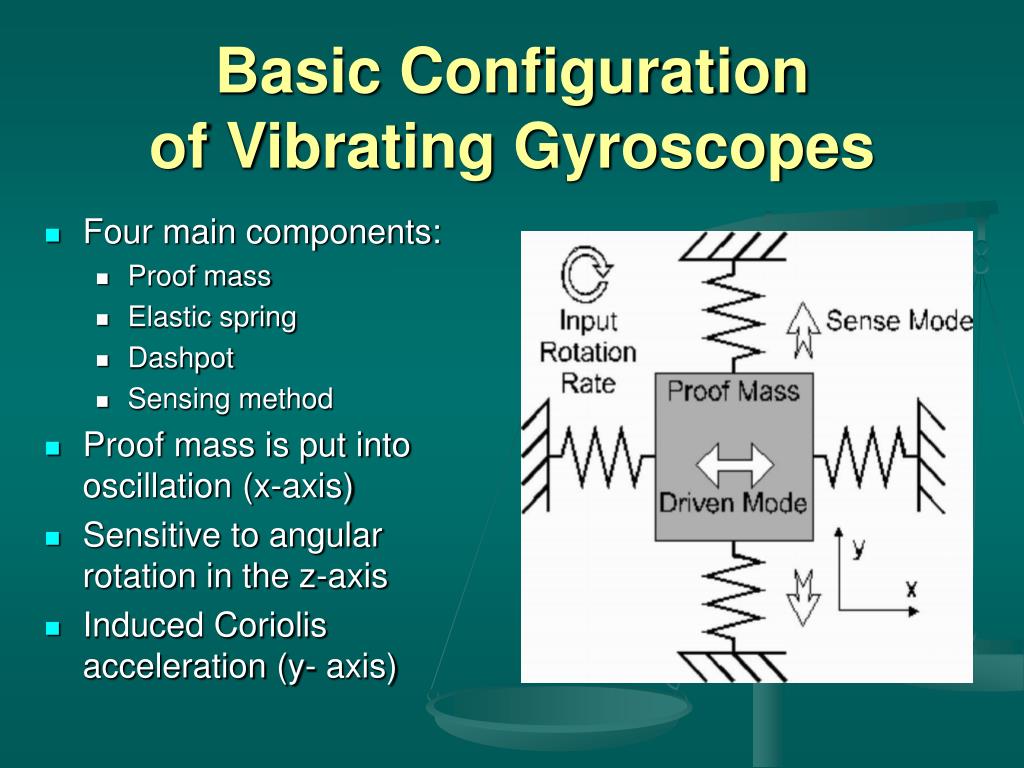

basic configuration of vibrating gyroscopes
Basic Configurationof Vibrating Gyroscopes
  • Four main components:
    • Proof mass
    • Elastic spring
    • Dashpot
    • Sensing method
  • Proof mass is put into oscillation (x-axis)
  • Sensitive to angular rotation in the z-axis
  • Induced Coriolis acceleration (y- axis)
vibrating gyroscope basics
Vibrating Gyroscope Basics
  • Coriolis Acceleration:

Fc = 2mv 

Fc – Coriolis force

m – vibratory mass

v – linear velocity

 - angular rotation

  • Two degrees of freedom are required: drive and sense.
  • Most common sensing methods:
    • Capacitive
    • Piezoresistive
performance concepts
Performance concepts
  • Scale factor: amount of change in output per unit change rotation [V/(/s)]
  • Zero-rate output (ZRO): output in the absence of angular rate, it’s the sum of white noise and a slowly varying function
    • Noise defines resolution [(/s)/Hz]
    • Slowly varying function defines drift [/s]
harpss vibrating ring gyroscope
HARPSS Vibrating Ring Gyroscope
  • High Aspect-Ratio Combined Poly and Single-Crystal Silicon.
  • Developed at The University of Michigan.
  • Vibrating ring and eight support springs.
  • Each spring with two electrodes for drive and sensing, and to compensate asymmetries.
  • Capacitive sensing.
vibrating ring
Vibrating Ring
  • Symmetric design:
    • Identical drive and sense flexural modes
    • 45 apart
    • Same resonant frequency
    • Less temperature sensitive
    • Q directly amplifies sensitivity
    • Filters spurious vibrations
  • Sense mode amplitude:

qsense = 4Ag.Q/0.qdrive.z

Ag 0.37 – structure angular gain;

Q – structure quality factor;

0 – flexural resonance frequency;

qdrive – drive vibration amplitude;

z – rotation rate.

fabrication of harpss 1
Fabrication of HARPSS 1
  • Deposit and pattern a thin layer of LPCVD silicon nitride.
    • This serves as an isolation dielectric layer.
  • Dry etch using Deep Reactive Ion Etch (DRIE).
    • Forms deep trenches with smooth and straight sidewalls.
  • Deposit a sacrificial oxide layer.
  • Refill the trenches with polysilicon.
  • Dope the polysilicon layer with boron to speed its etch rate
fabrication of harpss 2
Fabrication of HARPSS 2
  • Deposit and pattern Cr/Au.
  • Dry directional/isotropic SF6 silicon etch to release silicon sense electrodes.
    • Involves a deep, directional etch followed by an isotropic SF6 silicon etch.
  • Using HF:H2O, etch away the sacrificial oxide
    • Creates capacitive air gaps between the sense-electrodes and the ring structure.
harpss gyroscope
HARPSS Gyroscope
  • Advantages:
    • Small ring-to-electrode gap
    • Large structural height
    • Better structural material
  • Sensitivity  200 [V/(/s)]
  • For Q  1200, resolution  0.01 [/s] for 1 Hz bandwidth
  • Min.detectable signal  5x10-3 [/s] for 10 Hz bandwidth
harpss limitations
HARPSS Limitations
  • Anchor problem: excessive undercut of the substrate at the post causes the oxide to be exposed and etched away resulting in a soft anchor that dissipates energy.
harpss limitations 2

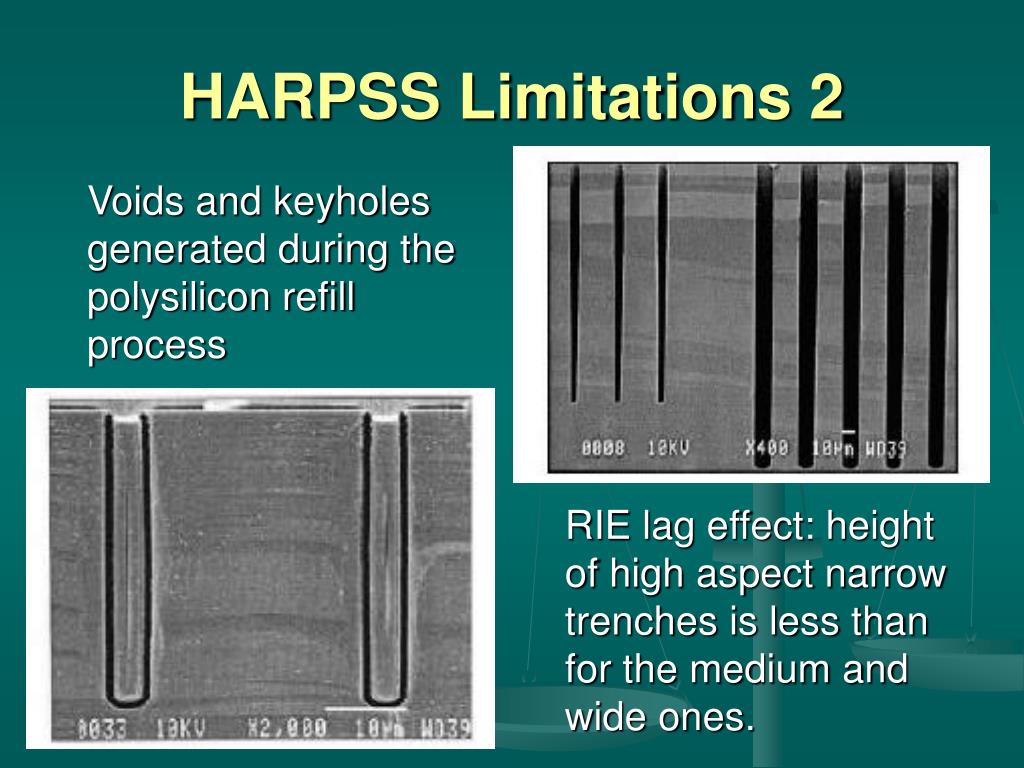

HARPSS Limitations 2

Voids and keyholes generated during the polysilicon refill process

RIE lag effect: height of high aspect narrow trenches is less than for the medium and wide ones.

basic tuning fork gyroscope
Basic Tuning Fork Gyroscope
  • Tines resonated to fixed amplitude.
  • When rotated, Coriolis force causes a sinusoidal force on tines.
  • This force detected as a bending of the tines or as a torsional vibration of junction bar.
  • Capacitive, piezoresistive, or piezoelectric detection mechanisms.

i

draper s tuning fork
Draper’s Tuning Fork

Masses

Beams

Comb Structure

  • Developed by Charles Stark Draper Laboratory.
  • Two masses suspended by beams.
  • Electrostatically vibrated using comb drives.
  • Generates a Coriolis force that pushes masses in and out of oscillation plane.
  • Measured by capacitor plates.
fabrication of tuning fork 1

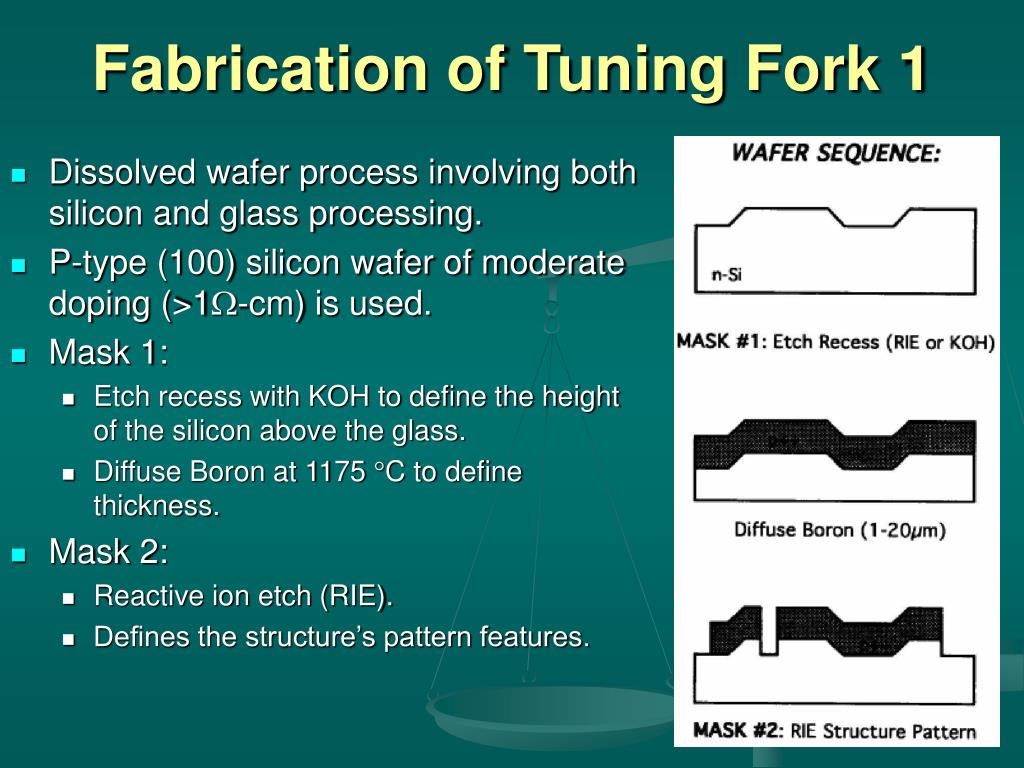

Fabrication of Tuning Fork 1
  • Dissolved wafer process involving both silicon and glass processing.
  • P-type (100) silicon wafer of moderate doping (>1-cm) is used.
  • Mask 1:
    • Etch recess with KOH to define the height of the silicon above the glass.
    • Diffuse Boron at 1175 C to define thickness.
  • Mask 2:
    • Reactive ion etch (RIE).
    • Defines the structure’s pattern features.
fabrication of tuning fork 2
Fabrication of Tuning Fork 2
  • Glass wafer processed separately.
  • Mask 3:
    • Recess glass 1600 Angstroms.
    • Deposit and lift off a multi-metal system.
    • Result: Metal protrudes 500 Angstroms above the glass.
  • The metal forms the sense and drive plates of the capacitor and the output leads from the transducer.
fabrication of tuning fork 3
Fabrication of Tuning Fork 3
  • Silicon wafer is turned upside down and electrostatically bonded to the glass.
    • 375C and potential of 1000 V for strong chemical bonds.
    • Silicon and glass drawn tightly together to ensure a low resistance contact to silicon.
  • Final step: Selective EDP etch to dissolve the undoped silicon.
draper s gyroscope
Draper’s Gyroscope
  • Robustness, withstands accelerations of 60,000 g’s
  • Scale factor > 200 ppm
  • Bias uncertainty < 50 /hr
  • Drift 0.05 /s
    • Low temperature: 0.003 /s
  • Resolution 100-200 /hr (60 Hz bandwidth)
    • Best: 25 /hr
conclusions

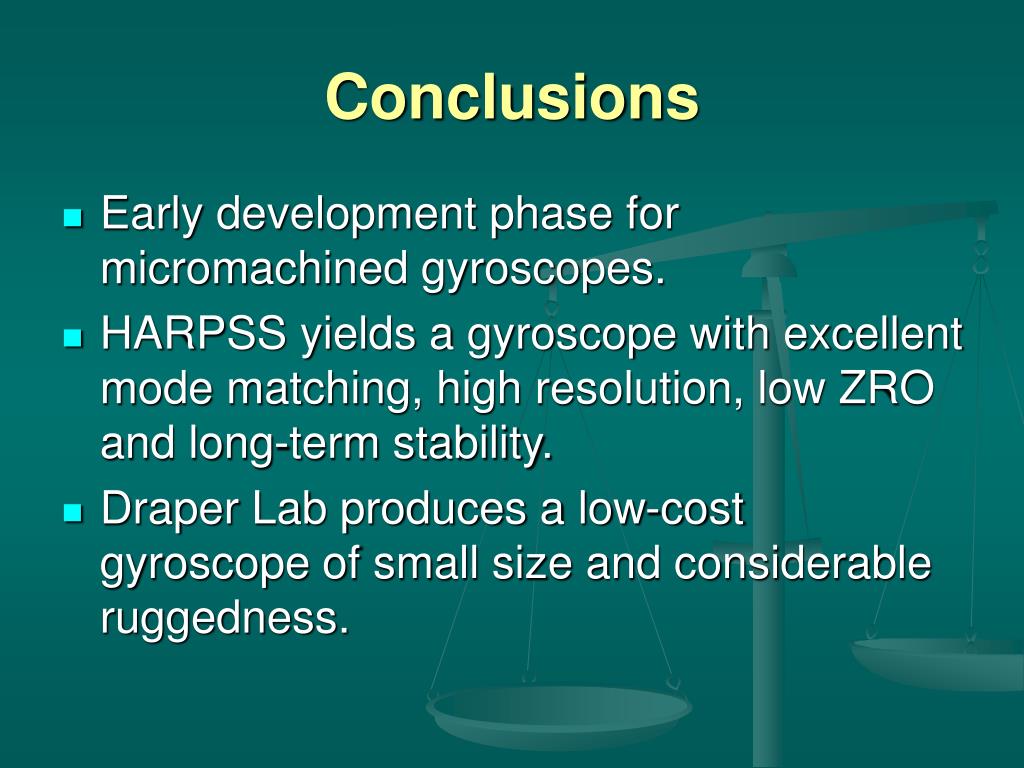

Conclusions
  • Early development phase for micromachined gyroscopes.
  • HARPSS yields a gyroscope with excellent mode matching, high resolution, low ZRO and long-term stability.
  • Draper Lab produces a low-cost gyroscope of small size and considerable ruggedness.
