learning blackjack with ann aritificial neural network

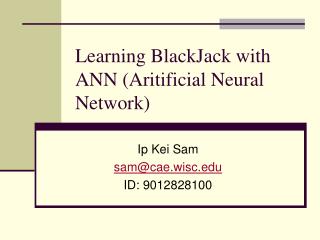

Learning BlackJack with ANN (Aritificial Neural Network)

Ip Kei Sam

sam@cae.wisc.edu

ID: 9012828100

slide2
Goal
  • Use Reinforcement Learning algorithm to learn strategies in Blackjack.
  • Train MLP to play Blackjack without explicitly teaching the rules of the game.
  • Develop a better strategy with ANN that beats the Dealer’s 17 points rule.
blackjack
Blackjack
  • Draw cards from a deck of 52 cards to a total value as close to 21 as possible.
  • Simplify Blackjack to allow only hit or stand in each turn.
reinforcement learning
Reinforcement Learning
  • Map situations to actions such that the reward value is maximized.
  • Decide which actions (hit/stand) to take by finding the actions that yields the highest reward through trial and error.
  • Update winning probability of the intermediate states after each game.
  • The winning probability of each state converges as the learning parameter decreases after each game.
result table from learning
Result table from learning
  • The first 5 columns = dealer’s cards
  • next 5 columns = the player’s cards
  • Card sorted in ascending order
  • Column 11 = the winning probability of each state
  • Column 12 & 13 = action taken by the player
  • Action [1 0] -> “hit”
  • [0 1] -> “stand” and [1 1] -> end state

2.0000 5.0000 0 0 0 6.0000 6.0000 0 0 0 0.3700 1.0000 0

2.0000 5.0000 0 0 0 4.0000 6.0000 6.0000 0 0 0.2500 1.0000 0

2.0000 5.0000 10.0000 0 0 4.0000 6.0000 6.0000 7.0000 0 0 1.0000 1.0000

mlp configurations
MLP Configurations
  • Normalization in feature vectors, and scaled to range of -5 to 5.
  • Max. Training Epochs: 1000, epoch size = 64
  • Activation function (hidden layer)=hyperbolic tangent
  • Activation function (output layer) = sigmoidal
  • MLP1: α = 0.1, µ = 0, MLP Config 4-10-10-10-2. 89.5%.
  • MLP2:α = 0.1, µ = 0.8, MLP Config 5-10-10-10-2. 91.1%.
  • MLP3: α = 0.8, µ = 0, MLP Config 5-10-10-10-2. 92.5%.
  • MLP4: α = 0.1, µ = 0, MLP Config 6-12-12-12-2. 90.2%.
experiment results
Experiment Results

When dealer uses 17-point rule:

When player uses random moves:

When both dealer and player use MLP:

conclusion
Conclusion
  • MLP network works best for highly random and dynamic games, where the game rules and the strategies are hard to define and the game outputs are hard to predict exactly.
  • Strategies interpreted from Reinforcement Learning - Hit if less than 15, otherwise stand.
  • As the number of game increases, the game strategies will change over time.
future work
Future work
  • Current hand depends on the last hands. Use card memory in Blackjack.
  • Train ANN with a teacher to eliminate duplicate patterns (for example, 4 + 7 = 7 + 4 = 5 + 6 = …) and identify misclassified pattern
  • Train ANN to play against different experts so that it can pick up various game strategies
  • Include game tricks and strategies in a table for the ANN to look up
  • Explore other learning methods
