Inflammatory bowel disease l.jpg
Inflammatory Bowel Disease Disease

  • Term applied to both ulcerative colitis and Crohn disease

    • Causing chronic intestinal inflammation

  • Idiopathic processes with unknown etiologies

    • Familial association with genetic predisposition

    • Auto-immune

  • Both can produce multiple radiographic changes

  • Incidence in US: 5-15 per 100,000


Ulcerative colitis l.jpg
Ulcerative Colitis Disease

  • Idiopathic inflammatory condition involving the superficial mucosal surface of the colon

    • 50% rectosigmoid

    • 30% left-sided colitis

    • 20% pancolitis

  • Signs and symptoms include bloody diarrhea with increased frequency of stools, abdominal cramps with fecal urgency, anemia


Crohn disease l.jpg
Crohn Disease Disease

  • Chronic inflammation of gastrointestinal tract involving all layers of intestinal wall including mesentery and regional lymph nodes

    • 80% small bowel involvement with 1/3 having exclusive ileitis

    • 50% ileocolitis (both ileum and colon involvement)

    • 20% colonic involvement alone

  • Symptoms are more variable: Prolonged diarrhea (+/- bleeding), abdominal pain, weight loss, fever, fatigue

  • Other findings: fistulas, abscesses, fissures, strictures


Plain radiograph l.jpg
Plain radiograph Disease

  • Findings are not specific but are useful

    • Especially in determining bowel loop distension, obstruction

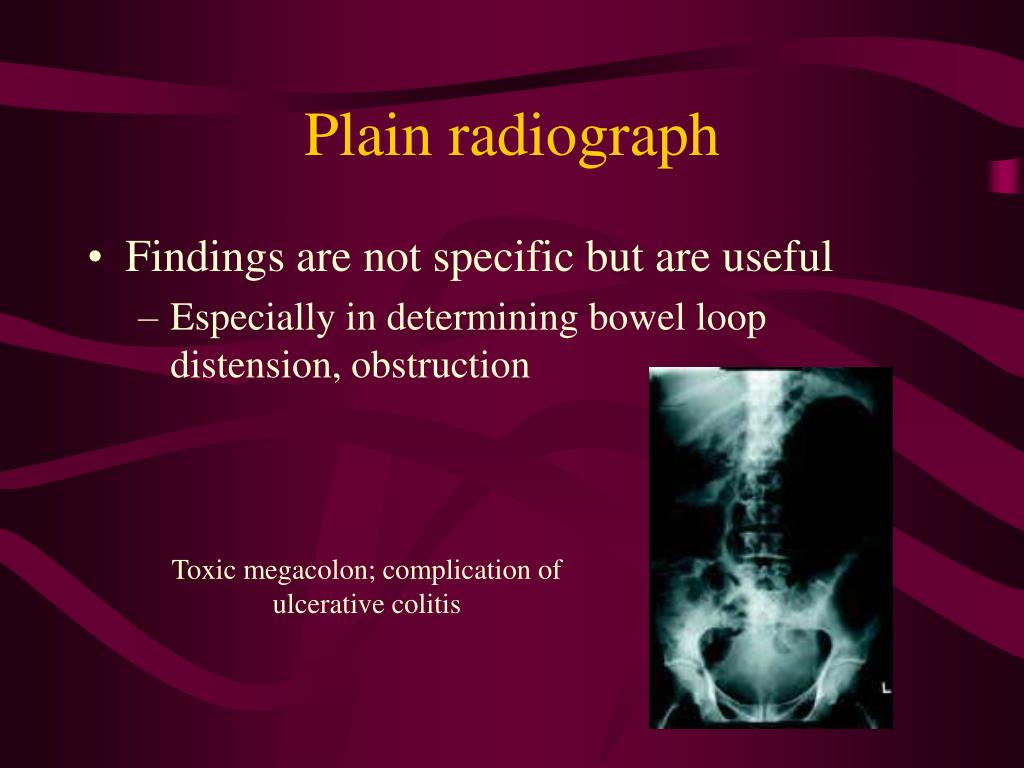

Toxic megacolon; complication of ulcerative colitis


Plain radiograph6 l.jpg
Plain radiograph Disease

Radiograph reveals “thumbprinting” as seen in ulcerative colitis

Thumbprinting: symmetric thickening of haustral folds/edema in bowel walls


Plain radiograph7 l.jpg
Plain radiograph Disease

  • Dilatation of small bowel

  • Although not specific for crohn disease; still is useful information


Upper gi with small bowel follow through l.jpg
Upper GI with small bowel follow through Disease

  • String sign seen in Crohn disease reflecting narrowing in distal ileum

  • Cobblestone appearance seen in Crohn disease


Double contrast barium study l.jpg
Double contrast barium study Disease

  • Study reveals inflammation and mucosal ulceration in colon consistent with acute ulcerative colitis


Ct findings l.jpg
CT Findings Disease

  • Both Ulcerative colitis and Crohn disease

    • Wall thickening

      • Increased in Crohn disease with average at 11-13 mm compared to 7-8 mm in UC

    • Proliferation of perirectal fat can be seen in both UC, Crohn disease and other conditions

    • Inflammatory stranding


Ct findings11 l.jpg
CT Findings Disease

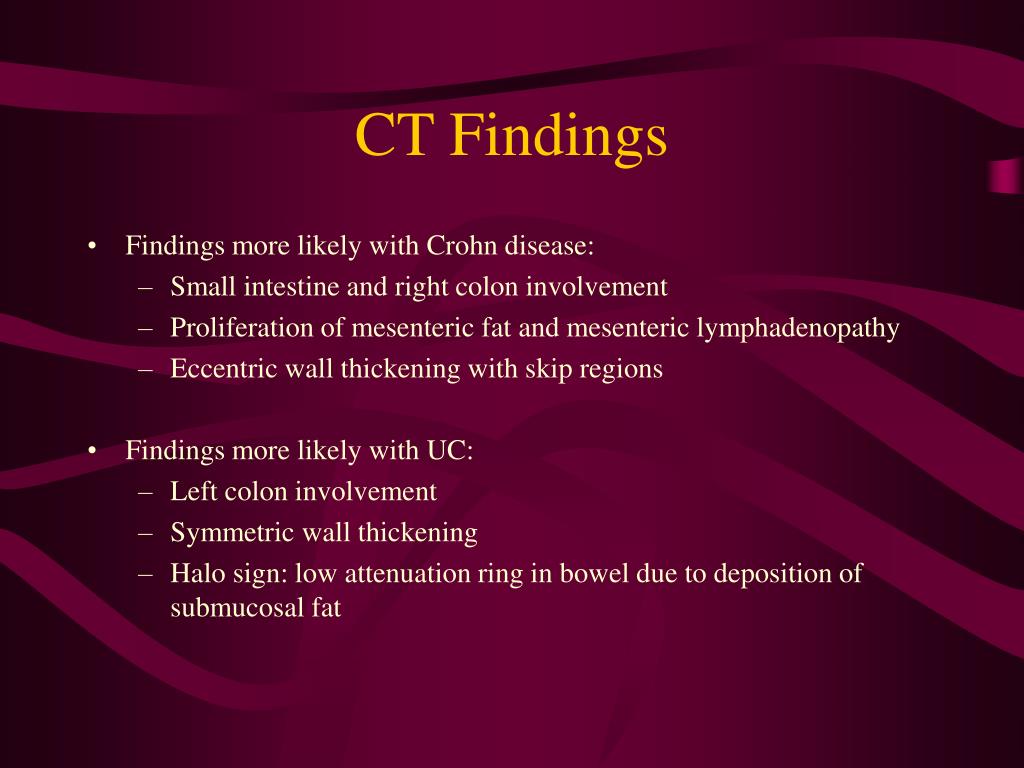

  • Findings more likely with Crohn disease:

    • Small intestine and right colon involvement

    • Proliferation of mesenteric fat and mesenteric lymphadenopathy

    • Eccentric wall thickening with skip regions

  • Findings more likely with UC:

    • Left colon involvement

    • Symmetric wall thickening

    • Halo sign: low attenuation ring in bowel due to deposition of submucosal fat


Crohn disease12 l.jpg
Crohn disease Disease

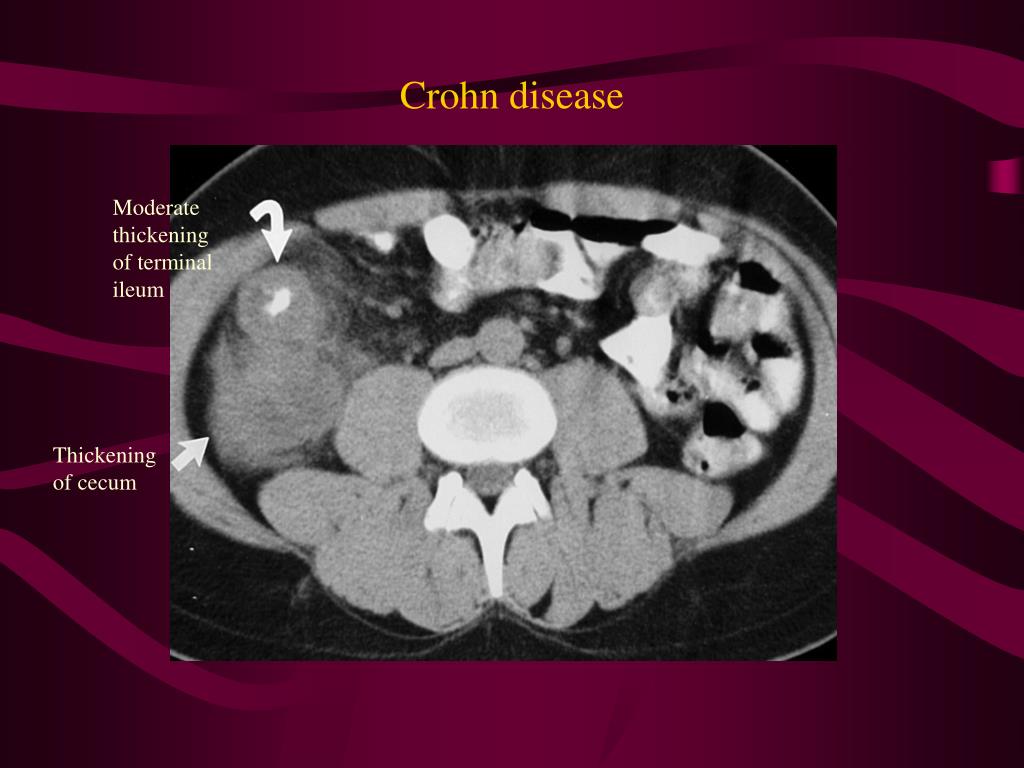

Moderate thickening of terminal ileum

Thickening of cecum


Crohn disease13 l.jpg
Crohn Disease Disease

  • CT reveals lymph nodes (arrow) in mesentery in a patient with Crohn disease


Ulcerative colitis14 l.jpg
Ulcerative Colitis Disease

  • CT reveals diffuse thickening of sigmoid colon with minimal inflammatory stranding


Ulcerative colitis15 l.jpg
Ulcerative Colitis Disease

  • CT reveals a deposition of fat in the submucosa around referred to as a “halo sign”

  • Also fatty proliferation in perirectal area


Ct findings16 l.jpg
CT Findings Disease

  • Although CT does play a limited role in diagnosis of UC or Crohn disease, findings can be useful for evaluating complications

    • Abscesses

    • Fistulas

    • Colorectal carcinoma/Hepatobiliary carcinoma

    • Extraintestinal manifestations


Fistulas l.jpg
Fistulas Disease

  • Fistulas are a common complication of Crohn disease

  • Barium enhanced study showing fistulas from terminal ileum (arrowheads) converging into mesenteric cavity (*) and communicating back to more proximal ileum


Abscesses l.jpg
Abscesses Disease

Abscess (arrowheads) seen in lower right quadrant extending out from inflamed terminal ileum (arrow)


Extraintestinal complications l.jpg
Extraintestinal Complications Disease

  • Eye involvement: uveitis and episcleritis

  • Skin disorders: erythema nodosum and pyoderma gangrenosum

  • Bone and joints: Large joint arthritis and ankylosing spondylitis

  • Primary sclerosing cholangitis

  • Thromboembolism


Extraintestinal complications20 l.jpg
Extraintestinal Complications Disease

  • The percentage of patients with inflammatory bowel disease and extraintestinal complications varies in the literature from 21 to 41%

  • Incidence increases with the duration of disease

  • More patients with Crohn disease experience extraintestinal manifestations than patients with ulcerative colitis


Ankylosing spondylitis l.jpg
Ankylosing Spondylitis Disease

  • Chronic inflammatory disease of axial skeleton manifested by back pain and progressive stiffness of the spine resulting in decreased ROM

    • Worse with inactivity and improvement with exercise

    • Limitation in chest expansion when compared to population of similar age and sex

  • Early onset (20-30 years old) and male : female 3:1

  • 2.6% in UC; 6.0% in Crohn disease

  • Association with HLA-B27

  • Findings include:

    • Enthesitis: inflammation around the enthesis (the site of ligament insertion into bone)

    • Sacroiliitis: sclerosis and erosions at SI joints; may even lead to fusion (either grade III or IV)


Ankylosing spondylitis22 l.jpg
Ankylosing Spondylitis Disease

  • Radiograph reveals early sacroiliitis in ankylosing spondylitis


Ankylosing spondylitis23 l.jpg
Ankylosing Spondylitis Disease

  • Fusion of SI joints in late ankylosing spondylitis with complete obliteration of the joint spaces


Ankylosing spondylitis24 l.jpg
Ankylosing Spondylitis Disease

  • Lung findings associated with ankylosing spondylitis

    • 1.2% of pts with AS

    • Peripheral interstitial lung disease

    • Bronchiectasis

    • Paraseptal emphysema

    • Apical fibrosis

  • PA Chest radiograph shows:

    • Severe bilateral scarring in upper lobes


Ankylosing spondylitis25 l.jpg
Ankylosing Spondylitis Disease

  • CT shows volume loss at bilateral lung apices


Ocular complications l.jpg
Ocular complications Disease

  • Less than 10% of patients with IBD

    • Episcleritis-inflammation of the area directly under the conjunctiva

    • Scleritis

    • Uveitis-inflammation of the vascular coat of the eye


Skin manifestations l.jpg
Skin manifestations Disease

  • Erythema nodosum

    • Painful red or violet subcutaneous nodules found usually in the pretibial region

  • Pyoderma gangrenosum

    • Ulcerative painful lesion found usually on lower extremities


Primary sclerosing cholangitis l.jpg
Primary Sclerosing Cholangitis Disease

  • Chronic cholestatic liver disease, which often progresses to bile duct obliteration, biliary cirrhosis and portal hypertension

  • Inflammation with obliterative fibrosis of medium and large extra- and intra-hepatic ducts

  • Seen more often with UC than with Crohn disease

  • Symptoms include: fatigue, pruritus, jaundice

  • Diagnosis:

    • Cholangiography or ERCP: characteristic multi-focal stricturing and dilation of ducts

    • Dilated ducts may also be seen on ultrasound

    • Magnetic resonance cholangiopancreatography (MRCP)


Primary sclerosing cholangitis29 l.jpg
Primary Sclerosing Cholangitis Disease

  • Histology section reveals periductal sclerosis in a portal bile duct


Primary sclerosing cholangitis30 l.jpg
Primary Sclerosing Cholangitis Disease

  • Image during ERCP showing multifocal strictures and irregularity of the right intrahepatic bile ducts.


Primary sclerosing cholangitis31 l.jpg
Primary Sclerosing Cholangitis Disease

  • Using MRCP: arrows show multiple strictures of the right hepatic ducts

  • MRCP may be utilized as a non-invasive alternative to ERCP in the diagnosis of PSC


Primary sclerosing cholangitis32 l.jpg
Primary Sclerosing Cholangitis Disease

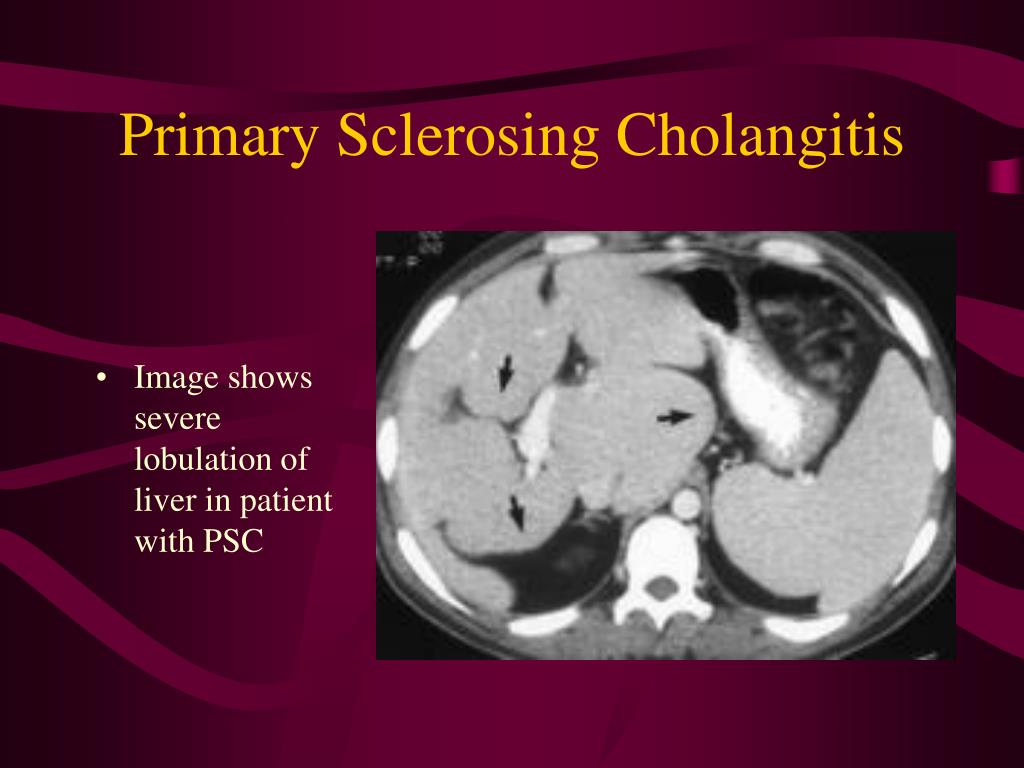

  • Image shows severe lobulation of liver in patient with PSC


Primary sclerosing cholangitis33 l.jpg
Primary Sclerosing Cholangitis Disease

  • Ultrasound picture in patient with UC and PSC revealing thickened wall of the common bile duct (large arrows) with narrowed lumen (small arrows)
