Presentation Transcript
ultrasound assessment

Ultrasound Assessment

Lower Extremity Arteries

ultrasound assessment2
Ultrasound Assessment
  • When
    • Adjunct to physiologic testing
      • Determine stenosis vs. occlusion
      • Determine level and extent of occlusion
      • May assist in determination of treatment
        • Angioplasty vs. surgical
    • Patients with renal failure who cannot have arteriography or MRA
    • Trauma
ultrasound imaging
Ultrasound Imaging
  • Modalities
    • B-mode
    • Spectral Doppler
    • Color Doppler
    • Power Doppler
ultrasound imaging4
Ultrasound Imaging
  • B-mode
    • Evaluate vessel walls for:
      • Stenosis due to:
        • Calcification (medial calcinosis)
        • Plaque formation
        • Thrombus
      • Aneurysmal dilatation, measure
        • Longitudinal diameter
          • Make vessel as wide as possible
        • Transverse diameter
          • Make vessel as narrow as possible
ultrasound imaging5
Ultrasound Imaging
  • Spectral Doppler
    • Determine peak systolic & end diastolic velocities
      • Use PSV’s to calculate systolic velocity ratios
        • > 2.0 = > 50% stenosis
        • > 4.0 = > 75% stenosis
    • Some labs determine volume flow
      • No validation or normals determined
ultrasound imaging6
Ultrasound Imaging
  • Color Doppler Flow Imaging
    • Assists in determining the presence of flow
      • Must set appropriate scale (PRF)
        • Low PRF for question of occlusion
    • Assists in determining laminar vs. turbulent flow
      • Must set appropriate scale (PRF)
    • Assists in placement of spectral Doppler sample volume at point of greatest velocity
    • Assists in the detection of collaterals
ultrasound imaging7
Ultrasound Imaging
  • Power Doppler
    • Assists in determining the presence of flow
      • More sensitive in detecting low flow than color Doppler
    • Can use simultaneous spectral Doppler
    • May assist in the detection of collaterals
    • No directional information

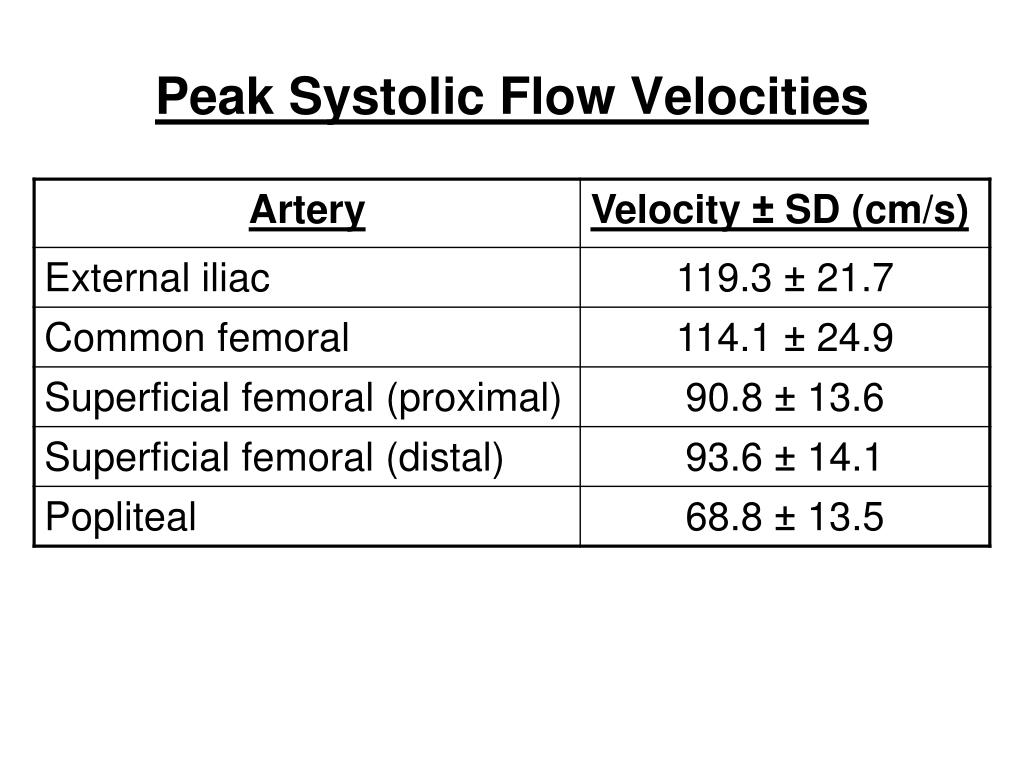

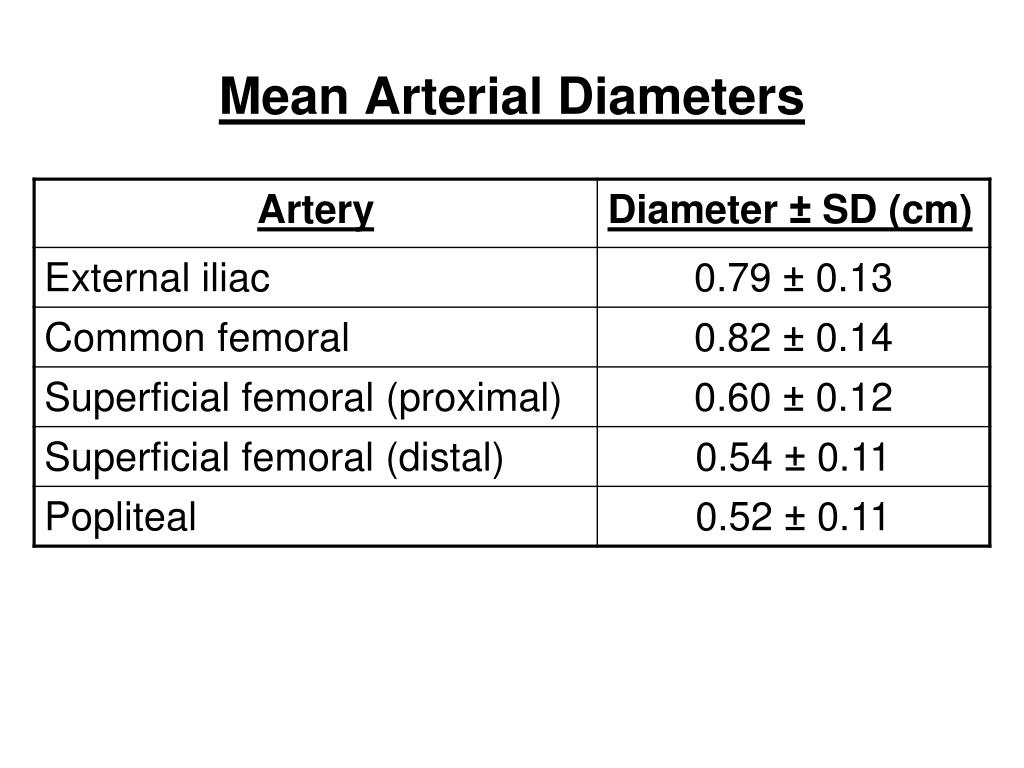

classifying peripheral artery lesions
Classifying Peripheral Artery Lesions
  • Normal
    • Triphasic waveform
    • No spectral broadening
classifying peripheral artery lesions11
Classifying Peripheral Artery Lesions
  • 1 – 19% diameter reduction
    • Triphasic waveform
    • Minimal spectral broadening
    • PSV increased <30% relative to the adjacent proximal segment
    • Proximal & distal waveforms remain normal
classifying peripheral artery lesions12
Classifying Peripheral Artery Lesions
  • 20 – 49% diameter reduction
    • Triphasic waveform usually maintained; reverse flow component may be diminished
    • Prominent spectral broadening
    • PSV increased 30 – 100% relative to the adjacent proximal segment
    • Proximal & distal waveforms remain normal
classifying peripheral artery lesions13
Classifying Peripheral Artery Lesions
  • 50 – 99% diameter reduction
    • Monophasic waveform with loss of reverse flow component
    • Extensive spectral broadening
    • PSV increased >100% relative to the adjacent proximal segment
    • Distal waveform is monophasic with reduced systolic velocities
classifying peripheral artery lesions14
Classifying Peripheral Artery Lesions
  • Occlusion
    • No flow detected within imaged arterial segment
    • Preocclusive “thump” may be heard just proximal to site of occlusion
    • Distal waveforms are monophasic with reduced systolic velocities
