introduction to programming

Introduction to Programming

Seif Haridi

KTH

Peter Van Roy

UCL

S. Haridi and P. Van Roy

introduction

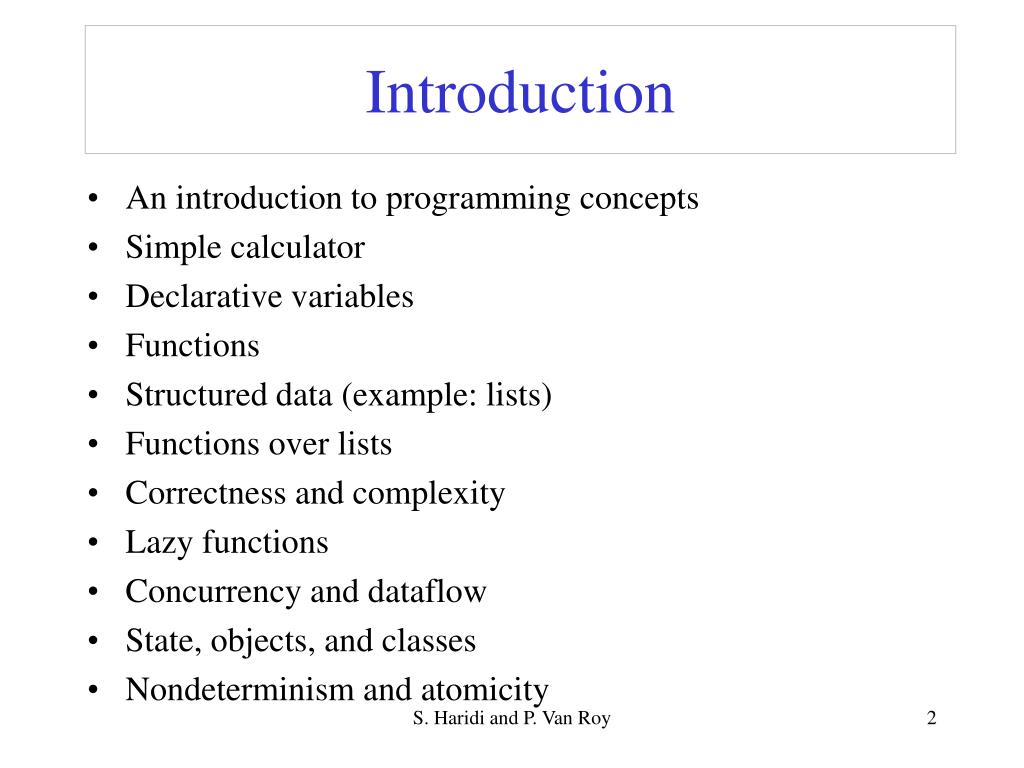

Introduction
  • An introduction to programming concepts
  • Simple calculator
  • Declarative variables
  • Functions
  • Structured data (example: lists)
  • Functions over lists
  • Correctness and complexity
  • Lazy functions
  • Concurrency and dataflow
  • State, objects, and classes
  • Nondeterminism and atomicity

S. Haridi and P. Van Roy

a calculator
A calculator
  • Use the system as a calculator

> Oz

{Browse 9999*9999}

S. Haridi and P. Van Roy

variables
Variables
  • Variables are short-cuts for values, they cannot be assigned more than once

declare

V = 9999*9999

{Browse V*V}

  • Variable identifiers: is what you type
  • Store variable: is part of the memory system
  • The declare statement creates a store variable and assigns its memory address to the identifier ’V’ in the environment

S. Haridi and P. Van Roy

functions
Functions
  • Compute the factorial function:
  • Start with the mathematical definition

declare

fun {Fact N}

if N==0 then 1 else N*{Fact N-1} end

end

  • Fact is declared in the environment
  • Try large factorial {Browse {Fact 100}}

S. Haridi and P. Van Roy

composing functions
Composing functions
  • Combinations of r items taken from n.
  • The number of subsets of size r taken from a set of size n

Comb

declare

fun {Comb N R}

{Fact N} div ({Fact R}*{Fact N-R})

end

Fact

Fact

Fact

  • Example of functional abstraction

S. Haridi and P. Van Roy

structured data lists

1

1

1

1

2

1

1

3

3

1

1

4

6

4

1

Structured data (lists)
  • Calculate Pascal triangle
  • Write a function that calculates the nth row as one structured value
  • A list is a sequence of elements:

[1 4 6 4 1]

  • The empty list is written nil
  • Lists are created by means of ”|” (cons)

declare

H=1

T = [2 3 4 5]

{Browse H|T} % This will show [1 2 3 4 5]

S. Haridi and P. Van Roy

lists 2
Lists (2)
  • Taking lists apart (selecting components)
  • A cons has two components a head, and tail

declare L = [5 6 7 8]

L.1 gives 5

L.2 give [6 7 8]

‘|’

6

‘|’

‘|’

7

8

nil

S. Haridi and P. Van Roy

pattern matching
Pattern matching
  • Another way to take a list apart is by use of pattern matching with a case instruction

case L of H|T then {Browse H} {Browse T} end

S. Haridi and P. Van Roy

functions over lists
Functions over lists
  • Compute the function {Pascal N}
  • Takes an integer N, and returns the Nth row of a Pascal triangle as a list
  • For row 1, the result is [1]
  • For row N, shift to left row N-1 and shift to the right row N-1
  • Align and add the shifted rows element-wise to get row N

1

1

1

1

2

1

(0)

1

3

3

1

(0)

1

4

6

4

1

Shift right

[0 1 3 3 1]

[1 3 3 1 0]

Shift left

S. Haridi and P. Van Roy

functions over lists 2
Functions over lists (2)

Pascal N

declare

fun {Pascal N}

if N==1 then [1]

else

{AddList

{ShiftLeft {Pascal N-1}}

{ShiftRight {Pascal N-1}}}

end

end

Pascal N-1

Pascal N-1

ShiftLeft

ShiftRight

AddList

S. Haridi and P. Van Roy

functions over lists 3
Functions over lists (3)

fun {ShiftLeft L}

case L of H|T then

H|{ShiftLeft T}

else [0]

end

end

fun {ShiftRight L} 0|L end

fun {AddList L1 L2}

case L1 of H1|T1 then

case L2 of H2|T2 then

H1+H2|{AddList T1 T2}

end

else nil end

end

S. Haridi and P. Van Roy

top down program development
Top-down program development
  • Understand how to solve the problem by hand
  • Try to solve the task by decomposing it to simpler tasks
  • Devise the main function (main task) in terms of suitable auxiliary functions (subtasks) that simplifies the solution (ShiftLeft, ShiftRight and AddList)
  • Complete the solution by writing the auxiliary functions

S. Haridi and P. Van Roy

is your program correct
Is your program correct?
  • ”A program is correct when it does what we would like it to do”
  • In general we need to reason about the program:
  • Semantics for the language: a precise model of the operations of the programming language
  • Program specification: a definition of the output in terms of the input (usually a mathematical function or relation)
  • Use mathematical techniques to reason about the program, using programming language semantics

S. Haridi and P. Van Roy

mathematical induction
Mathematical induction
  • Select one or more input to the function
  • Show the program is correct for the simple cases (base case)
  • Show that if the program is correct for a given case, it is then correct for the next case.
  • For integers base case is either 0 or 1, and for any integer n the next case is n+1
  • For lists the base case is nil, or a list with one or few elements, and for any list T the next case H|T

S. Haridi and P. Van Roy

correctness of factorial
Correctness of factorial

fun {Fact N}

if N==0 then 1 else N*{Fact N-1} end

end

  • Base Case: {Fact 0} returns 1
  • (N>1),N*{Fact N-1}assume {Fact N-1} is correct, from the spec we see the {Fact N} is N*{Fact N-1}
  • More techniques to come !

S. Haridi and P. Van Roy

complexity
Complexity
  • Pascal runs very slow, try {Pascal 24}
  • {Pascal 20} calls: {Pascal 19} twice, {Pascal 18} four times, {Pascal 17} eight times, ..., {Pascal 1} 219 times
  • Execution time of a program up to a constant factor is called program’s time complexity.
  • Time complexity of {Pascal N} is proportional to 2N (exponential)
  • Programs with exponential time complexity are impractical

declare

fun {Pascal N}

if N==1 then [1]

else

{AddList

{ShiftLeft {Pascal N-1}}

{ShiftRight {Pascal N-1}}}

end

end

S. Haridi and P. Van Roy

faster pascal
Faster Pascal
  • Introduce a local variable L
  • Compute {FastPascal N-1} only once
  • Try with 30 rows.
  • FastPascal is called N times, each time a list on the average of size N/2 is processed
  • The time complexity is proportional to N2 (polynomial)
  • Low order polynomial programs are practical.

fun {FastPascal N}

if N==1 then [1]

else

local L in

L={FastPascal N-1}

{AddList {ShiftLeft L} {ShiftRight L}}

end

end

end

S. Haridi and P. Van Roy

lazy evaluation
Lazy evaluation
  • The functions written so far are evaluated eagerly (as soon as they are called)
  • Another way is lazy evaluation where a computation is done only when the results is needed
  • Calculates the infinite list:0 | 1 | 2 | 3 | ...

declare

funlazy {Ints N}

N|{Ints N+1}

end

S. Haridi and P. Van Roy

lazy evaluation 2

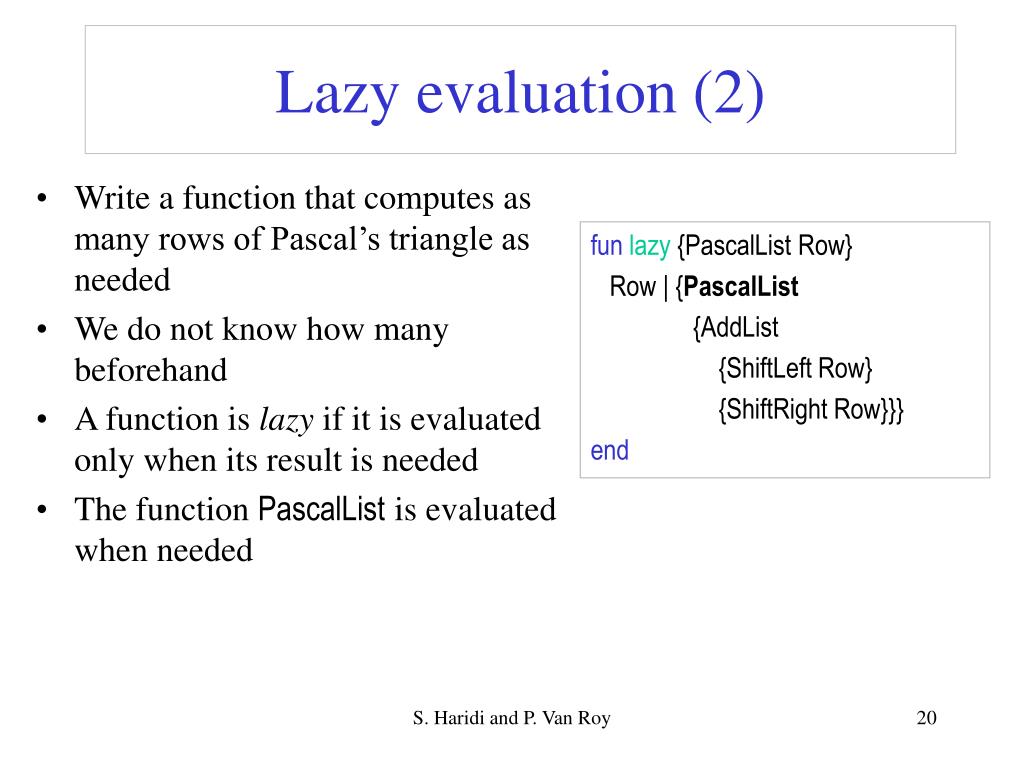

Lazy evaluation (2)
  • Write a function that computes as many rows of Pascal’s triangle as needed
  • We do not know how many beforehand
  • A function is lazy if it is evaluated only when its result is needed
  • The function PascalList is evaluated when needed

funlazy {PascalList Row}

Row | {PascalList

{AddList

{ShiftLeft Row}

{ShiftRight Row}}}

end

S. Haridi and P. Van Roy

lazy evaluation 3
Lazy evaluation (3)

declare

L = {PascalList [1]}

{Browse L}

{Browse L.1}

{Browse L.2.1}

  • Lazy evaluation will avoid redoing work if you decide first you need the 10th row and later the 11th row
  • The function continues where it left off

L<Future>

[1]

[1 1]

S. Haridi and P. Van Roy

higher order programming
Higher-order programming
  • Assume we want to write another Pascal function which instead of adding numbers performs exclusive-or on them
  • It calculates for each number whether it is odd or even (parity)
  • Either write a new function each time we need a new operation, or write one generic function that takes an operation (another function) as argument
  • The ability to pass functions as argument, or return a function as result is called higher-order programming
  • Higher-order programming is an aid to build generic abstractions

S. Haridi and P. Van Roy

variations of pascal
Variations of Pascal
  • Compute the parity Pascal triangle

fun {Xor X Y} if X==Y then 0 else 1 endend

1

1

1

1

1

1

1

2

1

1

0

1

1

3

3

1

1

1

1

1

1

4

6

4

1

1

0

0

0

1

S. Haridi and P. Van Roy

higher order programming24
Higher-order programming

fun {Add N1 N2} N1+N2 end

fun {Xor N1 N2}

if N1==N2 then 0 else 1 end

end

fun {Pascal N} {GenericPascal Add N} end

fun {ParityPascal N}

{GenericPascal Xor N}

end

fun {GenericPascal Op N}

if N==1 then [1]

else L in L = {GenericPascal Op N-1}

{OpList Op {ShiftLeft L} {ShiftRight L}}

end

end

fun {OpList Op L1 L2}

case L1 of H1|T1 then

case L2 of H2|T2 then

{Op H1 H2}|{OpList Op T1 T2}

end

end

else nil end

end

S. Haridi and P. Van Roy

concurrency
Concurrency
  • How to do several things at once
  • Concurrency: running several activities each running at its own pace
  • A thread is an executing sequential program
  • A program can have multiple threads by using the thread instruction
  • {Browse 99*99}can immediately respond while Pascal is computing

thread

P in

P = {Pascal 21}

{Browse P}

end

{Browse 99*99}

S. Haridi and P. Van Roy

dataflow
Dataflow
  • What happens when multiple threads try to communicate?
  • A simple way is to make communicating threads synchronize on the availability of data (data-driven execution)
  • If an operation tries to use a variable that is not yet bound it will wait
  • The variable is called a dataflow variable

X

Y

Z

U

*

*

+

S. Haridi and P. Van Roy

dataflow ii
Dataflow (II)
  • Two important properties of dataflow
    • Calculations work correctly independent of how they are partitioned between threads (concurrent activities)
    • Calculations are patient, they do not signal error; they wait for data availability
  • The dataflow property of variables makes sense when programs are composed of multiple threads

declare X

thread

{Delay 5000} X=99

end

{Browse ‘Start’} {Browse X*X}

declare X

thread

{Browse ‘Start’} {Browse X*X}

end

{Delay 5000} X=99

S. Haridi and P. Van Roy

state
State
  • How to make a function learn from its past?
  • We would like to add memory to a function to remember past results
  • Adding memory as well as concurrency is an essential aspect of modeling the real world
  • Consider {FastPascal N}: we would like it to remember the previous rows it calculated in order to avoid recalculating them
  • We need a concept (memory cell) to store, change and retrieve a value
  • The simplest concept is a (memory) cell which is a container of a value
  • One can create a cell, assign a value to a cell, and access the current value of the cell
  • Cells are not variables

declare

C = {NewCell 0}

{Assign C {Access C}+1}

{Browse {Access C}}

S. Haridi and P. Van Roy

example
Example
  • Add memory to Pascal to remember how many times it is called
  • The memory (state) is global here
  • Memory that is local to a function is called encapsulated state

declare

C = {NewCell 0}

fun {FastPascal N}

{Assign C {Access C}+1}

{GenericPascal Add N}

end

S. Haridi and P. Van Roy

objects
Objects
  • Functions with internal memory are called objects
  • The cell is invisible outside of the definition

declare

local C in

C = {NewCell 0}

fun {Bump}

{Assign C {Access C}+1}

{Access C}

end

end

declare

fun {FastPascal N}

{Browse {Bump}}

{GenericPascal Add N}

end

S. Haridi and P. Van Roy

classes
Classes
  • A class is a ’factory’ of objects where each object has its own internal state
  • Let us create many independent counter objects with the same behavior

fun {NewCounter}

local C Bump in

C = {NewCell 0}

fun {Bump}

{Assign C {Access C}+1}

{Access C}

end

Bump

end

end

S. Haridi and P. Van Roy

classes 2
Classes (2)
  • Here is a class with two operations: Bump and Read

fun {NewCounter}

local C Bump in

C = {NewCell 0}

fun {Bump}

{Assign C {Access C}+1}

{Access C}

end

fun {Read}

{Access C}

end

[Bump Read]

end

end

S. Haridi and P. Van Roy

object oriented programming
Object-oriented programming
  • In object-oriented programming the idea of objects and classes is pushed farther
  • Classes keep the basic properties of:
    • State encapsulation
    • Object factories
  • Classes are extended with more sophisticated properties:
    • They have multiple operations (called methods)
    • They can be defined by taking another class and extending it slightly (inheritance)

S. Haridi and P. Van Roy

nondeterminism
Nondeterminism
  • What happens if a program has both concurrency and state together?
  • This is very tricky
  • The same program can give different results from one execution to the next
  • This variability is called nondeterminism
  • Internal nondeterminism is not a problem if it is not observable from outside

S. Haridi and P. Van Roy

nondeterminism 2
Nondeterminism (2)

declare

C = {NewCell 0}

thread {Assign C 1} end

thread {Assign C 2} end

C = {NewCell 0}

cell C contains 0

t0

{Assign C 1}

cell C contains 1

t1

{Assign C 2}

cell C contains 2 (final value)

t2

time

S. Haridi and P. Van Roy

nondeterminism 3
Nondeterminism (3)

declare

C = {NewCell 0}

thread {Assign C 1} end

thread {Assign C 2} end

C = {NewCell 0}

cell C contains 0

t0

{Assign C 2}

cell C contains 2

t1

{Assign C 1}

cell C contains 1 (final value)

t2

time

S. Haridi and P. Van Roy

nondeterminism 4
Nondeterminism (4)

declare

C = {NewCell 0}

thread I in

I = {Access C}

{Assign C I+1}

end

thread J in

J = {Access C}

{Assign C J+1}

end

  • What are the possible results?
  • Both threads increment the cell C by 1
  • Expected final result of C is 2
  • Is that all?

S. Haridi and P. Van Roy

nondeterminism 5
Nondeterminism (5)
  • Another possible final result is the cell C containing the value 1

C = {NewCell 0}

t0

t1

I = {Access C}

I equal 0

declare

C = {NewCell 0}

thread I in

I = {Access C}

{Assign C I+1}

end

thread J in

J = {Access C}

{Assign C J+1}

end

t2

J = {Access C}

J equal 0

t3

{Assign C J+1}

C contains 1

t4

{Assign C I+1}

C contains 1

time

S. Haridi and P. Van Roy

lessons learned
Lessons learned
  • Combining concurrency and state is tricky
  • Complex programs have many possible interleavings
  • Programming is a question of mastering the interleavings
  • Famous bugs in the history of computer technology are due to designers overlooking an interleaving (e.g., the Therac-25 radiation therapy machine giving doses 1000’s of times too high, resulting in death or injury)
  • If possible try to avoid concurrency and state together
  • Encapsulate state and communicate between threads using dataflow
  • Try to master interleavings by using atomic operations

S. Haridi and P. Van Roy

atomicity
Atomicity
  • How can we master the interleavings?
  • One idea is to reduce the number of interleavings by programming with coarse-grained atomic operations
  • An operation is atomic if it is performed as a whole or nothing
  • No intermediate (partial) results can be observed by any other concurrent activity
  • In simple cases we can use a lock to ensure atomicity of a sequence of operations
  • For this we need a new entity (a lock)

S. Haridi and P. Van Roy

atomicity 2
Atomicity (2)

declare

L = {NewLock}

lock L then

sequence of ops 1

end

lock L then

sequence of ops 2

end

Thread 1

Thread 2

S. Haridi and P. Van Roy

the program
The program

declare

C = {NewCell 0}

L = {NewLock}

thread

lock L then I in

I = {Access C}

{Assign C I+1}

end

end

thread

lock L then J in

J = {Access C}

{Assign C J+1}

end

end

The final result of C is

always 2

S. Haridi and P. Van Roy

additional exercises
Additional exercises
  • Write the memorizing Pascal function using the store abstraction (available at http://www.sics.se/~seif/DatalogiII/Examples/Store.oz)
  • Reason about the correctness of AddList and ShiftLeft using induction

S. Haridi and P. Van Roy

memoizing fastpascal
Memoizing FastPascal
  • {FastPascal N} New Version
    • Make a store S available to FastPascal
    • Let K be the number of the rows stored in S (i.e. max row is the Kth row)
    • if N is less or equal K retrieve the Nth row from S
    • Otherwise, compute the rows numbered K+1 to N, and store them in S
    • Return the Nth row from S
  • Viewed from outside (as a black box), this version behaves like the earlier one but faster

declare

S = {NewStore}

{Put S 2 [1 1]}

{Browse {Get S 2}}

{Browse {Size S}}

S. Haridi and P. Van Roy
