slide1

Cardiac Wellness Institute of Calgary

ELECTROCARDIOGRAMs (ECGs)

Updated May 2010

material to be covered
Material to be Covered
  • ACSM’s Resource Manual for Guidelines for Exercise Testing and Prescription (6th ed.)
    • Chapter 27
  • Rapid Interpretation of EKG’s (6th ed.)
lead placement
LEAD PLACEMENT

Standard 12-lead ECG:

  • Limb Leads - 6 in all - I, II, III, aVL, aVR, aVF
  • Chest leads - 6 in all -V1,V2,V3,V4,V5,V6
limb leads

Bipolar

Augmented

-

-

aVR

aVL

+

+

-

+

I

+

+

III

II

+

aVF

LIMB LEADS
chest leads
CHEST LEADS

Along the horizontal plane:

  • V1 and V2 - Right side of the heart
  • V3 and V4 - Intraventricular septum
  • V5 and V6 - Left side of the heart
process

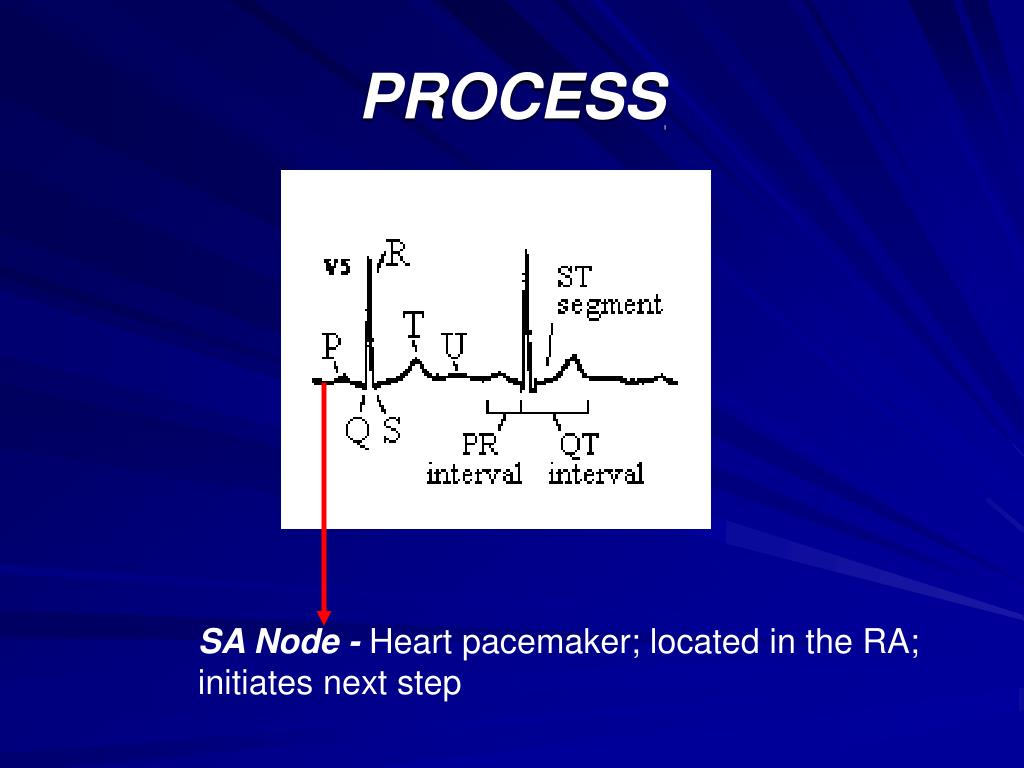

PROCESS

SA Node - Heart pacemaker; located in the RA; initiates next step

process7
PROCESS

P Wave - Atrial depolarization and contraction

process8

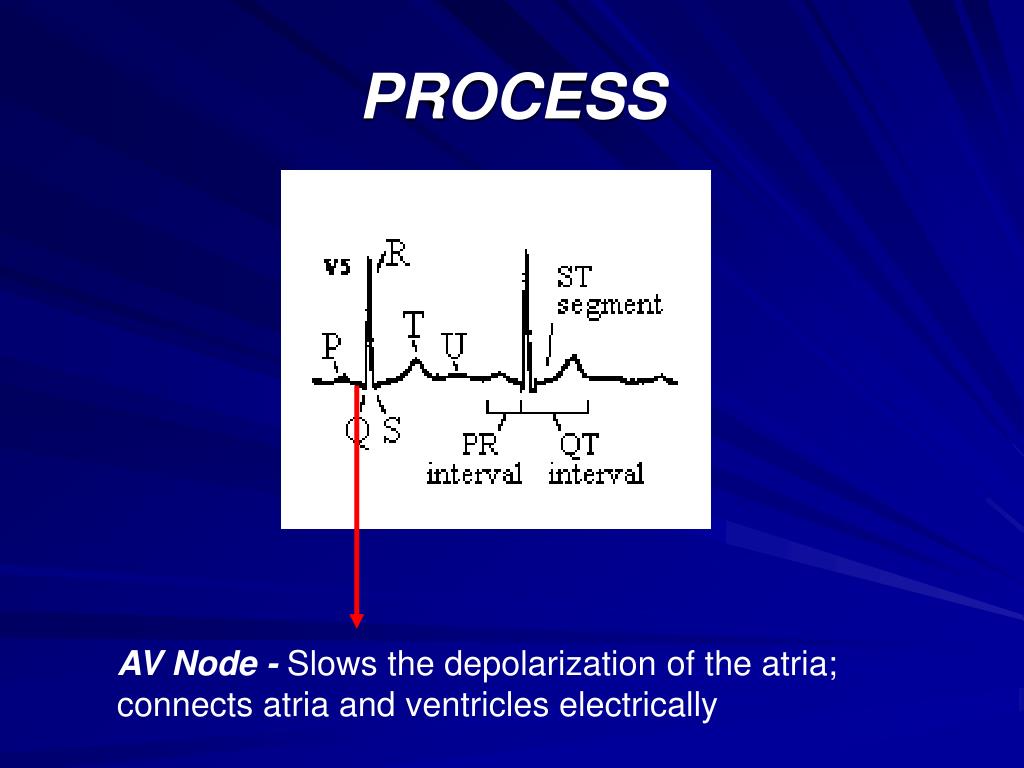

PROCESS

AV Node - Slows the depolarization of the atria;connects atria and ventricles electrically

process9
PROCESS

QRS complex - ventricular depolarization; begins inBundle of His

ventricular depolarization
VENTRICULAR DEPOLARIZATION

His Bundle Left Bundle Branch & Right Bundle Branch Purkinje Fibers

ventricular depolarization12
VENTRICULAR DEPOLARIZATION
  • Q Wave - 1st downward wave of the complex
  • R Wave - 1st upward wave of the complex
  • S Wave - downward wave preceded by an upward wave
process13
PROCESS

ST Segment - Initial plateau phase ofventricular repolarization

process14
PROCESS

T wave - Rapid phase of ventricular repolarization

rhythm
RHYTHM
  • Normal sinus rhythm:
  • Each P wave is followed by a QRS
  • Regular or irregular
slide17

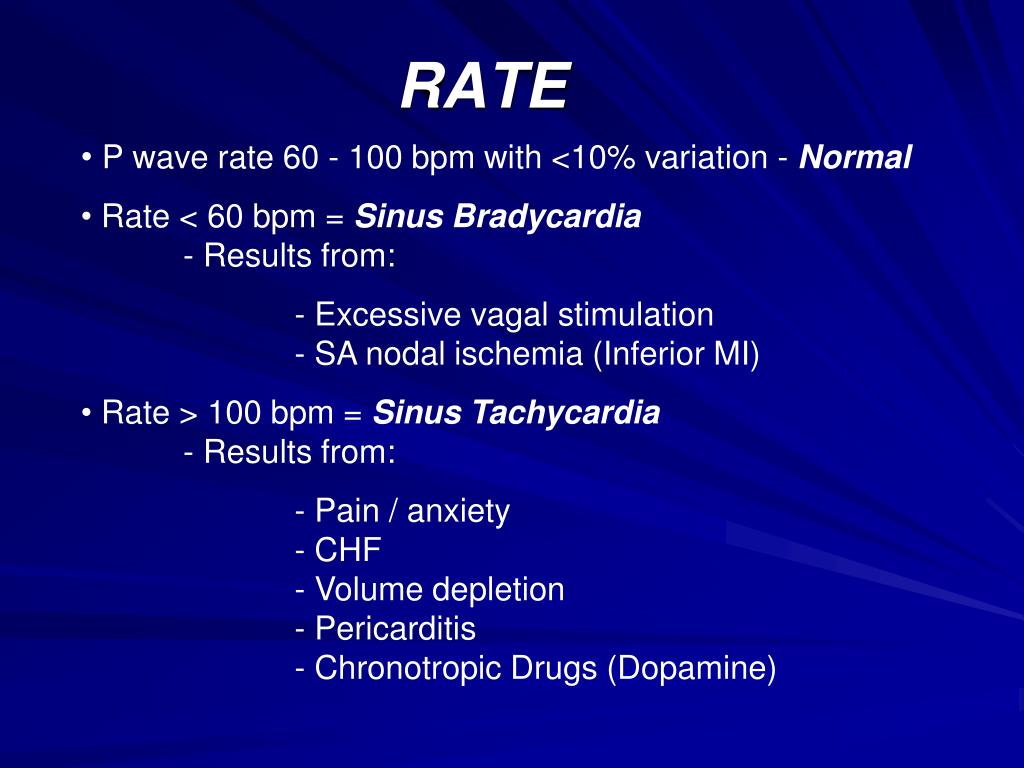

RATE
  • P wave rate 60 - 100 bpm with <10% variation - Normal
  • Rate < 60 bpm = Sinus Bradycardia - Results from:
        • - Excessive vagal stimulation - SA nodal ischemia (Inferior MI)
  • Rate > 100 bpm = Sinus Tachycardia - Results from:
          • - Pain / anxiety - CHF - Volume depletion - Pericarditis - Chronotropic Drugs (Dopamine)
slide18
RATE
  • Methods:
  • Method 1 = 1500/ # of small boxes between RR
  • Method 2
p wave
P WAVE
  • Normal:
  • Height < 2.5 mm in lead II
  • Width < 0.11 s in lead II
p wave abnormalities

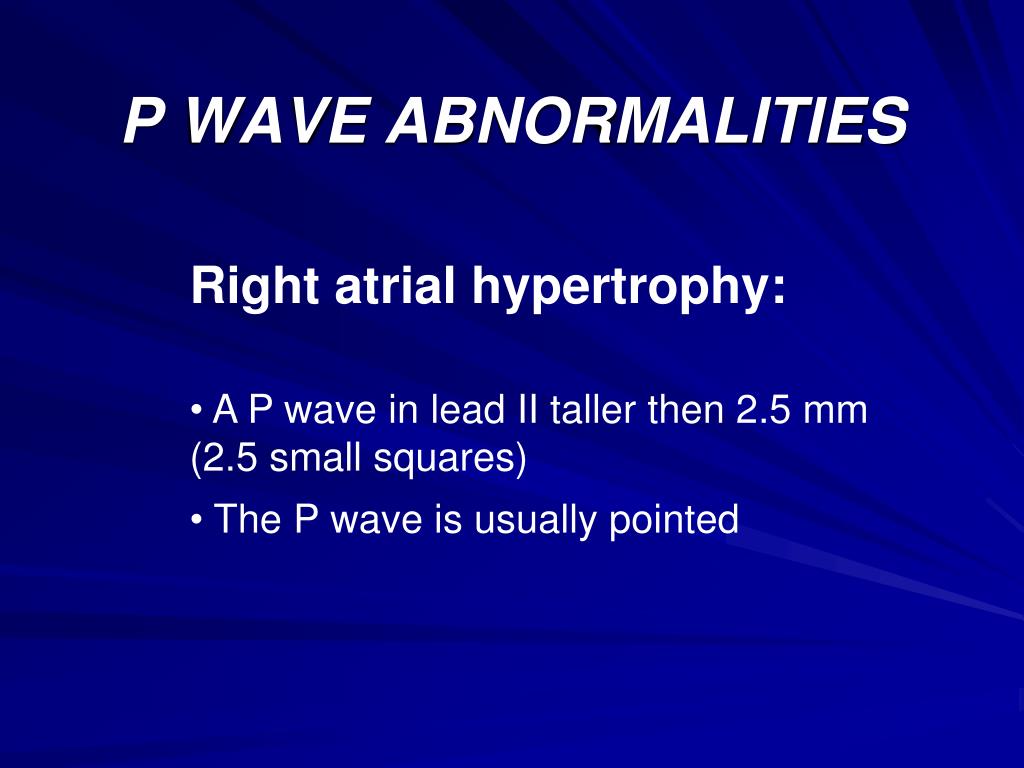

P WAVE ABNORMALITIES
  • Right atrial hypertrophy:
  • A P wave in lead II taller then 2.5 mm (2.5 small squares)
  • The P wave is usually pointed
p wave abnormalities23

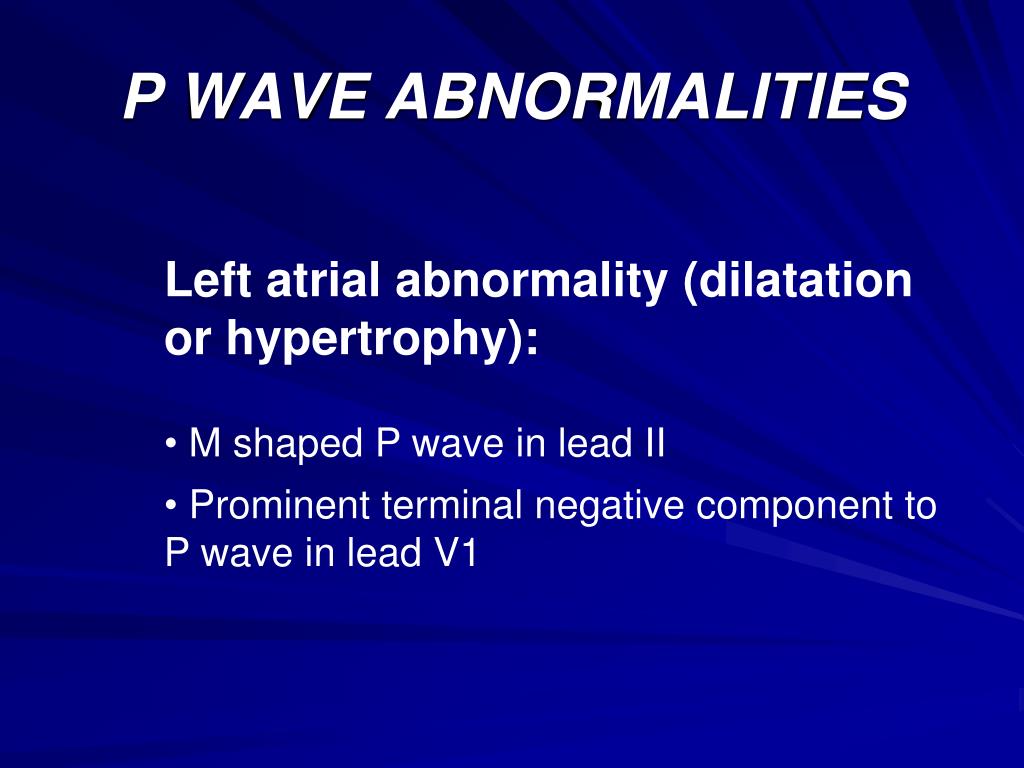

P WAVE ABNORMALITIES
  • Left atrial abnormality (dilatation or hypertrophy):
  • M shaped P wave in lead II
  • Prominent terminal negative component to P wave in lead V1
p wave abnormalities24
P WAVE ABNORMALITIES
  • Premature Atrial Complex (PAC):
  • An abnormal P wave (arrowed in figure below)
  • As P waves are small and rather shapeless, the difference in a PAC is usually subtle; the one shown here is a clear example
  • Occurs earlier than expected
  • Followed by a compensatory pause - but not a full compensatory pause
p wave abnormalities25
P WAVE ABNORMALITIES
  • Hyperkalemia:
  • The following changes may be seen in hyperkalemia

- Small or absent P waves

- Atrial fibrillation

- Wide QRS

- Shortened or absent ST segment

- Wide, tall and tented T waves

- Ventricular fibrillation

p wave abnormalities26

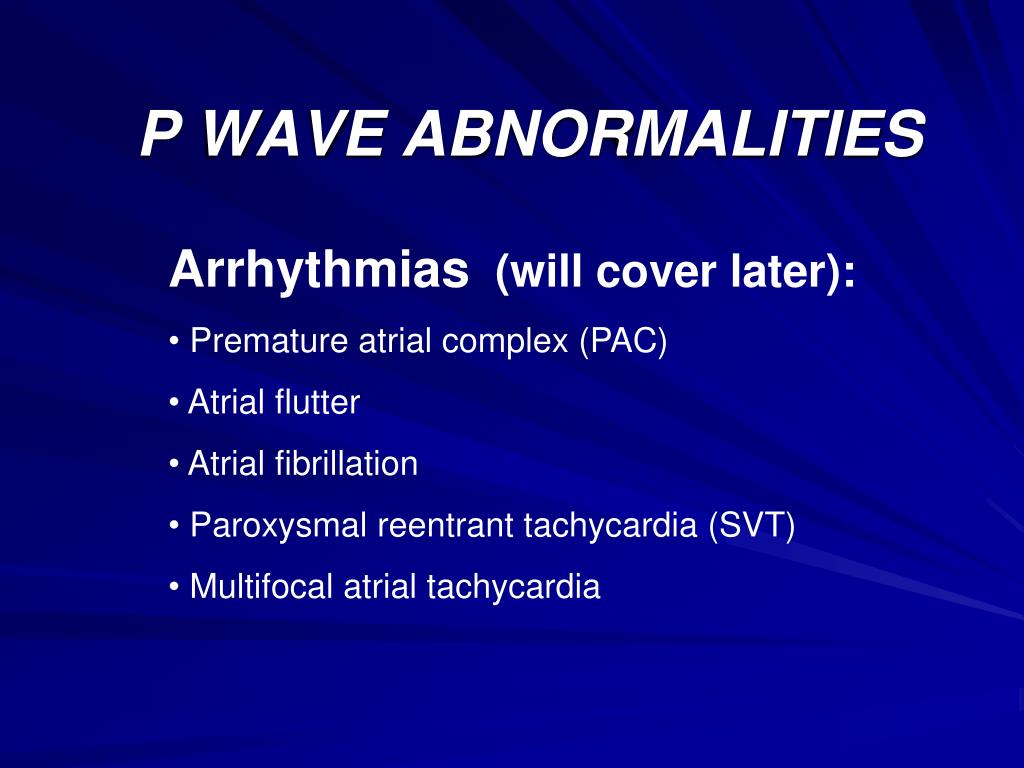

P WAVE ABNORMALITIES
  • Arrhythmias (will cover later):
  • Premature atrial complex (PAC)
  • Atrial flutter
  • Atrial fibrillation
  • Paroxysmal reentrant tachycardia (SVT)
  • Multifocal atrial tachycardia
pr interval
PR INTERVAL
  • Normal PR interval:
  • 0.12 to 0.20 s (3 - 5 small squares)
pr interval abnormalities

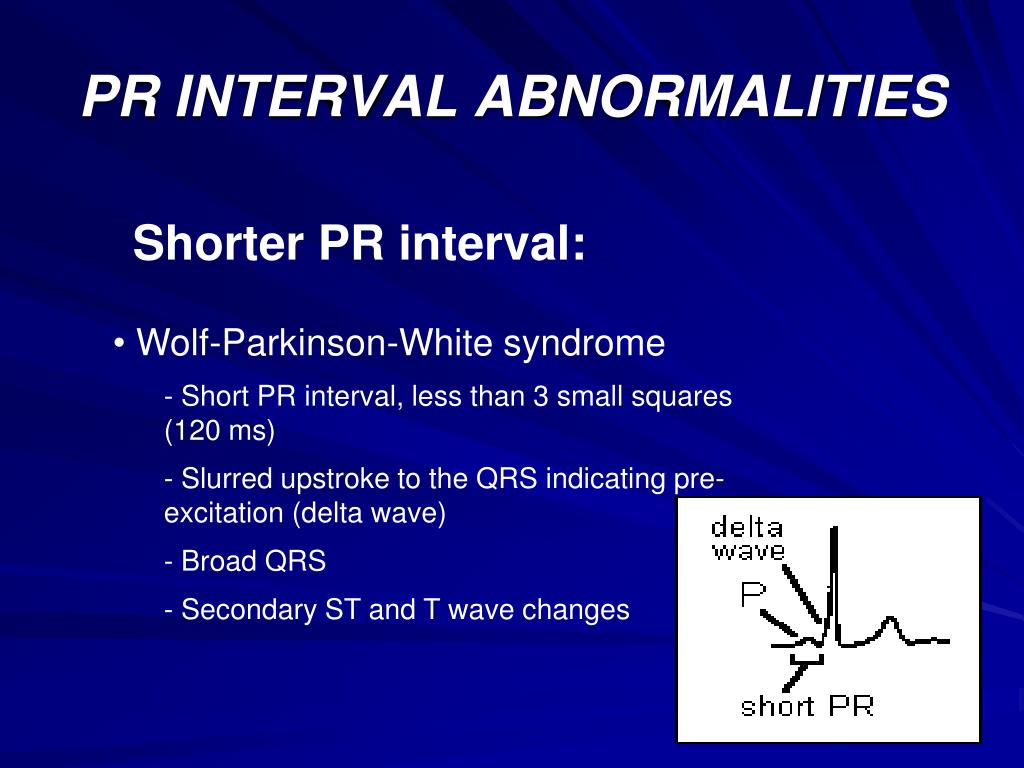

PR INTERVAL ABNORMALITIES

Shorter PR interval:

  • Wolf-Parkinson-White syndrome
    • - Short PR interval, less than 3 small squares (120 ms)
    • - Slurred upstroke to the QRS indicating pre-excitation (delta wave)
    • - Broad QRS
    • - Secondary ST and T wave changes
pr interval abnormalities29
PR INTERVAL ABNORMALITIES
  • Long PR interval (will cover later):
  • AV blocks
qrs complex
QRS COMPLEX
  • QRS Axis
  • Normal duration of complex is < 0.12 s (3 small squares)
  • NO pathological Q waves
  • NO left or right ventricular hypertrophy
slide31
AXIS
  • Using leads I and aVF, the axis can be assigned to one of the four quadrants at a glance
axis normal
AXIS - NORMAL
  • Both I and aVF +ve = NORMAL AXIS
  • Lead I +ve and aVF -ve -If the axis is in the "left" quadrant take your second glance at lead II. - Lead II +ve = NORMAL AXIS - Lead II -ve = LEFT AXIS DEVIATION
axis left axis deviation
AXIS - LEFT AXIS DEVIATION
  • Left anterior hemiblock
  • Left ventricular hypertrophy
  • Q waves of inferior myocardial infarction
  • Artificial cardiac pacing
  • Emphysema
  • Hyperkalemia
  • Wolff-Parkinson-White syndrome - right sided accessory pathway
  • Tricuspid atresia
  • Ostium primum ASD
  • Injection of contrast into left coronary artery
axis northwest territory
AXIS - NORTHWEST TERRITORY
  • Both I and aVF -ve = axis in the NORTHWEST TERRITORY
  • Causes of “No man’s land”
  • - Emphysema
  • - Hyperkalemia
  • - Lead transposition
  • - Artificial cardiac pacing
  • - Ventricular tachycardia
axis right axis deviation

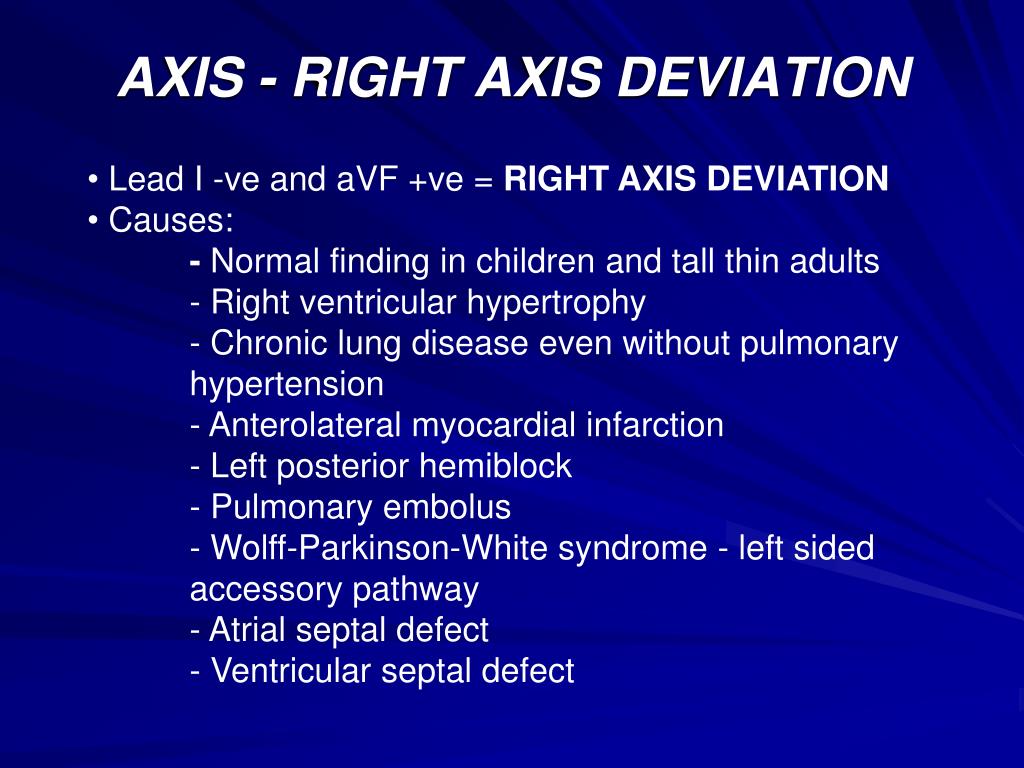

AXIS - RIGHT AXIS DEVIATION
  • Lead I -ve and aVF +ve = RIGHT AXIS DEVIATION
  • Causes:
  • - Normal finding in children and tall thin adults - Right ventricular hypertrophy - Chronic lung disease even without pulmonary hypertension - Anterolateral myocardial infarction - Left posterior hemiblock - Pulmonary embolus - Wolff-Parkinson-White syndrome - left sided accessory pathway - Atrial septal defect - Ventricular septal defect
wide qrs complex

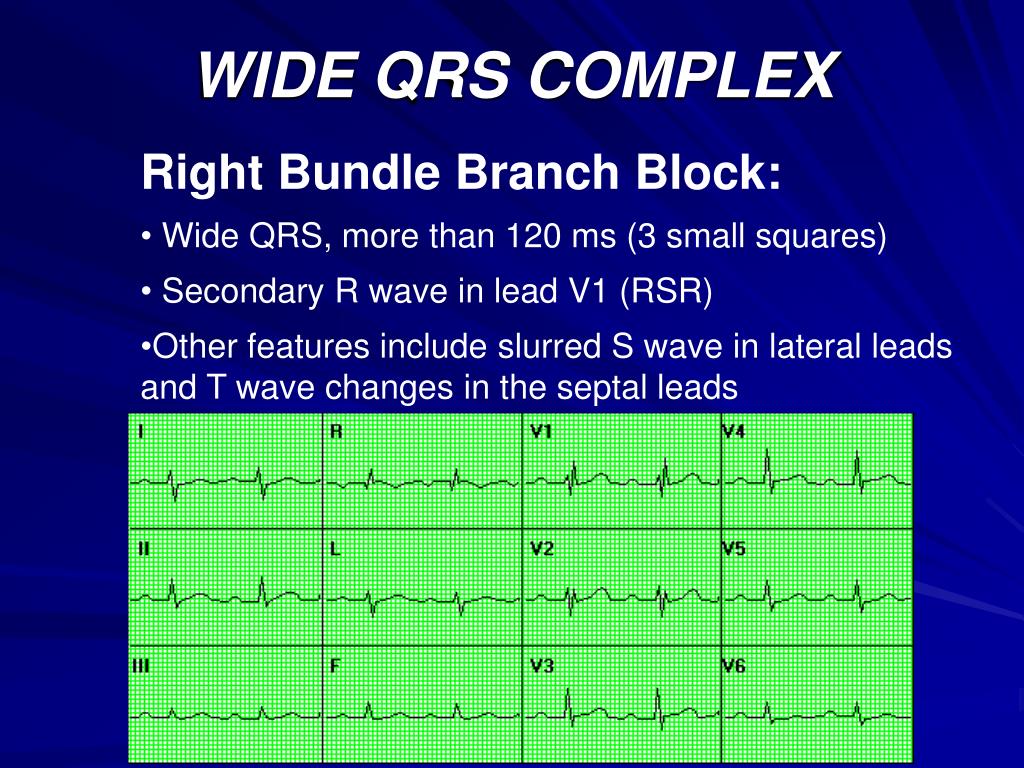

WIDE QRS COMPLEX
  • Right Bundle Branch Block:
  • Wide QRS, more than 120 ms (3 small squares)
  • Secondary R wave in lead V1 (RSR)
  • Other features include slurred S wave in lateral leads and T wave changes in the septal leads
wide qrs complex38
WIDE QRS COMPLEX
  • Left Bundle Branch Block:
  • Wide QRS, more than 120 ms (3 small squares)
  • M shape QRS , R’R’
wide qrs
WIDE QRS
  • Hyperkalemia:
  • Changes that can be seen:

- Small or absent P waves

- Atrial fibrillation

- Wide QRS

- Shortened or absent ST segment

- Wide, tall and tented T waves

- Ventricular fibrillation

wide qrs41
WIDE QRS

Ventricular rhythm (will cover later):

pathological q waves

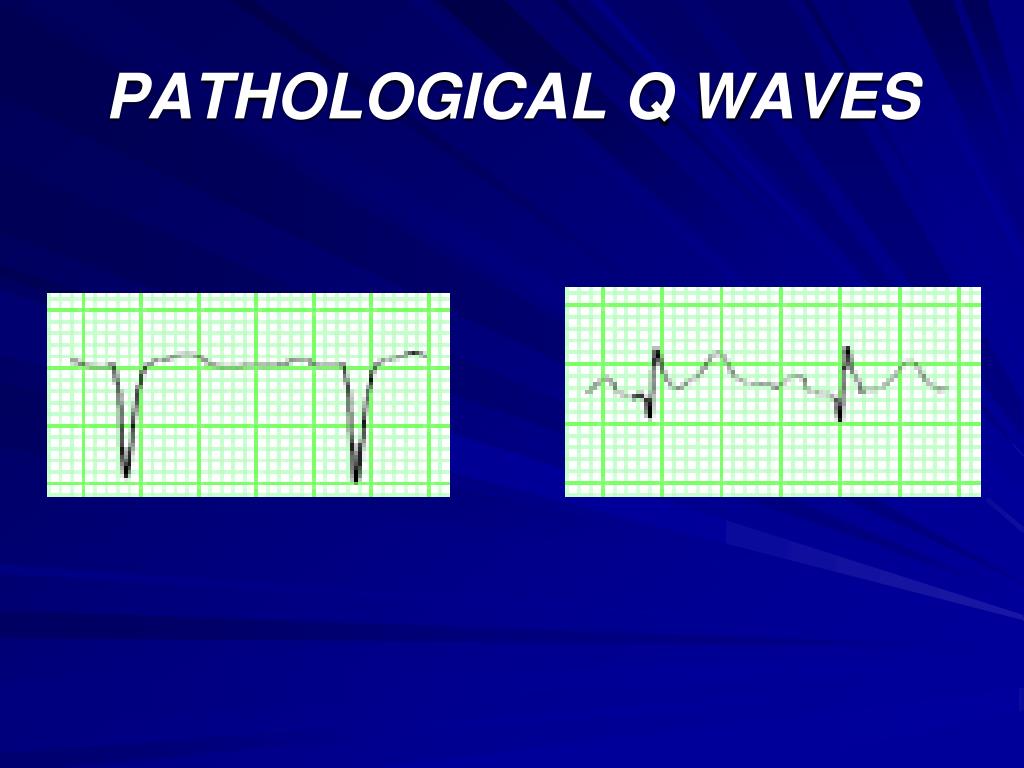

PATHOLOGICAL Q WAVES
  • Q waves > 1mm
  • Their depth > 25% of the height of the QRS
  • Q waves in V6 and aVL (not pathological…small)
  • Look for anatomical site, ignore aVR
non q wave mi

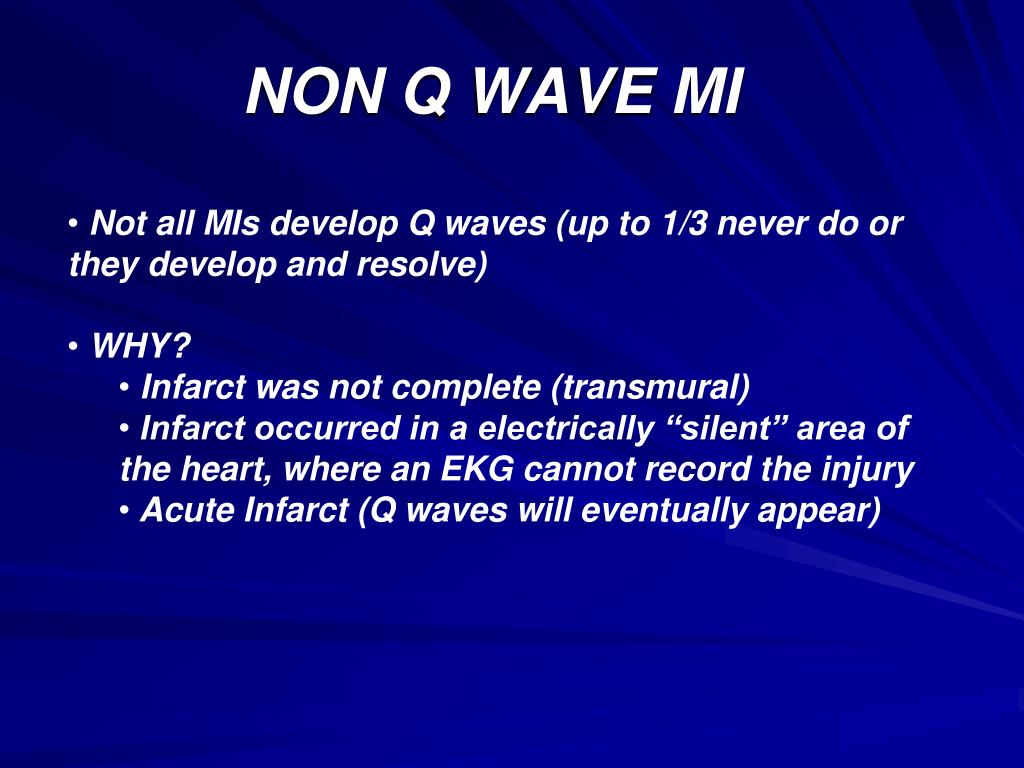

NON Q WAVE MI
  • Not all MIs develop Q waves (up to 1/3 never do or they develop and resolve)
  • WHY?
    • Infarct was not complete (transmural)
    • Infarct occurred in a electrically “silent” area of the heart, where an EKG cannot record the injury
    • Acute Infarct (Q waves will eventually appear)
right ventricular hypertrophy rvh
RIGHT VENTRICULAR HYPERTROPHY (RVH)
  • Right axis deviation
  • Deep S waves in the lateral leads
  • A dominant R wave in lead V1
left ventricular hypertrophy lvh
LEFT VENTRICULAR HYPERTROPHY (LVH)
  • Sokolow + Lyon (Am Heart J, 1949;37:161)
        • S in V1+ R in V5 or V6 > 35 mm
  • Cornell criteria (Circulation, 1987;3: 565-72)
        • S in V3 + R in aVL > 28 mm in men
        • S in V3 + R in aVL > 20 mm in women
  • Framingham criteria (Circulation,1990; 81:815-820)
        • R in aVL > 11mm, R in V4-6 > 25mm
        • S in V1-3 > 25 mm,
        • S in V1 or V2 + R in V5 or V6 > 35 mm,
        • R in I + S in III > 25 mm
slide47

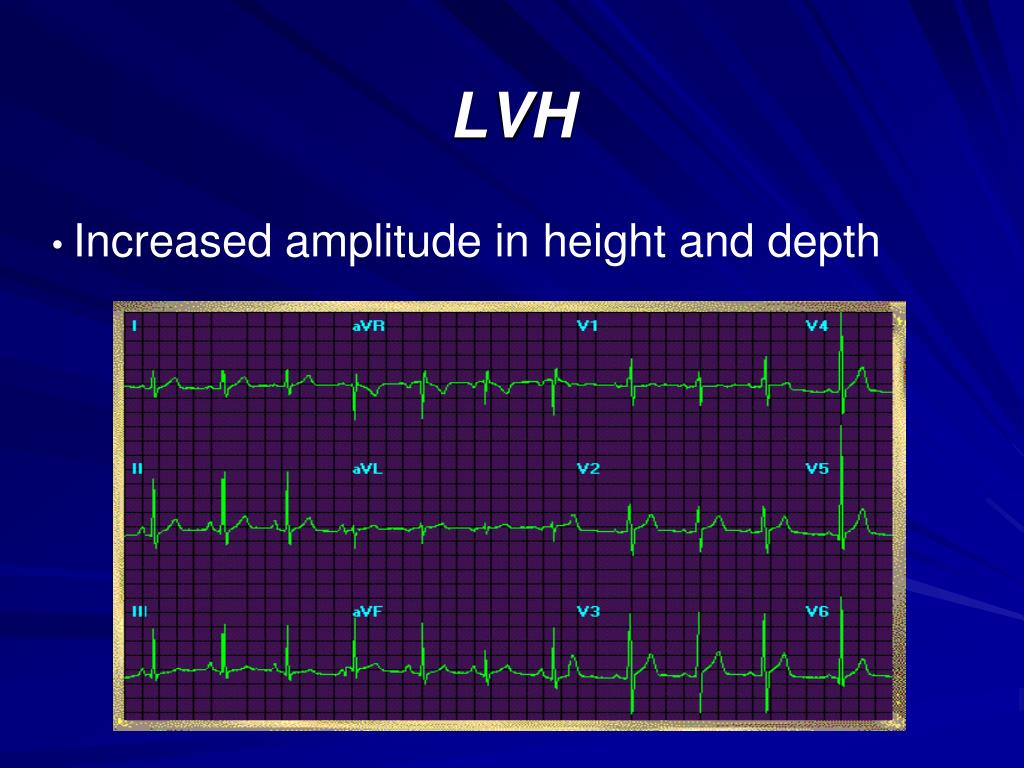

LVH
  • Increased amplitude in height and depth
qt interval
QT INTERVAL
  • Calculate the corrected QT interval - QTc = QT / RR = 0.42 - Normal = 0.42 s
long qt interval

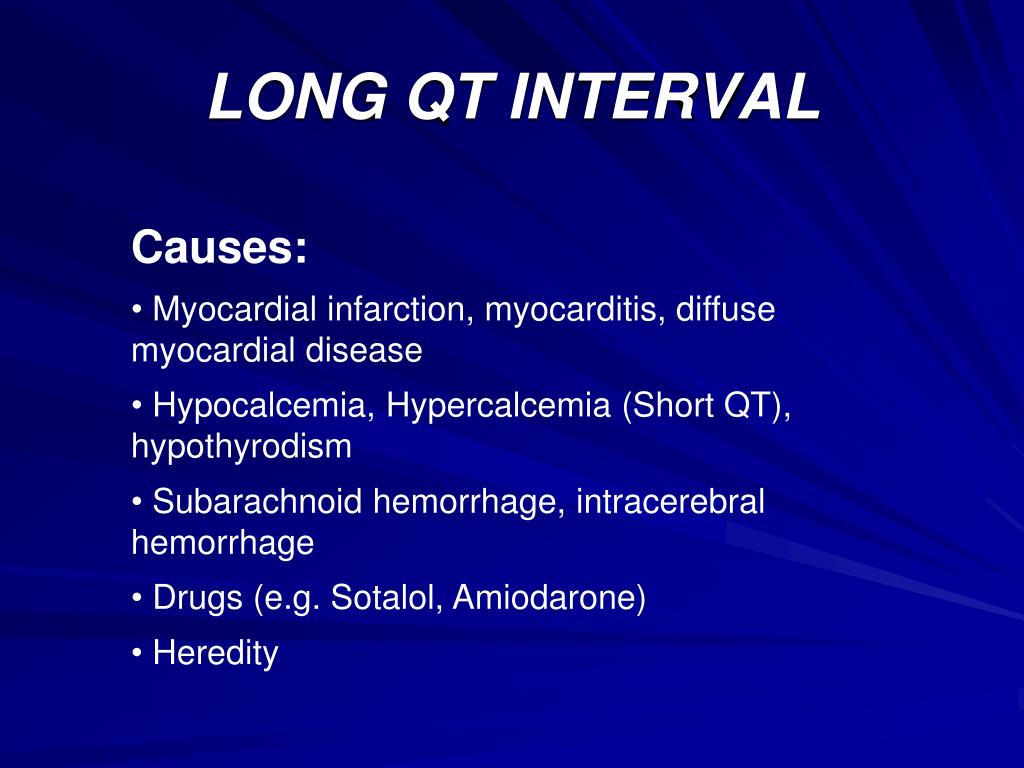

LONG QT INTERVAL
  • Causes:
  • Myocardial infarction, myocarditis, diffuse myocardial disease
  • Hypocalcemia, Hypercalcemia (Short QT), hypothyrodism
  • Subarachnoid hemorrhage, intracerebral hemorrhage
  • Drugs (e.g. Sotalol, Amiodarone)
  • Heredity
st segment
ST SEGMENT
  • Normal ST segment:
  • No elevation or depression
st elevation
ST ELEVATION
  • Causes of elevation include:
  • Acute MI (eg. Anterior, Inferior, Lateral).
  • LBBB
  • Acute pericarditis
  • Normal variants (e.g. athletic heart, high-take off),
acute mi
ACUTE MI
  • ST elevation in leads where MI occurs
  • Look for reciprocal changes
  • (e.g. Ant MI look for ST depression in inferior leads)
st depression
ST DEPRESSION
  • Causes of depression include:
  • Myocardial ischemia
  • Digoxin Effect
  • Ventricular Hypertrophy
  • Acute Posterior MI
  • Pulmonary Embolus
  • LBBB
digoxin effect
DIGOXIN EFFECT
  • Shortened QT interval
  • Characteristic down-sloping ST depression
  • Dysrhythmias
    • - Ventricular / atrial premature beats
    • - PAT (paroxysmal atrial tachycardia) with variable AV block
    • - Ventricular tachycardia and fibrillation
    • - Many others
acute posterior mi
ACUTE POSTERIOR MI
  • The mirror image of acute injury in leads V1 - 3
  • (Fully evolved) tall R wave, tall upright T wave in leads V1 -V3
  • Usually associated with inferior and/or lateral wall MI
  • Mirror Test: Once you have determined an inferior (or other) MI has occurred, you begin looking for reciprocal changes. If there is ST depression in V1, V2, and V3, flip the EKG over and hold it up to the light.  Now read those leads flipped over.  Are there significant Q waves?  Is the ST segment elevated with a coved appearance?  Are the T waves inverted?  Answering yes tells you, there is a posterior infarct as well.
st depression58
ST DEPRESSION
  • In diagnosis with ischemia:
  • Looking for at least 1mm (1 square)
  • This can be
          • 1. Upsloping
          • 2. Horizontal (can be combined w/ 1 or 3)
          • 3. Downsloping
t waves
T WAVES
  • Repolarization of the ventricles is signaled by the T wave
tall t waves
TALL T WAVES
  • Causes:
  • Hyperkalemia
  • Hyperacute MI
  • LBBB
small flattened or inverted t waves
SMALL, FLATTENED OR INVERTED T WAVES
  • Causes are plenty:
  • Ischemia, age, race, hyperventilation, anxiety
  • LVH, drugs, pericarditis, I-V conduction delay (RBBB),
  • Electrolyte disturbances
  • The most important thing to consider is INVERTED T waves associated with Ischemia
sinus bradycardia
SINUS BRADYCARDIA
  • Less than 60 bpm
  • If profound, could have decreased cardiac output
  • Treatment:
    • - None if uncomplicated- Atropine- Pacing
sinus tachycardia
SINUS TACHYCARDIA
  • Greater than 100 bpm
  •  Myocardial oxygen demand and may  coronary artery perfusion resulting in angina in CAD
  • Decreased cardiac output could be exhibited
sss sick sinus syndrome
SSS (SICK SINUS SYNDROME)
  • Deceased cardiac output, related to periods of excessive bradycardia, AV block and/or tachycardia
  • Treatment:
  • - Pacemaker
  • - Anti coagulation therapy
atrial premature beat
ATRIAL PREMATURE BEAT
  • Can be in a healthy heart or with CAD
  • They are well tolerated because cardiac output is not altered
atrial flutter
ATRIAL FLUTTER
  • Saw toothed pattern; 200-350bpm atrial rate
  • Can convert to atrial fibrillation
atrial flutter cont d
ATRIAL FLUTTER (CONT’D)
  • People can feel flutter sensation… if short lived then no complication; however, with an increased ventricular rate, people can experience decreased cardiac output.
  • Treatment:
    • - Veramapril, vagal stimulation - Digoxin (perhaps in combo with other drugs) - Cardioversion or pacing
atrial fibrillation
ATRIAL FIBRILLATION
  • Chaotic atrial dysrhythmia; atrial rate can be 350+ bpm
  • Higher ventricular response = cardiac output
  • Treatment:
  • - Drugs (Digitalis, Verapamil, Beta blocker) - Anticoagulation therapy - Cardioversion
paroxysmal atrial tachycardia or supraventricular tachycardia
PAROXYSMAL ATRIAL TACHYCARDIAOR SUPRAVENTRICULAR TACHYCARDIA
  • High ventricular rate
  • Inadequate ventricular filling time, decreased cardiac output, and inadequate myocardial perfusion time
  • Treatment:
    • - Prevent CHF- Carotid sinus massage to stimulate vagal response - Cardioversion- Drugs (Verapamil, Propranolol, and Digoxin)
multifocal atrial tachycardia
MULTIFOCAL ATRIAL TACHYCARDIA
  • Irregular rhythm with multiple (at least 3) P wave morphologies in same lead with an irregular and usually rapid ventricular response.
  • Pulmonary disease, hypoxia.
  • Rate is greater than 100 bpm.
  • Treatment:
    • - Verapamil - Resolve causative disorder
1st degree av block
1ST DEGREE AV BLOCK
  • PR greater than 120 msec
  • No hemodynamic complications
  • Could progress to higher AV blocks
2nd degree av block mobitz type 1 wenckebach
2ND DEGREE AV BLOCK MOBITZ TYPE 1 (WENCKEBACH)
  • PR interval progressively lengthens with each beat until it is completely blocked
  • If bradycardic, could have decreased cardiac output
  • Treatment:
    • - Only if brady (Atropine)- Rare pacemaker
2nd degree av block mobitz type 2
2ND DEGREE AV BLOCK MOBITZ TYPE 2
  • Rare, occurs with large ant MI
  • PR interval fixed and p waves occur in a regular ratio to QRS (atrial rate is regular) until conduction is blocked
2nd degree av block mobitz type 2 cont d
2ND DEGREE AV BLOCK MOBITZ TYPE 2 (CONT’D)
  • Symptoms of decreased cardiac output occur with slowing ventricular rate - Could progress to complete block
  • Treatment:
      • - Atropine initially - Permanent pacemaker
3rd degree av block complete
3RD DEGREE AV BLOCK (COMPLETE)
  • Atria and ventricles are independent of each other; no relationship present
  • Symptoms could include lightheadedness or syncope from decreased rate
3rd degree av block complete cont d
3RD DEGREE AV BLOCK (COMPLETE) (CONT’D)
  • Decreased cardiac output, compromised coronary perfusion
  • Treatment:
    • - Emergency
    • - Atropine
    • - Pacemaker
junctional escape rhythm
JUNCTIONAL ESCAPE RHYTHM
  • QRS complexes are not preceded by normal P waves, because the impulse originate below the SA node
  • Can cause a missed P wave, inverted or in the QRS
ventricular escape rhythm
VENTRICULAR ESCAPE RHYTHM
  • Wide QRS complex (> 120ms)
  • Decreased cardiac output , lightheadedness and syncope due to decreased heart rate
  • Treatment:
    • - Atropine
    • - Electronic pacemaker
premature ventricular contraction pvc
PREMATURE VENTRICULAR CONTRACTION (PVC)
  • Occasional PVC’s have minimal consequences
  • Increased frequency or multifocal PVCs can lead to ventricular tachycardia
  • Make sure it does not progress to more PVCs
  • Couplet is 2 PVCs in a row
  • Triplet is 3 PVCs in a row
ventricular bigeminy
VENTRICULAR BIGEMINY
  • Premature Ventricular contraction (PVC) in a bigeminal pattern
  • Can be trigeminy (every third is a PVC), quadrigeminy
  • Can be multifocal - increased irritability of the ventricle could lead to more severe dysrhythmia
ventricular tachycardia vt
VENTRICULAR TACHYCARDIA (VT)
  • More than 3 PVC’s in a row > 100bpm
  • Wide QRS, AV dissociation, QRS complex does not resemble typical bundle branch block
  • Irritable ventricle
  • Sustained VT is an emergency rhythm and could convert to ventricular fibrillation
slide83
VT
  • Decreased cardiac output , irritable ventricle
  • Treatment:
    • - Cardioversion - Lidocaine or Procainamide to get NSR - Emergent care - Long term care: ICD (implantable cardioverter defibrillator)
torsades de pointes
TORSADES DE POINTES
  • Form of VT – “twisting of the points”
  • People with prolonged QT interval are susceptible
ventricular fibrillation
VENTRICULAR FIBRILLATION
  • Chaotic activity of the ventricles
  • No effective cardiac output or coronary perfusion
  • Associated with severe myocardial ischemia.
  • Life-threatening - death occurs within 4 min.
  • Treatment:
    • - Immediate defibrillation
    • - CPR- Lidocaine, bretylium. epinephrine
how to read the ecg
How to read the ECG
    • Look at the whole tracing.
  • Rhythm: Is there a P wave before each QRS complex?
    • Yes: sinus rhythm No: AV junctional or heart block
  • Rate: Count boxes; use caliper, ruler
  • PR interval: Normal - 0.20 sec. or less
  • QRS complex: Skinny (0.10 sec. or less) or broad (BBB or ventricular)
  • ST segment: Isoelectric (normal), elevated or depressed
  • T wave: Upright, flat or inverted
  • Interpretation: Normal or abnormal.
    • Is the rhythmdangerous?
