slide1

BEST Slow Pyrolysis Technology

C4H4 Demonstration Plant

Presented by Cordner Peacocke

for Adriana Downie

best pyrolysis technology

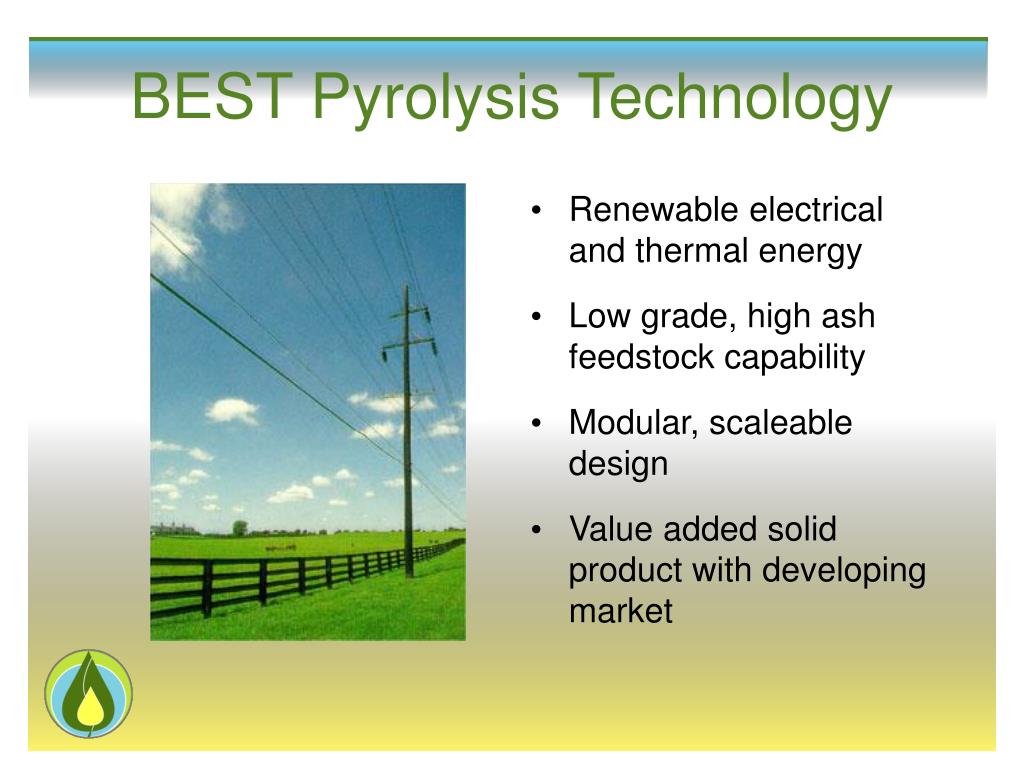

BEST Pyrolysis Technology
  • Renewable electrical and thermal energy
  • Low grade, high ash feedstock capability
  • Modular, scaleable design
  • Value added solid product with developing market
slide3

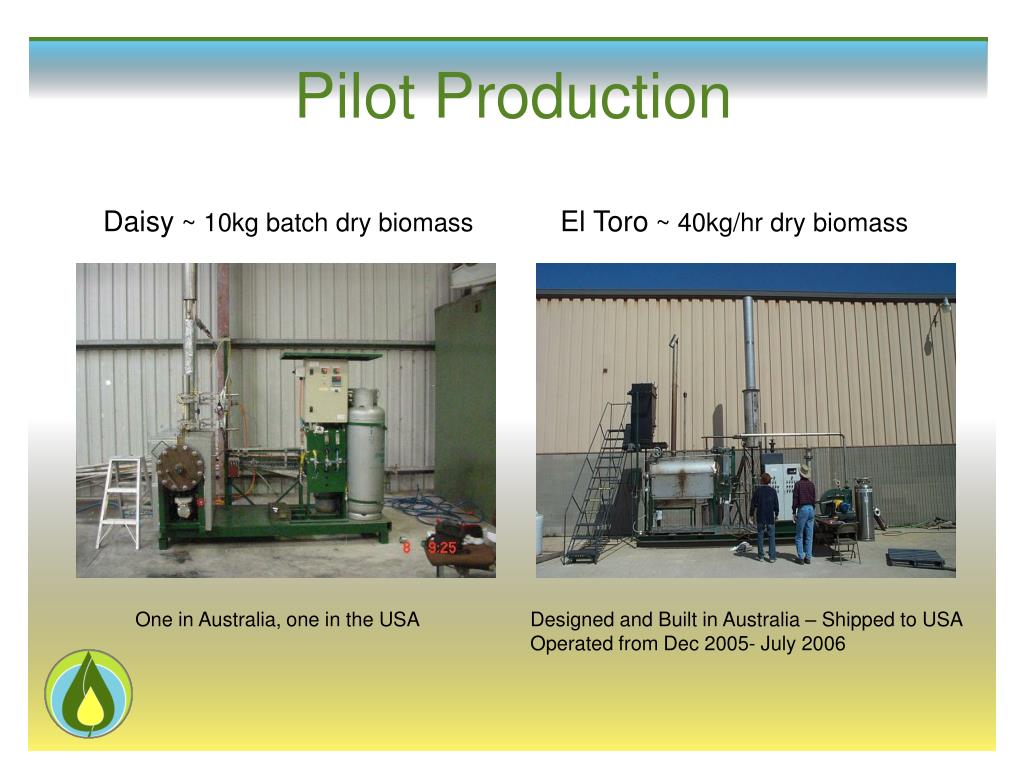

Pilot Production

Daisy ~ 10kg batch dry biomass

El Toro ~ 40kg/hr dry biomass

One in Australia, one in the USA

Designed and Built in Australia – Shipped to USA

Operated from Dec 2005- July 2006

slide4

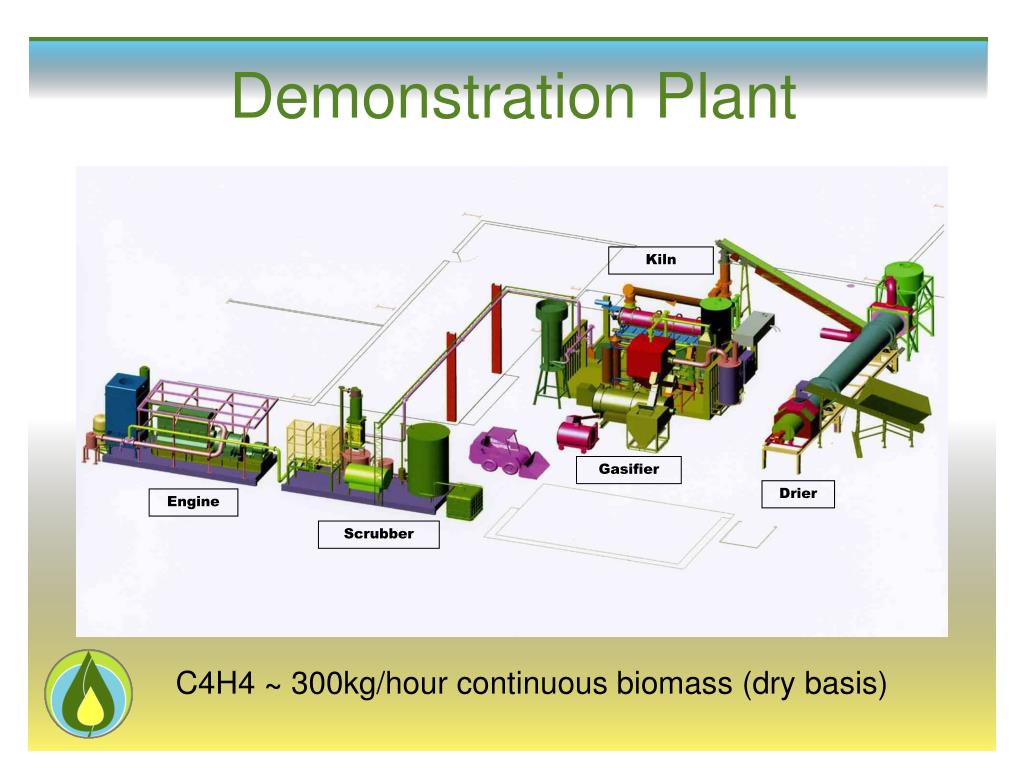

Demonstration Plant

Kiln

Gasifier

Drier

Engine

Scrubber

C4H4 ~ 300kg/hour continuous biomass (dry basis)

c4h4 process flow diagram
C4H4 Process Flow Diagram

300 kg/hr Feed

0.6 MW PE

160 kW Electrical

75 kg/hr char

25% Syngas to Kiln Burner

slide6

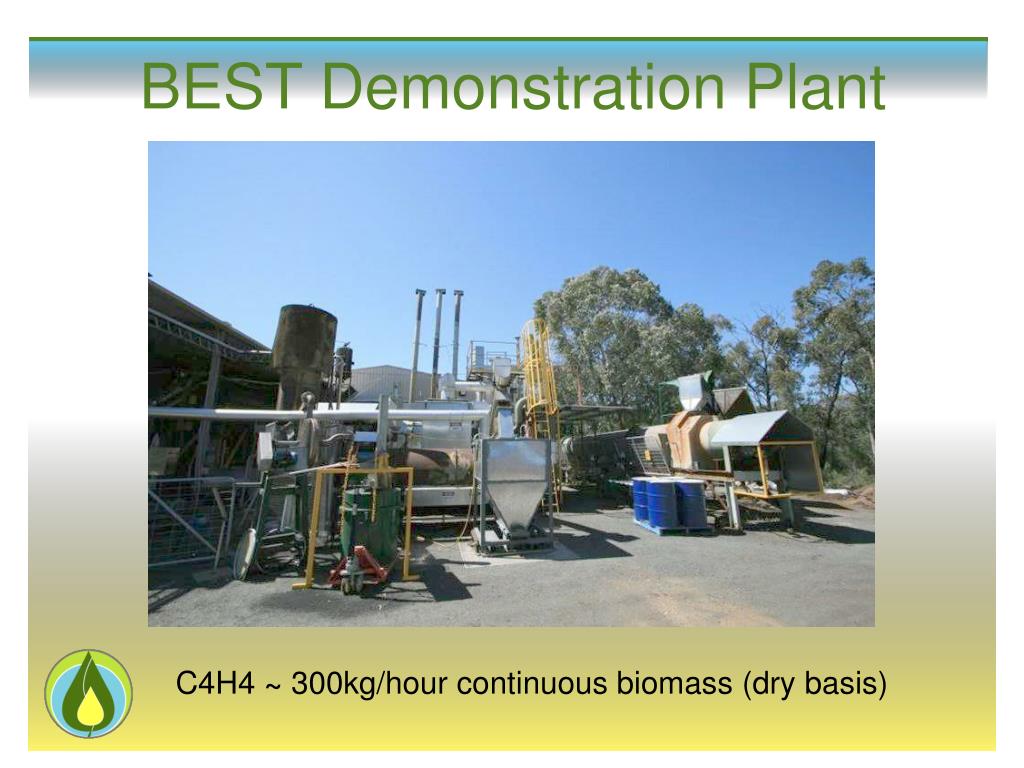

BEST Demonstration Plant

C4H4 ~ 300kg/hour continuous biomass (dry basis)

slide7

BEST Demonstration Plant

Engine and generator running on Syngas

slide8

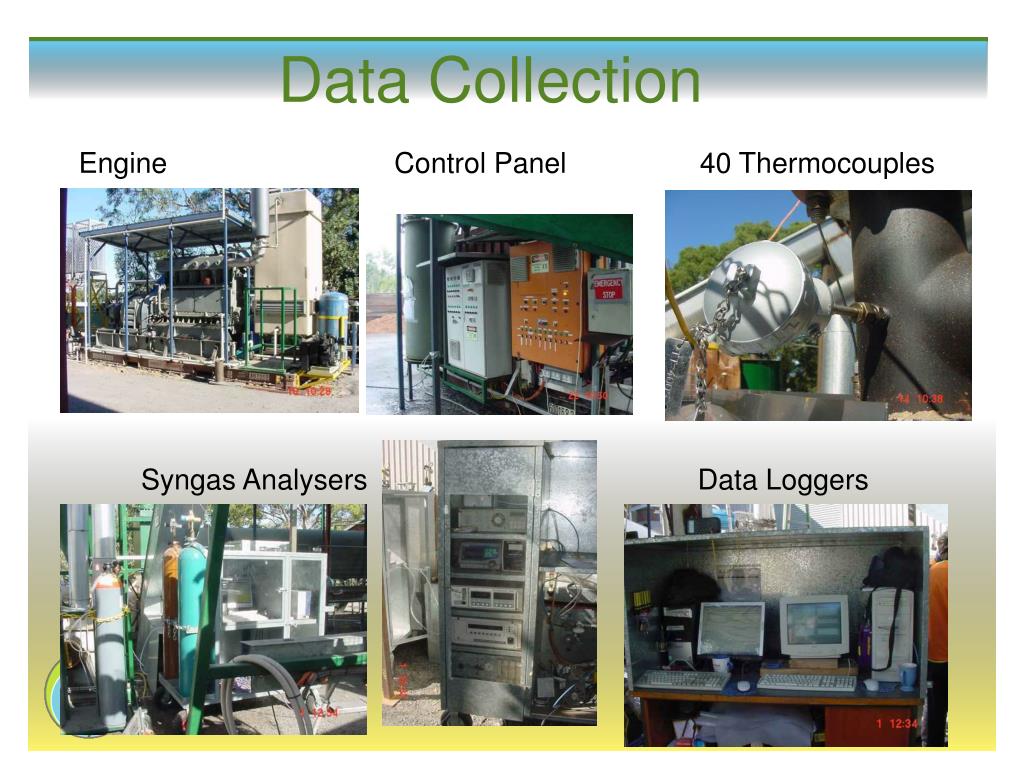

Data Collection

Engine Control Panel 40 Thermocouples

Syngas Analysers Data Loggers

slide9

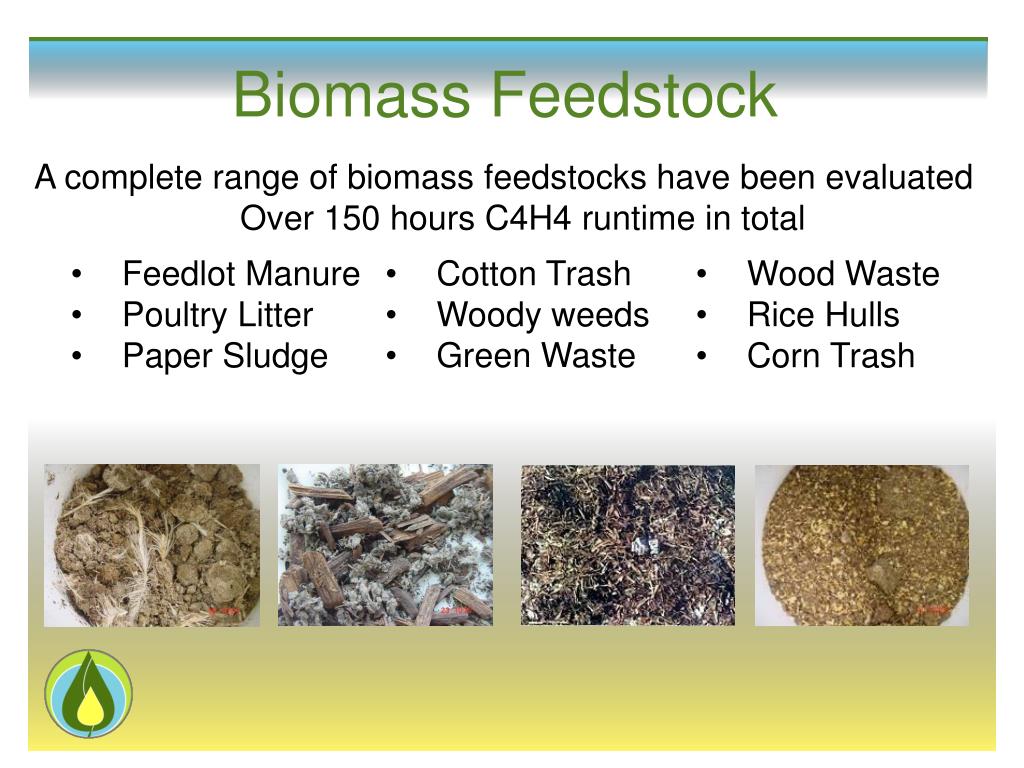

Biomass Feedstock

A complete range of biomass feedstocks have been evaluated Over 150 hours C4H4 runtime in total

  • Feedlot Manure
  • Poultry Litter
  • Paper Sludge
  • Cotton Trash
  • Woody weeds
  • Green Waste
  • Wood Waste
  • Rice Hulls
  • Corn Trash
c4h4 gas analysis

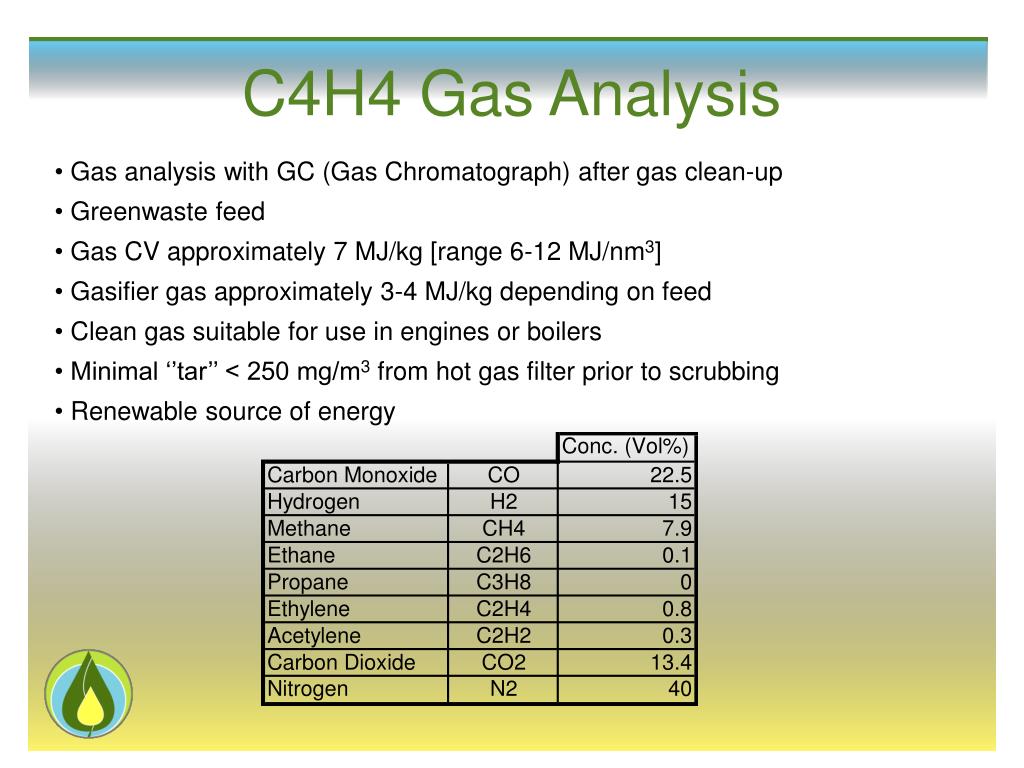

C4H4 Gas Analysis
  • Gas analysis with GC (Gas Chromatograph) after gas clean-up
  • Greenwaste feed
  • Gas CV approximately 7 MJ/kg [range 6-12 MJ/nm3]
  • Gasifier gas approximately 3-4 MJ/kg depending on feed
  • Clean gas suitable for use in engines or boilers
  • Minimal ‘’tar’’ < 250 mg/m3 from hot gas filter prior to scrubbing
  • Renewable source of energy
char analysis
Char Analysis
  • Char yield between 27 and 50% of feed (dry)
  • Activation to give high surface areas – up to 800 m2/g
  • Sampling possible directly from kiln or char activator
  • 50% Carbon from biomass remains in char – sequestration potential

Chicken Litter Char

Greenwaste Char Analysis

slide12

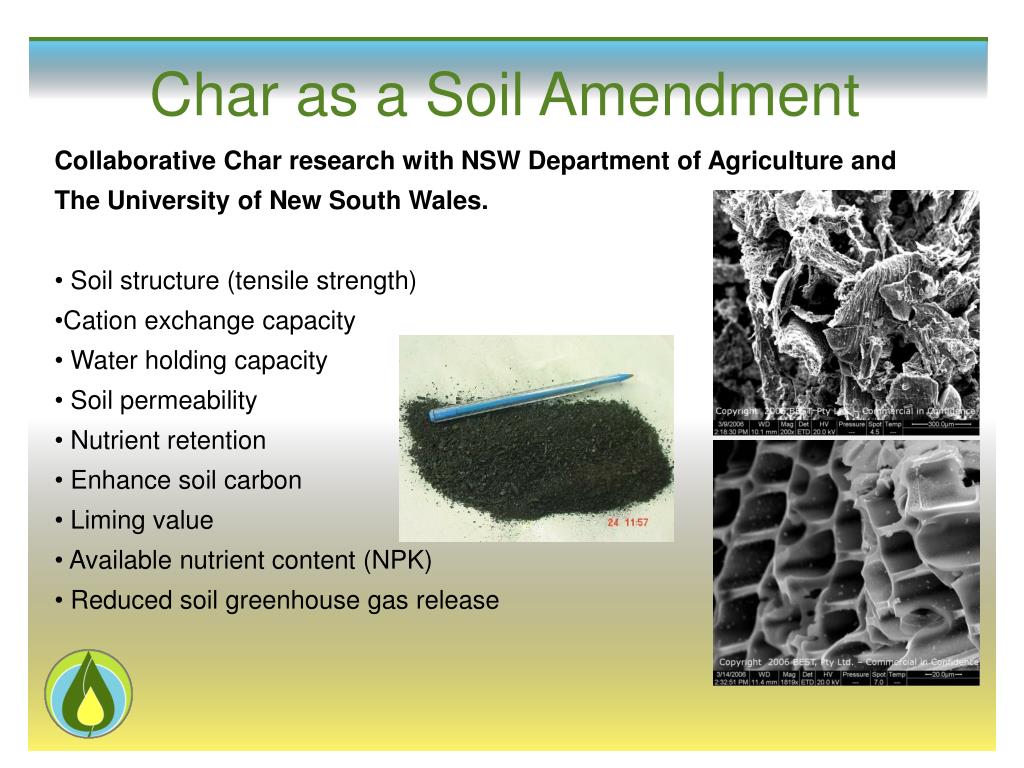

Char as a Soil Amendment

Collaborative Char research with NSW Department of Agriculture and The University of New South Wales.

  • Soil structure (tensile strength)
  • Cation exchange capacity
  • Water holding capacity
  • Soil permeability
  • Nutrient retention
  • Enhance soil carbon
  • Liming value
  • Available nutrient content (NPK)
  • Reduced soil greenhouse gas release
commercial scale up

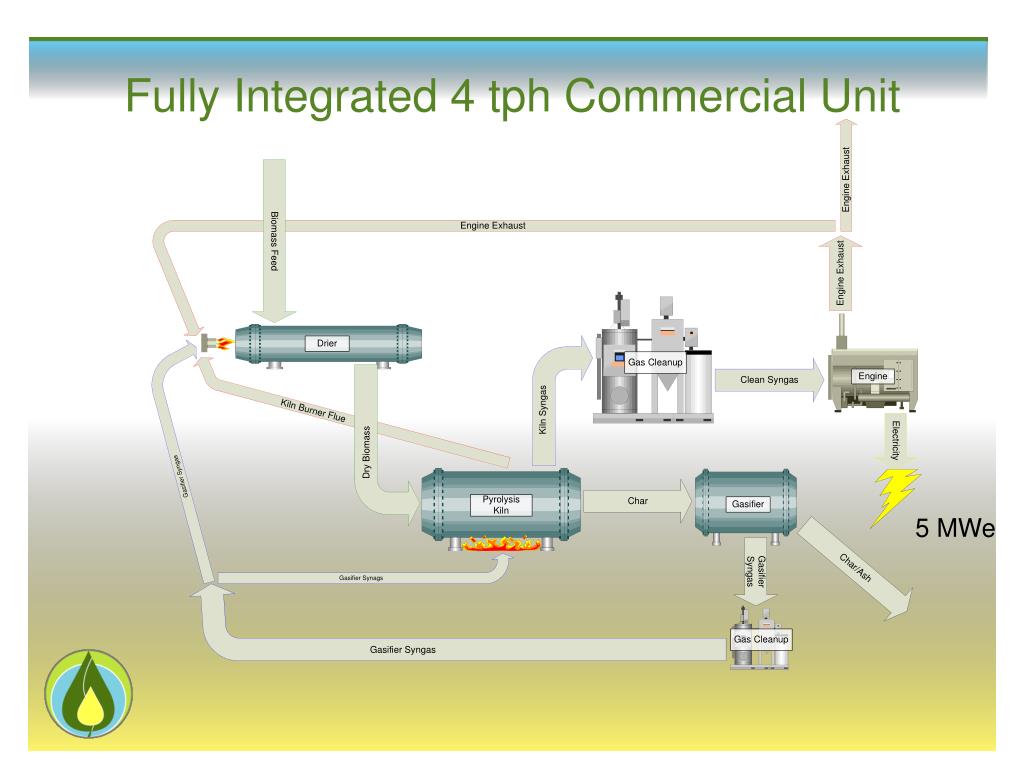

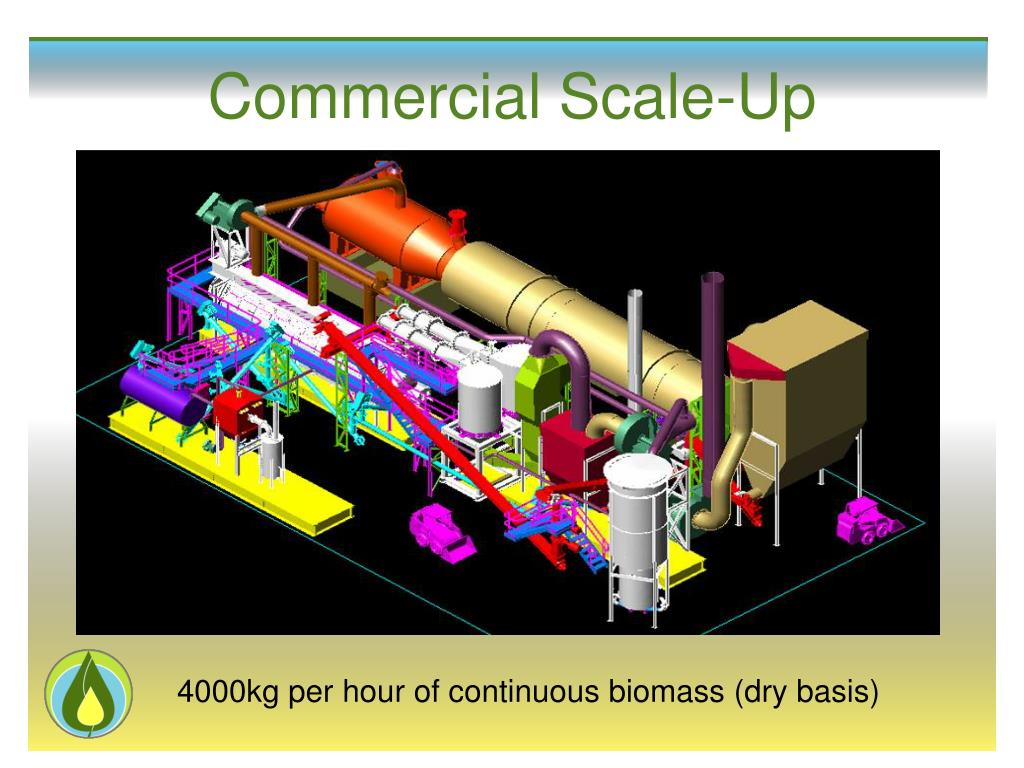

Commercial Scale-Up

4000kg per hour of continuous biomass (dry basis)

slide16

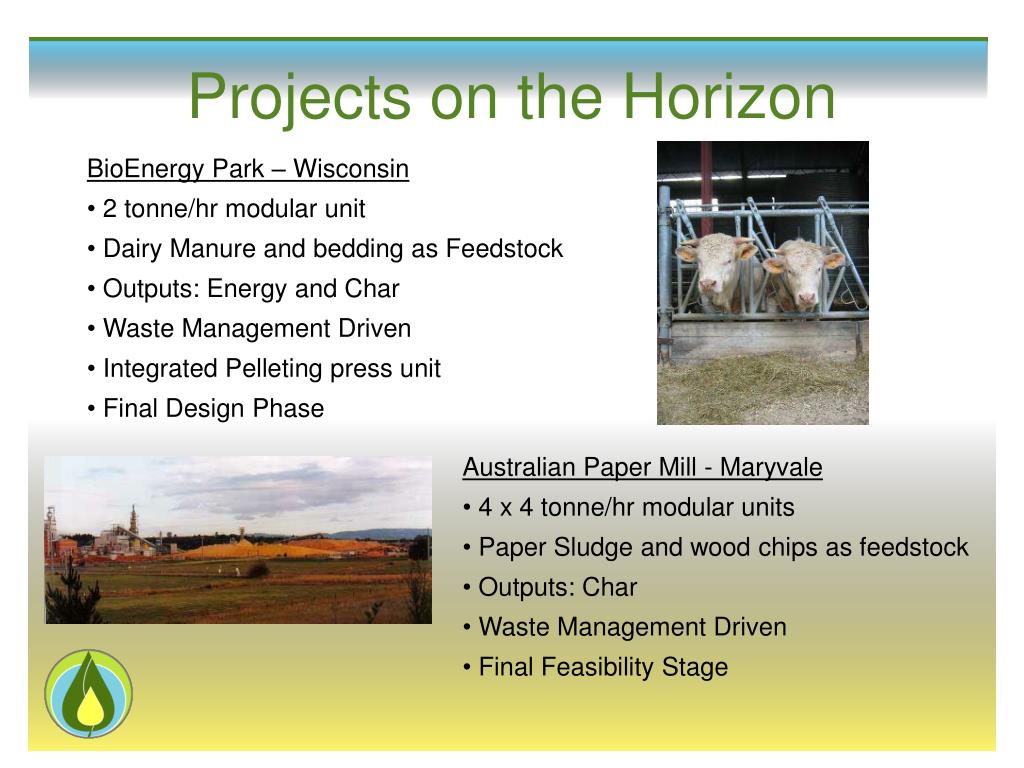

Projects on the Horizon

BioEnergy Park – Wisconsin

  • 2 tonne/hr modular unit
  • Dairy Manure and bedding as Feedstock
  • Outputs: Energy and Char
  • Waste Management Driven
  • Integrated Pelleting press unit
  • Final Design Phase

Australian Paper Mill - Maryvale

  • 4 x 4 tonne/hr modular units
  • Paper Sludge and wood chips as feedstock
  • Outputs: Char
  • Waste Management Driven
  • Final Feasibility Stage
slide17

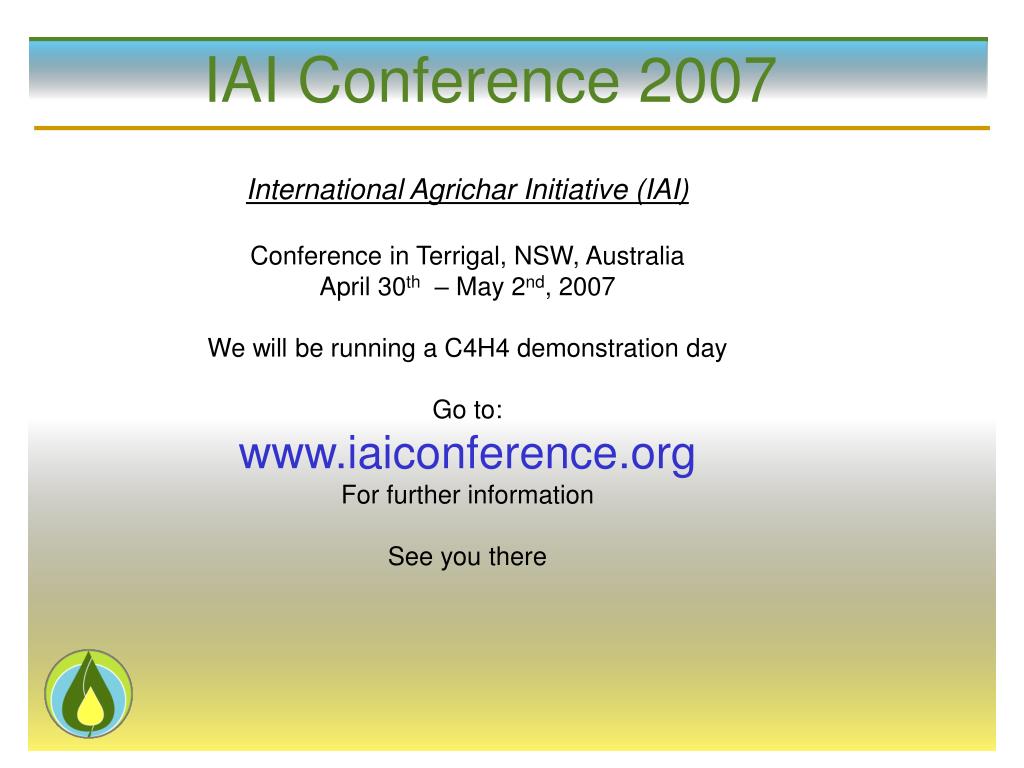

IAI Conference 2007

International Agrichar Initiative (IAI)

Conference in Terrigal, NSW, Australia

April 30th – May 2nd, 2007

We will be running a C4H4 demonstration day

Go to:

www.iaiconference.org

For further information

See you there

slide18

BEST Energies Australia Pty Ltd

56 Gindurra Road Somersby

NSW 2250, Australiaphone: +61 2 4340 4911

fax: +61 2 4340 4878email: info@bestenergies.com.au
