slide1

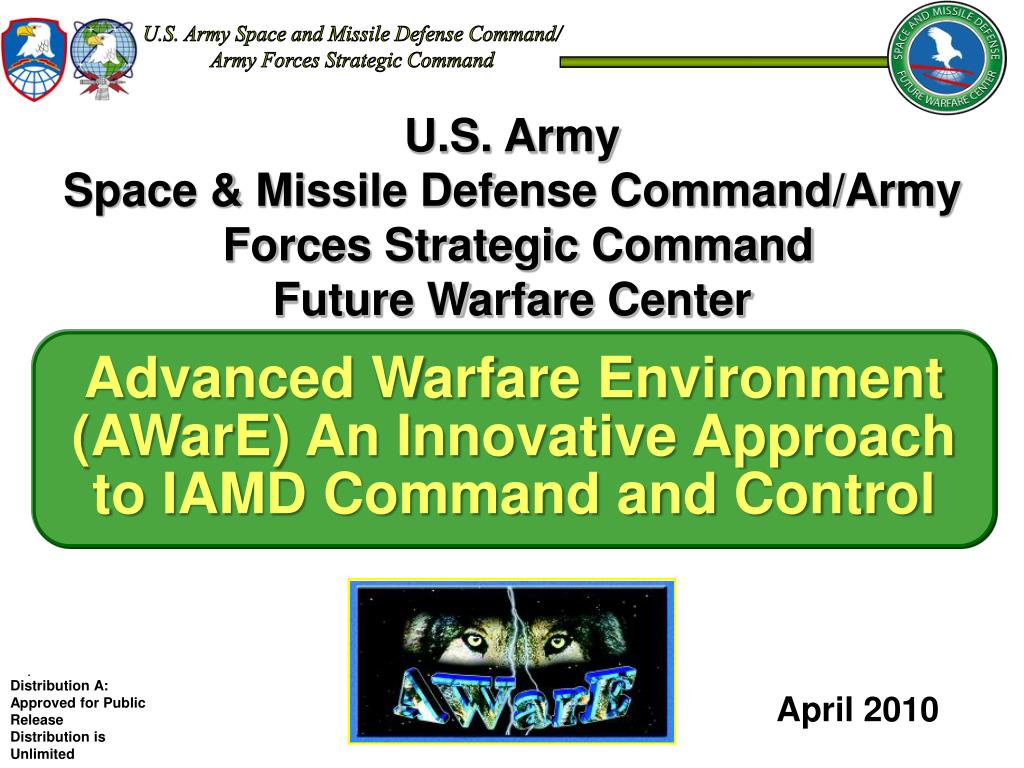

U.S. ArmySpace & Missile Defense Command/Army

Forces Strategic Command

Future Warfare Center

Advanced Warfare Environment (AWarE) An Innovative Approach to IAMD Command and Control

.

Distribution A: Approved for Public Release Distribution is Unlimited

April 2010

slide2

Commanding General

Director

Future Warfare Center

Deputy

Commanding General

for Operations

Deputy to the Commander

for Research, Development

and Acquisition

Innovative DOTMLPF Integration

- Battle Lab

- Directorate of Combat

Development

- Decision Support Directorate

Operational Forces

- 100th Missile Defense Brigade (GMD)

- 1st Space Brigade

- Astronaut Detachment

- Ballistic Missile Defense Systems Manager

- Space Personnel Proponency Office

Research, Development and Acquisition Efforts

- Technical Center

- Test and Warfighter Solutions

Center

- USAKA/RTS and HELSTF

- Contracting and Acquisition

MATERIEL

REQUIREMENTS

OPERATIONS

space and missile defense future warfare center

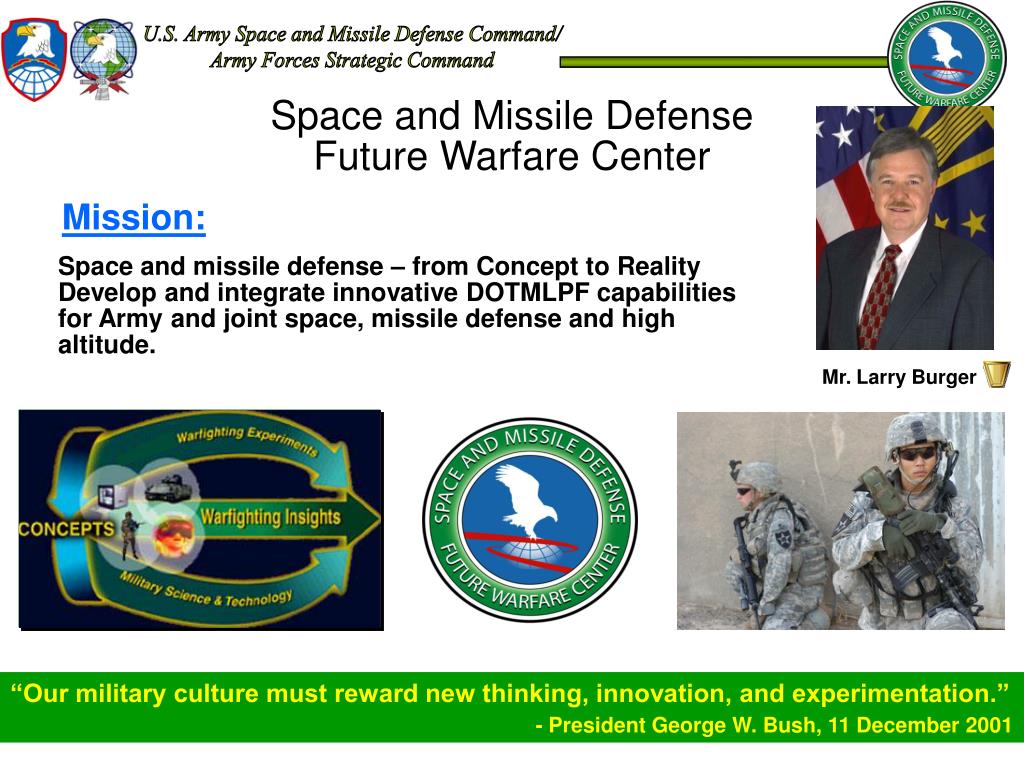

Space and Missile Defense Future Warfare Center

Mission:

Space and missile defense – from Concept to Reality Develop and integrate innovative DOTMLPF capabilities for Army and joint space, missile defense and high altitude.

Mr. Larry Burger

“Our military culture must reward new thinking, innovation, and experimentation.”

- President George W. Bush, 11 December 2001

slide4

Space and Missile Defense

Future Warfare Center

Director / Deputy Director

Innovative

Ventures Office

Operations

Division

JADO-H

JT&E Office

SMD Battle Lab

Directorate of Combat Development

Decision Support Directorate

Operations Division

Missile Defense Division

Missile Capabilities Division

Studies & AnalysisDivision

Concepts & Wargames

Division

Space Capabilities Division

Models & SimulationsDivision

Experimentation Division

Training & Doctrine Division

Information and Computational Engineering Division

Space Division

Joint Blue Force Tracking Division

Force Development

Division

JADO-H: Joint Air Defense Operations - Homeland

JT&E: Joint Test and Evaluation

slide5

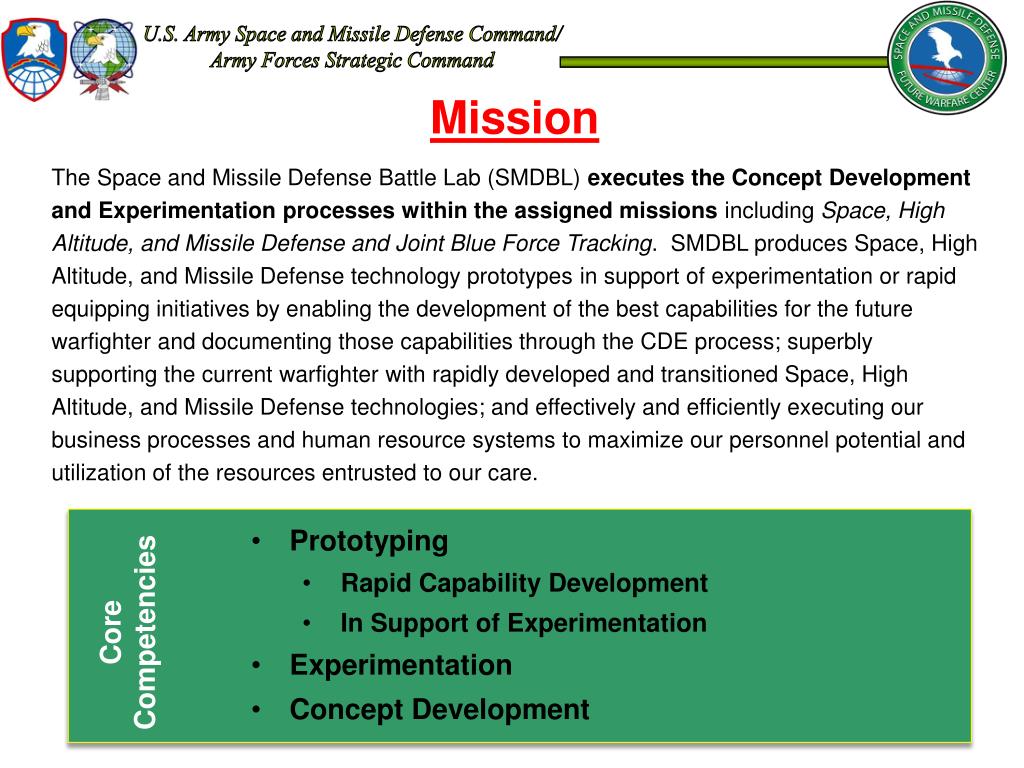

Mission

The Space and Missile Defense Battle Lab (SMDBL) executes the Concept Development and Experimentation processes within the assigned missions including Space, High Altitude, and Missile Defense and Joint Blue Force Tracking. SMDBL produces Space, High Altitude, and Missile Defense technology prototypes in support of experimentation or rapid equipping initiatives by enabling the development of the best capabilities for the future warfighter and documenting those capabilities through the CDE process; superbly supporting the current warfighter with rapidly developed and transitioned Space, High Altitude, and Missile Defense technologies; and effectively and efficiently executing our business processes and human resource systems to maximize our personnel potential and utilization of the resources entrusted to our care.

  • Prototyping
    • Rapid Capability Development
    • In Support of Experimentation
  • Experimentation
  • Concept Development

Core Competencies

slide6

Prototyping Approach Part 1

  • How do we do it?:
  • Leverage prior investment
  • Maintain core services in a government off the shelf (GOTS) prototyping platform
  • Organize community of the willing to participate
  • Provide value to our customer at minimal cost
  • Thought Process:
      • Gap Analysis – Problem Statement
      • What are we trying to demonstrate?
      • How much can be done with available services?
      • What functionality needs to be added to acquire experimental observations?
      • “Best available” vice “good enough” tradeoffs
slide7

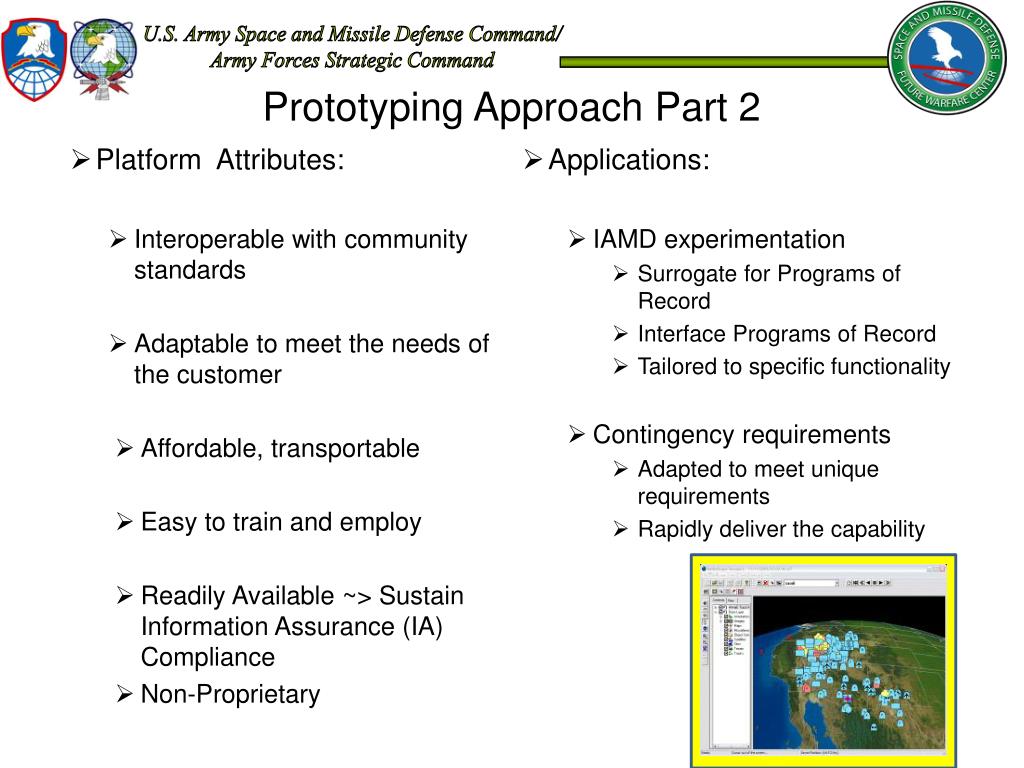

Prototyping Approach Part 2

  • Applications:
    • IAMD experimentation
      • Surrogate for Programs of Record
      • Interface Programs of Record
      • Tailored to specific functionality
    • Contingency requirements
      • Adapted to meet unique requirements
      • Rapidly deliver the capability
  • Platform Attributes:
    • Interoperable with community standards
    • Adaptable to meet the needs of the customer
    • Affordable, transportable
    • Easy to train and employ
    • Readily Available ~> Sustain Information Assurance (IA) Compliance
    • Non-Proprietary
slide8

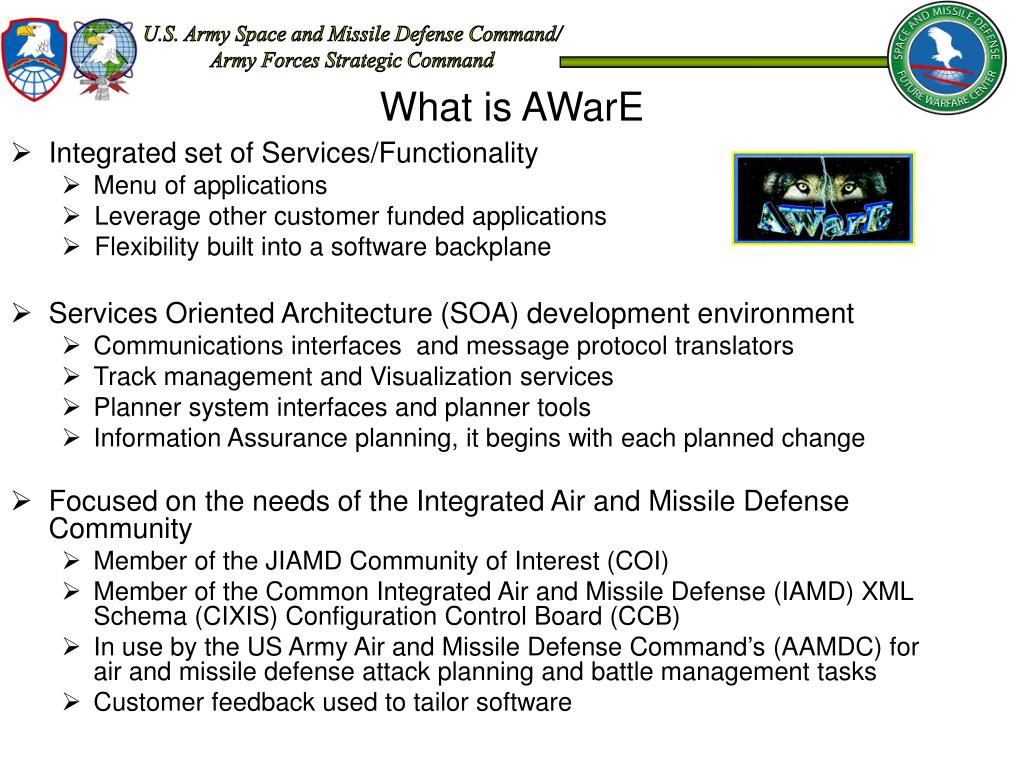

What is AWarE

  • Integrated set of Services/Functionality
    • Menu of applications
    • Leverage other customer funded applications
    • Flexibility built into a software backplane
  • Services Oriented Architecture (SOA) development environment
    • Communications interfaces and message protocol translators
    • Track management and Visualization services
    • Planner system interfaces and planner tools
    • Information Assurance planning, it begins with each planned change
  • Focused on the needs of the Integrated Air and Missile Defense Community
    • Member of the JIAMD Community of Interest (COI)
    • Member of the Common Integrated Air and Missile Defense (IAMD) XML Schema (CIXIS) Configuration Control Board (CCB)
    • In use by the US Army Air and Missile Defense Command’s (AAMDC) for air and missile defense attack planning and battle management tasks
    • Customer feedback used to tailor software
slide9

Advanced Warfare Environment(AWarE) Functional Overview

System

Activity Model

Communications

Distributive, Collaborative Planning

Intelligence Preparation

Of BattleSpace

  • SATCOM
  • UHF
  • VHF
  • SHF
  • Network
  • Etc…..
  • Tactical Feeds
  • USMTF
  • C2PC - Database
  • OTH Gold
  • JSTARS - NATO (MTI) (AGS)
  • DIS - PDU
  • Radar Feeds
  • TADIL-J
  • COT (XML)
  • CIXS (XML)
  • - TIBS
  • TDDS

Blue

Red

Operational Control (Force & Engagement Operations)

  • Windows-Based
  • MS Office
  • MS Tools
  • CJMTK/ARC GIS
  • FalconView
  • BattleScape
  • STK

Shared Situational Awareness

Distribution A: Approved for Public Release

Distribution is Unlimited

Analysis

slide10

Prototyping Case Study #1

Air and Missile Defense Experimentation

  • Case Study #1
    • Customer: TRADOC Capability Manager
    • Role: AMD Experimentation
    • Demonstrate engagement coordination and C2

functions over 3011C to multiple AMD systems

  • Available Functional Areas
    • Message Services
    • Track Management
    • Visualization (Map/Image/Terrain etc…)
    • Battlefield Geometries (Airspace Control Order)
  • Operating Environment
    • Coordination message sets
    • 3011C Engagement Net
  • Result
    • TTP and CONOPS development for IAMD engagement coordination
    • Message sets and engagement capabilities incorporated into Government Owned baseline
slide11

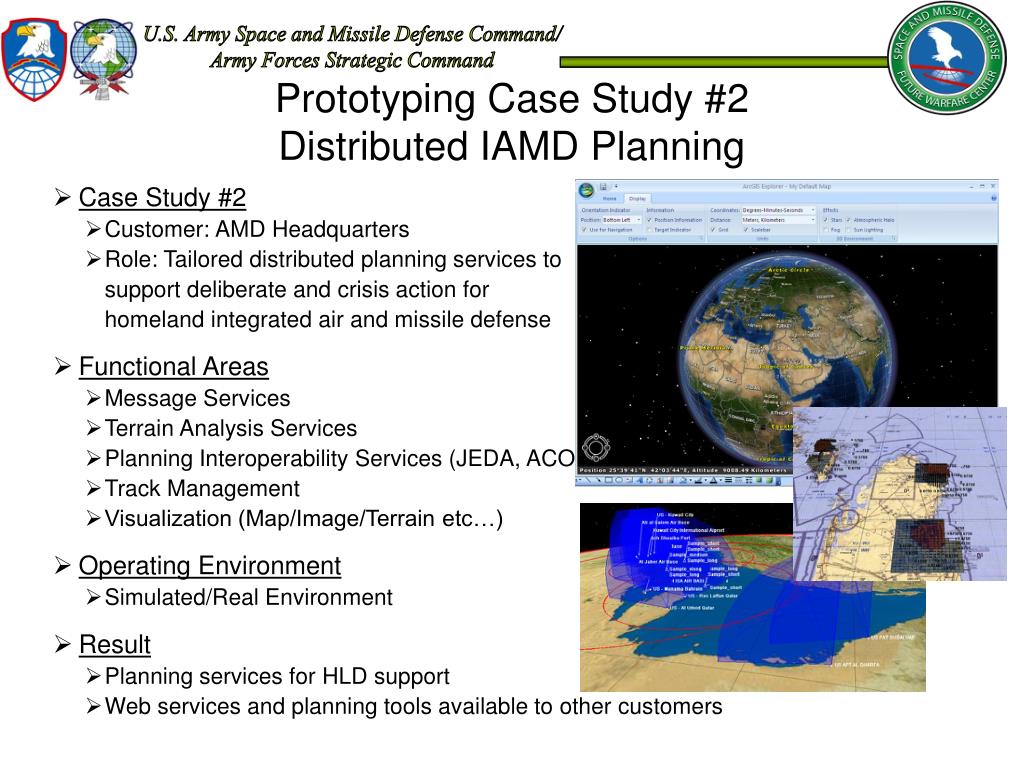

Prototyping Case Study #2

Distributed IAMD Planning

  • Case Study #2
    • Customer: AMD Headquarters
    • Role: Tailored distributed planning services to

support deliberate and crisis action for

homeland integrated air and missile defense

  • Functional Areas
    • Message Services
    • Terrain Analysis Services
    • Planning Interoperability Services (JEDA, ACO)
    • Track Management
    • Visualization (Map/Image/Terrain etc…)
  • Operating Environment
    • Simulated/Real Environment
  • Result
    • Planning services for HLD support
    • Web services and planning tools available to other customers
slide12

Prototyping Case Study #3

Fire Coordination Cell (FCC)

  • Case Study #3
    • Customer: US Army Composite AMD Battalion Headquarters (Patriot / Avenger)
    • Role: Manage three-dimensional Air and Missile Defense Battlespace for all threat sets and US Army Air and Missile Defense systems
  • Functional Areas
    • Force Operations and Engagement Operations
    • Track Management
    • Visualization (Map/Image/Terrain etc…)
    • Collaborative Physical Enclave
    • Voice Over IP Collaboration Systems
  • Operating Environment
    • Simulated/Real Environment
  • Result
    • Fielded Prototype
    • Low cost, high payoff leverage of COTS/GOTS technology
aware tactical communications architecture
AWarE Tactical Communications Architecture

BattleScape™

STK®

FalconView

CJMTK/

TIGER

Google

Earth-KML

Others

BattleVision®…

AWarE BackPlane (XML - CIXS, CoT, CMF etc…)

Tactical Feed Controller

Geometry Controller

DIS-PDU

3rd Party …

Others…

Others…

BFT

IAMD

THAAD

TADIL- J

GCCS/C2PC

USMTF

C2BMC

TIBS/TDDS

Data Source

Data Translator

Data Bus

Viewer/App
