Tearing Strength Tester i9 (12.8 Kg)

Paramount Tearing Strength Tester i9u2122 (12.8 KGS) is made of Mild Steel & Stainless-Steel. It is ergonomically designed, consisting of a sector pendulum pivoted on anti-friction ball bearing on a vertical bracket fixed on a rigid metallic base.<br><br>

Paramount2
Download Presentation

Tearing Strength Tester i9 (12.8 Kg)

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

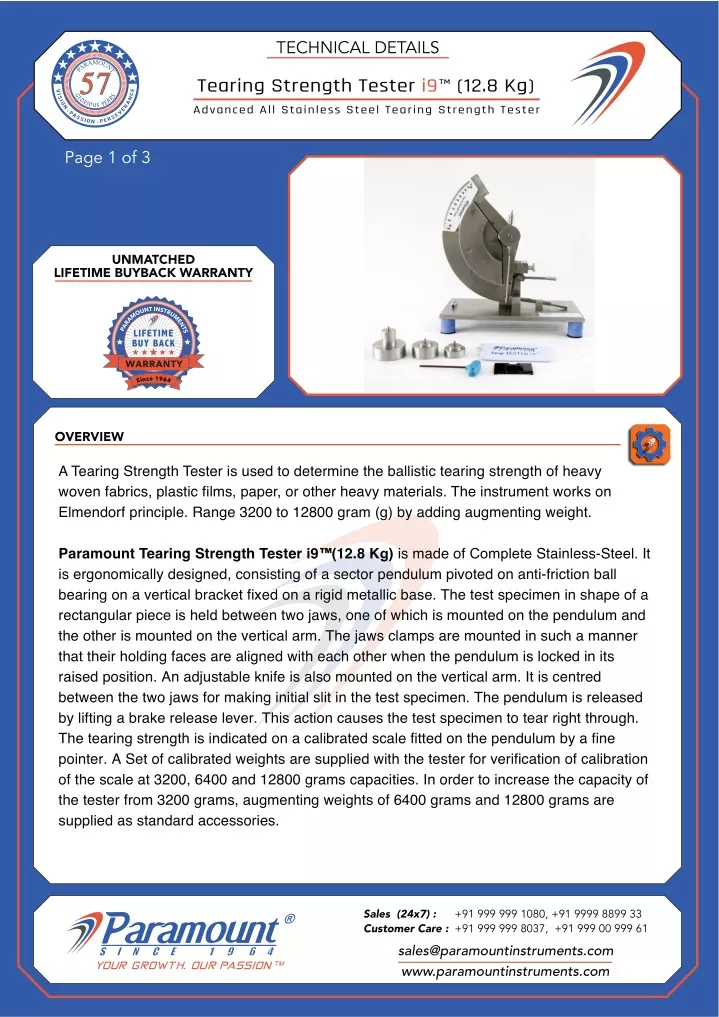

  1. TECHNICAL DETAILS TearingStrengthTesteri9™(12.8Kg) Advanced All Stainless Steel Tearing Strength Tester Page 1 of 3 UNMATCHED LIFETIME BUYBACK WARRANTY OVERVIEW A Tearing Strength Tester is used to determine the ballistic tearing strength of heavy woven fabrics, plastic films, paper, or other heavy materials. The instrument works on Elmendorf principle. Range 3200 to 12800 gram (g) by adding augmenting weight. Paramount Tearing Strength Tester i9™ (12.8 Kg) is made of is ergonomically designed, consisting of a sector pendulum pivoted on anti-friction ball bearing on a vertical bracket fixed on a rigid metallic base. The test specimen in shape of a rectangular piece is held between two jaws, one of which is mounted on the pendulum and the other is mounted on the vertical arm. The jaws clamps are mounted in such a manner that their holding faces are aligned with each other when the pendulum is locked in its raised position. An adjustable knife is also mounted on the vertical arm. It is centred between the two jaws for making initial slit in the test specimen. The pendulum is released by lifting a brake release lever. This action causes the test specimen to tear right through. The tearing strength is indicated on a calibrated scale fitted on the pendulum by a fine pointer. A Set of calibrated weights are supplied with the tester for verification of calibration of the scale at 3200, 6400 and 12800 grams capacities. In order to increase the capacity of the tester from 3200 grams, augmenting weights of 6400 grams and 12800 grams are supplied as standard accessories. Complete Stainless-Steel. It Sales (24x7) : +91 999 999 1080, +91 9999 8899 33 Customer Care : +91 999 999 8037, +91 999 00 999 61 sales@paramountinstruments.com www.paramountinstruments.com

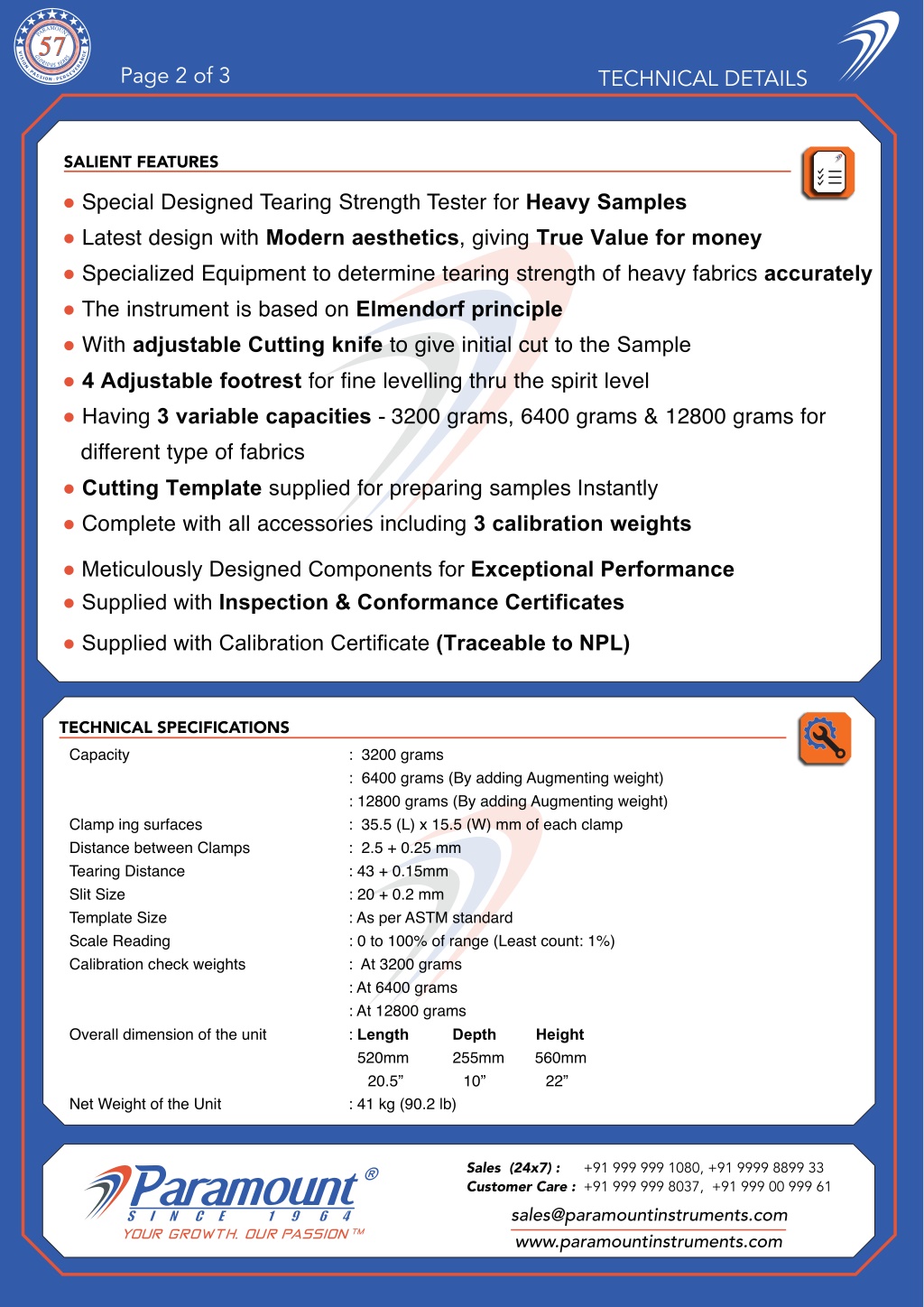

  2. Page 2 of 3 TECHNICAL DETAILS SALIENT FEATURES ●SpecialDesigned Tearing ●Latestdesign ●Specialized ● The instrument Strength Tester Modern Equipment is based on Heavy Samples for aesthetics, True Value heavy formoney fabrics with giving of accurately to determine tearing strength principle Elmendorf adjustable Cutting knife Sample ● With to give initial cut to the ● 4 Adjustable footrest for fine levelling thru the spirit level Having 3 variable capacities - 3200 ● different grams, 6400 grams & 12800 grams for type of fabrics Template Cutting supplied samples Instantly ● for preparing including 3 calibration weights ● Complete with all accessories Meticulously Designed Components for ExceptionalPerformance Supplied with Inspection&Conformance Supplied with Calibration Certificate (TraceabletoNPL) ● Certificates ● ● TECHNICAL SPECIFICATIONS Capacity Clamp ing surfaces Distance between Clamps Tearing Distance : 3200 grams : 6400 grams (By adding Augmenting weight) : 12800 grams (By adding Augmenting weight) : 35.5 (L) x 15.5 (W) mm of each clamp : 2.5 + 0.25 mm : 43 + 0.15mm Slit Size Template Size Scale Reading : 20 + 0.2 mm : As per ASTM standard : 0 to 100% of range (Least count: 1%) Calibration check weights Overall dimension of the unit 20.5” 10” 22” Net Weight of the Unit : At 3200 grams : At 6400 grams : At 12800 grams : Length Depth Height 520mm 255mm 560mm : 41 kg (90.2 lb) Sales (24x7) : +91 999 999 1080, +91 9999 8899 33 Customer Care : +91 999 999 8037, +91 999 00 999 61 sales@paramountinstruments.com www.paramountinstruments.com

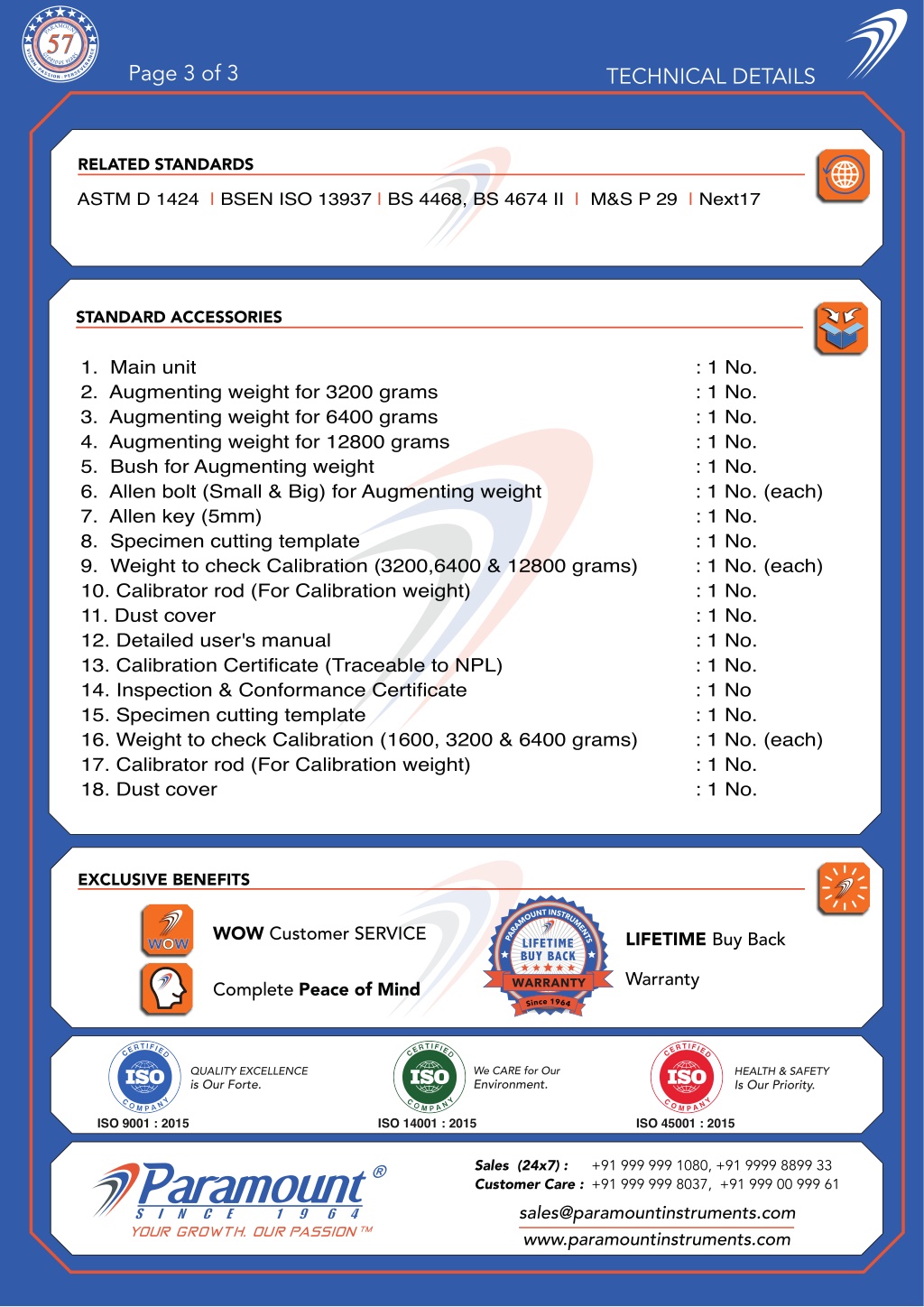

  3. Page 3 of 3 TECHNICAL DETAILS RELATED STANDARDS ASTM D 1424 | BSEN ISO 13937 | BS 4468, BS 4674 II | M&S P 29 | Next17 STANDARD ACCESSORIES 1. Main unit 2. Augmenting weight for 3200 grams 3. Augmenting weight for 6400 grams 4. Augmenting weight for 12800 grams 5. Bush for Augmenting weight 6. Allen bolt (Small & Big) for Augmenting weight 7. Allen key (5mm) 8. Specimen cutting template 9. Weight to check Calibration (3200,6400 & 12800 grams) 10. Calibrator rod (For Calibration weight) 11. Dust cover 12. Detailed user's manual 13. Calibration Certificate (Traceable to NPL) 14. Inspection & Conformance Certificate 15. Specimen cutting template 16. Weight to check Calibration (1600, 3200 & 6400 grams) 17. Calibrator rod (For Calibration weight) 18. Dust cover : 1 No. : 1 No. : 1 No. : 1 No. : 1 No. : 1 No. (each) : 1 No. : 1 No. : 1 No. (each) : 1 No. : 1 No. : 1 No. : 1 No. : 1 No : 1 No. : 1 No. (each) : 1 No. : 1 No. EXCLUSIVE BENEFITS WOW Customer SERVICE LIFETIME Buy Back Warranty Complete Peace of Mind We CARE for Our Environment. QUALITY EXCELLENCE is Our Forte. HEALTH & SAFETY Is Our Priority. ISO 9001 : 2015 ISO 14001 : 2015 ISO 45001 : 2015 Sales (24x7) : +91 999 999 1080, +91 9999 8899 33 Customer Care : +91 999 999 8037, +91 999 00 999 61 sales@paramountinstruments.com www.paramountinstruments.com
